USER MANUAL KDC-422 KENWOOD

KDC-M PV622 KENWOOD CORPORATION

KDC-MPV6022 dE sn DIGITAL AUDIO Satellite Radio Take the time to read through this instruction manual. A ‘ 2 ‘ 2 4; 2 ‘ 2 Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver. For your records Record the serial number, found on the back of the unit, in the spaces = designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product Model KDC-X569/MP522/MPV622/MPV6022/X469/422/4022/3022/822 Serial number © B64-2516-00/00 (KW)

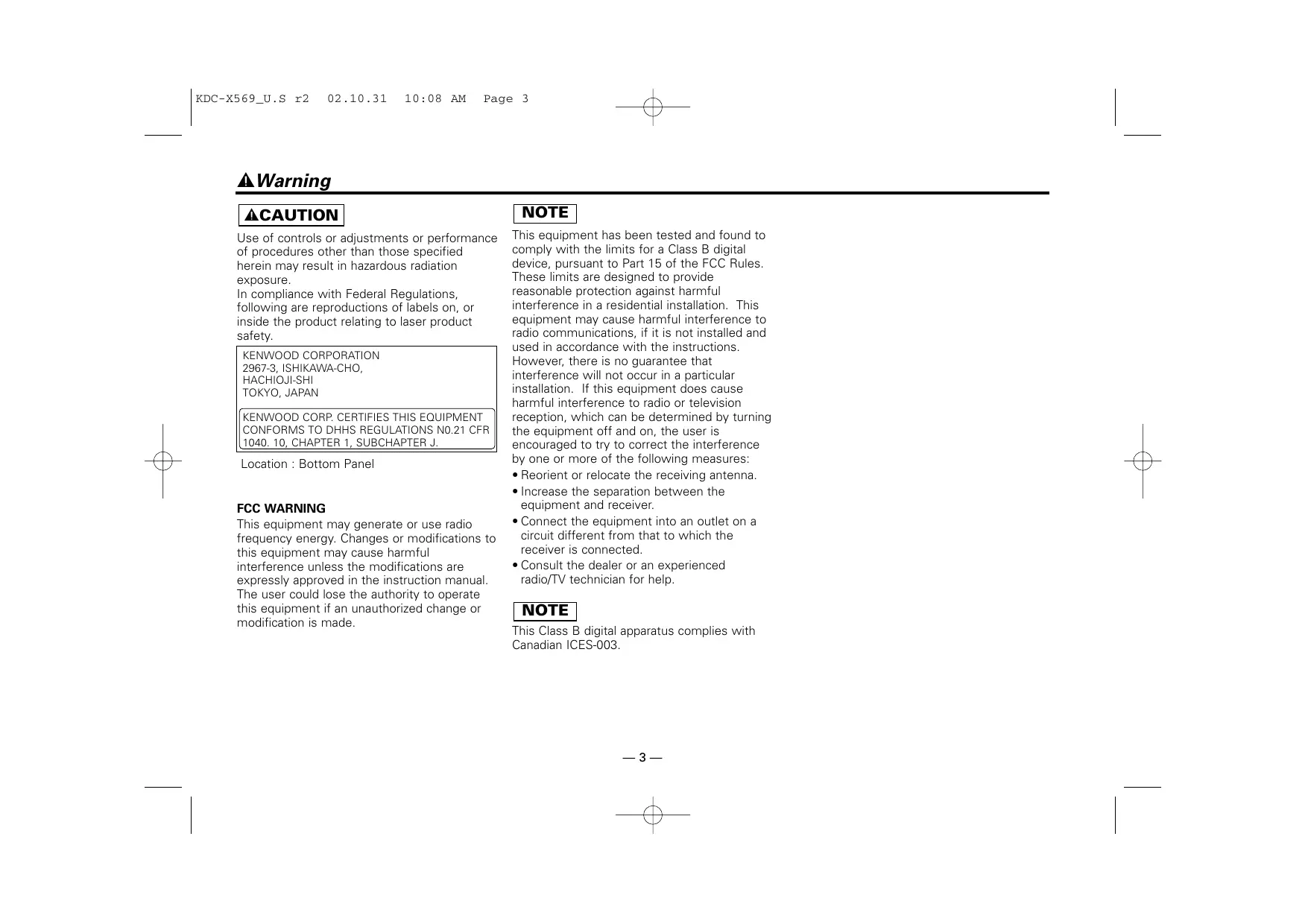

A Warning KDC-X569_U.S r2 02.10.31 10:08 AM Page 3 PF Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. KENWOOD CORPORATION 2967-3, ISHIKAWA-CHO, HACHIOJI-SHI TOKYO, JAPAN

Location : Bottom Panel FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected! + Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003

Safety precautions To prevent injury or fire, take the following precautions: + Insert the unit all the way in until it is fully locked in place. Otherwise it may fall out of place when jolted + When extending the ignition, battery, or ground wires, make sure to use automotive- grade wires or other wires with a 0.75mm* (AWG18) or more to prevent wire deterioration and damage to the wire coating + To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. + If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer. + Make sure not to get your fingers caught between the faceplate and the unit. + Be careful not to drop the unit or subject it to strong shock The unit may break or crack because it contains glass parts + Do not touch the liquid crystal fluid if the LCD is damaged or broken due to shock. The liquid crystal fluid may be dangerous to your health or even fatal If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately. ACAUTION To prevent damage to the machine, take the following precautions: + Make sure to ground the unit to a negative 12V DC power supply. + Do not open the top or bottom covers of the unit + Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. + Do not set the removed faceplate or the faceplate case in areas exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. + To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers. + Do not subject the faceplate to excessive shock, as it is a piece of precision equipment. e When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction. + To prevent a short circuit when replacing a fuse, first disconnect the wiring harness + Do not place any object between the faceplate and the unit. + Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit. IMPORTANT INFORMATION About CD players/disc changers connected to this unit KENWOOD disc changers/ CD players released in 1998 or later can be connected to this unit Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players Note that any KENWOOD disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit Unsupported connection may result in damage Setting the "O-N" Switch to the "N' position for the applicable KENWOOD disc changers/ CD players. The functions that can be used and the information that can be displayed will differ depending on the models being connected. You can damage both your unit and the CD changer if you connect them incorrectiy. Do Not Load 3-in. CDs in the CD slot If vou try to load a 3 in. CD with its adapter into the unit, the adapter might separate from the CD and damage the unit

KDC-X569_U.S r2 02.10.31 10:09 AM Page 5 PF

About Sirius Satellite radio tuner Cleaning the Unit Refer to the instruction manual of Sirius If the faceplate of this unit is stained, wipe it Satellite radio tuner KTC-SR901 (optional + If you experience problems during with a dry soft cloth such as a silicon cloth accessory}, when connected, for the operation installation, consult your Kenwood dealer. If the faceplate is stained badly, wipe the stain Method. + If the unit does not seem to be working off with a cloth moistened with neutral KDC-X569/ MP522/ MPV622/ MPV6022/ X469/ right, try pressing the reset button first. If cleaner, then wipe neutral détergent off. 422/ 4022/ 3022/ 322 that does not solve the problem, consult Applving spray cleaner directly to the unit may Refer to the sections of A models for your Kenwood dealer. affect its mechanical parts. Wiping the operations. + Press the reset button if the Disc auto faceplate with a hard cloth or using a volatile mp 144 changer fails to operate correctly. Normal liquid such as thinner or alcohol may scratch operation should be restored the surface or erases characters Cleaning the CD Slot As dust tends to accumulate in the CD slot, clean it every once in a while. Your CDs can get scratched if you put them in a dusty CD slot. Reset button + Characters in the LCD may become difficult to read in temperatures below 41 ‘F (5 ‘C) + The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the ilustrations on Lens Fogging the display may represent something impossible in actual operation Right after you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called Cleaning the Faceplate Terminals lens fogging, CDs may be impossible to play. If the terminals on the unit or faceplate get In such a situation, remove the disc and wait dirty, wipe them with a dry, soft cloth for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

Notes on playing MP3 This unit can play MP3(MPEG1, 2, 2.5 Audio Layer 3). Note, however, that the MP3 recording media and formats acceptable are limited. When writing MP3, pay attention to the following restrictions. Acceptable media The MP3 recording media acceptable to this unit are CD-ROM, CD-R, and CD-RW. When using CD-RW, do full format not quick format to prevent malfunction. Acceptable medium formats The following formats are available for the media used in this unit. The maximum number of characters used for file name including the delimiter (".") and three-character extension are indicated in parentheses. + 1SO 9660 Level 1 (12 characters) + 1SO 9660 Level 2 (31 characters) + Joliet (64 characters) + Romeo (128 characters) Up to 200 characters can be displayed in the long file name format. For a list of available characters, see the instruction manual of the writing software and the section Entering file and folder names below. The media reproducible on this unit has the following limitations: + Maximum number of directory levels: 8 + Maximum number of files per folder: 255 + Maximum number of characters for folder name: 64 + Maximum number of folders: 50 MP3 written in the formats other than the above may not be successfully played and their file names or folder names are not properly displayed. Settings for your MP3 encoder and CD writer Do the following setting when compressing audio data in MP3 data with the MP3 encoder. + Transfer bit rate: 8 —320 kbps + Sampling frequency: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz When you use your CD writer to record MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to the maximum capacity at once, check Disc at Once: Entering ID3 tag The Displayable ID3 tag is ID3 version 1x. For the character code, refer to the List of Codes. Entering file and folder names The code list characters are the only file names and folder names that can be entered and displayed. If you use any other character for entry, the file and folder names are not displayed correctly. They may neither be displayed correctly depending on the CD writer used The unit recognizes and plays only those MP3 which have the MP3 extension (.MP3). &) A fe with a name entered with characters not on the code list may not play correctiy. Ehoronespep CEE-EE ER Tree

Writing files into a medium When a medium containing MP3 data is loaded, the unit checks all the data on the medium. If the medium contains a lot of folders or non- MP3 files, therefore, it takes a long time until the unit starts playing MP3. In addition, it may take time for the unit to move to the next MP3 file or a File Search or Folder Search may not be performed smoothly. Loading such a medium may produce loud noise to damage the speakers + Do no attempt to play a medium containing a non-MP3 file with the MP3 extension The unit mistakes non-MP3 files for MP3 data as long as they have the MP3 extension. + Do not attempt to play a medium containing non MP3. —_6—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 7 MP3 playing order When a File Search is executed with file D® being played … When selected for play, Folder Search, File Search, or for Folder Select, files and folders are accessed in the order in which they were Current Operation of the button file number En written by the CD writer. ia Button But Because of this, the order in which they are expected to be played © Begining fe may not match the order in which they are actually played. You may be able to set the order in which MP3 are to be played by writing them FCEEC onto a medium such as a CD-R with their file names beginning with When a Folder Search is executed with file D@ being played . play sequence numbers such as 01" to "99", depending on your CD s Current peration of the button writer. folder number AM Button FM Button For example, a medium with the following folder/ file hierarchy is subject to Folder Search, File Search, or Folder Select as shown below. Gr ÉDGDMDEUEHES Example of a medium's folder/file hierarchy = When Folder Select is selected with file @ being played to move @(() from folder t Current Operation of the button folder number [ka Buton | w»iButon | AMButon | FMButton ne el (el œ al — de (1 roider

About CDs Handling CDs + Don't touch the recording surface of the CD + CD-R and CD-RW are easier to damage than a normal music CD. Use a CD-R or a CD-RW after reading the caution items on the package etc. + Don't stick tape etc. on the CD: Also, don't use a CD with tape stuck on it. When using a new CD Ifthe CD center hole or outside rim has burrs, use it after removing them with a ball pen etc CD accessories Don't use disc type accessories. CD cleaning Clean from the center of the disc and move outward CES Removing CDs When removing CDs from this unit pull them out horizontally. CDs that can't be used + CDs that aren't round can't be used. + CDs with coloring on the recording surface or that are dirty can't be used + This unit can only play the CDs with Hisquied EE] It may not correctly play disks which do not have the mark. + A CD-R or CD-RW that hasn't been finalized can't be played. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD-R/CD-RW recorder instruction manual.) CD storage + Don't place them in direct sunlight (On the seat or dashboard etc.) and where the temperature is high + Store CDs in their cases.

LSsses mm me Turning ON the Power Press the [SRC] button. When the power is ON, the <Security Code> {page 22) is displayed as "CODE ON' or "CODE OFF Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Press the [SRC] button. Source required Display Tuner TUNER" | cD CD" D External disc (Optional accessory) “DISC CH'/"CD2" D Auxiliary input “AUX "AUXT" (Optional accessory: KDC-X569/ MP522/ MPV622/ X469/ 422/ 4022/ 3022/ 322) Standby (llumination only mode) "ALL OFF Increasing Volume Turn the [VOL] knob clockwise. Decreasing Volume Turn the [VOL] knob counterclockwise.

KDC-X569_U.S r2 02.10.31 10:09 AM Page 10 General features You can recall the best sound setting preset for different types of music. 1 Select the source to set Press the [SRC] button. 2 Select the Sound type Press the [System Q] button. Each time the button is pressed the sound setting switches. Sound setting Display Flat “Flat "FLAT" User memon “User/ "USER" Rock Rock'/ "ROCK" Pops “Pops'/"POPS" Easy “Easy/ "EASY" Top 40 “Top40"/"TOP40" Jezz Vazz1 "JAZZ" User memory: The values set on the <Audio control> (page 10). Each setting value is changed with the <Speaker setting> (page 11). First, select the speaker type with the Speaker setting Audio Contr 1 Select the source for adjustment Press the [SRC] button. 2 Enter Audio Control mode Press the [AUD] button for at least 1 second. 3 Select the Audio item for adjustment Press the [FM] or [AM] button. Each time the button is pressed the items that can be adjusted —_10— switch as shown below. Adjust the Audio item Press the [-#4] or [æ»1] button. Adjustment item Display Range Bass Center Frequency* "Bass F" 60/70/80/100 or 150

Bass level "Bass'/"BAS" —8— +8 Bass Q Factor* "Bass O" 1.00/1.25/1.50/2.00 Bass Extend* "Bass EXT" ON/OFF Middle Center "MID F° 0.5/1.0/1.5/2.0 kHz Frequency* Middle level “Middie/ "MID" -8 — +8 Middle Q Factor* “Middle Q" 1.0/2.0 Treble Center Frequency*'TRE F° 10.0/12.5/15.0/17.5 kHz Treble level Treble'/ "TRE" —8— +8 Balance "Balance"/"BAL"_ Left 15 — Right 15 Fader "Fader'/"FAD" Rear 15 — Front 15 Non-Fading level* * "NF Level" —15— +15 Front High Pass Filter* "HPF F' Through/100/125/ 170 Hz Rear High Pass Filter* __"HPF R" Through/200 Hz Front/Rear High Pass "HPF" Through/100/125/ Filter*** 170 Hz Non-Fading "LPF NF" 50/80/120/Through Low Pass Filter** Hz Volume offset "V-Offset'/"V-OFF" -8 — +0 Loudness “LOUD" ON/OFF + According to the Bass Q Factor setting value, the frequencies that can be set in Bass Center Frequency change as shown below. Bass Q Factor Bass Center Frequency 1.00/1.25/1.50 60/70/80/100

KDC-X569_U.S r2 02.10.31 10:09 AM Page 11 + When the bass extend is set to ON, low frequency response is extended by 20%. + Volume offset: Each source's volume can be set as a difference from the basic volume. + Loudness: Compensating for low and high tones during low volume. + * Function of the KDC-X569/ X469 ** Function of the KDC-X569/ MP522/ MPV622/ MPV6022/ X469/ 422/ 4022 *** Function of the KDC-MP522/ MPV622/ MPV6022/ 422/ 4022 5 Exit Audio Control mode Press the [AUD] button. EXTTES g Fine-tuning so that the System Q value is optimal when setting the speaker type. 1 Enter Standby Press the [SRC] button. Select the "ALL OFF display. 2 Enter Speaker Setting mode Press the [System Q] button. 3 Select the Speaker type Press the [-@4] or [æ»1] button. Each time the button is pressed the setting switches as shown below. Speaker type Display

For 5 & 4 in. speaker For 6 & 6x9 in. speaker For the OEM speaker 4 Exit Speaker Setting mode Press the [System Q] button. "SP 5/4inch'/"SP 5/4" "SP 6*9/6inch'/"SP 6*9/6"

Function of the KDC-X569/MP522/MPV622/MPV6022/X469/422/4022 Non-fading Output Turning the Non-fading output ON or OFF. Press the [NF] button for at least 1 second. Each time the button is pressed Non-fading output switches ON or OFF. When it's ON, "NF ON" is displayed

In MP3 source ching Di 12 . s Switching the information displayed. Information Dispev Proc the IDISBT b Song title & Artist name “TITLE” ress the [DISP] button. Album name & Artist name "ALBUM" Each time the button is pressed the display switches as shown Folder name FGLDER NAME below File name “FILE NAME” In Tuner source Track number & Play time "P-Time’ Information Display Disc name “DNPS" Station name "SNPS" Clock Frequency "BAND+FREQY "BAND+F° In Auxiliary input source Clock Information In CD & External disc source Auxiliary input name KDC-X569/ MP522/ MPV622/ MPV6022/ X469/ 422/ 4022: Clock Information Display Disc title Track title Track number & Play time Disc name Clock KDC-3022/ 322: Information Display Disc title (In External disc source) “D-TITLE" Track title (In External disc source) "T-TITLE" Track number & Play time “P-TIME" Disc name “DNPS" Clock I the Disc title, Track title, Song title & Artist name, or Album name & Artist name is selected when the disc which does not have Disc title, Track title, Song title, Album name, or Artist name is played, track number and play time are displayed g (SNPS/DNPS) Attaching a title to a Station or CD. 1 Receive/play the station/disc you want to attach a title to + A title can't be attached to a MD. + Refer to the <Switching Display> (page 12) and select either "DNPS" or "SNPS" 2 Enter name set mode Press the [INAME.S] button for at least 2 seconds. "NAME SET" is displayed! 3 Move the cursor to the enter character position Press the [-#4] or [æ»1] button. —_12—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 13 4 Select the character type (KDC-X569/ MP522/ MPV622/ MPV6022/ X469/ 422/ 4022 only) Press the [»-11] button. Each time the button is pressed the character type switches as shown below. Character type Alphabet upper case Alphabet lower case Numbers and symbols Special characters (Accent characters) 5 Select the characters Press the [FM] or [AM] button. Characters can be entered by using a remote with a number buttons. Example: H'DANCE" is entered Character Button Times pressed "D' 131 ï A 12] 1 N° 161 2 c" 12] 3 E El 2 6 Repeat steps 3 through 5 and enter the name. 7 Exit name set mode Press the [INAME.S] button. When operation stops for 10 seconds the name at that time is registered, and Name Set mode closes. + Memory numbers - External CD changer/ player: Varies according to the CD changer/ player. Refer to the CD changer/ player manual. KDC-X569/ X469/ MP522/ MPV622/ MPV6022/ 4022/ 422: - FM: 32stations - AM: 16 stations - Internal CD player: 30 discs KDC-3022/ 322: - FM: 28stations - AM: 10 stations - Internal CD player: 10 discs + The title of station/CD can be changed by the same operation used to name it Selecting the display when this device is switched to Auxiliary input source. 1 Select Auxiliary input source Press the [SRC] button. Select the ‘AUX'/ "AUX" display. 2 Enter Auxiliary input display setting mode Press the [DISP] button for at least 2 seconds. The presently selected AUX Name is blinks. 3 Select the Auxiliary input display Press the [-@4] or [æ»1] button. Each time the button is pressed it switches through the below displays. + “AUX'/ "AUX" eV" + "VIDEO" +'GAME" + "PORTABLE" °‘DVD' 4 Exit Auxiliary input display setting mode Press the [DISP] button. When operation stops for 10 seconds, the name at that time is elected, and Auxiliary input display setting mode closes —_13—

General features Theft Deterrent Faceplate 2 Push the faceplate in until it clicks. - : The faceplate is locked in place, allowing you to use the unit The faceplate of the unit can be detached and taken with you, helping to deter theft. Removing the Faceplate 1 Press the Release button. Drop open the faceplate 2 Drawing the faceplate to left side pull it to the front and remove it. AN The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. For that reason, keep the faceplate in its special storage case while detached. + Do not expose the faceplate or its storage case to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. Reattaching the Faceplate 1 Align the shaft on the unit with the depression on the faceplate.

KDC-X569_U.S r2 02.10.31 10:09 AM Page 15 Tuner features SRC wi +44 Tuning Mode Choose the tuning mode. Press the [AUTO] button. Each time the button is pressed the Tuning mode switches as shown below. Tuning mode __ Display Operation Auto seek "Auto 1°/ Automatic search for a station "AUTO 1" Preset station "Auto 2 Search in order of the stations A 4 PL AUTÈAME seek "AUTO 2" in the Preset memory. 1 Manual "Menual} Normal manual tuning control “MANUAL"

ST indicator Preset station number (] | Tuning Frequency display Band display KDC-3022/322 ST indicator Preset station number L L

isplay Frequency display Selecting the station. 1 Select tuner source Press the [SRC] button. Select the TUNER‘ display. 2 Select the band Press the [FM] or [AM] button. Each time the [FM] button is pressed it switches between the FMI, FM2, and FM3 bands. 3 Tune up or down band Press the [-@4] or [æ»1] button. During reception of stereo stations the "ST indicator is ON. —_15—

02.10.31 10:09 AM Page 16

Tuner features ect Access Tuning (Function of remote) Entering the frequency and tuning. 1 Select the band Press the [FM] or [AM] button. 2 Enter Direct Access Tuning mode Press the [DIRECT] button on the remote. “is displayed 3 Enter the frequency Press the number buttons on the remote. Example: Desired frequency Press button

92.1 MHz (FM) [0], 19), 121, 11]

810 kHz (AM) 1), 181, [1], 10] Canceling Direct Access Tuning Press the [DIRECT] button on the remote. Station Preset Memory Putting the station in the memory. 1 Select the band Press the [FM] or [AM] button. 2 Select the frequency to put in the memory Press the [-#4] or [æ»1] button. 3 Put the frequency in the memory Press the desired [1] — [6] button for at least 2 seconds. The preset number display blinks 1 time. On each band, 1 station can be put in the memory on each [1] — [6] button. Auto Memory Entry Putting stations with good reception in the memory automatically. 1 Select the band for Auto Memory Entry Press the [FM] or [AM] button. 2 Open Auto Memory Entry Press the [AME] button for at least 2 seconds. When 6 stations that can be received are put in the memory Auto Memory Entry closes. Preset Tuning Calling up the stations in the memory. 1 Select the band Press the [FM] or [AM] button. 2 Call up the station Press the desired [1] — [6] button. —_16—

Page 18 un CD/MP3/External disc control features Playing CD & MP3 When there is no disc inserted 1 Drop open the faceplate Press the Release button. 2 Insert a disc. 3 Press the faceplate on the left side, and return it to its former position. {A * ren ine facepiate has been dropped open, it might interfere with the shift lever or something else. If this happens, pay attention to safety and move the shift lever or take an appropriate action, then operate the unit. + Do not use the unit with the faceplate in the open condition. If its used in the open position dust can enter the inside part and cause damage. The models that can play MP3 are shown below.

KDC-X569/ MP522/ MPV622/ MPV6022

+ When a disc is inserted, the "IN" indicator is ON. When a disc is inserted Press the [SRC] button. Select the "CD" display. Pause and play Press the [p-11] button. Each time the button is pressed it pauses and plays Eject the disc 1 Drop open the faceplate Press the Release button. 2 Eject the disc Press the [Æ] button. —_18— 3 Press the faceplate on the left side, and return it to its former position. AN 3 iv. Bon) disc can be played. Using an adapter and inserting them into this unit can cause damage. @ 1° MP3 media that this unit can play are CD-ROM, CD-R, and CD- RW. The medium formats must be ISO 9660 Level 1, Level 2, Joliet, or Romeo. The methods and precautions to be followed for writing MP3 data are covered in <Notes on playing MP3> (page 6) Check that section before creating your MP3 media Playing External C Playing discs set in the optional accessory disc player connected to this unit. Press the [SRC] button. Select the display for the disc player you want Display examples: Display Dise player "CD?" CD player "DISC CH CD changer/ MD changer Pause and play Press the [p-11] button. Each time the button is pressed it pauses and plays

+ Disc 10 is displayed as "0" + The functions that can be used and the information that can be displayed will differ depending on the external disc players being connected. Fast Forwarding and Reversing Fast Forwarding Hold down on the [»»1] button. Release your finger to play the disc at that point Reversing Hold down on the [-#4] button. Release your finger to play the disc at that point. Track/File Search Searching for a song on the disc or in the MP3 folder. Press the [-#4] or [æ»1] button. Disc/ Folder Search Disc Search (Function of disc changer) Folder Search (Function of MP3) Selecting the disc set in the Disc changer or the folder recorded on the MP3 media. Press the [DISC-] or [DISC+] button. Direct Track/File Search (Function of remote) (Direct File Search: Function of MP3) Doing Track/File Search by entering the track/file number. 1 Enter the track/file number Press the number buttons on the remote. 2 Do Track/File Search Press the [-@4] or [æ»1] button. Canceling Direct Track/File Search Press the [11] button. Direct Disc Search (Function of disc changers with remote) Doing Disc Search by entering the disc number. 1 Enter the disc number Press the number buttons on the remote. 2 Do Disc Search Press the [DISC+] or [DISC-] button. Canceling Direct Disc Search Press the [11] button. Input *0" to select disc 10. 19 —

CD/MP3/External disc control features Track/File/Disc/Folder Repeat Replaying the song, disc in the Disc changer or MP3 folder you're listening to. Press the [REP] button. Each time the button is pressed the Repeat Play switches as shown below. In CD & External disc source Repeat play Track Repeat Disc Repeat [In Disc Changer) Display "(MRepeat ON” TIREP ON" "D-Repeat ON "D-REP ON° OFF Repeat OFF "REP OFF" In MP3 source Repeat play Display File Repeat "File REP ON" Folder Repeat “FOLD REP ON° OFF "Repeat OFF" Playing the first part of each song on the disc or MP3 folder you are listening to and searching for the song you want to listen to. 1 Start Scan Play Press the [SCAN] button. "Scan ON'/ "SCAN ON" is displayed 2 Release it when the song you want to listen to is played Press the [SCAN] button. Random Play Play all the songs on the disc or MP3 folder in random order. Press the [RDM] button. Each time the button is pressed Random Play turns ON or OFF. When it's ON, "Random ON'/"RDM ON" is displayed. When the [BB] button is pressed, the next song select starts. Magazine Random Play (Function of disc changer) Play the songs on all the discs in the disc changer in random order. Press the IM.RDMI] button. Each time the button is pressed the Magazine Random Play turns ON or OFF. When it's ON, "M-Random ON'/"MRDM ON" is displayed When the [BB] button is pressed, the next song select starts. Function of the KDC-X569/KDC-MP522/KDC-MPV622/KDC-MPV6022 Folder Select (Function of MP3) Quickly selecting the folder you want to listen to. 1 Enter Folder Select mode Press the [F.SEL] button. *F' is displayed. During Select mode the folder information is displayed as shown below —_20—

<Folder name display> Displays the current folder name. 2 Select the folder level Press the [FMI] or [AM] button. With the [FM] button you move 1 level down and with the [AM] button 1 level up Selecting a folder in the same level Press the [-&4] or [æ»1] button. With the [-@4@] button you move to the previous folder, and with the Bæ1] button to the next folder. Returning to the top level Press the [3] button. 3 Decide the folder to play Press the [11] button. The Folder Select mode releases, and the MP3 in the folder being displayed is played. The methods for moving to other folders in the folder select mode are different from those in the folder search mode. See <Notes on playing MP8> (page 6) for details. Canceling the Folder Select mode Press the [F.SEL] button. Text/Title Scr Scrolling the displayed CD text, MP3 text, or MD title. Press the [DISP] button for at least 1 second. n of disc changers with remote) Selecting the CD displayed in the DNPS of the CDs set in the Disc changer. 1 Enter DNPP mode Press the IDNPP] button on the remote. When "DNPP' is displayed the DNPS display in order. Forward / Reverse display Press the [DISC-] or [DISC+] button. 2 When the disc you want is displayed Press the [OK] button on the remote. The disc being displayed is played: Canceling the DNPP mode Press the [IDNPP] button on the remote. _21—

Menu system SR mp 144 ee = eo ENST

Menu display —_22— Setting during operation beep sound etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. 1 Enter Menu mode Press the IMENU] button for at least 1 second. "MENU" is displayed 2 Select the menu item Press the [FM] or [AM] button. Example: When you want to set the beep sound select the *Beep'/"BEEP" display. 3 Set the menu item Press the [-#4] or [æ»1] button. Example: When ‘Beep'/"BEEP" is selected, each time the button is pressed it switches "Beep ON'/"BEEP ON" or "Beep OFF'/'BEEP OFF". Select 1 of them as the setting You can continue by returning to step 2 and setting other items. 4 Exit Menu mode Press the [MENU] button. When other items that are applicable to the basic operation method above are displayed aftenwards their setting content chart is entered. (Normally the uppermost setting in the chart is the original setting.) Also, the explanation for items that aren't applicable (<Manual Clock Adjustment>etc.} are entered step by step. Security Code <in Standby mode> Because authorization by the Security Code is required when it's removed from the vehicle, personalizing this unit is by using the Security Code is a help in preventing theft.

KDC-X569_U.S r2 02.10.31 10:09 AM Page 23 When the Security Code function is activated, the code can't be changed and the function can't be released. Note, the Security Code can be set as the 4 digit number of your choice 1 Enter Standby Press the [SRC] button. Select the "ALL OFF display. 2 Enter Menu mode Press the [MENU] button for at least 1 second. When "MENU" is displayed, "Security"/ "SECURITY" is displayed 3 Enter Security Code mode Press the [-#4] or [æ»1] button for at least 1 second. When "ENTER" is displayed, "CODE" is displayed. 4 Select the digits to enter Press the [-#4] or [æ»1] button. 5 Select the Security Code numbers Press the [FM] or [AM] button. 6 Repeat steps 4 and 5, and complete the Security Code. 7 Confirm the Security Code Press the [#1] button for at least 3 seconds. When "RE-ENTER" is displayed, "CODE" is displayed. 8 Do the step 4 through 7 operation, and reenter the Security Code. "APPROVED" is displayed The Security Code function activates When the wrong Code is entered in steps 4 through 6, repeat from step 4. Press the Reset button and when it's removed from the battery power source À Turn the power ON. 2 Do the step 4 through 7 operation, and enter the Security Code. "APPROVED" is displayed The unit can be used. Touch Sensor Tone Setting the operation check sound (beep sound) ON/OFF. Display Setting "Beep ON'/"BEEP ON" ‘Beep OFF'/'BEEP OFF" Beep is heard Beep canceled Manual Clock Adjustment 1 Select Clock Adjustment mode Press the [FM] or [AM] button. Select the ‘Clock Adjust'/"CLK ADJ" display. 2 Enter Clock Adjust mode Press the [-@4] or [æ»1] button for at least 1 second. The clock display blinks. 3 Adjust the hours Press the [FM] or [AM] button. Adjust the minutes Press the [-@4] or [æ»1] button. 4 Exit Clock adjustment mode Press the IMENU] button. —_23—

Menu system A red indicator will blink on the unit after the faceplate is removed, warning potential thieves. Display Setting "DSI ON" LED flashes "DSI OFF" LED OFF. Function of the KD( Selecting the button illumination color as green or red.

‘569/KDC-MP522/KDC-MPV622/KDC-MPV6022

Selectable Illumination Function of the KDC-MPV622/KDC-MPV6022 lumination Color Setting You can set the display to a desired color. 1 Select Illumination Color Setting Mode Press the [FM] or [AM] button. Select the "COL" display. 2 The color continues to change gradually Hold down on the [+4] or [#1] button. Release your finger at the color you want. Colors adjusted using either [Hæ<] or ææil will be stored automatically, and they can be called by pressing [8] button Quick call up the preset color Display Setting Press the desired [1] — [4] button. "Button Red'/"KEY RED”" The illumination color is red! Button Color “Button Green'/"KEY GRN'___ The illuminetion color is green ui] Silky White 12] Red E] Blue (al Blue Green ching y Type Setting the Display type. Display Setting “Display C'/"DISP C'__ Demonstration Display A/"DISP A'__ Normal display type “Display B7/'"DISP B'__ Silent display type Selecting the Color mode Press the [6] button. Each time the button is pressed the Color mode switches as shown below. Display ___ Color mode "Scan" ___ The color changes in sequence "SRC"___The color changes according to the selected source Time” The color changes every 6 hours Keeps the presentiy set color. Blue fine adjustment 1 Press the [3] button for at least 2 seconds. 2 Press the [4] or [wi] button. When the blue fine adjustment is completed, press the [3] button. —_24—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 25 Contrast Adjustment Adjusting the display contrast. Display and Setting “Contrast 0/"CONT 0" "Contrast 5'/"CONT 5" (Original setting} "Contrast 10/"CONT 7" Function of the KDC-X569/MP522/MPV622/MPV6022/X469/422/4022 Dimming this unit's display automatically when the vehicle light switch is turned ON. Display Setting "Dimmer ON" The display dims "Dimmer OFF" The display doesn't dim: Function of the KDC-X569/KDC-X469 System Q Setting Setting display/don't display for the System Q factors (Bass center frequency, Bass Q factor, Bass extend, Middle center frequency, Middle Q factor, and Treble center frequency] in Audio control. Display Setting "System Q ON" The System Q factors are displayed "System Q OFF" The System Q factors aren't displayed Function of the KDC-MP522/MPV622/MPV6022/422/4022 Switching preout <in Standby mode> Switching the preout between the rear and non-fading. (In non- fading it outputs without effect from the fader control.) Display Setting SWPRE Rear' Rear preout. "SWPRE N-Fad" Non-fading preout. Function of the KDC-X569/KDC-X469 Built-in Amp Mute Setting <in Standby mode> Toggles ON or OFF the mute control on the built-in amplifier. Turning ON this control enhances the preout quality. Display Setting "AMP Mute Off" The built-in amplifier activates: "AMP Mute On" The built-in amplifier deactivates —_25—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 26 Menu system £ Function of the KDC-X569/MPV6022/X469/4022 Function of the KDC-X569/KDC-X469 È Dual Zone System <in Sirius Tuner, External disc, Ë or Auxiliary input source> Adjust the bass boost level of the external amplifier using the Makes the sound different for the front channel and rear main unit. channel. Display Setting Display Setting "AMP BASS FLT" Bass boost level is flat “Zone 2 OFF The front and rear are the same source sound "AMP BASS +6 Bass boost level is low (+6dB) ‘Zone 2 ON' The front and rear are the different source sound "AMP BASS +12" Bass boost level is mid (+12dB) “AMP BASS +18" Bass boost level is high (+18dB) When the Dual Zone System is on, there is only sound effect including Audio control for internal source. + Refer to the catalog or instruction manual for power amplifiers that + When you set the Dual zone system to ON while the non-fading can be controlled from this unit. preout is switched ON, the sound of the nan-fading preout isn't + For amplifiers there are the model that can be set from Flat to +18 output. dB, and the model that can be set from Flat to +12 dB When an amplifier that can only be set to +12 is connected to the unit, ‘AMP BASS +18* won't work correctiy even if its selected. Function of the KDC-X569/MPV6022/X469/4022 Dual Zone System Setting <When the Dual Zone System is OFF> Function of the KDC-X569/KDC-X469 Setting the Front channel and Rear channel sound in the Dual EMSAEFSNUENCYIOISSE Zone System. Setting the central frequency boosted by B.M.S. Display Setting Display Setting "Zone 2 Rear”_ The front is this unit's internal source, and the “AMP Freq NML" Boost with the normal central frequency rear is selected source sound "AMP Freq Low’ Drop the normal central frequency 20% “Zone 2 Front" The rear is this unit's internal source, and the front is selected source sound. CRSC (Clean Reception System Circuit) <in FM reception> Temporarily have reception switched from stereo to mono to reduce multi-path noise when listening to the FM station. —_26—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 27 Function of the KDC-X569/KDC-MP522/KDC-MPV622/KDC-MPV6022 <in Standby mode> Display Setting "CRSC ON The CRSC is ON "CRSC OFF" The CRSC is OFF. Strong electrical fields (such as from power lines) may cause unstable sound quality when CRSC is turned ON. In such a situation, turn it OFF. Setting the displayed text scroll. Display Setting ‘Scroll Auto'/"SCL AUTO" Repeats scroll "Scroll MANU"/"SCL MANU" Scrolls when the display changes. The text scrolled is shown below. + CD text + Folder name/ File name/ Song title/ Artist name/ Album name + MD title Function of the KDC-MPV6022 Set the Built-in Auxiliary Input function. Display __Setting "AUX OFF" _ When selecting the source there's no Auxiliary Input. ‘AUX ON"__ When selecting the source there's Auxiliary Input. When there is a problem on playing a CD with special format, this setting play the CD by force. Display Setting "CD READ 1° Play CD and MP3 "CD READ 2° Play CD by force Setting CD READ 2' cannot play MP3. Some music CDS may not be played back even in the "CD READ 2° mode _27—

Loading and Replacing the battery Use two "AA"-size batterie: Slide the cover while pressing downwards to remove it as illustrated. Insert the batteries with the + and - poles aligned properly, following the illustration inside the case. Store unused batteries out of the reach of children. Contact a doctor immediately if the battery is accidentally swallowed ZA De not set the remote on hot places such as above the dashboard Basic operations IVOL.] buttons Adjusting the volume. ISRC] button Each time the button is pressed the source switches: For the source switching order refer to <Selecting the Source> {page 9). LATT] button Tuning the volume down quickly. When it is pressed again it returns to the previous level —_28—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 29 In Tuner source IFM]/ [AM] buttons Select the band. Each time the [FM] button is pressed it switches between the FMI, FM2, and FM3 bands. L<<]/ D»i] buttons Tune up or down band 10] — [9] buttons Press buttons [1] — [6] to recall preset stations. IDIRECT] button Enters and cancels the <Direct Access Tuning> {page 16) mode In Disc source [--4]/ D-»1] buttons Doing track/file forward and backward. [DISC+]/ [DISC-] buttons Doing disc/folder forward and backward. Den] button Each time the button is pressed the song pauses and plays IDNPP]/ [OK] button Enters and cancels the <DNPP (Disc Name Preset Play> (page

[0] — [9] buttons 29 — When in <Direct Track/File Search> (page 19) and <Direct Disc Search> (page 19), enter the track/file/disc number.

Accessories External view External view Number of items Number of items 7 . © @æ nt

The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. Installation Procedure

1. To prevent a short circuit, remove the key from the ignition and

disconnect the © battery.

2. Make the proper input and output wire connections for each unit

3. Connect the speaker wires of the wiring harness

4. Connect the wiring hamness wires in the following order: ground,

battery, ignition. Connect the wiring harness connector to the unit. Install the unit in your car. Reconnect the © battery. Press the reset button œsou If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box: + If your cars ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die. +Ifthe console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening + Ifthe fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating, + Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals + Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car. + When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear) For example, if you connect the @ connector of the left speaker to a front output terminal, do not connect the © connector to a rear output terminal + After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. + Mount the unit So that the mounting angle is 30° or less —30—

KDC-X569_U.S r2 02.10.31 Connecting Wires to Terminals A: KDC-X569/X469...Non-fading output KDC-MP522/MPV622/MPV6022/422/4022...Rear/Non-fading output KDC-3022/322...Rear output B: KDC-X569/X469/MP522/MPV622/MPV6022/422/4022/3022...Front output KDC-MPV6022..Auxiliary input €: KDC-X569/X469...Rear output KDC-MPV6022...Front output KENWOOD dise changer control input To connect the Disc changer, consult your Disc changer manual Fuse (10A) In connections are made, do not let the wire come out from the tab]] When using the optional power ampifier. À connect to its power control terminal Power control wire (Blue/White) Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. To ‘EXT.AMP.CONT terminal of the amplifier having Motor antenna control wire (Blue) External amplifier control wire {Pink / Black) (KDC-X569/ X469 only) FM/AM antenna input D] Wiring harness lAccessory(D} White/Black Lt 6 front left E speaker por] ee © SP the external amp control function: Dimmer control wire (Orange / White)

Installation installation Firewall or metal support Screw (MAX8) {commercially available) mounting sleeve Similar utensil and attach it in place Selftépping screw (commercially available} Metal mounting strap {commercially available} Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). Bend the tabs of the with a screwdriver or H Installing in Japanese-Made Cars 1 Refer to the section <Removing the hard rubber frame> and then remove the hard rubber frame. 2 Align the holes in the unit (two locations on each side) with the vehicle mounting bracket and secure the unit with the accessory screws

u MAX. ] a Ti Toyota cars NN: Nissan cars Accessory@..for Nissan car Accessory® …for Toyota car À During installation, do not use any screws except for those provided The use of different screws might result in damage to the main unit. + Damage may occur if a screwdriver or similar tool is used with excessive force during the installations. —_32—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 33 E Screwing the Faceplate on the Unit If you want to fasten the faceplate to the main unit so that it does not fall off. 1 Refer to the section <Removing the hard rubber frame> (page

34) and then remove the hard rubber frame

2 Drop open the faceplate by pressing the Release button 3 Tighten the screws (02.6 x 12 mm) (Accessory @) in the holes shown on the diagram 4 Tighten the screws (02 x 4 mm) (Accessory @) in the holes shown on the diagram 8— Accessory®) 5 Tighten the screws (92 x 6 mm) (Accessory @) in the holes shown on the diagram Accessory®) Never insert the screws in any other screw hole than the one specified If you screw them in another hole, it will contact and may cause damage to the mechanical parts inside the unit —_33—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 34 Installation HE Removing the hard rubber frame 1 Engage the catch pins on the removal tool and remove the two locks on the upper level Upper the frame and pull it forward as shown in the figure: Accessoÿ@ Removal tool Lock Caich 2 When the upper level is removed, remove the lower two locations.

The frame can be removed from the bottom side in the same manner. H Removing the Unit 1 Refer to the section <Removing the hard rubber frame> and then remove the hard rubber frame. 2 Remove the screw (M4 x 8) on the back panel 3 Insert the two removal tools deeply into the slots on each side, as shown. Accessory® Screw (MaX8) Romovel tool (commercially available) 4 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside À Ecrehu t avoi iiury rom the catch pins on the removal tool. 5 Pull the unit all the way out with your hands, being careful not to drop it —_34—

KDC-X569_U.S r2 02.10.31 10:09 AM Page 35 PF Troubleshooting Guide What might seem to be a malfunction in your unit may ? No sound can be heard, or the volume is low. just be the result of slight misoperation or miswiring. The fader or balance settings are set all the way to one side efore calling service, first check the following table sr Center the fader and balance settings. for possible problems. #_ The inputoutput wires or wiring harness are connected incorrectly. “_ Reconnect the inpu/output wires or the wiring hamess correctiy. General See the section on <Connecting Wires to Terminals> #_ The values of Volume offset are low. %_ The fuse has blown «x Turn up the Volume offset, referring to the section on <Audio «After checking for short circuits in the wires, replace the fuse with control> (page 10) ? The power does not turn ON. one with the same rating. #_ The <Built-in Amp Mute Setting> (page 25) is ON. ex Turn it OFF. ? There's a source you can't switch. # There's no media inserted ? The sound quality is poor or distorted. #_ Set the media you want to listen to. If there's no media in this #_ One of the speaker wires is being pinched by a screw in the car. unit, you can't switch to each source “Check the speaker wiring #_ The Disc changer isn't connected The speakers are not wired correctly. # Connect the Disc changer. If the Disc changer isn't connected to “_ Reconnect the speaker wires so that each output terminal is it's input terminal, You can't switch to an external disc source connected to a different speaker. ? The memory is erased when the ignition is turned OFF. ? Non-fading output, Non-fading Low Pass Filter and Non-fading 4 The ignition and battery wire are incorrectly connected setting can't be done. # Connect the wire correctly, referring to the section on # The <Switching preout> (page 25) is set on Rear preout. <Connecting Wires to Terminals> “Set it on Non-fading preout ? There's no loudness effect. #_ The <Non-fading output (page 11) is OFF. #_ You're using Non-fading preout. “_Turn it ON ur_Loudness has no effect in Non-fading preout V7 The <Dual zone system (page 26) is ON u_Tumn it OFF ? The Non-fading output can't be turned ON or OFF. #_ The <Switching Preout> (page 25) is set is set on Rear preout ? There's no Front High Pass Filter and Rear High Pass Filter effect. ur Change it to Non-fading preout The Non-fading preout is being used u_There's no effect in Non-fading preout ? Even if Loudnes: is turned ON, high-pitched tone isn't compensated for. ? The Touch Sensor Tone doesn't sound. # Tuner source is selected #_ The preout jack is being used #_High-pitched tone isn't compensated for when in Tuner source. “_The Touch Sensor Tone can't be output from the preout jack ? The Bass center frequency, Bass quality factor, Bass extend, Middle 2 The Dimmer function doesn't work. center frequency, Middle quality factor, and Treble center frequency #_ The Dimmer wire isn't connected correctly. can't be adjusted. «Check the Dimmer wire connection: #_ The <System Q Setting> (page 25) is set OFF. sr Set it ON. —_35—

Troubleshooting Guide ? The display color changes subtly. This is because the temperature is different than the temperature when the setting was done «The display color condition changes subtly according.to the ambient temperature. Tuner source ? Radio reception is poor. w The car antenna is not extended. «Pull the antenna out all the way. # The antenna control wire is not connected. “Connect the wire correctiy, referring to the section on <Connecting Wires to Terminals> ? The desired frequency can't be entered with the Direct Access Tuning. W_ A station that can't be received is being entered «Enter a station that can be received ? Can't remove disc. #_ The cause is that more than 10 minutes has elapsed since the vehicle ACC switch was turned OFF. «The disc can only be removed within 10 minutes of the ACC switch being turned OFF. If more than 10 minutes has elapsed, turn the ACC switch ON again and press the Eject button ? The dise won't insert. #_ There's already another disc inserted “Press the [A] button and remove the disc. ? Direct Search can't be done. 4 Another function is ON «Turn Random Play or other functions OFF ? Track Search can't be done. # For the discs/folders first or last song, «For each disc/folder, Track Search can't be done in the backward direction for the first song or in the forward direction for the last song #7 You're trying to enter a frequency with a 0.01 MHz unit «What can be designated in the FM band is to 0.1 MHz Disc source ? "AUX" #_Unsupported disc changer is connected «Use the disc changer mentioned in the IMPORTANT INFORMATION of the section on <Safety precautions> (page 4) is displayed without achieving External disc control mode. ? The specified disc does not play, but another one plays instead. The specified CD is quite dirty. «Clean the CD V7 The disc is loaded in a different slot from that specified « Eject the disc magazine and check the number for the specified dise. The disc is severely scratched «x _Try another disc instead ? A CD ejects as soon as loaded. # The CD is quite dirty. «Clean the CD, referring to the CD cleaning of the section on <About CDS> (page 8) — 36 MP3 source ? Cannot play an MP3. The media is scratched or dirty. «Clean the media, referring to the CD cleaning of the section on <About CDS> (page 8). ? The sound skips when an MP3 is being played. #_ The media is scratched or dirty. «Clean the media, referring to the CD cleaning of the section on <About CDs> (page 8) #_ The recording condition is bad #_Record the media again or use another media ? The MP3 track time isn't displayed correctly. «There are times when it isn't displayed correctly according to the MP3 recording conditions. If the following situations, consult your nearest service center: Even though the disc changer is connected, the Disc Changer source is not ON, with AUX" showing in the display during the Changer Mode

Troubleshooting Guide The messages shown below display your systems condition. Eject/ EJECT: No Disc/ NO DISC: TOC Error/ TOC ER: E-05: Blank Disc/ BLANK No Track/ NO TRACK: E15: No Panel/ NO PANEL: E-77: No disc magazine has been loaded in the changer. The dise magazine is not completely loaded. “ Load the disc magazine properly. No CD in the unit “ Insert the CD. NO NAME: No disc has been loaded in the disc magazine. “ Load a disc into the disc magazine Load/ LOAD: No disc has been loaded in the disc magazine “ Load a disc into the disc magazine The CD is quite dirty. The CD is upside-down. The CD is scratched a lot < Clean the CD and load it correctiy Reading: NO ACCESS; The CD is upside-down. IN (Blink) « Load the CD correctiy Nothing has been recorded on the MD: No tracks are recorded on the MD, although it has a title. Media was played that doesn't have data recorded that the unit can play. “> Use media that has data recorded that the unit can play. The faceplate of the slave unit being connected to this unit has been removed “ Replace it. The unit is malfunctioning for some reason. “ Press the reset button on the unit. If the "E-77" code does not disappear, consult your nearest service center. Mecha Error/ MECHA ER: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason. “ Check the dise magazine. And then press the reset button on the unit. If the ‘Mecha Error'/"MECHA ER" code does not disappear, consult your nearest service center. —_37—

Hold Error/ HOLD ER: The protective circuit in the unit activates when the temperature inside the automatic disc changer exceeds 60°C {140°F), stopping all operation. « Cool down the unit by opening the windows or turning on the air conditioner. As the temperature falls below 60°C {140°F), the disc wil start playing again. Attempted to display DNPS during the CD play having no disc names preset. Discs are being exchanged in the Disc changer. The unit is reading the data on the disc. After setting it in the Disc Changer, DNPP was done without having it been played at least 1 time The CD player section is not operating proper. “ Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.

Specifications Specifications subject to change without notice. FM tuner section Frequency range (200 kHz space) Usable sensitivity (S/N = 30dB) Quieting Sensitivity (S/N = 50dB)

1000 — 400 rpm (CLV 2times) 500 — 200 rpm (CLV) Below Measurable Limit 10 Hz 20 kHz

Installation Size (W x H x D) Weight —_38—
