Product Type	Side-by-side Refrigerator-Freezer
Model	KSBS8484 IX
Brand	Kunft
Overall Dimensions (W x D x H)	905 x 595 x 1770 mm
Net Fresh Food Storage Volume	291 L
Net Frozen Food Storage Volume	151 L
Defrost Type	Frost Free (No Frost)
Climate Class	SN, N, ST
Energy Class	F
Freezing Capacity	10.5 kg / 24 h
Temperature Rise Time	9.5 h
Airborne Acoustical Noise	40 dB
Rated Voltage	220 - 240 V / ~
Rated Current	1.5 A
Refrigerant	Isobutane (R600a)
Freezer Temperature Range	-14°C to -22°C (adjustable)
Fridge Temperature Range	2°C to 8°C (adjustable)
Special Modes	SMART, ECO, SUPER COOLING, SUPER FREEZING
Door Open Alarm	Yes (after ~90 seconds)
Child Lock	Yes (hold button for 3 sec)
Adjustable Levelling Feet	Yes
Removable Doors	Yes (for narrow passages)
Maintenance	Clean with lukewarm water; avoid abrasive cleaners
Weight (approx.)	Not specified in manual; heavy appliance
Warranty	3 years for manufacturing defects (from Worten)

Frequently Asked Questions - KSBS8484 IX Kunft

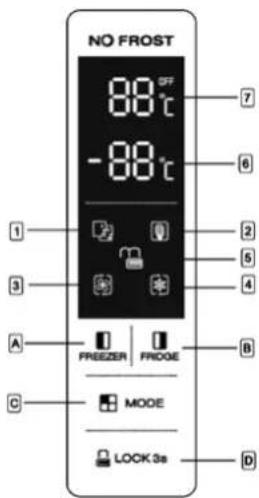

How do I set the temperature on my Kunft KSBS8484 IX refrigerator?

Use button A to adjust the freezer temperature (from -14°C to -22°C) and button B to adjust the fridge temperature (from 2°C to 8°C). The display shows the set temperatures.

What do the special modes (SMART, ECO, SUPER COOLING, SUPER FREEZING) do?

SMART automatically adjusts temperatures based on internal and ambient conditions. ECO minimizes energy consumption. SUPER COOLING rapidly cools the fridge for 2 hours. SUPER FREEZING rapidly freezes for 6 hours. After the mode ends, previous settings are restored.

How do I lock the control panel to prevent children from using it?

Press and hold button D for 3 seconds to activate the child lock. The lock indicator lights up. To unlock, press and hold button D again for 3 seconds.

What should I do if the door open alarm sounds?

The alarm sounds if a door is left open for about 90 seconds. Simply close the door completely to stop the alarm.

How can I maximize energy efficiency?

Avoid placing hot foods inside, do not pack foods too closely, ensure airflow behind the appliance, keep doors closed, and select ECO mode when possible.

Can I remove the doors for installation?

Yes. The doors can be removed for tight spaces. Follow the instructions: disconnect the harness, unscrew the top and bottom hinges, lift the doors off, and reverse the process to reinstall.

How do I clean the refrigerator?

Switch off and unplug the appliance. Remove food. Clean interior and accessories with a soft cloth and lukewarm water. Wipe dry. Do not use abrasive cleaners or steam cleaners.

What does the 'No Frost' feature mean?

The freezer is frost-free, meaning it automatically defrosts. No manual defrosting is required. Water is drained and evaporated.

How long after installation should I wait before plugging in the refrigerator?

It is advisable to wait at least 4 hours before connecting the appliance to allow the compressor oil to flow back.

What is the climate class and why is it important?

Climate class indicates the ambient temperature range for optimal operation. This model has SN (10°C-32°C), N (16°C-32°C), and ST (16°C-38°C). Ensure the room temperature is within these ranges.

USER MANUAL KSBS8484 IX Kunft

Front view of a modern stainless steel refrigerator with vertical door and front panel (no visible text or symbols)

side by side refrigerator

kunft.®

side by side refrigerator

KSBS8484 IX

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply....5
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions....6

1. OPERATING INSTRUCTIONS......8

2.1. Product Description.... 8
2.2. Using the Product 8

1. OPERATING INSTRUCTIONS....14

3.1. Product usage....14
3.2. Maintenance 18

1. TECHNICAL SPECIFICATIONS....21

2. POST-SALE SERVICE....22

3. ENVIRONMENTAL PROTECTION.... 22

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice a y evidence of damage;
• Any anomaly occurs during its operation

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

side by side refrigerator

KSBS8484 IX

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning. To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions or future reference.

side by side refrigerator

KSBS8484 IX

EN

• Read all instructions b fore using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

kunft®

2. OPERATING INSTRUCTIONS

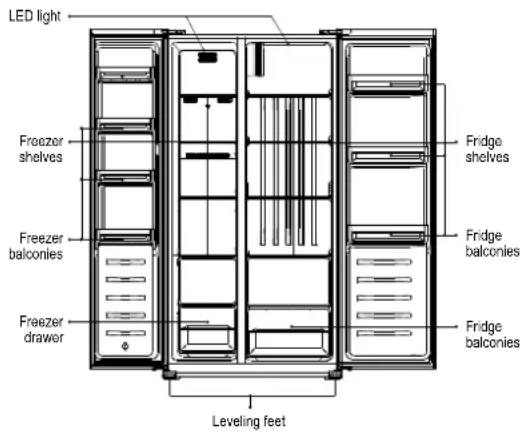

2.1. Product Description

Note: Above picture is for reference only. Real appliance probably is different.

2.2. Using the Product

Children and vulnerable people safety

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance should not be made by children unless they are aged 8 years and above and are supervised.
• Keep all packaging away from children. There is risk of suffocation
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door, to prevent children playing with the appliance from suffering electric shock or locking themselves in it.
• If this appliance features magnetic door seals to be replaced by an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

side by side refrigerator

KSBS8484 IX

EN

General safety

WARNING

Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstructions

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use other electrical appliances (such as ice cream makers) inside the refrigerating appliances, unless they are approved for this purpose by the manufacturer.

WARNING

Do not touch the light bulb if it has been on for a long period of time, because it could be very hot. ^1)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• avoid open flames and sources of ignitio
• ventil te the room in which the appliance is situated thoroughly
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in households and other similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses and customers in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications

WARNING

Any electrical components (plug, power cord, compressor, etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not suitable for domestic lighting. ^1)

1) If there is a light in the compartment. If there is a freezer compartment.

kunft®

• The power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not place hot items in contact with the plastic parts of the appliance
• Do not place food products directly against the rear wall.
• Frozen food must not be refrozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacturer instructions. ^1)
• Appliance manufacturers' storage recommendations should be strictly complied with. Refer to relevant instructions
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there is any damage on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain the packaging.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• The appliance should have adequate air circulation around it, which if nonexistent may lead to overheating. To achieve sufficient ventilation, follow the relevant installation instructions

1) If there is a light in the compartment. If there is a freezer compartment.

side by side refrigerator

KSBS8484 IX

EN

• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burns.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required for the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Energy saving

• Don't place hot foods in the appliance;
• Don't pack foods close together, as this prevents the air from circulating
• Make sure the food does not touch the back of the compartment(s);
• If the electricity goes o, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for long periods of time
• Don't set the thermostat to exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to obtain larger storage space and lower energy consumption

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains able and discard it.

Overview

Installation

If the kitchen door is not wide enough to pass the refrigerator, the handle and the doors can be removed according to the process described below.

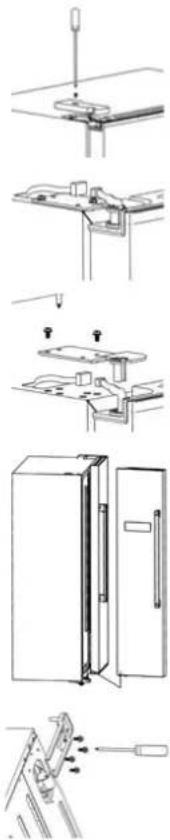

Removing the doors

Tools required: Philips screwdriver, Flat bladed screwdriver

• Ensure the unit is unplugged and empty,
• To take the door o , it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.
• All parts removed must be saved to reinstall the door.
• Do not lay the unit fl t as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

kunft®

1. Unscrew the hinge cover with the Philips screwdriver.

2. Disconnect the harness.

3. Unscrew the top hinge.

4. Lift the door and place it on a soft pad. Then remove the other door with the same process.

5. Unscrew the bottom hinges.

6. After the appliance is positioned, in tall the doors in the reversed process.

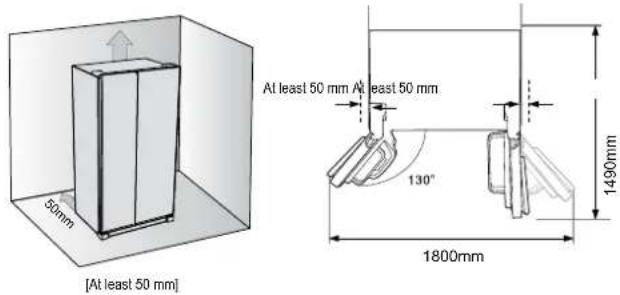

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space or the refrigerator doors to open easily;
• Select a location with levelled (or nearly levelled) flooring
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your electricity bills lower.

side by side refrigerator

KSBS8484 IX

EN

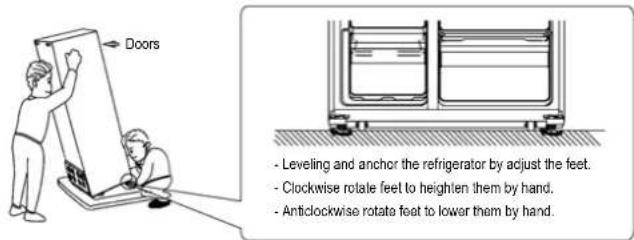

Levelling and anchoring the refrigerator

- Leveling and anchor the refrigerator by adjust the feet.
- Clockwise rotale feet to heighten them by hand.
- Anticlockwise rotate feet to lower them by hand.

Positioning

Install this appliance in a location where the room temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Room temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that the air circulates freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

kunft®

WARNING

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic mains power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earthed plug in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

3. OPERATING INSTRUCTIONS

3.1. Product usage

Buttons

A. Press to adjust the freezer compartment's temperature (on the left side) from -14^ to -22^ .
B. Press to adjust the fridge compartment's temperature (on the right side) from 2°C to 8°C.
C. Press to select the running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER'S SETTING (no symbol in display).
D. Press and hold the button for 3 sec. to lock other three buttons. Press and hold it for 1 second to unlock other three buttons.

Display

1. SMART mode - the refrigerator automatically sets the temperature of two compartments according to the internal temperature and ambient temperature.
2. ECO mode - the refrigerator runs in the lowest energy consumption setting.

side by side refrigerator

KSBS8484 IX

EN

1. SUPER COOLING - cools the fridge compartment to the lowest temperature for approx. 2 hours. Then the temperature set before super mode is automatically restored.
2. SUPER FREEZING - cools the freezer compartment to the lowest temperature for approx. 6 hours. Then the temperature set before super mode is automatically restored.
3. LOCK - the symbol will light on if buttons are locked.
4. Displays the freezer compartment's setting temperature.
5. Displays the fridge compartment's setting temperature.

Mode Indicator light		Freezer temperature display	Fridge temperature display
Smart		The temperature display for the freezer and fridge will change based on the ambient temperature (see table below).
ECO		-15°C +8°C
Super cooling		No change +2°C
Super freezing		-25°C No change

NOTES:

Smart mode: This mode allows your appliance to operate within the ideal temperature range.

Ambient Temperature (T)	T < 13°C	14°C < T < 20°C	21°C < T < 27°C	28°C < T < 34°C	T > 35°C
Freezer temperature display	-18°C -16°C -15°C
Fridge temperature display	3°C 4°C	5°C 6°C	8°C

ECO mode: Select this mode when you want to save power.

Super cooling mode: This mode allows you to cool foods quickly and will be automatically deactivated after 2 hours of operation.

Super freezing mode: This mode allows you to freeze foods quickly and will be automatically deactivated after 6 hours of operation.

kunft®

side by side refrigerator

KSBS8484 IX

EN

Door open alarm

When any door is left open or not closed completely for about 90 seconds, the appliance will sound an alarm. Close the fridge door and the alarm will stop.

Child safety lock

This function is designed to prevent children from operating the appliance.

• To activate the function, press and hold for about 3 seconds. The lock indicator light will light on indicating the safety lock function is activated.

- To deactivate the function, press and hold for about 3 seconds to unlock the indicator light and switch it off.

Daily use

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher setting

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To allow the storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food that can be frozen in 24 hrs is shown on the rating plate;
• the freezing process takes 24 hours. No other food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned food;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch other food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of the food;
• ice cubes, if consumed immediately after removal from the freezer compartment, can possibly cause freeze burn to the skin;
• it is advisable to have the freezing date on each individual package to enable you to keep tabs of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foods were adequately stored by the retailer;
• be sure that frozen foods are transferred from the food store to the freezer in the shortest possible time
• do not open the door frequently or leave it opened longer than absolutely necessary. Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

kunft®

side by side refrigerator

KSBS8484 IX

EN

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator.
• Cover or wrap the food, particularly if it has a strong flavour.

Hints for refrigeration

Useful hints:

• For all types: wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

3.2. Maintenance

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^3)

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn off the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components,

2) If there is a freezer compartment. 3) If there is a fresh-food storage compartment.

danger of electrical shock! Hot vapours may damage the plastic parts. The appliance must be dry before it is placed back into service. Important! Essential oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from the orange peel, butyric acid, cleansers that contain acetic acid.

• Do not allow such substances to come into contact with the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store it in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water.
  After cleaning wipe with fresh water and rub dry.
  • After everything is dry, place the appliance back into service.

kunft.

3.3. Troubleshooting

Caution!

Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important!

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution

Appliance does not work.	Mains plug is not plugged in or is loose.	Insert the mains plug.
	Fuse has blown or is defective.	Check the fuse, replace it if necessary.
	Socket is defective. Mains malfunctions should be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of arm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation or a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob o a warmer setting temporarily.
Unusual noises	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section
Side panels are hot	It's normal. Heat exchange is in the side panels.	Use gloves to touch the side panels if necessary.

If the malfunction continues, contact the Service Centre.

side by side refrigerator

KSBS8484 IX

EN

4. TECHNICAL SPECIFICATIONS

Model KSBS8484 IX
Appliance category Category 7(Refrigerator-Freezer)
Overall dimension (wxdxh) 905 x 595 x 1770 mm
Net fresh food storage volume 291 L
Net frozen food storage volume 151 L
Defrosting type Frost Free
Climate class SN, N, ST
Storage temperature fridge compartment	0°C ~ 8°C
Storage temperature freezer compartment	≤ -18°C
Airborne acoustical noise	40 dB
Energy class	F
Temperature rise time	9.5 h
Freezing capacity	10.5 kg / 24 h
Rated voltage	220 - 240 V / ~
Rated current	1.5 A
Defrost power	240 W

Features and specifications are subject to change without prior notice. Upper specifications are measured according to below standards:

EN ISO 15502: 2006,

IEC 62552: 2007,

EC643 / 2009

EC1060 / 2010.

kunft®

frigorífico side by side

KSBS8484 IX

ES

5. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not a empt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted.

Worten Equipamentos para o Lar provides a 3-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING:

Any a empt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

6. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials once disassembled by a specialized company. Comply with local regulations concerning recycling of all materials.

Estimado cliente:

frigorífico side by side

KSBS8484 IX

ES

frigorífico side by side

KSBS8484 IX

ES

frigorífico side by side

KSBS8484 IX

ES

frigorífico side by side

KSBS8484 IX

ES

ADVERTENCIA:

frigorífico side by side

KSBS8484 IX

ES

Instalación

Technical line drawings of mechanical assembly steps (no text or symbols)

Line drawing of a door with open lid and side panel, no text or symbols present

kunft.

3D diagram of a rectangular cabinet with a 50mm height label, shown in a transparent cube (no text or symbols on the cabinet itself)

[Por lo menos 50 mm]

Technical line drawing of a two-part container mechanism with wheels and a flat base (no text or symbols)

frigorífico side by side

KSBS8484 IX

ES

Posicionamiento

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

Ubicación

frigorífico side by side

KSBS8484 IX

ES

frigorífico side by side

KSBS8484 IX

ES

Positioning the door balconies

frigorífico side by side

KSBS8484 IX

ES

Limpieza

frigorífico side by side

KSBS8484 IX

ES

frigorífico side by side

KSBS8484 IX

PT

5. SERVICIO POSVENTA

frigorífico side by side

KSBS8484 IX

PT

1. INSTRUÇÕES DE SEGURANÇA

frigorífico side by side

KSBS8484 IX

PT

frigorífico side by side

KSBS8484 IX

PT

frigorífico side by side

KSBS8484 IX

PT

AVISO

frigorífico side by side

KSBS8484 IX

PT

Instalação

Technical line drawings of mechanical components or assemblies (no text or symbols)

Line drawing of a door with open lid and side panel, no text or symbols present

kunft®

1. Desaparafuse as dobradiças inferiores.

3D diagram of a rectangular cabinet with a 50mm height label, shown in perspective view (no text or symbols on the cabinet itself)

[Pelo menos 50 mm]

1800mm

Nivelando e fixando a geladeira

Technical line drawing of a dual-side container or tank structure with wheels and a flat base (no text or symbols)

frigorífico side by side

KSBS8484 IX

PT

Posicionamento

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

Localização

frigorífico side by side

KSBS8484 IX

PT

frigorífico side by side

KSBS8484 IX

PT

frigorífico side by side

KSBS8484 IX

PT

frigorífico side by side

KSBS8484 IX

PT

1. ESPECIFICAÇÕES TÉCNICAS

side by side refrigerator

is perfectly enough

KSBS8484 IX

Imported, produced and distributed by:
