JP1V002037 - Cooker Jocel - Free user manual and instructions

Product Type	Vitroceramic Hob
Brand	Jocel
Model	JP1V002037
Power Supply	220-240 V ~ 50/60 Hz
Number of Cooking Zones	1
Control Type	Rotary knob
Temperature Settings	5 levels (2-5) plus keep warm (1) and off
Indicator Light	Heating indicator on/off
Cookware Compatibility	Stainless steel, aluminum, ceramic (not glass)
Pan Base Requirement	Flat, smaller than heating plate diameter
Non-Slip Feet	4 rubber feet included
Pre-Use Procedure	Run on highest setting (5) for 3-5 minutes
Keep Warm Function	Set dial to 1 or turn off to retain heat
Cleaning Method	Damp soapy cloth, dry with paper towel
Safety Features	Automatic shut-off not present; manual off required
Warning: Hot Surface	Surfaces get hot during use; allow 30 min to cool
Warranty Period	2 years for home appliances
Certifications	CE, Low Voltage Directive (2014/35/EU), EMC (2014/30/EU)
Disposal	Recycle according to EU WEEE directive
Technical Assistance Contact	Phone: [phone], Email: [e-mail]

Frequently Asked Questions - JP1V002037 Jocel

How do I clean the vitroceramic hob?

Disconnect the appliance and let it cool for at least 30 minutes. Use a slightly damp soapy cloth, then dry with a paper towel. Avoid abrasive cleaning materials.

What cookware can I use on this hob?

Use only stainless steel, aluminum, or ceramic pots and pans with a flat base. Do not use glass cookware or pans with concave or uneven bases.

Can I leave the hob unattended while cooking?

No, never leave the appliance unattended when operating, especially when heating oil or fat. Always turn the dial to OFF (●●●) and unplug when not in use.

How do I keep food warm?

Turn the dial to 1 to maintain a constant warm temperature, or turn it to OFF (●●●) and the residual heat will keep food warm for up to 30 minutes.

What should I do if the heating plate cracks?

Immediately cut off the power supply and stop using the appliance. Contact technical assistance for repair or replacement.

Is this hob safe for children to use?

Children aged 8 and above can use the hob under supervision. Children under 8 must be kept away. The appliance gets hot, so supervision is essential.

How do I dispose of the appliance?

Do not dispose with household waste. Follow local recycling regulations for electronic waste (WEEE). Return to a collection point or the retailer for environmentally safe recycling.

What is the warranty period and what does it cover?

The warranty is valid for 2 years for home appliances (6 months for industrial). It covers replacement of parts defective due to faulty manufacture. Damage from misuse, transport, or unauthorized repairs is not covered.

Where can I get technical assistance?

Contact Jocel technical assistance at [phone] or email [e-mail]. Provide the model and invoice for warranty service.

Why does the hob smoke and smell when first used?

This is normal. Before first use, run the hot plate on the highest setting (5) for 3-5 minutes to burn off the protective coating. Ensure nothing is on the plate.

USER MANUAL JP1V002037 Jocel

PLACA VITROCERÂMICA PLACA VITROCERÁMICA VITROCERAMIC HOB

JP1V002037

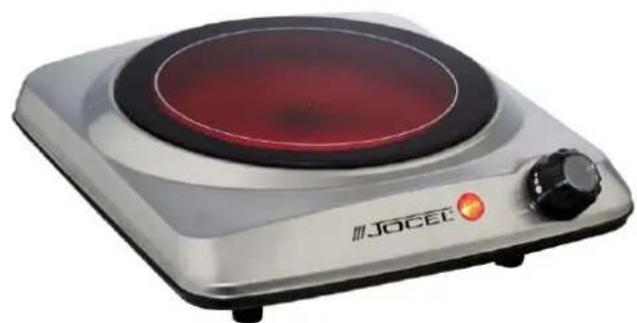

Exterior view of a modern electric stove with red heating screen and control knob (no text or symbols visible)

JP2V002044

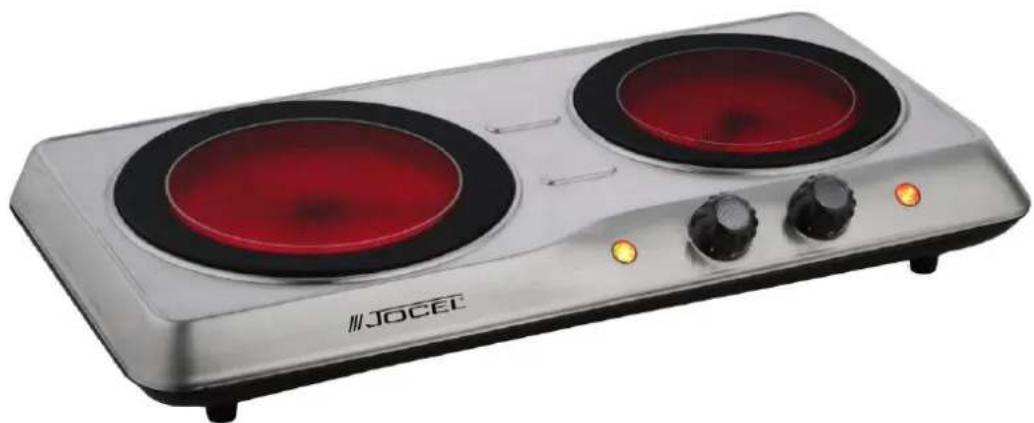

Jocel electric stove with two red heating screens and black control knobs (no visible text or symbols)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

INSTRUÇÕES DE LIMPEZA E CUIDADOS

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

CARE AND CLEANING INSTRUCTION

• Please ensure appliance is disconnected from the power supply and switched off before attempting any cleaning.
• Please allow sufficient time for the appliance to cool down after use before plan to clean, at least 30 minutes.
• The appliance is not designed to be dismantled by an unqualified technician.
• Cleaning of the unit should only be attempted with slightly damp soapy cloth.
• Care must be taken to ensure there that cloth is sufficiently dry to not leave any standing water.
  • After wetting down with the soapy cloth. Dry with a dry paper towel.
• Do not use abrasive cleaning materials.

OPERATING INSTRUCTIONS

Before use:

• Insert the 4 non-slip rubber feet into the feet holes on the underside of the unit.
  • Always ensure that the appliance is on a level surface and stable before operating.
• Before using your hot plate for the first time, turn the hot plate to the highest setting (position 5) and let it stand 3 to 5 minutes. This allows the special pre-use protective coating to turn off. A bit of smoke and smell is normal. Ensure nothing is on the hot plate.

DAILY USE:

• Turn temperature controller between 2 and 5 and adjust during cooking as needed.
• The indicator light will turn on to indicate that the relevant cooker is heating.
• The indicator light on the appliance will turn off when it reaches the selected temperature.
• To keep food warm:

a) Turn the dial to 1 to maintain food at a constant warm temperature.

b) Turn the dial to OFF (●●●) and food will stay warm for up to 30 minutes. as the plate gradually cools down.

- When not in use. Be sure to turn the dial to OFF (●●●) and disconnected from the power outlet.

DAILY USE:

a) Use only stainless steel, aluminium and ceramic. NOT GLASS.
b) Use cooking pots or pans that have a flat base.
c) The diameter of the pan base needs to be smaller than the diameter of the heating plate.
d) Do Not use with any base that is connect, concave or Uneven.
e) Do Not use glass.

IMPORTANT SAFETY INSTRUCTIONS

• Carefully read the instructions and warming in this manual and keep them from further reference for the whole of the products life. They include important instructions regarding operations and safety for installing, using and maintaining the product.
• After unpacking, make sure that the appliance is intact with no signs of damage caused by transport. If in doubt. Do not use the appliance and contact the supplier.
• If there is crack on the heating plate, immediately cut off the power supply and stop usage.
• Before connecting the appliance, make sure that the power supply voltage corresponds with that shown on the rating label.
• The appliance is not intended for use by children or infirm persons without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Please supervisions is necessary when the appliance is used near children.
• Do not operate the appliance outdoors without adequate precautions.
• The appliance is designed only for heating and warming food and must only be used when cooking pits or pans are plated on it.
• Do not immerse in liquid.
• The power plug must be removed from power socket before cleaning servicing. maintenance or moving the appliance.
  • In proper installation may result in the risk of file, electric shock and or injury to persons.
• The appliance has no user-serviceable parts contained within. Do not attempt to repair, disassemble or modify the appliance.
• Do not the touch surface or hotplate when the appliance is operation or cooling down after use.
• Do not allow the cord to touch hotplate during operation or cooling down after use.
• Do not leave the appliance unattended when the appliance is operating.
• Do not leave the appliance without supervision when oil and fat are heated.

• The appliance must be cooled down completely after use before storing. Please allow at least 30 minutes for the appliance to cool down.

• The vitroceramic hob should be kept well clear of any inflammable materials such as curtains and other flammable materials.

• The vitroceramic hob should not be placed direct on a surface that could be damaged by heat, A heat-insulating base may be heeded.
• The power cord should not be allowing to hang over the edge of the work surface during operation.
• If the supply cord is damaged, it must be replaced by a Qualified Technician to avoid a hazard. Please contact the Technical Assistance
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Warning: The surfaces are liable to get hot during use.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product VITROCERAMIC HOB

Brand JOCEL

Model JP1V002037 AND JP2V002044

Complies with the following European directives and standards implementation

Low Voltage

2014/35/EU

EN 60335-2-9:2003+A1:2004+A2:2006+

A12:2007+A13:2010

EN 60335-1:2012+A11:2014

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013
