CT8G4DFRA266 - Flash Memory Crucial - Free user manual and instructions

Product Type	Memory Module
Brand	Crucial
Model	CT8G4DFRA266
Capacity	8 GB
Memory Type	DDR4
Speed	2666 MHz
Form Factor	DIMM (Desktop) or SODIMM (Laptop)
Voltage	1.2 V
CAS Latency	CL19
ECC Support	Non-ECC
Buffered/Registered	Unbuffered
Dimensions (DIMM)	133.35 x 31.25 mm
Dimensions (SODIMM)	67.6 x 30 mm (if applicable)
Weight	Approximately 15 g
Installation	Refer to user manual for static-safe handling and proper seating
Operating Temperature	0°C to 85°C
Warranty	Limited Lifetime
Safety Precautions	Handle by edges, avoid static discharge, work in static-safe environment
Maintenance	Keep contacts clean, avoid physical damage
Compatibility	Designed for systems supporting DDR4 2666 MHz

Frequently Asked Questions - CT8G4DFRA266 Crucial

What type of memory is the Crucial CT8G4DFRA266?

The Crucial CT8G4DFRA266 is a DDR4 memory module with a speed of 2666 MHz and a capacity of 8 GB. It is available in DIMM (desktop) and SODIMM (laptop) form factors.

How do I install the Crucial CT8G4DFRA266 memory module?

First, ensure you work in a static-safe environment. Shut down your system, unplug the power, and remove the battery (for laptops). Hold the power button for 3-5 seconds to discharge. Open your computer case and locate the memory slots. Align the notch on the module with the slot and press firmly until the clips snap into place. For SODIMM, insert at a 45-degree angle and push down until clips lock.

Is the CT8G4DFRA266 compatible with my laptop?

It depends on your laptop's specifications. The module is a DDR4 2666 MHz SODIMM. Check your laptop's manual for supported memory types and maximum capacity. It is compatible with most laptops that accept DDR4 SODIMM modules.

What should I do if my system does not boot after installation?

First, ensure the module is fully seated. Remove and reinstall it, applying firm pressure until the clips click. Check all internal connections, as a loose cable can prevent booting. If the issue persists, contact Crucial Technical Support.

Does the Crucial CT8G4DFRA266 support ECC?

No, this module is Non-ECC (non-error correcting). It is designed for standard consumer desktop and laptop systems, not for servers or workstations requiring ECC memory.

What voltage does the CT8G4DFRA266 require?

The module operates at 1.2V, which is the standard voltage for DDR4 memory. It automatically adjusts to the system's requirements.

How can I verify if my system recognizes the new memory?

After installation, boot your system. You may see a message prompting you to update configuration settings. Enter the BIOS/UEFI setup and check the system memory total. If the correct amount (e.g., 8 GB) is displayed, the memory is recognized. If you hear beeps or see error messages, reseat the module.

What is the warranty on Crucial CT8G4DFRA266?

Crucial offers a Limited Lifetime Warranty for this memory module. For details, visit Crucial's official website or contact their support.

Can I mix different speeds of DDR4 memory?

Yes, but all modules will run at the speed of the slowest module. If you mix a 2666 MHz module with a slower one, the system will run at the slower speed. For optimal performance, use identical modules.

How do I clean the memory module contacts?

Use a lint-free cloth lightly moistened with isopropyl alcohol to gently wipe the gold contacts. Allow to dry completely before installation. Avoid touching the contacts with your fingers.

USER MANUAL CT8G4DFRA266 Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
• Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system’s owner’s manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.
2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.
3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.
7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).
8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

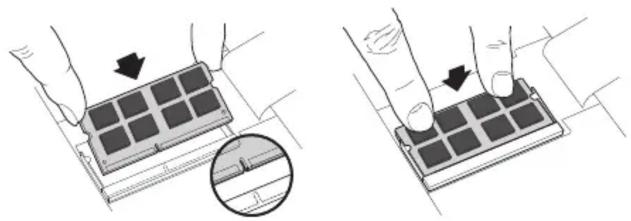

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory

©2017 Micron Technology, Inc. All rights reserved. Information, products, and/or specifications are subject to change without notice. Neither Crucial nor Micron Technology, Inc. is responsible for omissions or errors in typography or photography. Micron, the Micron logo, Crucial, the Crucial logo, and The memory & storage experts are trademarks or registered trademarks of Micron Technology, Inc. All other trademarks are the property of their respective owners.
