Product Type	6-String Classic Acoustic Guitar
Brand	Pyle
Model	PGACLSTR10SB
Body Material	Laminated Wood
Neck Material	Hardwood
Fretboard Material	Rosewood or Equivalent
Number of Frets	19 or 20 (Standard Classic)
String Type	Nylon (Classical)
Scale Length	Approx. 25.6 inches (650 mm)
Overall Length	Approx. 40 inches (101.6 cm)
Body Width	Approx. 15 inches (38 cm)
Body Depth	Approx. 4 inches (10 cm)
Weight	Approx. 4.5 lbs (2 kg)
Included Accessories	Digital Clip-On Tuner, Guitar Strap, Picks, Spare Strings
Tuning Pegs	Standard Classical Open-Gear
Bridge	Classical Tie-Block Style
Finish	Sunburst High-Gloss
Recommended Use	Beginner to Intermediate Players
Maintenance	Wipe with dry cloth; keep in case; avoid extreme humidity
Warranty	1 Year Limited Manufacturer Warranty

Frequently Asked Questions - PGACLSTR10SB Pyle

How do I attach a guitar strap to my Pyle PGACLSTR10SB?

Adjust the strap to your desired length. Thread the loop end of the strap through the keyhole on the front of the strap and tie a knot close to the hole. Then run the other side of the string through the headstock and tie a knot on the opposite side. Ensure the strap is secure before playing.

How do I tune my guitar for the first time?

First, hold down the strings with your left hand and stretch them away from the body with your right to break them in. Use a clip-on tuner placed on the headstock. Pluck the string and turn the tuning peg to match the desired note. The standard tuning is E-A-D-G-B-E (low to high). Move the tuner needle to the center for accurate pitch. After tuning, gently tug each string to stretch it, then re-tune. Repeat this process 6-8 times for new strings.

How do I adjust the truss rod on my Pyle guitar?

The truss rod is located inside the neck under a cover. Use a 1/4 inch nut driver to adjust. Tighten the nut to reduce upbow (straighten the neck), loosen to add relief. Check by pressing the string at the 1st and 14th frets; the gap at the 6th fret should be about the thickness of a business card (0.010 inch). If the neck is backbowed or too straight, turn the nut clockwise to loosen. If buzzing occurs near the nut, the truss rod may need loosening.

What type of strings should I use for this guitar?

This is a classical guitar designed for nylon strings. Standard nylon strings with ball ends or tie ends are suitable. Avoid steel strings as they can damage the bridge and neck.

How often should I change the strings?

Strings should be changed every 3-6 months depending on usage. If you play frequently or notice discoloration, loss of tone, or difficulty staying in tune, replace them sooner.

How do I clean and maintain my guitar?

Wipe the body and neck with a soft, dry cloth after each use. For the fretboard, use a damp cloth and dry immediately. Avoid direct sunlight and extreme humidity. Store in a case when not in use.

My guitar is buzzing on certain frets. What should I do?

Fret buzz can be caused by improper truss rod adjustment, uneven frets, or low string action. Check the neck relief first (see truss rod adjustment). If the neck is straight, the frets may need leveling or the saddle may need raising. Consult a professional technician if needed.

Can I install a pickguard on this guitar?

Yes, you can add a pickguard designed for classical guitars. However, it is not pre-installed. Use adhesive pickguards or screw-mounted ones carefully to avoid damaging the finish.

Does the guitar come with a warranty?

Pyle offers a 1-year limited manufacturer warranty covering defects in materials and workmanship. Keep your purchase receipt and contact Pyle support at (1) 718-535-1800 or [e-mail] for assistance.

What is the best way to store my guitar?

Store the guitar in a hard case or quality gig bag in a room with stable humidity (40-50%) and temperature (65-75°F). Avoid leaning it against walls or leaving it in a car.

USER MANUAL PGACLSTR10SB Pyle

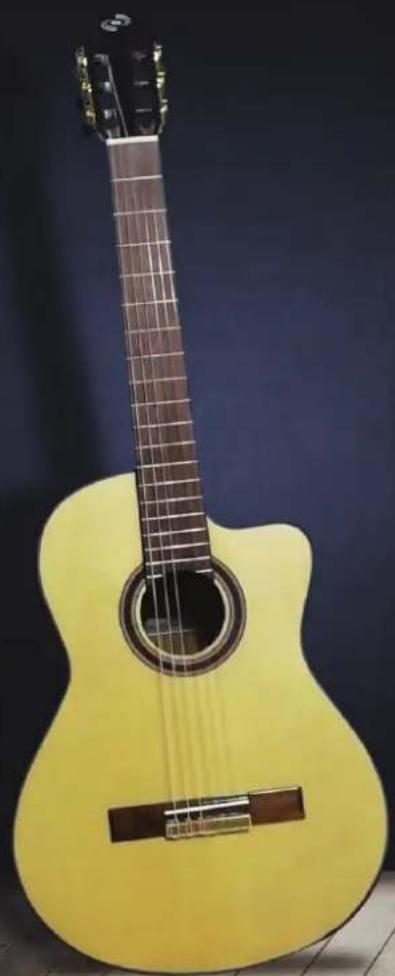

Yellow acoustic guitar with visible fret and body structure against a dark blue background (no text or symbols)

PYLE® GUITAR

6-String Classic Guitar

Guitar with Digital Tuner and Accessory Kit

USER GUIDE

Please take a few moments to read through this booklet.

In it you will find answers to many of your questions and other invaluable information about how to attach a guitar strap and how to tune a guitar.

Instructions:

A. How to attach a guitar strap?

1. Adjust your guitar strap to the correct size.

Close-up of a black plastic bag with a strap, placed on a textured surface (no visible text or symbols)

Close-up of hands folding a dark object on a light surface (no text or symbols visible)

Close-up of a black wrist strap with a circular inset showing a magnified view (no text or symbols visible)

1. Take the looped end of your string and thread it through the key hole on the front of your strap, tying a knot close to the hole.

Close-up of hands holding a black object with a belt buckle (no visible text or symbols)

Close-up of hands holding a black computer mouse with a string (no text or symbols visible)

Close-up of a hand holding a black computer mouse on a wooden surface (no text or symbols visible)

1. Adjust your guitar strap to the correct size.

Close-up of a curved surface with a small circular mark and letter 'A' and 'B' label, no readable text or symbols beyond the label.

Close-up of a hand holding a black circular button on a dark surface, with no visible text or symbols.

Close-up of a black plastic component with a circular hole, no visible text or symbols

1. Run one side of the string through the headstock and tie a knot on the other side.

Close-up of a hand forming a chord on a guitar fretboard (no text or symbols visible)

Close-up of hands forming a chord on an acoustic guitar fretboard (no text or symbols visible)

Close-up of a hand forming an acoustic guitar with strings and tuning pegs (no text or symbols visible)

1. Ready to Play now!

Person wearing a black top and holding a guitar, standing with arms crossed (no visible text or symbols)

Person playing acoustic guitar with strings, wearing a T-shirt (no visible text or symbols)

Person playing a string instrument, viewed from behind (no text or symbols visible)

B. How to tune a guitar (for first time user)

1. Hold the strings down with your left hand while stretch the strings away from the body with your right. (image 1)
2. Use some pressure to wiggle strings back and forth. You don't need to be gentle but make sure you don't pull too hard once you feel the string resisting or it can break. (image 2)

Person playing acoustic guitar in a studio setting (no visible text or symbols)

Close-up of a person's hand forming a chord on a guitar fretboard (no text or symbols visible)

BASIC RUNDOWN OF TUNING A GUITAR

1. Memorize what the strings are on the guitar. (E - Low version, A, D, G, B, E - High version) (image A, B)
2. Look at the tuners of the guitar. (image C)

Person playing acoustic guitar with visible fretboard and chord (no text or symbols)

Close-up of a hand forming a guitar headstock with visible fret and key (no text or symbols)

1. Pluck the string with a pick or if not with the pick then with your finger and when you move the tuner around, you can hear the pitch get lower. You can turn it the other way and tighten it and you hear the pitch get higher.

Close-up of a person playing guitar with fretboard, no visible text or symbols

Close-up of a person playing a guitar with a hand adjusting the fretboard (no visible text or symbols)

1. You can also use clip-on tuners then put on the headstock because it reads the vibration off the guitar and tells what note it is or it's close to.

Close-up of a black electronic device with a blue display showing the number 59, labeled 'A' (no readable text or symbols beyond branding)

Close-up of a hand forming a G major on a guitar fretboard, with no visible text or symbols.

1. Move the needle of the tuner to get the right tune of the string. If the needle goes too far, bring it back down and even lower than the notes needs to be and then bring it back up until the needle hits the right tune of the strings.

Person playing acoustic guitar with strings and keyboard (no visible text or symbols)

1. Once you've tuned all the strings, you can gently tug each string at the middle back and forth to help stretch it. When stretched the string will drop pitch and go out of tune. After stretching re-tune each string and repeat this process 6-8 times. This stretching process is only necessary for new strings and the instrument will hold better in tune after they are broken in.

Close-up of a hand forming a chord on a guitar headstock (no text or symbols visible)

Close-up of a hand pressing guitar strings on the fretboard (no text or symbols visible)

Close-up of a hand pressing guitar strings on the headstock (no text or symbols visible)

Close-up of a person's hand forming a G-8 chord on a guitar headstock (no text or symbols visible)

Close-up of a hand forming an acoustic guitar headstock (no text or symbols visible)

Close-up of a hand forming a chord on a guitar fretboard (no text or symbols visible)

How to Adjust an Acoustic Guitar Truss Rod

Your truss rod needs adjustment when the neck of your guitar has too much or too little upbow or too much backbow.

Tightening or loosening the adjustment nut adds or lessens pressure on the rod and neck. As a general rule, tightening the nut moves the neck away from the string pull and removes upbow; loosening the nut allows the neck to relax into an upbow again (especially when helped by the strings' pull). Controlled upbow is known as relief.

However, with a one-way truss rod, if the neck warps away from the string pull, no amount of loosening the truss rod will pull the neck straight, because the truss rod only works against the pull of the strings.

Two primary signs tell you that your truss rod needs adjusting:

1. There's a noticeable change in the action; the height of the strings over the frets has become either too high or too low. The most common scenario is that the strings get higher as the neck upbows from the string pull.

2. Some strings buzz on the frets between the nut and the fifth fret. This indicates that the neck is either too straight or it is backbowed from the truss rod's slow, constant pressure over time.

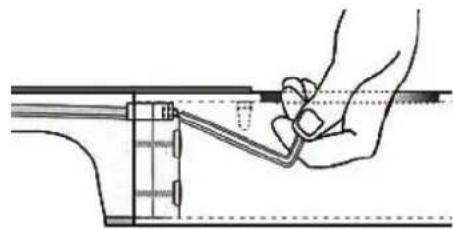

Diagram of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Close-up of an acoustic guitar fretboard with visible fret lines and chords (no text or symbols)

1. 1/4" nut
2. 3/16" washer
3. Threads
4. Main shaft of the truss rod
5. Truss rod anchor
6. Truss rod compartment cover
7. 1/4" nut driver

As you press the string down at the 1st and 14th frets, the string should be approximately .010" away from the 6th fret - about the thickness of a business card.
