Type	Universal USB-C Dock
Brand	Lenovo
Model	ThinkPad Universal USB-C Dock
Category	Docking Station
Dimensions (approx.)	20 x 8 x 3 cm (L x W x H)
Weight (approx.)	0.5 kg
Input Power	90W AC adapter (included)
Output Power to Computer	Up to 90W (via USB-C)
Video Output	2x DisplayPort 1.4, 1x HDMI 2.0 (supports up to 3 displays, max 3840x2160@60Hz with 1-2 displays, 3840x2160@30Hz with 3)
USB Ports	1x USB 3.2 Gen 2 (10 Gbps), 1x Always On USB 3.2 Gen 2 (5V/2.4A), 2x USB 2.0
Ethernet	1x RJ45 (10/100/1000 Mbps) with Wake-on-LAN and MAC passthrough
Audio	1x 3.5mm combo audio jack
Security	Kensington NanoSave/MicroSave/MiniSaver lock slots
Compatibility	Windows 10 only, compatible with select Lenovo ThinkPad, ThinkCentre, etc.
Driver/Firmware	Preinstalled on compatible devices, updates via Lenovo support
Included Accessories	90W AC adapter, power cord, 1m USB-C cable, documentation
Cleaning	Wipe with a dry, soft cloth. Do not use liquid cleaners.
Storage Temperature	Not specified, typical range: -20°C to 60°C
Operating Temperature	Not specified, typical range: 5°C to 35°C

Frequently Asked Questions - Universal USB-C Dock LENOVO

Why is my dock not working after connecting to my computer?

Ensure you use the supplied AC power adapter, power cord, and USB-C cable. The dock must be powered by its adapter. Make sure the dock driver is installed and the USB-C port on your computer is functional.

How do I update the dock firmware?

Visit https://www.lenovo.com/support/docks, select your dock, and download the firmware. When the power button indicator turns solid white, the update is complete. Reconnect the dock for changes to take effect.

Can I charge my laptop through the dock?

Yes, if your laptop's USB-C port supports power input. Use the supplied 90W adapter and USB-C cable. The dock provides power to the computer when connected.

Why is my external display blank?

Check that your computer is not in sleep/hibernation mode. Verify all cable connections and that the dock driver is installed. Try reducing the display resolution. If problem persists, uninstall and reinstall the dock driver.

How many external displays can I connect?

Up to three external displays using the two DisplayPort and one HDMI connectors. With 1-2 displays, max resolution is 3840x2160@60Hz; with three displays, max 3840x2160@30Hz.

Why does my wireless keyboard/mouse lag when connected to the dock?

Connect the wireless receiver to a USB 2.0 connector on the dock, not the USB 3.2 connectors, to avoid interference.

What is the Always On USB port for?

The Always On USB 3.2 Gen 2 port provides up to 5V/2.4A for charging devices even when the computer is off. It also supports data transfer.

How do I configure the external displays?

Right-click the desktop, select Display settings, choose the display you want to configure, and adjust mode (extend, mirror, etc.), orientation, resolution, and more.

Does the dock support Wake-on-LAN?

Yes, when connected to a LAN, the dock supports Wake-on-LAN and MAC address pass-through. Check your computer's compatibility at Lenovo's support site.

Where can I download Lenovo Dock Manager?

Lenovo Dock Manager is available at https://support.lenovo.com/us/en/solutions/ht037099. It provides silent firmware updates and device information.

USER MANUAL Universal USB-C Dock LENOVO

ThinkPad Universal USB-C Dock User Guide

i https://www.lenovo.com/safety

Note: Before using this documentation and the product it supports, ensure that you read and understand the warranty information in the documentation that comes with the product.

First Edition (March 2021)

© Copyright Lenovo 2021.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Contents

Chapter 1. About the dock ..... 1

In the box . . . . . . . . . . . . . . . . . . . . . 1

Product overview ..... 2

Chapter 2. Set up the dock ..... 5

Install the dock....5

Install the dock driver and firmware ..... 5

Install Lenovo Dock Manager ..... 5

Chapter 3. Use the dock. . . . . . . . . . 7

Use the video output connectors ..... 7

Supported resolution....7

Configure the external displays ..... 7

Use the Ethernet connector ..... 7

Chapter 4. Troubleshooting .....9

Appendix A. Accessibility

information....11

Appendix B. Trademarks ..... 13

Chapter 1. About the dock

Thanks for using ThinkPad Universal USB-C Dock.

ThinkPad Universal USB-C Dock is an enhanced universal compatible module to help you expand your computer with automated and silent updates. You can use it to connect your computer (Microsoft Windows® 10 only) to a local area network (LAN) and multiple devices, such as a headset, external displays, and Universal Serial Bus (USB) devices.

To view the compatible computers,

1. Go to https://support.lenovo.com/us/en/solutions/accs-guide.
2. Select ThinkPad, ThinkCentre, ThinkStation, Ideapad and Ideacentre Option Compatibility Matrix. Then follow the on-screen instructions.

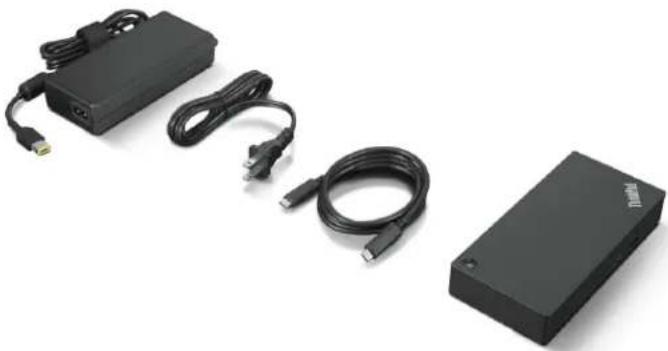

In the box

• ThinkPad Universal USB-C Dock
• 90W ac power adapter and power cord
- 1m USB-C® cable
- Documentation

Product photo of a black electronic device with connected cables and a rectangular base (no visible text or symbols)

Contact your place of purchase if any item is missing or damaged. Ensure that you retain your proof of purchase and packing material. They might be required to receive warranty service.

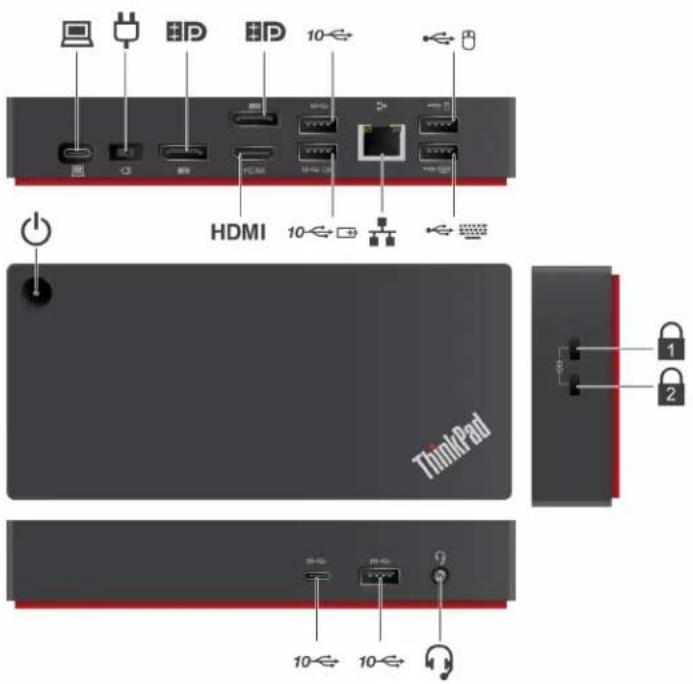

Product overview

	USB-C connector (for connecting computer)Connect to your computer with the accompanying USB-C cable.
	Power connectorConnect to ac power with the accompanying ac power adapter and power cord
	DisplayPort® connectorConnect to an external display with a DisplayPort cable.
	USB 3.2 connector Gen 2Connect a compatible device to transfer data at USB 3.2 speed, up to 10 Gbps.
	USB 2.0 connectorConnect a USB device, such as mouse.
	USB 2.0 connectorConnect a USB device, such as keyboard.
	Ethernet connectorConnect to a LAN with an Ethernet cable.
	Always On USB 3.2 connector Gen 2Connect a compatible device to transfer data or charge with the output voltage and current of up to 5 V and 2.4 A.
	HDMITM connectorConnect to an external display with a High- Definition Multimedia Interface (HDMI) cable.Power buttonPress to turn off or turn on the dock.
	Security-lock slotSupport cable locks that conform to the Kensington / Lenovo NanoSave® lock standards (using Cleat locking technology).
	Security-lock slotSupport cable locks that conform to the Kensington / Lenovo MicroSave® lock standards (using T-bar locking technology) or MiniSaver® lock standards (using CleatTM locking technology).
	Audio connectorConnect a headset or headphones with 3.5 mm plug.

Power button Indication

When the dock is connected to ac power but not your computer, press the dock power button to turn off or turn on the dock. The indicator on the dock power button shows the dock status:

LED status Dock status

Amber On

Off Off

When the dock is connected to both your computer and the ac power adapter, the indicator on the dock power button shows the computer status:

LED status	Computer status
Solid white On
Blinking white In sleep mode
Blinking orange Updating driver
Off Off or in hibernation mode

Statement on USB transfer rate

Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device.

USB device Data rate (Gbit/s)
3.2 Gen 1 / 3.1 Gen 1	5
3.2 Gen 2 / 3.1 Gen 2	10
3.2 Gen 2 × 2	20
Thunderbolt 3 connector (USB-C)	40
Thunderbolt 4 connector (USB-C)	40

Chapter 2. Set up the dock

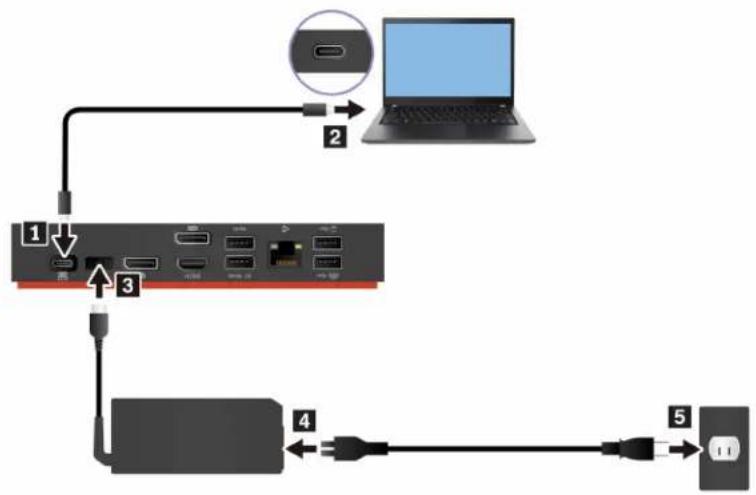

Install the dock

Use the accompanying ac power adapter, power cord, and USB-C cable to install the dock. The dock supplies power to the computer when the dock is connected to ac power and your computer.

Install the dock driver and firmware

The dock driver and firmware is preinstalled on compatible computers and the dock is ready for use after you connect it to ac power and computer.

It is recommended that you update the dock driver and firmware whenever a new version is available to improve performance of the dock.

To update dock firmware:

1. Go to https://www.lenovo.com/support/docks.
2. Select the entry for the dock and then follow the on-screen instructions to download the firmware.
3. When the indicator on the dock power button turns to solid white, the update is completed. The update takes effect when you reconnect the dock to your computer.

Install Lenovo Dock Manager

Lenovo Dock Manager is designed to provide silent firmware update and device information query.

To download Lenovo Dock Manager, go to https://support.lenovo.com/us/en/solutions/ht037099.

Chapter 3. Use the dock

Use the video output connectors

The dock has three video output connectors to support up to three external displays:

• Two DisplayPort connectors (support DisplayPort 1.4)
  • One HDMI connector (supports HDMI 2.0)

Supported resolution

Depending on the USB-C connector or Thunderbolt 3 connector on your computer, the dock supports the following display resolutions:

• One / two video output connectors: up to 3840 x 2160 pixels / 60 Hz
- Three video output connectors: up to 3840 x 2160 pixels / 30 Hz

To view the maximum display matrix, go to https://support.lenovo.com/us/zh/solutions/pd029622#USB-C%20dock and select the entry for the dock.

Configure the external displays

You can configure the external displays connected to your dock:

• Set the display mode: extend, mirror or duplicate, or single display.
• Set the orientation, brightness, resolution, color, and more.

To configure the external displays:

1. Right-click a blank area on the desktop and select Display settings.
2. Select the display that you want to configure.
3. Configure display settings of your preference.

For more information, see the Windows help information.

Use the Ethernet connector

You can use the Ethernet connector on the dock to connect your computer to a standard 10 Mbps, 100 Mbps, or 1000 Mbps network with an Ethernet cable.

The Ethernet connector has two network status indicators. When the green indicator is on, the computer is connected to a LAN. When the yellow indicator blinks, data is being transmitted.

Depending on your computer, some of the following functions are available when the dock is connected to a LAN.

• Preboot eXecution Environment
• MAC address Pass Through
- Wake on LAN
- Wake on LAN from Dock

To view the functions supported by your computer, go to https://support.lenovo.com/us/en/solutions/accs-guide. Select Network function support – Option Compatibility Matrix. Then follow the on-screen instructions.

Chapter 4. Troubleshooting

General

1. The dock does not work after connected to my computer.

Ensure that:

• You use the accompanying ac power adapter, power cord, and USB-C cable.
• The dock is powered by its power adapter. The dock always needs an external power adapter for operation.
• The dock driver is installed on your computer.

• The USB-C connector on your computer works well.

• The function of wireless keyboard or mouse (2.4 GHz) is interrupted. The mouse pointer lags or does not move. Some characters are lost when I input by the keyboard.

Connect the wireless device receiver to a USB 2.0 connector on the dock.

1. The mouse or keyboard cannot wake up my computer when connected to the Always On USB 3.2 connector Gen 2 on the dock.

Connect the mouse or keyboard to a USB 2.0 connector on the dock.

1. The charging speed for my device, such as a smartphone, is slow.

Connect your device to the Always On USB 3.2 connector Gen 2 on the dock.

1. My computer cannot be charged by the dock.

Ensure that:

• You use the accompanying ac power adapter, power cord, and USB-C cable to set up the dock.
• The USB-C connector on your computer supports ac input.

Video output

1. The external display is blank.

2. Ensure that:

3. Your computer is running correctly and is not in sleep or hibernation mode. When the computer is in sleep or hibernation mode, the external display is always blank.
4. The dock is securely connected to ac power, computer, and external display.
5. The dock driver is installed on your computer.
6. Reduce the resolution of the external display.

If the problem persists, disconnect all cables from the dock, and uninstall the dock driver. Then, reinstall the dock driver and reconnect all cables to the dock. See Chapter 2 "Set up the dock" on page 5.

1. I cannot play back videos on the external display but can play them back on the computer screen.

Some computers do not support High-bandwidth Digital-content Copy Protection (HDCP), so you cannot play back protected videos on the external display connected to the dock.

To play back videos on the external display, connect the external display to a DisplayPort or HDMI connector on your computer. Then, set the display mode into extend mode or single-display mode from your computer. See “Configure the external displays” on page 7.

1. The images on the external display flutter.

- Ensure that the display cable is securely connected to the dock.

- Disconnect and reconnect the display cable.

1. The colors of the images on the external display are not correct.

2. Ensure that the display cable is securely connected to the dock.

3. Adjust color settings of the external display. See "Configure the external displays" on page 7.

4. The computer can play back flash content. However, when I drag the window to the external display and maximize the window, the playback stops.

Update your Adobe Flash Player program to the latest version.

Appendix A. Accessibility information

Documentation in accessible formats

Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader. Each image in the documentation also includes adequate alternative text to explain the image so that visually impaired users can understand the image when they use a screen reader.

To open and view PDF files, your computer must have the Adobe Reader program installed. The Adobe Reader program also is available for download at: http://www.adobe.com

Appendix B. Trademarks

LENOVO, the LENOVO logo, THINKPAD ^® , and the THINKPAD logo are trademarks of Lenovo.

Microsoft and Windows are trademarks of the Microsoft group of companies.

DisplayPort is a trademark of the Video Electronics Standards Association.

The terms HDMI and HDMI High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

USB-C is a trademark of USB Implementers Forum.

All other trademarks are the property of their respective owners. © 2021 Lenovo.
