Product Type	Refrigerator with freezer compartment (star rated)
Model	KMB8339
Brand	Kunft
Power Supply	220-240 V ~ 50 Hz, single phase
Climate Class	SN, N, ST, T (ambient +10°C to +43°C)
Temperature Control	Rotary knob with OFF, MIN, MID, MAX settings
Refrigerant	R600a (isobutene), flammable
Door Reversal	Reversible (left or right hinge)
Interior Lighting	LED lamp (non-user replaceable)
Defrosting	Manual defrost (recommended when frost >10 mm)
Cleaning	Unplug before cleaning; use lukewarm water and neutral soap; avoid abrasives
Condenser Cleaning	Clean annually with soft brush or vacuum cleaner
Safety Features	Grounded plug, child lock (optional), warnings for flammable refrigerant
Spare Parts Availability	Minimum 7 years for professional repairers, 10 years for end users after last unit placed on market
Warranty	3 years against manufacturing defects (or as per local legislation)
Installation Clearance	Back: 50-70 mm from wall; top: ≥100 mm; sides: ≥100 mm; front: 180° door opening
Intended Use	Household and similar (kitchens, offices, hotels, etc.)

Frequently Asked Questions - KMB8339 Kunft

How do I adjust the temperature?

The temperature selector knob is on the left side of the fridge compartment. Turn clockwise to turn on. MIN gives the warmest setting, MAX the coldest. A medium (MID) setting is recommended for normal use and energy savings.

Can I reverse the door?

Yes, the door can be reversed from right to left. Follow the instructions in the manual: lay the fridge on its back, remove upper hinge cover and screws, take off the door, transfer screw hole covers and adjustable feet, then reassemble on the left side.

How do I defrost the fridge?

When frost is thicker than 10 mm, unplug the fridge, remove food, open the door, and wait for frost to melt. Wipe up water, then close the door and plug it back in. Do not use mechanical tools to remove frost.

The fridge is making unusual noises. Is that normal?

Yes, certain noises are normal: clicking when compressor turns on/off, humming during operation, bubbling or splashing from refrigerant flow. If the noise is loud, check that the appliance is level and not touching walls or other objects.

How do I clean the fridge?

Switch off and unplug the appliance. Remove food. Clean interior and accessories with a cloth and lukewarm water mixed with mild dish detergent. Rinse with fresh water and dry thoroughly. Do not use abrasive cleaners, steam cleaners, or organic solvents.

What do the climate class ratings mean?

The climate class (SN, N, ST, T) indicates the ambient temperature range where the fridge operates efficiently: SN (+10°C to +32°C), N (+16°C to +32°C), ST (+16°C to +38°C), T (+16°C to +43°C). Ensure room temperature stays within the specified range.

Is the refrigerant dangerous?

The fridge uses R600a (isobutene), which is flammable. If the refrigerant circuit is damaged, avoid flames and ventilate the room. Do not damage the tubing. Dispose of the appliance professionally to avoid hazards.

How can I save energy?

Place the fridge away from heat sources, avoid leaving the door open too long, set the thermostat to a medium setting (not colder than necessary), ensure proper clearance around the appliance, and keep the condenser clean annually.

What should I do if the interior light fails?

The LED lamp is not user-replaceable. If it fails, contact Kunft Customer Service or an authorized service center for assistance. Do not attempt to replace it yourself.

Are spare parts available for this model?

Yes. According to EU regulations, spare parts are available for at least 7 years (for professional repairers) or 10 years (for end users and professionals) after the last unit of the model is placed on the market.

USER MANUAL KMB8339 Kunft

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS......4

1.1. Power Supply ....5
1.2. Power Cord and Other Cables......5
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS....12

2.1. Product Description.... 12
2.2. Product usage....12
2.3. Maintenance 19
2.4. Troubleshooting 21

1. POST-SALE SERVICE....23

2. ENVIRONMENTAL PROTECTION 23

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

- It has fallen to the ground;

- You notice any evidence of damage;

- Any anomaly occurs during its operation.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Keep the appliance and cord out of the reach of children under 8 years of age. Cleaning and user maintenance shall not be made by children without supervision

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

Do not pull on the cord to unplug the device.

Turn off your device whenever you are not using it.

Do not wrap the power cord around your device.

The power cable must never come into contact with the compressor, located on the back of the appliance – when in operation, the compressor is very hot. If you do not do this, the insulation will lose efficiency and a power failure may occur.

kunft®

Do not use extensions.

Position the device to allow easy access to the plug.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g., for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Maintenance and service operations are only to be carried out by authorized professionals.
• To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices.
• Keep all packaging away from children as there is a risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection

cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

• If this appliance, featuring a magnetic door seal, is replacing an older appliance with a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments.
• farmhouses and by clients in hotels, motels and other residential type environments.
• bed and breakfast-type environments.
• catering and similar non-retail applications.
• WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstructions.
• WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING - Do not damage the refrigerant circuit.
• WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged-

kunft®

- WARNING - Do not place multiple portable socket outlets or portable power supplies at the rear of the appliance.

Warning: Risk of fire / flammable materials

⚠ WARNING! When using, maintaining and disposing of the appliance, pay attention to the symbol similar to the one on the left, located on the back of the appliance (rear panel or compressor), in yellow or orange.

• The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the refrigerant circuit components become damaged.
• WARNING - Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
• If the refrigerant circuit should be damaged:
• Avoid open flames and sources of ignition. Thoroughly ventilate the room where the appliance is located.

• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a short circuit, fire, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorised waste disposal centre. Do not expose to flames.

Electrical safety

• The power cord must not be lengthened.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• The fridge is only supplied with a single phase alternating current 220\~240V/50Hz power supply. If voltage fluctuations exceed the above range, for the sake of safety, be sure to use an A.C. Automatic voltage regulator of more than 350W with the fridge. The fridge must have its own power socket instead of sharing it with other electric appliances. Its plug must be connected to an earthed socket.

Daily use

- Do not operate any electrical appliances in the appliance (e.g., electric ice cream makers, mixers etc.).

kunft®

• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• The appliance's manufacturer storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff and/or beverages in normal households as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Never use the base, drawers, doors etc. to stand on or as supports.
• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
• WARNING - Food needs to be packed into bags before it is put into the refrigerator. Liquids need to be stored in bottles or capped containers in order to avoid a spill, as the product's design does not make it easy to clean.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• This refrigerating appliance is not suitable for freezing foodstuffs.

Caution!

Care and cleaning

- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects, steam cleaner, essential oils, organic solvents or abrasive cleaners.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

• Follow the instructions given in this manual for proper electrical connection.
• Unpack the appliance and check if there is any damage. Do not connect the appliance if it is damaged. Immediately report any possible damage to the place you bought it. In this case, keep the packaging.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back into the compressor.

- There should be adequate air circulation around the appliance, otherwise it may lead to overheating. To achieve sufficient ventilation, follow the installation instructions. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the installation instructions.

• The appliance must not be placed close to radiators or cookers.
• Make sure that the mains plug is accessible after installing the appliance

Service

• Any electrical work required for the servicing of the appliance should be carried out by a qualified electrician or competent person.

• This product must be serviced by the Customer Support Service, and only genuine spare parts must be used.

• If the appliance is Frost Free.

• If the appliance contains freezer compartment.

kunft®

2. OPERATING INSTRUCTIONS

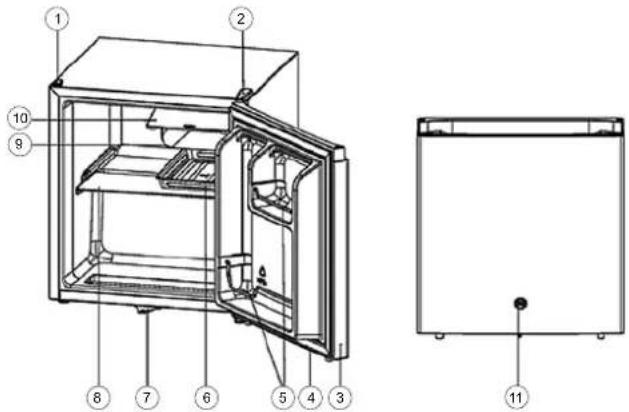

2.1. Product Description

1. Screw hole cover

2. Lock holder (optional)

3. Upper hinge cover

4. Glass shelf

5. Refrigerator door

6. Rollbond evaporator parts

7. Gasket part

8. Star door

9. Shelf strip

10. Lock (optional)

11. Water drain

Note: Features may vary depending on model. Not all models will have the features listed.

Note: To get the best energy efficiency out of this product, please place all shelves, drawers in their original position as per the illustration above.

2.2. Product usage

Cleaning before use

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and neutral soap in order to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Installation Positioning

Warning!

Before installing, carefully read the instructions for your safety and for the correct use of the appliance.

• Position the appliance away from sources of heat such as stoves, radiators, direct sunlight, etc.
• Maximum performance and safety are guaranteed by maintaining the correct indoor temperature for the class of unit concerned, as specified on the rating plate.
  • This appliance performs well SN N ST and T.

The appliance may not work properly if it is left for a longer period at a temperature above or below the indicated range.

Climate class Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T	+16°C to +43°C

Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the low rear section of the appliance, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight.

Levelling

- The appliance should be level in order to eliminate vibration. To make the appliance level, it should be upright and both adjusters should be in stable contact with the floor. You can also adjust the level by unscrewing the appropriate level adjustment in the front (use your fingers or a suitable spanner).

Electrical connection

CAUTION

Any electrical work required to install this appliance should be carried out by qualified or authorized personnel.

WARNING

This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed.

kunft®

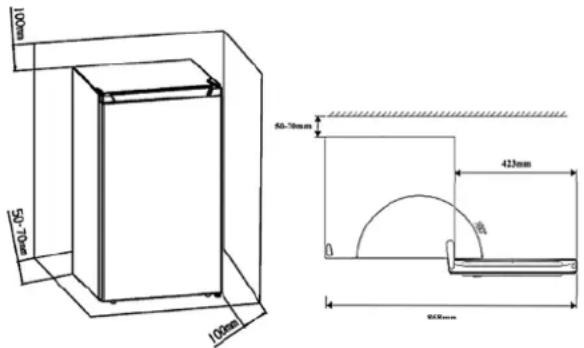

Ventilation of the appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, there should be sufficient clearance around the refrigerator.

Suggestion: It is advisable for there to be 50-70 mm of space from the back to the wall, at least 100 mm from its top, at least 100 mm from its side to the wall and a clear space up front to allow the doors to open 180°. As shown in follow diagrams.

Reversing the door

The side from which the door opens can be changed from the right side (as supplied) to the left side if the installation site so requires.

Tools you will need:

1. 8 mm socket driver

1. Cross-shaped screwdriver

1. Putty knife or thin-blade screwdriver

Before you start lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator.

1. Screw hole cover

2. Upper hinge cover

3. Special flange self-tapping screws

4. Lower hinge parts
5. Adjustablefoot
6. Upper hinge part
7. Special flange self-tapping screw

Open the refrigerator door and remove all the items on the door.

1. Remove the upper hinge cover (2); remove two screws (3); remove the upper hinge part (4).
2. Carefully take the door off and place it on the ground on a soft surface to prevent the surface of the door from being scratched.
3. Remove the screw hole cover (1) and transfer it to the corresponding hole on the right, be sure to firmly press it into the hole.
4. Remove the two screws (6) at the bottom.
5. Remove the lower hinge parts (5) at the bottom.
6. Remove the left adjustable foot (7) at the bottom, transfer it to the hole corresponding to the bottom on the right.
7. Install the previously removed lower hinge parts (5) into the corresponding hole on the bottom left side, and tighten the screw (6).
8. Install the left hole at the bottom of the door into the lower hinge parts and close the door.
9. Install the previously removed upper hinge part (4) to the corresponding hole position on the left side, screw the screw (3), do not tighten it first, and tighten the screw when the door is in the horizontal position.
10. Install the previously removed upper hinge cover (2) to the corresponding position on the left.
11. Finish changing the door

Control Panel

Starting up and temperature regulation

• Insert the plug of the connection lead into the plug socket with a protective grounding contact.
• The temperature selector knob is located on the LH side of the refrigerator compartment.

"Off" setting means: off

Rotate the knob clockwise to turn on the appliance.

“MIN” setting means: highest temperature, warmest setting.

“MAX” setting means: lowest temperature, coldest setting.

Important!

- Normally we advise you select the MID setting, if you want the temperature warmer or colder please turn the knob to lower or higher setting accordingly. When you turn the knob to a lower setting, this

kunft.®

can lead to more energy savings. Otherwise, it would result in high energy consumption.

NOTE: High temperature setting will accelerate food waste.

- For optimum food preservation, a medium setting is generally the most suitable.

Important! High ambient temperatures (e.g., on hot summer days) and a cold setting (setting max) may cause the compressor to run continuously or even non-stop.

Reason: when the ambient temperature is high, the compressor must run continuously to maintain the low temperature in the appliance.

Accessories

Movable shelves / trays

• Various glass or plastic storage shelves or wire trays are included with your appliance. Different models have different combinations and different models have different quality.
• The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Lock (optional)

- The door of the refrigerator is equipped with a lock to prevent children from opening the refrigerator at will.

To avoid food contamination, please follow the following instructions:

• Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that they are not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould growing within the appliance.

Compliance is checked by inspection

Order Compartments Type	Target storage temp. [°C]	Appropriate food
1 Fridge +2~+8 Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2 (***)-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4 **-Freezer	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
5 *-Freezer	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition).
6 0-star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days).Partially encapsulated processed foods (non-freezable foods)

kunft®

7 Chill - 3~+3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C)

8 Fresh Food 0~+4 Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)

9 Wine +5~+20 Red wine, white wine, sparkling wine etc.

Note: Please store different foods according to the compartments or target storage temperature of your purchased products.

Parts Model information

To access the EPREL registration of the model:

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. The model's energy labeling information is displayed

Helpful hints and tips

Noises during Operation

The following noises are characteristic of refrigeration appliances:

Clicks - Whenever the compressor switches on or off, a click can be heard.

Humming - As soon as the compressor is in operation, you can hear it humming.

Bubbling - When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.

Splashing - Even after the compressor has been switched off, this noise can be heard for a short time.

Energy saving tips

• Do not install the appliance near cookers, radiators or other sources of warmth.
• Do not open the door too often or leave the door open any longer than necessary.
• Do not set temperature colder than necessary.

• Make sure the side plates and back plate of the appliance are with some distance from the wall, follow the installation instructions.
• If sketch map shows the right combination of the drawers, crisper and shelves, do not adjust the combination, it would result in more energy-consuming.

Hints for fresh food refrigeration

To obtain the best performances:

• Do not store warm foods or evaporating liquids in the appliance.
• Do cover or wrap the food, particularly if it has a strong flavour or odour.
• Position food so that air can circulate freely around.

Hints for refrigeration

• Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special draw(s) provided.
• Butter and cheese: these should be placed in aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

2.3. Maintenance

Cleaning and care

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

The fridge should be cleaned and maintained at least every two months.

WARNING

Electrical Shock Hazard

The appliance should not be connected to the mains during cleaning. Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.

kunft®

• Remove the food from the appliance before cleaning. Store them in a cool place, well covered.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components.
• Hot vapours can lead to the damage of plastic parts.
• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid. Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
  • After cleaning wipe with fresh water and clean dish cloth.
• Accumulation of dust at the condenser increases energy consumption, clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
  • After everything is dry place appliance back into service.

Defrosting

- Water contained in food or getting into air inside the fridge be opening doors may form a frost layer inside. It will weaken the refrigeration when the frost is thick. When it is more than 10mm thick, you should defrost.

Defrosting in fresh food storage compartment

- Power off the refrigerator, take out the stored ingredients, open the refrigerator door. Let the refrigerator stand for a period of time, After the frost turns into water, dry the water, close the refrigerator door and plug it in.

Go out of use for a long time

• Remove all refrigerated packages.
• Switch off the appliance by turning the temperature regulator to position "off".
• Remove the mains plug or switch off or disconnect the electricity supply.
• Clean thoroughly (see section: Cleaning and Care).
• Leave the door open to avoid the build-up of odours.
  Note: Applies to appliances with a freezer compartment.

Disposal of the packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable waste collection container to recycle it.

Before disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.

WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that the refrigerant circuit's tubing is not damaged prior to proper disposal.

Replacing the appliance bulb

• WARNING — The refrigerator light bulb is not user replaceable! If the refrigerator lamp is damaged, please contact Customer Service for assistance.
• This warning is only for refrigerators with LED lamp

2.4. Troubleshooting

WARNING

Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must carry out troubleshooting not included in the manual.

Important!

Repairs to refrigerators / freezers may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or the Customer Support Service.

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Appliance does not work.	Appliance is not switched on.	Switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective. Mains malfunctions are to be corrected by an electrician.

kunft®

Appliance cools too much.	Temperature is set too cold.	Turn the temperature regulator to a warmer setting temporarily.
The food is too warm.	Temperature is not properly adjusted.	Please refer to the “Control panel” section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the “Installing your new appliance” section.
Heavy build-up of frost, possibly also on the door seal.	Door seal is not air-tight (possibly after reversing the door).	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it fits correctly.

Unusual noises. Appliance is not level. Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
The compressor does not start immediately after changing the temperature setting.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water on the floor or storage shelves.	Water drain hole is blocked.	See the "cleaning and care" section.

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a warranty against manufacturing defects for a 3-year period, or for another period provided for by the applicable legislation, from the date of purchase of the appliance.

Availability of repair parts

Depending on the repair part, they are available for a minimum of seven years for professional repairers or a minimum of ten years for professional repairers and end users after the last unit of the model has been placed on the market.

4.ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

Simple line drawing of a rectangular container with a small dot and number 11 at the bottom (no text or symbols on the diagram itself)

Invertir la puerta

kunft®

To access the EPREL registration of the model:

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. The model's energy labeling information is displayed

Consejos útiles

Availability of repair parts

Depending on the repair part, they are available for a minimum of seven years for professional repairers or a minimum of ten years for professional repairers and end users after the last unit of the model has been placed on the market.

Simple line drawing of a rectangular frame with a small black dot and number 11 at the bottom (no text or symbols on the diagram itself)

Inversão da porta

kunft®

Imported, produced and distributed by:
