Brand	Kunft
Model	KC2530
Product Type	Refrigerator Combi (Fridge-Freezer)
Energy Efficiency Class	A+
Annual Energy Consumption	232 kWh/year
Total Volume	216 L
Refrigerator Volume	148 L
Freezer Volume	68 L
Star Rating (Freezer)	4-star (****)
Freezing Capacity	3 kg/24h
Temperature Rise Time	15 h
Climate Class	N, ST (16°C - 38°C)
Acoustic Noise Emission	43 dB(A) re 1pW
Configuration	Freestanding
Temperature Control	Rotary knob (0-7), positions 0 off, 7 coldest
Interior Light	Yes, replaceable bulb
Defrosting	Automatic in fresh food compartment; manual in freezer (when frost >10 mm)
Door Reversal	Reversible (right to left), instructions provided
Adjustable Shelves	Yes, removable glass/plastic shelves
Spare Parts Available	Butter/cheese compartment, egg tray, door shelves, crispers, storage shelves (user-replaceable)
Cleaning	Use lukewarm water and mild detergent; do not use abrasive cleaners or steam cleaners
Safety	Class I, grounded plug; keep away from heat and water; children aged 8+ with supervision
Warranty	2 years against manufacturing defects (Worten/Modelo/Continente)

Frequently Asked Questions - KC2530 Kunft

How do I adjust the temperature on my Kunft KC2530 refrigerator?

Use the temperature control knob located on the right side of the refrigerator compartment. Turn clockwise from position 0 (off) to 7 (coldest). For normal use, positions 2-4 are recommended. Adjust based on ambient temperature and desired cooling.

How do I defrost the freezer compartment?

Manual defrosting required when frost exceeds 10 mm thick. Set knob to position 0, remove food, leave door open until ice melts. Mop up water. To speed up, place a bowl of warm water (50°C) inside. Do not use sharp objects or hairdryers.

Can I reverse the door opening direction?

Yes, the door can be reversed from right to left. Lay the refrigerator on its back, remove top cover, hinges, and adjust feet. Follow the detailed step-by-step instructions in the manual. Ensure you have a screwdriver and padded surface.

What should I do if the interior light does not work?

First, unplug the appliance and set knob to 0. Remove the light cover by loosening the screw and sliding it back. Replace the bulb with an identical type. Reinstall cover and restart the appliance.

Why is my refrigerator making unusual noises?

Normal operating noises include clicks (compressor on/off), whispers, bubbling, and splashes. If the noise is excessive, check that the appliance is level, not touching walls or other objects, and that pipes are not contacting each other.

How can I save energy with my KC2530?

Place the appliance away from heat sources and direct sunlight. Ensure proper ventilation (75 mm rear, 100 mm sides and top). Avoid frequent door openings. Do not put hot food inside. Select a warmer temperature setting when possible. The most efficient shelf configuration is shown in the manual.

How do I clean the refrigerator?

Unplug the appliance. Remove food. Clean interior and accessories with a cloth and lukewarm water with mild detergent. Rinse and dry. Do not use abrasive cleaners, steam cleaners, or solvents like lemon juice or acetic acid. Clean the condenser at the back once a year with a soft brush or vacuum.

What is the recommended storage order for food?

Refer to the manual's diagram: top door shelves for drinks, middle for butter/cheese/jams. Upper shelves for ready-made meals, pastries. Lower shelves for fresh meat, dairy. Crisper for fruit and vegetables. Freezer drawers for meat, ice cream, frozen foods.

What spare parts can I replace myself?

You can replace the cheese/butter compartment, egg tray, door shelves, fruit and vegetable crispers, and storage shelves without technical assistance. Other parts require a qualified technician.

What should I do if the refrigerator is not cooling enough?

Check that the temperature setting is not too warm (try a colder position). Ensure the door is not left open for long. If a large amount of warm food was added, wait 24 hours. Verify that the appliance is not near a heat source and that ventilation gaps are clear. If problem persists, contact customer service.

USER MANUAL KC2530 Kunft

White refrigerator with 'kunft' label, shown in front of a smaller inset device (no text or symbols on the main image)

refrigerator combi

is perfectly enough

KC2530

kunft.®

refrigerator combi

KC2530

EN

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS 8

2.1. Product Description.... 8
2.2. Using the Product 9
2.3. Maintenance 14
2.4. Troubleshooting 16

1. TECHNICAL SPECIFICATIONS .... 18
2. POST-SALE SERVICE 19
3. ENVIRONMENTAL PROTECTION 19

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

refrigerator combi

KC2530

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

refrigerator combi

KC2530

EN

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

kunft.

2. OPERATING INSTRUCTIONS

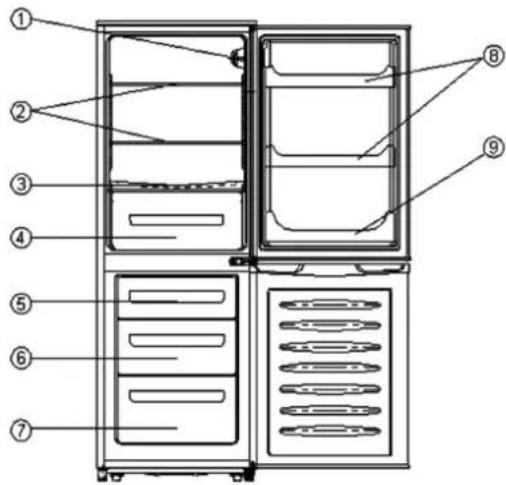

2.1. Product Description

1. Temperature control knob
2. Storage shelves
3. Fruit and vegetable crisper cover
4. Fruit and vegetable crisper
5. Upper freezer drawer
6. Middle freezer drawer
7. Lower freezer drawer
8. Upper Door shelves
9. Lower Door shelf

Interior Fittings

Storage Shelves and Metal Shelves

Your device is supplied with plastic or glass storage shelves as well as metal shelves - different models have different combinations.

Always place one of the glass storage shelves at the lowest possible position above the fruit and vegetable crisper, and keep it in this position.

The height of the storage shelves can be adjusted. To do this, pull the shelf forward until it can be lifted and removed. Do the opposite to insert a shelf at a different height.

refrigerator combi

KC2530

EN

In order to make the most of the storage space in the fresh food compartment and the frozen food compartment, you can remove one or more shelves and/or drawers from the appliance, tailoring it to your daily use.

2.2. Using the Product

Removing Transport Packaging

The equipment and interior fittings are secured for transport. Remove the tape from the left and right sides of the door. Use alcohol to remove any tape residue. Remove all tape and packing materials from inside the appliance.

Installation Location

Before installing the appliance, please read the instructions carefully to avoid problems.

Positioning the Appliance

• Place the appliance away from heat sources such as ovens, radiators, direct sunlight, etc.
  • This appliance should not be exposed to rain.
• There must be sufficient airflow in the lower rear section of the appliance, since poor air circulation can affect its performance.
  • Built-in appliances should be placed away from heat sources, such as heaters and direct sunlight.

Note: You must have good ventilation around the appliance to allow effective heat dissipation, high efficiency cooling and low power consumption. To this end, there should be enough space around the appliance. It is advisable for there to be 75 mm between the back of the fridge and the wall, at least 100 mm of space on both sides, 100 mm above the top and a clear space in front to allow the doors to open.

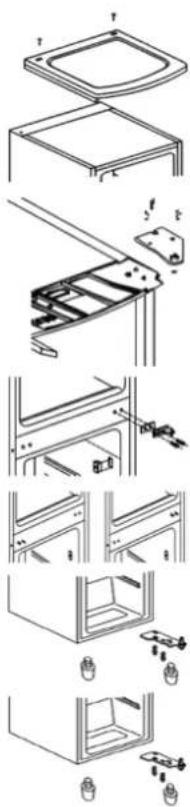

Door Reversing

The side on which the door opens can be changed from the right side to the left side, if the installation site requires.

Before you start, lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator.

1. With the refrigerator in this position, use a screwdriver to remove the four screws from the cover on the top of the refrigerator.

kunft®

Technical line drawing of a mechanical component with no visible text or symbols

1. Unscrew and lift the cover from the top and remove it. Then, lift the top door and place it on a padded surface to avoid scratching.
2. Remove the center of the upper hinge, move it to the left side and press firmly.
3. Remove the double beaded screw and then the middle hinge that fastens the lower door. Lift the lower door and place it on a padded surface to avoid scratching.
4. Remove the covers from the hinge holes on the right sides, as shown, and transfer them to the holes found on the left.
5. Loosen the screws and remove the two adjustable feet and also the lower hinge support.
6. Unscrew and remove the lower hinge pin, turn the support and refit the pin. Reinstall the support fitting into the bottom hinge pin. Reinstall the two adjustable feet. Transfer the lower door to the proper position. Secure the door's level, insert the bottom hinge pin into the lower hole of the door, and then tighten the bolts.
7. Rotate the hinge a half turn and then transfer it to the appropriate position on the left. Insert the middle hinge pin into the upper hole of the lower door, and then tighten the bolts. Transfer the upper door to the proper position. Secure the door's level; insert the middle hinge pin into the lower hole of the upper door.
8. Unscrew and remove the lower hinge pin, turn the support and refit the pin. Tighten securely.

refrigerator combi

KC2530

EN

Technical line drawings of three mechanical components or assemblies (no text or symbols present)

1. Remove the screws and the white plastic board and install them on the opposite side of the structure.
2. Transfer the upper hinge to the left side. Insert the top hinge pin into the upper hole of the upper door, and then tighten the screws to secure the door.
3. Reinstall the top cover by inserting the upper hinge pin into the hole of the upper door, and secure it with the four screws. Reinstall the screw covers.

Starting Up and Temperature Regulation

Insert the power plug into a grounded power outlet. When the refrigerator compartment door is opened, the internal lighting is switched on.

The temperature control knob is located on the right side of the refrigerator compartment.

Position 0: off. Turn in a clockwise direction and the refrigeration unit will turn on and will run automatically afterwards.

Position 1: highest temperature, warmest setting.

Position 7 (last): lowest temperature, coldest setting.

Notes:

• The 2, 3 or 4 settings are suggested if a lower or higher temperature is required. Adjust according to your preference. Place the regulator in the lower position, it will increase energy efficiency. Other positions require higher energy consumption.
• High ambient temperatures (e.g. on hot summer days) and a cold setting (position 6 to 7) may cause the compressor to run for long periods of time or even non-stop. This is because when the temperature is high, the compressor must run continuously to maintain a low temperature within the appliance.
• The temperatures of the refrigerator and freezer compartments cannot be regulated independently.
• If the ambient temperature is low, approximately 16°C, you must select position "3" or "4". For ambient temperatures of approximately 25°C, you should select position "2".
• If a lower temperature is required, select positions "3" or "4". With these settings, it is guaranteed that fresh food is safely frozen and that the freezer compartment is always at a temperature of -12^ .
• If fresh food needs to be frozen quickly, select position "7", but make sure that the temperature of the refrigerator compartment does not drop below 0°C. You should also place the temperature regulator back to "3" or "4" as soon as possible.

kunft®

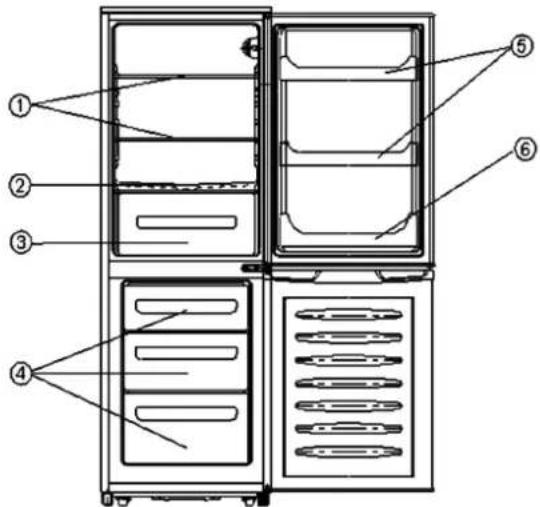

Correct Storage

1. Ready-made meals, pastries and jams/canned food
2. Fresh, salted and cured meat and dairy products
3. Cheese, fruit and vegetables
4. Meat, ice cream and other foods that require freezing
5. Butter, cheese and jams/canned food
6. Drinks

Suggestions:

The food stored in a refrigerator should always be covered or packaged to prevent dehydration or the contamination of other food. The following containers are suitable for packaging: film and sealed polyethylene bags, plastic containers with lids, suitable plastic bags with elastics, and aluminum foil.

Energy Saving Tips

• Do not put hot food in the appliance; let it cool first.
• Do not install the appliance near cookers, radiators or other sources of heat. A high temperature may cause the compressor to run longer and more frequently.
• In order to increase the efficiency of the cooling system, make sure that the sides and rear of the unit are at some distance from the wall, according to the values indicated in the "Positioning the Appliance" section.
• When the appliance is running, do not open the door frequently or leave it open longer than absolutely necessary.

refrigerator combi

KC2530

EN

• Do not select a temperature colder than necessary.
• It is essential for a direct cooling refrigerator (with a freezer) to be defrosted when necessary. This improves the transfer of cold and reduces energy consumption.
• The image displayed on the "Storage Shelves and Metal Shelves" shows the combination of drawers, drawer covers and shelves that provides the most energy efficient configuration. If you change the configuration, you may increase energy consumption.
• Store food logically.
• Do not exceed the specified storage period.

Noises During Operation

The following noises are characteristic of refrigeration appliances:

• Clicks: Whenever the compressor switches on or off, you may hear a click.
• Whispers: When the compressor starts, you may hear it "whisper".
• Bubbling: when the refrigerant enters the narrow tubes, you may hear bubbling or splashing.
• Splashes: this noise can be heard for a period of time, even after the compressor turns off.

Defrosting

Water contained in food, or air getting inside the appliance when opening doors, may form a layer of frost inside. When this layer becomes thicker, cooling becomes less efficient. When the layer is more than 10 mm thick, you must defrost the appliance.

Defrosting the Fresh Food Compartment

It is automatically controlled when turning the temperature control off or on, so there is no need to defrost. Water from defrosting will drain automatically into a drip tray through a drainpipe at the back of the fridge.

Defrosting in the Frozen-food Storage Compartment

The freezer compartment must be defrosted manually.

• Before defrosting, take the food out.
• Take the ice tray and the shelves out, or put them into the fresh food compartment, temporarily.
- Turn the temperature regulator knob to position "0" (which will turn off the compressor).
- Leave the door of the refrigerator open until the ice and frost have completely melted and accumulated at the bottom of the freezer compartment.
- Mop up the water using a soft cloth.

kunft®

• To speed up the defrosting process, put a bowl of warm water (at about 50^ ) into the freezer compartment, and scrape away the ice and frost with a defrosting spatula.
• Once finished, make sure to return the temperature regulator knob to its original position.

Notes:

• It is not advisable to heat the freezer compartment directly with hot water or a hairdryer while defrosting, to avoid the interior warping.
• It is not advisable to scrape ice or extract food from the containers in which they were frozen with sharp objects or wood utensils, to avoid damaging the interior of the compartment or the surface of the containers.
• To switch off the appliance, set the thermostat to position "0".
• The refrigerator should be defrosted at least once a month. If the door is opened frequently or if the refrigerator is used in extremely humid environments, it is advisable to defrost it every two weeks.

For Long Periods of Disuse

• Remove all refrigerated containers.
• Turn off the appliance by turning the temperature control knob to the "0" position.
• Remove the plug from the socket or turn off the power.
• Clean thoroughly (see "Maintenance" section).
• Keep the doors open to prevent the appearance of smells.

2.3. Maintenance

For safety reasons, the inside of the appliance, including accessories, should be cleaned regularly.

- Essential oils and organic solvents, e.g. lemon juice, juice from orange peel, or cleansers that contain acetic acid can damage plastic parts. Do not allow such substances to come into contact with the appliance parts.

- Do not use any abrasive cleaners.

- Remove the food from the refrigerator, cover it well and place it in a cool place.

- Switch the appliance off and unplug it from the outlet, or switch off the circuit breaker, or remove the fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. You can also use common washing-up detergents. After cleaning, rinse with clean water and dry.

- Dust accumulation in the condenser increases energy consumption. Therefore, carefully clean the condenser at the back of the appliance once a year using a soft brush or a vacuum cleaner.

refrigerator combi

KC2530

EN

• Check the water drain hole on the back wall of the refrigerator compartment.
• If the drain hole is clogged, clear it using a thin round object, taking care not to damage the structure with sharp objects.
  • After cleaning the compartment thoroughly, place the appliance back into operation.

Notes:

• The appliance must not be plugged in during cleaning as there is a risk of electric shock. Before cleaning, switch the appliance off and unplug it from the outlet, or switch off the circuit breaker, or remove the fuse.
• Never clean the unit with a steam cleaner. Moisture could accumulate in electric components, which can cause electric shock. Hot vapors can lead to the damage of plastic parts.
• The appliance must be completely dry before it is put back into service.

Bulb Replacement

• Before changing the light bulb, switch off the appliance by placing the temperature control knob to "0", unplug it, or switch off the circuit breaker, or remove the fuse.
• Loosen the screw.
• Press the light bulb cover and slide it backwards. Replace the lamp.
• Reinstall the lamp cover and screw.
• Restart the appliance.

Spare Parts

You can order the following spare parts from your supplier; they can be replaced without any technical assistance:

• cheese/butter compartment;
• egg tray;
• door shelves;
• fruit and vegetable crispers;
• storage shelves.

kunft®

refrigerator combi

KC2530

EN

2.4. Troubleshooting

Problem Possible cause Solution
Appliance does not work	Appliance is not switched on.	Switch on the appliance.
	Power plug is not plugged in or is loose.	Insert the power plug into the outlet.
	A fuse has blown or is defective.	Check fuse, replace if necessary.
	The outlet is defective.	Call an electrician.
Appliance cools too much	The temperature regulator is in a very cold position.	Set the temperature regulator to a warmer setting temporarily.
The food is too warm	The temperature setting is not correct.	See the “Starting up and temperature regulation” section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Set the temperature control knob to a colder setting temporarily.
	The appliance is near a heat source.	Please see the “Installation location” section.
Interior lighting does not work	Light bulb is defective.	See “Bulb replacement” section.
Heavy build-up of frost, possibly also on the door seal.	Door seal is not air-tight (possibly after reversing the door).	Carefully warm the leaking sections of the door seal with a hair dryer (on a low heat setting). At the same time, mold the door seal by warming it manually until it is properly positioned.

Problem Possible cause Solution
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is in contact with the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, is in contact with another part of the appliance or the wall.	If necessary, slightly bend the part to avoid contact.
The compressor does not start immediately after changing the temperature setting	This is normal; this is not a defect.	The compressor only starts only after a certain amount of time.
Water on the floor or storage shelves	Water drain hole is blocked.	See “Maintenance” section

If the problem persists, take your appliance to the customer service desk of any Worten, Modelo or Continente store in order to solve the problem.

kunft®

3. TECHNICAL SPECIFICATIONS

Registered Brand KUNFT
Model COMB. KUNFT		220 A+
Category 1)		7
Energy efficiency class 2)		A+
Annual energy consumption3)	kWh/year 232
Total volume of storage L 216
Refrigerated storage volume L	148
Frozen storage volume L 68
Star rating4)
Defrost No
Temperature Rise Time H 15
Freezing Capacity Kg/24h 3
Climate class 5)		N, ST
Acoustic noise emission dB (A)	re1pW 43
Configuration		Freestanding

1) 1 = Refrigerator with one or more compartments for storing fresh produce.
2 = Refrigerator - cellar, compartments for cellar and wine storage.
3 = Refrigerator - chiller and refrigerator with zero star compartment.
4 = Refrigerator - refrigerator with a one star compartment.
5 = Refrigerator - refrigerator with a two star compartment.
6 = Refrigerator - refrigerator with a three star compartment.
7 = Refrigerator - freezer.
8 = Upright freezer.
9 = Chest freezer.
10 = Multi-use and other refrigerating appliances.
2) A+++ (most efficient) and D (least efficient)
3) Annual Energy Consumption (AEC) in kWh per year, based on the results of standardized tests during 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located.
4) ☐ One star compartment with a nominal temperature of -6^ .
** Two star compartment with a nominal temperature of -12°C.
*** Three star compartment with a nominal temperature of -18°C.
F ✦ freezer compartment (four star compartment) with a nominal temperature of -18°C.
5) Climate class: this device was designed to be used with ambient temperatures within the following ranges: SN = 10°C-32°C, N = 16°C-32°C, ST = 16°C-38°C, T = 16°C-43°C.

refrigerator combi

KC2530

EN

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

frigorífico combi

KC2530

ES

frigorífico combi

KC2530

ES

Consejo:

kunft®

Imported, produced and distributed by:
