DS-C12L-0204H - Processor Hikvision - Free user manual and instructions

Product Type	Video Wall Controller
Brand	Hikvision
Model	DS-C12L-0204H
Input Interfaces	2 x HDMI (up to 4K@60 Hz)
Output Interfaces	4 x HDMI (up to 4K@60 Hz)
Maximum Input Resolution	4092 × 2160 @60 Hz
Cascading Support	Up to 4 devices, 16-screen splicing
Video Wall Configuration	Up to 16 rows × 20 columns
Power Supply	DC 12V 2A or PoE (IEEE 802.3at)
Power Consumption	≤ 24 W
Operating Temperature	-10°C to 45°C
Operating Humidity	10% to 90% RH (non-condensing)
Installation Methods	Stacking, wall mount, magnetic mount
Front Panel Indicators	Power (red), Status (green), Input indicators (red/yellow)
Serial Port	RS-232/485 (RJ45, configurable)
Supported Protocols	TCP/IP, HTTP, NTP, SSH
Management Software	Video Wall Client (Windows)
Package Contents	Device, power adapter, rubber feet (4), CD-ROM

Frequently Asked Questions - DS-C12L-0204H Hikvision

How do I activate the DS-C12L-0204H for the first time?

You can activate the device using the Video Wall Client software or SADP tool. Ensure your computer is on the same network segment. On the client, go to Device Management, select the inactive device, and click Activate. Set a strong password (min 8 characters with at least three of: uppercase, lowercase, numbers, special characters).

What should I do if I forget the device password?

Use the password reset feature on the client. Go to Device Management, select the device, click Reset Password, export a GUID file, and send it to Hikvision technical support to get a key file. Import the key file to clear the password, then set a new one.

Can I cascade multiple DS-C12L units for a larger video wall?

Yes, up to 4 devices can be cascaded to support up to 16 screens. Connect loop cables (HDMI) and sync cables (network) between devices in a daisy chain. Then configure the cascading topology in the Video Wall Client under Device Topology.

How do I switch between the two HDMI input signals?

You can switch inputs three ways: 1) Press the SWITCH button on the front panel. 2) On the client, drag a different signal source to the video wall window. 3) Use an external keyboard connected via RS-232/485.

What is the maximum resolution supported for input and output?

Both input and output support up to 4K@60 Hz (4092×2160). However, when using 4K@60 Hz on HDMI OUT 1, outputs 2, 3, and 4 are disabled.

How can I customize the input signal resolution?

On the client, go to Remote Configuration > Video Display > Signal Source Resolution. Enable resolution customization, select the signal source, and set the refresh frequency and resolution (width multiple of 4, height multiple of 2, up to 4092×2160).

Is it possible to use PoE to power the device?

Yes, the device supports PoE (IEEE 802.3at) via the LAN port. Alternatively, you can use the included DC 12V power adapter. Only one power source should be connected at a time.

How do I configure audio output?

Audio is output via the LINE OUT interface (3.5mm jack) on the rear panel. By default, audio is enabled. To disable it, right-click the video wall window on the client and select Disable Audio.

Can I set a background picture on the video wall?

Yes. On the Video Wall interface, click Background Picture. Drag the default system picture to the window. You can show or hide it using the lock icon. Custom images are not supported.

How do I update the firmware of the device?

On the client, go to Remote Configuration > System > System Maintenance. Under Remote Upgrade, select and import the upgrade file, then click Upgrade. Ensure the device is stable and do not power off during the process.

USER MANUAL DS-C12L-0204H Hikvision

©2019 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

About this Manual

The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/en/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks

HIKVISION and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned are the properties of their respective owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR

PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: http://www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: http://www.recyclethis.info.

Preface

Applicable Model

This manual is applicable to C12L series video wall controllers.

About the Default

This device has the following defaults:

Parameter Default Value
User name admin
IP address 192.0.0.64

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol	Description
^ Danger	Indicates a hazardous situation which, if not avoided, will or could result in death or serious injury.
^ Caution	Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
^ Note	Provides additional information to emphasize or supplement important points of the main text.

Safety Instructions

Danger

• In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
• This is a class A product and may cause radio interference in which case the user may be required to take adequate measures.
• Use the power adapter delivered with the device only.

- In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.

- The power socket or power plug is used to disconnect power. Do not cover the power socket or power plug so that it can be easily moved.

- The device contains a button battery, so place the waste battery out of sight and out of reach of small children. Swallowing the button battery may cause death in two hours.

- The device contains a button battery, so place the waste battery out of sight and out of reach of small children. Swallowing the button battery may cause death in two hours.

- Improper use or replacement of the battery may result in explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

- If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

- If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the product yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

- Please enhance the protection for personal information and data security as the device may be confronted with the network security problems when it is connected to the Internet. Please contact your dealer or the nearest service center once you find that there may be the network security problems.

Caution

- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).

- Do not expose the device to the explosive situation.

- Keep clean and dry on the surface of the device.

- Do not touch the exposed connection points or components when the device is powered on.

- Do not place any naked flame sources, such as lit candles, on the device.

- Do not place any objects containing water or liquids on the device. Prevent the device from water dropping or splashing.

- Place the device in a well-ventilated, dust-free environment. Ensure that the air vents are not covered by any objects such as newspapers, tablecloths, or curtains.

Contents

Chapter 1 Product Introduction .... 1

1.1 Overview ...... 1
1.2 Key Feature 1
1.3 Packing List .... 1
1.4 Device Appearance 2

1.4.1 Front Panel 2

1.4.2 Rear Panel 3

1.5 Client Management Software 4

Chapter 2 Installation and Configuration ...... 6

2.1 Install Your Device 6

2.1.1 Stacking 7
2.1.2 Wall Mount 7
2.1.3 Magnetic Mount 8

2.2 Connect Cables 9

2.2.1 Cable Connection Requirements 9
2.2.2 Cable Connection Description 10

2.3 Activate Your Device 12

2.3.1 Activate on Client 12
2.3.2 Activate on SADP 13

2.4 Add Your Device to Client 13

2.4.1 Add an Online Device 13
2.4.2 Add a Device Using Its IP Address 14

2.5 Configure Network Parameters 14
2.6 Configure Cascading Topology 14
2.7 Configure Signal Source Parameters 16

2.7.1 Customize Signal Source Resolution 16

2.7.2 Configure OSD Display 17

2.8 Configure Serial Parameters 17

Chapter 3 Video Wall Operations ...... 19

3.1 Configure a Video Wall 19

3.1.1 Add a Video Wall 19

3.1.2 Configure Decoding Output Parameters 20

3.1.3 Link Decoding Output to the Video Wall 21

3.2 Display Signal Sources on the Video Wall 22

3.2.1 Preview Signal Sources 22

3.2.2 Open a Window 23

3.2.3 Switch Signal Sources on the Video Wall 24

3.2.4 Turn Off Audio on the Video Wall 24

3.2.5 Change the Name of a Signal Source 24

3.3 Configure a Background Picture 25

Chapter 4 Device Maintenance .... 26

4.1 Check Device Topology Status 26

4.2 Change Device Password 27

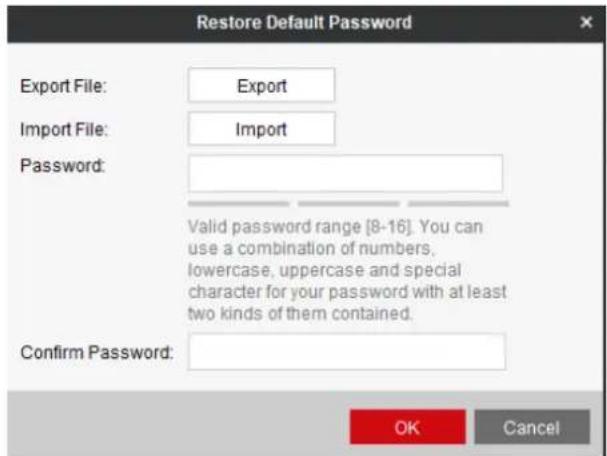

4.3 Reset Device Password 28

4.4 View Device Information 28

Chapter 5 System Configuration .... 30

5.1 Configure the Device Name and Device No. 30

5.2 Configure Device Time 30

5.3 Configure SSH 31

Chapter 6 System Maintenance .... 32

6.1 Import and Export a Configuration File 32

6.2 Query and Back Up Logs 32

6.3 Restore Default Parameters 33

6.4 Restart a Device Remotely 33

6.5 Upgrade a Device Remotely 33

Chapter 1 Product Introduction

1.1 Overview

The video wall controller is a pure hardware image processing device based on Field Programmable Gate Array (FPGA), which supports multi-channel splicing and multi-channel signal switching display. With high processing performance, the device supports 4K@60 Hz signal input and output and multiple-device cascading for larger-scale splicing. Due to its good compatibility, LCD, DLP, and LED screens can be spliced into one virtual screen, which helps apply to various video wall application scenarios such as shopping malls, conference rooms and lecture halls.

1.2 Key Feature

• Two HDMI inputs and signal switching by button, customizable input resolution
• Four HDMI outputs, and customizable output resolution
• Up to 4K@60 Hz input
• Up to 4-device cascading and 16-screen splicing
• Multi-channel fusion input for ultra-high resolution signals

1.3 Packing List

Before using the product, check whether the following items are included in the package. If any items are found damaged or missing, please contact our technical support engineers.

Table 1-1 Packing List

No. Item Picture Quantity
1 Device 1
2 Power	adapter		1
3 Rubber foot 4
4 CD-ROM 1

1.4 Device Appearance

Exterior view of a Hikvision network switch device (no visible text or symbols on the device body)

Figure 1-1 Device Appearance

1.4.1 Front Panel

Figure 1-2 Front Panel

Table 1-2 Front Panel Interface Description

No. Name Description
1 CONSOLE	Debugging serial interface built in with an RS232-to-UART interface
2 IR IN Reserved
3 PWR Power indicator	Turns steady red after power-on
4 STAT System status indicator	Unlit during startup or in the faulty stateTurns green after startup
5 IN1 Indicator for the HDMI IN 1	interface
6 IN2 Indicator for the HDMI IN 2	interface
	Turns red when signals are inputting
	Turns yellow after the signals are decoded and displays on the video wall
7 SWITCH Used for switching signals between the HDMI IN 1 interface and the HDMI IN 2 interface

1.4.2 Rear Panel

Figure 1-3 Rear Panel

Table 1-3 Rear Panel Interface Description

No. Name Description
1 HDMI IN 1 HDMI input interface	1, up to 4K@60 Hz input
2 HDMI IN 2 • HDMI input interface	2, up to 4K@60 Hz input• Used for Loop input when multiple devices are cascaded. loteWhen devices are cascaded, you can only use the two HDMI input interfaces of the master device to input signals.
3 HDMI OUT 1 HDMI output interface	1, up to 4K@60 Hz outputNoteWhen HDMI OUT 1 is inputting signals of 4K@60 Hz, HDMI OUT 2, 3, and 4 are unavailable.

No. Name Description
4 HDMI OUT	2 HDMI output interface	face 2, up to 4K@60 Hz output
5 HDMI Interface Indicator		Status indicator of HDMI OUT 1 interfaceNormal operating: greenNo signal output but displayed on the video wall: greenNo signal output and not displayed on the video wall: unlitSignal outputting but not displayed on the video wall: redSignal outputting and displayed on the video wall: yellow
6 HDMI OUT	3 HDMI output interface	face 3
7 HDMI OUT	4 HDMI output interface	face 4
8 HDMI LOOP OUT	OUT HDMI loop output interface for device cascading, up to 4K@60 Hz output
9 Grounding terminal Used for device grounding
10 Sync OUT	Sync output interface for synchronizing signals between devices
11 Sync IN Sync input interface for synchronizing signals between devices
12 LAN 10/100/1000 Mbps adaptive network interface, IEEE 802.3at PoE
13	RS-232/RS485	RS232 and RS485 multiplexing port, configurable on the client
14 LINE OUT	Audio output interface	NoteWhen devices are cascaded, you can only use the line output interface of the master device to output audio signals.
15 DC 12 V	Switch Switch of 12 V/2	A power input, alternative to the PoE power supply method
16 DC 12 V	N Interface for 12 V/2	A power input, alternative to the PoE power supply method

1.5 Client Management Software

DS-C12L series video wall controllers can be managed on the Video Wall Client, including activation, adding, configuration, management and maintenance.

Figure 1-4 Client Manamgment Software

Chapter 2 Installation and Configuration

Before using your C12L device, you need to complete installation and basic configuration.

The following figure shows the basic installation and configuration process. Decide your procedure based on the actual scenario. The operation details are described in later sections.

Figure 2-1 Installation and Configuration Process

2.1 Install Your Device

Devices can be installed in three ways: stacking, wall mount, and magnet mount. Decide your installation way based on the actual scenario.

Caution

• Do not operate the device with power. Power down the device during installation, wiring, dismantling, or maintenance.
• Use the power adapter delivered with the device.

• Place the device in a dry and well-ventilated environment.

• Do not drop the device or subject it to physical shock. Do not install the device on vibratory surface or places.

• Ensure that the device is installed at a temperature of -10^ to 45^ and a humidity of 10% to 90% RH.

2.1.1 Stacking

If the installation place has limited space, you can choose stacking installation. Stacking means that devices are placed one on the top of another.

Before You Start

You have left space for wiring and ventilation.

Steps

1. Take out the four rubber feet from the package, and stick them onto the bottom of your device. Repeat this step to complete the installation of rubber feet of the other devices.

Figure 2-2 Stick Rubber Feet

1. Place one of the device on a flat surface and stack the rest on the top of the device one by one.

Caution

• Ensure that the devices are aligned horizontally and vertically.
• Ensure that the air vents on the sides of the devices are not blocked.

2.1.2 Wall Mount

If you want to mount your device on the wall, you can choose wall-mount installation.

Before You Start

• You have determined and marked the mounting locations on the wall. The recommended distance between the two mounting holes is 186 mm.
• You have left space for wiring and ventilation.

Steps

1. Drill two mounting screws into the marked locations on the wall.

Note

M4 pan head screws are recommended for mounting, and the head diameter should be greater than 5 mm but smaller than 9 mm.

1. Align the mounting holes on the bottom of your device and mount your device onto the screws.

Figure 2-3 Mounting Hole Position

1. Repeat the above steps to complete the installation of the rest of your devices.

2.1.3 Magnetic Mount

If you want to mount your device on metal surfaces such as a video wall bracket or the rear of an LCD screen, you can choose magnetic-mount installation.

Before You Start

• You have determined the mounting locations.
• You have left space for wiring and ventilation.
• You have prepared four magnetic feet and four M3 countersink screws.

Steps

1. Use the four M3 countersink screws to mount the magnetic feet on the bottom of your device.

Figure 2-4 Mount Magnetic Feet

1. Stick your device onto the flat metal surface, such as the video wall bracket or the rear of the LCD screen.
2. Repeat the above steps to complete the installation of the rest of your devices.

2.2 Connect Cables

After installation is complete, you need to connect cables for your device, including the grounding cables, network cables, video and audio cables, serial cables, cascading cables, sync cables, and power cables.

2.2.1 Cable Connection Requirements

Different application scenarios require different cable connection. See the following table for reference.

Note

The keyboard scenario can be combined with the other three scenarios.

Table 2-1 Cable Connection Requirements

No. Application Scenario Cables Required
1 Signal splicing on video wallNo.Application Scenario Cables Required		• Grounding cable• Network cable
		Video and audio cablesPower cable
2 Multi-channel fusion input for ultra-high resolution signals		Grounding cableNetwork cableVideo and audio cablesSync cablePower cable
3 Cascading splicing of single signal		Grounding cableNetwork cableVideo and audio cablesLoop cableSync cablePower cable
4 Keyboard control • Grounding cable		Network cableVideo and audio cablesSerial cablePower cable

2.2.2 Cable Connection Description

See the following table for details about how to connect cables.

Note

All cables mentioned in the following table require you to purchase separately.

Table 2-2 Cable Connection Description

No. App	ication Scenario How to	Connect Cable
1 Grounding	cable 1. Use a Phillips screwdriver to remove the grounding screw on your device.2. Use the Phillips screwdriver to connect one end of the grounding cable to the grounding terminal of your device and the other end to the grounding system.
2 Network cable	Connect the LAN interface of your device to the network using a network cable.
No. Application Scenario How to		Connect Cable
3 Video and	audio cables 1. Connect the	HDMI input interfaces to input signalsources and the HDMI input interfaces to the video wallwith HDMI cables.Note- Only HDMI 2.0 cables are supported by C12Ldevices.- If your site requires signal conversion cables, choosecables based on your actual needs. For C12L devices,DP-HDMI cables support up to 4K@60 Hz input, DVI-HDMI cables support up to 4K@60 Hz input, andVGA-HDMI cables support up to 1080P@60 Hz.2. Connect the line out interface to the audio device suchas a loudspeaker with an audio cable.
4 Loop cable	1. Connect the loop out in	interface of the master device tothe loop in interface of one of the slave devices with anHDMI cable.2. Connect the loop out interface of the slave device tothe loop in interface of the next slave device with anHDMI cable. The rest can be done in the same manner.
5	Sync cable	1. Connect the sync out interface of the first device to thesync in interface of the next device with a networkcable.2. Connect the sync out interface of the device to the syncin interface of the next device with a network cable.The rest can be done in the same manner.
6 Serial cable	1. Determine the serial cable order of the serial interfaceof your C12L device and keyboard. The RS-232/485serial interface of the C12L device is an RJ45 type witheight feet, and feet 2 and 3 corresponds to RX and TX ofan RS-232 interface, and feet 4 and 5 corresponds toRS-485+ and RS-485- of an RS-485 interface.2. Connect the serial interface of your C12L device withthat of the keyboard with a serial cable.
7 Power cable	Choose either of the fol	lowing ways to supply power toyour device:

No. Application Scenario How to	Connect Cable
	Connect the LAN interface of your device to the network with a network cable for power supply over PoE.Turn on the power switch, and use the power adapter to connect the DC 12 V input interface to a socket.

2.3 Activate Your Device

You are required to activate your device first before using it. Choose either of the following two ways for activation:

• Activate on SADP
• Activate on Client

2.3.1 Activate on Client

You can install and log in to the Video Wall Client to activate your device.

Before You Start

• You have installed the Video Wall Client.
• The computer running the client software is on the same network segment with your device.

Steps

1. Run and log in to the client.
2. Click Device Management. Online devices on the same network segment are searched out and displayed in the lower area.
3. In the device list, select the desired device in Inactive status, and click Activate.
4. Set a password and confirm it.

Caution

We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

After being activated, the device turns into Active.

2.3.2 Activate on SADP

You can use SADP (Search Active Device Protocol) software to activate one device or activate multiple devices in batches. The SADP software can automatically search out online inactivated devices.

Before You Start

You have obtained and installed the SADP software.

Steps

1. Run SADP software to search the online devices.
2. Check Device Status from the device list, and select Inactive device.
3. Set a password and confirm it.

Caution

We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Click Activate.

Device Status changes into Active.

1. Optional: Change the network parameters of the device in Modify Network Parameters.

2.4 Add Your Device to Client

After activation, you need to add your device to the client for configuration, management, and maintenance.

• If you have activated your device on the client, your device has already been added to the client automatically and then skip this section.
• If you have activated your device on SADP, you need to add it to the client. For details, see the later sections.

2.4.1 Add an Online Device

If your device is activated with its default IP address kept, the client will automatically search out your device for you to add it to the client.

Before You Start

• You have installed the Video Wall Client.
• The computer running the client software is on the same network segment with your device.

Steps

1. Run and log in to the client.
2. Click Device Management. Online devices on the same network segment are searched out and displayed in the lower area.
3. Select the desired device and click Add to Client.
4. Set the nickname, enter the IP address, user name, and password, and click Add.

2.4.2 Add a Device Using Its IP Address

If your device is activated with its default IP address changed, you can use the new IP address to add it to the client.

Before You Start

• Your device has been activated.
• You have installed the Video Wall Client.

Steps

1. Run and log in to the client.
2. Click Device Management.
3. In the Managed Device area, click Add Device.
4. Enter the nickname, IP address, user name, and password, and click Add.

2.5 Configure Network Parameters

After your device is added to the client, you can configure network parameters of your device as needed, including the IP address, subnet mask, and gateway.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click Network → General.
3. Configure the network parameter, including the IP address, subnet mask, and gateway.
4. Click Save.

2.6 Configure Cascading Topology

A single device supports a maximum four signal output interfaces at most which are used to connect to a four-screen video wall. If the video wall has more than four screens, you can cascade multiple devices and configure their cascading topology on the client. Firstly connect loop cables and sync cables for the devices physically, and thenconfigure the cascading topology on the client accordingly. A maximum four devices can be cascaded.

Before You Start

• You have connected the loop cables and sync cables for the devices physically.
• You have added the devices to be cascaded to the client.

Steps

1. Click Device Topology to enter the device cascading topology configuration interface.

Figure 2-5 Configure Cascading Topology

1. In the device list on the left, drag the desired devices to the topology area on the middle. You can drag to change the positions or press the mouse wheel to change the size of the topology area.

2. Draw the loop lines according to the physical cable connections.

1) Move your mouse on the loop out interface of the master device, and left-click and hold your mouse.
2) When the interface is circled in red and a red point appears in the middle, hold and move the mouse to draw a connection line to the loop in interface of one of the slave devices.
3) Repeat the above steps to complete the rest of devices.

Note

• The cascading topology relationship must be consistent with the actual device relationship.
• You can view device information such as the IP address and serial number by double clicking the device.
• If you want to change the cascading relationship, press the Delete key to delete the lines and draw them again.

4. Click Save.

Result

After the cascading topology is configured, only the two HDMI input interfaces of the master device can be used to input signals.

2.7 Configure Signal Source Parameters

Signal sources indicate the video or audio signals transmitted through the HDMI input interfaces of your device. You can configure the resolution and OSD display of the signal sources as needed.

2.7.1 Customize Signal Source Resolution

If the resolution of the input signal source does not match that of the on-site video wall, you can customize the resolution of the input signal sources so that they are matched.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click Video Display → Signal Source Resolution.

Figure 2-6 Customize Input Signal Resolution

1. Customize the resolution of input signal sources.

1) Check Enable of Enable Resolution.
2) Select the desired Signal Source Name. The signal source name such as 1_1_Board 1 indicates the name of the HDMI input interface 1.
3) Set the Refresh Frequency and Resolution.

iNote

• The resolution can be customized from 1600 × 1080 to 4092 × 2160 . The width must be a multiple of 4, and the height must be a multiple of 2.

• If your customized resolution equals to or smaller than 2560 × 1440 , the refresh rate can only be set to 60Hz . If the resolution is greater than 2560 × 1440 , the refresh rate can only be set to 25, 30, or 60Hz .

• Optional: Check Batch Configuration to copy the configuration to other HDMI input interfaces.

• Click Save.

2.7.2 Configure OSD Display

If you want to add OSD information on input signals, you can configure OSD display.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click Video Display → OSD Display.

Figure 2-7 Configure OSD Display

1. Select Signal Source Name, and set OSD Font Size, Background Color and Font Color.
2. Enable String, and enter the characters you want to add on the input signal.
3. Click Save.

2.8 Configure Serial Parameters

If you want to use a keyboard device to control video wall operations over the RS-232/485 serial port, you can configure serial parameters on the client as needed. The default serial port type is RS-232, and you can change it to RS-485 as needed.

Before You Start

You have connected the keyboard to your C12L device with a serial cable.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → Serial Port Configuration.

Figure 2-8 Configure Serial Parameters

1. Configure serial parameters, including Serial Port Type, Baud Rate, Data Bit, Stop Bit, Parity, and Flow Control.
2. Click Save.

Ensure that the serial parameter configuration is the same as that of the keyboard device.

Chapter 3 Video Wall Operations

This section describes common video wall operations, such as video wall configuration and signal displaying on the video wall. The decoding outputs of your devices are automatically spliced into one when you drag an input signal source to the video wall on the client.

3.1 Configure a Video Wall

To control and manage the physical video wall, you need to add a virtual video wall and link the decoding outputs of your devices with the video wall on the client.

3.1.1 Add a Video Wall

Add a virtual video wall on the client according to the physical video wall for control and management.

Steps

1. Click Video Wall to enter the video wall management interface.

Figure 3-1 Add a Video Wall

1. Click the drop-down button on the upper part of the video wall and select Add Video Wall. You can also select Modify Video Wall to change the configuration of a video wall or select Delete Video Wall to delete a video wall.

2. Enter the Video Wall Name, and set the Row and Column.

Note

• The name of the video wall must be unique.
• The maximum scale is 16 rows and 20 columns.

4. Click Add.

3.1.2 Configure Decoding Output Parameters

You can configure the decoding output parameters based on the screen type and resolution of the physical video wall to achieve the optimal display effect.

Steps

1. In the Decoding Output list on the left, select the desired decoding output and click to enter the configuration interface.

2. Set Output Type to LCD or LED.

3. If your video wall is an LCD type, set the output type to LCD.

4. If your video wall is a LED type, set the output type to LED.

5. If your video wall is an LCD type, configure the resolution. You are recommended to configure a resolution the same as that of the video wall to achieve the optimal image effect.

Figure 3-2 Configure LCD Output Parameters

If multiple devices are cascaded, the LCD resolutions of all the devices must be the same.

1. If your video wall is a LED type, configure the width and height in the text fields. A LED display is dot-matrix, and the width and height are the dots.

Figure 3-3 Configure LED Output Parameters

Note

• To customize the LED resolution, select a standard LCD resolution first and then customize the resolution within the standard pixels. For example, if you have selected the standard 1080P LCD resolution, the customized LED resolution cannot exceed 1920 × 1080 .
• To change customized resolutions, change the resolutions in the same row or column simultaneously. Otherwise, an error may occur.

• If multiple devices are cascaded, ensure that your video wall has the same height in the same row and the same width in the same column.

• Optional: Configure Background as needed.

• Optional: Check Batch Configuration to copy the configuration to other decoding outputs.
• Click OK.

3.1.3 Link Decoding Output to the Video Wall

You must link decoding outputs of your devices to the video wall so that signals can be displayed on the video wall. All decoding outputs of your devices are displayed on the video wall configuration interface.

Steps

1. In the Decoding Output list on the left, select the desired decoding outputs and drag them to the virtual video wall on the right.

Figure 3-4 Link Decoding Outputs

1. Optional: To change the linking relationship, click the desired window and click Cancel to cancel the linking relationship in the window, or click Cancel All to cancel all linking relationships of the video wall.

i Note

• The decoding outputs of the same device must be linked to the same video wall.
• If your devices are cascaded, the first window on the upper left must be used to link the decoding output of the master device. Otherwise, an error may occur.

3.2 Display Signal Sources on the Video Wall

After the video wall is created and configured, you can display the signal sources onto the video wall. Only local signals are supported.

3.2.1 Preview Signal Sources

Before displaying signal sources onto the video wall, you can preview the signal sources and check if the signal sources are desired.

Steps

1. Click Video Wall to enter the video wall management interface.
2. Click Live View List, select the desired device from Device Group and view the signals.

Figure 3-5 Preview Signals

3.2.2 Open a Window

Drag signal sources to the video wall to open a decoding window automatically. The window is a splicing window and spans over all the decoding outputs by default.

Steps

1. Click Video Wall to enter the video wall management interface.

Figure 3-6 Open a Window

1. In the Local Signal Source list, select the desired signal and drag it to the video wall on the right. A splicing window is created and starts decoding the signal automatically.

2. Optional: Right-click anywhere in the window and you can start the live view on the client, disable or enable audio, or view the decoding status.

i Note

• When your devices are cascaded, only the signals from the master device can be displayed on the video wall.
• The decoding window spans the whole screen by default, and window roaming or zooming is not supported.

3.2.3 Switch Signal Sources on the Video Wall

A single device supports two input signal sources. You can switch signal inputs in either of the following ways:

• Client: On the video wall interface of the client, simply drag a signal source to the virtual video wall to turn off the currently displayed signal input and start to display the latter one.
• Front panel: Press the SWITCH button on the front panel of the device to switch between the two signal inputs.
• RS-232/485 serial interface: Connect with an external keyboard device to switch signal inputs on the video wall. For operation details, refer to the related keyboard manual.

3.2.4 Turn Off Audio on the Video Wall

To turn off audio of signals on the video wall, you need to disable audio on the client. Audio indicates the audio signals transmitted over the line output interface of the device and only the line output interface is used to transmit audio signals.

Steps

1. Click Video Wall to enter the video wall management interface.
2. Right-click anywhere in the splicing window, select Disable Audio. The audio is enabled by default.

3.2.5 Change the Name of a Signal Source

You can customize a name for signal sources as needed.

Steps

1. Click Video Wall to enter the video wall management interface.
2. Click ☐ above the signal source list, enter the desired name and click Configure.

3.3 Configure a Background Picture

You can configure a background picture for your video wall so that the video wall displays the picture when no signals are input. You can choose to use or not to use the default background picture of the system but not import other pictures.

Steps

1. Click Video Wall to enter the video wall management interface.

Figure 3-7 Configure a Background Picture

1. Click Background Picture on the lower right of the interface.

2. Drag the default picture to the window above, and choose to show or hide the picture by clicking 🔒.

Chapter 4 Device Maintenance

You can check device information and topology status, change the device password, or reset the device password on the client.

4.1 Check Device Topology Status

You can check device information and topology status on the client, such as the device cascading relationship, cable connection status, and status of signal input and output interfaces.

Steps

1. Click Device Topology.

Figure 4-1 View Topology Status

1. Click Refresh to update to the latest status.
2. Check the device cascading relationship, cable connection status, and status of signal input and output interfaces. Device names are displayed above device pictures. The name in red indicates the corresponding device is the master device, and the names in gray indicate the devices are slave devices. The following table describes the connection lines and indicators.

Table 4-1 Description of Connection Lines and Indicators

Name Color Description
Connection line • Loop	connection line: red• Signal output connection line: blue
Signal input indicators (the leftmost two)	• Signals are not inputting and not displayed on the video wall: gray• Signals are displayed on the video wall but not inputting: greenSignals are inputting but not displayed on the video wall: redSignals are inputting and displayed on the video wall: blinking red and green alternately
Signal output indicators (the middle four)	Signal output interface connected with the video wall: green (a monitor icon displayed below)Signal output interface disconnected with the video wall: gray
Sync interface • Master device connected in cascading relationship: graySlave device connected in cascading relationship: yellowDevice connected in non-cascading relationship: yellowDevice disconnected in non-cascading relationship: gray

4.2 Change Device Password

You can change the password used to log in to your device on the client.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → User.

Figure 4-2 Change Password

1. Enter the new password and confirm the password.

Caution

We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4.3 Reset Device Password

If you forget your device password, just reset your password by exporting and importing a GUID file.

Steps

1. Click Device Management, and select the desired device from the online device list and click Reset Password.

Figure 4-3 Reset Password

1. Click Export to export the GUID file in XML format to your local computer.
2. Provide the GUID file to your technical support engineer for generating a key file.
3. After receiving the key file, click Import to import the file into your device.

Your device password is cleared for you to set a new one.

1. Enter a new password and confirm the password.

Caution

We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Click OK.

4.4 View Device Information

You can view device information such as the device type, serial No., or version No. on the client.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → Device Information to view device information such as the device type, serial No., or version No.

Chapter 5 System Configuration

System configuration includes device time, security, device name and device No. configuration.

5.1 Configure the Device Name and Device No.

A device name or device No. identifies a device from other devices. You can customize the name or No. as needed.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → General.
3. Change the Device Name or Device No. as needed.
4. Click Save.

5.2 Configure Device Time

If your device time is incorrect, set the time zone or manually synchronize time to correct the time.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.

2. Click System → Time.

Figure 5-1 Configure Device Time

1. Select a time zone where your device is located.

2. Optional: To synchronize your device with other devices on the same network, enable NTP and configure Server Address, NTP Port, and Sync Interval.

3. Click Save.

4. Optional: To manually synchronize time, click Synchronization.

5.3 Configure SSH

SSH (Secure Shell) is a protocol to ensure security of remote login. You can change the SSH configuration as needed.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → Security.
3. Click Save.

Chapter 6 System Maintenance

You can restart your device remotely, restore default parameters, import/export configuration file, or upgrade your device remotely on the client for troubleshooting.

6.1 Import and Export a Configuration File

If you have multiple devices on site, you can export the configuration file of a finished device and import the file to other devices to save time.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → System Maintenance.

3. Choose to export or import a configuration file.

4. Click Import Configuration File to import a configuration file, enter the password, and click OK.

5. Click Export Configuration File to export the configuration file, set a password, and click OK.

Caution

We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

6.2 Query and Back Up Logs

You can query or back up exception or operation logs for troubleshooting.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → Log .

3. Set the Search Mode. By Type, By Time and By Type&Time are available.

4. By Type: Query logs based the types, including Major Type and Minor Type.

5. By Time: Query logs based on time. You need to set Start Time and End Time.

6. By Type&Time: Query logs based both on types and time.

7. Click Search to search logs. Click Backup to back up the logs as needed.

6.3 Restore Default Parameters

You can restore your device to factory default settings as needed, for example, when your device encounters a fault that is difficult to resolve.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → System Maintenance.
3. Choose to restore partial default parameters or all default parameters by clicking Restore Default Settings or Restore All.

Caution

• Clicking Restore Default Settings will restore all parameters to factory settings except IP configuration.
• Click Restore All will clear all parameters and restore the parameters to factory settings.
• You are recommended to export the configuration file first before restoring parameters.

6.4 Restart a Device Remotely

You can restart your device remotely on the client for troubleshooting.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → System Maintenance.
3. Click Reboot.

6.5 Upgrade a Device Remotely

You can upgrade your device remotely on the client.

Steps

1. On the Device Management interface, select the desired device in the list and click Remote Configuration.
2. Click System → System Maintenance.
3. Select and import the upgrade file and click Upgrade under the Remote Upgrade area.

See Far, Go Further
