Product Type	Steam Iron
Brand	Tesla
Model	IR302BL
Power Consumption	2400 W
Voltage	AC 220-240 V
Frequency	50-60 Hz
Functions	Dry, Steam, Spray, Burst of Steam, Vertical Steam, Self-Cleaning, Anti-Calc, Anti-Drip
Water Tank Capacity	Approx. 300 ml (fill to MAX line)
Anti-Drip System	Yes (prevents water leakage when iron is too cold)
Anti-Calc Cartridge	Yes (built-in to reduce limescale buildup)
Self-Cleaning Function	Yes (flushes out impurities and flakes)
Vertical Steam	Yes (for hanging clothes and curtains)
Burst of Steam	Yes (intense steam for stubborn creases)
Spray Function	Yes (dampens laundry at any temperature)
Soleplate Material	Stainless Steel (typical, not specified in manual)
Temperature Control	Adjustable thermostat dial with fabric settings (MIN to MAX)
Steam Adjustment	Slider to increase/decrease steam output
Power Indicator Light	Yes (glows when iron heats up)
Safety Features	Unplug before filling; do not leave unattended; use on stable surface
Recommended Water	Distilled water to prevent scale buildup

Frequently Asked Questions - IR302BL TESLA

How do I fill the water tank?

Ensure the iron is unplugged and the thermostat is set to MIN. Place the iron on its heel rest, tilt it forward at a 45° angle, and pour water into the refill opening up to the MAX line. Do not overfill.

Why does water leak from the soleplate?

Water leakage can occur if the thermostat is set below the steam range (e.g., MIN) or if the iron has not reached the correct temperature. Always set the thermostat to the steam range (e.g., MAX) and wait for the indicator light to go off before using steam. Also ensure you do not overfill the tank.

How do I use the burst of steam function?

Press the 'Burst of Steam' button while ironing at a high temperature (e.g., cotton/linen setting). For optimal results, allow 5 seconds between presses and do not press for more than 5 seconds continuously. Wait at least one minute between uses to prevent water leakage.

Can I use tap water in the iron?

It is advisable to use distilled water to minimize scale buildup. If your tap water is very hard, use self-cleaning more frequently. Do not use chemically descaled water.

What does the anti-drip system do?

The anti-drip system automatically prevents water from leaking out of the soleplate when the iron is too cold. You may hear clicking sounds during heating or cooling – this is normal and indicates proper functioning.

How do I clean the soleplate?

Unplug the iron and let it cool. Wipe the soleplate with a damp cloth and a non-abrasive liquid cleaner. For stuck fibers, use a cloth damp with vinegar. Never use strong acids or alkalis, and avoid scratching the soleplate.

How often should I use the self-cleaning function?

Use self-cleaning every two weeks, or more frequently if you have hard water (when flakes appear from the soleplate). The function flushes out impurities and scale through the steam holes.

What should I do if the iron produces little or no steam?

Check that the steam selector is set correctly (not in 'O' position for dry ironing). Ensure the water tank has sufficient water and the thermostat is set to a high temperature. If the steam holes are blocked, clean them with a toothpick or use distilled water.

Can I use the iron vertically for curtains?

Yes, the burst of steam function works vertically. Hold the iron upright, press the steam button, and steam the hanging fabric. Ensure the iron is at a high temperature and do not use this function on synthetic fabrics like nylon or silk.

Is it safe to leave the iron plugged in when not in use?

No. Always unplug the iron when leaving it, even for a short time, and place it on its heel rest on a stable surface. The iron can cause burns or fire if left unattended while connected to the mains.

USER MANUAL IR302BL TESLA

Exterior view of a Tesla electric iron with visible branding and power button (no text or symbols on the device itself)

IR302BL

User Manual

ENGHRBGGRBIH/CGHUMKROSLOSRB

Household Use only.

Read this instruction manual carefully before using.

1. The appliance is intended fro use by persons with disposing capacity, experiences and common sense. For those persons who are lack of guarantee in safety, they must be supervised by their custodians to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

2. The iron must not be left unattended while it is connected to the supply mains

3. The iron must be used and rested on a stable surface

4. When placing the iron on its stand, ensure that the surface on which the stand is placed stable
5. The iron is not to be used if it has been dropped, if there are visible signs of damage or it is leaking.
6. The plug must be removed from the socket-outlet before the water reservoir is filled with water(for steam irons and irons incorporating means for spray water)

SPECIFICATIONS

Model: IR302BL

Functions: Dry / Steam / Spray / Burst / Spraying Steam / Self-Cleaning / Anti cal / Anti drip

Rated parameter: AC220-240V\~, 50-60Hz, 2400W

SAFETY INSTRUCTIONS

1. Before using for the first time, please check if the voltage rating on the type plate corresponds to the mains voltage in your home.
2. Make sure to unplug the appliance from the socket when leaving the iron even for a short while, and stand the iron on its end. Please leave the iron away from the touch of children..
3. The iron will be of high temperature when used, never touch it with hand or close to the flammable product in order to avoid the accident.
4. Caution: Unplug the appliance from the socket before filling the iron with water.
5. Never immerse the iron in water or other liquid.

6. Please send the iron to our special repair agent for repair if any damage on cord.

7. Deposit or Mineral in the water will lead to generate the scales and block the seam hole, therefore it is advisable to use distilled water.

8. Do not use chemically descaled water
9. The ejected steam is hot and therefore hazardous. Never direct the steam towards people.
10. The iron must be used and rested on a stable surface
11. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
12. Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners, Keep cord away from heated surfaces
13. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking

CAUTIONS OF THE FIRST USE

1. There is little liquid in the iron due to testing, the iron may slightly release steam when first turned on. After a short time this will stop.

2. Before using for the fist time, remove any sticker or protective foil from the soleplate. Clean the soleplate with a soft cloth.

3. Keep the soleplate smooth: avoid hard contact with metal objects.

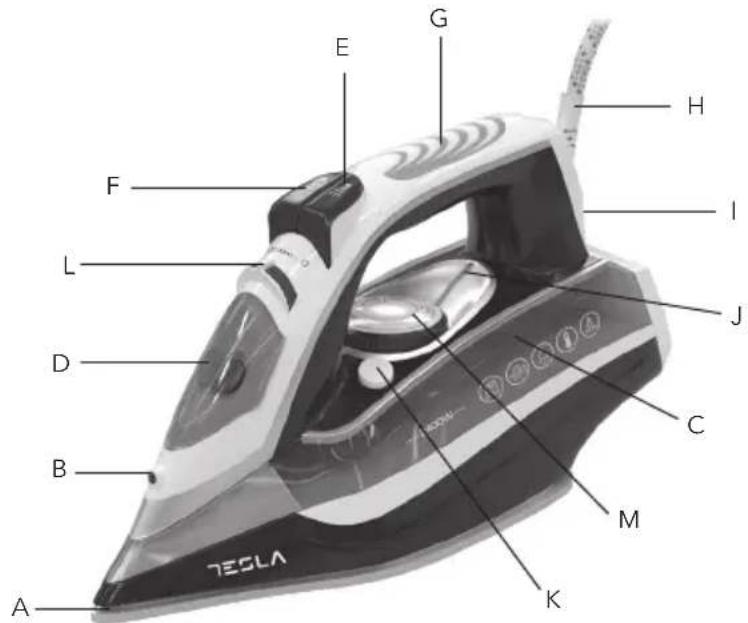

COMPONENT NAME

A Soleplate

B Water spray nozzle

C Water tank

D Water refill lid

E Spray button

F Steam button

G Handle

H Flexible cord protector

I Rear cover

J Power indicator light

K Self-Cleaning button

L Steam adjustment knob

M Temperature adjustment knob

Filling with Water:

Make sure iron is unplugged and the thermostat dial is in the MIN position. Place iron on the heel rest, tilt forward approximately 45 angle and pour water into the water-filling opening to the MAX position of the water tank.

Vertical Steam

"Burst of Steam" can also be applied when holding the iron in vertical position, this is useful for removing creases from hanging clothes, curtains, etc.

Dry Ironing

1. Set the steam selector to position O(=No Steam)
2. As per washing label of various clothes, set the correct ironing temperature to begin a ironing.

Steam Ironing:

1. Fill water in the iron as per the water-filling methods.
2. Plug the appliance in the socket.
3. If only set thermostat knob to MAX position as per the temperature indicator, steam iron will be available, otherwise water may leak from the soleplate.
4. It indicates that the temperature has been ready until the indicator light goes off.
5. Set the steam selector correctly, increase steam output by pushing the steam selector back and decrease steam output by forward.

CAUTION!

Synthetic Fabric, Nylon, Synthetic Silk and Silk cannot use the steam iron, otherwise it will damage the finish of surface.

Burst of Steam

This function works well for tough wrinkles and heavy fabrics. By pressing "Burst of Steam" button, an intense burst of steam is emitted from the soleplate, this can be very useful when removing stubborn creases. The shot of steam facility can be used only while ironing with high ironing temperature. For optimal result, there should be 5 seconds rest between presses of the steam button. To prevent leaking water from the soleplate does not press the steam button continuously for more than 5 seconds.. Also allow at least one minute interval before applying this burst of steam function.

Spraying Methods:

At any temperature by pressing the spray button a couple of times, the laundry can be damped down. Ensure that there is enough water in the water tank.

Self-Cleaning

Use the self-cleaning function once every two weeks. If the water in your area is very hard(i.e, when flakes come out of the soleplate during ironing),the self-cleaning function should be used more frequently.). Make sure the appliance is unplugged, set the steam selector to position "O", fill the water tank to the MAX position, do not put vinegar or other dealing agents in the water tank., select the maximum ironing temperature, put the plug in the wall socket, unplug the iron when the power indicator lighter has gone out, hold the iron over the sink, press and hold the self-cleaning button and gently shake the iron to and fro. Steam and boiling water will come out of the soleplate, impurities and flakes(if any),will be flushed out. Release the self-cleaning button as soon as all the water in the tank has been used up. Repeat the self-cleaning process if the iron still contains a lot of impurities. After the self-cleaning process, put the plug in the wall socket and let the iron heat up to allow the soleplate to dry, unplug the iron when it has reached the set ironing temperature, move the hot iron gently over a piece of used cloth to remove any water stains that may have formed on the soleplate, let the iron cool down before you store it.

ANTI DRIP

1. Anti-drip system, which is designed to prevent water escaping from the soleplate when the iron is too cold automatically.

2. During use, the anti drip system may emit a loud clicking sound, particularly during heat-up or whilst cooling down. This is perfectly normal and indicates that the system is functioning correctly.

ANTI SCALE

The build-in anti-scale cartridge is designed to reduce the build-up of limescale which occurs during steam ironing. This will prolong the working life of your iron. However, please note that the anti-scale cartridge will not completely stop the natural process of limescale build-up.

Temperature and steam settings table

Caution: Indicates that the fabric is not ironing
Instructions on Label Type of Fabric Thermostat Dial
	NylonSilk	MIN
	Wool
	Cotton	MAX
	Linen, jeans

CLEANING AND MAINTENANCE

Before cleaning, remove the plug from the socket and allow the iron to cool down sufficiently.

1. Wipe off the soleplate with a damp cloth and a non-abrasive (liquid) cleaner.
2. If the fiber is adhered to the soleplate, use a damp cloth with vinegar to wipe off the soleplate.

3. Never use strong acid or alkali in order to avoid damaging the soleplate.

4. If the scale blocks the steam hole, please remove the scale with toothpick; do not damage the surface of soleplate.

5. Stand the iron on its end and let it cool down sufficiently, and meantime pour any remaining water out of the box, set the steam knob to position "O".

Simple Repair Methods

Problem Possible Reasons Measurement
Not enough heat or Too heat	Rotate thermostat dial improperly or unplugging	Correct Thermostat dial in position and check if the iron is plugged.
No steam or Leakage The thermostat dial has been set to MIN		Set the thermostat dial to the required positioin.
No burst of steam or no vertical steam	The (vertical) burst of steam function has been used too often within a very short period. The iron is not hot enough	Continue ironing in horizontal position and wait a while before using the (vertical) burst of steam function again
Leaking water from Soleplate	Set the thermostat dial out of steam range. Set the thermostat dial as per steam range.
	The heat is still not enough.	Open steam button only after the indicator light goes off.
	The water is over than max position Pour out the remaining water
Little Steam	Check if the steam selector is in proper location.	Set the steam selector to the proper location.
	Steam hole is blocked. Clean hole with distilled water.
	Too little water in the water tank Fill water into the box
No Spraying	No enough pressure or air inside	Press the spray nozzle by hand, and push the spray button several times continuously.

TECHNICAL SPECIFICATION

Voltage: AC 220V - 240V\~

Frequency: 50Hz-60Hz

Power: 2400W

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, they can take this product for environmental safe recycling

A Ploča za peglanje

B Mlaznica za prskanje

C Rezervoar za vodu

D Poklopac za punjenje vode

E Dugme za prskanje

F Dugme za paru

G Drška

H Fleksibilna zastita za kabal

I Zadnji poklopac

J Indikator lampica

K Self cleaning

L Kontrola pare

M Kontrola temperature

Punjenje vodom

Uvjerite se da je pegla isključena i da je točkić termostata u položaju MIN. Postavite peglu na oslonac, nagnite se napred za približno 45 stepeni i ulijte vodu u otvor za punjenje vode do MAX položaja rezervoara za vodu.

Vertikalna para

Α Πλάκα

Use the self-cleaning function once every two weeks. If the water in your area is very hard (i.e, when flakes come out of the soleplate during ironing), the self-cleaning function should be used more frequently.). Make sure the appliance is unplugged, set the steam selector to position "O", fill the water tank to the MAX position, do not put vinegar or other dealing agents in the water tank., select the maximum ironing temperature, put the plug in the wall socket, unplug the iron when the power indicator lighter has gone out, hold the iron over the sink, press and hold the self-cleaning button and gently shake the iron to and fro. Steam and boiling water will come out of the soleplate, impurities and flakes (if any), will be flushed out. Release the self-cleaning button as soon as all the water in the tank has been used up. Repeat the self-cleaning process if the iron still contains a lot of impurities. After the self-cleaning process, put the plug in the wall socket and let the iron heat up to allow the soleplate to dry, unplug the iron when it has reached the set ironing temperature, move the hot iron gently over a piece of used cloth to remove any water

A Ploča za peglanje

B Mlaznica za prskanje

C Spremnik za vodu

D Poklopac za punjenje vode

E Tipka za prskanje

F Tipka za paru

G Drška

H Fleksibilna zaštita za kabel

I Zadnji poklopac

J Indikator lampica

K Self cleaning

L Kontrola pare

M Kontrola temperature

Punjenje vodom

A Vasalótalp

Make sure iron is unplugged and the thermostat dial is in the MIN position. Place iron on the heel rest, tilt forward approximately 45 angle and pour water into the water-filling opening to the MAX position of the water tank.

Vertical Steam

"Burst of Steam" can also be applied when holding the iron in vertical position, this is useful for removing creases from hanging clothes, curtains, etc.

Száraz vasalás

А Плоча за пеглање

A Talpă

A Likalna plošča

BEZBEDNOSNA UPUTSTVA

A Ploča za peglanje

B Mlaznica za prskanje

C Rezervoar za vodu

D Poklopac za punjenje vode

E Dugme za prskanje

F Dugme za paru

G Drška

H Fleksibilna zastita za kabl

I Zadnji poklopac

J Indikator lampica

K Self cleaning

L Kontrola pare

M Kontrola temperature

Punjenje vodom

Uverite se da je pegla isključena i da je točkić termostata u položaju MIN. Postavite peglu na oslonac, nagnite se napred za približno 45 ugla i ulijte vodu u otvor za punjenje vode do MAX položaja rezervoara za vodu.

Vertikalna para
