Product Type	Shoe Dryer
Brand	Clas Ohlson
Model	SD-018
Dimensions (W x H x D)	32 x 23 x 13 cm
Power Supply	220-240 V AC, 50 Hz
Power Consumption	230 W
Protection Class	IP21
Drying Temperature	45-65 °C
Air Hose Length	31-85 cm
Timer Range	Up to 180 minutes (timer) or continuous (ON)
Temperature Selection	Low or High via selector control
Number of Hoses	4 flexible air hoses
Mounting Options	Wall-mountable with included bracket
Indicators	Power indicator light
Safety Features	Overheating protection, double insulation, IP21 splash-proof
Max Operating Time per Session	3 hours
Clearance Required in Front	90 cm
Care Instructions	Wipe with damp cloth; detach hoses for storage
Intended Use	Drying washed or wet shoes only
Compliant Standards	EU waste electrical equipment directive

Frequently Asked Questions - SD-018 Clas Ohlson

How do I attach the air hoses?

Align the lugs (A and B) on the hose with the slots in the hole on the front of the dryer, push in, then twist clockwise to lock. Repeat for all four hoses.

Can I use the shoe dryer continuously?

Yes, turn the timer knob to the ON position for continuous operation. However, do not use for more than 3 hours at a time.

What if the dryer shuts off unexpectedly?

This indicates the overheating protection has tripped. Unplug the dryer, let it cool down completely, then it can be used again.

Can I dry other items besides shoes?

No, the dryer is designed only for shoes that are washed or wet from use. Do not dry clothes or other items.

Is the shoe dryer safe to use in a bathroom?

No. The dryer must not be used near bathtubs, showers, sinks, pools, or in damp environments. It has IP21 protection but is not waterproof.

How do I clean the shoe dryer?

Unplug the dryer and wipe the exterior with a soft damp cloth. Do not use solvents or abrasive cleaners. Air hoses can be detached for easier cleaning.

Can I mount the dryer on the wall?

Yes, use the included wall bracket. Screw the bracket to a solid wall with appropriate screws and plugs, then hang the dryer on it.

What is the maximum drying time per session?

The timer can be set up to 180 minutes. For longer periods, use continuous mode but never exceed 3 hours total to prevent overheating.

What does the power indicator light mean?

The light turns on when the dryer is plugged in and the timer or switch is set to an operating position. It indicates the unit is powered.

What should I do if the hose is damaged?

The hoses are flexible but replaceable. Contact customer service for spare parts. Do not use the dryer with damaged hoses.

USER MANUAL SD-018 Clas Ohlson

Line drawing of a portable air conditioner unit with coiled tube connectors (no text or symbols)

Art.no

44-2542

Model

SD-018

Ver. 20171006

Shoe Dryer

Art.no 44-2542 Model SD-018

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General safety instructions

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Warning: Ensure that the product is used with the correct voltage, refer to the rating plate on the product.

- The product must not be modified in any way.

- The product can become very hot during use and cause burns. Special care must be taken if the product is used in the same room as young children, aged or infirm persons.

- Warning: The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.

- If the mains lead has been damaged, it must only be replaced by the manufacturer, authorised service facility or qualified tradesman. This is to prevent the risk of electric shock or fire. Do not try to repair the product yourself in any way.

- Note: The product is only designed for domestic use or under similar conditions such as:

- In staff facilities such as changing rooms or cloakrooms.

- In holiday homes and chalets.

- By guests in hotel rooms and other forms of residency.

Class II product. Double-insulated.

Only intended for indoor use.

Product specific safety instructions

• Warning: Make sure that the mains lead is not lying in front of the heat outlet.
• The shoe dryer must not be placed directly beneath a wall socket.
• Flammable products must not be placed close to the shoe dryer or the air hoses.
• Warning: The shoe dryer must not be used outdoors or in damp environments.
• Do not use the shoe dryer in the immediate vicinity of bathtubs, showers, sinks or swimming pools.
• The shoe dryer must not be used in locations where it is exposed to water splashes.
• The shoe dryer must not be immersed in water or other liquids.
• Important: The shoe dryer must only be used when the air hoses are attached.
• Do not use the shoe dryer for more than 3 hours at a time.
  • Make sure that the air intake and heat outlet are clean and not blocked by anything. The shoe dryer must have a clear space of 90 cm in front of it.
• If the shoe dryer has come into contact with water, it must be unplugged immediately.
• Switch the shoe dryer off and unplug it after each use and before cleaning it.
• Note: The shoe dryer is only intended for drying shoes that have been washed or become wet during use.

The shoe dryer and the air hoses must not be covered with any combustible materials such as newspapers, curtains or other fabric.

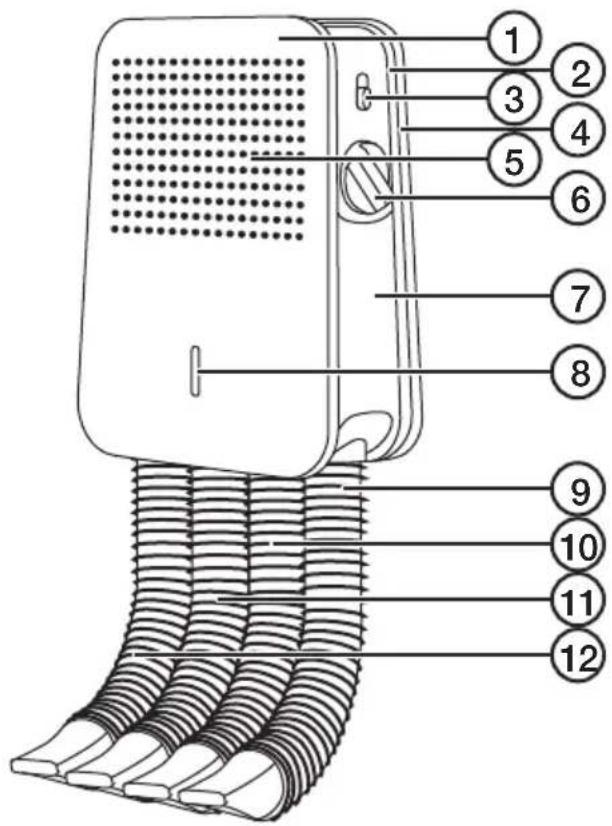

Product description

1. Front panel
2. Mains lead
3. Temperature selector
4. Wall bracket
5. Air inlet
6. Power and timer knob
7. Side panel
8. Power indicator light
9. Flexible air hose
10. Flexible air hose
11. Flexible air hose
12. Flexible air hose

Assembly

Shoe dryer

1. Set the knob (6) to the OFF position.
2. Place the end of one of the hoses (9, 10, 11, 12) in front of one of the holes on the front of the shoe dryer.

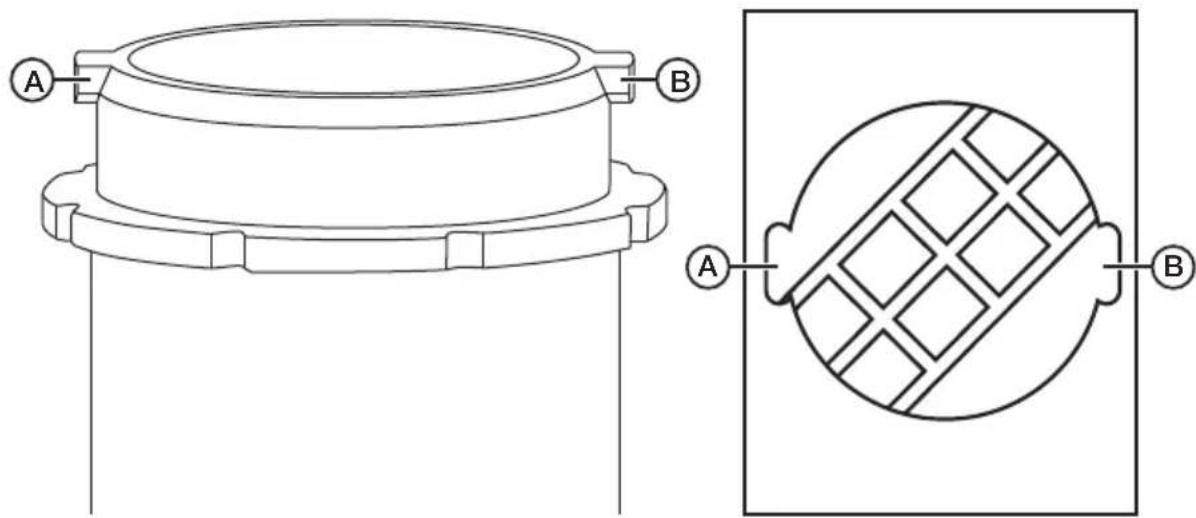

1. Align the lugs A and B on the hose with the slots A and B in hole.
2. Push the hose into the hole and twist it clockwise to lock it in place.
3. Repeat steps 2–4 for the other hoses.

Wall mounting

1. Screw the bracket to the wall using suitable screws and wall plugs for the wall material.
2. Hang the shoe dryer onto the wall bracket.

Instructions for use

1. Place the shoes to be dried on the floor and insert a hose into each one.
2. Plug the shoe dryer into a suitable electrical outlet.
3. Choose the desired drying programme.
4. Timer (max 180 mins) – set the knob to the desired time.

5. Continuous operation – set the knob to ON.

6. Adjust the temperature using the temperature selector control (3).

7. Low: Low temp.

8. High: High temp.

Care and maintenance

• Always unplug the product from the wall socket before cleaning.
- Wipe the exterior with a moist, soft cloth. Never clean the product using solvents or abrasive cleaning agents.
- To save space when not in use, the air hoses can be detached and the mains lead wound around the cable tidy on the rear panel.

Troubleshooting guide

Problem Cause Correction
The shoe dryer shuts off unexpectedly.	The overheating protection has tripped.	Let the shoe dryer cool down before using it again.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Supply voltage 220–240 V AC, 50 Hz

Power 230 W

Protection class IP21

Drying temp 45–65 °C

Air hose length 31–85 cm

Size 32 × 23 × 13 cm

Skotork

Art.nr 44-2542 Modell SD-018

Montering

Skotorken

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50 Hz

Effekt 230 W

Skyddsklass IP21

Torktemp. 45–65 °C

Montering

Skotørkeren

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Effekt 230 W

Asennus

Kengänkuivain

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Montage

Schuhtrockner

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
