AC97 - Photo accessory Valore - Free user manual and instructions

Brand	Valore
Model	AC97
Product Type	360° Auto-Rotate Wireless Selfie Stick
Wireless Range	Up to 10m
Battery Capacity	210mAh polymer (built-in)
Charging Time	Approximately 2 hours
Remote Battery Type	CR2032
Standby Time	Up to 200 hours
Working Time	Up to 30 hours
Power Input	5V
Compatibility	iOS / Android
Pole Extension	25.8 – 102.2 cm
Clamp Max Width	Up to 6.6 inches
Dimensions (L x W x H)	258 x 37.5 x 49 mm
Features	360° auto-rotation, built-in LED flash, built-in tripod, detachable shutter & control button
Package Contents	Selfie stick, USB cable, remote control, pouch
Charging Method	Via USB cable (5V)
Material	Plastic, metal (telescopic rod)
Warranty	See website for details
Care Instructions	Keep dry, avoid high temperatures, do not disassemble

Frequently Asked Questions - AC97 Valore

How do I charge the selfie stick?

Use the included USB cable to charge the built-in battery. Plug into a 5V USB power source. Charging time is approximately 2 hours.

How do I pair the remote control?

Remove the remote control from the stand. Press the shutter button to turn it on, then pair via Bluetooth on your phone. The remote uses a CR2032 battery.

Can I use the selfie stick with any phone?

Yes, it supports iOS and Android devices. The clamp can hold phones up to 6.6 inches wide.

How do I extend the pole?

Gently pull the telescopic rod until you reach the desired length. The maximum extension is 102.2 cm.

Does the selfie stick have a tripod?

Yes, it has a built-in tripod at the bottom. Open the tripod legs for hands-free use.

How does the auto-rotate feature work?

Use the left and right rotation keys on the handle to automatically rotate the phone 360 degrees for perfect framing.

How do I use the built-in flash?

Press the LED light key on the handle to turn on the flash. It helps illuminate your subject in low light.

What should I do if the selfie stick stops working?

Check the battery charge and Bluetooth connection. If issues persist, contact support at [e-mail].

Is the remote control detachable?

Yes, the remote control can be removed from the stand. Follow the instructions to slide it up and detach.

Can I use the selfie stick while charging?

It is not recommended. Charge fully before use for optimal performance.

USER MANUAL AC97 Valore

Thank you for purchasing the Valore 360° Auto-Rotate Wireless Selfie Stick (AC97)

• 360^ Auto-rotate
  • Built-in flash
  • Built-in tripod
• Detachable shutter & control button

Important: Please read the user manual thoroughly before using your Wireless Selfie Stick.

Specifications:

Package Contents:

• Wireless range: Up to 10m
• Battery capacity: 210mAh polymer
• Charging time: Approximately 2 hours
• Battery type: CR2032 (Remote control)
• Standby time: Up to 200 hours
  • Working time: Up to 30 hours
• Power input: 5V
  • Support: iOS/Android
• Pole extension: 25.8 – 102.2cm
• Clamp supports: Up to 6.6"

• Dimensions (L x W x H): 258 x 37.5 x 49mm

• 360^ Auto-rotate wireless selfie stick

• USB cable
• Remote control
• Pouch

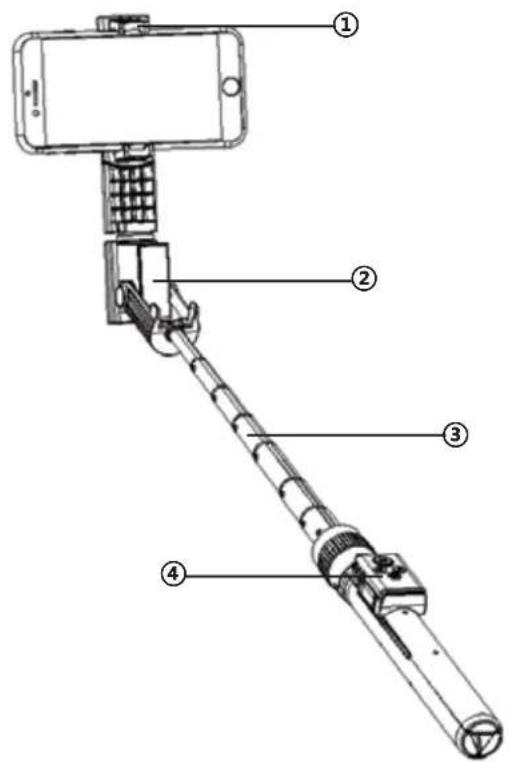

UNDERSTANDING THE PRODUCT

① Mobile holder
② LED light
③ Telescopic rod
④ Bluetooth remote control
⑤ Left rotation key
⑥ Shoot/Power switch
⑦ Right rotation key
⑧ LED light key

START USING SELFIE STICK

Remote control seperation instructions

Step 1

Pure mechanical assembly diagram showing two vertical components with internal mechanisms and a curved arrow indicating rotation (no text or symbols)

Open the mobile holder in the direction of the arrow illustrated in the picture. 180° with the selfie stick.

Step 2

Technical line drawing of a mobile phone with internal components and an upward arrow indicating motion (no text or symbols)

Slide the remote control together with the stand to suitable position.

Step 3

Mechanical assembly diagram showing two vertical cylindrical components with internal components and directional arrows (no text or labels)

Hold the remote control stand, push the remote control up and remove the remote control from the stand.

Step 4

Mechanical assembly diagram showing two vertical cylindrical components with internal components and a downward arrow indicating motion (no text or symbols)

After use, hold the remote control stand, push down on the remote control and install it onto the stand.

Selfie stick operation instructions

Step 1

Technical line drawing of a mechanical assembly with no visible text or symbols

Open the mobile holder in the direction of the arrow illustrated in the picture. 180° with the selfie stick.

Step 2

Technical line drawing of a mobile phone with left and right views showing internal components (no text or symbols)

Slide the remote control together with the stand to suitable position.

Step 3

Mechanical assembly diagram showing a lever mechanism with two curved arrows indicating motion or force (no text or labels)

Open the bracket clip and slot mobile in.

Step 4

Top-down line drawing of a mobile phone with a vertical scroll and control panel (no text or symbols)

Step 5

Line drawing of a selfie stick with attached device (no text or symbols)

Pull the telescopic rod to the required length

Step 6

Line drawing of a selfie stick with a smartphone mounted on top (no text or symbols)

Adjust the mobile holder to the right angle.

Step 7

Line drawing of a selfie stick with tripod, no text or symbols present

Open the tripod handle on the bottom of the selfie stick to take a photo or take a video.

Step 8

Line drawing of a selfie stick with a smartphone mounted on a tripod, showing two curved arrows indicating rotation (no text or symbols)

Rotate the mobile holder to 90^ with the selfie stick as indicated by the arrow in the illustration.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the product in a high temperature environment.
• Do not place the product near a fire or other excessively hot environments.
• Do not expose the product to moisture or submerge it in liquid. Keep product dry at all times.
• Do not attempt to charge the product using any other method or connection other than the product's provided charging cable.

- Do not disassemble this product or attempt to repair or modify it in any manner.

- Battery usage by children should be supervised

- Be cautious of excessive drops, bumps, abrasions or other impacts to this product. If there is any damage to the product such as dents, punctures, tears, deformities or corrosion, stop using the product and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.

- If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes. The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered

trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

CE

Inspired by Valore Singapore

For full range of Valore products visit www.valore.sg
