Security Video Doorbell 2E (Battery) - Video doorbell eufy - Free user manual and instructions

Brand	eufy Security
Model	Video Doorbell 2E (Battery) - T8221
Product Type	Wireless Video Doorbell
Power Source	Rechargeable battery (USB charging 5V/1A)
Charging Time	6 hours (0% to 100%)
Battery Life	Up to 4 months (typical usage: 15 events/day, 20 sec each)
Camera	Built-in camera with night vision (IR LEDs)
Motion Sensor	PIR motion sensor
Audio	Two-way audio with microphone and speaker
Connectivity	Wi-Fi via HomeBase 2
HomeBase 2	Built-in storage, Ethernet connection to router, LED indicator (blue)
Mobile App	eufy Security app (iOS/Android)
Mounting	Wall mount with included bracket, screws, and optional 15° wedge
Recommended Mounting Height	48 inches (1.2 m) from ground
Included Accessories	Mounting bracket, screw hole positioning card, 15° mounting wedge, screw packs, detaching pin, USB charging cable, power adapter (HomeBase 2), Ethernet cable
LED Indicators	Status LED (doorbell), Charging: solid orange, Fully charged: solid blue
Regulatory Compliance	FCC Part 15, IC RSS, RF exposure (20 cm distance)
Warranty	12-month limited warranty

Frequently Asked Questions - Security Video Doorbell 2E (Battery) eufy

How do I charge the eufy Video Doorbell 2E (Battery)?

Use the included USB charging cable and a standard USB power adapter (5V/1A). The LED will show solid orange while charging and solid blue when fully charged. Charging takes about 6 hours from empty.

How long does the battery last?

Battery life is up to 4 months under typical usage: about 15 motion events per day with 20-second recordings. Actual life varies with settings and activity.

Can I mount the doorbell without drilling?

For wooden surfaces, you can screw the bracket directly. For hard materials like brick or concrete, you need to drill pilot holes (15/64" or 6mm drill bit) and use the included anchors.

Do I need the HomeBase 2 to use the doorbell?

Yes, the HomeBase 2 is required. It connects to your router via Ethernet and stores video clips locally. The doorbell communicates with the HomeBase wirelessly.

How do I set up the eufy Video Doorbell 2E?

Download the eufy Security app, create an account, and follow the on-screen instructions. First add the HomeBase 2, then add the doorbell. Make sure the HomeBase is connected to the internet.

What is the field of view?

The doorbell offers a wide-angle view. For best results, mount at 48 inches height. Use the optional 15° mounting wedge to adjust the angle sideways.

Does it work with existing doorbell wiring?

No, this is a battery-powered model. It does not connect to existing doorbell wiring. The doorbell is wireless and powered by its rechargeable battery.

How do I detach the doorbell from the mount?

Use the included detaching pin. Insert it into the small hole at the bottom of the doorbell, press, and then lift the bottom to release the doorbell from the bracket.

Is the doorbell weatherproof?

The doorbell is designed for outdoor use, but specific weather rating is not mentioned. It should be installed under a porch or overhang to protect from direct rain.

How do I reset the doorbell?

Press and hold the SYNC/RESET button for 10 seconds. To power off, quickly press the SYNC button 5 times within 3 seconds.

USER MANUAL Security Video Doorbell 2E (Battery) eufy

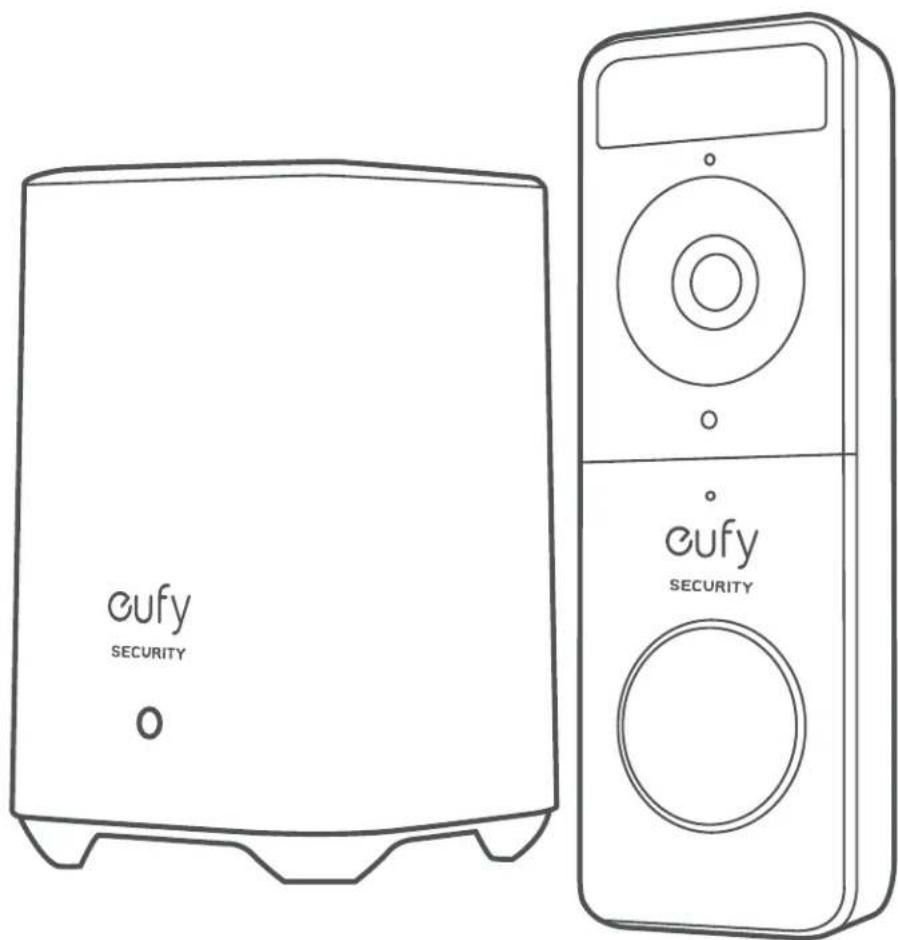

eufy Security Video Doorbell 2E (Battery)

Line drawing of a Uufy Security device with front panel and back panel (no text or symbols on main body)

TABLE OF CONTENTS

What's Included	01	08	Finding a Mounting Spot
Product Overview	03	10	Mounting the Bracket
How the System Works	04	13	Mounting the Doorbell
Connecting the Homebase	05	14	Detaching the Doorbell
Setting up the System	06	15	Recharging the Doorbell
Charging Your Doorbell	07	16	Notice

WHAT'S INCLUDED

For Video Doorbell Installation

Line drawing of a modern remote control device with 'eufy SECURITY' branding (no additional text or symbols)

Video Doorbell 2E (Battery)
Model: T8221

Simple line drawing of a rectangular frame with two circular buttons on top (no text or symbols)

Mounting Bracket

Screw Hole Positioning Card

15° Mounting Wedge (Optional)

FCC ID: 2AOKB-T8220

IC: 23451-T8220

USB Charging Cable

Six different screw types shown in line drawings, no text or symbols present

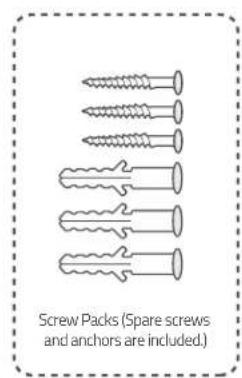

Screw Packs (Spare screws and anchors are included)

Doorbell Detaching Pin

Quick Start Guide

Line drawing of a connected electrical outlet with a plug and cable (no text or symbols)

Power Adapter for HomeBase 2

Pure diagram of two connected electrical connectors without any text or symbols

Ethernet Cable for HomeBase 2

FCC ID:2AOKB-T8010X

IC: 23451-T8010X

Note: Power plug may vary in different regions.

PRODUCT OVERVIEW

Video Doorbell (Battery Powered)

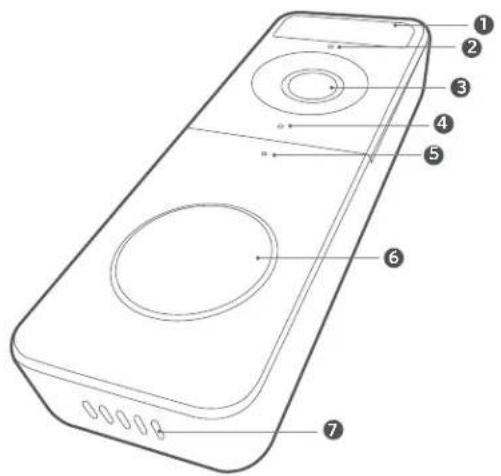

Front view:

I. Motion Sensor
2. Microphone
3. Camera Lens
4. Ambient Light Sensor
5. Status LED
6. Doorbell Button
7. Speaker

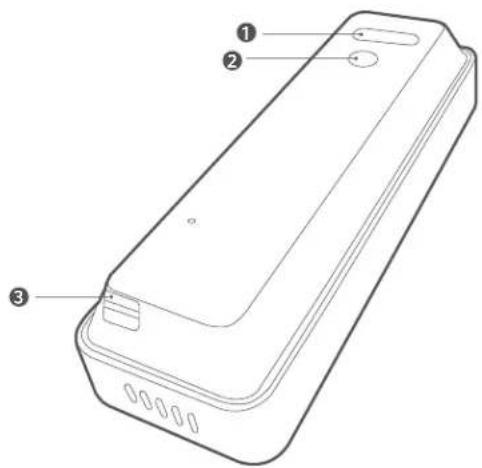

Rear View:

I. Micro USB Charging Port
2. SYNC/RESET button
3. Detaching Mechanism

Operation How-to
Power on Press and release the SYNC button.
Add doorbell to Wi-Fi Doorbell Chime	Press and hold the SYNC button until you hear a beep.
Power off the doorbell Quick-press the SYNC 5 times in 3 seconds.
Reset the doorbell Press and hold the SYNC button for 10 seconds.

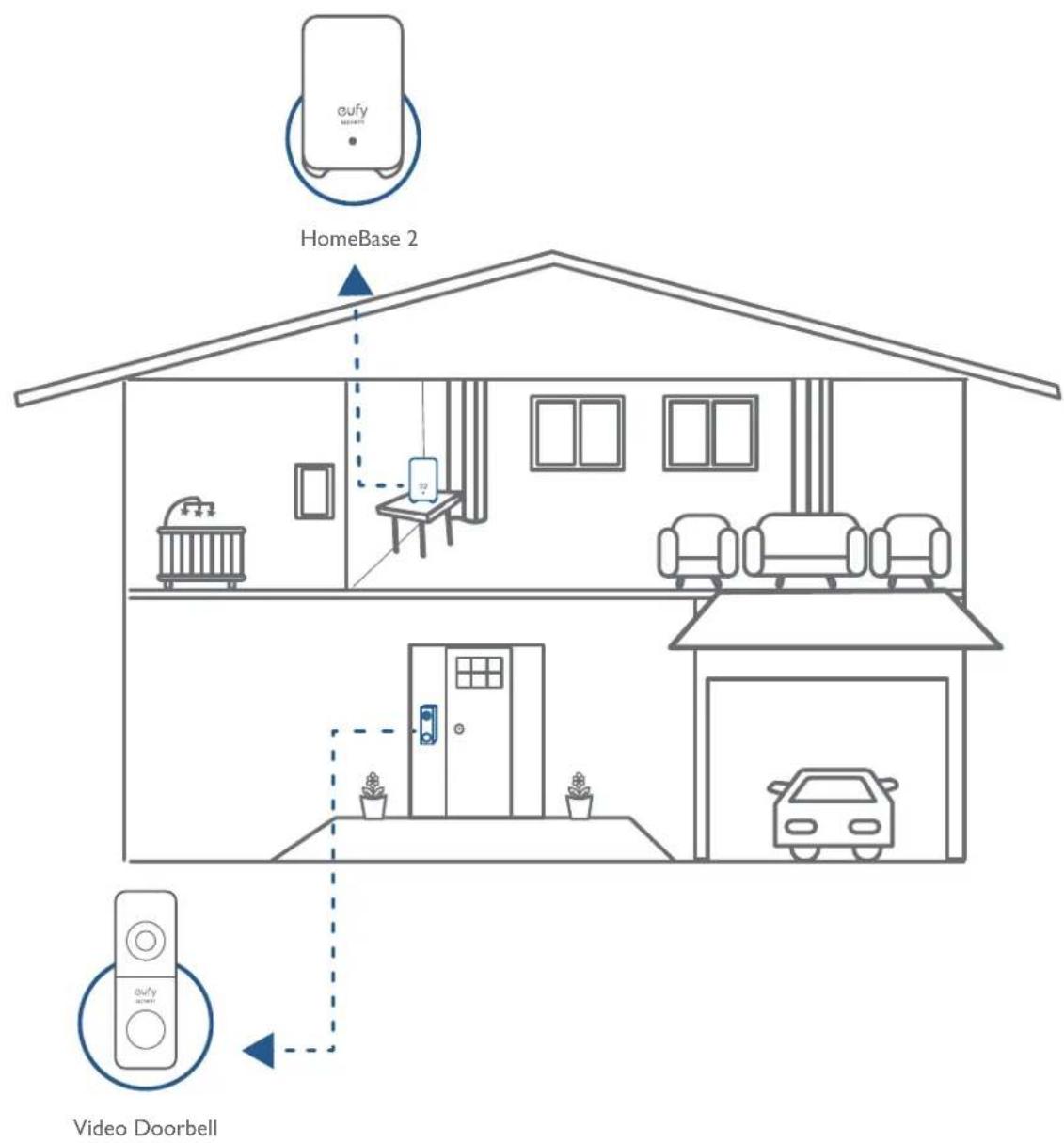

How the System Works

The video doorbell system includes 2 parts. One is the video doorbell at your door. The other is the HomeBase in your house.

The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere.HomeBase 2 stores video clips on its built-in storage. When someone rings the doorbell, people in the house will be notified.

STEP I CONNECTING THE HOMEBASE

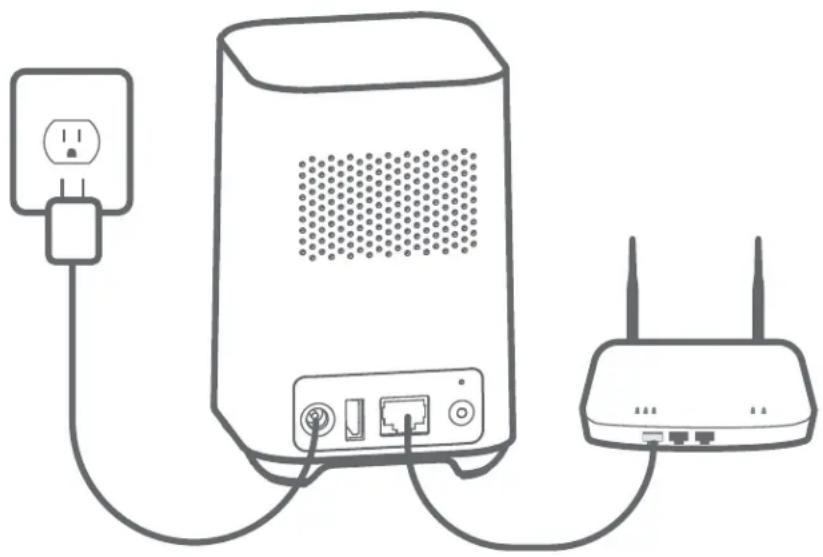

Connect the HomeBase 2 to the Internet

I. Power on the HomeBase 2, then use the ethernet cable provided to connect the HomeBase 2 to your home router.

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

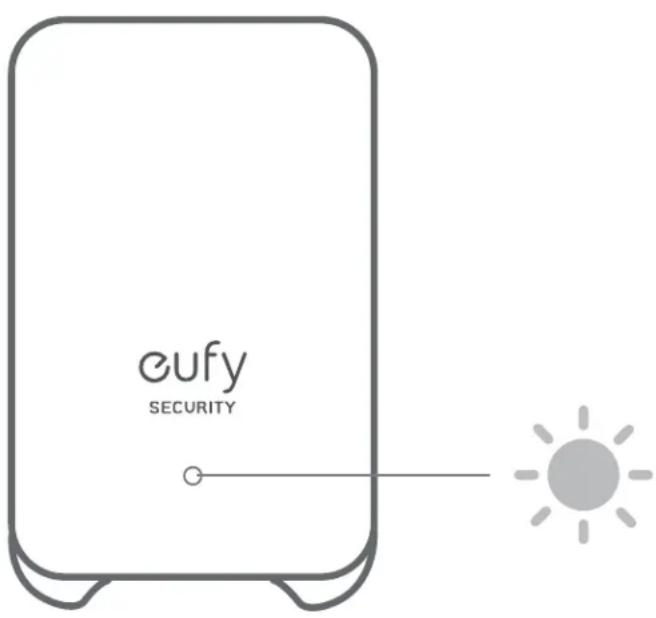

1. The LED indicator turns blue (this may take up to 1min) when HomeBase 2 is ready for setup.

05 English

STEP 2 SETTING UP THE SYSTEM

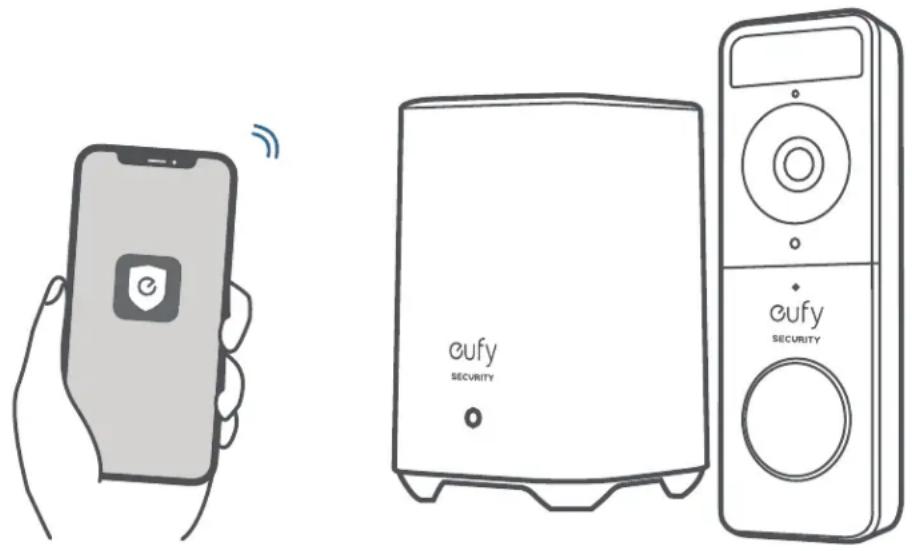

Download the App and Set up the System

Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

Icon of a shield with a circular refresh symbol, no text or numbers present

Sign up for a eufy Security account and follow on-screen instructions to complete the setup.

Tap Add Device to add the following devices:

I. Add the HomeBase 2.
2. Add the doorbell.

Illustration of a hand holding a smartphone and a dual electronic device labeled 'eufy SECURITY' (no text beyond labels)

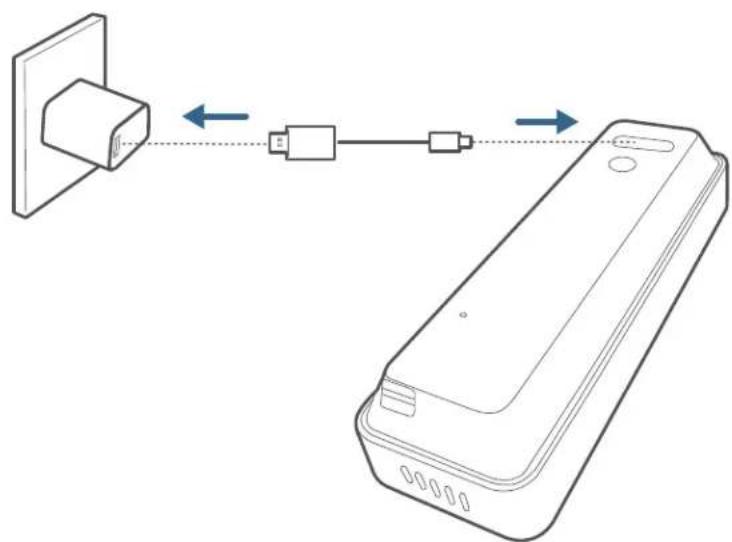

STEP 3 CHARGING YOUR DOORBELL

The doorbell comes with an 80% battery level for safe transportation. Fully charge it before mounting the doorbell at your front door.

Note: The battery life varies depending on usage. In most common cases, a doorbell may have up to 15 events per day and each recording lasts 20 seconds on average. Under this scenario, the doorbell battery life can last up to 4 months.

STEP 4 FINDING A MOUNTING SPOT

Find a Mounting Spot

Take the Video Doorbell to your front door and check the live view on the eufy Security app at the same time. Find a position where you can get the desired field of view.

Consider the below factors:

1. Check if you can reuse the existing holes and anchors on the wall or door frame.

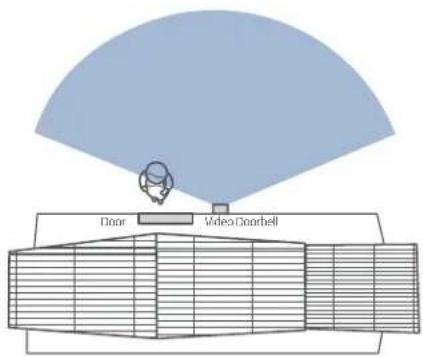

2. If you want to place the doorbell close to a side wall, make sure the wall doesn't show up in the field of view. Otherwise IR light will be reflected and night vision will become blurry.
3. If you are drilling the mounting holes for the first time the recommended mounting height is 48" / 1.2m from the ground.

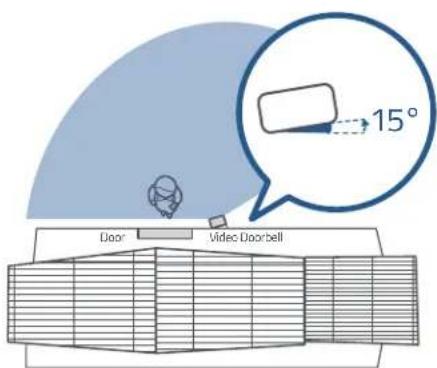

4. Use the 15^ mounting wedge as a supplementary mounting bracket if you wish to see more on a specific side.

Without 15° Mounting wedge

With 15° Mounting wedge

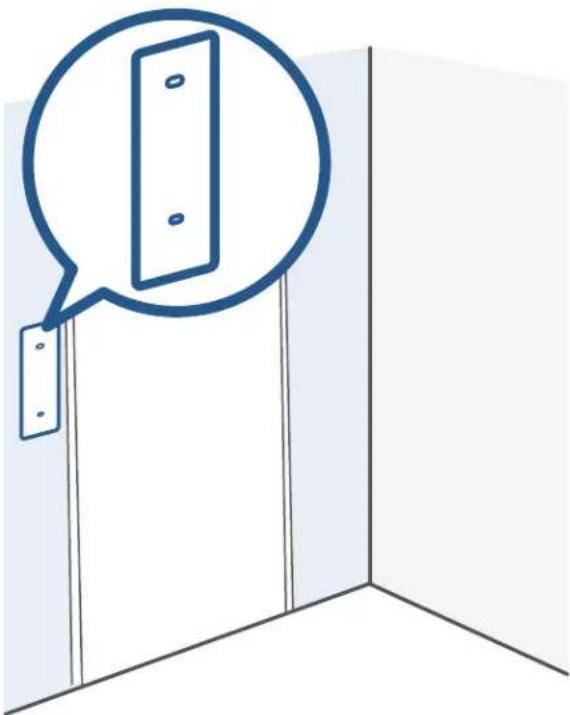

Place the Screw Hole Positioning Card against the wall to mark the position.

Simple line drawing of a door corner with a speech bubble highlighting the door panel (no text or symbols)

STEP 5 MOUNTING THE BRACKET

Mount the Doorbell on a Wooden Surface

If you're mounting the doorbell on a wooden surface, you don't need to pre-drill pilot holes. Use the provided screws to secure the Mounting Bracket on the wall. The Screw Hole Positioning Card indicates the position of the screw holes.

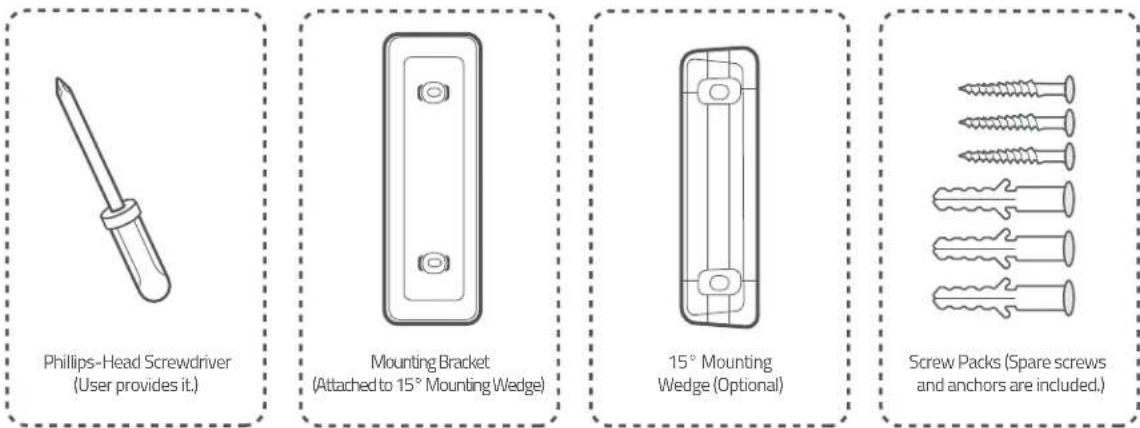

What is required: Power Drill, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

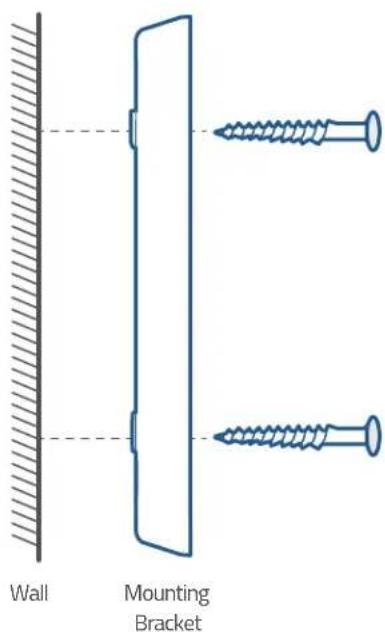

Without 15° Mounting Wedge

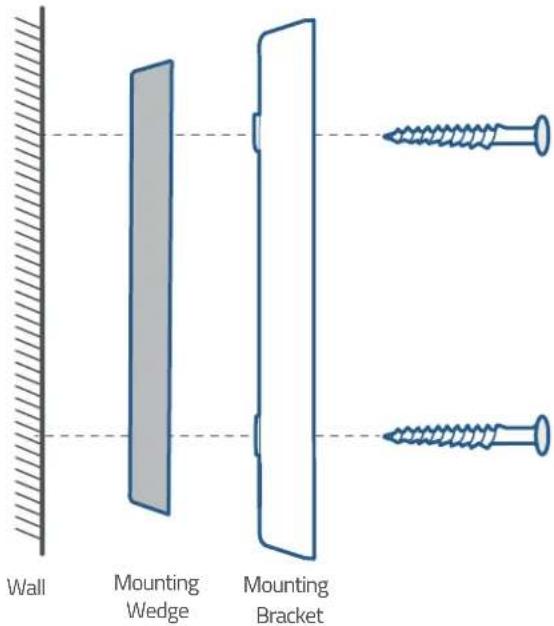

With 15° Mounting Wedge

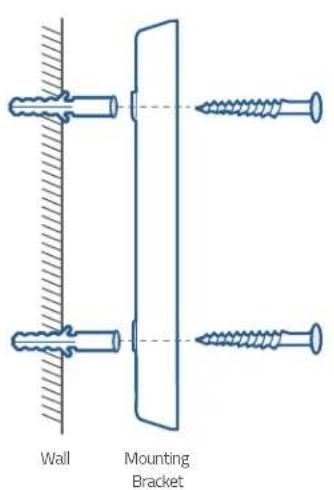

Mount the Video Doorbell on Surfaces Made Out of Hard Materials

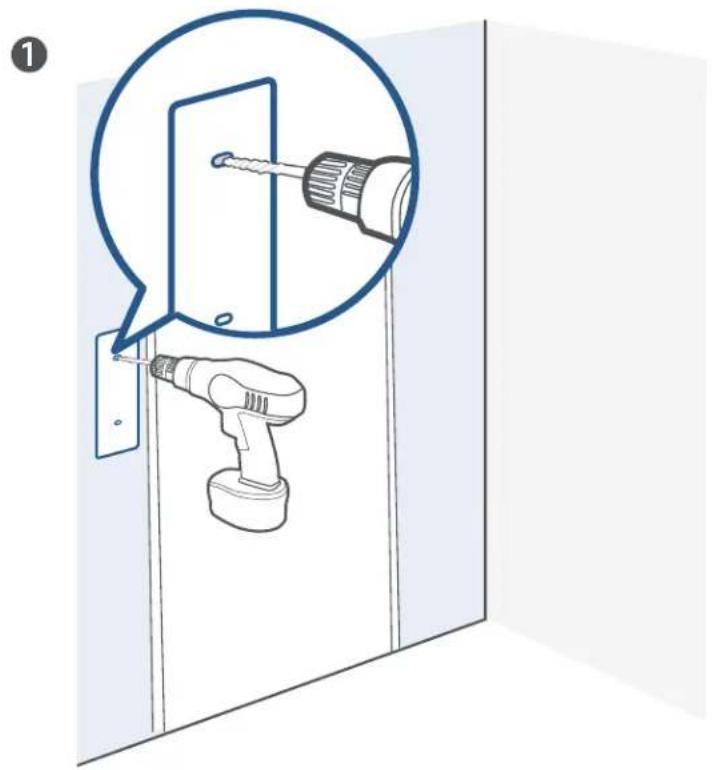

I. If you're mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco, drill 2 holes through the Screw Hole Positioning Card with 15/64"(6mm) drill bit.

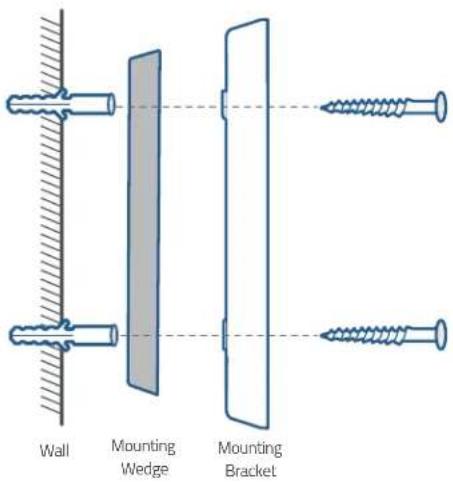

2. Insert the provided anchors, and then use the provided long screws to secure the Mounting Bracket on the wall.

What is required: Power Drill, 15/64"(6mm) Drill Bit, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

Diagram of a drill bit with a 15/64" (6 mm) drill bit label (no other text or symbols)

II English

2

Without 15° Mounting Wedge

With 15° Mounting Wedge

STEP 6 MOUNTING THE DOORBELL

Mount the Doorbell

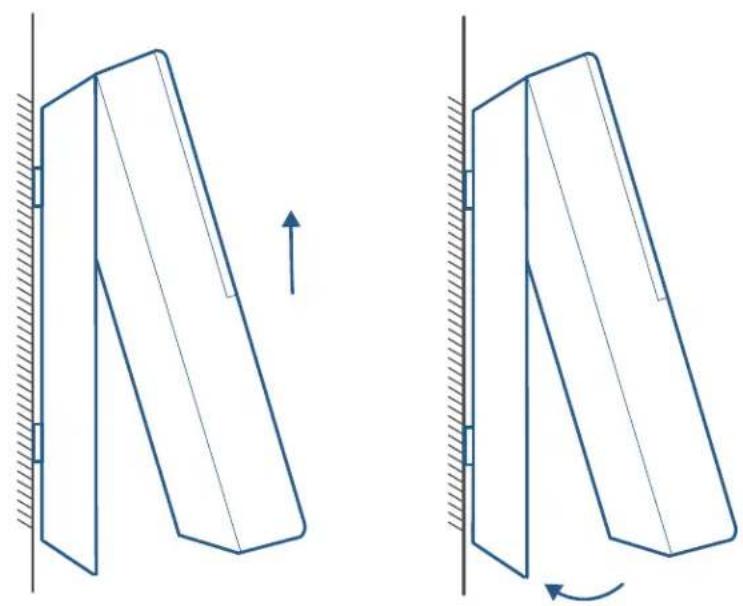

Align the doorbell with the top of the mount and then snap the bottom into place.

Two technical diagrams showing a structural component under compression, with an upward arrow indicating force or direction (no text or symbols present)

You're all set!

If you want to detach the doorbell or recharge it, please refer to the following sections.

APPENDIX I DETACHING THE DOORBELL

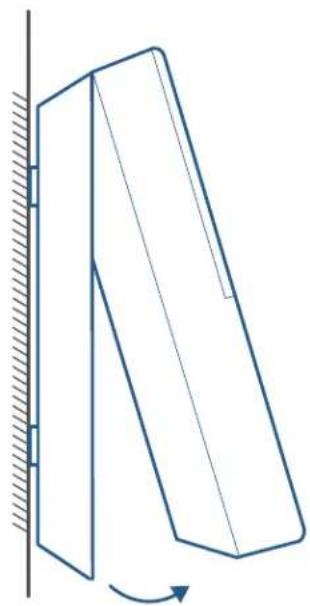

Detach the Doorbell

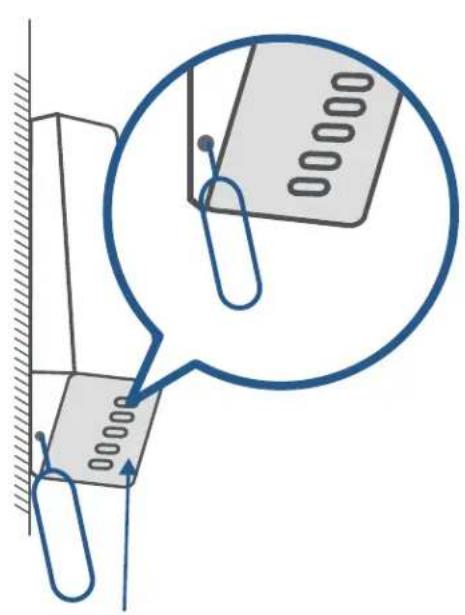

I. Use the doorbell detaching pin provided if you wish to detach the doorbell from the Mounting Bracket.
2. Insert and press the detaching pin into the hole on the bottom of the doorbell and then lift to take the bottom of the doorbell off.

What is required: Doorbell Detaching Pin

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

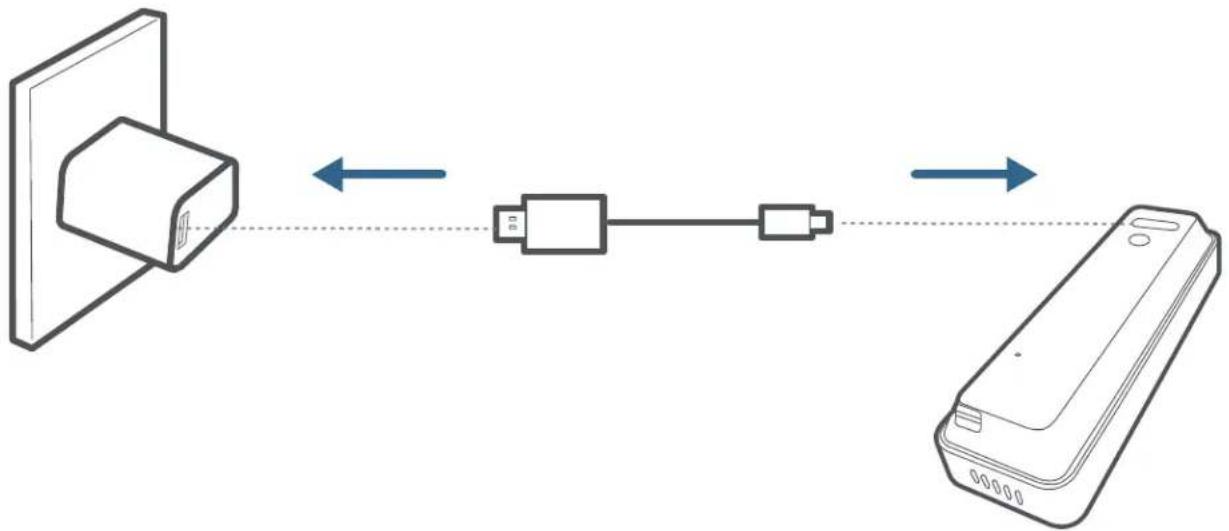

APPENDIX 2 RECHARGING THE DOORBELL

Recharge the Doorbell

Charge the doorbell with universal USB chargers that deliver 5V IA output.

LED indication	Charging: Solid orange
	Fully charged: Solid blue
Charging time 6 hours from	0% to 100%

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party:

Company Name: POWER MOBILE LIFE, LLC

Address: 10900 NE 8TH ST, STE 501, BELLEVUE, WA 98004

Telephone: I-800-988-7973

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(I) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.
