Product Type	Built-in Electric Oven
Brand	Corbero
Model	CCSF60420BW
Color	White
Energy Class	A
Oven Capacity	65 L
Dimensions (H x W x D)	595 x 595 x 575 mm
Net Weight	35 kg
Voltage	220-240 V
Frequency	50/60 Hz
Power Consumption (Conventional)	0.99 kWh
Power Consumption (Fan Forced)	0.89 kWh
Main Functions	Conventional, Fan Forced, Grill, Defrost, Light
Cleaning Type	Enamel Inner Cavity, Easy Clean
Safety Features	Child Lock, Cool Touch Door, Automatic Shut-off
Warranty	2 Years
Spare Parts Availability	5 Years
Door Type	Drop-down
Display	LED Timer
Number of Functions	8
Grill Power	2000 W
Fan Motor Power	30 W
Interior Light	Yes, 25 W
Rails	2 Side Rails

Frequently Asked Questions - CCSF60420BW CORBERO

How do I install the Corbero CCSF60420BW oven?

Ensure the oven is placed into a suitable cabinet cutout with proper ventilation. Connect to a dedicated 220-240 V outlet. Refer to the installation manual for detailed steps.

How do I preheat the oven?

Turn the function selector to the desired mode (e.g., conventional or fan forced). Set the thermostat to the required temperature. Wait until the thermostat indicator turns off, indicating preheating is complete.

What cleaning method is recommended?

For daily cleaning, use a damp cloth and mild detergent. For stubborn stains, use an enamel cleaner. Avoid abrasive pads. The oven has an easy-clean enamel interior.

How do I use the grill function?

Turn the function selector to the grill position. Place food on the top rack. Keep the oven door slightly ajar for better results. Monitor cooking to prevent burning.

What does the error code E01 mean?

E01 indicates a faulty temperature sensor. Contact customer service for replacement. Do not attempt to repair yourself.

Can I replace the oven light myself?

Yes, ensure the oven is disconnected from power. Remove the glass cover using a flat screwdriver, then replace the bulb with a 25 W, 300 °C resistant bulb.

How do I activate the child lock?

Press and hold the lock button (if available) for 3 seconds. A key symbol will appear on the display. Repeat to deactivate.

What is the maximum temperature?

The maximum temperature setting is 250 °C for conventional and fan forced modes, and 200 °C for grill.

How do I calibrate the oven temperature?

Some models allow temperature offset adjustment. Refer to the manual; typically, press and hold + and - buttons for 5 seconds to enter calibration mode.

Where can I find spare parts?

Spare parts are available through Corbero authorized service centers or online. Use model number CCSF60420BW to order.

USER MANUAL CCSF60420BW CORBERO

Line drawing of a simple kitchen oven with four circular control knobs (no text or symbols)

CCSF45020BW / CCSF45020BX

CCSF45020NW / CCSF45020NX

CCSF60420BW / CCSF60420BX

USER MANUAL GB MANUAL DEL USUARIO ES

Dear user,

Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept.

Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in the manual may not be available in your appliance.

All our appliances are only for domestic use, not for commercial use.

Products marked with (*) are optional.

"THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE"

"Confirms with the WEEE regulations."

Contents

Important warnings.....4

Gas connection...14

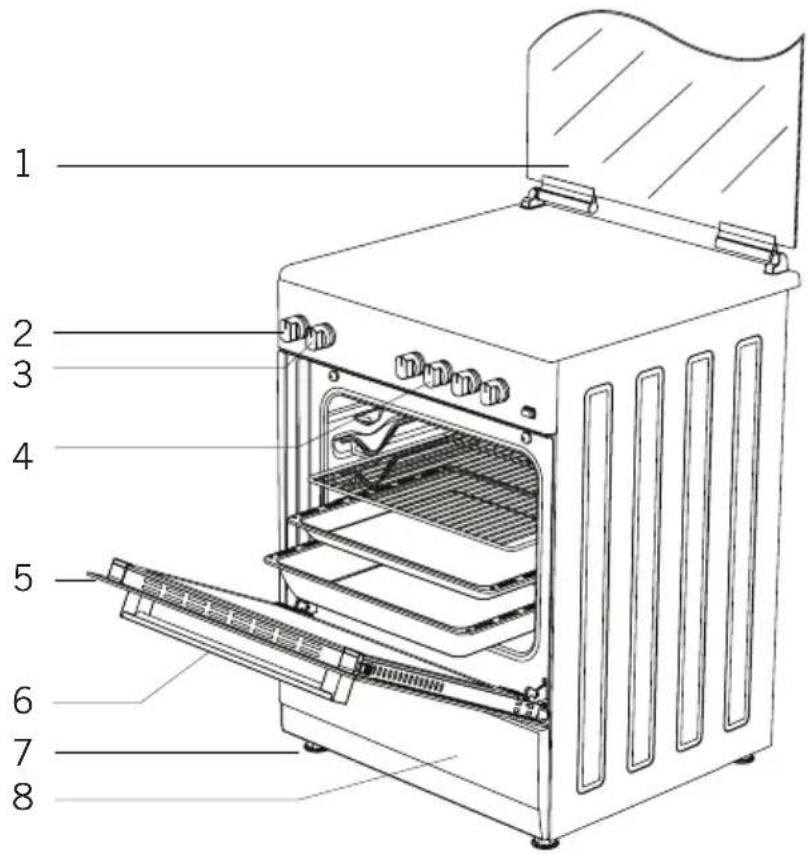

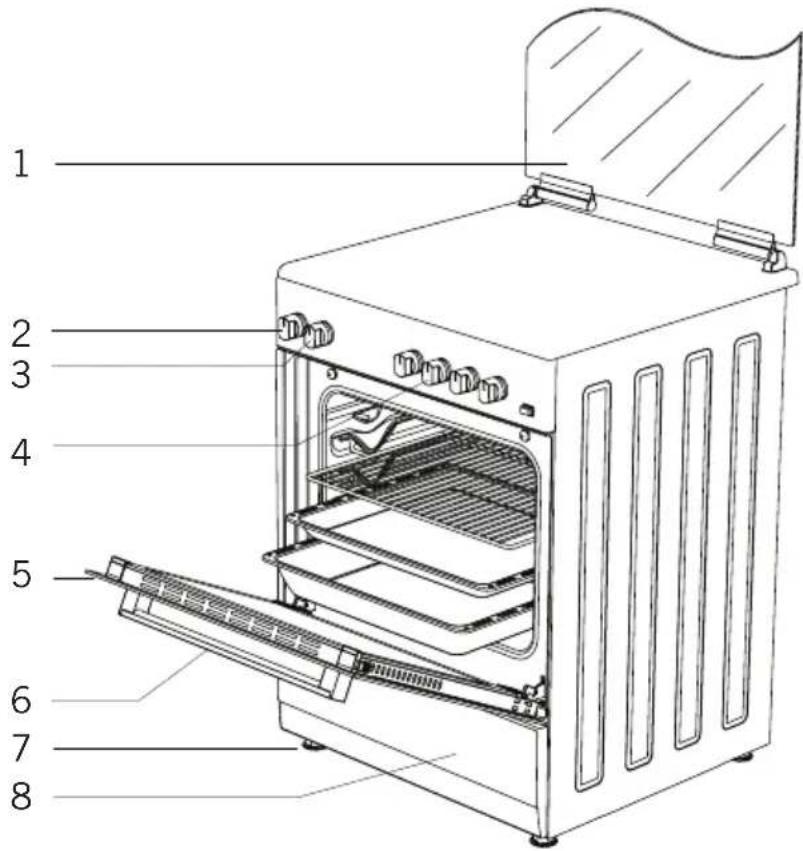

Introduction of the appliance...19

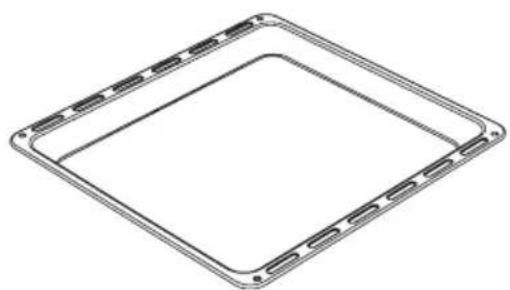

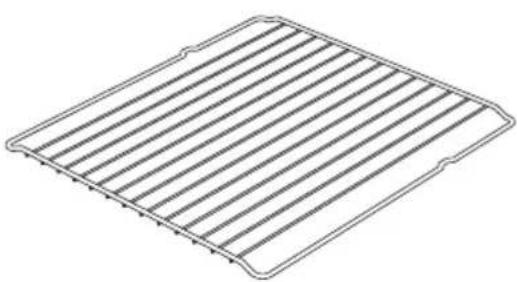

Accessories 20

Technical features of your oven...21

Installation of your oven...24

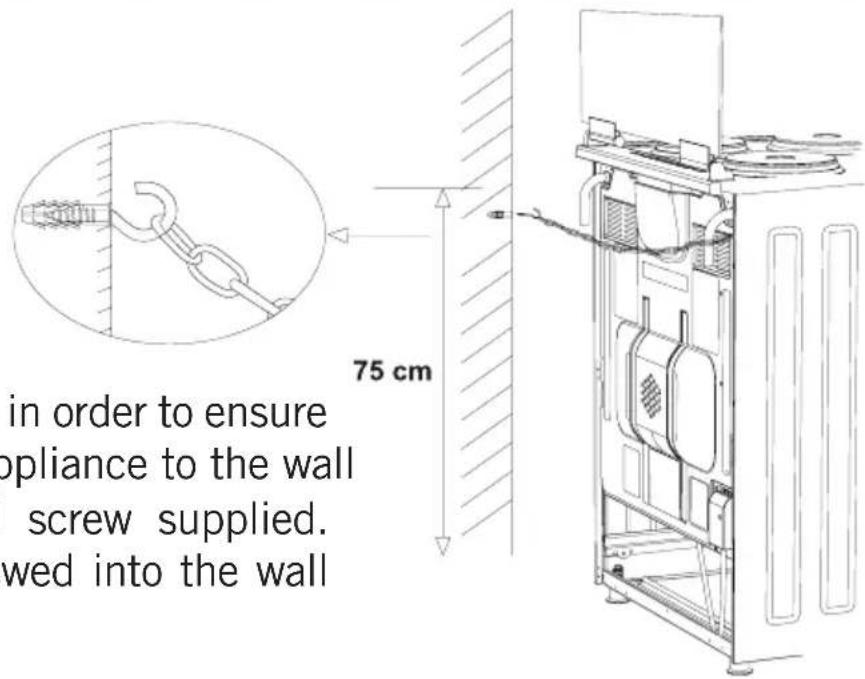

Chain lashing illustration...25

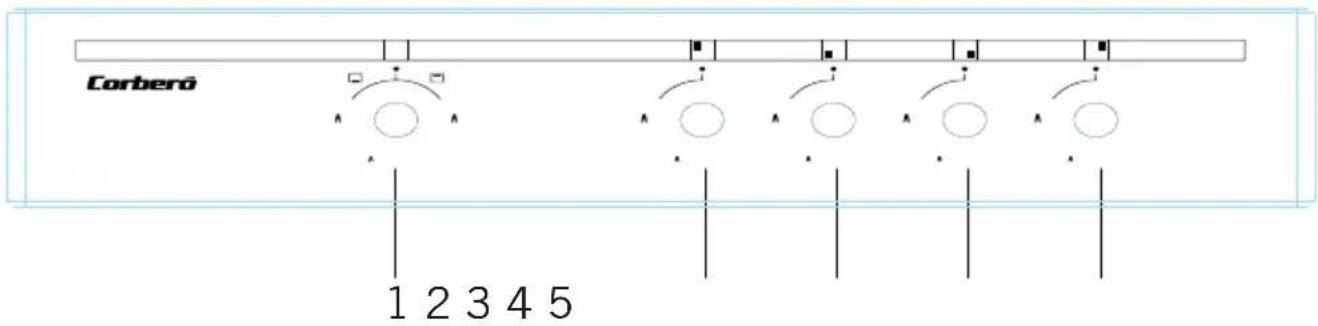

Control panel...26

Using oven section 27

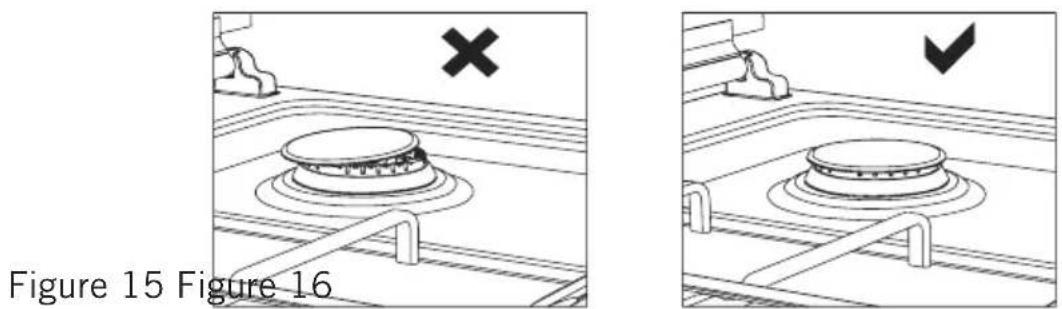

Using cooker section...28

Cooking time table...29

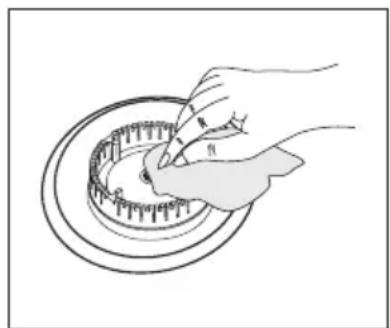

Maintenance and cleaning...30.

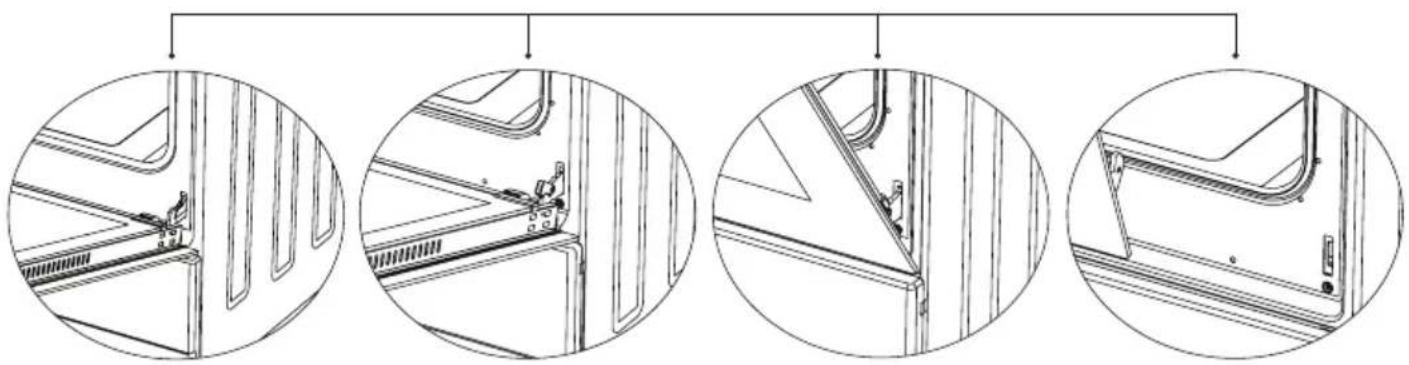

Installation of the oven door...31.

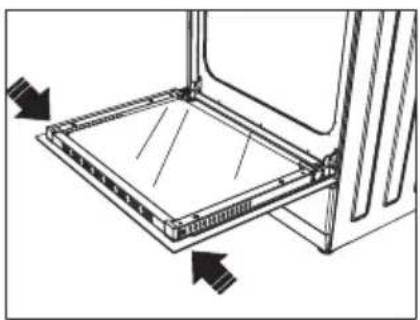

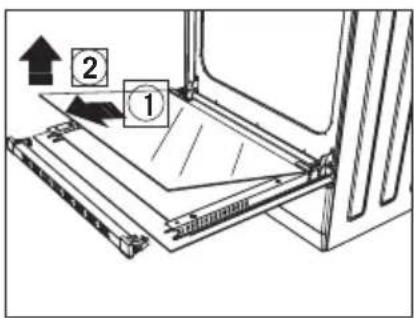

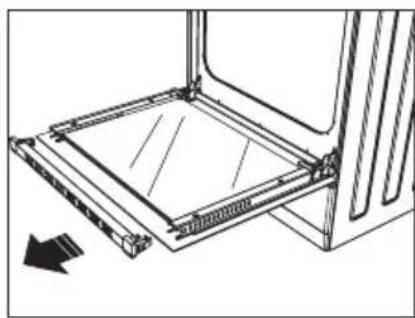

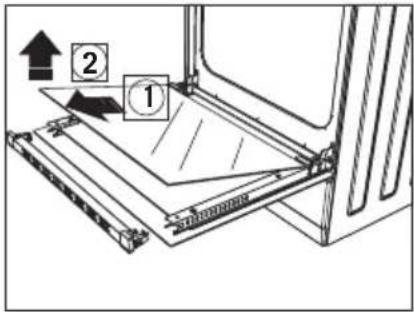

Cleaning and maintenance of the oven's front door glass 32

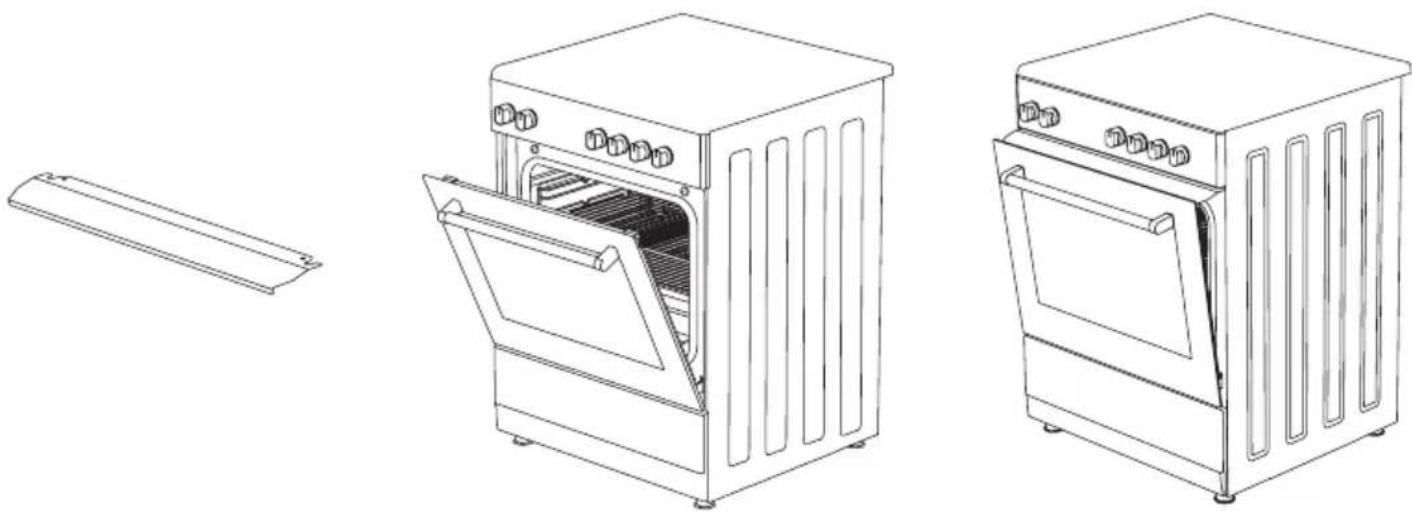

Using the grill deflector sheet 33

Troubleshooting 34

Handling rules 36

Recommendations for energy saving 36

Environmentally-friendly disposal 37

Package information 37

IMPORTANT WARNINGS

1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons.
2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner.
3. The oven should be used according to operating instructions.
4. Keep children below the age of 8 and pets away when operating.
5. WARNING: The accessible parts may be hot while using the grill. Keep away from children.
6. WARNING: Fire hazard; do not store the materials on the cooking surface.
7. WARNING: The appliance and its accessible parts are hot during operation.
8. Setting conditions of this device are specified on the label. (Or on the data plate)
9. The accessible parts may be hot when the grill is used. Small children should be kept away.
10. WARNING: This appliance is intended for cooking. It should not be used for other purposes like heating a room.
11. To clean the appliance, do not use steam cleaners.

12. Ensure that the oven door is completely closed after putting food inside the oven.

13. NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with a cover or a fire blanket.

14. Children under 8 years of age should be kept away, if they cannot be monitored continuously.
15. Touching the heating elements should be avoided.
16. CAUTION: Cooking process shall be supervised. Cooking process shall always be supervised.
17. This device can be used by children over 8 years of age, people with physical, hearing or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the dangers.
18. This device has been designed for household use only.
19. Children must not play with the appliance. Cleaning or user maintenance of the appliance shall not be performed by children unless they are older than 8 years and supervised by adults.
20. Keep the appliance and its power cord away from children less than 8 years old.
21. Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on or in the appliance.
22. Keep the ventilation channels open.

GB

1. The appliance is not suitable for use with an external timer or a separate remote control system.
2. Do not heat closed cans and glass jars. The pressure may lead jars to explode.
3. Oven handle is not a towel drier. Do not hang towels, etc. on the oven handle.
4. Do not place the oven trays, plates or aluminium foils directly on the oven base. The accumulated heat may damage the base of the oven.
5. While placing food to or removing food from the oven, etc., always use heat resistant oven gloves.
6. Do not use the product in states like medicated and/or under influence of alcohol which may affect your ability of judgement.
7. Be careful when using alcohol in your foods. Alcohol will evaporate at high temperatures and may catch fire to cause a fire if it comes in contact with hot surfaces.
8. After each use, check if the unit is turned off.
9. If the appliance is faulty or has a visible damage, do not operate the appliance.
10. Do not touch the plug with wet hands. Do not pull the cord to plug off, always hold the plug.
11. Do not use the appliance with its front door glass removed or broken.

12. Place the baking paper together with the food into a pre-heated oven by putting it inside a cooker or on an oven accessory (tray, wire grill etc.).

13. Do not put objects that children may reach on the appliance.

14. It is important to place the wire grill and tray properly on the wire racks and/or correctly place the tray on the rack. Place the grill or tray between two rails and make sure it is balanced before putting food on it.
15. Against the risk of touching the oven heater elements, remove excess parts of the baking paper that hang over from the accessory or container.
16. Never use it at higher oven temperatures than the maximum usage temperature indicated on your baking paper. Do not place the baking paper on the base of the oven.
17. When the door is open, do not place any heavy object on the door or allow children to sit on it. You may cause the oven to overturn or the door hinges to be damaged.
18. The packaging materials are dangerous for children. Keep packaging materials away from the reach of children.
19. Do not use abrasive cleaners or sharp metal scrapers to clean the glass as the scratches that may occur on the surface of the door glass may cause the glass to break.
20. Do not place the appliance on a surface covered with carpets. Electric parts gets overheated since there will be no ventilation from below. This will cause failure of the appliance.

GB

1. Do not hit glass surfaces of vitro-ceramic cookers with a hard metal, resistance can get damaged. It may cause an electric shock.
2. User should not handle the oven by himself.
3. Use shall be careful when cleaning gas burners. It may cause personal injuries.
4. Food can spill when foot of oven is dismantled or gets broken, be careful. It may cause personal injuries.
5. During usage, the internal and external surfaces of the oven get hot. As you open the oven door, step back to avoid the hot vapour coming out from the interior. There is risk of burning.
6. Upper cover of the oven can be closed for a reason, than cookware can trip over. Step back to avoid the hot food coming on you. There is risk of burning.
7. Do not place heavy objects when oven door is open, risk of toppling.
8. User should not dislocate the resistance during cleaning. It may cause an electric shock.
9. Do not remove ignition switches from the appliance. Otherwise, live electric cables can be accessed. It may cause an electric shock.
10. Oven supply can be disconnected during any construction work at home. After completing the work, re-connecting the oven shall be done by authorized service.

11. Do not place metal utensils such as knife, fork, spoon on the surface of the appliance, since they will get hot.

12. To prevent overheating, the appliance should not be installed behind of a decorative cover.

13. Turn off the appliance before removing the safeguards. After cleaning, install the safeguards according to instructions.
14. Cable fixing point shall be protected.
15. WARNING: Don't use oven and grill burners at same time.
16. Please don't cook the food directly on the tray / grid. Please put the food into or on appropriate tools before putting them in the oven.
17. Hot surface, leave for cooling before closing the cover.

Gas Safety

1. This appliance is not connected to burning products evacuation apparatus. This appliance must be connected and installed according to the installation regulations in force. Conditions regarding ventilation must be considered.
2. When a gas cooking appliance is used; humidity, heat and burning products are generated in the room. First of all, make sure the kitchen is well ventilated when operating the appliance and maintain natural ventilation openings or install a mechanical ventilation equipment.
3. After using the appliance heavily for en extended period of time, additional ventilation may be required. For example open a window or adjust a higher speed for mechanical ventilation, if any.
4. This appliance must be used only in well ventilated locations in accordance with the regulations in force. Please read the manual before installing or using this product.
5. Before positioning the appliance, make sure local network conditions (gas type and gas pressure) meets appliance requirements.

6. The mechanism cannot be run for longer than 15 seconds. If the burner is not on after 15 seconds, stop the mechanism and wait for at least one minute before trying to ignite the burner again.

7. All kinds of operations to be performed on gas installation must be performed by authorized and competent people.

8. This appliance is adjusted for either gas natural (NG) or LPG. If you have to use your product with a different gas type, you have to apply to authorized service for the conversion.
9. For proper operation, hood, gas pipe and clamp should be replaced periodically according to manufacturer recommendations and when required.
10. Gas should burn well in gas products. Well burning gas can be understood from blue flame and continuous burning. If gas does not burn sufficiently, carbon monoxide (CO) can be generated. Carbon monoxide is a colourless, odourless and very toxic gas; even small amounts have lethal effect.
11. Ask your local gas supplies about the phone numbers for emergencies related to gas and the measures to be taken upon gas odour is detected.

What To Do When Gas Odour Is Detected

1. Do not use naked flame, and do not smoke.
2. Do not operate any electrical switch.
   (For example: lamp switch or doorbell)
3. Do not use telephone or mobile phone.
4. Open the doors and windows.
5. Close all valves on the appliances that utilize gas and the gas counters.
6. Call fire brigade from a telephone outside the home.
7. Check all hoses and their connections against leaks. If you still smell gas, leave the house and warn your neighbours.
8. Do not enter into the house until authorities clarify it is safe.

Intended Use

1. This product is designed for home use. Commercial use of the appliance is not permitted.
2. This appliance may only be used for cooking purposes. It shall not be used for other purposes like heating a room.
3. This appliance shall not be used to heat plates under the grill, drying clothes or towels by hanging them on the handle or for heating purposes.
4. The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
5. Oven part of the unit may be used for thawing, roasting, frying and grilling food.
6. Operational life of the product you have purchased is 10 years. This is the period for which the spare parts required for the operation of this product as defined is provided by the manufacturer.

Gas Connection

WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion.

Please operate your oven in dry atmosphere.

1. Fit the clamp to the hose. Push one of the hose until it goes to the end of the pipe.
2. For the sealing control; ensure that the buttons in the control panel are closed, but the gas cylinder is open. Apply some soap bubbles to the connection. If there is gas leakage, there will be foaming in the soaped area.
3. The oven should be using a well ventilation place and should be install on flat ground.
4. Re-inspect the gas connection.
5. When placing your oven to its location, ensure that it is at the counter level. Bring it to the counter level by adjusting the feet if necessary.
6. Do not make gas hose and electrical cable of your oven go through the heated areas, especially through the rear side of the oven. Do not move gas connected oven. Since the forcing shall loosen the hose, gas leakage may occur.
7. Please use flexible hose for gas connection.

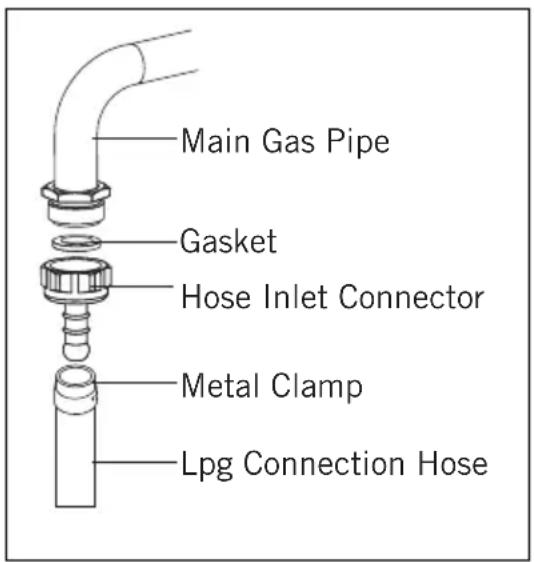

For LPG connection;

For LPG (cylinder) connection, affix metal clamp on the hose coming from LPG cylinder. Affix an edge of the hose on hose inlet connector behind the appliance by pushing to end through heating the hose in boiled water. Afterward, bring the clamp towards end section of the hose and tighten it with screwdriver. The gasket and hose inlet connector required for connection is as the picture shown below.

NOTE: The regulator to be affixed on LPG cylinder should have 300 mmSS feature.

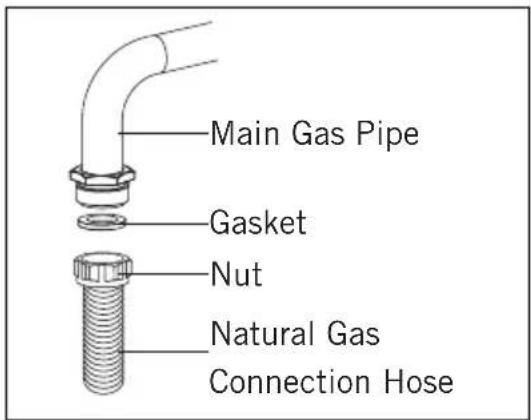

For natural gas connection;

WARNING: Natural gas connection should be done by authorized service.

For natural gas connection, place gasket in the nut at the edge of natural gas connection hose. To install the hose on main gas pipe, turn the nut. Complete the connection by making gas leakage control.

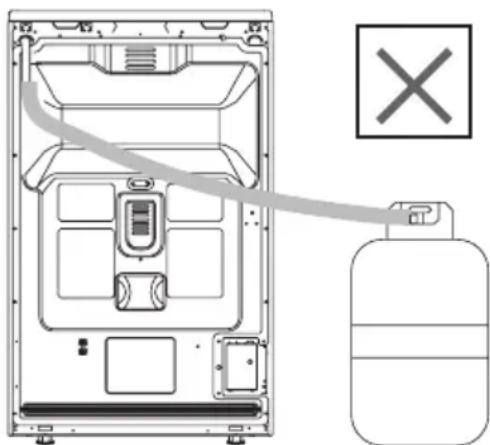

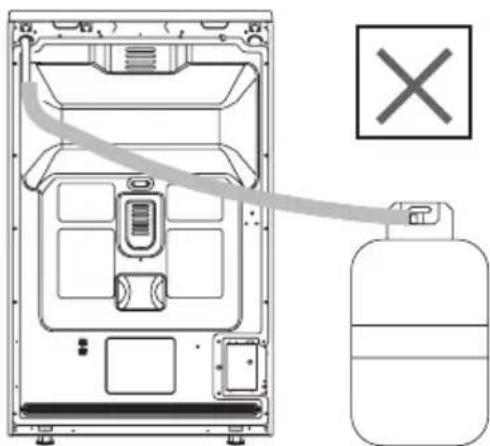

Gas hose passage way

Figure 1

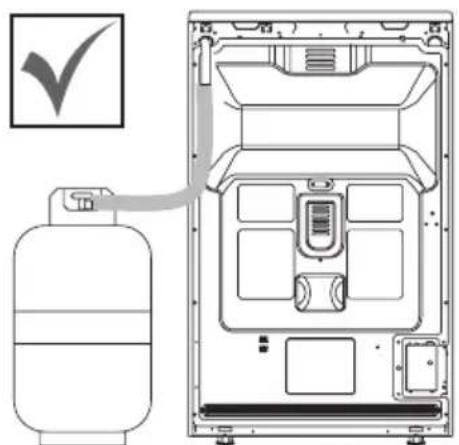

Diagram of a gas storage unit with internal compartments and a gas cylinder, showing no text or symbols.

Figure 2

Connect the appliance to the gas piping tap in shortest possible route and in a way that ensure no gas leakage will occur.

In order to carry on a tightness and sealing safety check ensure that the knobs on the control panel are closed and the gas cylindir is open.

WARNING: While performing a gas leakage check, never use any kind of lighter, match, cigarette or similar burning substance.

Apply soap bubble on the connection points. If there is any kind of leakage then it will cause bubbling.

While inserting the appliance in place ensure that it is on the same level with the worktop. If required adjust the legs inorder the make level with the worktop.

Use the appliance on a level surface and in a well ventilated environment.

WARNING: Before placing the appliance, check that the local distribution conditions (gas type and pressure) conform to the product settings.

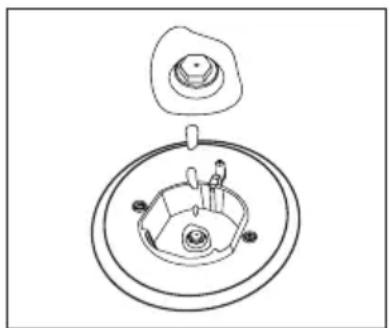

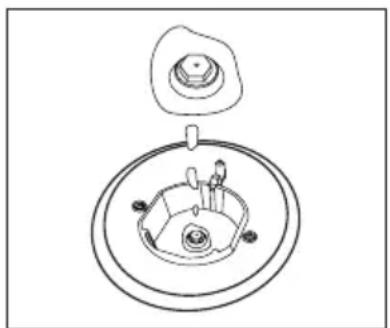

Nozzle change operation

1. Please use driver with special head for removed and install nozzle as. (figure 3)
2. Please remove nozzle (figure 4) from burner with special nozzle driver and install new nozzle. (figure 5)

Figure 3

Technical line drawing of a mechanical component with no visible text or symbols

Figure 4

Diagram of a mechanical device with rotating components and a central shaft (no text or symbols)

Figure 5

Ventilation of room

The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no needed to vent holes.

Room size Ventilating opening
Smaller than 5 m3 min. 100 cm2
Between 5 m3 - 10 m3 min. 50 dm2
Bigger than 10 m3 no need
In basement or cellar min. 65 cm2

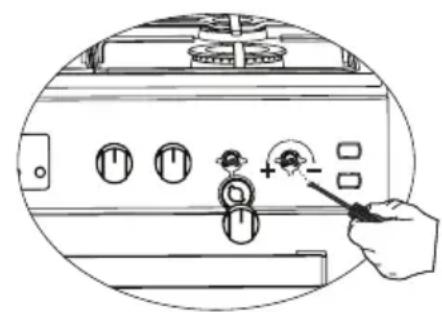

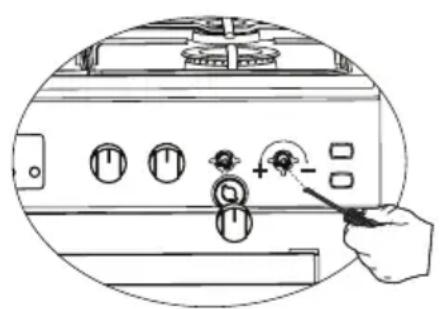

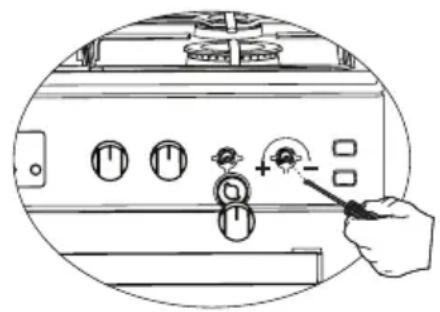

Reduced gas flow rate setting for hob taps

1. Ignite the burner that is to be adjustment and turn the knob to the reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw. For LPG (butane-pro pane) turn the screw clockwise. For the naturel gas, you should turn the screw counter-clockwise once.

"The normal length of a straight flame in the reduced position should be 6-7 mm."

1. If the flame is higher then the desired position, turn the screw clockwise. If it is smaller turn anticolockwise.

2. For the last control, bring the burner both to higt-flame and reduced positions and check whether the flame is on or off.

Depending on the type of gas tap used in your appliance the adjustment screw position may vary.

To adjust your oven acc. to the gas type, make the adjustment for reduced flame carefully by turning with a small screwdriver as shown below on the screw in the middle of the gas cocks as well as nozzle changes. (figure 6 and 7)

Line drawing of a hand pressing down on a control panel with buttons and dials (no text or symbols)

Figure 6 Figure 7

Line drawing of a hand pointing to a control panel with buttons and dials (no text or symbols)

Removal of the lower and upper burner and installation of the injector to the gas oven

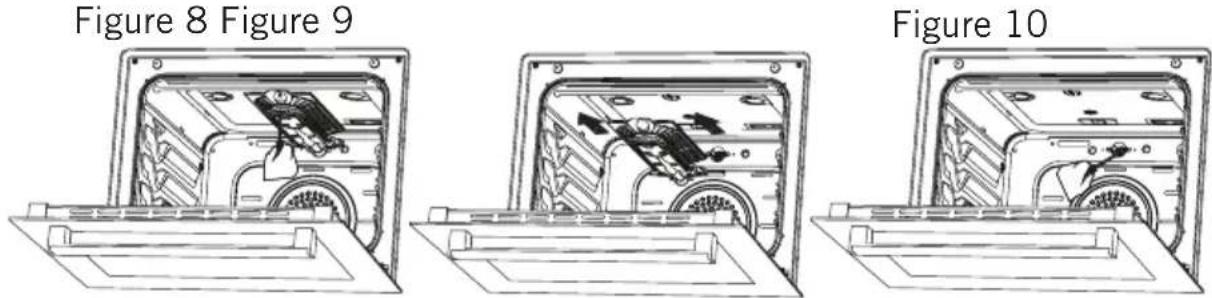

Removal of the upper burner:

With the help of a screw driver, remove the screw as shown in figure 8. As shown in figure 9, remove the burner from its place by pulling it to yourself. As shown in figure 10, remove the injector in the bearing with a socket wrench. In order to re-place the burner, apply the removal process reversely.

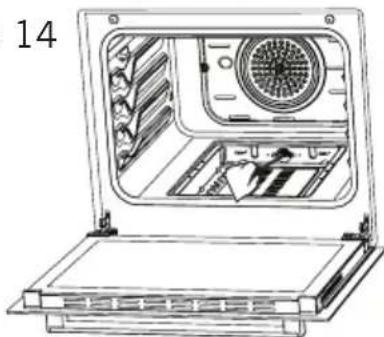

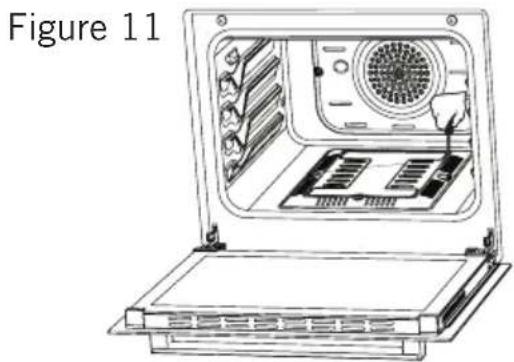

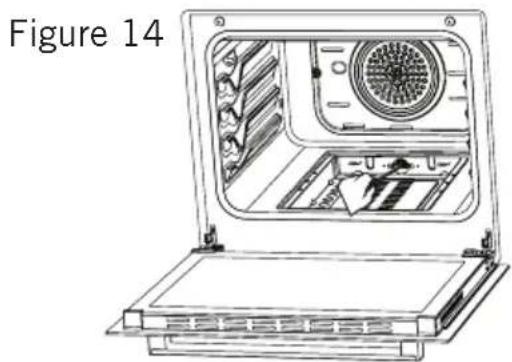

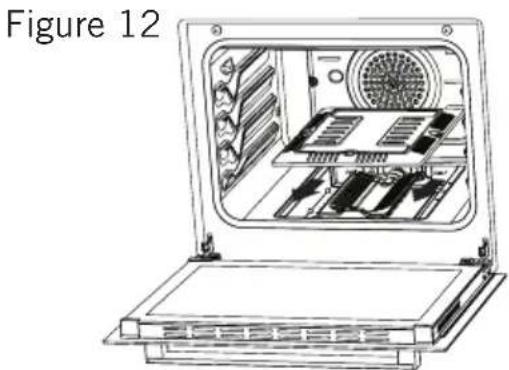

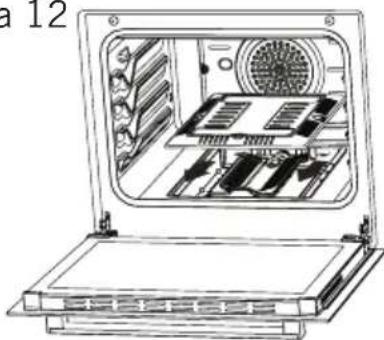

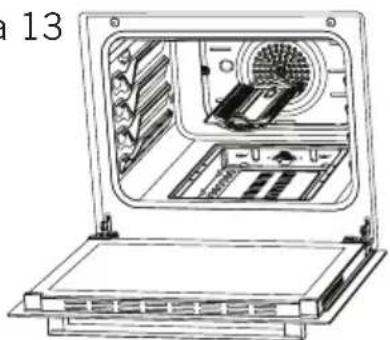

Removal of the lower burner:

The lower burner door has been fixed with two screws. As shown in figure 11, remove it with the help of a screw driver. Remove the door by pulling upwards as shown in figure 12. Remove the burner from its place by pulling it to yourself as shown in figure 13. As shown in figure 14, remove the injector in the bearing with a socket wrench. In order to replace the burner, apply the removal process reversely.

Line drawing of an open laptop with internal components and ventilation slots (no text or symbols)

Diagram of an open laptop with internal air conditioning unit showing fan and circuitry (no text or labels)

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Line drawing of an open laptop with internal components and ventilation slots (no text or symbols)

INTRODUCTION OF THE APPLIANCE

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a device rear panel with internal components and mounting holes (no text or symbols)

1. Glass door
   (Sheet metal door)
2. Thermostat setting
3. Oven setting

4. Cooker section control Switches

5. Door

6. Handle
7. Plastic leg

8. Lower cabinet door

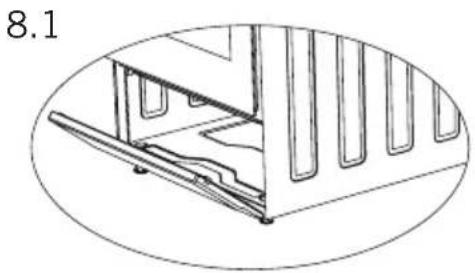

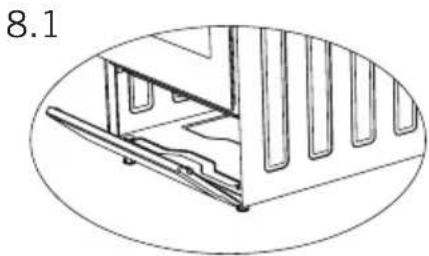

   8.1 Flap door *

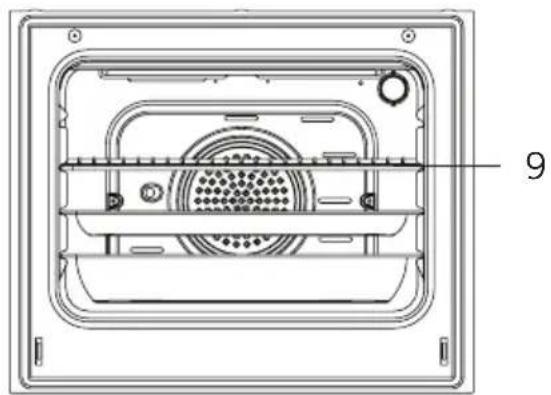

9. Grill

10. Large burner
11. Middle burner
12. Auxiliary burner

Accesories

Pure technical line drawing of a square component with mounting holes (no text or symbols)

Tray

Used for pastry (cookie, biscuit etc.), frozen foods.

Line drawing of a rectangular grid structure with parallel lines, no text or symbols present

Wire grill

Used for roasting or placing foods to be baked, roasted and frozen into desired rack.

Technical Features Of Your Oven

Specifications 50x55 60x60
Outer width 500 mm 600 mm
Outer depth 565 mm 630 mm
Outer height 855 mm 855 mm

WARNING: For the modification to be done by authorized service, this table should be considered. Manufacturer may not be held responsible for any problems rising because of any faulty modification.

WARNING: In order to increase the product quality, the technical specifications may be changed without prior notice.

WARNING: The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

Burner Specifications	G20,20 mbar G25,25 mbar			G20,25 mbar G20,13 mbar
	Gas natural Gas natural			Gas natural
Rapid Burner	Injector	1,15 mm	1,10 mm	1,45 mm
	Gas flow	0,276 m^3 /h	0,276	m^3/h 0,276 m^3/h
	Power	2,90 kW	2,90 kW	2,90 kW
Semi-Rapid Burner	Injector	0,97 mm	0,92 mm	1,10 mm
	Gas flow	0,162 m^3 /h	0,162	m^3/h 0,162 m^3/h
	Power	1,70 kW	1,70 kW	1,70 kW
Auxiliary Burner	Injector	0,72 mm	0,70 mm	0,85 mm
	Gas flow	0,96 m^3/h	0,96 m^3/h	0,96 m^3/h
	Power	0,95 kW	0,95 kW	0,95 kW
Grill Burner	Injector	1,00 mm	0,92 mm	1,35 mm
	Gas flow	0,196 m^3/h	0,196	m^3/h 0,196 m^3/h
	Power	2,00 kW	2,00 kW	2,00 kW
Oven Burner	Injector	1,10 mm	1,00 mm	1,50 mm
	Gas flow	0,235 m^3/h	0,235	m^3/h 0,235 m^3/h
	Power	2,50 kW	2,50 kW	2,50 kW
Burner Specifications	G30,28-30 mbar G31,37 mbar			G30,50 mbar G30,37 mbar
	LPG LPG LPG
Rapid Burner	Injector	0,85 mm	0,75 mm	0,85 mm
	Gas flow	211 g/h 2	11 g/h 2	11 g/h
	Power 2	90 kW 2	90 kW 2	90 kW
Semi-Rapid Burner	Injector	0,65 mm	0,60 mm	0,65 mm
	Gas flow	124 g/h 1	24 g/h 1	24 g/h
	Power 1	70 kW 1	70 kW 1	70 kW
Auxiliary Burner	Injector	0,50 mm	0,43 mm	0,50 mm
	Gas flow	69 g/h 69	g/h 69 g/h
	Power 0	95 kW 0	95 kW 0	95 kW
Grill Burner	Injector	0,70 mm	0,60 mm	0,65 mm
	Gas flow	145 g/h 1	45 g/h 1	45 g/h
	Power 2	00 kW 2	00 kW 2	00 kW
Oven Burner	Injector	0,75 mm	0,65 mm	0,70 mm
	Gas flow	182 g/h 1	82 g/h 1	82 g/h
	Power 2	50 kW 2	50 kW 2	50 kW

WARNING: Diameter values written on the injector are specified without a comma. For example; The diameter of 1,70 mm is specified as 170 on the injector.

INSTALLATION OF YOUR OVEN

Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons.

WARNING: It is customer's responsibility to prepare the location the product shall be placed on and also to have the electrical installation prepared.

WARNING: The rules in local standards about electrical installations shall be followed during product installation.

WARNING: Check for any damage on the appliance before installing it. Do not have the product installed if it is damaged. Damaged products cause a risk for your safety.

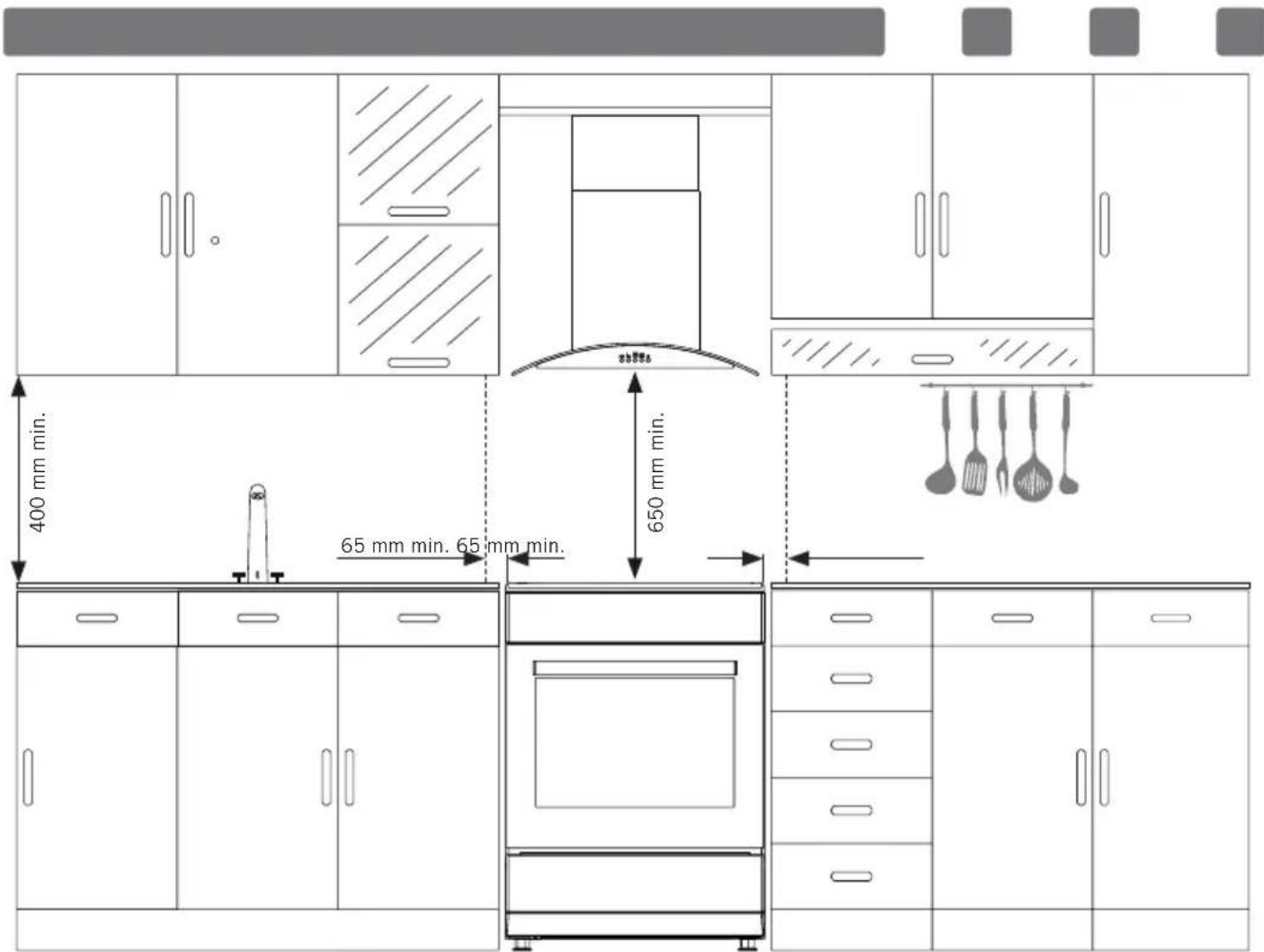

Right Place For Installation And Important Warnings

Appliance feet should not stay on soft surfaces such as carpets. The kitchen floor shall be durable to carry the unit weight and any other kitchenware that may be used on the oven.

Appliance should be used with a clearance of minimum 400 mm over the upper hob surfaces, and 65 mm from side surfaces inside a kitchen furniture.

The appliance is suitable for use on both side walls, without any support, or without being installed in a cabinet. If a hood or aspirator will be installed above the cooker, follow the instructions of the manufacturer for height of mounting. (min. 650 mm)

WARNING: The kitchen furniture near the appliance must be heat resistant.

WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices.

WARNING: Do not use the door and/or handle to carry or move the appliance.

Chain lashing illustration

Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using thechain and hooked screw supplied. Ensure that the hook is screwed into the wall securely.

CONTROL PANEL

1. Function selection button

2. Front right heater

3. Rear left heater

4. Rear right heater

5. Front left heater

Oven Control Button

Simple diagram with a central circle, curved lines, and small symbols (no text or labels)

Provides to control gas oven burners (for thermostatic oven burner and upper burner). Also you can use the ignition under knob function to flame the gas burners.

USING OVEN SECTION

Using Oven Burners

1. If your oven equipped with burners that operates with gas, appropriate knob should be used in order to ignite the burners. Some models have automatic ignition from the knob; it is easy to ignite the burner by turning the knob. Also, burners can be ignited by pressing the ignition button or they can be ignited with a match.
2. Do not continuously operate the igniter for more than 15 seconds. If the burner does not ignite, wait minimum one minute before trying again. If the burner is extinguished for of the any reason, close the gas control valve and wait a minimum of one minute before trying again.

Using Oven Heating Elements

1. When your oven is operated first time, an odor will be spread out which will be sourced from using the heating elements. In order to get rid of this, operate it at 240 °C for 45-60 minutes while it is empty.
2. Oven control knob should be positioned to desired value; otherwise oven does not operate.
3. Kinds of meals, cooking times and thermostat positions are given in cooking table. The values given in the cooking table are characteristic values and were obtained as a result of the tests performed in our laboratory. You can find different flavors suitable for your taste depending on your cooking and using habits.
4. You can make chicken revolving in your oven by means of the accessories.
5. Cooking times: The results may change according to the area voltage and material having different quality, amount and temperatures.
6. During the time when cooking is being performed in the oven, the lid of the oven should not be opened frequently. Otherwise circulation of the heat may be imbalanced and the results may change.

Using Cooker Section Using gas burners

Flame cut-off safety device (FFD) *; operates instantly when safety mechanism activates due to overflown liquid over upper hobs.

1. The valves controlling the gas cookers have special security mechanism. In order to light the cooker always press on the switch forward and bring it to flame symbol by turnin counter clockwise. All of the lighters shall operate and the cooker you controlled shall light only. Keep the switch pressed until ignition i performed. Press on the lighter button and turn the knob counter clockwise.

2. Do not continuously operate the igniter for more than 15 seconds. If the burner does not ignite, wait minimum one minute before try again.

3. In models with gas security system, when flame of the cooker is extinguished, control valve cuts off the gas automatically. For operate the burners with gas security system you must press the knob and turn counter-clock-wise. After the ignition you must wait nearly 5-10 second for gas security systems activation. If the burner is extinguished for of the any reason, close the gas control valve and wait a minimum of one minute before trying again.

4. ● Closed

Fully open

Half open

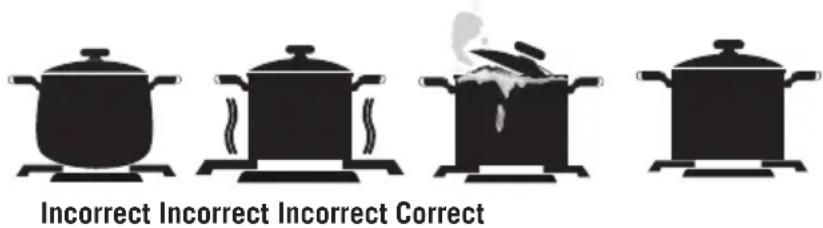

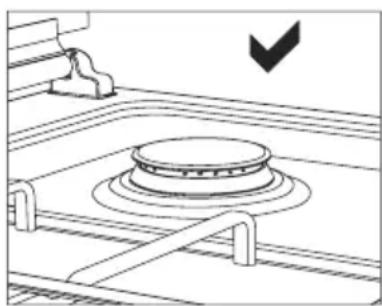

1. Before operating your hob please make sure that the burner caps are well positioned. The right placement of the burner caps are shown as below.

Two identical diagrams showing a circular component mounted on a platform, with cross and check symbols indicating failure or status (no text or labels present)

Pot Sizes

	50*55 60	*60
Small burner 12	-18 cm	12-18 cm
Normal burner 1	8-20 cm	18-20 cm
Big burner 22-2	4 cm	22-26 cm

COOKING TIME TABLE

WARNING: Oven must be preheated for 10 minutes before placing the food in it.

Foods	Cooking function	Temperature (°C)	Rack position	Cooking duration (min.)
Cake (Tray / Mold)	Oven	170-180	3	35-45
Small cakes	Oven	170-180	3	25-30
Patty	Oven	180-200	3	35-45
Pastry	Oven	180-190	3	25-30
Cookie	Oven	170-180	3	20-25
Apple pie	Oven	180-190	3	50-70
Sponge cake	Oven	200/150 *	3	20-25
Pizza	Oven	180-200	3	20-30
Lasagna	Oven	180-200	3	25-40
Meringue	Oven	100	3	50
Chicken	Oven	180-190	3	45-50
Grilled chicken **	Grill	200-220	3	25-35
Grilled fish **	Gril	200-220	3	25-35
Sirloin steak **	Grill	Max. 4 15-20
Grilled meat balls **	Grill	Max. 4 20-25

* Without pre-heating. Half of the cooking should be 200°C and then second half should be 150°C.
** During the half of cooking, meal should be turned around.

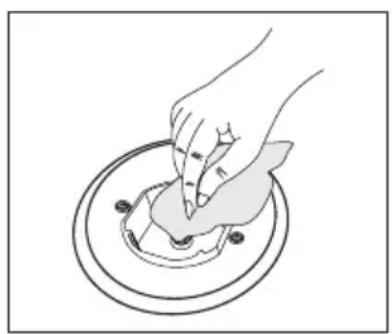

MAINTENANCE AND CLEANING

1. Disconnect the plug supplying electricity for the oven from the socket.
2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements.
3. Never clean the interior part, panel, lid, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. Do not use abrasive, scratching agents and detergents.
4. After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth.
5. Clean the glass surfaces with special glass cleaning agents.
6. Do not clean your oven with steam cleaners.
7. Before opening the upper lid of the oven, clean spilled liquid off the lid. Also, before closing the lid, ensure that the cooker table is cooled enough.
8. Never use inflammable agents like acid, thinner and gasoline when cleaning your oven.
9. Do not wash any part of your oven in dishwasher.
10. In order to clean the front glass lid of the oven; remove the fixing screws fixing the handle by means of a screwdriver and remove the oven door. Than clean and rinse it thoroughly. After drying, place the oven glass properly and re-install the handle.

Illustration of a hand pressing down on a circular mechanical component (no text or symbols)

Figure 17 Figure 18

Simple line drawing of a circular basin with a central outlet and a top view (no text or symbols)

Hand turning a circular mechanical component with teeth, no text or symbols visible

Figure 19

Installation Of The Oven Door

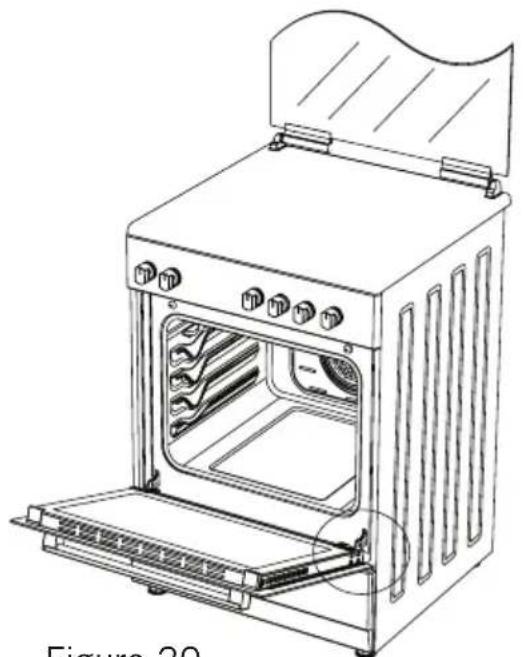

Line drawing of an oven with internal blades and ventilation slots (no text or symbols)

Figure 20

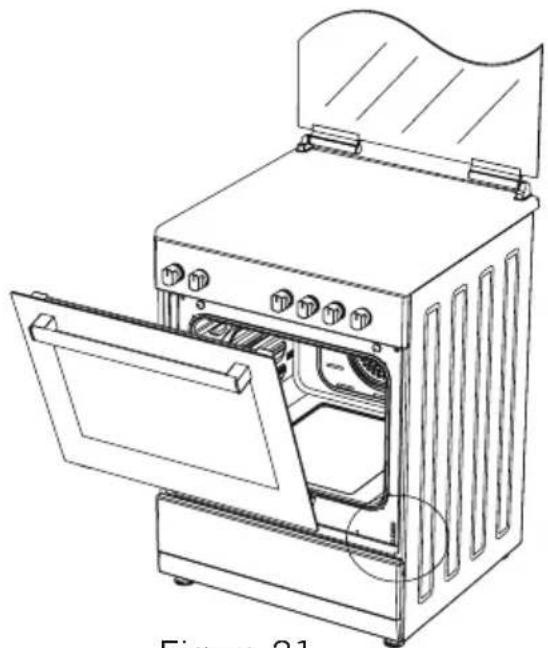

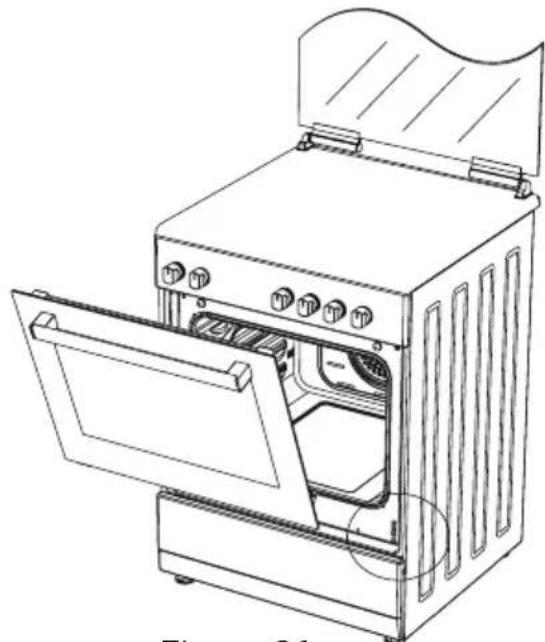

Line drawing of an open oven with doors open, showing internal components and ventilation slots (no text or symbols)

Figure 21

Four circular diagrams showing mechanical assembly steps: front, side, top, and side views (no text or symbols)

Figure 201 Figure 20.2 Figure 21.1 Figure 21.2

Completely open the oven door by pulling it to yourself. After wards, perform the unlocking process by pulling the hinge lock upwards with the help of a screw driver as shown in figure 20.1.

Bring the hinge lock to the widest angle as shown in figure 20.2. Bring both hinges connecting the oven door to the oven to the same position.

Afterwards, close the oven door as to lean on the hinge lock as shown in figure 21.1.

To remove the oven door, pull it upwards by holding it with both hands when close to the closed position as shown in figure 21.2.

In order to re-place the oven door, perform the abovementioned steps in reverse.

Cleaning And Maintenance Of The Oven's Front Door Glass

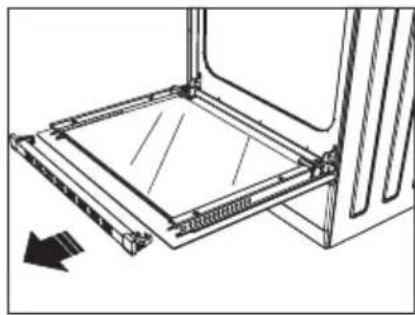

Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 22 and pulling the profile towards yourself as shown in figure 23. Then remove the inner-glass as shown in figure 24. If required, middle glass can be removed in the same way. After cleaning and maintenance are done, remount the glasses and the profile in reverse order. Make sure the profile is properly seated in its place.

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 22 Figure 23 Figure 24

Using The Grill Deflector Sheet \*

1. A safety panel is designed to protect control panel and the buttons when the oven is in grill mode. (figure 25)
2. Please use this safety panel in order to avoid the heat to damage control panel and the buttons when the oven is grill mode.

WARNING: Accessible parts may be hot when the grill in use. Young children should be kept away.

1. Place the safety panel under control panel by opening the oven front cover glass. (figure 26)
2. And then secure the safety panel in between oven and front cover by gently closing the cover. (figure 27)
3. It is important for cooking to keep the cover open in specified distance when cooking in grill mode.
4. Safety panel will provide an ideal cooking circumstance while protecting control panel and buttons.

WARNING: If the cooker has the “closed grill functioned” option with thermostat, you can keep the oven door closed during operation; in this case the grill deflector sheet will be unnecessary.

Line drawings of three different kitchen appliances: a closed oven, an open oven with grilles, and a standard oven (no text or symbols present)

Figure 25 Figure 26 Figure 27

TROUBLESHOOTING

You may solve the problems you may encounter with your product by checking the following points before calling the technical service.

Check Points

In case you experience a problem about the oven, first check the table below and try out the suggestions.

Problem Possible cause What to do
Oven does not operate.	Power supply not available. Check for power supply.
	Gas supply not available.	Check if main gas valve is open.
		Check if gas pipe is bent or kinked.
		Make sure gas hose is connected to the oven.
		Check if suitable gas valve is being used.
Oven stops during cooking.	Plug comes out from the wall socket.	Re-install the plug into wall socket.
Turns off during cooking.	Too long continuous operation.	Let the oven cool down after long cooking cycles.
	More than one plugs in a wall socket.	Use only one plug for each wall socket.
Oven door is not opening properly.	Food residues jammed between the door and internal cavity.	Clean the oven well and try to re-open the door.
Lighter not operating.	Tips or body of ignition plugs are clogged.	Clean tips or body of ignition plugs of gas burners.
	Gas burner pipes are clogged. Clean gas burner pipes.
Electric shock when touching the oven.	No proper grounding.	Make sure power supply is grounded properly.
	Ungrounded wall socket is used.
Water dripping.	Water or steam may generate under certain conditions depending on the food being cooked. This is not a fault of the appliance.	Let the oven cool down and than wipe dry with a dishcloth.
Steam coming out from a crack on oven door.
Water remaining inside the oven.
Oven does not heat.	Oven door is open. Close the door and restart.
	Oven controls not correctly adjusted.	Read the section regarding operation of the oven and reset the oven.
	Fuse tripped or circuit breaker turned off.	Replace the fuse or reset the circuit breaker. If this is repeating frequently, call an electrician.
Smoke coming out during operation.	When operating the oven for the first time.	Smoke comes out from the heaters. This is not a fault. After 2-3 cycles, there will be no more smoke.
	Food on heater.	Let the oven to cool down and clean food residues from the heater.
When operating the oven burnt or plastic odour coming out.	Plastic or other not heat resistant accessories are being used inside the oven.	At high temperatures, use suitable glassware accessories.
Oven does not cook well.	Oven door is opened frequently during cooking.	Do not open oven door frequently, if the food you are cooking does not require turning. If you open the door frequently internal temperature drops and therefore cooking result will be influenced.
Internal light is dim or does not operate.	Foreign object covering the lamp during cooking.	Clean internal surface of the oven and check again.
	Lamp might be failed.	Replace with a lamp with same specifications.

HANDLING RULES

1. Do not use the door and/or handle to carry or move the appliance.
2. Carry out the movement and transportation in the original packaging.
3. Pay maximum attention to the appliance while loading/unloading and handling.
4. Make sure that the packaging is securely closed during handling and transportation.
5. Protect from external factors (such as humidity, water, etc.) that may damage the packaging.
6. Be careful not to damage the appliance due to bumps, crashes, drops, etc. while handling and transporting and not to break or deform it during operation.

RECOMMENDATIONS FOR ENERGY SAVING

Following details will help you use your product ecologically and economically.

1. Use dark coloured and enamel containers that conduct the heat better in the oven.
2. As you cook your food, if the recipe or the user manual indicates that pre-heating is required, pre-heat the oven.
3. Do not open the oven door frequently while cooking.
4. Try not to cook multiple dishes simultaneously in the oven. You may cook at the same time by placing two cookers on the wire rack.
5. Cook multiple dishes successively. The oven will not lose heat.
6. Turn off the oven a few minutes before the expiration time of cooking. In this case, do not open the oven door.
7. Defrost the frozen food before cooking.

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic orotherwastes. Takethemtothepackagingmaterialcollectionpoints designated by the local authorities.

Estimados Usuarios,

Figura 1

Diagram of a gas storage unit with internal compartments and a gas cylinder, no text or symbols present

Figura 2

Technical line drawing of a mechanical component with no visible text or symbols

Figura 4

Mechanical diagram showing a rotating shaft and housing with mounting holes (no text or symbols)

Figura 5

Line drawing of a hand pressing a button on an electronic control panel (no text or symbols visible)

Figura 6 Figura 7

Line drawing of a hand pressing a button on an electrical control panel (no text or symbols visible)

Three technical line drawings of a mechanical device interior, showing internal components and mounting brackets (no text or symbols)

Figura 10

Diagram of an open laptop case showing internal components including ventilation fans and a circuit board (no text or labels)

Figura 12

Line drawing of an open laptop with internal circuitry and ventilation system (no text or symbols)

Figura 13

Technical line drawing of an open laptop with internal components (no text or symbols)

Figura 14

Technical line drawing of an open laptop with internal components and ventilation slots (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with three arms and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a front panel with internal components and a numbered label (9), no readable text or symbols present.

Pure technical line drawing of a square frame with notches and edges (no text or symbols)

Bandeja

Line drawing of a rectangular grid structure with parallel lines (no text or symbols)

Parrilla de alambre

Simple diagram with a central circle, curved lines, and four small symbols (square, square, arrow, triangle) at the bottom (no text or labels)

Diagram of a kitchen sink with a cross symbol and label 'gura 16' (no readable text or symbols beyond labels)

Line drawing of a kitchen appliance with a circular lid and handle, no text or symbols present

Figura 15 Figura 16

Illustration of a hand pressing down on a circular object with a small object inside (no text or symbols)

Figura 17 Figura 18

Simple line drawing of a circular basin with a central outlet and a top view (no text or symbols)

Illustration of a hand turning a circular mechanical component with teeth (no text or symbols)

Figura 19

Line drawing of an oven with a rack and top panel, labeled 'Figura 20' (no text or symbols on the diagram itself)

Line drawing of an open oven with control panel and door, labeled as Figure 21 (no text or symbols on the diagram itself)

Figura 21

Figura 20

Four circular diagrams showing structural details of a vehicle frame, including front and side views with no text or symbols.

Figura 20.1 Figura 20.2 Figura 21.1 Figura 21.2

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 22 Figura 23 Figura 24

Uso De La Hoja Deflectora De La Parrilla \*

Line drawings of three different kitchen appliances: a closed oven, an open oven with grilles, and a standard oven (no text or symbols present)

Figura 25 Figura 26 Figura 27

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
  • Faults produced by blow, by fall or any other cause of force majeure.
  • If the device has been manipulated by unauthorized personnel.
• Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
• Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.

- Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.

Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service: 911 08 08 08
