Product Type	iPad Wall Mount & Charging Station (IPORT CONNECT PRO WallStation)
Brand	iPort
Model	72351 (IPORT CONNECT PRO)
Power Input	24V DC, 1.5A (included power supply)
Compatible Devices	iPad in IPORT CONNECT Case
Installation Options	New construction or existing construction; Cat6 or 14-2 wire
Required Electrical Box	1-gang electrical box or low voltage ring (2-gang interferes)
Hole Size (Existing Construction)	2-3/4" (70mm) hole saw
Connectors Provided	RJ45-DC, RJ45-TE, Phoenix-DC, Phoenix-TE
Cable Requirements	Cat6 (T568A or T568B) or 14AWG 2-wire
Included Accessories	WallStation, Cover Plate, Security Tool (1.5mm hex), 4 drywall anchors, 4 #6 screws, power supply, connector cables
Installation Tools Required	Leveling tool, screwdriver, hole saw (for existing construction), wire fishing tools
Safety Warnings	Label wire: Only for DC Low Voltage - Not for PoE
Mounting Hardware	Up arrow must face up; level and hand tighten screws
Cable Retention	Zip tie connector to DC board for added retention
Cover Plate Attachment	Align positioning notch with tooth on WallStation
Upgradability	Compatible with upgrade from LAUNCH WallStation (existing anchors can be reused)

Frequently Asked Questions - 72351 iPort

What is the iPort 72351?

The iPort 72351 is the IPORT CONNECT PRO WallStation, a mount and charging station for iPads in IPORT CONNECT Cases.

What tools are needed for installation?

You will need a leveling tool, screwdriver, and for existing construction a 2-3/4" (70mm) hole saw. For new construction, a 1-gang electrical box or low voltage ring is required.

Can the WallStation be installed without a junction box?

Yes, the WallStation is designed to be used without a junction box. If a 1-gang box was installed to save space, it can be removed before final installation.

What type of cable is required?

You can use Cat6 cable (terminated with RJ45, T568A or T568B) or 14AWG 2-wire cable for power.

How do I connect the power?

Connect the provided RJ45‑DC or Phoenix‑DC connector to the cable end, then plug the 24V DC power adapter into the wall. Use the included connectors and zip‑tie for retention.

What is the difference between new construction and existing construction installation?

New construction uses a 1‑gang box before drywall; existing construction requires cutting a 2‑3/4" hole and fishing cable. Both methods use anchors and screws.

Can I upgrade from a LAUNCH WallStation?

Yes. Remove the old LAUNCH WallStation, disconnect wires, connect the new connectors, and mount the CONNECT WallStation using existing anchors. The cover plate attaches with a positioning notch.

How do I ensure the WallStation is level?

Use a leveling tool when marking anchor positions and when tightening screws. The WallStation has an Up Arrow that must be oriented facing up.

What should I do for a clean finished look?

Place the connector and DC barrel plug back through the grommit (not included) into the wall to hide cables. The cover plate snaps on to cover the mounting screws.

Is the WallStation compatible with Power over Ethernet (PoE)?

No. The system is DC low voltage only. The wire must be labeled with the warning: "Only for DC Low Voltage - Not for PoE".

USER MANUAL 72351 iPort

Thank you for purchasing the all new IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need more assistance please contact IPORT Tech Support via Online chart or through our help desk.

- IPORT Team

Whats in box:

1 - IPORT CONNECT WallStation

1 - IPORT Security tool - 1.5mm hex key

1 - Info Card

4 - Drwyall Anchors

4 - #6 HighLow thread Screws

1 - RJ45 - DC Connector

1 - RJ45 - TE Connector

1 - Phoenix - DC Connector

1 - Phoenix - TE Connector

1 - 24V DC 1.5A Power Supply

Product Info Page - www.iportproducts.com/cpwallstation

Glossary of Terms:

- WallStation - The fully assembled CONNECT PRO Station holding and charging the IPORT CONNECT Case.

- Cover Plate - The removeable plastic cover that attaches to the WallStation, covering the label and Screws.

- IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.

WALLSTATION

WALLSTATION INSTALL OPTIONS

Before starting, detimine the install scenario that best describes your desired install. Then click on the title to be directed to the appropriate install steps.

New Construction using Cat 6 Cable | pg. 4

Existing Construction using Cat 6 Cable | pg. 15

Upgrading a LAUNCH WallStation | pg. 25

New Construction using 14-2 Wire | pg. 32

Existing Construction using 14-2 Wire | pg. 45

IPORT CONNECT PRO WallStation Install New Construction - Cat6

Before Construction is complete

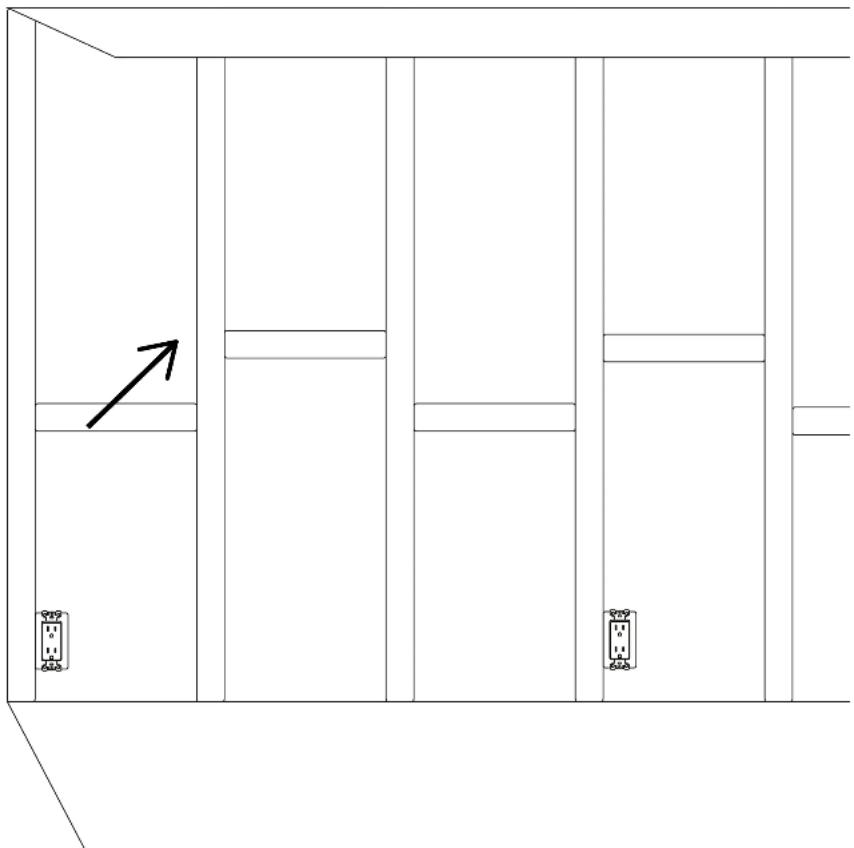

1. Determine the desired location of the IPORT CONNECT PRO WallStation will live when the construction is completed.

Line drawing of a cabinet or wardrobe layout with no text, numbers, or symbols

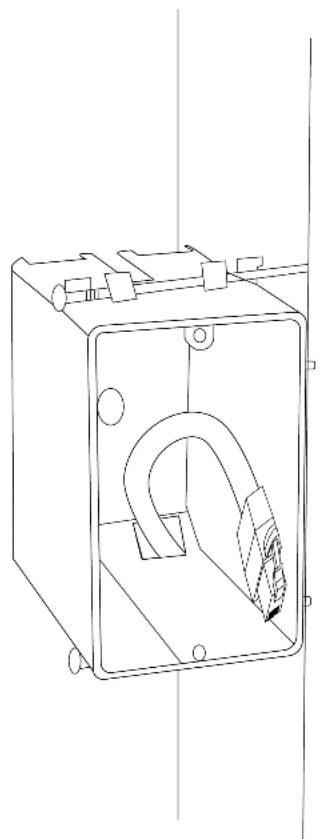

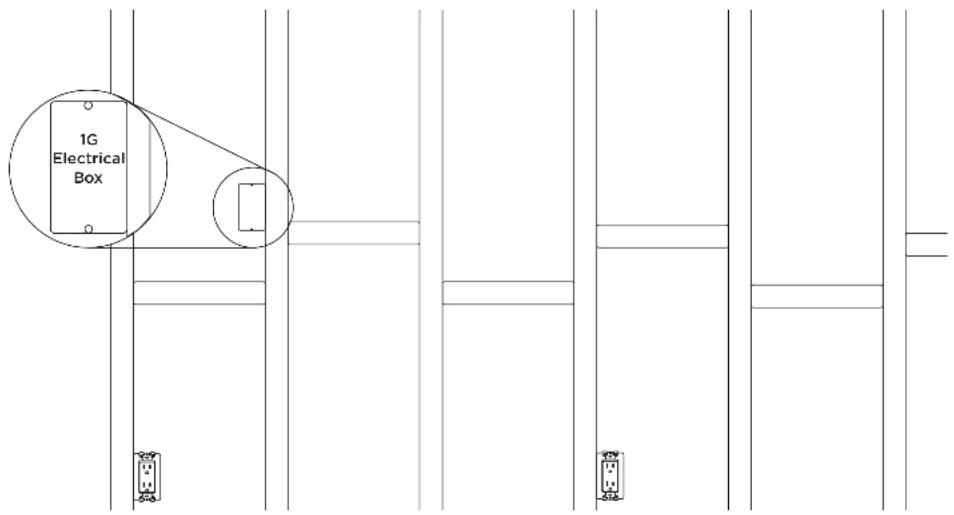

2. Install a 1 Gang electrical box or low voltage ring in the desired location of the WallStation.

NOTE: The CONNECT PRO WallStation will cover a 1G electrical box only. A 2 Gang electrical box will interfere with the mounting hardware.

Technical line drawing of a rectangular enclosure with mounting fixtures and a circular checkmark below (no text or symbols)

Technical line drawing of a mechanical device with mounting brackets and a cross symbol (no text or labels)

1. Run a Cat6 cable terminated with an RJ45 Connectors (T568A or T568B) from the WallStation location to a nearby AC outlet, closet, or network rack location and terminate the other end of the cable the same as before.

NOTE: Make sure to secure the Cat6 cable appropriately onto the Electrical box or Low Voltage ring to retrieve at a later time.

Technical line drawing of a mechanical component with internal curved structure (no text or symbols)

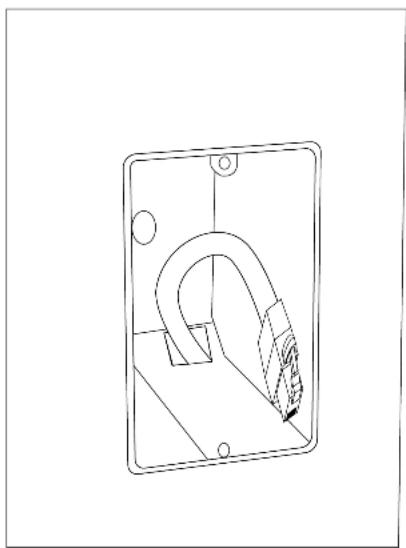

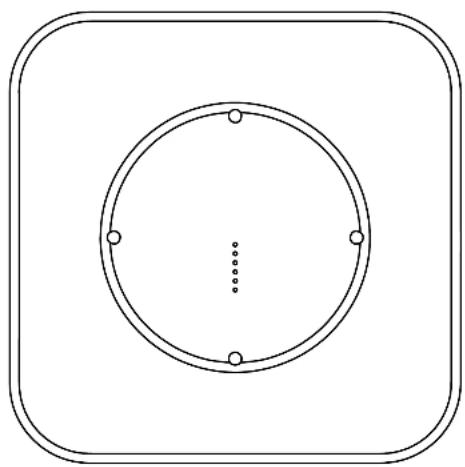

Installing the WallStation After Construction

1. Terminate the Cat6 with an RJ45 Connector if not done so previously using T568A or T568B standards.

Technical line drawing of a mechanical component with a curved bracket and mounting holes (no text or symbols)

1. Remove the WallStation, Drywall anchors and Screws from the box and place on a table.

Simple diagram of a circular ring with four evenly spaced dots inside, enclosed in a rounded square (no text or symbols)

x4

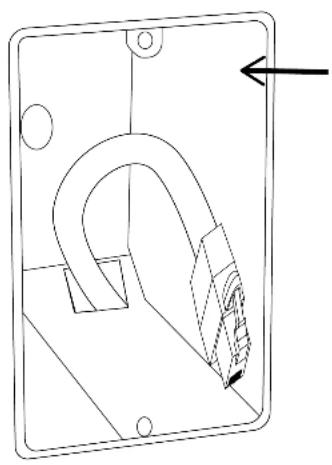

3. Insert the WallStation into the 1G box.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a rectangular electronic device casing with mounting holes and a central circular component (no text or symbols)

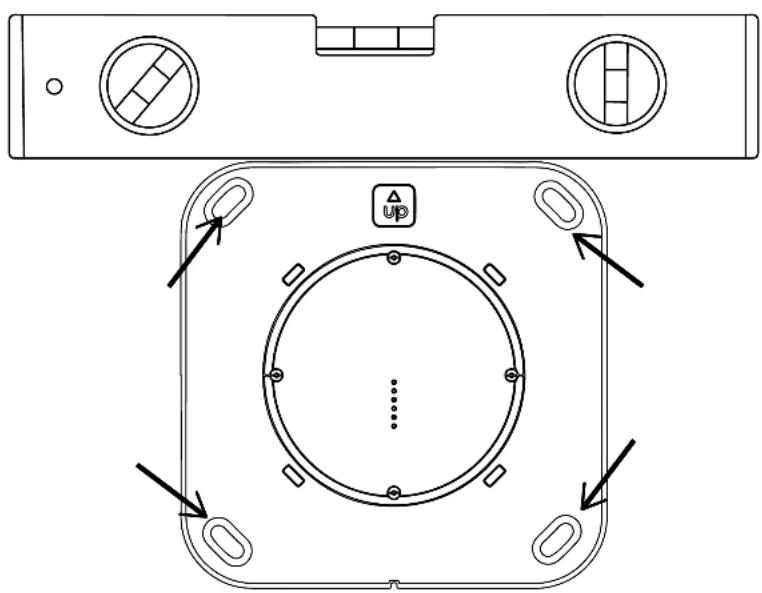

1. Use a leveling tool to level the WallStation and mark the 4 locations for the provided Anchors. Remove the WallStation from the 1G Box.

Technical diagram of a mechanical component with circular and rectangular features, no text or symbols present

1. Screw the 4 provided anchors into the wall where marked.

Technical line drawing of a mechanical component with no visible text or symbols

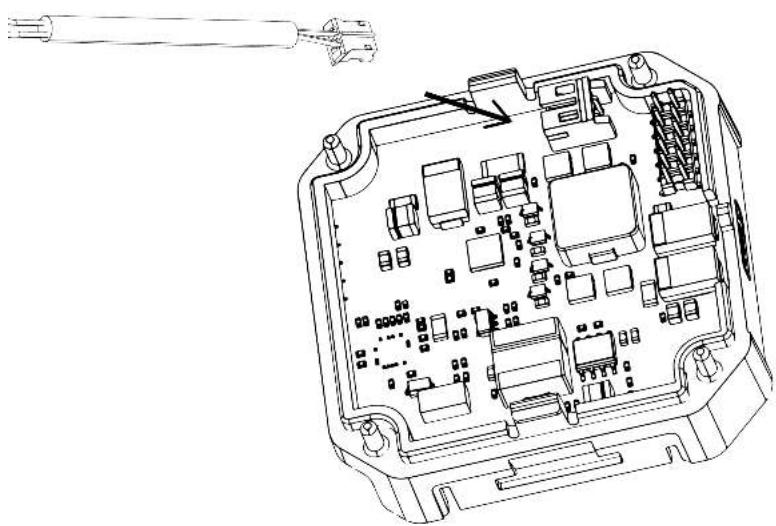

1. Connect the RJ-45 to TE Connector provided to the Cat6 cable and onto the white TE connector WallStation DC Adapter.

Diagram showing a device being processed from an internal component to a final connector (no text or symbols present)

Label wire WARNING: Only for DC Low Voltage - Not for PoE

Technical line drawing of an electronic device casing with internal components and a rod inserted into it (no text or symbols)

Zip tie the Connector to the DC board for added cable retnetion.

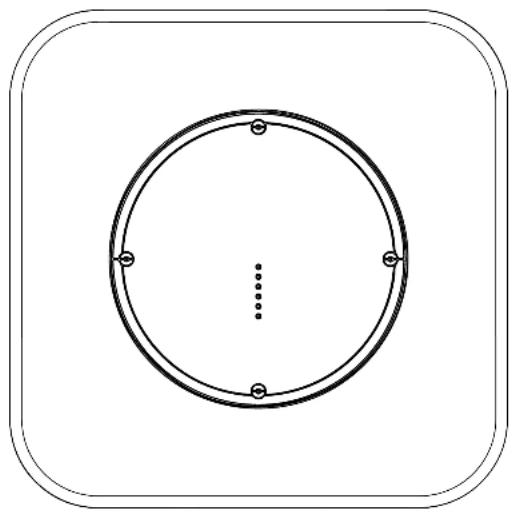

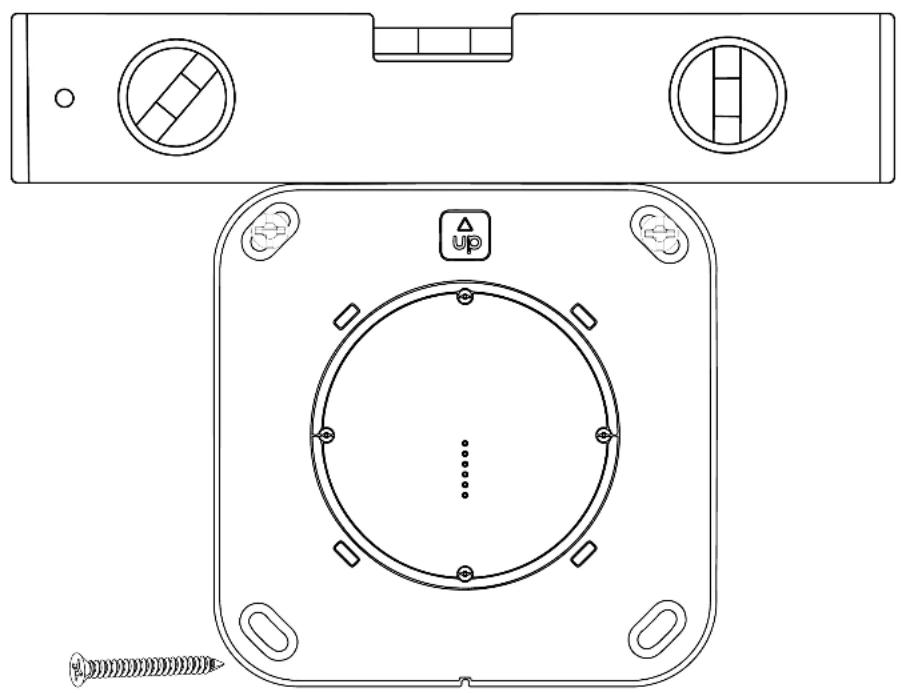

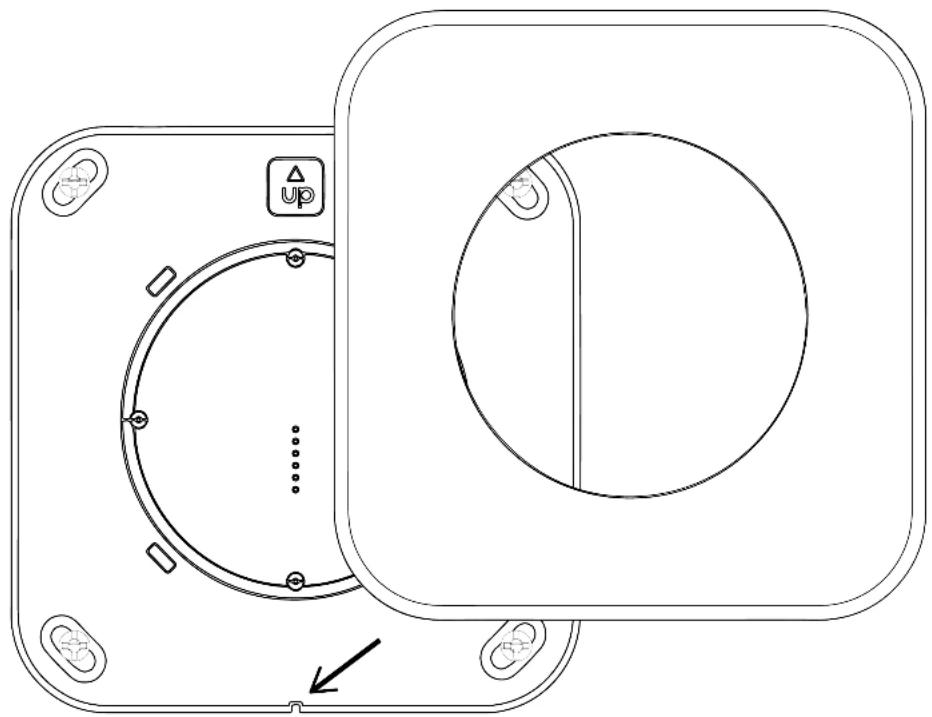

7. Insert the WallStation back into the 1G box and use the provided screws to attach the WallStation to the wall.

IMPORTANT: Make Sure to position the WallStation with the Up Arrow facing up. Use a leveling tool to level the WallStation and hand tighten the screws.

Technical line drawing of a device front panel with circular center and mounting holes (no text or symbols)

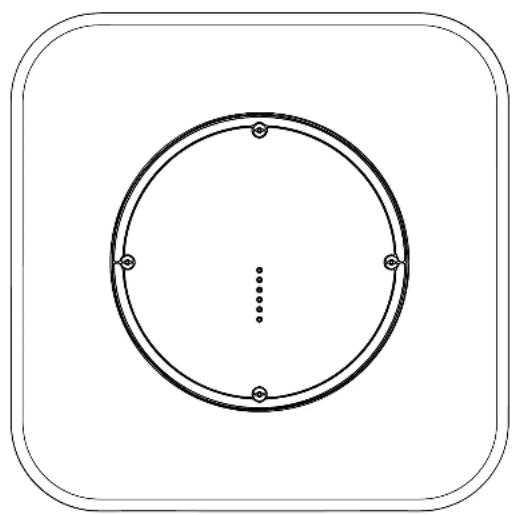

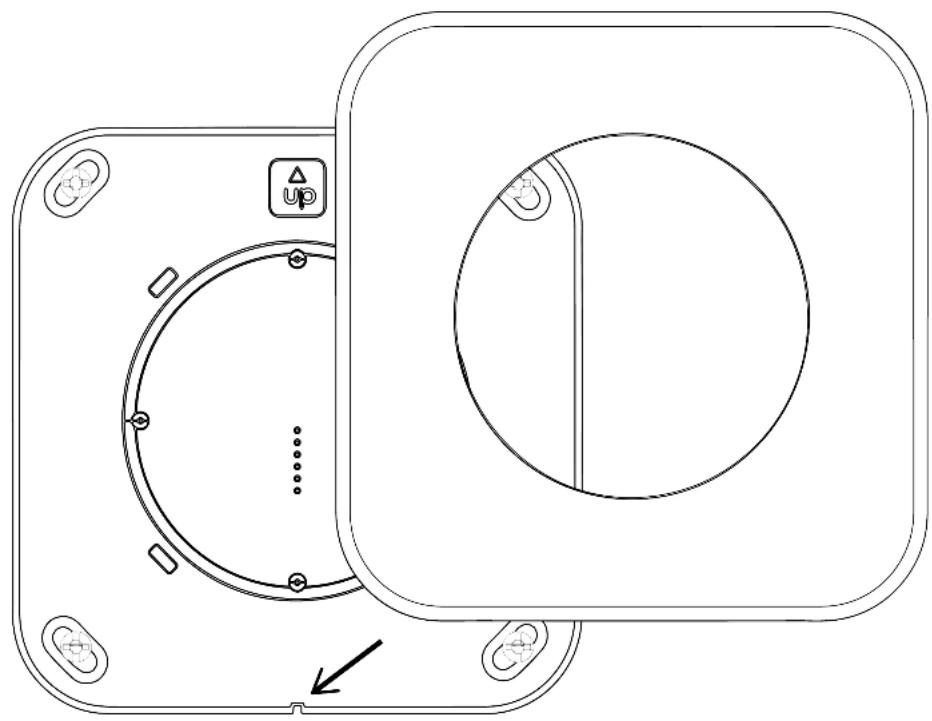

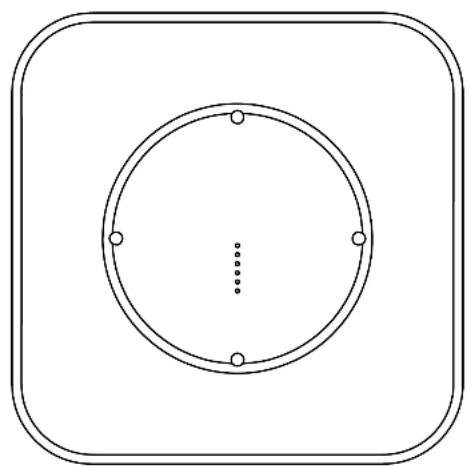

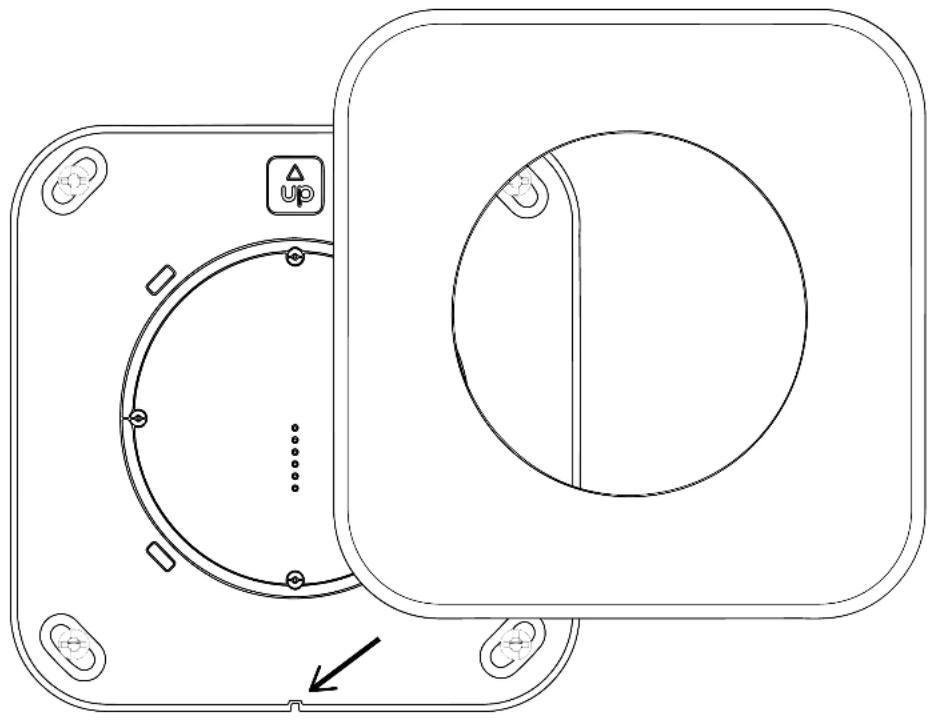

1. Attach the WallStation Cover Plate over the WallStation making sure to alight the positioning notch with the tooth on the WallStation.

Technical line drawing of a device casing with circular components and mounting holes (no text or symbols)

Simple circular diagram with four evenly spaced dots and a central dot, enclosed in a rounded square border (no text or symbols)

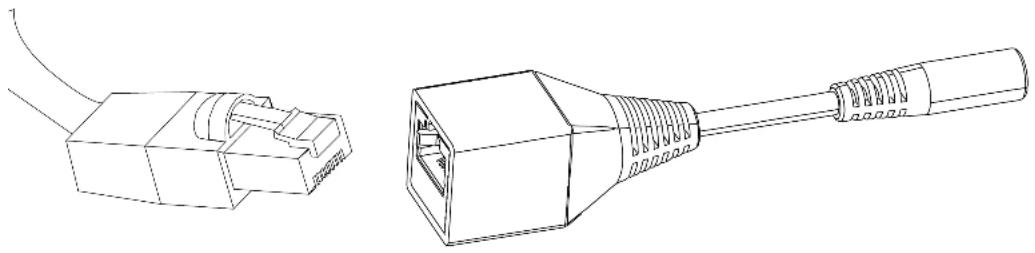

1. Connect the RJ-45 to DC Connector at the other end of the Cat6 Cable.

Line drawing of a USB connector (no text or symbols)

Line drawing of a USB connector with port and cable (no text or symbols)

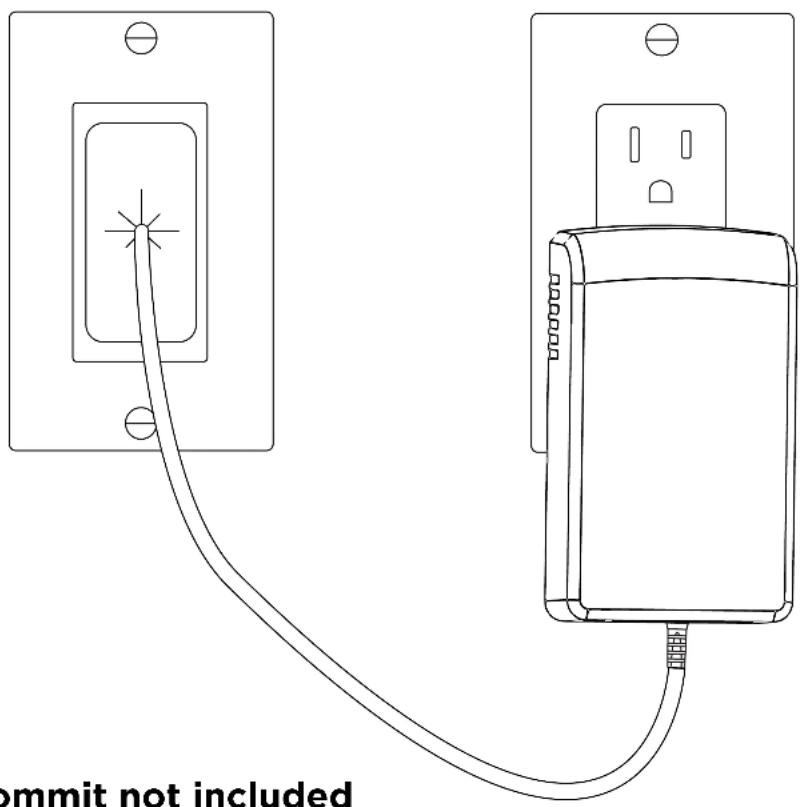

1. Connect the provided DC power adapter into the other end of the RJ-45 DC adapter and plug in the power adapter into an AC outlet.

Line drawing of two electrical connectors with wires, one showing a switch and the other a plug (no text or symbols)

Grommit not included

For a clean finished look place the Connector and DC barrel plug back through the grommit into the wall.

1. Place a Case with an iPad installed onto the WallStation to determine power was installed properly and the iPad charges.

Line drawing of a tablet device with a circular screen and an attached rectangular frame, showing no text or symbols.

Installing the WallStation in Existing Construction - Cat6

1. Determine the desired location of the IPORT CONNECT PRO WallStation.

1. Use a 2-3/4" (70mm) hole saw to cut a hole in the desired location of the WallStation

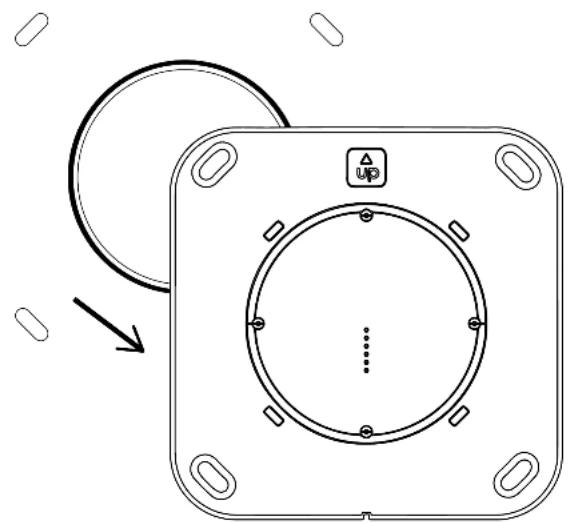

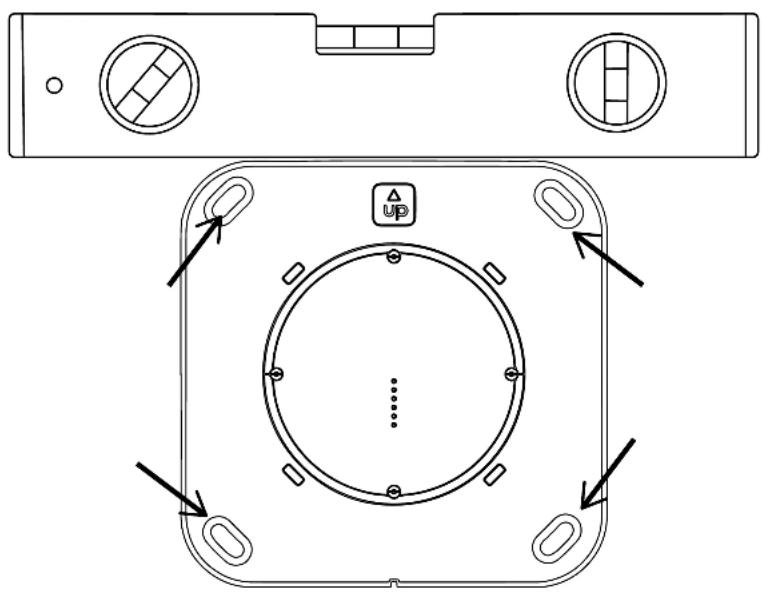

1. Insert the WallStation into the 2 3/4 - inch hole and use a leveling tool to level the WallStation. Mark the 4 locations for the provided Anchors.

Technical diagram of a mechanical component with circular and rectangular features, no text or symbols present

1. Remove the WallStation form the wall once you have marked the 4 anchor locations.

Technical line drawing of a square mechanical component with mounting holes and a circular top, showing no text or symbols.

5. Screw the provided anchors into the wall where marked.

Technical line drawing of a circular component with four corner features (no text or symbols)

1. Use the 2 3/4 - inch hole to fish a Cat6 cable to a nearby AC outlet, closet or network rack.

Pure technical diagram of a curved pipe or tube with four circular reference points (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a wall socket with two screws and three internal slots (no text or symbols)

Grommit not included

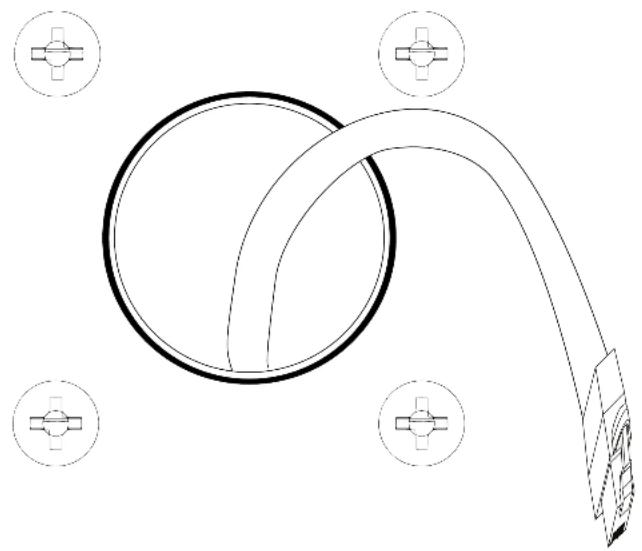

7. Terminate both ends the Cat6 with an RJ45 Connector using T568A or T568B standards

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Label wire WARNING: Only for DC Low Voltage - Not for PoE

Pure electrical circuit lines without any symbols

Grommit not included

Simple line drawing of a rectangular electrical outlet with four internal slots and two mounting holes (no text or symbols)

1. Connect the RJ-45 to TE Connector provided to the Cat6 cable and onto the white TE connector WallStation DC Adapter.

Diagram showing a device being processed from a cable, with no visible text or symbols

Technical line drawing of an electronic device casing with internal components and a shaft extending into it (no text or symbols)

Zip tie the Connector to the DC board for added cable retnetion.

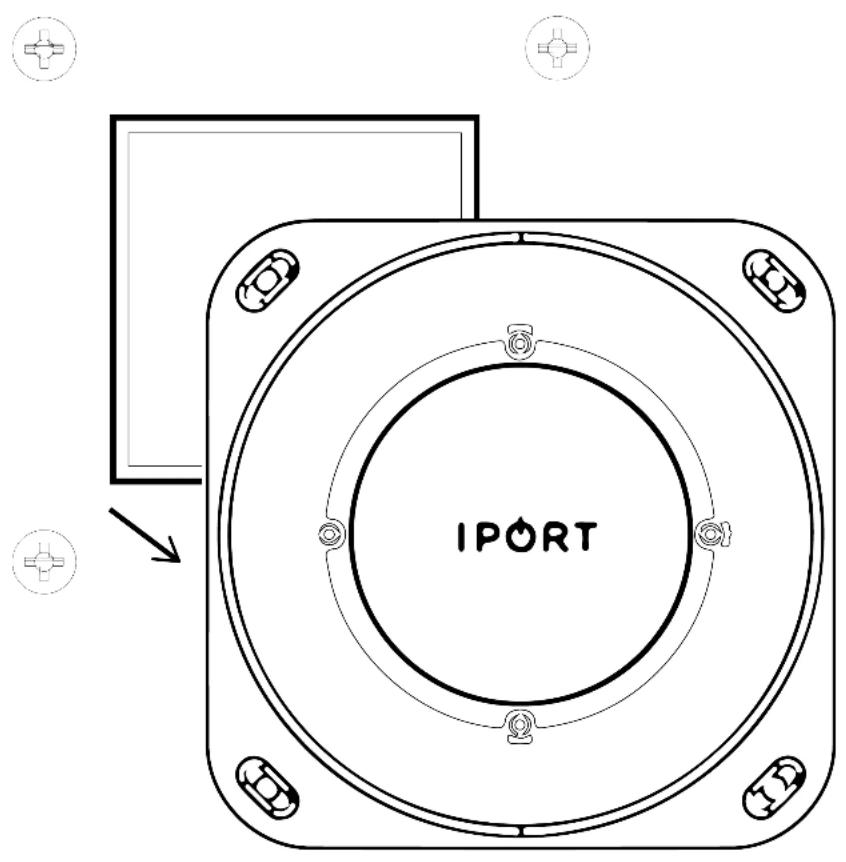

1. Insert the WallStation back into the wall and use the provided screws to attach the WallStation to the wall anchors.

IMPORTANT: Make Sure to position the WallStation with the Up Arrow facing up. Use a leveling tool to level the WallStation and hand tighten the screws.

Technical line drawing of a device front panel with circular center and mounting holes (no text or symbols)

10. Attach the WallStation Cover Plate over the WallStation making sure to alight the positioning notch with the tooth on the WallStation.

Technical line drawing of a mechanical component with mounting holes and a circular cutout (no text or symbols)

Simple circular diagram with four evenly spaced dots and a central dot, enclosed in a rounded square border (no text or symbols)

1. Connect the RJ-45 to DC Connector at the other end of the Cat6 Cable.

Technical line drawing of two types of Ethernet connectors (no text or symbols present)

1. Connect the Provided DC Power Adapter into the wall and connect the barrel connector to the other end of the RJ-45-DC adapter.

Line drawing of two electrical connectors with wires, one showing a switch and the other a plug (no text or symbols)

Grommit not included

WALLSTATION

For a clean finished look place the Connector and DC barrel plug back through the grommit into the wall.

1. Place a Case with an iPad installed onto the WallStation to determine power was installed properly and the iPad charges.

Line drawing of a tablet device with a circular screen and an attached rectangular frame, showing no text or symbols.

Upgrading a LAUNCH WallStation to CONNECT PRO

1. Remove the old LAUNCH WallStation from the wall making sure to keep the existing anchors installed into the wall.

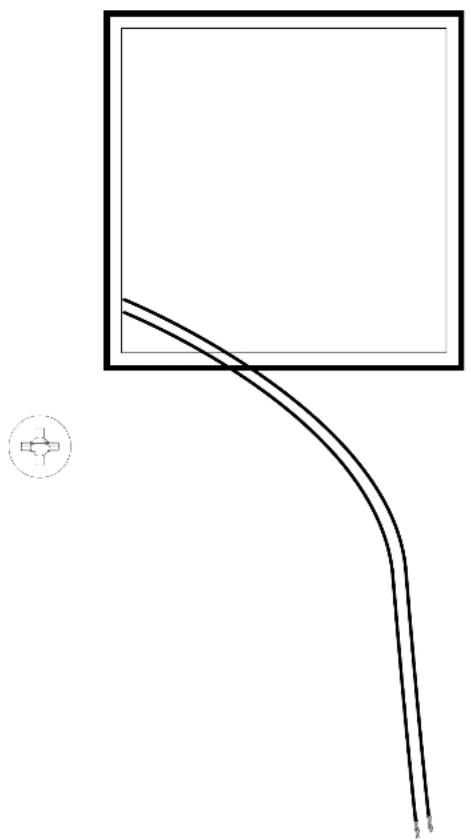

2. Disconnect the two wires in the wall from the green phoenix connector.

Pure technical diagram showing a curved line and a square frame without any text, numbers, or symbols.

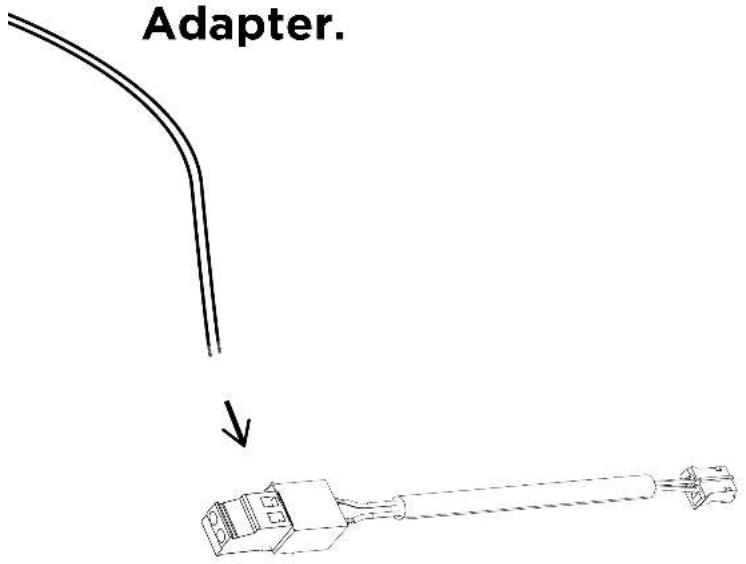

1. Connect the TE-Phoenix connector to the existing wire ran in the wall. Next connect the TE cable into the back of the white TE Connector on the WallStation DC Adapter.

Technical line drawing of an electronic device casing with internal components and wiring (no text or symbols)

Zip tie the Connector to the DC board for added cable retnetion.

1. Insert the CONNECT WallStation into the wall opening from the previous LAUNCH WallStation. IMPORTANT: Make Sure to position the WallStation with the Up Arrow facing up. Use a leveling tool to level the WallStation.

Technical line drawing of a device casing with circular components and mounting holes (no text or symbols)

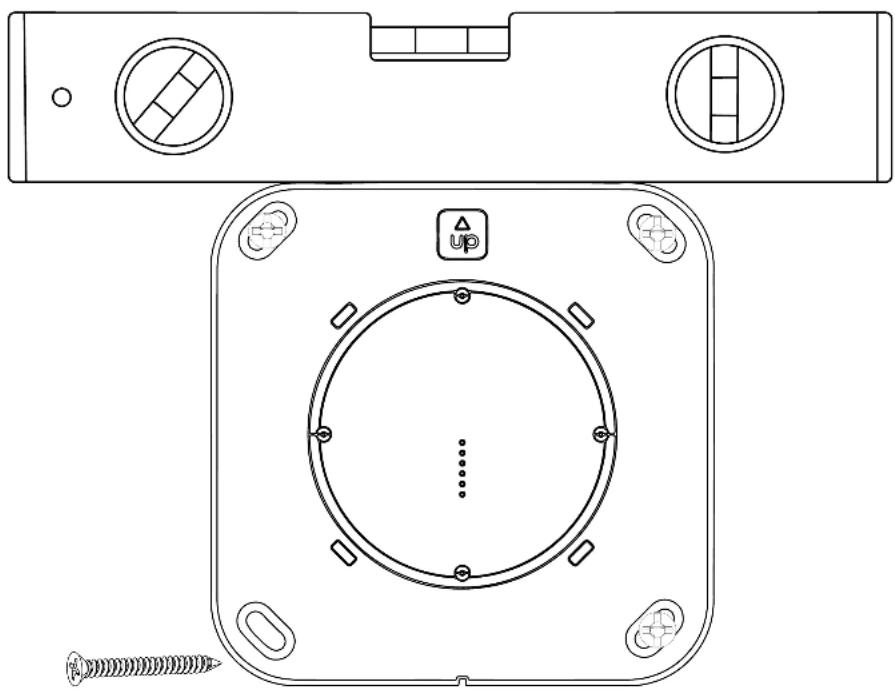

5. Use the old screws or provided screws to attach the WallStation to the preinstalled anchors.

Technical line drawing of a mechanical component with mounting holes and a circular center (no text or symbols)

1. Attach the WallStation Cover Plate over the WallStation making sure to alight the positioning notch with the tooth on the WallStation.

Technical line drawing of a device casing with circular components and mounting holes (no text or symbols)

Simple circular diagram with four evenly spaced dots and a central dot, enclosed in a rounded square border (no text or symbols)

1. Place a Case with an iPad installed onto the WallStation to determine power was installed properly and the iPad charges.

Line drawing of a tablet device with a circular screen and an attached rectangular frame, showing no text or symbols.

IPORT CONNECT Pro WallStation Install

New Construction - 2 Wire

Before Construction is complete

1. Determine the desired location of the IPORT CONNECT PRO WallStation will live when the construction is completed.

Line drawing of a cabinet interior with doors and doors, no text or symbols present

2. Install a 1 Gang electrical box or low voltage ring in the desired location of the WallStation.

NOTE: The CONNECT PRO WallStation will cover a 1G electrical box only. A 2 Gang electrical box will interfere with the mounting hardware.

Technical line drawing of a rectangular enclosure with mounting hardware and a circular checkmark below (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and mounting brackets, marked with a gray circle containing a white X symbol (no text or labels)

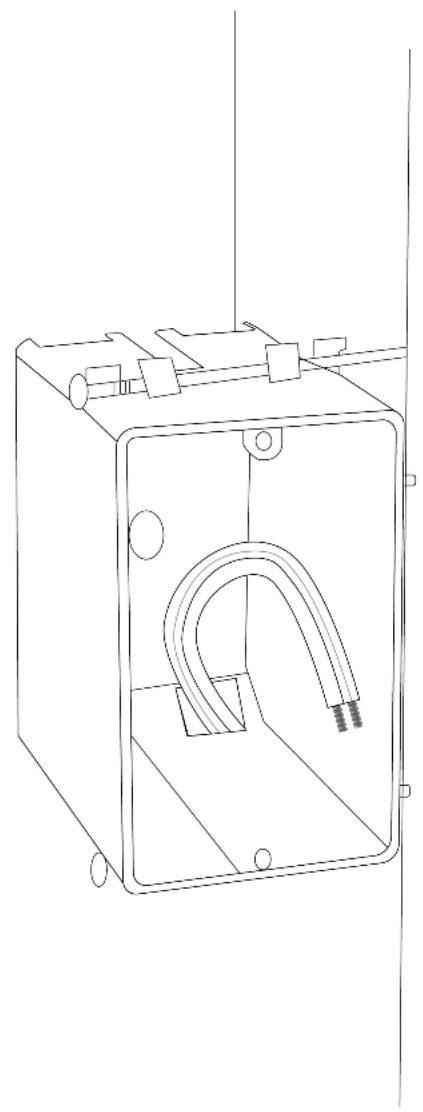

4. Run a 14AWG 2 wire cable from the WallStation location to a nearby AC outlet, closet, or network rack location.

NOTE: Make sure to secure the 2 Wire cable appropriately onto the Electrical box or Low Voltage ring to retrieve at a later time.

Technical line drawing of a rectangular enclosure with internal curved and mounting features (no text or symbols)

Installing the WallStation After Construction

1. Locate the 1 gang boxed saved for the WallStation and locate the end of the 2 wire for power.

Technical line drawing of a U-shaped mechanical component mounted on a rectangular base (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a rectangular electrical outlet with four slots and two mounting holes (no text or symbols)

Grommit not included

2. Remove the WallSation, Drywall anchors and Screws from the box and place on a table.

Simple diagram of a circular ring with four evenly spaced dots inside, enclosed in a rounded square frame (no text or symbols)

x4

x4

4. Insert the WallStation into the 1G box.

NOTE: the 1G box or low voltage ring was used to save the space of the WallStation. The WallStation was designed to be use without the need for a junction box. If possible remove the junction box or low voltage ring.

Technical line drawing of a U-shaped mechanical component with mounting holes and a base plate (no text or symbols)

Technical line drawing of a rectangular electronic device casing with mounting holes and a central circular component (no text or symbols)

1. Use a leveling tool to level the WallStation and mark the 4 locations for the provided Anchors. Remove the WallStation from the 1G Box.

Technical line drawing of a mechanical component with circular and rectangular features, no text or symbols present.

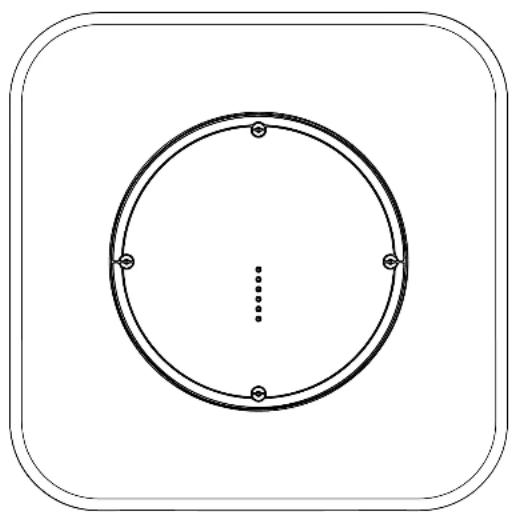

6. Remove the WallStation and screw the provided anchors into the wall where marked.

Technical line drawing of a U-shaped electrical component with mounting holes and a separate inset showing a sensor or connector (no text or symbols)

1. Connect the Phoenix to TE cable provided to the 14-2 wire and onto the White TE Connector on the WallStation DC Adapter.

Technical line drawing of an internal electronic device casing with connectors and components (no text or symbols)

Zip tie the Connector to the DC board for added cable retention.

1. Insert the WallStation back into the 1G box and use the provided screws to attach the WallStation to the wall.

IMPORTANT: Make sure to position the WallStation with the Up Arrow facing up. Use a leveling tool to level the WallStation and hand tighten the screws.

Technical line drawing of a mechanical component with mounting holes and a circular center (no text or symbols)

1. Attach the WallStation Cover Plate over the WallStation making sure to alight the positioning notch with the tooth on the WallStation.

Technical line drawing of a device casing with circular components and mounting holes (no text or symbols)

Simple circular diagram with four dots and a central dot, enclosed in a rounded square border (no text or symbols)

1. Connect the 2 wire to DC Connector at the other end of the 2 wire Cable.

Technical line drawing of a mechanical component with no visible text or symbols

1. Connect the Provided DC Power Adapter into the wall and connect the barrel connector to the other end of the Phoenix adapter.

Line drawing of two electrical connectors with wires and connectors, no text or symbols present

Grommit not included

WALLSTATION

For a clean finished look place the Connector and DC barrel plug back through the grommit into the wall.

1. Place a Case with an iPad installed onto the WallStation to determine power was installed properly and the iPad charges.

Line drawing of a tablet device with a circular screen and an attached rectangular frame, showing no text or symbols.

WallStation Install Manual - Existing Construction - 2 Wire

1. Determine the desired location of the IPORT CONNECT PRO WallStation.

1. Use a 2-3/4" (70mm) hole saw to cut a hole in the desired location of the WallStation.

1. Insert the WallStation into the 2 3/4 - inch hole and use a leveling tool to level the WallStation. Mark the 4 locations for the provided Anchors.

Technical diagram of a mechanical component with circular center and mounting holes, showing directional arrows (no text or symbols)

1. Remove the WallStation form the wall once you have marked the 4 anchor locations.

Technical line drawing of a square mechanical component with mounting holes and a circular top, showing no text or symbols.

5. Screw the provided anchors into the wall where marked.

Technical drawing of a mechanical component with circular outline, crosshair symbol, and threaded end (no text or labels)

1. Use the 2 3/4 - inch hole to fish a 14/2 cable to a nearby AC outlet, closet or network rack.

Pure diagram of a coiled cable with four circular markers at the corners (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a rectangular electrical outlet with four internal slots and two mounting holes (no text or symbols)

WALLSTATION Existing Construction - 2 Wire

1. Connect the Phoenix to TE cable provided to the 14-2 wire and onto the White TE Connector on the WallStation DC Adapter.

Technical line drawing of an electronic device casing with internal components and a connector pin (no text or symbols)

Zip tie the Connector to the DC board for added cable retnetion.

1. Insert the WallStation back into the wall and use the provided screws to attach the WallStation to the wall anchors.

IMPORTANT: Make Sure to position the WallStation with the Up Arrow facing up. Use a leveling tool to level the WallStation and hand tighten the screws.

Technical line drawing of a mechanical component with mounting holes and a circular center (no text or symbols)

1. Attach the WallStation Cover Plate over the WallStation making sure to alight the positioning notch with the tooth on the WallStation.

Technical line drawing of a device casing with circular components and mounting holes (no text or symbols)

Simple circular diagram with four evenly spaced dots and a central dot, enclosed in a rounded square border (no text or symbols)

10. Connect the 2 wire to DC Connector at the other end of the 2 wire Cable.

Technical line drawing of a mechanical component with no visible text or symbols

11. Connect the Provided DC Power Adapter into the wall and connect the barrel connector to the other end of the Phoenix adapter.

Line drawing of two electrical connectors with wires and connectors, no text or symbols present

Grommit not included

WALLSTATION

For a clean finished look place the Connector and DC barrel plug back through the grommit into the wall.

Grommit not included

12. Place a Case with an iPad installed onto the WallStation to determine power was installed properly and the iPad charges.

Line drawing of a tablet device with a circular component and an arrow indicating direction (no text or symbols)
