QA250A40 - Food processor MOULINEX - Free user manual and instructions

Product Type	Food Processor
Brand	Moulinex
Model	QA250A40
Category	Kitchen Robot / Food Processor
Functions	Mixing, Kneading, Beating, Emulsifying, Whisking, Rough Chopping (with optional grinder)
Bowl Capacity	Up to 1.8 kg light dough; up to 500 g flour for heavy dough
Speed Settings	Pulse (intermittent) and continuous speeds 1 to 6
Max Continuous Operation Time	13 minutes for kneading/mixing; 10 minutes for whisking/beating

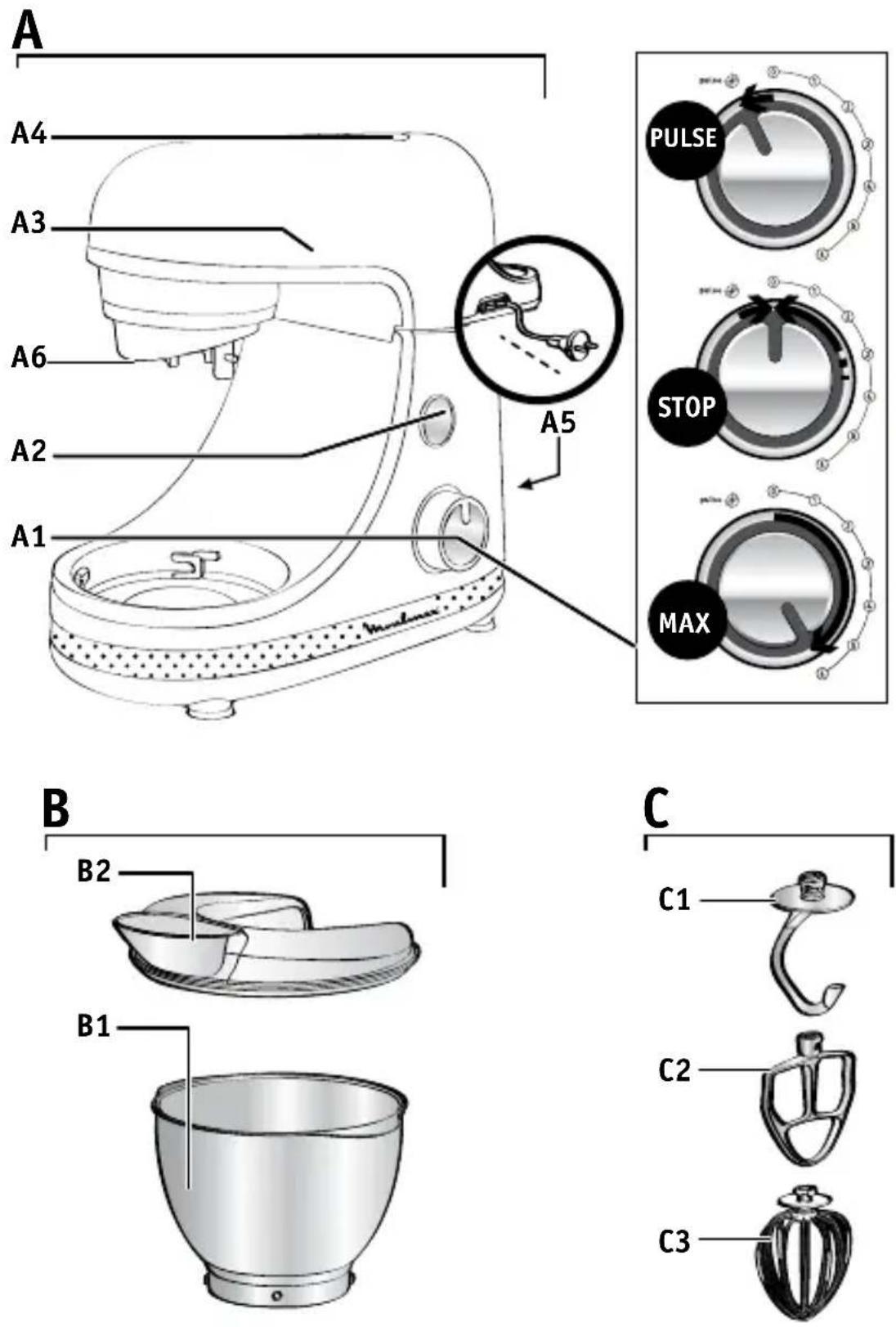

Included Accessories	Stainless steel bowl (B1), lid (B2), kneader (C1), beater (C2), balloon whisk (C3); grinder (depending on model)
Cord Length Adjustment	Yes (see diagram A5)
Cleaning	Dishwasher-safe accessories except kneader (C1) and beater (C2); motor unit wiped with damp cloth
Safety Precautions	Handle blades with care; unplug before cleaning; do not immerse motor unit
Power Supply	Standard mains (specific voltage not stated; refer to product label)
Guarantee	12 months from original purchase against manufacturing defects
Customer Support	UK Helpline: 0345 6001714; ROI Helpline: 0156 21083; www.argos-support.co.uk

Frequently Asked Questions - QA250A40 MOULINEX

What is the maximum capacity for kneading dough?

You can knead up to 500 g of flour for heavy dough (e.g., bread, pizza). Maximum operating time is 13 minutes.

Can I use the beater for kneading heavy dough?

No. The beater (C2) is intended for mixing light doughs (up to 1.8 kg). For heavy doughs, always use the kneader (C1).

How do I clean the accessories?

Most accessories are dishwasher-safe, except the kneader (C1) and beater (C2). Wash them by hand in soapy water, rinse, and dry. The motor unit should only be wiped with a damp cloth.

What does the pulse function do?

The pulse setting (turn selector to 'pulse') provides short bursts of power for better control when chopping or mixing foods that require precision.

Can I grind coffee beans with this machine?

No. The grinder (if included) is not designed for hard products like coffee beans or hard spices. Use it only for soft dried fruits or similar items.

What should I do if the appliance stops working?

First, check the 'Before First Use' section and ensure the selector is at '0'. If still not working, contact customer helpline at 0345 6001714 (UK) or visit www.argos-support.co.uk.

How long can I use the whisk continuously?

The maximum continuous use for the balloon whisk (C3) is 10 minutes. Do not exceed this time to avoid overheating.

Can I whip egg whites with this machine?

Yes. Use the balloon whisk (C3) at speeds 1-6. You can whip up to 10 egg whites or 500 ml of cream.

How do I adjust the cord length?

Refer to diagram A5 in the manual. The cord can be shortened by wrapping it around the base or using a cord storage feature.

Is the product guaranteed?

Yes, the Moulinex QA250A40 comes with a 12-month guarantee against manufacturing defects from the date of purchase. The guarantee does not cover accidental damage or misuse.

USER MANUAL QA250A40 MOULINEX

Line drawing of a Moulmex stand mixer with control panel and mesh handle (no text or symbols on the device itself)

Illustration of a kitchen mixer with a rotating handle and handle, showing no text or symbols

Warning : Please read the “safety guidelines” booklet and instructions carefully before initial use.

BEFORE FIRST USE

- Before using for the first time, wash all accessory parts in soapy water.

Rinse and dry.

- Place the appliance on a flat, clean and dry surface. Make sure that the selector button (A1) is in «0» position and plug in your appliance.

- You have several options for starting your appliance: (see diagram A1):

- Intermittent operation (pulse):

Turn the selector button (A1) to the «pulse» position. Using a succession of pulses can give you better control when preparing certain foods.

- Continuous operation:

Turn the selector button (A1) to the desired position from «1 to 6», depending on the food you are preparing. You can change it as required during preparation.

- To stop the appliance, turn the button (A1) to «0».

1 - MIXING / KNEADING / BEATING / EMULSIFYING / WHISKING

You can prepare up to 1.8 kg light dough and heavy dough made with up to 500 g flour using the stainless bowl (B1) and its lid (B2) depending on the food.

ACCESSORIES USED : Stainless steel bowl (B1), Lid (B2), Kneader (C1) or beater (C2) or balloon whisk (C3).

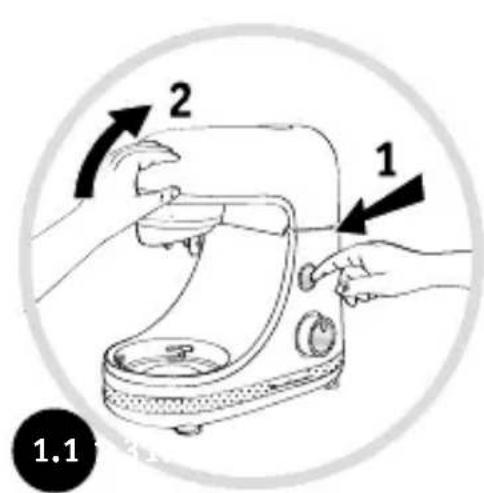

1.1 - ASSEMBLING THE ACCESSORIES

Follow the diagrams from 1.1 to 1.4.

1.2 - USAGE, TIPS AND DISMANTLING

• Start by turning the selector button (A1) to the desired position according to the recipe.
• You can add food through the hole in the lid (B2) during preparation.
• To stop the appliance, turn the button (A1) to «0».

Tips :

KNEADING (Maximum time of use: 13 minutes)

- Use the kneader accessory (C1) at speed «1». You can knead up to 500 g of flour (e.g. white bread, wholemeal bread, pizza dough, short crust pastry, etc.).

MIXING (Maximum time of use: 13 minutes).

• Use the beater (C2) at speed «1 to 6».
• You can mix up to 1.8 kg of light dough (light cake mixture, sponge cake, biscuit or cookie dough).
• Never use the beater (C2) to knead heavy dough and fresh pasta dough (lasagne, rigatoni, bigoli, etc.).
• BEATING / EMULSIFYING / WHISKING (Maximum time of use: 10 minutes).
• Use the balloon whisk (C3) at speed «1 to 6».
• You can prepare: mayonnaise, aioli, sauces, whisked egg whites (up to 10 egg whites), whipped cream (up to 500 ml), meringues etc.

- Never use the balloon whisk (C3) to knead heavy dough or mix light dough.

Dismantling the accessory: Wait for the appliance to come to a complete stop and proceed in the reverse order of the assembly. diagrams from 1.4 to 1.1.

2 - ADJUSTING THE CORD LENGTH (see A5)

3 - ROUGHLY CHOPPING SMALL QUANTITIES (DEPENDING ON MODEL)

ACCESSORIES USED : Assembled grinder.

• Chop in a few seconds using pulse: dried figs, dried apricots, etc. Quantity / max time : 100g / 5 sec.
• The grinder is not designed for processing hard products e.g. coffee beans or hard spices.

CLEANING

• Unplug the appliance.
• Do not immerse the motor unit (A) in water or under running water. Wipe it with a dry or slightly damp cloth.
• Disassemble completely and rinse the accessories quickly after use.

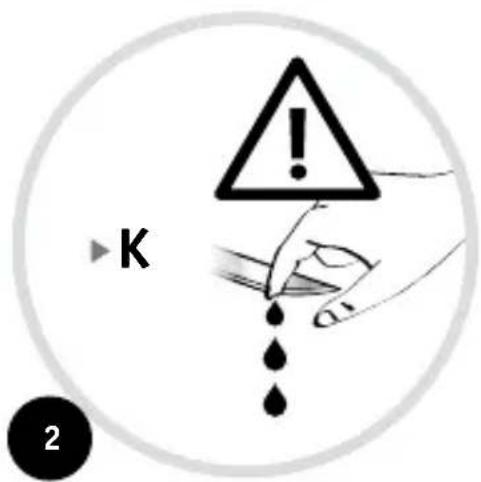

Handle the blades with care to prevent injury. (diagram 2).

- Wash, rinse and dry the accessories: they are dishwasher-safe, except for the kneader (C1) and the beater (C2).

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

Please refer to the chapter «before first use», and the Product Guarantee Card inlcued in the pack.

Your appliance still does not work? Contact the customer helpline : 0345 6001714 or visit www.argos-support.co.uk

AVAILABLE ACCESSORIES

Visit www.argos-support.co.uk

Caution: this booklet contains instructions for additional accessories. Please keep safe for future reference.

Product Guarantee

This product is guaranteed against manufacturing defects from a period of

Year

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

- The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.

- The product must be correctly installed and operated in accordance with the instructions contained in this manual.

- It must be used solely for domestic purpose.

- The guarantee will rendered invalide d if the products is re-sold or has been damaged by inexpert repair.

- Specifications are subject to change without notice.

- The manufacturer disclaims any liability for the incidental or consequential damages.

- The guarantee is in addition to, and does not diminish your statutory or legal right.

- In the event of problem with the product with in the guarantee period call UK Customer Helpline : 0345 6001714

ROI Customer Helpline : 0156 21083

www.argos-support.co.uk

Guarantor: Argos Ltd

489 – 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

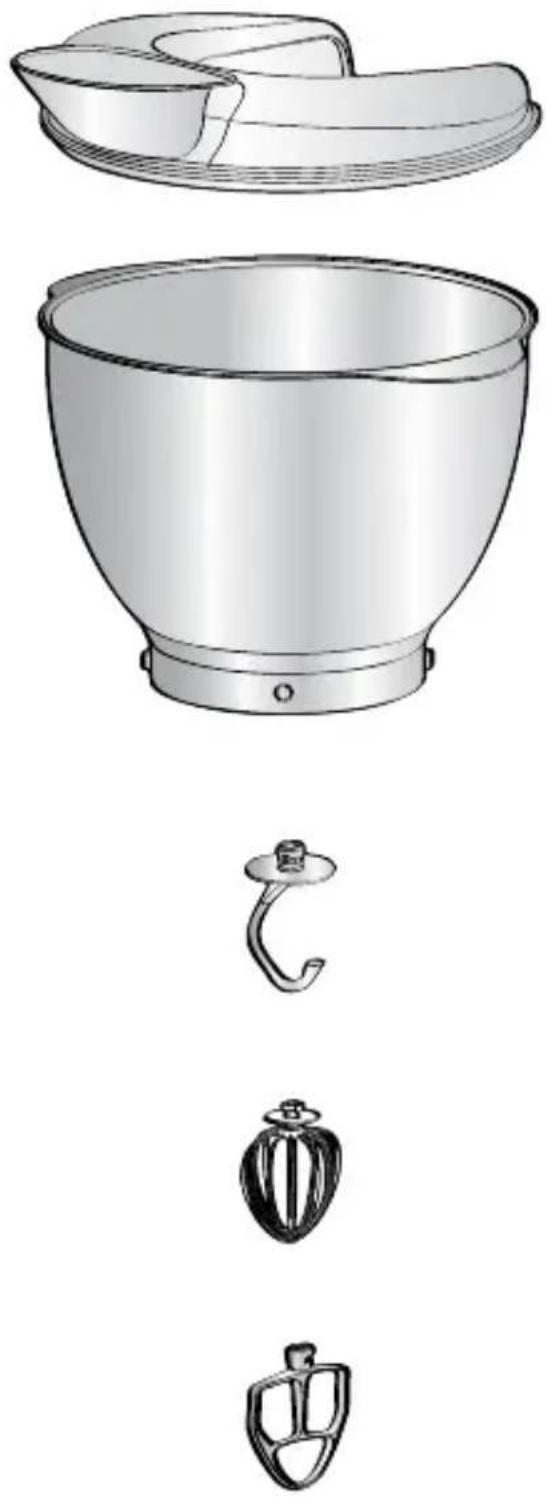

Technical line drawings of kitchen equipment including a lid, bowl, hook, and fan (no text or labels)

Ref. 8020002064
