Product Type	Induction Hob
Brand	Fulgor Milano
Model	FCLH 9008 ID WT

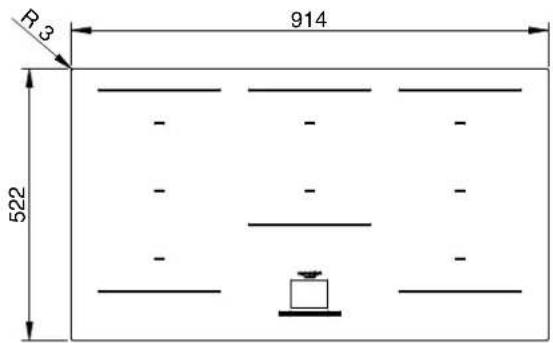

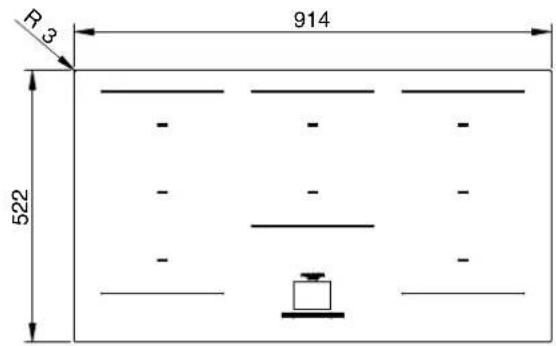

Dimensions (Width x Depth)	90 cm x 52 cm
Height	Approx. 5 cm
Weight	Approx. 15 kg
Power Supply	220-240 V / 380-415 V 3N, Max 11.2 kW
Cooking Zones	8 induction zones (2x2 grid, plus bridge zones)
Booster Function	Yes, up to 2.1 kW per zone (max 10 min)
Automatic Boiling	Yes, selectable power level 1-8 with timed boost
Automatic Bridge	Yes, detects large pans and combines zones
Chef Function	Yes, power adjusts by pan position on 3 zones
Pause Function	Yes, max 10 min pause with memory
Timer	Egg timer and cooking timer per zone
Child Lock	Yes, permanent or temporary unlock
Residual Heat Indicator	Yes, 3-ring symbol per zone
Automatic Pan Detection	Yes, auto-select zone when pan placed
Display	Graphic touch display with slider
Cleaning	Use scraper for residues, mild detergent, no steam cleaners
Safety Features	Auto shut-off, overheat protection, key lock, residual heat warning
Error Codes	ER03 (permanent key), ER20-ER47, E2, E6-E9, U400, E/A
Compatible Cookware	Ferromagnetic (enameled steel, cast iron, induction stainless), base Ø 120-240 mm
Networking	No (standalone)
Warranty	Manufacturer standard warranty (see manual)

Frequently Asked Questions - FCLH 9008 ID WT Fulgor Milano

How does induction cooking work on the Fulgor Milano FCLH 9008 ID WT?

Induction uses an electromagnetic field to heat the pan directly. The hob remains cool to the touch. The electronic circuit powers a coil (inductor) creating a magnetic field that induces currents in ferromagnetic cookware. This results in fast, efficient heating with up to 25% energy savings compared to gas.

What type of cookware is suitable for this induction hob?

Only ferromagnetic cookware works, such as enamelled steel, cast iron, and stainless steel marked induction-compatible. Check if a magnet sticks to the base. Use pans with a flat base of 120-240 mm diameter. Avoid aluminum, copper, glass, or terracotta.

How do I activate the booster function?

After selecting a cooking zone, touch the highest cooking level (P) on the slider. The booster provides extra power for up to 10 minutes. It ends automatically; a flashing P warns 3 seconds before deactivation.

What is the automatic boiling function and how do I use it?

Automatic boiling heats at 100% power for a set time then reduces to the selected level. To activate, press and hold a power level (1-8) for 2.5 seconds. The display shows 'r' and the level. Boiling time depends on level (e.g., level 5 boils for 6.8 min).

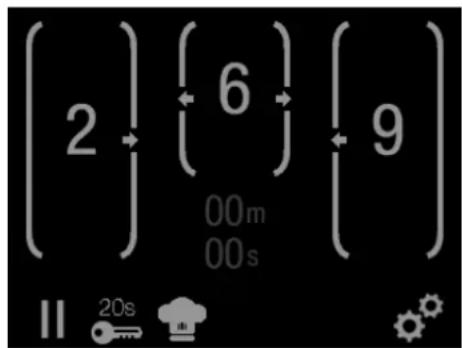

Can I use the Chef function to vary power by pan position?

Yes. Press the Chef icon to enable three power zones (left: power 2, center: 6, right: 9). Move your pan between zones to change power. You can customize each zone's power by selecting it and adjusting the slider.

How do I set the child lock?

Enter the settings menu (press the multifunction button), select the lock symbol, then confirm. To unlock temporarily after switching on, slide the key icon towards the padlock. Permanent deactivation is done via the same menu.

What should I do if the hob displays an error code?

Common codes: ER03 (permanent key press – clean the interface), E2 (overheating – let cool), ER47 (communication failure – check connections). For other codes, contact technical support.

How do I clean the induction hob safely?

Remove spills immediately with a scraper. Clean with mild detergent (SIDOL or STANFIX) and kitchen paper, rinse, and dry. Never use abrasive sponges, oven sprays, or steam cleaners.

What does the automatic pan detection feature do?

The hob automatically detects when a pan is placed on a zone and selects that zone. The slider appears for setting the power. If you slide a large pan, it may be detected as two; lift and reposition to correct.

How can I temporarily pause all cooking?

Press the 'II' symbol on the display. All zones stop heating but retain settings. The pause lasts max 10 minutes; after that the hob switches off. To resume, press the same area. The timer and residual heat continue in background.

USER MANUAL FCLH 9008 ID WT Fulgor Milano

Four black circles arranged in a 2x2 grid on a white background (no text or symbols)

FCLH 9008 ID WT

PIANO INDUZIONE WAVE 8IN

INDUCTION HOB WAVE 8IN

INDUKTIONSKOCHFELD 8IN

PLACA INDUCCION 8IN

PŁYTA INDUKCYJNA WAVE 8IN

- stoviglia in ghisa

Illustration of kitchenware including a cooking pan, lid with patterned lid, and a pot (no text or symbols)

Two grayscale illustrations of cooking utensils, one with a side pan and lid, the other with a closed pan (no text or symbols)

Recipienti non adeguati

Three rectangular panels with cross-hatched patterns and a small container below, no text or symbols present.

ATTENZIONE

Simple black-and-white diagram with a small circular symbol and two labeled buttons (① and <), no readable text or symbols.

Two white key icons on a black background: one with a key, the other with an open lock (no text or symbols)

Manutenzione

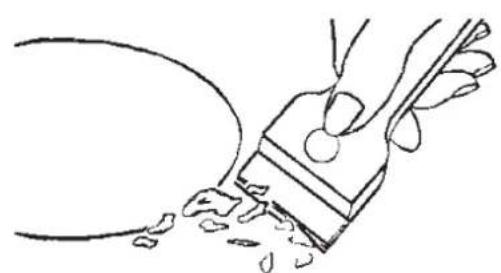

Line drawing of a hand using a paintbrush to clean or scrape material from a curved surface (no text or symbols)

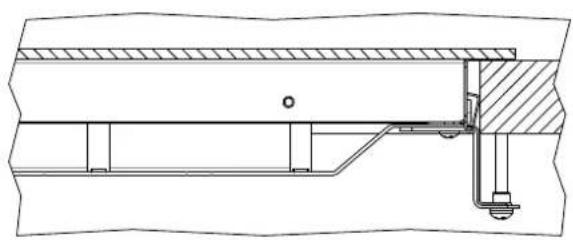

Technical cross-section diagram of a structural assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

we would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

THE MANUFACTURER

INDEX PAGE

1 - Safety Instructions .... 2
2 - Operating principle .... 3

Induction 3

Operating principle 3

Containers 3

3 - User instructions .... 6

Installation 6

Functions 6

Maintenance 15

4 - Installation instructions .... 16

Installation 16

Positioning 16

Electrical connection 16

List of errors displayed 16

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES TO THINGS OR PEOPLE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, ERRONEOUS OR UNSUITABLE USE.

THE APPLIANCE MUST NOT BE USED BY PEOPLE (INCLUDING CHILDREN) WITH PHYSICAL, SENSORIAL OR MENTAL IMPAIRMENTS, OR BY PEOPLE WITHOUT THE NECESSARY EXPERIENCE OR KNOWLEDGE, UNLESS THEY ARE SUPERVISED OR INSTRUCTED IN THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN MUST BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

COOKING SURFACE SAFETY WARNINGS

• The appliance and its accessible parts become very hot during use. Care should be taken not to touch the heating elements.
• Children under 8 years of age must be kept away if not continually monitored.
• This appliance can be used by children as young as 8 years old and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or they have been instructed to use the appliance safely and understand the risks involved.
  • Children must not play on the appliance.
• Children should not clean or perform maintenance without supervision.
• For direct connection to the grid, it is necessary to provide a device that ensures disconnection from the grid, with a contact opening distance that allows complete disconnection in the conditions of overvoltage category III, in accordance with the installation rules (the earth cable yellow / green must not be interrupted). The socket or switch must be easily accessible with the installed equipment to allow the device to be disconnected from the power supply after installation.
• To avoid all risk, if the power cable becomes damaged, it must only be replaced by the manufacturer, by an authorised service centre, or by a qualified electrician.

ATTENTION

- Cooking with grease or oil on the automatic cooking surface can be very dangerous and can cause fires. Do not attempt to put out a fire with water but turn off the appliance and then cover the flames with a lid or fire blanket.

ATTENTION

• Danger of fire: do not store objects on the cooking surfaces.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Do not use steam cleaners to clean the appliance.
• Metal objects such as knives, forks, spoons or lids should not be placed on the cooking surface because they can get hot.
• The appliance is not intended for use with an external timer or a separate remote control system.
  • The appliance must not be left unattended
• Never leave empty pots on the heating elements when in operation
• Do not leave the burners or electric heating elements on, without the presence of a pot
• The cooking process must take place under controlled conditions. A short cooking process must be constantly monitored.
• Only use the protections designed by the manufacturer of the hob, the protections indicated by it or the protections incorporated in the appliance. The use of inadequate protections can cause accidents.
• After use, turn off the elements of the hob using their command but not using the pan detector.

Induction

Heating by induction is the most efficient form of cooking available.

The heat is generated by an electromagnetic field, directly on the bottom of the pan or pot used.

The surface which is free from contact remains virtually cold. When the cooking time is up and the container is removed, there is no residual heat. It is efficient become there is no waste of energy due to dispersion, as happens with gas burners, it is 30 to 50% faster than normal hobs using HGL technology and allows energy savings of up to 25%.

If liquid overflow from the container, it does not stick to the surface of the hob, because this is just slightly warm.

Operating principle

This is based on the electromagnetic properties of most cooking containers.

The electronic circuit governs the operation of the coil (inductor), creating a magnetic field.

The heat is transmitted by the container to the food. Te cooking process takes place as follows:

• minimum dispersion (high performance);
- the removal of the pan (simply lifting it) automatically stops the system;
- the electronic system allows maximum flexibility and precision of regulation.

Fig. 1

1 - Recipient

4 - Inductor

2 - Induced current

5 - Electronic circuit

3 - Magnetic field

6 - Electricity supply

Containers

Use only ferromagnetic cookware for induction cooking, for example:

• enamelled steel tableware
- cast iron cookware
- special stainless steel cookware, suitable for induction cooking.

To understand if the cookware is suitable for induction, check if the base of the cookware is attracted by a magnet or check the manufacturer's instructions.

There is also induction cookware that does not have a completely ferromagnetic base:

- If the base of the cookware is made of only partially ferromagnetic material, only the ferromagnetic surface heats up. Therefore it may be the case that the heat is not distributed evenly. The non-ferromagnetic zone may have too low a temperature for cooking.

Illustration of kitchenware including a cooking pan, lid with decorative pattern, and a pan with lid (no text or symbols)

- If the base of the cookware also consists of aluminium parts, the surface in ferromagnetic material is also reduced. It may be the case that this cookware does not heat up properly or that it is not recognised at all.

Illustration of two frying panes with different interior designs (no text or symbols)

Inadequate containers

Never use diffusers or containers made of:

• normal fine steel
• glass
• terracotta
  • copper
• aluminium

Characteristics of the base of the cookware

The characteristics of the base of the cookware can influence the cooking result. Use cookware made of a material that distributes heat evenly, such as pans with "sandwich bottom" in stainless steel in order to save time and energy.

The best solution would be to use cookware with a completely flat base. Uneven bases or incised bases reduce heat conduction.

Absent or inadequately sized cookware

Always place the cookware within the limits of the usable cooking surface. If the cookware is not placed correctly, if it is not made of suitable material or if the size is incorrect, the hob will indicate the absence of the pan with the symbol [☐]. Move the cookware or try using another item of cookware.

Empty cookware or cookware with a thin base

Do not heat any empty cookware and do not use cookware with a thin base. The base of the cookware could melt and damage the glass plate.

Never touch the cookware and switch off the hob. If the hob, once cooled, no longer works, contact the technical assistance service.

Pan recognition

The hob automatically recognises the position and shape of the cookware being used, depending on the ferromagnetic diameter and the material of the cookware base. To be suitable, the cookware must have a base diameter of between 120 and 240 mm.

Warning: The cooking zone indicators may differ from the actual size and shape of the cookware. This is a normal phenomenon that does not compromise correct functioning of the hob.

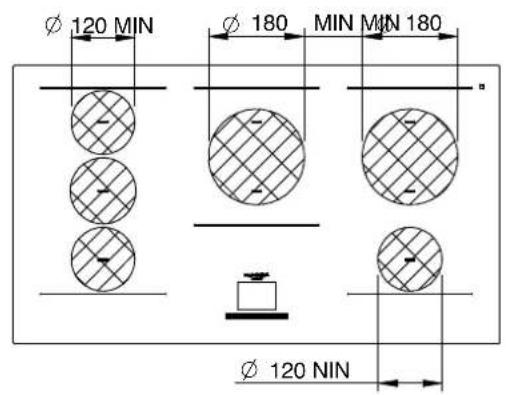

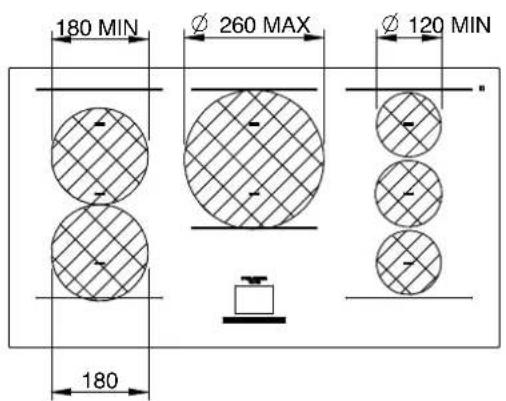

Pan position

Strictly follow figure 2 to position the pans in such a way as to avoid causing malfunctions or damage to the induction hob. Furthermore, incorrect positioning could reduce the cooking performance of the pans.

Avoid letting hot pans move out of the delimited zones, "outlined" by the following figure:

Three rectangular panels with cross-hatched patterns and a small labeled object below (no text or symbols)

ATTENTION

Metal objects such as knives, forks, spoons or lids should not be placed on the hob surface as they can become hot.

Fig. 2

Installation

All operations relating to installation (electrical connection) must be performed by qualified personnel in accordance with the current regulations.

For specific instructions, see the section reserved for the installer

IMPORTANT

DO NOT LOOK AT THE LEDS AND DISPLAYS INTENSELY.

Functions

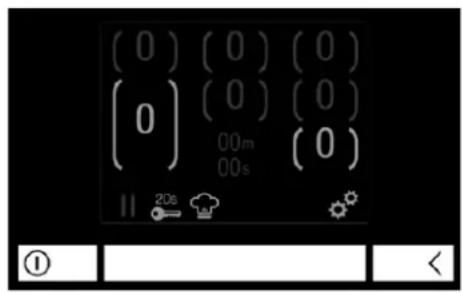

All functions can be performed using the ON/OFF button, the display area and the "back" button. Information and feedback are provided by the graphic display.

Touch Control on/off

After applying power, the touch control takes a second to be ready. After a reset, all the LEDs light up for one second. After this time all the LEDs go off again. The interface can now be started by touching the on/off button. The logo appears on the display for 2 seconds, followed by a safety warning sign. Do not place hot pans on the display.

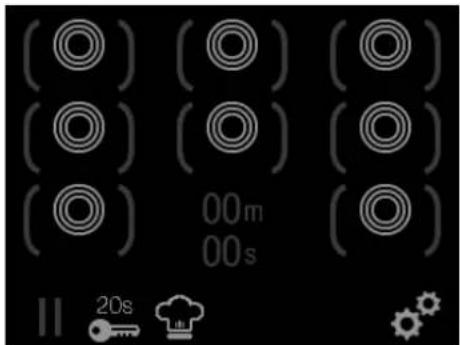

The cooking mode is then active. The display shows all the cooking zones. The electronics will remain active for 20 seconds.

If no action is taken within this time (zone or timer selection), the hob goes into standby, indicated by an acoustic signal.

The induction hob only switches on if the on/off button is pressed. If another button is recognised, the hob will not turn on.

Manual switching off of the hob takes place by keeping the on/off key pressed.

Automatic switch off

The hob changes from switching on to switching off after 20 sec. if no cooking zone is activated or the multifunction button is pressed during this time.

Switching a cooking zone on/off

If the control is already on, it is possible to select a zone by touching one of the cooking zones on the display. After selecting the cooking zones, the cooking level can be adjusted by touching the slider area. By "sliding" your finger on the slider area it is possible to increase or decrease the cooking level (0 - P). Alternatively, the cooking level can be selected directly on the slider without sliding. If the cooking level is set to 0 the cooking zone is in "off" mode.

Switching off all the cooking zones

Immediate switching off of all the cooking zones is always possible by pressing and holding the on/off key. Even if the Touch Control is locked, switching off is possible. All cooking zones that have the "hot" status have a circle with three rings.

Automatic switch-off (operating time limitation)

Depending on the cooking level chosen, a maximum operating time limit is defined (if no cooking level changes are made). If this maximum operating time is exceeded on a cooking zone, it is switched off. If the surface is hot, the residual heat is displayed. After each user operation, the time remaining until automatic switch off is reset to the defined operating time limit of this cooking level.

The timer settings have priority over the operating time limitation. The detailed operating time according to the power level can be ascertained from the table.

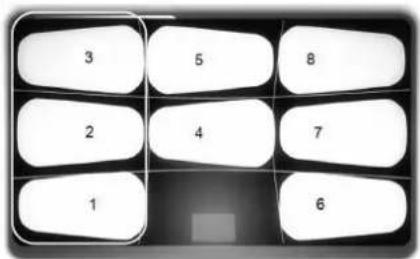

Fig. 3

Single element (coil) 2 elements (coils) 3 elements (coils)

ELEMENTS ON NOMINAL	POWER (kW)	POWER BOOSTER (kW)
Single element (coil) 1.4 2.1
2 elements (coils) 2.3 3.7
3 elements (coils) 2.8 3.7

Maximum rated power: 11.2kW

Cooking level Power	level [%]	Operating time [h]
0 0 0
1 3 6
2 6.5 6
3 11.0 5
4 15.5 5
5 19.0 4
6 31.5 1.5
7 45.0 1.5
8 64.5 1.5
9 100 1.5

Protection against involuntary activation

The Touch Control switches off automatically in the event of an identified permanent use of the keys for approximately 10 seconds.

The Touch Control beeps for 10 seconds and the error code "E R 0 3" flashes on the display.

If the malfunction exceeds 10 sec, only the error code "ER 03" continues to flash during the malfunction time and is identified as such. If the cooking zone is in the "hot" phase, the symbol alternates with the error code.

(After cleaning the glass that covers the keys, all the keys are ready for use in a short space of time).

If a cooking zone is not activated within 10 seconds after pressing the on/off button, the Touch Control is returned to standby mode.

Surface cleaning mode

To allow cleaning of the surface without inadvertently operating the keys, there is a "lock" function. By pressing the "20s" key the commands will be blocked and a counter will count the 20 sec.

Residual heat

The glass temperature of each cooking zone is calculated and displayed by a circle symbol with three rings for each cooking zone. The 3-ring icons will be displayed until the temperature is below a safe temperature ( 60^ ). The residual heat indication is displayed for a maximum of approximately 50 minutes.

Simple black-and-white diagram with a small circular symbol and two labeled buttons (① and <), no readable text or symbols.

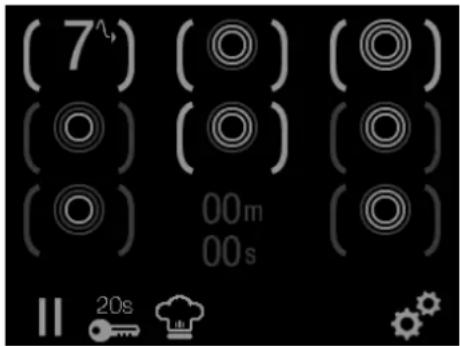

Automatic pan detection

Automatic pan detection allows the intuitive use of induction hobs. The function automatically recognises the pans and changes the position of the pans on the hob.

As soon as a pan is detected, the cooking zone is automatically selected and the slider appears so that the user can easily set the cooking level for this cooking zone.

Furthermore, it is possible to activate the semi-automatic bridge function.

NOTE: during normal operation of the hob (excluding operation with the Chef function active), if the pan is moved by sliding it instead of lifting it, it may happen that the pot presence sensors detect a large pot as if they were 2 separate small pans.

To avoid this possibility of incorrect identification of the pot, simply lift the pot for a few seconds and then reposition it above the sensors so that it is again recognized as a single area (for example bridge) and then distribute the intensity of the power evenly.

If even this attempt does not lead to recognizing the cooking area as a single area, lift the pot, then adjust the cooking area settings to zero, then reposition the pot and adjust the chosen power again.

Warning: if after these attempts the pot is still seen as a separate cooking zone, it could depend on the type of bottom of the pot. Then replace the pan with a suitable one (see Containers on page 3)

ATTENTION

After use, turn off the hob elements using their command without using the pan detector.

NOTE: the automatic pan presence detection system generates a small "click" in the background cyclically

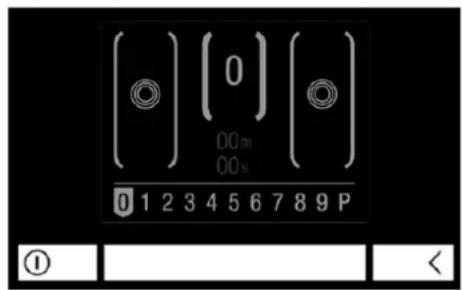

Power levels

The power of the cooking zones can be adjusted on 9 levels + Boost (P) (1-9, + P). After selecting a cooking zone, a slider appears on the lower edge of the display.

The cooking level is selected by directly touching the required number on the slider or by sliding to the required number. When you lift your finger, the cooking level is set.

Booster function

All the inductive cooking zones have a booster function (P). If the booster is activated, the generator supplies significantly more power than the rated power to a cooking zone. The booster function allows the user to heat food extremely quickly and can therefore help save time.

Activating the booster:

The booster is activated by touching the highest cooking level (P) in the slider area.

While the booster is active, a "P" appears on the cooking zone display. If it is not possible to activate the booster function (for example due to temperature limits) the P flashes for 3 seconds and the booster function is then deactivated.

When the booster function is active, a possibly active automatic heating time is ended and the power level is set to maximum power in order to ensure that the rated power is applied after the booster is deactivated.

The booster function of each cooking zone can be activated for a limited time of 10 minutes. If the pan is removed from a cooking zone with the booster function active, the booster function will not be deactivated but the booster time counter will continue to operate and will not stop. The booster function can be reactivated if the booster time limitation has deactivated the booster, provided the thermal conditions allow it. The thermal conditions are controlled both via the induction and the user interface.

To view the deactivation of the booster, the cooking zone display starts to show a flashing P three seconds before deactivation.

Deactivating the booster:

If the booster function is active, reducing the cooking level deactivates the booster function.

Automatic boiling function

When the automatic boiling function is activated, the cooking zone power is brought to 100% for a period of time depending on the selected cooking level.

As soon as the boiling time has finished, the cooking level continues at the previous cooking level.

The boiling times are shown in the table below.

Cooking level Automatic boiling function(minutes)
0	0
1 0.8
2 2.4
3 3.8
4 5.2
5 6.8
6 2.0
7 2.8
8 3.6
9 0.25

Activating automatic boiling:

• The Touch Control must be switched on and a cooking zone selected.

• Automatic boiling is activated by keeping your finger pressed on the desired continuous cooking level (between level 1 and 8) for 2.5 seconds.

• The cooking zone display shows a r automatic boiling next to the continuous cooking level. When boiling is complete, only the power level is displayed.

• Within 15 seconds, the continuous cooking level for the boiling function can be changed to a higher or lower continuous cooking level by selecting the cooking zone and touching another cooking level on the slider
• It is also possible to switch to a higher continuous cooking level after 15 seconds. A cooking level lower than the continuous cooking level will deactivate the function (see deactivating automatic boiling).

If the continuous cooking level is changed, the boiling time will be recalculated (new boiling time minus the time previously activated while automatic boiling was active).

Deactivating automatic boiling:

• The cooking zone must be selected
- Bringing the cooking level to a level below the continuous cooking level set for automatic boiling deactivates the automatic boiling function. Alternatively, the cooking zone can be switched off by setting the cooking level to "0".

Automatic bridge

The system features an automatic bridge function detection system.

As soon as the system has recognised that two or three zone sensors are covered by a pan at the same time (such as a large oval pan), the system automatically sets the bridge. The brackets of the bridge and the slider appear and the user need only set the cooking level.

Deactivation of the semi-automatic bridge:

- Remove the pan from the relevant zone

Chef Function

Setting the power level based on the position: as in some professional kitchens, the position of the pan determines the power level.

The function is activated by pressing the icon

At this point, the 3 "chef" zones will appear on the display, corresponding to the bridge between zones 1-2-3, between 4-5, and 6-7-8, presenting as standard selected powers, respectively 2 for the zone on the left, 6 for the central zone and 9 for the right zone.

The pan can then be moved freely between the three zones to increase or decrease the power supplied to the pan. To change the default powers, simply select one of the three zones. At this point the powers slider will appear, then simply select a value from 1 to 9 or P.

To disable the Chef function, simply reselect the icon

Heating function

Activation:

The Heating function is temperature-controlled and available in three stages. The power is adjusted automatically. To activate this function it is necessary to select a cooking zone by pressing and holding the same cooking zone for 2 seconds. A "Cooking functions" sub-menu will then appear, with the possibility of

choosing between two functions: Timer and Heating.

Then select "Heating" and a choice of 3 predefined settings will appear: 40, 70 and 90°C.

Once one of the three temperatures has been chosen, a symbol will appear on the display next to the previously selected cooking zone

If the pan is not yet present in this zone, the heating symbol and the missing pan symbol flash alternately.

The pan will start the heating phase until it reaches the set temperature.

Deactivation:

To deactivate the heating function, it is necessary to select the previously selected cooking zone and to set any cooking level, or to set it to 0 to switch it off.

Child lock function

After turning on the control unit, it is possible to activate the child safety mechanism. After activation of the child lock, the child lock mode is set permanently. This means that even in standby mode the child lock remains active.

Activating the child lock:

The child lock mode is available in the settings menu.

The settings menu is accessed by pressing the multifunction button

By selecting the Block symbol in the relevant slider area, the block menu is displayed. The child lock must be confirmed by pressing the "off" symbol.

Subsequently the "lock on" mode will be activated.

If the induction hob is switched off, the following screen will appear when switched on again.

Two white key icons on a black background: one with a small arrowhead, the other with a padlock (no text or symbols)

To remove the lock, slide the "key" symbol towards the "padlock" with your finger.

NOTE: to permanently delete the child lock it is necessary to enter the settings menu and deactivate the lock.

Deactivating the childproof lock:

To deactivate the child lock, it is necessary to enter the Child lock menu again in the same way as described above.

Temporary unlock:

During the time the child lock function is activated, the user interface must be unlocked every time after switching on the hob. When the hob turns on, the unlock screen appears. Now it is possible to unlock the hob by sliding the "key" symbol towards the "padlock".

Acoustic feedback (buzzer)

The following actions are indicated by the buzzer:

• Normal key pressed -> short single beep
• Incorrect activation of a permanent key for a longer time (>10s.) -> intermittent beep

Timer function

The timer function is available in two qualities, "Egg Timer" and "Cooking Timer"

"Egg Timer" function:

If the induction hob is on (all the cooking zones are in position "0"), it is possible to activate the autonomous timer by pressing the "00m 00s" timer on the display.

After this action, the timer menu appears. The user can set a countdown with the values mm : ss, minutes and seconds respectively

Alternatively, the timer value can be reset by pressing the symbol on the right 🔒.

Pressing the "hourglass" symbol exits the menu and the timer starts counting down. After the counter has expired, audible feedback and visual feedback (flashing "00:00") is provided. The acoustic feedback ends after 2 min. or by touching any key.

Switching off the egg timer:

The timer can be switched off by re-entering the timer menu and pressing the ON/OFF symbol.

Adjusting the active egg timer:

This can be achieved by re-entering the timer menu and adjusting the timer value. By selecting "the hourglass" in the relative slider position, the timer starts counting down with the new timer value.

Cooking timer:

It is possible to set the cooking zone timer for each individual cooking zone. As soon as the counter has expired, the cooking zone switches off automatically.

Activating the cooking timer:

To activate a timer for a cooking zone, it is necessary to turn on the hob and select a cooking zone.

After selecting a cooking zone, it is necessary to press and hold the same cooking zone, then select the timer from the "Cooking functions" menu. The timer menu appears, where the values can be set as follows:

h: mm: ss

The timer starts confirming the settings with a flashing "timer symbol". Alternatively the timer value can be reset by pressing the reset symbol on the right. The remaining time is displayed on the corresponding cooking zone.

The active timer can also be adjusted or stopped by selecting the cooking zone and re-entering the timer menu. After the counter has expired, audible feedback and visual feedback (flashing "00:00:00") is provided. The acoustic feedback ends after 2 min. or by touching a random key.

Pause and Call up function

Activating the Pause function:

When at least one cooking zone is in operation, the pause function can be activated. To activate the pause function, press the "I I" symbol on the display.

The pause condition can also be activated with cooking zone specific errors - here the error display is hidden. The indication of residual heat and special messages are also hidden; the pause display has priority.

While the Pause function is active:

While the pause function is active, no power will be supplied to any cooking zone. All system states will be maintained throughout the pause. After the pause, the timeout counters will be restarted for the cooking zones without pans detected (max. 10 min). Any timers (including the egg timer) set before the pause will be interrupted during the pause and continue upon exiting pause mode.

When the pause mode is activated, a selected booster or automatic boil function is ended.

The residual heat calculation and the maximum operating time limitations will not be interrupted and will continue to run in the background.

Pause mode can only be activated for a maximum of 10 min. If the pause mode is not deactivated within 10 min, the hob switches off automatically. During the pause time it is possible to use the on/off button to turn off the control. In this case, the pause mode is also deactivated.

Deactivating the pause mode:

To deactivate the pause mode, press the position indicated on the slider. This will reactivate the state prior to activation of the pause.

Call up function:

If the control has been accidentally turned off via the main switch, all the settings can be restored using the call up function. After turning off the control from the main switch, the user has 6 seconds to turn the control back on and then the settings will be reset automatically. The call up function can only be used if

at least one cooking zone was active (cooking level>0).

Settings restored:

• Cooking levels of all the cooking zones.
• Minutes and Seconds of the timers relating to the active cooking zone.
  • Automatic heating time and booster function.
• Child lock state.

Time lock 20 seconds

To activate the time lock function, it is necessary to briefly press the 20 sec button.

While the time lock is active, the following message is displayed and the remaining time is counted down.

General hob settings

The user can adjust the general settings of the hob. These settings persist even after the hob is switched off. It is possible to adjust the following settings:

• Language selection
• Display brightness
• Volume control
  To access the settings menu, press the button on the right.

Language selection

To change the language settings, enter the settings menu by pressing the settings button. Next, select the "globe" symbol. The language menu is now displayed.

The currently selected language is shown highlighted in bold. To change the language, press the point indicated in the slider area. As soon as a language is selected, the menu automatically closes. Additional languages other than those displayed can be selected by pressing the "arrow" key on the right, in the top right. An additional language screen will appear.

Display brightness

To change the brightness of the display, access the settings menu by pressing the relevant key. Next, select the "sun" symbol. The Brightness menu is now displayed. To adjust the brightness level, simply slide on the slider area where the brightness level increases from left to right. To exit the menu, press the "back" button.

Button

INDIETRO/BACK

Volume control

To change the volume, enter the settings menu.

Next, select the "speaker" symbol. The volume menu is now displayed. To adjust the volume level, simply slide on the slider area where the volume level increases from left to right. To exit the menu, press the multifunction button again.

Maintenance

Traces of foil, food residues, splashes of fat, sugar or very sugary foods must be removed immediately from the hob using a scraper to avoid damaging the hob surface.

Then clean with SIDOL or STANFIX and kitchen paper, rinse with water and dry with a clean cloth.

Never use abrasive sponges or clothes and avoid using aggressive chemical cleansers such as OVEN SPRAYS or STAIN REMOVERS.

DO NOT USE STEAM CLEANERS

Fig.5

Line drawing of a hand holding a paintbrush with a curved line above, depicting paint residue or residue (no text or symbols)

EN 4 - Installation instructions

Installation

these instructions are aimed at qualified fitters as a guide to installation, adjustment and maintenance in compliance with the laws and standards in force. The operations must always be carried out with the appliance disconnected from the electricity supply.

Positioning

The appliance is made to be fitted into a counter top, as shown in the figures at page 18. Apply the sealant supplied around the whole perimeter of the hob. Installation over an oven is not recommended, but if this is necessary, check that:

• the oven has an efficient cooling system;
- there is no passage of hot air from the oven to the hob;
- allow air passages as shown in the figure.

Electrical connection

Before connecting to the electricity supply, ensure that:

• the characteristics of the system are such as to satisfy that indicated on the registration plate applied to the bottom of the hob;
• the system has an effective earth connection compliant with the standards and laws in force. Connection to earth is compulsory by law.

If the appliance has no cable and/or plug, use material suitable for the absorption indicated on the registration plate and for the working temperature. The cable must not reach a temperature higher than 50^ C above room temperature in any point.

For direct connection to the network it is necessary to fit an omnipolar switch of a suitable size to ensure disconnection of he network with a contact opening distance that allows complete disconnection in the conditions of the overtension category III, compliant with the installation regulations (the yellow/green earth wire must not be interrupted).

The omnipolar socket or switch must be easy to reach when the appliance is installed.

N.B.:

- The manufacturer declines all responsibility if the usual accident prevention standards and the above instructions are not observed.

If the power cable is damaged, it must be replaced by the manufacturer or by the manufacturer's technical servicing network, or by a similarly qualified operator, to prevent every possible risk.

VSee the power supply cables table, page 20.

List of errors displayed

In case of errors or malfunctions of the hob, a number of error codes may appear on the display.

The intervention must be performed by technical assistance and by a specialist technician.

Error message Description Possible error reason Troubleshooting
ER03+ Steady tone	Permanent Key activation, interface shut down at 10s	Water or cookware on the glass above the interface	Cleaning of the
ER 20	Flash - failure μC- faulty Exchange control unit
ER21	Control unit shuts down, caused by overtemperature, to avoid damage of the touch control	Control algorithm has reached overtemperature, because ambient temperature is to high	Let cooktop cool down, check temperature isolation to user interface
ER22	Defective Key evaluation. Control unit cuts off after 3.5 - 7.5 sec.	Short-circuit or discontinuation in the range of the key evaluation	Exchange control unit
ER31	Configuration data is wrong Configuration of the induction necessary		New configuration
ER36	NTC value is not within its specification (value < 200mV or >4.9V; control unit cuts off	Short-circuit or cut-off at NTC Exchange control unit
ER40	Secondary voltage is min.5s to low (1,8V< UPowerfail< 2,9V)	Primary-PTC to hot Disconnect interface from power supply
ER47	Communication failure between induction and Touch Control	No or incorrect communication Connection cable broken or incorrect mounted
E2	Overtemperature on the cooking zone		Let the system cool down
E6	Failure of the power unit Change power
E7	Unknown mistake Change induction modul
E8	Fan failure Fan or control electronics of the fan are broken		Change induction modul
E9	Broken coil temperature sensor Change coil sensor
U 400	Secondary voltage of the power unit to high (primary >300V). Control unit cuts off after 1 sec releasing a permanent tone.	Control unit is wrongly connected.	Connect to correct mains voltage
E/A	Error on power board or supply element	No power supply of the power element or error on power board	1. Check wiring2. Check filter board3. Replace power board

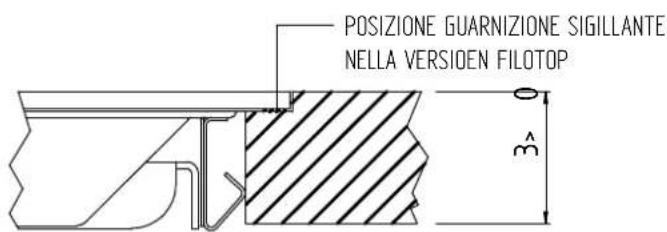

Technical cross-section diagram of a structural assembly (no text or labels)

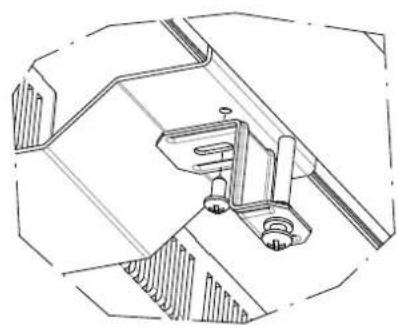

Technical line drawing of a mechanical assembly with no visible text or symbols

Note: Per version 60 models do not need to be lowered by 4.8 mm

Note: Non mitigative oxidation are the glass when lowering by 4.8 mm

Model	Rated power [W]	Rated Voltage
			220-240 V220-230 V230-240 V220 V; 230 V; 240 V	380-415 V 3N380-400 V 3N400-415 V 3N380 V 3N; 400 V 3N; 415 V 3N
IND90G5B8TRIC 1	11040 W	380-415 V 3N380-400 V 3N400-415 V 3N380 V 3N400 V 3N415 V 3N	-	Max 16 A (x3)5 x 2.5 mm2
		220-240/380-415 V 3N220-230/380-400 V 3N230-220/400-415 V 3N a)220/380 V 3N230/400 V 3N240/415 V 3N	Max 24 A (x2)b)5 x 2.5 mm2	Max 16 A (x3)5 x 2.5 mm2

a) The appliance can be adjusted for different rated voltages, from 220-240 V (single-phase with 5 conductors) to 380-415 V 3N (three-phase with 5 conductors), but is equipped with a power cable only for 220-240 connection V (single-phase with 5 conductors).
The same 5x2.5 mm2 cable mounted in the factory for single-phase connection can be used for three-phase connection, simply by moving the wire from 4 to 3, and removing the two jumpers between 1-2 and 2-3
b) Single-phase connection: 5-conductor power cable: 2 conductors for neutral, 2 conductors for 1 phase, 1 conductor for earth.

USABLE POWER CABLES

H05RR-F 5x2.5

H05VV-F 5x2.5

H05V2V2-F 5x2.5

H05RNF-F 5x2.5

H05SS-F 5x2.5

Illustration of kitchenware including a cooking pan, lid with patterned lid, and a pot with lid (no text or symbols)

Illustration of two cooking panes with handles and side blades, one showing a lid and interior pattern (no text or symbols)

Ungeeignetes Geschirr

Three rectangular panels with cross-hatched patterns and a small container below, no text or symbols present.

ACHTUNG

Simple black rectangular frame with a small circular symbol in the top-left corner, no text or symbols present.

Two white icons: a key and a lock on a black background (no text or symbols)

Technical cross-section diagram of a structural assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

Illustration of two cooking panes with different interior designs (no text or symbols)

Recipientes no adecuados

Three rectangular panels with cross-hatched patterns and a small container on the right (no text or symbols)

ATENCIÓN

Simple black-and-white diagram with a small circular symbol and two labeled buttons (① and <), no readable text or symbols.

Two white icons: a key and a padlock on a black background (no text or symbols)

Line drawing of a hand using a paintbrush to scrape or brush with liquid (no text or symbols)

Instalación

Technical cross-section diagram of a structural assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

N.B. Non pregulare o siliionare l'icristal en la rebaja de 4,8 mm

Modelo	Capacidad nominal Potencia [W]	Tensión Nominal
			220-240 V220-230 V230-240 V220 V; 230 V; 240 V	380-415 V 3N380-400 V 3N400-415 V 3N380 V 3N; 400 V 3N; 415 V 3N
IND90G5B8TRIC 1	1040 W	380-415 V 3N380-400 V 3N400-415 V 3N380 V 3N400 V 3N415 V 3N	-	Max 16 A (x3)5 x 2,5 mm2
		220-240/380-415 V 3N220-230/380-400 V 3N230-220/400-415 V 3N a)220/380 V 3N230/400 V 3N240/415 V 3N	Max 24 A (x2)b)5 x 2,5 mm2	Max 16 A (x3)5 x 2,5 mm2

Illustration of kitchenware including a cooking pan, plate with lid, and a pot (no text or symbols)

Illustration of two cooking panes with different interior designs (no text or symbols)

Three rectangular panels with cross-hatched patterns and a small white object below, no text or symbols present.

UWAGA

Simple black rectangle with a small circular mark in the top-left corner, no text or symbols present.

Two white icons: a key and a padlock on a black background (no text or symbols)

Line drawing of a hand using a paintbrush to brush the paint onto a surface (no text or symbols)

Instalacja

Technical cross-section diagram of a structural assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of kitchenware including a cooking pan, plate with lid, and a pot (no text or symbols)

Illustration of two cooking panes with different interior designs (no text or symbols)

Three rectangular panels with cross-hatched patterns and a small white object below (no text or symbols)

ВНИМАНИЕ

Simple black rectangular frame with a small circular symbol in the top-left corner and two white buttons labeled ① and < on the bottom (no text or symbols within the frame)

Two white icons: a key and a padlock on a black background (no text or symbols)

Line drawing of a hand using a paintbrush to clean or paint residue from a curved surface (no text or symbols)

Установка

Technical cross-section diagram of a structural assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols
