Product Type	Remote Control (Remote Commander)
Brand	Alpine
Model	RUX-H02
Compatible Models	iLX-507, iLX-F509, iLX-F511, i509
Battery Type	CR2032 (coin cell)
Controls	Rotary Knob (volume up/down; press+rotate for subwoofer or bass level)
LED Indicator	Yes, lights on connection/operation
Connection	Bluetooth; pair via Device List on Display Audio
Mounting	Optional bracket mount (left/right side) with screws or double-sided tape
Cleaning	Soft lint-free cloth or cotton swab with mild detergent/water
Safety Warnings	Keep batteries away from children; do not disassemble; avoid distraction while driving
Battery Polarity	Positive (+) side up
Auto Reconnect	Yes, when Display Audio turns on and knob is operated
Operating Environment	Avoid direct sunlight, water, moisture, excessive dust
Included Accessories	Mounting Bracket1, Mounting Bracket2, Screw1, Screw2, Battery (CR2032)

Frequently Asked Questions - RUX-H02 ALPINE

How do I replace the battery in the RUX-H02 remote?

Open the lid by turning counter-clockwise. Insert a new CR2032 battery with the positive (+) side facing up as shown in the illustration.

How do I pair the RUX-H02 with my Alpine Display Audio?

Select [Setup] > [Device] > [Device List] > [Add New Device] on the Display Audio. Then select [ALPINE KNOB] and confirm with [YES] when prompted.

Why is my RUX-H02 not connecting?

Ensure the battery is installed correctly. While the LED is flashing, press the Rotary Knob if it turns off. Re-pair the device following the pairing steps. If still not working, replace the battery.

Can I adjust the subwoofer volume with the RUX-H02?

Yes, if a subwoofer is connected and enabled in the Sound Menu, press and hold the Rotary Knob while turning to adjust the subwoofer volume level.

What vehicles is the RUX-H02 compatible with?

It is compatible with Alpine models iLX-507, iLX-F509, iLX-F511, and i509. It can be mounted on iLX-F509/F511 using the included brackets.

How do I mount the RUX-H02 holder?

Use the included double-sided adhesive tape or screws. For models iLX-F509/F511, use Mounting Bracket1 and Bracket2 with Screw1 and Screw2. Mount on left or right side.

What should I do if the remote gets wet?

Keep the unit away from water. If it gets wet, dry it immediately with a soft cloth. Do not use harsh chemicals.

How do I clean the RUX-H02?

Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution of detergent and water. Never use scouring pads or abrasive powders.

What does the LED indicator mean?

The LED turns on when the unit is connected or operated. While pairing, the LED flashes to indicate connection standby mode.

Can I use the remote while driving?

Only use functions that do not require prolonged attention. Keep volume at a level where you can still hear outside noise. Do not operate in a way that distracts from safe driving.

USER MANUAL RUX-H02 ALPINE

This product connects to the following models.

iLX-507/iLX-F509/iLX-F511/i509

And This product can also be mounted on the iLX-F509/F511. Check P3 for details.

WARNING

This symbol means important instructions. Failure to follow them can result in serious injury or death.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

Do not ingest battery, Chemical Burn Hazard.

The remote commander contains a coin/ button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

This symbol means important instructions. Failure to follow them can result in injury or material property damage.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. When inserting the batteries, be sure to observe proper polarity (+ and −) as instructed.

Handling Precautions

Do not drop or apply shock to the unit. It may get permanently damaged.

Keep the unit away from water and moisture, direct sun and heat, and excessive dust.

Never use scouring pads, steel wool, abrasive powders or harsh chemical agents, such as lye solution, for cleaning.

Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution of detergent and water.

Do not operate this unit in a manner that could distract you from driving safely.

Installation of Remote Control Holder

Do not leave the remote control mounted on the holder, if it is direct sunlight. Remove the remote control from the holder and put it in the glove compartment.

If double-sided adhesive tape cannot install the holder securely, use screws.

When mounted to the Display Audio, do not press the unit hard to operate it. The Display Audio may be damaged.

Attachment

RUX-H02 Mounting Bracket1 Mounting Bracket2
x1 x1 x1	x1 x1 x1
Battery Screw1 Screw2
(CR2032)x1 x2 x2	x1 x2 x2

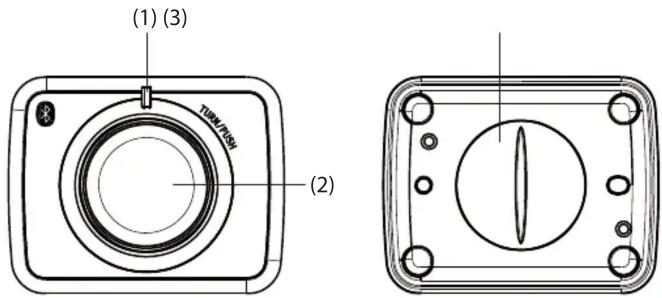

Location of Controls

(1) LED Indicator

It turns on when the unit is connected/operated.

(2) Rotary Knob

To turn the volume up and down, respectively.

(3) Lid

Turn counter-clockwise to open the lid.

Connecting the unit

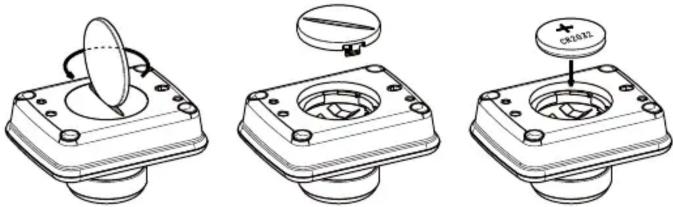

1. Insert the battery using the following procedure:

* Ensure the positive (+) side faces up as shown in the illustration below.

Three technical line drawings of a mechanical component with a circular component inserted into a housing, showing different mounting states (no text or symbols present)

When the battery is set, the unit enters the connection standing-by mode. While the LED is flashing, perform the procedure in Step 2.

If the LED turns off while performing the procedure in Step 2, press the Rotary Knob. The LED starts flashing again.

1. Follow this procedure to connect the RUX-H02 to the Display Audio unit.

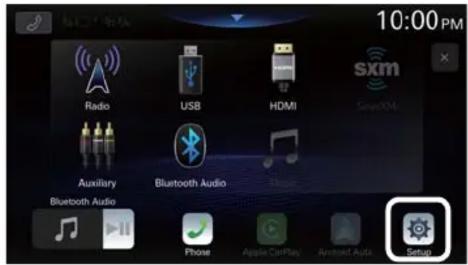

1) Select [Setup].

2) Select [Device], then [Device List].

3) Select [Add New Device].

4) Select [ALPINE KNOB].

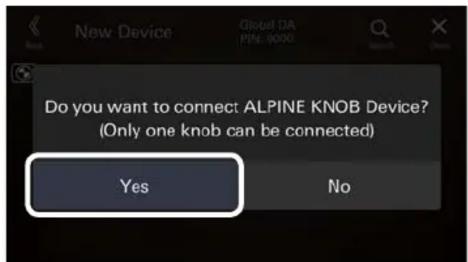

5) Select [YES] when the screen below is displayed.

MEMO

When the Display Audio is off for a certain period of time, the unit is disconnected.

The unit is reconnected automatically when the Display Audio is turned on and the Rotary Knob is operated.

* It may take some time for the unit to reconnect in some situations.

Operating the unit

1. The unit supports the following operation:
   · Turning the Rotary Knob: Volume up/down
2. When the subwoofer is connected and setting is turned on in the Sound Menu of the Display Audio, the following operation is supported.
3. Turning the Rotary Knob while pressing it: Turn the subwoofer volume level up/down
4. When the subwoofer is not connected and setting is turned off in the Sound Menu, Bass volume level adjustment in the Bass/Treble function of the Display Audio is enabled.
5. Turning the Rotary Knob while pressing it: Bass volume level up/down

If the device does not function after making a connection, follow the procedure on page 2 to replace the battery and then try reconnecting.

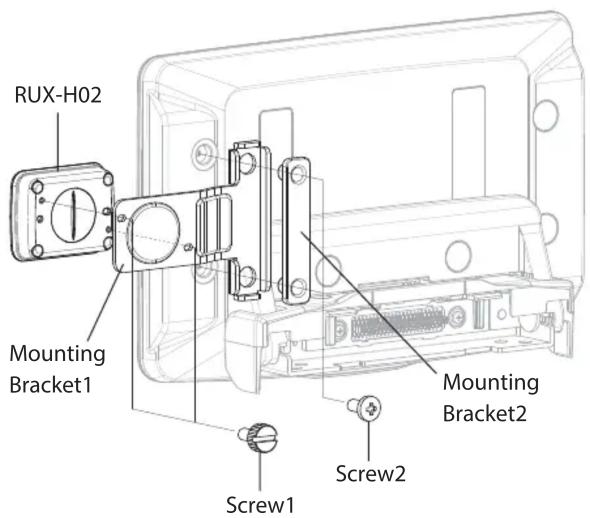

Mounting example

1. The enclosed mounting bracket can be used to mount the unit to iLX-F509/F511. (The unit can be mounted on the left or right side).
