| Product Type | Thermal Monocular with Laser Rangefinder |
| Model | Fuzion LRF TM25-384 |
| Brand | AGM |
| Sensor Resolution | 384 × 288 pixels |
| Display Resolution | 1024 × 768 OLED |
| Magnification | 1x – 8x digital zoom |
| Objective Lens Diameter | 25 mm |
| Detection Range (Human) | Up to 1200 m |
| Laser Rangefinder Range | Up to 800 m |
| Field of View | 10.5° × 7.9° |
| Refresh Rate | 50 Hz |
| Battery Type | CR123A (2x) or rechargeable 18650 (1x) |
| Battery Life | Up to 6 hours continuous operation |
| Dimensions (L × W × H) | 220 × 78 × 65 mm |
| Weight (without batteries) | 480 g |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Waterproof Rating | IP67 (submersible up to 1 m for 30 min) |
| Main Features | Wi-Fi, video recording, image capture, stadiametric rangefinder |
| Cleaning Instructions | Clean lens with soft cloth; avoid solvents; store in dry case |

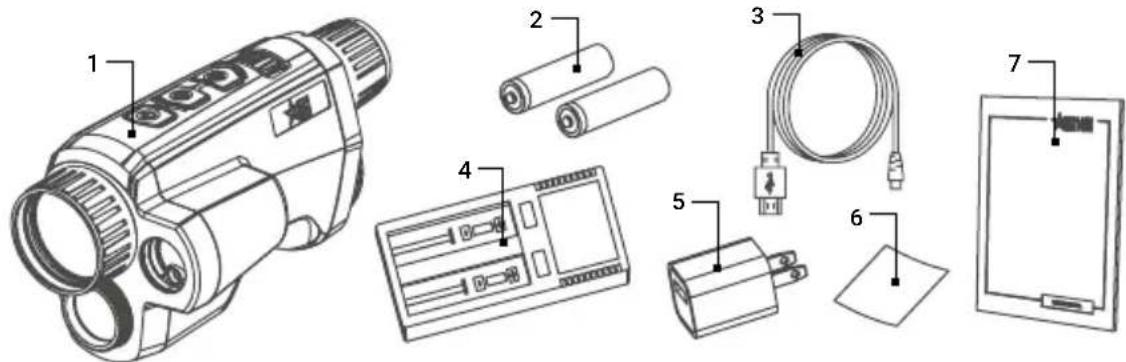

| Included Accessories | Carrying case, lens cap, USB cable, cleaning cloth, user manual |
Frequently Asked Questions - Fuzion LRF TM25-384 AGM
How do I adjust the focus on the AGM Fuzion LRF TM25-384?
Rotate the diopter adjustment ring located near the eyepiece until the reticle is sharp. Then use the objective lens focus ring to sharpen the thermal image.

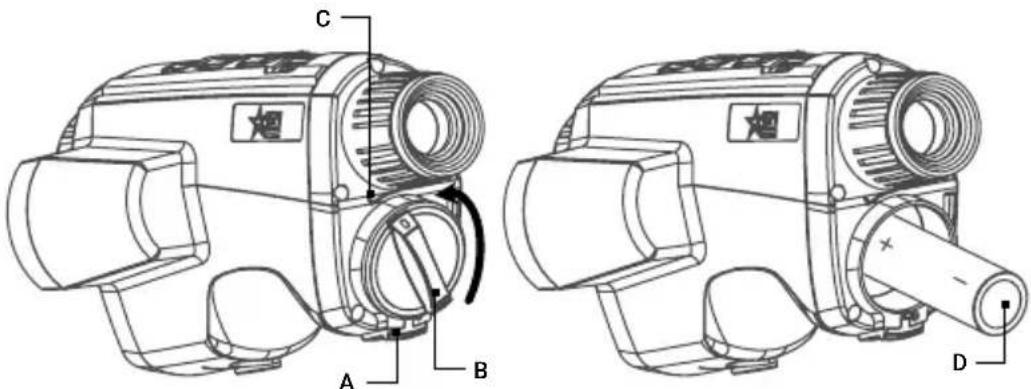

What batteries does the Fuzion LRF TM25-384 use?
It accepts two CR123A lithium batteries or one rechargeable 18650 lithium-ion battery. Always use batteries with over-discharge protection.

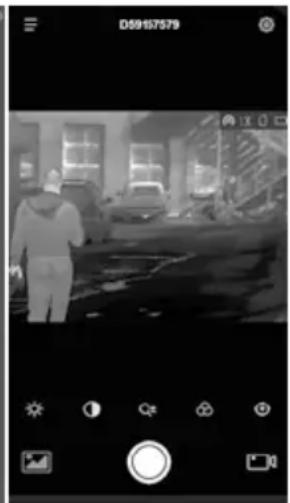

How can I connect the thermal monocular to Wi-Fi?
Enable Wi-Fi in the device menu. Download the AGM Thermal App on your smartphone, connect to the monocular's Wi-Fi network, and use the app for streaming or file transfer.
What is the maximum detection range?
The device can detect a human-sized target up to 1200 meters under ideal conditions. Detection range depends on temperature difference and weather.
How do I record video or take photos?
Press the designated recording button on the device to start/stop video recording. For photos, press the capture button. Files are saved to internal memory or microSD card.
Is the AGM Fuzion LRF TM25-384 waterproof?
Yes, it has an IP67 rating, meaning it can be submerged in up to 1 meter of water for 30 minutes. It is also dust-tight.
How do I calibrate the laser rangefinder?
The laser rangefinder is factory calibrated. If you suspect inaccuracies, perform a manual calibration by pressing the calibration button while aiming at a known distance target.
Can I use the monocular with eyeglasses?
Yes, the eyecup can be folded down to allow eyeglass wearers to view the display comfortably. Adjust the diopter to compensate for your prescription.
What maintenance does the thermal monocular require?
Regularly clean the lens with a soft microfiber cloth. Avoid touching the lens with fingers. Replace batteries when the low battery indicator appears. Store in the provided case in a dry environment.
How do I update the firmware?
Download the latest firmware from the AGM website. Copy the firmware file to a microSD card, insert it into the monocular, and follow the on-screen update instructions in the settings menu.
