Brand	PKM
Model	GS165-2
Product Type	Freezer
Dimensions (H x W x D)	85.0 x 55.0 x 58.0 cm
Net Weight	31.0 kg
Power Supply	220-240 V ~ 50 Hz
Climate Class	N / ST (16-38 °C)
Energy Efficiency Class	E
Annual Energy Consumption	166 kWh/year
Net Capacity	91 L
Freezer Star Rating	4 stars (****)
Freezing Capacity (24 h)	4.4 kg
Storage Time in Failure	12 h
Noise Level	40 dB(A)
Refrigerant	R600a (48 g)
Freezer Drawers	3
Adjustable Feet	2 (front)
Thermostat	Adjustable (MIN to MAX)
Defrosting Method	Manual
Power Cord Length	180 cm

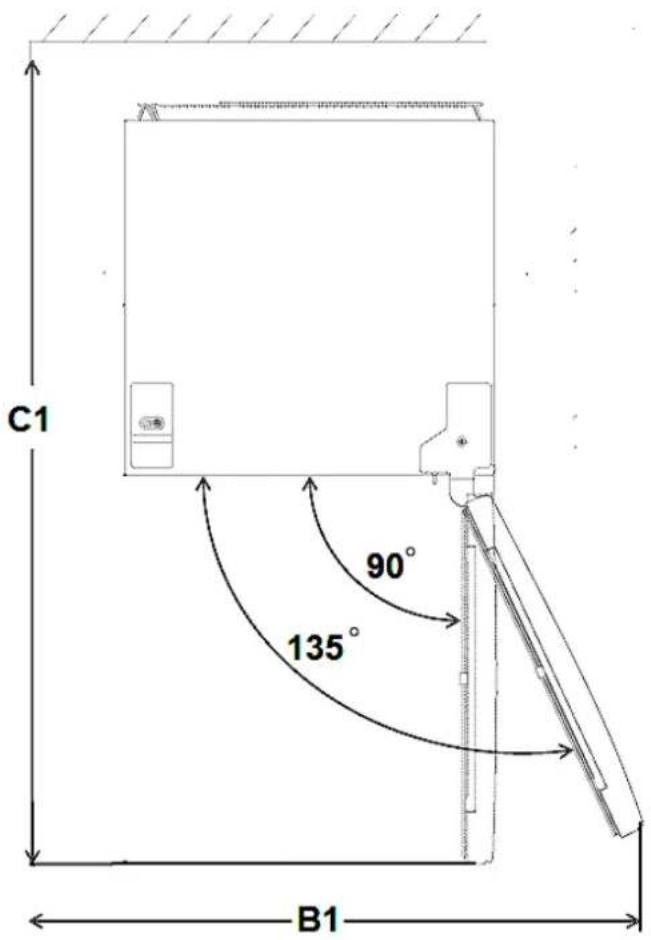

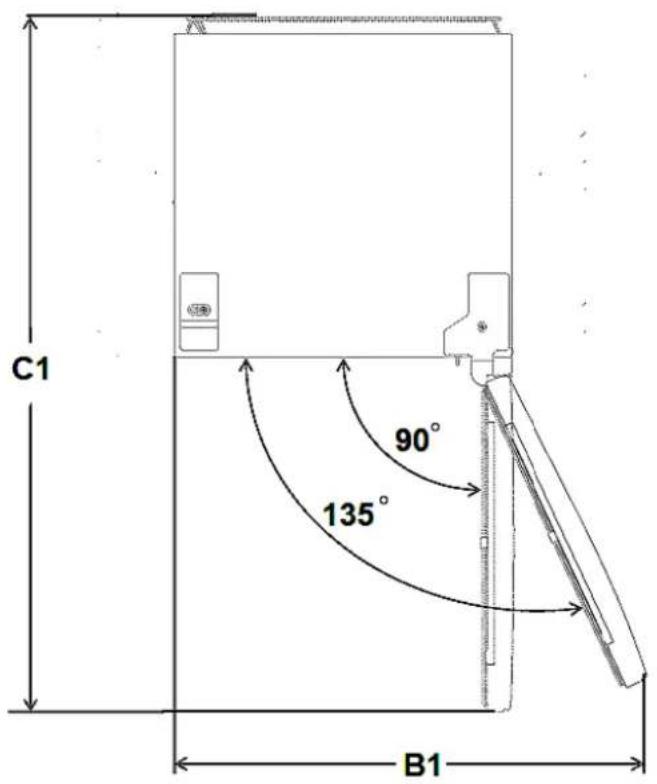

Door Opening Angle	Min. 135°
Worktop	Yes
Reversible Door	Yes (user-reversible)

Frequently Asked Questions - GS165-2 PKM

How do I adjust the temperature on my PKM GS165-2 freezer?

Turn the thermostat knob located on the top cover. Settings range from MIN (warmest) to MAX (coldest). For normal use, set to NORMAL. Allow 3-4 hours to stabilize after adjustment.

How do I reverse the door hinge on my PKM GS165-2?

Unplug the freezer and empty it. Remove the top cover and thermostat knob. Unscrew the top hinge, lift off the door. Tilt the appliance back, remove the bottom hinge and adjustable feet. Rotate the bottom hinge 180°, reinstall on the left side. Reinstall door, top hinge, and top cover. Ensure door seal is properly aligned.

What should I do if my freezer is not cooling enough?

Check if the thermostat is set to a colder setting (e.g., MAX). Ensure the door is fully closed and the seal is clean. Verify ventilation gaps (min. 20 mm back, 20 mm sides, 100 mm above). Avoid overloading with warm food. If issue persists, contact after-sales.

How often should I defrost my PKM GS165-2 freezer?

Defrost when ice buildup reaches about 5 mm thickness. Unplug the freezer, remove food and drawers, place towels to absorb water. Do not use sharp tools or heaters. Clean and dry thoroughly before restarting.

What type of refrigerant does the PKM GS165-2 use?

It uses R600a (isobutane), a flammable but environmentally friendly refrigerant. The appliance contains 48 g. Do not damage the cooling circuit.

Can I store canned drinks in the freezer?

No. Do not store bottled or canned beverages (still or carbonated) in the freezer as they can explode due to expansion.

How do I clean my PKM GS165-2 freezer?

Unplug the appliance before cleaning. Use a soft cloth with warm water and mild detergent. Avoid abrasive cleaners. Clean the condenser twice a year with a vacuum cleaner. Dry all surfaces before restarting.

What is the maximum freezing capacity per day?

The PKM GS165-2 can freeze up to 4.4 kg of fresh food within 24 hours. For best results, set thermostat to MAX before adding fresh food.

How long will food stay frozen during a power failure?

The appliance can maintain safe temperatures for up to 12 hours if the door remains closed. Do not open the door unnecessarily during a power outage.

What should I do if my freezer makes unusual noises?

Normal noises include humming (compressor), clicking (thermostat), and flowing water (refrigerant). If loud knocking or vibrations occur, check if the appliance is level and not touching walls. Ensure items inside are properly stored and nothing is behind the freezer.

User questions about GS165-2 PKM

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Freezer in PDF format for free! Find your manual GS165-2 - PKM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GS165-2 by PKM.

USER MANUAL GS165-2 PKM


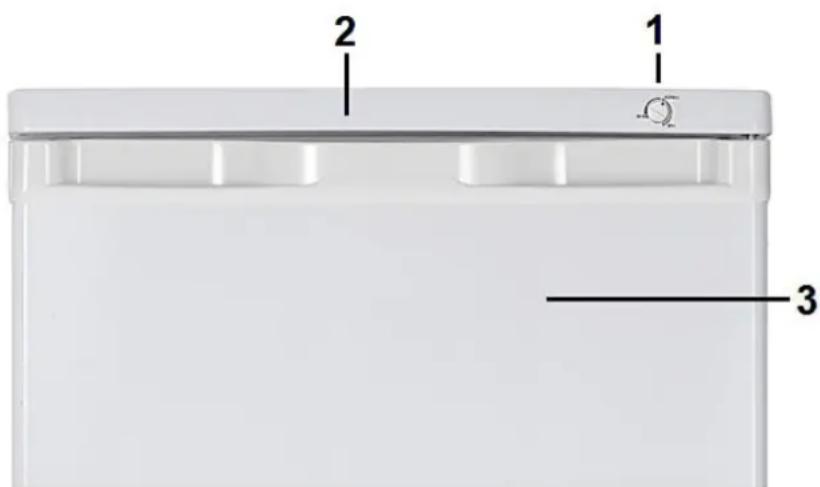

Front view of a white stainless steel refrigerator with a closed lid (no visible text or symbols)

Deutsch

English

Seite

Page

www.pkm-online.de


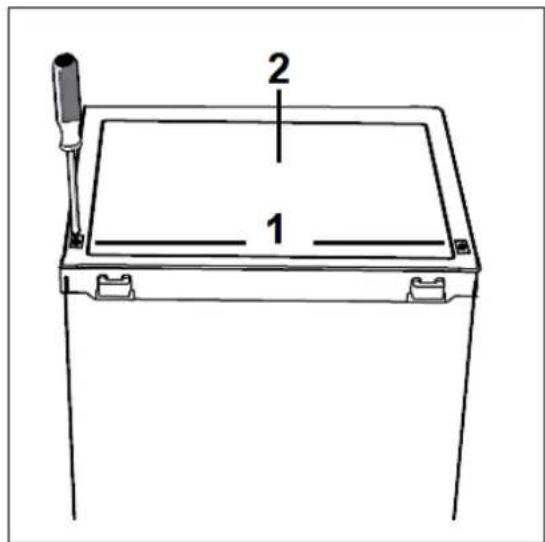

Line drawing of a screwdriver with no text or symbols

FLACHKOPFSCHRAUBENDREHER

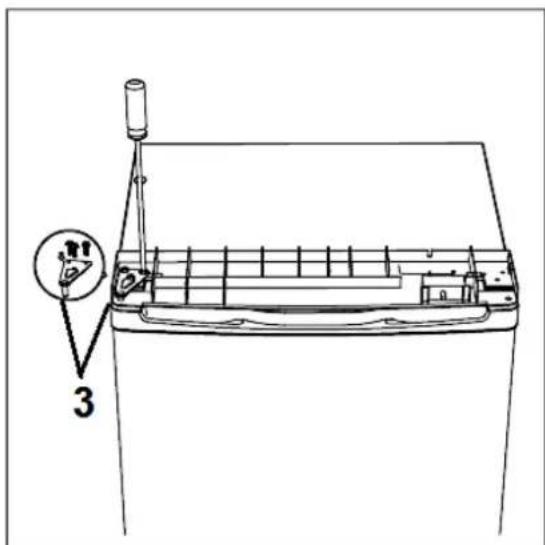

Technical diagram of a washing machine with labeled component '3' and internal structure

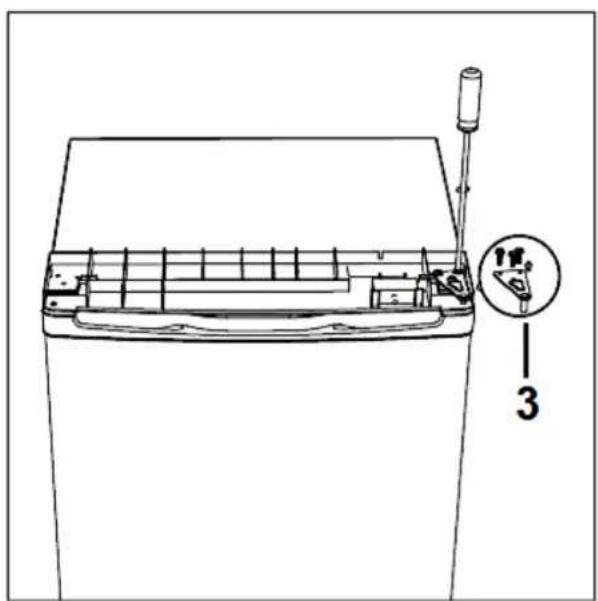

3	OBERES TÜRSCHARNIER

Abb. ähnlich.

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

Safety information....51

1.1 Signal words....52
1.2 Safety instructions....52

Climatic classes....57
Installation 57

3.1 Unpacking and positioning....57
3.2 Space and ventilation requirements ....58

3.2.1 Space requirement....58

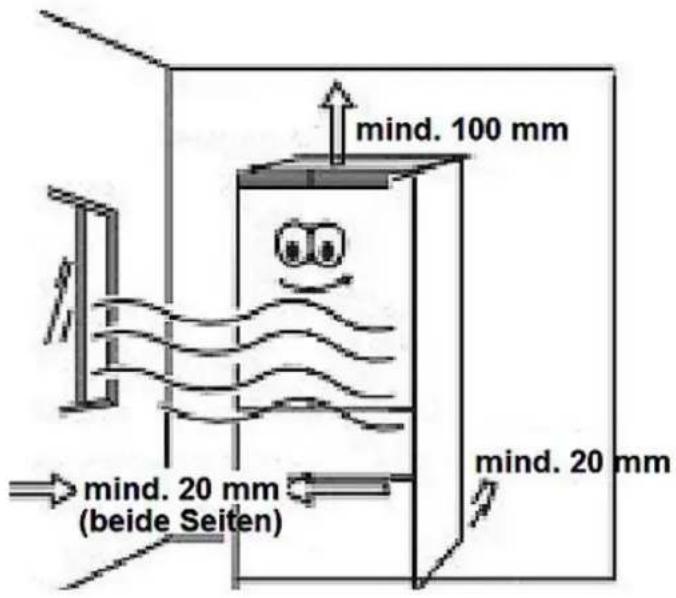

3.2.2 Ventilation....59

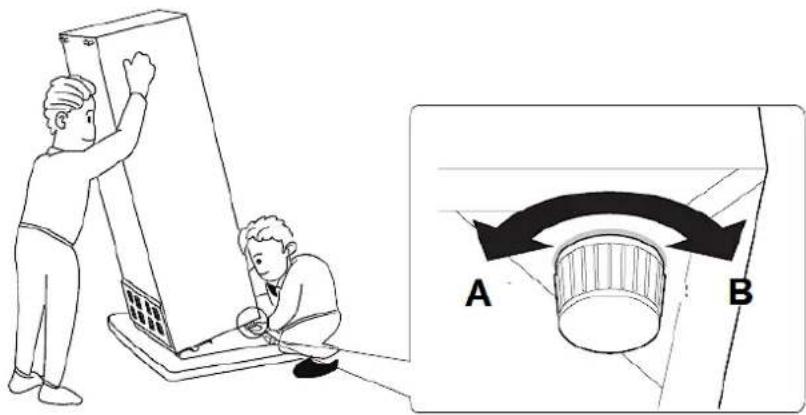

3.3 Levelling....62

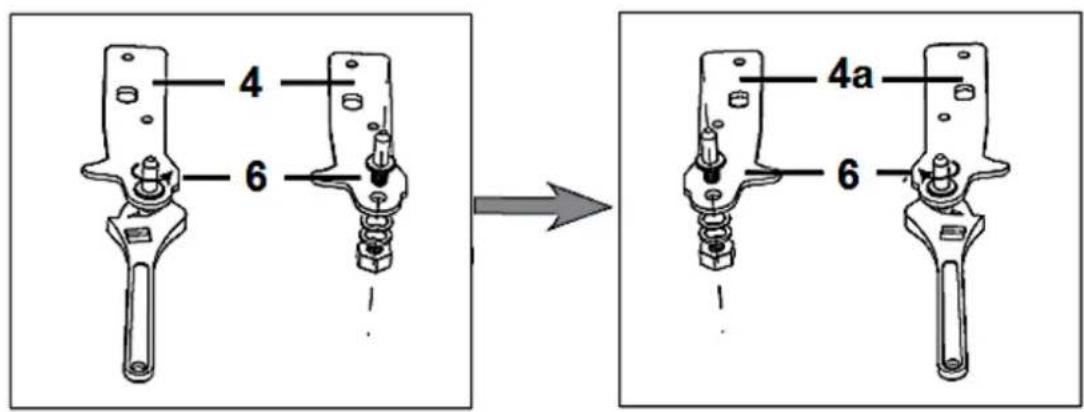

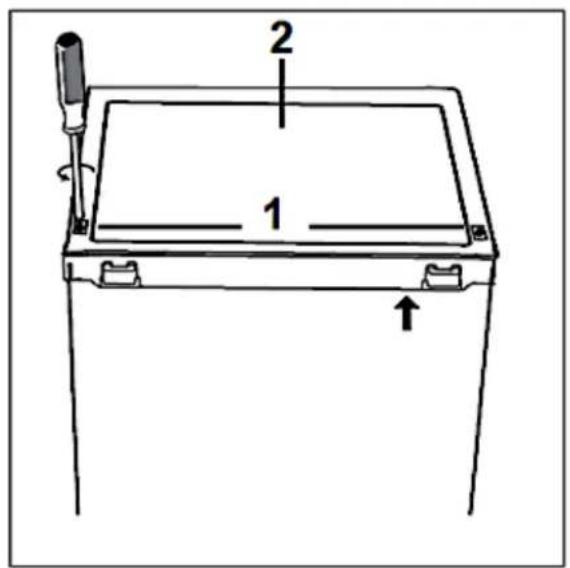

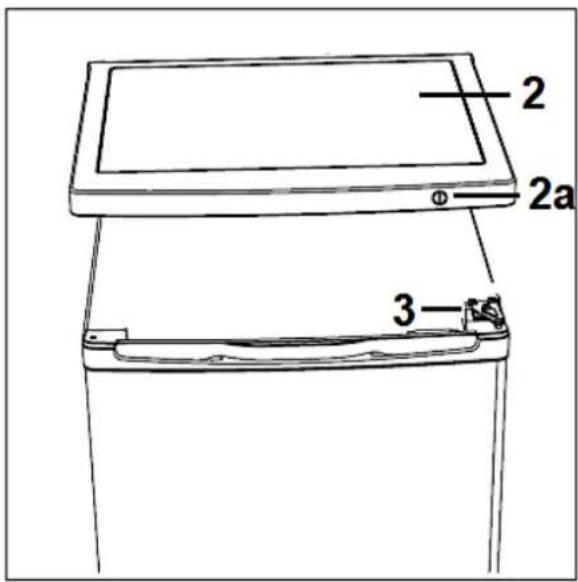

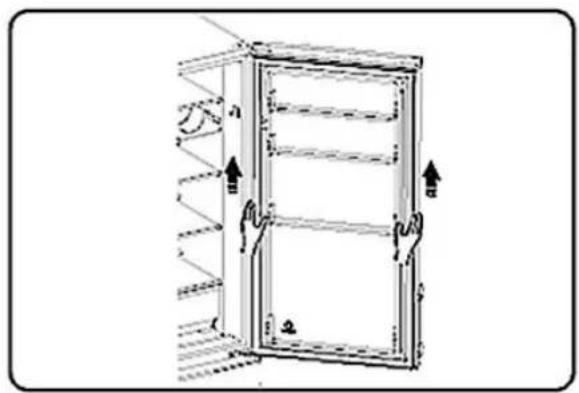

3.4 Change of the hinge position ....63

3.4 Change of the hinge position 63

3.4 Change of the hinge position ....63

....70

Operation....70

4.5.1 Freezer drawers....76

4.5.2 Meaning of the *-labelling of freezers....76

4.6 Storage of food 78

Environmental protection....81

5.1 Environmental protection: disposal....81
5.1 Environmental protection: disposal....81
5.1 Environmental protection: disposal....81
5.2 Environmental protection: energy saving....81
5.2 Environmental protection: energy saving....81
5.3 Operational parameters....82
5.3 Operational parameters....82
5.3 Operational parameters....82
5.3 Operational parameters....82
5.3 Operational parameters....82

Cleaning and maintenance 82

6.1 Defrosting....84

Troubleshooting....85
Decommissioning....88
Technical data....89
Waste management 90
Guarantee conditions ....91

PKM GS165-2 - Index - 1

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children between 3 and 8 years are allowed to load and unload refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
The technical data of your energy supplier must meet the data on the rating plate of the appliance.
Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^13 Original spare parts should be used only.
Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

To reduce the risk of burns, electrocution, fire or injury to persons.

This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the aftersales service or the shop you purchased the appliance at immediately. ^14
If gas is set free at the installation site:

a) open all windows.
b) do not unplug the appliance and do not use the control panel or thermostat.
c) do not touch the appliance until all the gas has gone.
d) otherwise, sparks can be generated which will ignite the gas.

Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
Do not install the appliance near of volatile or combustible materials (e.g., gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g., garage).
EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
Always observe the required minimum distances for proper ventilation.
Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorised professional.
Do not use a socket board or a multi socket when connecting the appliance to the mains.
Never place portable multiple sockets or portable power supplies behind the appliance. RISK OF FIRE!
Do not connect the appliance to an energy saving plug (e.g., Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g., solar systems, power supply of ships.
A dedicated and properly grounded socket meeting the data of the plug is required to minimise any kind of hazard. The appliance must be grounded properly.
Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
Your domestic circuit must be equipped with an automatic circuit breaker.
Do not modify the appliance.
Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!
Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!
Keep the cord away from heated surfaces.
The power plug must always be accessible after installation.
Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
Do not put any heat-radiating appliances onto your appliance.
Do not install the appliance in a place where it may come in contact with water/rain; otherwise, the insulation of the electrical system will be damaged.
Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
Contact with frozen food, ice and metal components in the freezer can cause injuries similar to burns.
Children must never play with the appliance.
Always ensure that children never can get into the appliance. CHOKING HAZARD! RISK OF FREEZING! RISK OF FROSTBITE!
If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

The condenser and the compressor, located at the rear of the appliance ^15 , can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
Do not store any bottled or canned beverages (neither still nor carbonated) in the freezer as their containers could explode.
Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
Never stow food and / or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!
Always ensure that your fingers are not between the door and the housing of the appliance while closing the door. RISK OF CRUSHING!

NOTICE!

Do not store dry ice in the appliance.
1-star (*), 2-stars (**), and 3-stars (*** ) freezers are not suitable for the freezing of fresh food (see also chapter MEANING OF THE *-LABELLING OF FREEZERS).
2-stars ( ^ ) and 3-stars ( ^ ) freezers are suitable for the storing of frozen food (pre-frozen) and ice or for the making of ice and ice cubes (see also chapter MEANING OF THE -LABELLING OF FREEZERS).
When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.
Do not tilt the appliance more than 45^ .
If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
Leave the appliance in an upright position for 4 - 6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for approx. 3 - 4 hours on the highest thermostat setting before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.
Never use the door for moving the appliance as you will damage the hinges.
The appliance must be transported and installed by at least two persons.
When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
Do not operate the appliance unless all components are installed properly.
Do not stand or lean on the base, the drawers, the doors etc of the appliance.
Never close the door(s) of the appliance while shelves or drawers are extended, otherwise you will damage the shelves / drawers and the appliance.
Do not put hot liquids or hot foodstuff into the appliance.
The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
Do not overfill the appliance.
Clean the appliance regularly (s. chapter CLEANING AND MAINTENANCE).
The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. « TECHNICAL DATA » for information about the CLIMATIC CLASS of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10 ^0 →+32 ^0 C	e.g., unheated cellar
N	+16 ^0 →+32 ^0 C	inner home temperature
ST	+16 ^0 →+38 ^0 C	inner home temperature
T	+16 ^0 →+43 ^0 C	inner home temperature

3. Installation

i All dimensions in these chapters are given in millimetres.

The minimum distances required for proper ventilation can be found in chapter 3.2.2 VENTILATION.

3.1 Unpacking and positioning

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

This appliance is not intended for built-in installation.
Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
Remove all packaging materials.
The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent; see also chapter CLEANING AND MAINTENANCE. Never remove any components of the back of the appliance!
Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
If installation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source:

to another refrigerators:	min. 20 mm
to electric cookers:	min. 30 mm
to radiators or ovens:	min. 300 mm

Install the appliance in a dry and well-ventilated place.
Protect the appliance from direct sunlight.
The door(s) must open completely and without hindrance.
Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
Check that the appliance and the power cord are not damaged.
Connect the appliance to the mains properly.
The rating plate is inside the appliance or at the back.

3.2 Space and ventilation requirements

i Observe the required minimum distances for proper ventilation.

3.2.1 Space requirement

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOOR IS CLOSED

B A

A C

A = HEIGHT / B = WIDTH / C = DEPTH
A	B	C
850 mm	550 mm	580 mm

i Please observe the additional top space requirement of the open door relevant to the door opening angle of your appliance (s. fig. below).

C1 90° 135° B1

B 1 = WIDTH / C 1= DEPTH
B 1min. 1100 mm	C 1min. 1130 mm	DOOR OPENING ANGLEmin. 135°

3.2.2 Ventilation

i Observe the required minimum distances for proper ventilation.

MINIMUM DISTANCES REQUIRED FOR PROPER VENTILATION
Back ↔ wall	min. 20 mm
Sides ↔ wall	min. 20 mm
Free space above	min. 100 mm

mind. 100 mm mind. 20 mm beide Seiten mind. 20 mm

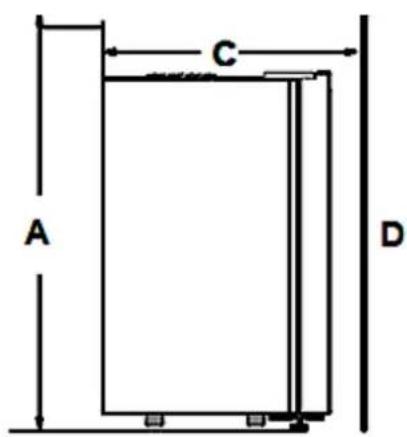

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOOR IS CLOSED (INCL. MINIMUM DISTANCES FOR PROPER VENTILATION)

B A

A C D

A = HEIGHT / B = WIDTH / C = DEPTH
A	B	C	D
min. 950 mm	min. 590 mm	min. 600 mm	Wall

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOOR IS OPEN (INCL. MINIMUM DISTANCES FOR PROPER VENTILATION)

C1 90° 135° B1

B 1 = WIDTH / C 1= DEPTH
B 1min. 1120 mm	C 1min. 1150 mm	DOOR OPENING ANGLEmin. 135°

i Please observe the additional top space requirement of the open door(s) relevant to the door opening angle of your appliance.

The following minimum distances are recommended by the manufacturer to ensure optimum efficiency of the appliance:

back ↔ wall	min. 50 mm
right / left ↔ any piece of furniture / wall	min. 50 mm
free space above	min. 100 mm

These minimum distances may be less, but to do so can increase the power consumption of the appliance.

NOTICE! Damages to the appliance caused by improper ventilation are not subject to the guarantee or the warranty!

3.3 Levelling

Use the adjustable supporting feet for proper levelling and for proper air circulation in the lower sectors of the appliance. Adjust the supporting feet manually by hand or use a suitable spanner.

Diagram illustrating a mechanical device operation with labeled components A and B, showing a person adjusting the door panel and a close-up of the component being turned.

Fig. similar: fig. serves as an example only.

A	TURN THE SUPPORTING FEET CLOCKWISE	➢ The appliance is lowered.
B	TURN THE SUPPORTING FEET ANTICLOCKWISE	➢ The appliance is lifted.

The appliance must stand in a stable and level position to ensure proper operation. The supporting feet must stand firmly on the ground so that the appliance does not wobble. Adjust the supporting feet accordingly. The firm contact of the supporting feet with the ground also ensures that the appliance does not vibrate or move unintentionally.

If you have to move the appliance, set the adjustable feet to minimum position. Readjust the appliance when transport has been completed.

3.4 Change of the hinge position

⚠ WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! The change of the position must be carried out by at least two persons; otherwise, you may hurt yourself or damage the appliance.

NOTICE! You should contact a qualified technician if you want to have the door swing reversed. Only try to carry out the steps described below when you believe that you are qualified to do so.

NOTICE! Adjust the door properly before you finally tighten the screws of the hinges. The seal must close properly.

NOTICE! Do not tilt the appliance more than 45°.

PREPARATORY MEASURES

▶ Empty the appliance.
If possible, remove all door trays, glass shelves and drawers ^16 from the appliance so that they cannot be damaged.
It is necessary to tilt the appliance backwards while removing the door. Lean the appliance against a solid and immovable surface so it will not slip while changing the hinge positions.
Do not lay the appliance flat as this can damage the cooling system.
All parts removed must be saved for proper reinstallation of the door.
➢ Always remove the door carefully. Keep the door in a safe place so that it cannot be damaged.

TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY)

PKM GS165-2 - TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY) - 1
FLAT BLADED SCREWDRIVER

PKM GS165-2 - TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY) - 2
CROSS-HEAD SCREWDRIVER

PKM GS165-2 - TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY) - 3
HEXAGON WRENCH

HOW TO CHANGE THE HINGE POSITION

Disconnect the appliance from the power supply (unplug).
Open the door of the appliance (appliance in upright position) and remove the glass shelves / door trays / drawers, etc. ^17 of the appliance if possible.
Close the door of the appliance.
Unscrew the two screws (1) on the rear side of the top cover of the appliance using a screwdriver (s. fig. below).

2 1

1	SCREWS
2	TOP COVER of the appliance
Arrow	REAR of the appliance

To gain access to the top door hinge (3), you must remove the top cover of the appliance (2) and the thermostat knob (2 a / s. fig. below). Set the cover aside carefully.

2 2a 3

2	TOP COVER of the appliance
2 a	THERMOSTAT KNOB
3	TOP DOOR HINGE

Unscrew the top door hinge (3) carefully and remove it (s. fig. below). Meanwhile, hold the door with your hand so it cannot drop down.

Technical diagram of a mechanical device with labeled parts and a numbered annotation '3'

TOP DOOR HINGE

Lift the door and remove it carefully (s. fig. below). Place the door on a smooth surface with the external cladding facing up.

PKM GS165-2 - HOW TO CHANGE THE HINGE POSITION - 4

It is necessary to tilt the appliance backwards. Lean the appliance against a solid and immovable surface so it will not slip. Do not tilt the appliance more than 45^ .

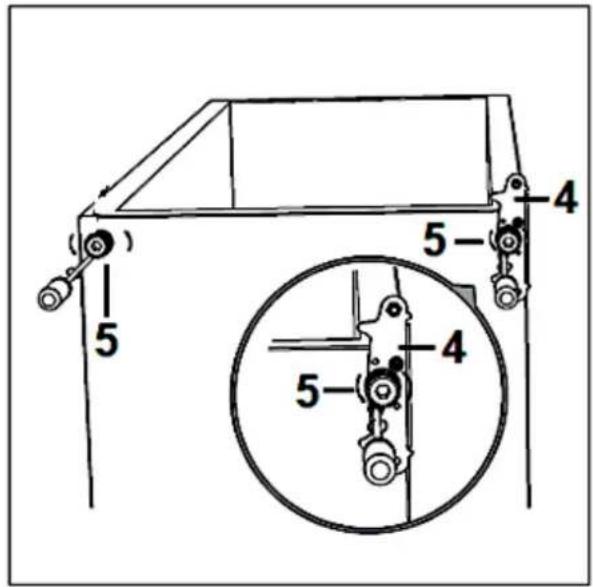

Unscrew the bottom door hinge (4) and the adjustable feet (5 / s. fig. below).

5 4 5 4 5

4	BOTTOM DOOR HINGE
5	ADJUSTABLE FEET

Unscrew (anti-clockwise) the hinge pin (6) of the bottom door hinge (4) and remove it (s. fig. below).
Turn the bottom door hinge through 180^ (s. fig. below).
Reinstall (clockwise) the hinge pin (6) on the bottom door hinge (4 a / s. fig. below).

4 6 4a 6

4	BOTTOM DOOR HINGE
4 a	BOTTOM DOOR HINGE (turned through 180°)
6	HINGE PIN

Align the bottom door hinge (4 a) with the holes on the bottom left side of the appliance properly and screw it tight (s. fig. below).

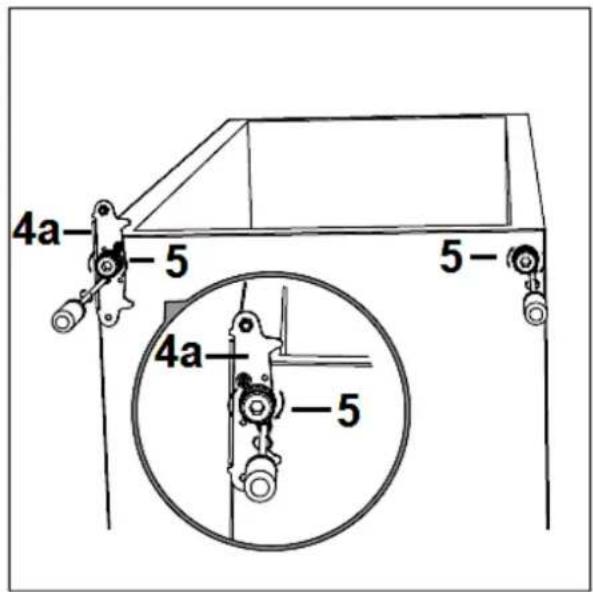

Reinstall the adjustable feet (5) properly (s. fig. below).

4a 5 5 4a 5

4 a	BOTTOM DOOR HINGE (turned through 180°)
5	ADJUSTABLE FEET

Place the appliance in an upright position again carefully. Ensure that the appliance stands in a stable and level position.
Remove the door seal. Turn the door seal through 180^ and reinstall it on the door properly (s. fig. below).

DOOR SEAL (turn through 180°)

Install the door of the appliance on the bottom door hinge. For this purpose, insert the hinge pin of the bottom door hinge into the bottom hinge opening of the door carefully. Hold the door in position.
Align the top door hinge (3) with the prepared holes on the left side of the appliance properly. While doing so, insert the hinge pin of the top door hinge into the top hinge hole of the door. Screw the hinge tightly (s. fig. below).
Meanwhile, hold the door of the appliance with your hand so it cannot drop down.
Ensure that the door of the appliance is installed safely and properly by the hinges.

NOTICE! Adjust the door properly before you finally tighten the screws of the hinge. The seal must close properly.

TOP DOOR HINGE

Install the top cover of the appliance (2) and fix it using the corresponding screws (1 / s. fig. below).

2 1

1	SCREWS
2	TOP COVER OF THE APPLIANCE

Reinstall the thermostat knob properly (s. fig. below).

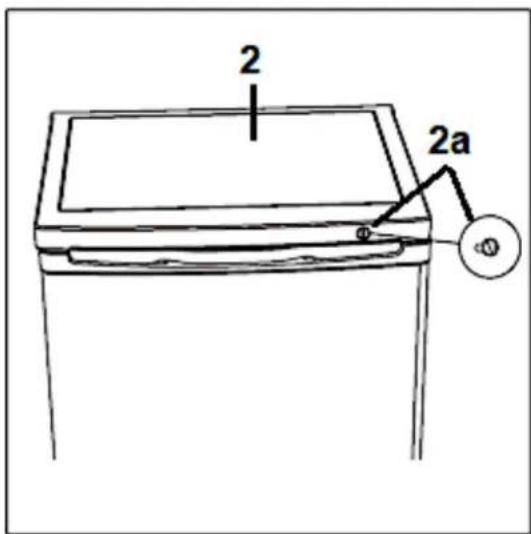

2 2a

2	TOP COVER of the appliance
2 a	THERMOSTAT KNOB

Open the door of the appliance and reinstall the previously removed door trays / glass shelves / drawers / wire shelves, etc ^18 .
Close the door and connect the appliance to the mains again.

NOTICE! Adjust the door properly. The seal must close properly.

4. Operation

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

4.1 Before initial operation

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

NOTICE! Leave the appliance in an upright position for at least 4 - 6 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for approx. 3 - 4 hours on the highest thermostat setting [s. chapter 4.3 TEMPERATURE SETTING (THERMOSTAT SETTING)] before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

Remove all packaging materials.
Adjust the feet and clean the appliance; see also chapters « LEVELING » and « CLEANING AND MAINTENANCE ».
Do not start the appliance immediately after installation. Wait at least 4 - 6 hours to ensure proper operation.
Connect the appliance to the mains properly.
The setting of the freezer temperature can be adjusted manually by turning the thermostat to the desired setting.; s. chapter 4.3 TEMPERATURE SETTING (THERMOSTAT SETTING).
The noise generated by the compressor and the gases / liquids of the appliance is normal.
If operation was interrupted, wait 5 minutes before restart.
The appliance needs some time to balance temperature when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings. When you set the temperature of the appliance, these aspects should be considered.
Due to the difference of pressure, the door may be difficult to open shortly after closing. Wait a few minutes and you can open the door easily.
Operate the appliance according to the instructions described in the following chapters.

INITIAL OPERATION

Set the thermostat of the appliance to the highest setting (= « MAX ») and let the empty appliance operate for 3 to 4 hours.
Select your desired setting. You can store food in the appliance now.

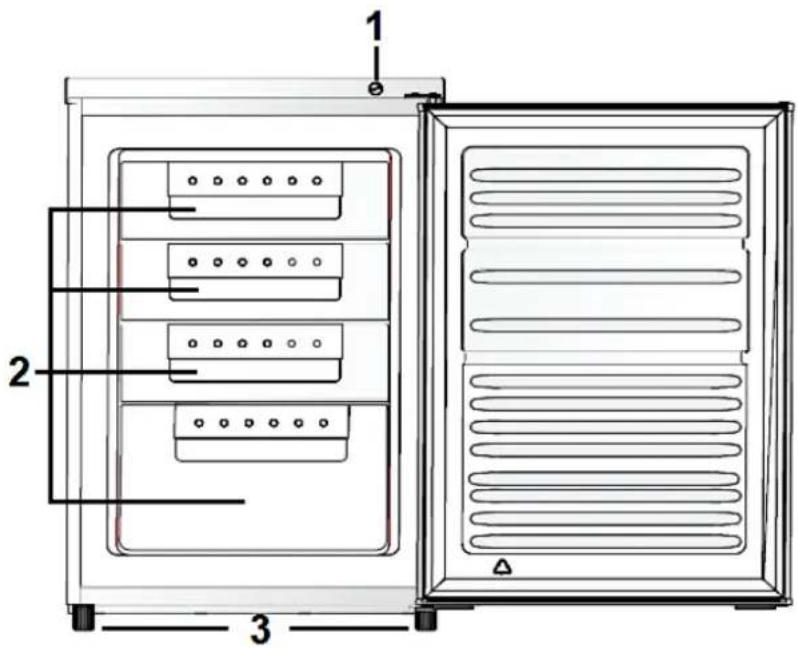

4.2 Description of the appliance

1 2 3

Fig. similar: modifications are possible.

1	ADJUSTABLE THERMOSTAT
2	FREEZER DRAWERS
3	ADJUSTABLE FEET / 2 in front

4.3 Temperature setting (thermostat setting)

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
⚠️ CAUTION! Do not store any bottled or canned beverages (neither still nor carbonated) in the freezer as their containers could explode.

NOTICE! If you want to switch off the appliance for a longer period of time, disconnect it from the mains (unplug!). S. also chapter « DECOMMISSIONING, TEMPORARILY ».

The setting of the freezer temperature can be adjusted manually by turning the thermostat to the desired setting.
When you set a temperature, you set an average temperature for the whole appliance. Temperatures inside each area may vary from the temperature value indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. When you set the temperature of the appliance these aspects should be considered.

TEMPERATURE SETTING (THERMOSTAT SETTING)

The freezing temperature can be adjusted manually by using the relevant thermostat.
The thermostat is at the front of the top cover (worktop) of the appliance (s. figures below).

1 2 3

1	ADJUSTABLE THERMOSTAT
2	TOP COVER of the appliance (worktop)
3	DOOR of the appliance

NORMAL MIN MAX

Figure similar: modifications are possible.

DIFFERENT THERMOSTAT SETTINGS ARE AVAILABLE
Thermostat setting	MIN	lower / slight cooling
Thermostat setting between	MIN and NORMAL	medium-low cooling
Thermostat setting	NORMAL	medium / average cooling
Thermostat setting between	NORMAL and MAX	high / strong cooling
Thermostat setting	MAX	highest / strongest cooling

If you turn the thermostat to « MIN », the temperature inside the appliance will be increased (lower / slight cooling).
If you turn the thermostat to a position between « MIN » and « NORMAL », the temperature inside the appliance is set to a medium-low temperature value (medium-low cooling).
If you turn the thermostat to « NORMAL », the temperature inside the appliance is set to a medium temperature value (medium / average cooling).
If you turn the thermostat to a position between « NORMAL » and « MAX », the temperature inside the appliance will be decreased (high / strong cooling).
If you turn thermostat to « MAX », the temperature inside the appliance will be decreased (highest / strongest cooling).

PLEASE NOTE: the higher the thermostat setting is, the longer the compressor operates to reach the set cooling temperature.

The description of the thermostat settings represents standard values only.

You can check the freezing temperature inside the appliance using a suitable thermometer (not included in the scope of delivery).
When the ambient temperature is extremely high (please observe the climatic class of your appliance in chapter « TECHNICAL DATA »!), you can set the thermostat to a colder setting if needed (thermostat settings: « NORMAL - MAX » or « MAX »); the energy consumption may be increased. If the colder setting should cause strong formation of encrusted ice, please select a lower setting (thermostat settings: « MIN - NORMAL » or « NORMAL »).
Extremely high ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance. Please observe the climatic class of your appliance in chapter « TECHNICAL DATA »!
i Please observe the « RECOMMENDED THERMOSTAT SETTINGS » (s. below).

RECOMMENDED THERMOSTAT SETTINGS
AMBIENT TEMPERATURE	THERMOSTAT SETTINGS
SUMMER(high ambient temperature)
NORMAL(moderate ambient temperature)
WINTER(low ambient temperature)

⚠️ CAUTION! Do not store any bottled or canned beverages (neither still nor carbonated) in the freezer as their containers could explode.

4.4 Power failure

Max storage time in case of malfunctions: s. chapter TECHNICAL DATA.

i In the event of a power failure:

➢ reduce the opening frequency of the doors.
➢ do not put any new food in the appliance to avoid a rapid rise of the temperature inside the appliance.

NOTICE! In an event of a power failure, do not open the door so your food can remain in the appliance for « X » hours (« X »: see chapter TECHNICAL DATA).

4.5 The freezer

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

⚠ WARNING! Contact with frozen food, ice and metal components in the freezer can cause injuries similar to burns.

⚠️ CAUTION! Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

⚠️ CAUTION! Do not store any bottled or canned beverages (neither still nor carbonated) in the freezer as their containers could explode.

The freezer is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

Protect fresh food you want to freeze using aluminium foil, cling film, air and watertight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
Leave some free space between the single pieces of frozen food as proper air circulation is required.
The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).

Only buy frozen food when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
- Observe the complete information on the packaging of frozen food.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the appliance. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.5.1 Freezer drawers

❖ The freezer drawers can be removed according to the appliance.
i Remove all stored food of the freezer drawers before.

HOW TO REMOVE / INSTALL A FREEZER DRAWER

Pull the freezer drawer forward carefully and lift it slightly until you can remove it.
Proceed in reverse order to install the freezer drawer.

PKM GS165-2 - HOW TO REMOVE / INSTALL A FREEZER DRAWER - 1

Fig. similar.

The freezer drawers can be removed and installed for cleaning as shown above. ^19

4.5.2 Meaning of the \*-labelling of freezers

i 1-star (*), 2-stars (**), and 3-stars (***) freezers are not suitable for the freezing of fresh food.
2-stars ( ^ ) and 3-stars ( ^* ) freezers are suitable for the storing of frozen food (pre-frozen) and ice or for the making of ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FREEZER	(**)	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsSuitable for freezing fresh food.
FREEZER	***	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsNot suitable for freezing fresh food.
FREEZER	**	≤ -12 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 2 monthsNot suitable for freezing fresh food.
FREEZER	*	≤ -6 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 1 monthNot suitable for freezing fresh food.
0* - COMPARTMENT	-	-6 ^ - 0 ^	Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).Not suitable for freezing food or for storing frozen food.

4.6 Storage of food

The operation of your appliance is described generally in the chapters « OPERATION » et seq.; the following explanations will help you to store your food properly.
i Food must not get in touch with the surfaces inside the appliance directly. It must be wrapped separately in aluminium foil or in cellophane foil or in airtight plastic boxes.

FREEZING AND STORING OF FOOD IN THE FREEZER

To store deep-frozen food.
To make ice cubes.
To freeze food.

NOTICE! Ensure that the door of the freezer has been closed properly.

PURCHASING OF FROZEN FOOD

The packaging must not be damaged.
Use by the „use by /best before/best by/“ date.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

STORING OF FROZEN FOOD

➢ Store at -18 °C or colder.
- Avoid opening the door of the freezer unnecessarily.

FREEZING OF FRESH FOOD

➢ Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

NOTICE! Keep food to be frozen away from food which is already frozen.

THE FOLLOWING FOOD IS SUITABLE FOR FREEZING

➢ Cakes and pastries.
▶ Fish and seafood.
▶ Meat, game and poultry.
▶ Vegetables, fruit and herbs.
Eggs without shells.
➢ Dairy products such as cheese and butter.
➢ Ready meals and leftovers such as soups, stews, cooked meat and fish.
▶ Potato dishes and soufflés.
▶ Desserts.

THE FOLLOWING FOOD IS NOT SUITABLE FOR FREEZING

➢ Types of vegetables, which are usually consumed raw, such as lettuce or radishes.
Eggs in shells.
▶ Grapes, whole apples, pears and peaches.
➢ Hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

To prevent food from losing its flavour or drying out, place food in airtight packaging.

Place food in packaging.
Remove air.
Seal the wrapping.
Label packaging with contents and dates of freezing.

SUITABLE PACKAGING

Plastic film, tubular film made of polyethylene, aluminium foil.

i These products are available from specialist outlets.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER

These times vary depending on the type of food.

The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

FOOD	STORAGE TIME
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, sconcs and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

IMPORTANT INSTRUCTIONS!

When you freeze fresh foods with a „use by / best before / best by“ date, you must freeze them before this date expires.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

5.1 Environmental protection: disposal

Appliances bearing this symbol « — » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

5.2 Environmental protection: energy saving

Install the appliance in a dry and well-ventilated place.
Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
◆ Protect the appliance from direct sunlight.
Do not line the freezer drawers or the freezer itself with aluminium foil, waxed paper or paper layers; otherwise, optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise, the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged, and the product must be properly stored (sales container -18 ^0 C or lower).
Put the frozen food you want to defrost into the cooling-compartment of your appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature

√ in the cooling-compartment of your appliance

√ in an electrical oven ^20

√ in a microwave ^21

❖ Try opening the door(s) as little as possible, especially when the weather is warm and humid. If you open a door, close it as fast as possible.
To reduce energy consumption, drawers, glass shelves, door trays, wire shelves, etc. ^22 should be left in their original positions.
- Permanently check, that the appliance is well-ventilated. The appliance must be well-ventilated from all sides.
◆ Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

NOTICE! In order to save energy a prolonged opening of the door(s) should be avoided.

5.3 Operational parameters

The appliance can only reach the relevant temperatures when:

the ambient temperature meets the climatic class.
the doors close properly.
you do not open the doors too often or too long.
the door seals are in proper condition.
the appliance is properly positioned.
you have not overfilled the appliance.
you do not store warm or hot food in the appliance.

6. Cleaning and maintenance

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

⚠ WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

NOTICE! Clean the appliance regularly!

Always keep the appliance clean so that unpleasant odours do not occur.
Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise, you will damage the surface of the appliance.

DETERGENT

➢ Do not use any harsh, abrasive or aggressive detergents.

Do not use any solvents.

Do not use any abrasive detergents! Do not use any organic detergents! ^23 Do not use essential oils!

These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING

Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
Use clear water to rinse.
Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING

Clean the shelves and the inside with warm water and a mild detergent.
Use clear water to rinse.
Dry the cleaned surfaces with a cloth.
Check the water drain and clean it if needed.

DOOR SEALS

Clean with warm water and a mild, non-acidic detergent. Do not restart the appliance until the door seals have dried completely.

6.1 Defrosting

⚠ WARNING! Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device. RISK OF ELECTRICAL SHOCK!

⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!

⚠ WARNING! Do not use hairdryers, electrical heaters or other technical devices to accelerate the defrosting-progress. RISK OF ELECTRICAL SHOCK!

HOW TO DEFROST THE FREEZER

The freezer should be defrosted regularly to ensure proper operation.
i The defrosting process can take several hours.

Remove the contents from the freezer and put them into a cooling box.
Remove the freezer drawers; s. also chapter 4.5.1 FREEZER DRAWERS.
Disconnect the freezer from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
When the encrusted ice melts put some dry cloths into the freezer to hold the water back.
Do not use hot water to accelerate the defrosting operation.
Remove the big pieces of ice first.
Afterwards remove the small pieces of ice.
Wipe and dry the appliance and door seals with dry and soft cloths.
After cleaning: leave the door open for some time to ventilate the appliance.

NOTICE! If the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for approx. 3 until 4 hours on the highest thermostat setting [s. chapter 4.3 TEMPERATURE SETTING (THERMOSTAT SETTING)] before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

7. Troubleshooting

WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only.

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
1. The appliance has been switched off for a while.2. Too much or too warm food in the appliance.3. The door(s) is / are opened too often or too long.	1. The appliance needs some time to reach the preset temperature.2. Remove any warm food. Always wait until the food has cooled down to room temperature.3. Do not open the door(s) too often / too long.
FORMATION OF ENCRUSTED ICE.
1. The appliance is set too cold (setting: « MAX »).2. The door(s) is / are not properly closed.3. The door seal is damaged or soiled.	1. Set the appliance to a warmer setting (settings: « MIN » - « NORMAL »).2. Close the door(s) properly.3. Clean and / or replace the door seal.
THE DOOR MAKES A STRANGE SOUND WHEN OPENED.
1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Frozen food is stored improperly.3. Items have dropped behind the appliance.	1. Install the appliance properly.2. Store food properly.3. Remove the items.
WATER DRIPS ON THE FLOOR.
1. The water outlet / water drain screw is not closed properly.2. The water drain plug inside the appliance is not or not installed properly.	1. Close the water outlet / water drain screw properly.2. Install the water drain plug inside the appliance properly.
THE FOOD IS NOT FROZEN COMPLETELY.
1. The appliance is set too warm (setting: « MIN »).2. The door(s) is / are opened too often or too long.3. The appliance is installed near a heat source.4. Too much or too warm food in the appliance within the last 24 hours.	1. Set the appliance to a colder setting (settings: « NORMAL » - « MAX »).2. Close the door(s) properly.3. Please always observe the installation instructions in chapter « INSTALLATION » et seq.4. Set the appliance to a colder setting (setting: « MAX »).

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

PKM GS165-2 - Troubleshooting - 1

THE OPERATING CONDITIONS DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

❖ The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
❖ The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING

You will hear the compressor click if it is activated or deactivated.

HUM

is caused by the compressor while running.

KNOCKING / SNAPPING

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

8. Decommissioning

DECOMMISSIONING, TEMPORARILY

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
remove all food stored in the appliance.
dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION / HOLIDAY (14-21 DAYS):

do the same as described above, or
let the appliance operate.

IF YOU WANT TO MOVE THE APPLIANCE:

secure all removable parts and the contents of the appliance. Pack them separately if necessary.
transport the appliance in an upright position only. All other positions can cause damage to the compressor.
do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE

Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
Cut off the power cord at the appliance.
Completely remove every door of the appliance.
Leave the shelves, trays, drawers, wire baskets, etc. ^24 in their position so that children are not able to get into the appliance.
Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

9. Technical data

TECHNICAL DATA*
Model	Freccer
Climatic class	N / ST(ambient temperature 16 - 38 °C)
Energy efficiency class**	E
Annual energy consumption in kW/h***	166.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Volume gross in l	91
Volume net in l	91
Net volume of the freezer in l	91
Stars	4****
Max. freezing capacity within 24 h	4.40 kg
Max. storage time / malfunction	12.00 h
Noise emission	40 dB/Λ rc 1 pW
Noise emission class****	C
Adjustable thermostat	yes
Compressor	1
Refrigerant / total quantity	R600a / 48 g
Worktop	yes
Door handle	integrated
Internal light	no
Freccer drawers	3
Cable length in cm	180
Adjustable supporting feet	yes / 2 in front
Defrosting process: freezer	manual
Dimensions of the appliance HWD in cm	85.0055.0058.00
Weight net / gross in kg	31.00 / 33.00

◆ Technical modifications reserved.

*	According to regulation (EU) No. 2019/2016
**	On a scale from A (highest efficiency) to G (lowest efficiency) according to the new EU standard.
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.
****	On a scale from A (highest) to D (lowest).

10. Waste management

Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which must be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape, there is FIRE HAZARD!
While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
Old and unused appliances must be sent for disposal to the responsible recycling centre or contact the retailer you purchased the appliance at. They may accept the appliance for environmentally sound recycling. Never expose to open flames.
Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
Dispose of any paper and cardboard into the corresponding containers.
Dispose of any plastics into the corresponding containers.
If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT

The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

PKM GS165-2 - REFRIGERANT - 1

Materials marked with this symbol are recyclable.

PKM GS165-2 - REFRIGERANT - 2

Please contact your local authorities to receive further information.

PKM GS165-2 - REFRIGERANT - 3

The refrigerant R600a is flammable!

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

fragile components as plastic, glass or bulbs;
minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
damage caused by handling errors or false operation;
damage caused by aggressive environmental conditions, chemicals, detergents;
damage caused by non-professional installation and haulage;
damage caused by non common household use;
damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

the prescriptions of the installation and operation of the appliance are not observed.
the appliance is repaired by a non-professional.
the appliance is damaged by the vendor, the installer or a third party.
the installation or the start-up is performed inappropriately.
the maintenance is inadequately or incorrectly performed.
the appliance is not used for its intended purpose.
the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
