GS 169.4A++ - Freezer PKM - Free user manual and instructions

Product Type	Freezer
Brand	PKM
Model	GS 169.4A++
Energy Efficiency Class	E
Annual Energy Consumption	165 kWh
Voltage / Frequency	220-240 V AC / 50 Hz
Gross Volume	165 L
Freezer Volume	165 L
Noise Emission	40 dB(A)
Star Rating	4****
Freezing Capacity (24h)	7.2 kg
Max Storage Time During Malfunction	20 h
Adjustable Thermostat	Yes, from MIN to MAX
Refrigerant	R600a (flammable, environmentally friendly)
Reversible Hinge	Yes
Adjustable Feet	2 front feet
Defrosting Method	Manual
Dimensions (H x W x D)	143.4 x 55.0 x 58.8 cm
Net Weight	42.5 kg
Gross Weight	46.5 kg
Climatic Class	N ~ T (16-43 °C)
Number of Compressors	1
Guarantee	24 months

Frequently Asked Questions - GS 169.4A++ PKM

What should I do before first use?

After installation, leave the appliance upright for 4-6 hours (or 12 hours if transported horizontally) to allow oil to flow back into the compressor. Then set the thermostat to the coldest setting and wait 24-48 hours before storing food.

How do I adjust the temperature?

Turn the thermostat dial from MIN (warmest) to MAX (coldest). For daily use, select the medium setting MED. After a power failure, wait 3-5 minutes before restarting.

How to defrost the freezer?

Turn the thermostat to 0/AUS/OFF and unplug the appliance. Remove food and wrap in newspaper. Place dry cloths inside to absorb water. Do not use sharp objects or hot water. Remove ice, clean, dry, and leave the door open before restarting.

Can I reverse the door hinge?

Yes, the hinge position is reversible. Unplug the appliance, remove hinges and door blockers, install on the opposite side, and adjust the door. Use a cross-head screwdriver, flat-head screwdriver, and hexagonal spanner. Wait 12 hours before reconnecting to mains.

How to save energy?

Place the appliance in a cool, well-ventilated area away from heat sources. Let hot food cool before storing. Open the door as little as possible. Defrost regularly. Keep the condenser clean (twice a year). Do not overfill.

What foods can I freeze?

Suitable: meat, fish, poultry, vegetables (blanched), fruit, dairy (butter, cheese), ready meals. Not suitable: whole eggs, lettuce, radishes, grapes, yogurt, mayonnaise. Freeze fresh food within 24 hours and store at -18 °C.

Is the appliance safe for children?

Children aged 8+ may use it under supervision. Children 3-8 may load/unload. Ensure children do not play with the appliance. When disposing, remove the door to prevent entrapment.

How to clean the freezer?

Unplug the appliance. Use a damp cloth with mild detergent. Rinse with clear water and dry. Do not use abrasive or organic detergents. Clean the condenser with a vacuum cleaner or soft brush twice a year.

What should I do if the freezer does not work?

Check if the plug is connected, socket has power, and fuse is on. Ensure voltage matches the nameplate. If the compressor runs too long, check door sealing and avoid overfilling. If ice builds up, check door closure and seal. For other issues, contact aftersales.

How do I dispose of the appliance properly?

Unplug and cut off the power cord. Remove the door. Do not damage the refrigerant circuit (contains flammable R600a). Take to a designated recycling centre. Dispose of packaging materials (plastic, cardboard) according to local regulations.

USER MANUAL GS 169.4A++ PKM

Front view of a white stainless steel refrigerator with open doors showing internal compartments (no visible text or labels)

3D diagram of a rectangular box with labeled corner points and a small inset detail (no text or symbols)

Diagram of a structural joint or bracket with labeled component '2' (no text or symbols beyond label)

Diagram showing a 3D object being processed from a curved surface, with two circular arrows highlighting the process (no text or symbols present)

3D diagram of a layered electronic device with labeled component '3' (no text or symbols beyond label)

Diagram of a road intersection with an arrow indicating direction (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions ...... 27
2. Climatic classes ...... 31
3. Installation .... 31
   3.1 Site....31
   3.2 Changing of the hinge position.... 32
4. Operation 35
   4.1 Temperature control....35
   4.2 Operational parameters ...... 35
   4.3 Helpful hints/energy saving 36
   4.4 Meaning of the *-labelling of freezers 36
   4.5 Storage of food 38
   5 Cleaning and maintenance....41
   5.1 Defrosting....42
5. Trouble shooting 43
6. Decommissioning....44
7. Technical data 45
8. Waste management 46
9. Guarantee conditions ...... 47

EU - Declaration of Conformity

The products, which are described in this instruction manual, comply with the harmonized regulations.

★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.

The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children between 3 and 8 years are allowed to load and unload refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.
3. If gas is set free in your home:

a) Open all windows.

b) Do not unplug the appliance and do not use the control panel or thermostat.

c) Do not touch the appliance until all the gas has gone.

d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

6. Do not use a socket board or a multi socket when connecting the appliance to the mains.

7. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.

13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

14. Disconnect the appliance from the mains before you clean or maintain it.

15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

16. Do not put any heat-radiating appliances onto your appliance.

17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

21. Children must never play with the appliance.

22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
2. Do not put any gassy beverages into the freezer compartment of the appliance, because their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^0 .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS AMBIENT TEMPERATURE

SN	+100→+320C	e.g. unheated cellar
N +16	0→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T +16	0→+430C	inner home temperature

3. Installation

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter WASTE MANAGEMENT.
2. Remove all packaging materials.
3. Remove the foam between the outside condenser and housing.
4. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
5. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
6. Check that the appliance and the power cord are notdamaged.
7. Install the appliance in a dry and well-ventilated place.
8. Protect the appliance from direct sunlight.
9. The doors must open completely and without hindrance.
10. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

11. Connect the appliance to the mains properly.

12. The nameplate is inside the appliance or at the back.

Levelling

1. Use the adjustable feet at the front to level the appliance properly.
2. When the appliance is not levelled, the door and the magnetic seals will not close properly.

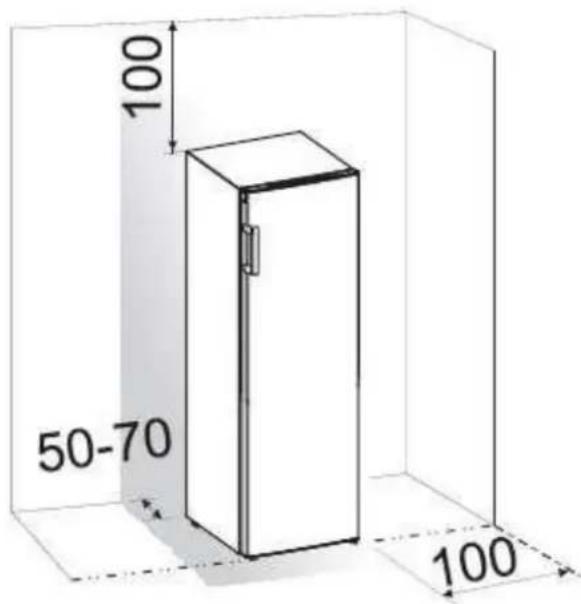

Ventilation ^4

Minimum distances required for proper ventilation:

Back ↔ wall	Min. 50-70 mm
Right/left ↔ any piece of furniture/wall	Min. 100 mm
Free space above Min. 100 mm
Door opening angle Min. 135	0

3.2 Changing of the hinge position

WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45 ^0 .

NOTICE! Adjust the door properly. The seal must close properly.

Tools required: cross-head screwdriver, flat-head screwdriver, hexagonal spanner.

1. Remove the top hinge cover (1).

2. Unscrew the screws of the top hinge (2/ cross-head screwdriver).

Diagram of a 3D rectangular object with a small inset showing a labeled feature '1' (no text or symbols on the object itself)

Diagram of a mechanical assembly with labeled parts (no text or symbols present)

1. Remove the top hinge (A), the door block (B) and the door-bearing bush.

2. Remove the door carefully. Store the door at a safe place to protect it from damage.

A. Unscrew the nut. Remove the washer and install the hinge pin on the other side.


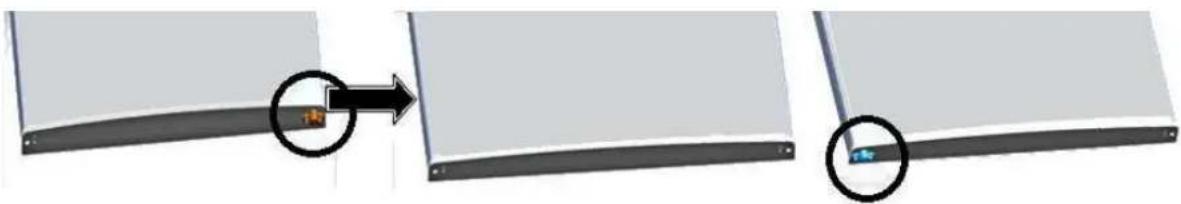

B. Remove the door blockers (top and bottom).

Diagram showing a device being processed from a curved panel, with two circular arrows highlighting the process (no text or symbols present)

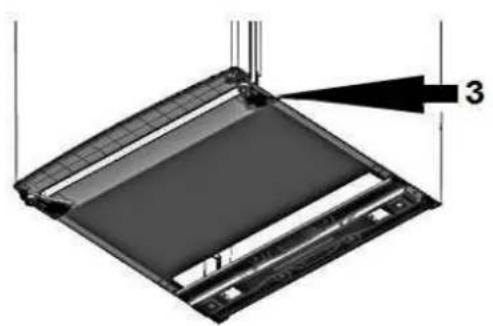

1. Unscrew the screws (3) of the bottom hinge(cross-head screwdriver).

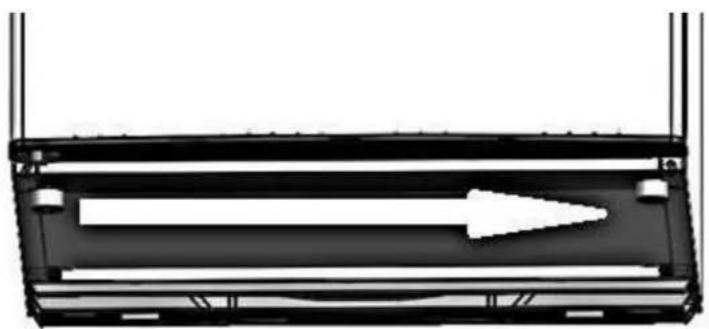

2. Install the bottom hinge on the opposite side.

3D diagram of a layered electronic device with labeled component '3' (no text or symbols beyond label)

Diagram of a road intersection with a white arrow indicating direction (no text or symbols)

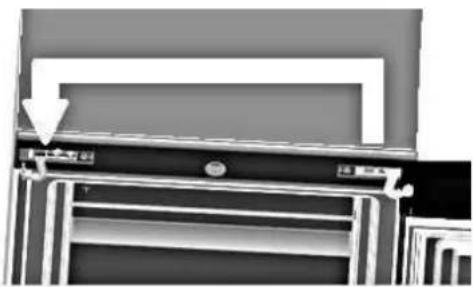

1. Fit the door onto the bottom hinge pin and install the top hinge loosely on the opposite side.

Pure electrical circuit lines without any symbols

1. Adjust the door properly and tighten the screws of the top hinge.

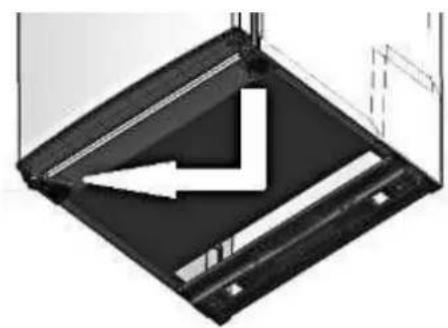

2. Transfer the adjustable foot to the opposite side and level the appliance.

Diagram of a mechanical component with a white arrow indicating direction, no text or symbols present

AFTER INSTALLATION WAIT 12 HOURS BEFORE YOU CONNECT YOUR APPLIANCE TO THE MAINS!

4.1 Temperature control

1. You can select the setting-level of the temperature from MIN (warmest setting) to MAX (coldest setting).
2. When you operate the appliance for the first time: (a.) Set the thermostat to the coldest setting. (b.) Select your desired setting after 24 to 48 hours.
3. Select the medium setting MED for daily use.
4. When the appliance has been disconnected from the mains or switched off or in case of a power failure, you must wait 3 to 5 minutes before restarting the appliance.
5. The description of the setting levels represents standard values only.

WARNING The setting OFF/AUS switches off the compressor only. You must unplug the appliance to disconnect it from the mains.

4.2 Operational parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.
2. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.
3. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

4.3 Helpful hints/energy saving

❖ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase.
Put the frozen food you want to defrost into the cooling-compartment of your appliance.
❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
❖ Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

How to freeze food

• Wrap fresh food you want to freeze in aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
  Leave some free space between the single pieces of frozen food as proper air circulation is required.
  The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter technical data).
  Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
  Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
  Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
• Observe the complete information on the packaging of frozen food.

4.4 Meaning of the \*-labelling of freezers

i 1- (*), 2- (**), and 3-stars (*** ) freezers are not suitable for freezing fresh food.
2-stars ( ^ ) and 3-stars ( ^* ) freezers are suitable for storing frozen food (pre-frozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
Freezer	(***)*	-18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiSuitable for freezing fresh food.
Freezer	***	-18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
Freezer	**	-12°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
Freezer	*	-6°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storageperiod: 1 monthi Not suitable for freezing fresh food.
0* - compartment	-	-6 °C - 0 °C	➢ Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).i Not suitable for freezing food or for storing frozen food.

WARNUNG Do not eat food which is still frozen. The coldness can cause injuries in the mouth.

⚠️WARNUNG Do not touch extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

4.5 Storage of food

Your appliance has the accessories as the “Description of the appliance” showed in general, with this part instruction you can have the right way to storage your food. Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminium sheet or in cellophane sheet or in airtight plastic boxes.

Storing food in the refrigerator compartment

The fridge freezer compartment helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

Store foods that are very fresh and of good quality.

Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. Vegetables and fruit need not be wrapped if they are stored in the vegetable container of the fridge compartment. Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours. Cool hot foods down before placing them in the fridge compartment.

Dairy foods and eggs

Most pre-packed dairy foods have a recommended „use by /best before/best by/ date stamped on them. Store them in the fridge compartment and use within the recommended time.

Butter can become tainted by strong smelling foods so it is best stored in a sealed container.

Eggs should be stored in the fridge compartment.

Red meat

Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.

Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.

Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

Keep shellfish chilled at all times. Use within 1 - 2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.

Keep for only 1-2 days.

Reheat leftovers only once and until steaming hot.

Vegetable container

The vegetable container is the optimum storage location for fresh fruit and vegetables.

Take care not to store the following at temperatures of less than 7^ C for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.

Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

Do not refrigerate avocados (until they are ripe), bananas and mangoes.

Freezing and storing food in the freezer compartment

To store deep-frozen food.

To make ice cubes.

To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

Packaging must not be damaged.

Use by the „use by /best before/best by/“ date.

If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminum foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

When you freeze fresh foods with a „use by /best before/best by/“ date, you must freeze them before this date expires.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

5 Cleaning and maintenance

1. WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

➢ Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^6 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a small amount of washing-up liquid.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. RISK OF ELECTRICAL SHOCK!

1. Remove the contents, wrap them in several layers of newspaper and store them in a cooling box or a cool place.
2. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
3. When the encrusted ice melts put some dry cloths into the appliance to hold the water back.
4. Do not support the defrosting procedure with hot water.
5. Remove the big pieces of ice first. Then remove the small pieces of ice.
6. Clean and dry the appliance and door seals with soft cloths.
7. Leave the door of the appliance open for a while.
8. Put the appliance into operation again as described in chapter 4.

MALFUNCT POSSIBLE CAUSE MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.
➢ Too much or too hot food in the appliance.
➢ Doors opened too often or too long.

The appliance needs some time to reach the preset temperature.
Remove any hot food.
Do not open the door too often/too long.

Strong formation of encrusted ice.

The door is not properly closed.

The door seal is damaged or soiled.

▶ Close the door.

➢ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

▶ Clean the seals.

Uncommon noise.

The appliance is not installed on a flat and level ground.. The appliance touches a wall or other object
➢ Frozen food is stored improperly.
- Items have dropped behind the appliance.

Install properly.
➢ Store food properly.
Remove the items.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating conditions described below are normal and do not indicate a malfunction.

- The refrigerant generates a sound similar to flowing water.

Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.

The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures..

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

→ Decommissioning, temporarily

❖ If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

❖ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.
   a. remove all perishable food from the cooling compartment.
   b. clean the cooling compartment.
   c. freeze all food which is suitable to be frozen.

❖ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

→ Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model	Freezer
Climatic class N~T	(ambient temperature 16-43°C)
Energy efficiency class*	E
Annual energy consumption in kW/h*	165.00
Voltage/frequency	220-240W AC/50Hz
Volume gross/freezer in l	165
Noise emission	40 dB/A
Stars 4****
Freezing capacity/24 h	7.20 kg
Max. storage time/malfunction 20.00 h
Adjustable thermostat yes
Compressor 1
Refrigerant R600a
Changeable hinge position yes
Adjustable feet	2/front
Defrosting	manually
Dimensions appliance H*W*D in cm	143.40*55.00*58.80
Weight net/gross in kg	42.50/46.50

* On a scale from A (highest efficiency) to G (lowest efficiency).

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees.

These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SERVICE INFORMATION

PKM

TECHNOLOGY FOR DOMESTIC USE

Aftersales service information on the leaflet inside this instruction manual.
