Product Type	Freezer
Model	GS86.4A+EB
Brand	PKM
Height	85.0 cm
Width	56.0 cm
Depth	55.0 cm
Net Weight	25.5 kg
Energy Efficiency Class	E
Annual Energy Consumption	180 kWh
Noise Level	42 dB(A)
Climate Class	SN-T (10°C - 43°C)
Net Capacity Freezer	85 L
Freezing Capacity	4.0 kg/24h
Storage Time During Power Failure	12 h
Temperature Control	Mechanical with adjustable knob
Defrosting	Manual
Door Reversible	Yes
Shelves / Drawers	3 transparent drawers
Lighting	Interior LED lamp
Voltage / Frequency	220-240 V ~ 50 Hz
Power Input	90 W
Cord Length	1.5 m
Cleaning	Wipe with mild detergent and water; do not use abrasive cleaners
Spare Parts Availability	Thermostat, door gasket, shelves, and drawers available from manufacturer

Frequently Asked Questions - GS86.4A+EB PKM

How do I set the temperature on my PKM GS86.4A+EB freezer?

Turn the thermostat knob located inside the freezer to the desired setting. Generally, a medium setting is suitable for normal use. For colder temperatures, turn towards MAX; for warmer, towards MIN.

What should I do when the freezer is first installed?

After installation, wait at least 4 hours before plugging it in to allow the refrigerant to settle. Then, plug in and let it run for 2-3 hours before placing food inside to ensure proper cooling.

How often should I defrost the freezer?

Defrost when the frost layer reaches 5-10 mm thickness. This typically occurs every 6-12 months depending on usage. Remove food, unplug, and let ice melt naturally; do not use sharp tools.

Why is my freezer making loud noises?

Normal noises include clicking (compressor start/stop), gurgling (refrigerant flow), and humming (fan). If noises are excessive, check if the freezer is level and not touching walls or cabinets.

Can I change the door opening direction?

Yes, the door is reversible. You will need to unscrew the door hinges and move them to the opposite side. Refer to the manual for step-by-step instructions. Ensure you have a screwdriver and possibly a spanner.

How do I clean my PKM freezer?

Unplug the freezer and remove all food. Use a soft cloth with mild detergent and water to clean the interior and exterior. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or sharp objects.

What is the storage time during a power failure?

The freezer can maintain safe temperatures for about 12 hours if unopened. Keep the door closed during a power outage to maximize storage time. If food remains frozen or has ice crystals, it can be refrozen.

How can I reduce energy consumption?

Place the freezer in a cool, ventilated area away from heat sources. Keep the condenser coils clean. Avoid frequent door openings and allow hot food to cool before storing. Ensure the door seal is tight.

What does the climate class SN-T mean?

SN-T indicates the freezer is designed for ambient temperatures from 10°C to 43°C. This means it can operate effectively in both moderately cold and hot environments, but extreme temperatures may affect performance.

Are spare parts available for this model?

Yes, common spare parts such as the thermostat, door gasket, shelves, and drawers are available from PKM or authorized distributors. Contact customer service with your model number GS86.4A+EB.

USER MANUAL GS86.4A+EB PKM

Blank whiteboard with a black border and corner connectors (no text or symbols visible)

Deutsch

Seite

2

English

Page

40

www.pkm-online.de

X

Y

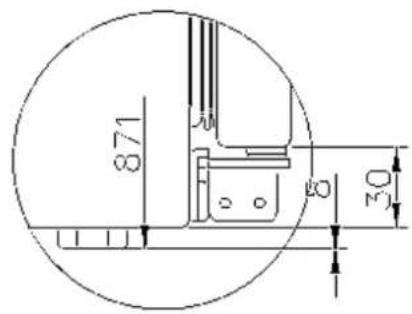

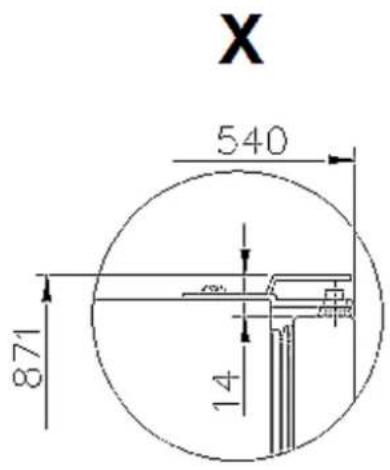

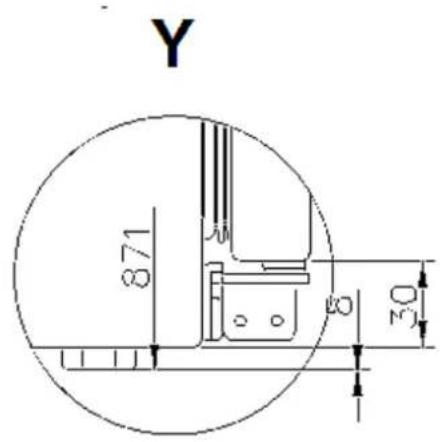

F	871 mm
G	540 mm
H	540 mm
I	14 mm
J	819 mm
K	38 mm

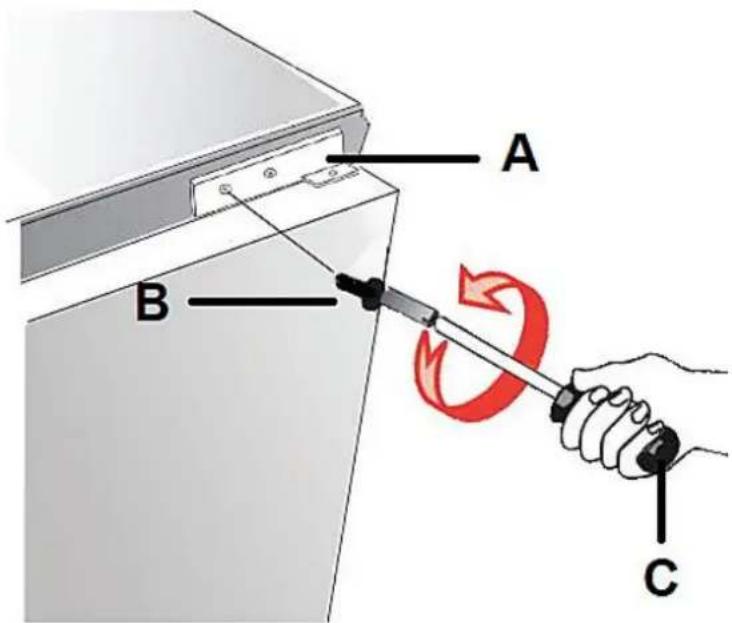

Diagram showing two screws inserted into a metal plate, enclosed in a circle (no text or symbols)

Two white 3D cubes with black arrows indicating direction, no text or symbols present

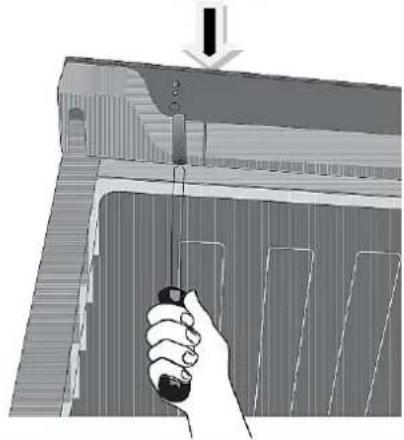

Illustration showing a hand holding a tool inside a device, with an arrow indicating process (no text or symbols present)

Hand holding a flexible cable or wire attached to a vertical panel (no text or symbols visible)

3D rendering of a rectangular electronic device with a labeled component 'D' (no text or symbols on the device itself)

D

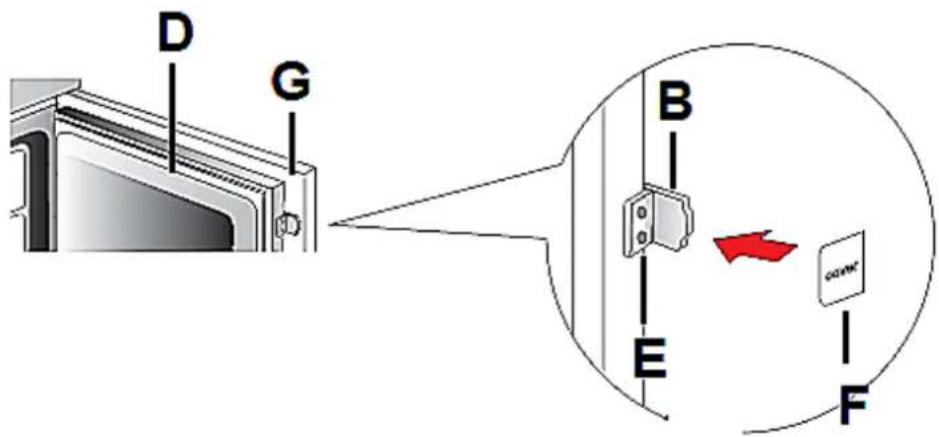

UNTERES TÜRSCHARNIER (RECHTS)

D	UNTERES TÜRSCHARNIER (LINKS)

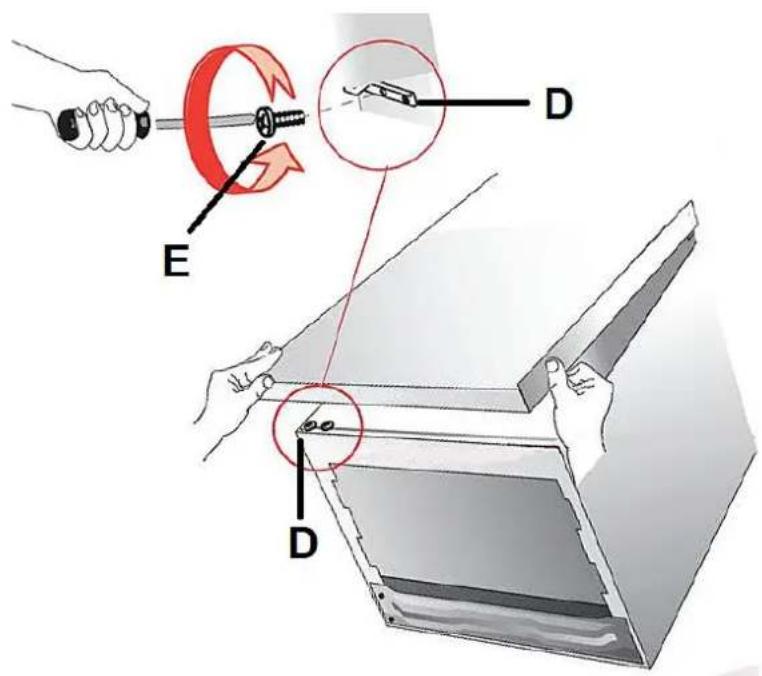

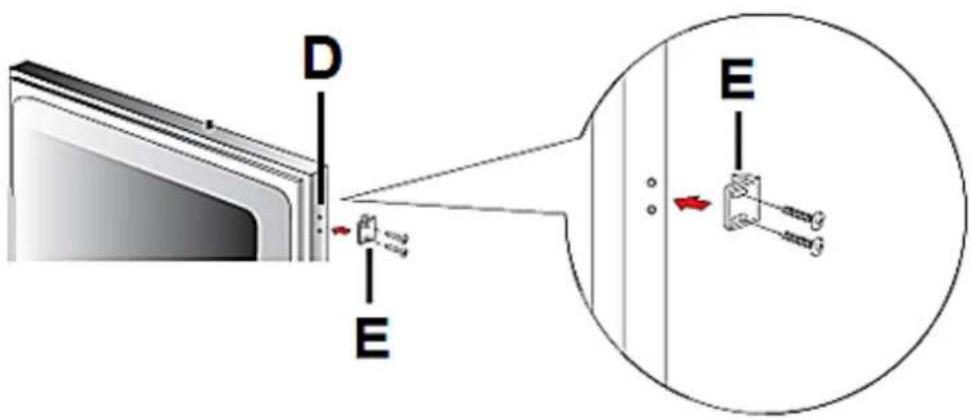

E	SCHRAUBEN

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

(Abb. ähnlich)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....42

1.1 Signal words 43
1.2 Safety instructions....43

1. Climatic classes ....48

2. Installation 48

3.1 Site....48
3.2 Dimensions....49

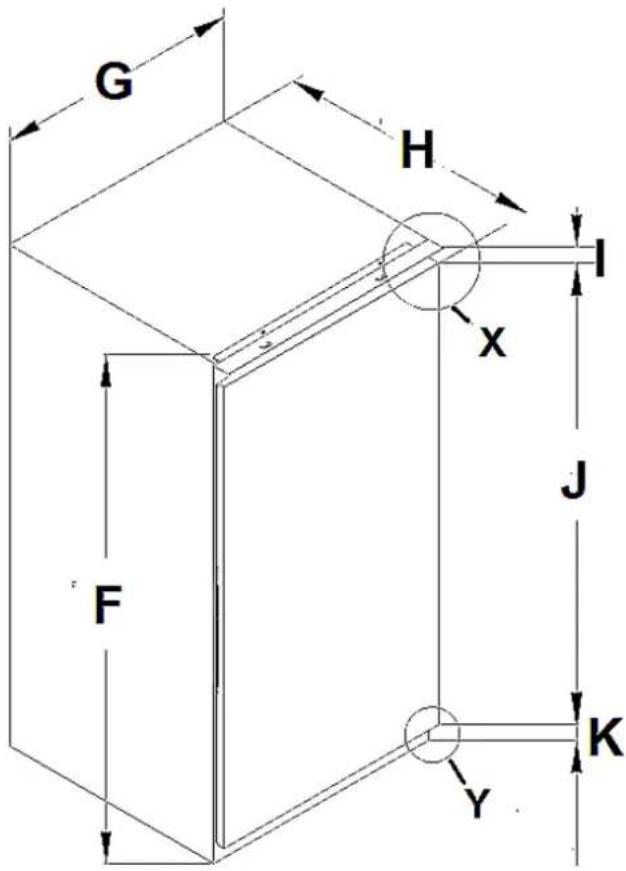

3.2.1 Dimensions of the appliance....49

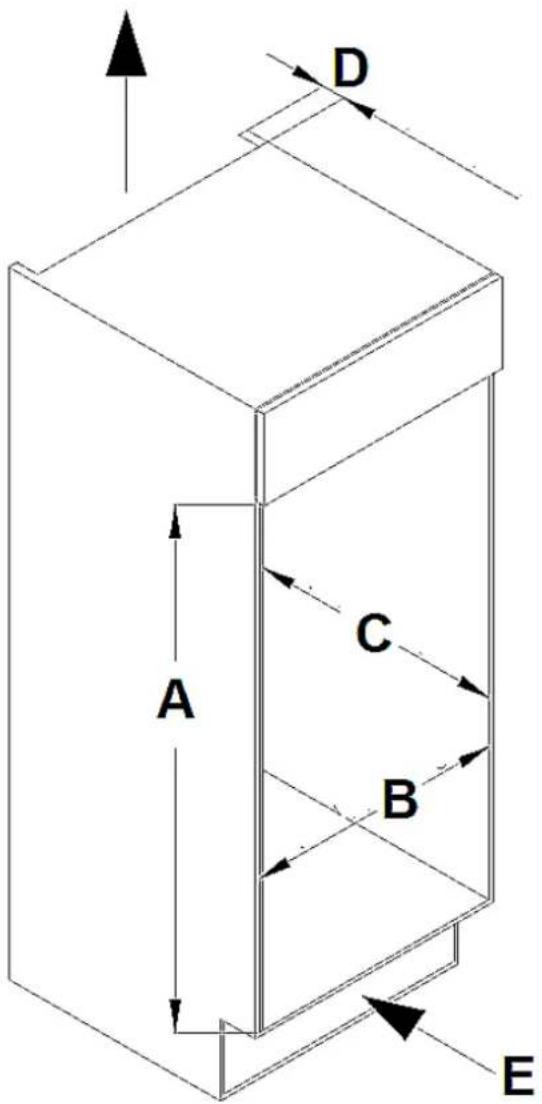

3.2.2 Required dimensions of the built-in furniture ....51

3.3 Installation 52
3.4 Change of the hinge position....56

1. Operation....60

4.1 Description of the appliance ....60
4.2 Before initial operation....61
4.3 Setting of the temperature 62
4.4 The freezer 64

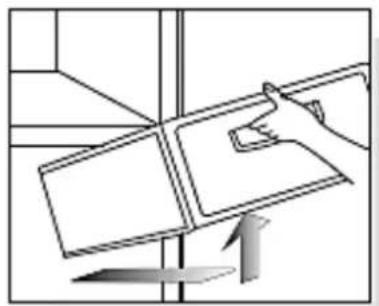

4.4.1 Freezer drawers....65

4.5 Helpful hints / Energy saving....65
4.6 Operational parameters....66

5 Cleaning and maintenance....67

5.1 Defrosting....68

1. Trouble shooting....69
2. Decommissioning....71
3. Technical data....72

4. Waste management....73

5. Guarantee conditions ....74

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
5. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the customer service. Original spare parts should be used only.
6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
7. When the power cord is damaged, it must be replaced by the manufacturer or an authorized customer service or a qualified professional only.
8. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
9. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the customer service immediately.
3. If gas is set free at the installation site:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).
3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
5. Always observe the required minimum distances for proper ventilation.
6. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
7. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional. Do not use a socket board or a multi socket when connecting the appliance to the mains.
8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
9. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.
13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
14. Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!
15. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!
16. Keep the cord away from heated surfaces.
17. The power plug must always be accessible after installation.
18. Do not use a socket board or a multi socket when connecting the appliance to the mains.
19. Do not modify the appliance.
20. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.
21. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
22. Do not put any heat-radiating appliances onto your appliance.
23. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
24. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
25. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
26. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
27. Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
28. Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
29. Children must never play with the appliance.

30. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

31. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance (positioning depending on model), can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer as their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
4. Never stow food and / or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!

NOTICE!

1. Do not store dry ice in the appliance.
2. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
3. When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.
4. Do not tilt the appliance more than 45^0 .
5. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
6. Leave the appliance in an upright position for at least 12 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
7. If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, these foods can thaw and / or spoil.
8. Never use the door for moving the appliance as you will damage the hinges.

9. The appliance must be transported and installed by at least two persons.

10. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

11. Do not operate the appliance unless all components are installed properly.
12. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
13. Never close the doors of the appliance while shelves or drawers are extended, otherwise you will damage the shelves / drawers and the appliance.
14. Do not put hot liquids or hot foodstuff into the appliance.
15. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
16. Do not place any food directly against the air outlet on the rear wall.
17. Do not overfill the shelves / drawers / door trays to protect them from damage.
18. Clean the appliance at least once a month (s. chapter CLEANING AND MAINTENANCE).
19. Defrost the appliance at least once a month (s. chapter DEFROSTING)
20. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10^0 +32^0 C	e.g. unheated cellar
N	+16^0 +32^0 C	inner home temperature
ST	+16^0 +38^0 C	inner home temperature
T	+16^0 +43^0 C	inner home temperature

3. Installation

i All dimensions in these chapters are given in millimetres.

The minimum distances required for proper ventilation can be found on the figure in chapter 3.3 INSTALLATION / VENTILATION

3.1 Site

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter WASTE MANAGEMENT.

2. Remove all packaging materials.

3. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!

4. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.

5. If installation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source:

To electric cookers	at least 3 cm
To radiators or ovens	at least 30 cm
To another refrigerators	at least 2 cm

1. Install the appliance in a dry and well-ventilated place.
2. Protect the appliance from direct sunlight.
3. The door(s) must open completely and without hindrance.
4. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
5. Check that the appliance and the power cord are not damaged.
6. Connect the appliance to the mains properly.
7. The rating plate is inside the appliance or at the back.

3.2 Dimensions

3.2.1 Dimensions of the appliance

F	871 mm
G	540 mm
H	540 mm
I	14 mm
J	819 mm
K	38 mm

3.2.2 Required dimensions of the built-in furniture

(Fig. similar: Fig. serves as an example only)

INSTALLATION:

1. Install the corresponding brackets (s. fig or the right) on the bottom of the freezer.

Diagram of a metal plate with two screws and three holes, enclosed in a circular frame (no text or symbols)

1. Push the appliance into the built-in furniture slowly and carefully. Align the door-opening side of the appliance (opposite side of the hinges) to the side wall.

Two 3D cubes with arrows indicating direction, no text or symbols present

1. Adjust the supporting feet until the top panel has no contact with the built-in furniture. Fix the upper part of the appliance in the pre-drilled panel over the front fascia using the screws supplied (s. fig on the right).

Illustration of two hands holding a fan blade inside a circular frame (no text or symbols)

Illustration of a hand holding a tool near a structural component, with no visible text or symbols

1. Fix the two bottom brackets of the appliance (s. above / step 1) on the base plate of the built-in furniture and install the screw covers.

1. Fix the centre of the appliance to the wall of the built-in furniture using the special brackets supplied (depending on model).

2. Seal the gap between the door-opening side of the appliance (opposite side of the hinges) and the built-in furniture using the sealing tape (A).

Hand holding a flexible cable or wire attached to a vertical panel (no text or symbols visible)

INSTALLATION OF THE SLIDING HINGES (SLIDERS AND GUIDES):

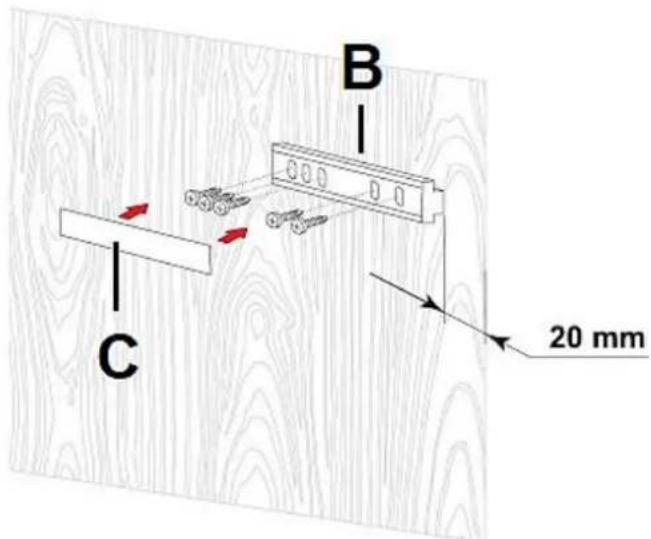

1. Position the sliders (B) on the door of the built-in furniture, align them properly and fix them using the appropriate screws / s. fig. below. Observe the specified distance of 20 mm.

2. Install the covers (C) on the sliders (B) / s. fig. below.

B

SLIDER

C

SCREW COVER

1. Fix the guides (E) into the holes of the door of the freezer (D) using the appropriate screws / s. fig. below.

D	DOOR OF THE FREEZER
E	GUIDE

1. Before you tighten the screws, ensure that the sliders (B) can slide smoothly into the guides (E) / s. fig. below.
2. It may be necessary to align the guides a little bit.
3. If the sliders (B) slide smoothly into the guides (E), tighten the screws of the guides.
4. Install the appropriate covers (F) on the guides (B) / s. fig. below.

B	SLIDER
D	DOOR OF THE FREEZER
E	GUIDE

F

SCREW COVER

G

DOOR OF THE BUILT-IN FURNITURE

3.4 Change of the hinge position

⚠ WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! The change of the position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance.

NOTICE! You should contact a qualified technician if you want to have the door swing reversed. Only try to carry out the steps described below when you believe that you are qualified to do so.

NOTICE! Adjust the doors properly before you finally tighten the screws of the hinges. The seals must close properly.

NOTICE! Do not tilt the appliance more than 45 ^0 .

PREPARATORY MEASURES:

▶ Empty the appliance.
Remove all drawers from the freezer (s. chapter 4.4.1 FREEZER DRAWERS) so that they cannot be damaged.
It is necessary to tilt the appliance backwards while removing the door. You should rest the appliance on something solid so it will not slip while changing the hinge positions.
➢ Do not lay the appliance flat as this can damage the cooling system.
➢ All parts removed must be saved for proper reinstallation of the doors.
➢ Always remove the doors carefully. Keep the door in a safe place so that it cannot be damaged.

TOOLS REQUIRED (NOT INCLUDED IN THE SCOPE OF DELIVERY):

➢ Phillips screwdriver
Flat bladed screwdriver

HOW TO CHANGE THE HINGE POSITION:

1. Disconnect the appliance from the power supply (unplug).
2. Open the freezer door (appliance in upright position) and remove the freezer drawers (see also chapter 4.4.1 FREEZER DRAWERS).
3. Remove the hinge covers carefully using a flat bladed screwdriver.

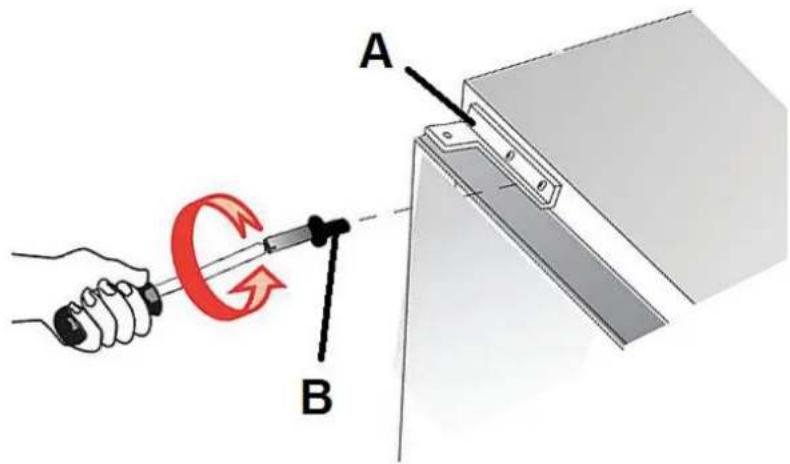

4. Unscrew the screws of the upper right door hinge (A) using a Phillips screwdriver (s. fig. below).
5. Meanwhile, hold the freezer door with your hand so it cannot drop down.

A	UPPER DOOR HINGE (RIGHT)
B	SCREWS
C	PHILLIPS SCREWDRIVER

1. Remove the upper door hinge (A / s. fig. above).

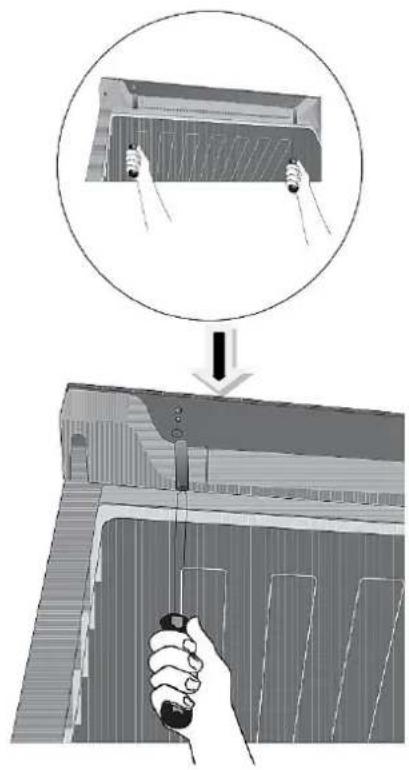

2. Slightly tilt the appliance back and secure it in this position: Lean the appliance against a solid and immovable surface so it will not slip. Do not tilt the appliance more than 45^ ! (s. fig. below)

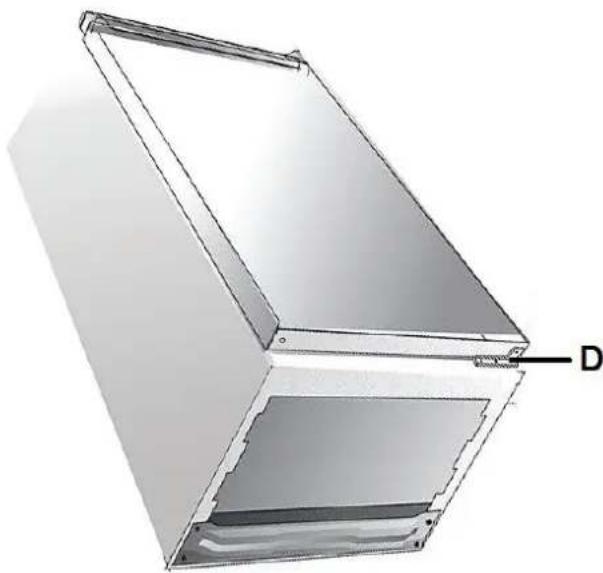

3. Unscrew the screws of the bottom right door hinge (D / s. fig. below) using a Phillips screwdriver.

3D rendering of a rectangular metal enclosure with a labeled component 'D' pointing to its side (no text or symbols on the structure itself)

D

BOTTOM DOOR HINGE (RIGHT)

1. Remove the bottom door hinge (D).
2. Lift the freezer door and remove it carefully.
3. Align the bottom door hinge (D) to the prepared holes on the left side of the appliance properly and screw it tightly using the appropriated screws (s. fig. below).

D	BOTTOM DOOR HINGE (LEFT)
E	SCREWS

1. Attach the freezer door to the bottom door hinge. For this purpose, insert the hinge axis of the bottom door hinge into the bottom hinge hole of the freezer door carefully. Hold the door in position.
2. Align the upper door hinge (A) to the prepared holes on the left side of the appliance properly (s. fig. below). While doing so, insert the hinge axis of the upper door hinge into the upper hinge hole of the freezer door. Screw the hinge using the appropriated screws (B).
3. Meanwhile, hold the freezer door with your hand so it cannot drop down.
4. Ensure that the freezer door is fixed safely and properly by the hinges.

NOTICE! Adjust the door properly before you finally tighten the screws of the hinge. The seal must close properly.

A	UPPER DOOR HINGE (LEFT)
B	SCREWS

1. Reinstall the hinge covers properly.
2. Open the freezer door and reinsert the freezer drawers.
3. Close the freezer door and connect the appliance to the power supply again.

NOTICE! Adjust the door properly. The seal must close properly.

4. Operation

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

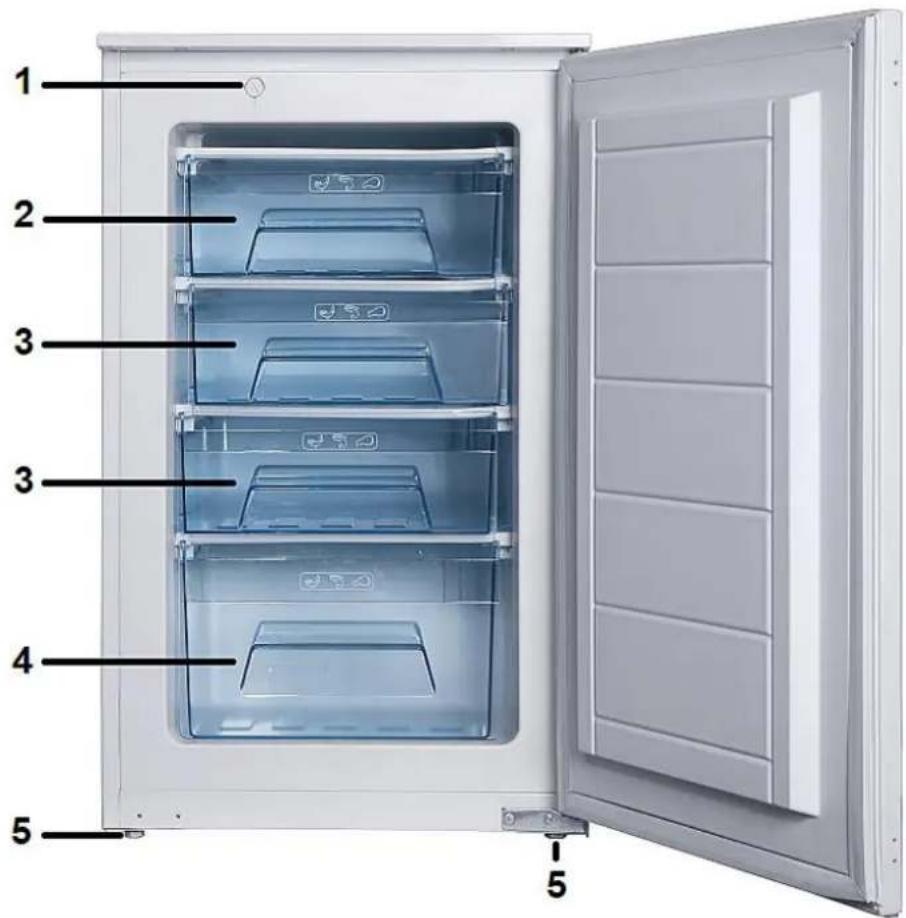

4.1 Description of the appliance

The figure above serves as an example only. Modifications are possible.

1	ADJUSTABLE THERMOSTAT
2	UPPER FREEZER DRAWER
3	MIDDLE FREEZER DRAWERS
4	BOTTOM FREEZER DRAWER
5	ADJUSTABLE FEET

4.2 Before initial operation

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

NOTICE! Leave the appliance in an upright position for at least 12 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting (s. chapter 4.3 SETTING OF THE TEMPERATURE) before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, these foods can thaw and / or spoil.

1. Remove all packaging materials.
2. Adjust the supporting feet ^7 and clean the appliance (see chapter CLEANING AND MAINTENANCE).
3. Do not start the appliance immediately after installation. Wait at least 12 hours to ensure proper operation.
4. The settings of the temperature of the freezer can be adjusted manually. To do this, turn the adjustable thermostat for the temperature setting to the desired preference. (s. chapter 4.3 SETTING OF THE TEMPERATURE).
5. If operation was interrupted, wait 5 minutes before restart.
6. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings. When you set the temperature of the freezer these aspects should be taken into account.
7. Operate the appliance according to the instructions described in the following chapters.

4.3 Setting of the temperature

The settings of the temperature of the freezer can be adjusted manually by turning the adjustable thermostat of the temperature setting to the desired setting.

When you set a temperature, you set an average temperature for the whole freezer. Temperatures inside each area may vary from the set temperature, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. When you set the temperature of the freezer these aspects should be taken into account.

ADJUSTABLE THERMOSTAT:

The temperature of the freezer can be adjusted by using the relevant adjustable thermostat (s. fig below / s. also fig. in chapter 4.1 DESCRIPTION OF THE APPLIANCE).

(Fig. similar: Modifications are possible)

SEVEN DIFFERENT COOLING LEVELS CAN BE SET:

Level	0	Cooling: Off
Cooling level	1 - 2	LOWER FREEZING TEMPERATURE: ➢ warmest setting / slight freezing
Cooling level	3 - 4	MEDIUM FREEZING TEMPERATURE: ➢ average setting / average freezing
Cooling level	5 - 7	HIGHER FREEZING TEMPERATURE: ➢ coldest setting / strong freezing

If you turn the adjustable thermostat to 0, the cooling will be switched off.
If you turn the adjustable thermostat to 1 - 2, the temperature of the freezer will be increased (WARMEST SETTING / SLIGHT FREEZING).
If you turn the adjustable thermostat to 3 - 4, the temperature of the freezer is set to a medium temperature value (AVERAGE SETTING / AVERAGE FREEZING). The cooling levels 3 and 4 are suitable for daily use.
If you turn the adjustable thermostat to 5 - 7, the temperature of the freezer will be decreased (COLDEST SETTING / STRONG FREEZING). The higher the setting is, the longer the compressor operates to reach the set cooling temperature.

The description of the cooling levels represents standard values only.

The cooling levels 3 and 4 are suitable for daily use.

You can check the temperature inside the freezer using a suitable thermometer (not included in delivery).

The higher the setting is, the longer the compressor operates to reach the set cooling temperature.

When the ambient temperature is very high, it is recommended to set the adjustable thermostat to a colder setting if needed (cooling level 5, 6 or 7). If the colder setting should cause strong formation of encrusted ice, please select a lower setting (cooling levels 1 - 4).

i High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

⚠ WARNING! The setting 0 switches off the compressor only. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

⚠️ CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer as their containers could explode.

NOTICE! If you want to switch off the appliance for a longer period of time, disconnect it from the mains (unplug!). S. also Chapter 7. DECOMMISSIONING, / TEMPORARILY.

4.4 The freezer

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
CAUTION! Never stow food and/or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!
⚠️ CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer as their containers could explode.

The freezer is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

• Protect fresh food you want to freeze using aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
  Leave some free space between the single pieces of frozen food as proper air circulation is required.
  The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).
  Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
  Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
  Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
• Observe the complete information on the packaging of frozen food.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the freezer. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.4.1 Freezer drawers

◆ Depending on model the freezer drawers can be removed.

i Remove all stored food of the freezer drawers before.

❖ The freezer drawers can be removed for cleaning etc. ^8

➢ Pull the freezer drawers forward carefully and lift it slightly until you can remove it.

Diagram showing a hand interacting with a panel or board, with an arrow indicating direction (no text or symbols present)

(Fig. similar)

i Any of the freezer drawers can be removed and inserted for cleaning as shown above (depending on model).

4.5 Helpful hints / Energy saving

Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18 ^0 C or lower).

Put the frozen food you want to defrost into the cooling-compartment of your appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven9
√ in a microwave10

• Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
• Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
  ◆ Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

4.6 Operational parameters

The appliance can only reach the relevant temperatures when:

1. the ambient temperature meets the climatic class.
2. the doors close properly.
3. you do not open the doors too often or too long.
4. the door seals are in proper condition.
5. the appliance is properly positioned.
6. you have not overfilled the appliance.
7. you do not store warm or hot food in the appliance.

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

⚠ WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

NOTICE! Clean the appliance at least once a month.

1. Always keep the appliance clean so that unpleasant odours do not occur.
2. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
3. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

DETERGENT:

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents!
➢ Do not use any organic detergents! ^11
Do not use essential oils!
➢ These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING:

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING:

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

DOOR SEALS:

Clean with warm water and a mild, non- acidic detergent. Do not restart the appliance until the door seals have dried completely.

5.1 Defrosting

⚠ WARNING! Switch off the appliance by turning the adjustable thermostat (depending on model) to position 0 / AUS / OFF and disconnect it from the mains.
⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!
⚠ WARNING! Do not use hairdryers, electrical heaters or other technical devices to accelerate the defrosting-progress. RISK OF ELECTRICAL SHOCK!

NOTICE! Defrost the appliance at least once a month.

DEFROSTING OF THE FREEZER:

The freezer should be defrosted regularly to ensure proper operation.

1. Remove the contents from the freezing-compartment and put them into a cooling box.
2. Switch off the appliance by turning the adjustable thermostat to position 0 / AUS / OFF and disconnect it from the mains or use a cut-off device.
3. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.

4. Do not use hot water to accelerate the defrosting operation.

5. Remove the big pieces of ice first.

6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

6. Trouble shooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
1. The appliance has been switched off for a while.2. Too much or too hot food in the appliance.3. Doors opened too often or too long.	1. The appliance needs some time to reach the preset temperature.2. Remove any hot food.3. Do not open the door too often / too long.
FORMATION OF ENCRUSTED ICE.
1. The door is not properly closed.2. The door seal is damaged or soiled.	1. Close the door properly.2. Clean and / or replace the door seal.

THE DOOR MAKES A STRANGE SOUND WHEN OPENED.

1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Frozen food is stored improperly.3. Items have dropped behind the appliance.	1. Install the appliance properly.2. Store food properly.3. Remove the items.

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the customer service.

⚠️ DANGER! Do not repair the appliance yourself! If your appliance does not operate correctly, contact the customer service.

THE OPERATING CONDITIONS DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE:

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE:

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING:

You will hear the compressor click if it is activated or deactivated.

HUM:

is caused by the compressor while running.

KNOCKING / SNAPPING:

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

DECOMMISSIONING, TEMPORARILY:

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION/HOLIDAY (14-21 DAYS):

1. Do the same as described above, or
2. let the appliance operate.

IF YOU WANT TO MOVE THE APPLIANCE:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE:

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model	Freezer
Climatic class	N / ST(ambient temperature 16 - 38 °C)
NoFrost freezer	no
Energy efficiency class*	A+
Annual energy consumption in kW/h**	181.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Volume gross in l	86
Net volume freezer in l	77
Stars	4****
Max. freezing capacity within 24 h	4.50 kg
Max. storage time / malfunction	11.00 h
Noise emission	41 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant / total quantity	R600a / 40 g
Changeable door hinge	yes
Internal light: freezer	no
Freezer drawers	4
Adjustable feet	yes
Defrosting freezer	manually
Dimensions appliance H*W*D in cm	87.10*54.00*54.00
Weight net / gross in kg	30.00 / 33.00

◆ Technical modifications reserved.

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).

** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
3. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT:

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non-common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
