Type	Built-in electric oven
Brand	PKM
Model	EBO9.5
Energy efficiency class	A
Energy consumption (conventional)	0.80 kWh
Energy consumption (fan/hot air)	0.77 kWh
Net volume	70 L
Installation dimensions (H x W x D)	59.9 x 59.5 x 56.8 cm
Net weight	30.0 kg
Voltage / Frequency	220-240 V AC / 50 Hz
Max. power	2.80 kW
Oven functions	Lamp, Defrost, Double Grilling + Fan, Double Grilling, Bottom Heat + Fan, Conventional + Fan, Top and Bottom Heat, Bottom Heat, Convection
Temperature range	50 °C – 250 °C
Internal light	Yes, 25 W / 230 V, replaceable
Accessories included	1 grilling grate, 1 drip tray (oven pan), telescopic slides
Control panel	Black glass with retractable rotary knobs and digital display
Oven door	Full-glass inner door, 2 glass sheets, black glass outer
Clean function	Steam cleaning (30 min at 100 °C)
Safety features	Child lock (via retractable knobs), automatic shut-off with timer, triple glazing
Spare parts availability	Illuminant (25 W / 230 V, high temperature 300 °C), side racks, telescopic slides, lamp cover
Noise emission	< 55 dB(A)
Guarantee	24 months (manufacturer's guarantee, subject to conditions)

Frequently Asked Questions - EBO9.5 PKM

How do I set the time on the oven display?

When first connected, the display shows 12:00 and the TIME indicator flashes. Press the FUNCTION button repeatedly until the TIME indicator flashes, then use the +/- buttons to set the correct time (24-hour format). Wait 5 seconds to save.

How do I use the timer function (countdown)?

Ensure the oven is in standby mode (display shows time). Press FUNCTION repeatedly until the TIMER indicator flashes. Use +/- to set desired countdown time (max 23h59min). Wait 5 seconds to save; countdown starts immediately. When time is up, an acoustic signal sounds for 2 minutes. Press any button to silence it.

How do I set the oven to switch off automatically after a certain time?

Use the semi-automatic function. Place food in oven, close door. Press FUNCTION until DURATION indicator flashes. Set desired cooking time (max 10 hours) using +/-. Wait 5 seconds to save. Then select an oven function and temperature using the rotary knobs. The oven will switch off automatically when the time is up.

How do I clean the oven with steam?

Place a bowl with 250 ml of water on the lowest rack height. Close the door. Select the function 'top and bottom heat with fan' and set temperature to 100 °C. Heat for 30 minutes. After cooling, wipe the interior with a cloth and clean with warm soapy water.

How do I replace the oven light bulb?

Disconnect the oven from the mains (fuse box). Let it cool completely. Place a cloth inside to protect the enamel. Unscrew the lamp cover anticlockwise by hand. Unscrew the old bulb and replace with a high temperature bulb (300 °C, 25 W, 230 V). Screw the cover back on. Do not touch the new bulb with bare hands; use a cloth or gloves.

Why does the fan run after the oven is switched off?

The cooling fan protects electronic components from overheating. It may continue to run for a while after the oven is turned off. This is normal. Do not disconnect the oven from the mains while the fan is running.

What should I do if the oven does not heat up?

Check that you have selected both an oven function and a temperature. If the timer or automatic function is set, ensure it hasn't finished. If it still doesn't heat, the heating element may be defective. Contact customer service.

How do I remove and install the oven door?

Open the door fully. Push the safety catches on both hinges upwards. Close the door slightly to a 15° angle. Lift the door and pull it towards you. To reinstall, align the hinge brackets into their guides, close the safety catches. Ensure the catches are fully closed to avoid hinge damage.

What oven functions are available?

The oven has 8 functions: Internal Light, Defrost, Grill + Top Heat + Fan, Grill + Top Heat, Top/Bottom Heat + Fan, Bottom Heat + Fan, Top Heat + Bottom Heat, Bottom Heat, and Hot Air Fan (Convection). Select using the left rotary knob.

How do I set the automatic cooking function (start and end time)?

Set the cooking duration first: press FUNCTION until DURATION flashes, set time, wait to save. Then press FUNCTION again until END flashes, set the desired finish time (max 10 hours from current time). Select oven function and temperature. The oven will start and stop automatically to finish at the set time.

USER MANUAL EBO9.5 PKM

Interior view of a stainless steel oven with digital display and control knobs (no visible text or symbols)

Deutsch

Seite

2

English

Page

51

Line drawing of an open oven with internal shelves and ventilation duct (no text or symbols)

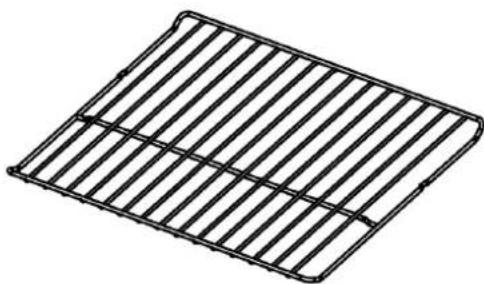

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

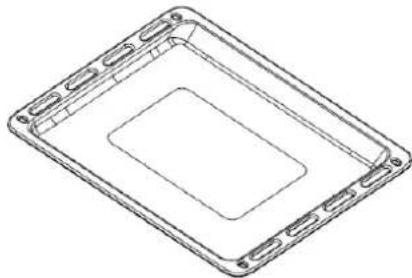

TROPFSCHALE (BACKOFENPFANNE)

Technical line drawing of a rectangular electronic component with mounting holes and internal cavity (no text or symbols)

TELESKOPAUSZÜGE

Two abstract line drawings with no text or symbols, featuring horizontal and vertical lines (no readable labels or symbols)

Technical line drawing of a cabinet or enclosure with internal components (no text or symbols)

Abb. ähnlich.

Close-up of a metallic control knob with various function icons around it, no text or symbols visible.

A / BACKOFENFUNKTIONEN

Close-up of a metallic rotary knob with control buttons and icons around it (no text or symbols visible)

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

Simple diagram showing a device with an arrow pointing left and a circular component on the right (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Diagram of a door with an 15-degree angle indicator and directional arrows (no text or symbols)

Technical line drawing of a square electronic component with mounting holes and a central cavity (no text or symbols)

Diagram of a mechanical structure with labeled section A and rotation arrow (no text or symbols beyond labels)

Pure mechanical assembly diagram showing ladder-like structure with no text or symbols

Diagram of a mechanical assembly with labeled component B and directional arrow (no text or symbols beyond label)

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Diagram of parallel lines with a directional arrow and label A, no readable text or symbols present

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

Index....51

1. Safety instructions.... 53

1.1 Signal words....54

1.2 Safety instructions....54

1. Installation 59

2.1 Unpacking and positioning....59

2.2 Installation of the oven....59

2.3 Electrical connection....62

1. Operation....63

3.1 Before the first use 64

3.1.1 Accessories 64

3.2 Appliance / Control panel / Display 66

3.2.1 Appliance / Front view....66

3.2.2 Appliance / Interior view 67

3.2.3 Control panel....68

3.2.4 Display....69

3.3 Use of the oven 70

3.4 Before the first use 71

3.4.2 Oven....71

3.4.2 Cleaning of the accessories 72

3.4.3 General operation of the oven....72

3.4.4 Standby mode....73

3.4.5 Setting of the time / system time....73

3.5 Programming of the oven....73

3.5.1 Timer....74

3.5.2 Semi-automatic cooking / baking function....74

3.5.3 Automatic cooking / baking function....76

3.5.4 How to cancel the programming....78

3.5 Functions of the oven....80

1. Cooking guidelines 83

4.1 Helpful hints....83

4.2 Saving of energy 84

1. Cleaning and maintenance....85

5.1 Cleaning of the oven....85

5.1.1 How to clean the oven with steam 86

5.2 Cleaning of the oven door 86

5.3 Replacing of the illuminant....86

5.4 Removing / installing of the oven door 87

5.5 Removing of the glass panel 88

5.6 Removing / installing of the telescopic slides 88

5.7 Removing / installing of the side rack(s) 90

5.8 Trouble shooting....91

1. Technical data....93

2. Waste management....94

3. Guarantee conditions....95

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety instructions

READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety information and safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE APPLIANCE.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and / or can result in damages to the appliance.
2. Switch off the power supply (fuse box of your household power supply) before you install the appliance and before you connect it to the mains. RISK OF ELECTRIC SHOCK!
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. All possible electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations.
5. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
6. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.

7. Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the customer service. Original spare parts should be used only.

8. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Report the malfunction to your customer service so it can be repaired. RISK OF ELECTRIC SHOCK!

9. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
10. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
11. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
12. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Disconnect the appliance from the mains before you clean or maintain it.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.
3. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.
4. If you are in doubt as to whether the appliance is connected to the mains properly, let the electrical connection be checked by a qualified electrician (not covered by the guarantee).
5. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
6. Keep the cord away from heated surfaces.
7. Do not carry out any modifications to your appliance.
8. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.

9. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.

10. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently.
b. Switch off or unplug the appliance if you notice any smoke. Keep the appliance closed to stifle any flames.
c. Do not use the appliance to store anything inside.
d. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Never heat any food or liquids in sealed containers, because they can explode.

2. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.

3. The veneering of cabinets has to be fixed with a heat-resistant glue, that is able to withstand a temperature of 100 ^ .

4. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85 °C above the ambient temperature of the room the appliance is installed in during operation.

5. If the oven will be installed above a drawer of the built-in furniture, a fixed intermediate shelf must be mounted between the oven and the drawer.

6. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.

7. Cooker-hoods should be installed according to their manufacturers' instructions.

8. Do not heat your rooms or dry your washing by use of the appliance.

9. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!

10. Do not store any objects in the oven. RISK OF FIRE!

11. Household equipment and connection leads must not touch the hot oven or the hob as the insulation material is usually not heat-resistant.

12. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRIC SHOCK!

13. The accessible parts of the oven become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.

14. Children must not play with the appliance.

15. Always supervise children if they are near the appliance.

16. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

17. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

18. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. RISK OF INJURY! CHOKING HAZARD!

19. Only use time guards designed by the manufacturer of the appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

CAUTION!

1. The appliance becomes hot while operating. Do not touch the hot components inside the oven.

2. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the door of the oven. Otherwise you may scratch the surface and damage the glass.

3. Do not put any cookware or backing trays directly on the base inside the oven. Do not cover the base inside the oven with aluminium foil.

4. Keep the door of the oven always closed if you use one of the oven-functions.

5. Do not put any cookware directly on the base inside the oven. Use the trays.

6. The interior parts of the oven become extremely hot. Do not touch any parts inside the oven if you handle your cookware. RISK OF BURNS!

7. Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!

8. Always use oven-gloves.

9. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Never use the door for moving the appliance as you will damage the hinges.
3. The appliance must be transported and installed by at least two persons.
4. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
5. Do not operate the appliance unless all components are installed properly.
6. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
7. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
8. Do not put any heavy items onto the open door of the oven. Do not lean against the open door of the oven as you will damage the hinges.
9. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
10. Regularly cleaning and maintenance grants proper operation and optimal performance of your appliance.
11. Check your utensils if they are suitable for the use in an oven.
12. Use suitable ovenware only.
13. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check that the appliance and the power cord are not visible damaged.
4. Install the appliance in a dry and well-ventilated place.
5. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.
6. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
7. Remove the complete packaging material (inside and outside the appliance) before initial operation.
8. Connect the appliance to the mains properly. Only use a proper grounded safety socket for connection (s. chapter 2.3 ELECTRICAL CONNECTION).
9. Manufacturing residues or oil having remained in the appliance or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the room door or a window to ensure proper ventilation.
10. The nameplate is situated inside the appliance or at the back.

2.2 Installation of the oven

⚠️ DANGER! Switch off the power supply (fuse box of your household power supply) before you install the appliance and before you connect it to the mains. RISK OF ELECTRIC SHOCK!

i All dimensions in the following figures are given in millimetres.
Use the embedded handles or wire handles ^10 (6) on both sides of the oven to move the appliance (s. fig. in chapter 3.2.1 APPLIANCE / FRONT VIEW).

The built-in furniture must stand in a stable position and need to be securely fastened.

A gap of 5 mm must remain between the appliance and the surrounding sides of the built-in furniture.

i The power cord must not be trapped or kinked.

If the oven will be installed above a drawer of the built-in furniture, a fixed intermediate shelf must be mounted between the oven and the drawer.

INSTALLATION:

1. Switch off the power supply (fuse box of your household power supply).

2. Provide an installation opening meeting the dimensions on the following drawings (s. fig. 1 and fig. 2, below / depending on the built-in furniture).

FIGURE 1:

FIGURE 2:

1. Place the oven near the installation opening.
2. Ensure that the power supply is switched off (fuse box of your household power supply).
3. Connect the oven to the mains. Strictly observe the instructions in chapter 2.3 ELECTRICAL CONNECTION.
4. Insert the oven into the installation opening carefully. Ensure that the power cable will not be trapped or kinked.

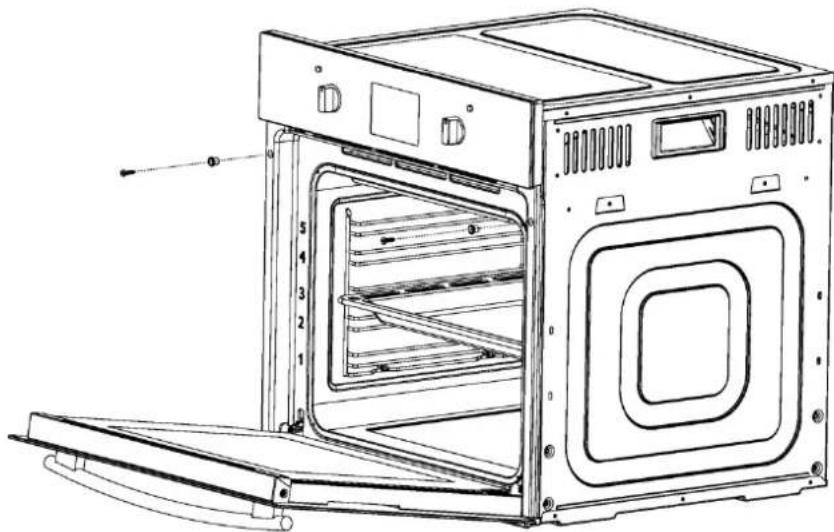

5. Fix the oven with the 2 screws and 2 washers supplied. (s. fig. 3, below).

FIGURE 3:

Line drawing of an open oven with internal shelves and ventilation ducts (no text or symbols)

2.3 Electrical connection

⚠️ DANGER! Switch off the power supply (fuse box of your household power supply) before you connect the appliance to the mains. RISK OF ELECTRIC SHOCK!

⚠️ DANGER! The technical data of your energy supplier must meet the data on the rating plate of the appliance.

⚠ WARNING! Do not use an extension cord, socket strips or a multiple socket.

⚠ WARNING! Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.

The appliance is equipped with a power supply cable and a power plug (safety plug).
❖ Only use the power supply cable provided with the appliance.
- Your household power supply must meet the power consumption of the appliance.
When connecting do not use adapters, reducers and branching devices as they cause overheating. RISK OF FIRE!
Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
The power cord must not touch hot areas and its temperature must not exceed 75^ C.
When the socket is not accessible for the user after the installation of the appliance or a fixed electrical connection of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335).
When installing the appliance, contact protection must be ensured.
If you are in doubt as to whether the appliance is connected to the mains properly, let the electrical connection be checked by a qualified electrician (not covered by the guarantee).

NOTICE! Any damages which are caused by an appliance that is not connected to the mains properly are not subject to the guarantee!

3. Operation

⚠ WARNING! The accessible parts of the appliance become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!
⚠️ CAUTION! Cooking utensils may become hot because of the heat transferred by the heated food. Potholders or oven gloves may be needed to handle such utensils.

NOTICE! Use suitable ovenware only.

Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety instructions!
i Remove the complete protective film!

3.1 Before the first use

1. Remove all packaging material.
2. Clean the oven inside from all protective agents.
3. Take out the supplied accessories and clean them with warm water and washing-up liquid.
4. Switch on the room ventilation or open a window.
5. Let the oven operate (250 °C) for 30 minutes. Now a little bit of smoke and odour may be generated for approx. 15 minutes. This is normal. They are generated by the substance, that protects your appliance against damage caused by the shipment from the manufacturer's works.

NOTICE! Clean the oven with warm water and washing-up liquid only.

3.1.1 Accessories

* Depending on model, a grilling grate, a drip tray (oven pan) and / or a baking tray (deep oven pan) are included in the scope of delivery.
Clean the supplied accessories with warm soapy water and a soft cloth before you use the appliance for the first time.
When the slide-in elements (e.g., grilling grate / drip tray / baking tray) become hot, they may deform. As soon as the slide-in elements have cooled, they return to their original shape. The functionality is not affected thereby.

NOTICE! Always ensure that the slide-in elements (e.g., grilling grate / drip tray / baking tray) are fully inserted into the oven, so they do not collide with the oven door when closing it

NOTICE! If you grill on the grilling grate directly, always use the drip tray or the baking tray to catch the dripping grease of the food to be grilled.

GRILLING GRATE

The grilling grate is suitable for the grilling, roasting and baking of food; it is also suitable for the cooking of food in casseroles and for the baking of cakes in cake moulds.

Simple line drawing of a rectangular grid structure with vertical lines (no text or symbols)

DRIP TRAY (OVEN PAN)

The drip tray (oven pan) is suitable for the baking of cakes and biscuits and for the preparing of frozen meals and large roasts.

If you grill on the grilling grate directly, the drip tray (oven pan) must also be used to catch the dripping grease of the food to be grilled.

Technical line drawing of a rectangular electronic component with mounting holes and internal cavity (no text or symbols)

TELESCOPIC SLIDES

With the telescopic slides, the slide-in elements (grilling grate, drip tray, etc.) can be moved and removed easily and conveniently. The slide-in elements sit securely on the telescopic slides. When you want to check the cooking point of dishes, you have both hands free and do not have to lean into the hot interior of the oven.

Two simple line drawings of rectangular objects with no text or symbols

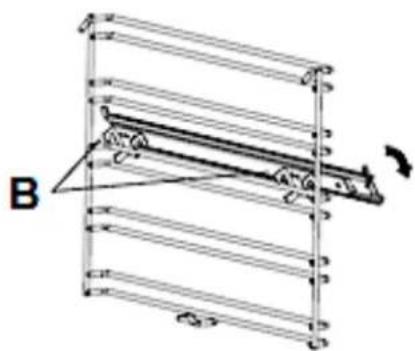

The telescopic slides may need to be installed (s. also chapter 7.6 REMOVING / INSTALLING OF THE TELESCOPIC SLIDERS).

SIDE RACK(S)

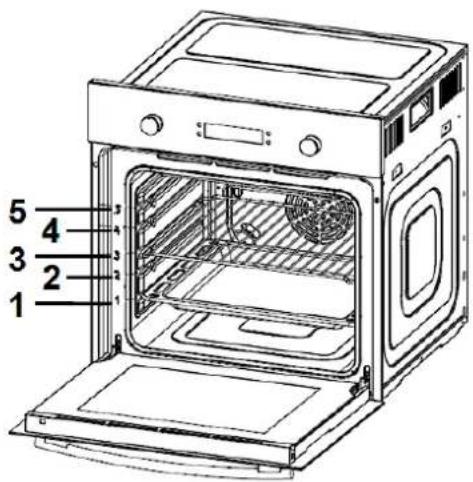

You can insert the grilling grate, the drip tray and the baking tray in the different insertion heights (up to five ^11 ) of the side rack. According to your needs, you can bake, roast or grill at different insertion heights.

Fig. similar: modifications are possible.

3.2 Appliance / Control panel / Display

3.2.1 Appliance / Front view

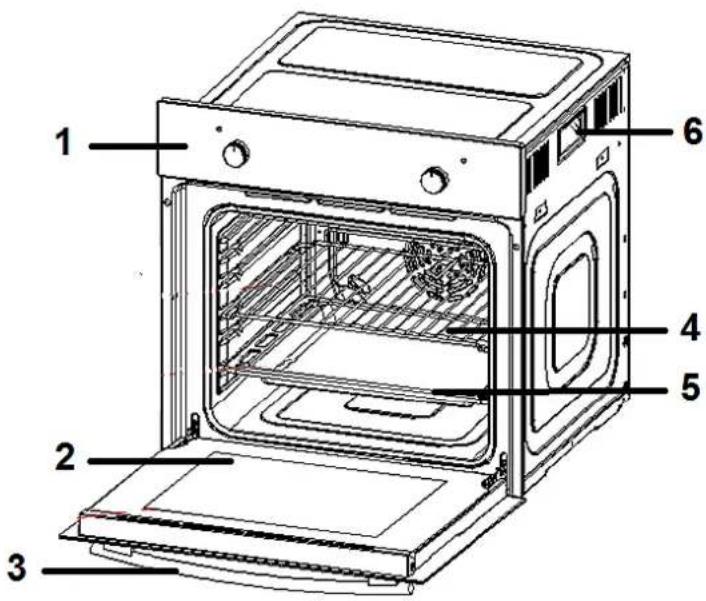

1	CONTROL PANEL (s. chapter 3.2.3 CONTROL PANEL)
2	DOOR of the oven
3	DOOR HANDLE
4	Grilling grate ^12
5	DRIP PAN / OVEN PAN ^13
6	LATERAL HANDLE for moving the appliance (on both sides)

3.2.2 Appliance / Interior view

7	INTERNAL LIGHT
8	GRILL ELEMENT
9	FAN MOTOR (behind a steel plate)

3.2.3 Control panel

A	ROTARY KNOB FOR THE SELECTION OF THE OVEN FUNCTIONS➢ Rotary knob for the selection of the OVEN FUNCTIONS.➢ This rotary knob selects the desired cooking function.➢ Eight different oven functions are selectable; s. chapter 4.5 OVEN FUNCTIONS.
B	DISPLAY / OPERATING BUTTONS➢ Description: s. chapter 3.3
C	ROTARY KNOB FOR THE SELECTION OF THE TEMPERATURE➢ Can be adjusted from 50°C to 250°C
D	OPERATIONAL STATUS INDICATOR: "HEATING"

RETRACTABLE ROTARY KNOBS ^14

For safe use of your appliance, the rotary knobs of the control panel are retractable.
To retract a rotary knob, push it into the control panel gently until it locks into place. You can now no longer carry out any further settings with this rotary knob.
To release a rotary knob, press the retracted rotary knob once briefly. The rotary knob is released. You can now use the rotary knob to carry out settings again.

3.2.4 Display

◆ The display indicates the current time of the day.
The display can also be used for the programming of the oven, the timer, and for time setting.

A	BUTTON: -➢ Button for the setting of the TIME.➢ Button for the setting of the TIMER.
B	FUNCTION - BUTTON➢ Button for the setting of the TIME.➢ Button for the setting of the TIMER.➢ Button for the PROGRAMMING of the oven.
C	BUTTON: +➢ Button for the setting of the TIME.➢ Button for the setting of the TIMER.
D	Indicator: "TIME / SYSTEM TIME"➢ The SETTING MODE for the time / system time is activated.➢ See chapter 4.3.3 SETTING OF THE TIME / SYSTEM TIME.
E	Indicator: TIMER➢ The « TIMER » is activated.➢ See chapter 4.4.1 TIMER.
F	INDICATOR OF THE TIME
G	Indicator: DURATION OF THE COOKING / BAKING TIME➢ The function « DURATION OF THE COOKING / BAKING TIME » is activated.➢ See chapter 4.4.2 SEMI-AUTOMATIC COOKING / BAKING FUNCTION and chapter 4.4.3 AUTOMATIC COOKING / BAKING FUNCTION.

H

Indicator: END OF THE COOKING / BAKING TIME

The function « END OF THE COOKING / BAKING TIME » is activated.
➢ See chapter 4.4.2 SEMI-AUTOMATIC COOKING / BAKING FUNCTION and chapter 4.4.3 AUTOMATIC COOKING / BAKING FUNCTION.

3.3 Use of the oven

⚠ WARNING! The accessible parts of the appliance become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!
⚠️ CAUTION! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!
⚠️ CAUTION! Cooking utensils may become hot because of the heat transferred by the heated food. Potholders or oven gloves may be needed to handle such utensils.
⚠️ CAUTION! Always use oven gloves.

NOTICE! Use suitable ovenware only.

Proper positioning of the trays is mandatory for safe operation of the appliance. Otherwise, hot food or cookware can slide off the trays when removing them.

Illustration of a simple oven with a bed and fan inside (no text or symbols)

AFTER THE CONNECTION OF THE APPLIANCE TO THE MAINS

When you connect the appliance to the mains for the first time, the display indicates « 12:00 » and the operational status indicator « TIME / SYSTEM TIME » flashes: « 📁. You can now set the current time / system time (s. chapter 4.3.3 SETTING OF THE TIME ‘/ SYSTEM TIME.

12:00 ①

Before you can use the oven properly, you must set the time / system time.

3.4 Before the first use

3.4.2 Oven

i Manufacturing residues or oil having which have remained in the cooking compartment or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after several uses.

✿ Heat the appliance (empty and closed) before you use it for the first time for cooking to remove the residues and the resulting odours

HOW TO HEAT THE OVEN

1. Remove all packaging material.
2. Clean the oven inside from all protective agents.
3. Take out the supplied accessories and clean them with warm water and washing-up liquid.
4. Switch on the room ventilation or open a window.
5. Let the oven operate for 30 minutes (top and bottom heat or similar oven function ^15 / 250 °C / s. chapter 4.4 PROGRAMMING OF THE OVEN). A little bit of smoke and odour may be generated for approx. 15 minutes. This is normal. They are generated by the substance, that protects your appliance against damage caused by the shipment from the manufacturer's works.

NOTICE! Clean the oven with warm water and washing-up liquid only.

NOTICE! Ensure that the complete packaging material (inside and outside of the appliance) has been removed before initial operation.

3.4.2 Cleaning of the accessories

- Clean the accessories which are included in delivery using warm soapy water and a soft cloth before you use the appliance for the first time.

3.4.3 General operation of the oven

The oven can be warmed up using the bottom and top heaters and the fan
The operation of the oven is controlled by the ROTARY KNOB FOR THE SELECTION OF THE OVEN FUNCTIONS (G / s. chapter 3.2 CONTROL PANEL). Eight different oven functions are selectable (+ internal light / s. chapter 4.5 OVEN FUNCTIONS). To set a function you should turn the knob to the desired position.
To select a temperature, use the ROTARY KNOB FOR THE SELECTION OF THE OVEN TEMPERATURE (F / s. chapter 3.2 CONTROL PANEL) to set the desired temperature. You can select a temperature between of 50 °C and 250 °C (turn in clockwise direction only).
To switch off the oven completely, you must turn the rotary knob for the selection of the oven functions to position « » and the rotary knob for the selection of the oven temperature to position « 0 » (s. fig. below).
To switch on the oven, you must set an oven function and an oven temperature too. If you only select an oven function, the oven does not switch on.
i The appliance is equipped with a 24-hour display.

ROTARY KNOB:OVEN FUNCTIONS	ROTARY KNOB:OVEN TEMPERATURES

NOTICE! Turn the rotary knob for the selection of the oven temperature in clockwise direction only. After you have set a temperature, you can turn the knob back to its home position. Otherwise, you may damage the rotary knob.

OPERATIONAL STATUS INDICATORS OF THE OVEN

The orange light (D / s. fig. in chapter 3.2 CONTROL PANEL) indicates that the oven is heating.
When the orange light goes off the oven has reached the set temperature.
If a recipe recommends to place dishes in a warmed-up oven, place the dishes in the oven after the orange light has gone off for the first time.
During a cooking / baking process, the orange light of the oven will go off and on temporarily to maintain the set temperature.

3.4.4 Standby mode

In STANDBY MODE, the display indicates the system time or the set time (s. fig. below).

3.4.5 Setting of the time / system time

Before you can use the oven properly, you must set the time / system time.
i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock, etc.

1. When you connect the appliance to the mains for the first time, the display indicates « 12:00 » and the operational status indicator « TIME / SYSTEM TIME » flashes: « 📁 ». You can now set the current time / system time.

2. Set the correct time of the day using the « +/ - (☐/☐) » - BUTTONS.

3. If the correct time is displayed (24 h display), wait a few seconds.

4. After approx. 5 seconds the set time is saved.

5. The display indicates the set time and the operational status indicator « TIME / SYSTEM TIME » goes off: « 📁 ».

3.5 Programming of the oven

⚠ WARNING! The appliance must not leave unattended during cooking.

3.5.1 Timer

• The TIMER serves as a timepiece and counts down the set time (countdown time).
  The maximum settable countdown time is 23 hours and 59 minutes.

HOW TO USE THE TIMER (HOB GUARD)

1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time.
2. Press the function button « ☐» on the display repeatedly until the operational status indicator of the timer flashes: « △».
3. The display indicates 00.00.
4. Set the desired countdown time using the « +/ - (☐/☐) » - BUTTONS.
5. If the desired countdown time is displayed, wait a few seconds. After approx. 5 seconds the set time is saved.
6. The operational status indicator of the timer is on permanently: « △ ». The setting is saved.
7. The countdown starts immediately.
8. If the countdown time has elapsed, an acoustic signal sounds and the operational status indicator of the timer flashes again: « △ ».
9. After approx. 2 minutes the acoustic signal stops automatically, and the operational status indicator of the timer goes off: « △ ». You can also switch off the acoustic signal by pressing any button on the display: « 📄 / 📋 / 📋 ».

To switch off the oven completely, the oven function knob must be set to position « 🔊 » and the temperature control knob must be set to position « 0 ».

⚠ WARNING When using the timer in countdown mode, the oven is not switched off automatically after the selected period of time has elapsed.

3.5.2 Semi-automatic cooking / baking function

This function allows you to set a countdown time by which the oven will be switched off automatically after the time has elapsed (DURATION OF THE COOKING / BAKING TIME) OR to select the time of the day by which the oven will be switched off automatically (END OF THE COOKING / BAKING TIME).

HOW TO SET THE DURATION OF THE COOKING / BAKING TIME

This function allows you to set a countdown time by which the oven will be switched off automatically after the time has elapsed.
i The maximum settable countdown time is 10 hours.

1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time.
2. Place the food to be cooked or baked in the oven and close the door properly.
3. Press the FUNCTION BUTTON « ☐» on the display repeatedly until the operational status indicator « DURATION OF THE COOKING / BAKING TIME » flashes: « ➡️
4. Set the desired duration of the cooking / baking time (1 minute - 10 hours) using the « +/ - (☐/☐) » - BUTTONS.
5. After approx. 5 seconds the set time is saved. The operational status indicator « DURATION OF THE COOKING / BAKING TIME » is on permanently: « ↗ ». The display indicates the time / system time.
6. Select the desired oven function (s. chapter 4.5 OVEN FUNCTIONS) and oven temperature using the corresponding rotary knobs.
7. The oven is in operation.
8. If the countdown time has elapsed, an acoustic signal sounds, the oven is switched off automatically and the operational status indicator « DURATION OF THE COOKING / BAKING TIME » flashes again: « ➞ ».
9. After approx. 2 minutes the acoustic signal stops automatically, and the operational status indicator « DURATION OF THE COOKING / BAKING TIME » goes off: « ↗ ». You can also switch off the acoustic signal by pressing any button on the display: « 📄 / 📋 / 📋 ».
   i After the cooking / baking process is finished: the oven function knob must be set to position « 📁 » and the temperature control knob must be set to position « 0 » to switch off the oven completely.

HOW TO SET THE END OF THE COOKING / BAKING TIME

This function allows you to select the time of the day by which the oven will be switched off automatically.

The maximum settable time of the day for the end of the cooking / baking time is 10 hours from the current time of the day (current time / system time + 10 h max.).
1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time.
2. Place the food to be cooked or baked in the oven and close the door properly.
3. Press the FUNCTION BUTTON « ☐» on the display repeatedly until the operational status indicator « END OF THE COOKING / BAKING TIME » flashes:
4. Set the desired time of the day by which the cooking / baking process should be finished using the « +/- (☐/☐) » - BUTTONS.
i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock, etc.
5. After approx. 5 seconds the set time is saved. The operational status indicator « END OF THE COOKING / BAKING TIME » is on permanently: « → ».
6. Select the desired oven function (s. chapter 4.5 OVEN FUNCTIONS) and oven temperature using the corresponding rotary knobs.
7. The oven is in operation.
8. If the set time of the day has been reached, an acoustic signal sounds, the oven is switched off automatically and the operational status indicator « END OF THE COOKING / BAKING TIME » flashes again: « → ».
9. After approx. 2 minutes the acoustic signal stops automatically, and the operational status indicator « END OF THE COOKING / BAKING TIME » goes off: « → ». You can also switch off the acoustic signal by pressing any button on the display: « 📄 / 📋 / 📋 ».
i After the cooking / baking process is finished: the oven function knob must be set to position « 🔊 » and the temperature control knob must be set to position « 0 » to switch off the oven completely.

3.5.3 Automatic cooking / baking function

This function enables to select the duration of the cooking / baking time and the time by which the oven will be switched off automatically at the same time.
i The maximum settable duration of the cooking / baking time is 10 hours.

The maximum settable time of the day for the end of the cooking / baking time is 10 hours from the current time of the day (current time + 10 h max.).

HOW TO SET THE AUTOMATIC COOKING / BAKING FUNCTION

1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time.
2. Place the food to be cooked or baked in the oven and close the door properly.
3. Press the FUNCTION BUTTON « 📁 » on the display repeatedly until the operational status indicator « DURATION OF THE COOKING / BAKING TIME » flashes: « ➔ ».
4. Set the desired duration of the cooking / baking time (1 minute - 10 hours) using the « +/- (☐/☐) » - BUTTONS.
5. After approx. 5 seconds the set time is saved. The operational status indicator « DURATION OF THE COOKING / BAKING TIME » is on permanently: « ↗ ». The display indicates the time / system time.
6. Press the FUNCTION BUTTON « ☐» on the display repeatedly until the operational status indicator « END OF THE COOKING / BAKING TIME » flashes: « ➡️
7. Set the desired time of the day by which the cooking / baking process should be finished using the « +/ - (☐/☐) » - BUTTONS.
   i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock, etc.
8. After approx. 5 seconds the set time is saved. The operational status indicator « END OF THE COOKING / BAKING TIME » is on permanently: « → ».
9. Select the desired oven function (s. chapter 4.6 OVEN FUNCTIONS) and oven temperature using the corresponding rotary knobs.
10. The oven is in operation.
11. The cooking process starts at the calculated time of the day.
12. If the cooking / baking process has been finished, an acoustic signal sounds, the operational status indicators « DURATION OF THE COOKING / BAKING TIME » and « END OF THE COOKING / BAKING TIME » are on / flash ^16 simultaneously: « ➡️ » / « ➡️ ». The oven is switched off automatically.
13. After approx. 2 minutes the acoustic signal stops automatically, and the operational status indicators of both functions goes off: « |→| » / « →| ».

You can also switch off the acoustic signal by pressing any button on the display: « 📄 / 📋 / 📋 ».

After the cooking / baking process is finished: the oven function knob must be set to position « 🔍 » and the temperature control knob must be set to position « 0 » to switch off the oven completely.

EXAMPLE

i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock.

It is 8:00 a.m. You want to cook or bake for 2 hours. The cooking / baking time should be finished at 1:00 p.m.
To set the programme please follow the instructions given above in: "HOW TO SET THE AUTOMATIC COOKING / BAKING FUNCTION".

1. Set the duration of the cooking / baking time to 2 hours.
2. Set the time by which the cooking / baking process should be finished to 13:00.
3. The calculated cooking process starts at 11:00 a.m.
4. At 13:00 o'clock (1:00 p.m.) the oven will be switched off automatically. The oven returns to STANDBY MODE.

3.5.4 How to cancel the programming

⚠️ CAUTION! To switch off the oven completely, the rotary knob of the oven function must be set to position « ⏻ » and the rotary knob of the oven temperature must be set to position « 0 ». If the rotary knobs are not set to these positions after you have cancelled the timer / programme functions, the oven will keep heating continuously.

1. Press the function button « ☐» on the display repeatedly until the operational status indicator « END OF THE COOKING / BAKING TIME » flashes: « → ».
2. Set the time which is indicated on the display back to the current time of the day.

HOW TO CANCEL THE AUTOMATIC COOKING / BAKING FUNCTION

1. Press the function button « ☐» on the display repeatedly until the operational status indicator « DURATION OF THE COOKING / BAKING TIME » flashes: « ➡ ».
2. Set the time which is indicated on the display back to « 00.00 ».
3. Press the function button « ☐» on the display repeatedly until the operational status indicator « END OF THE COOKING / BAKING TIME » flashes: « → ».
4. Set the time which is indicated on the display back to the current time of the day.

⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!
⚠️ CAUTION! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!
⚠️ CAUTION! Always use oven gloves.

Proper positioning of the trays is mandatory for safe operation of the appliance. Otherwise hot food or cookware can slide off the trays when removing them.

Diagram of a simple enclosure with a dome-shaped structure inside, no text or symbols present.

i After the appliance has been connected to the mains for the first time, the numbers on the display are flashing.
i After the end of operation, the cooling fan still continues to run for a while.
Before you can set the time of the day, select an oven function or an oven temperature, you must activate the manual operating mode of the oven (s. chapter 3.3.2 MANUAL OPERATING MODE).

3.5 Functions of the oven

Close-up of a metallic control knob with eight function icons arranged around it (no text or symbols on the knob itself)

SYMBOLS	DESCRIPTION OF THE FUNCTIONS
	Internal light:➢Turn the rotary knob to this symbol to switch on the internal light.➢The oven does not heat.Defrost:➢ The fan works without a heat setting.➢ You can defrost frozen food.➢ Defrosting time depends on size and weight of the food. The defrosting time can also be found in the instructions on the label of the food packaging.
	Grill, top heat and fan:➢ The grill, the top heat and the fan operate simultaneously.➢ Accelerates grilling and improves the taste of the food.➢ Suitable for the fast browning of food, e.g., steaks, burgers.➢ Maintains the juiciness of the food, e.g., of steaks, burgers, etc.➢ Settable oven temperature range: 50 °C - 250 °C.
	Grill and top heat:➢ The grill and the top heat operate simultaneously.➢ The heat is emitted directly onto the food under the grill element.➢ "Combined grilling" allows higher temperatures in the top area, intensifies browning and allows higher temperature in the top area; it also allows the preparing of larger portions.; e.g., of sausages, steaks, fish, etc.➢ Settable oven temperature range: 50 °C - 250 °C.
	Top and bottom heat and fan:➢ The oven is heated conventionally while using the fan.➢ Due to the additionally activated fan, the heat circulates; this circulation ensures an even heat distribution.➢ The oven temperature rises slowly and the heat can penetrate the food completely. This reduces excess heat and makes grilling more energy efficient.➢ This function is suitable, i.a., for roasting at high temperatures or for the roasting of large pieces of meat.Bottom heat and fan:➢ Switches on the bottom heater of the oven, e.g., for final backing from the bottom.➢ The fan is surrounded by a heating element, so the hot air is evenly distributed.➢ This function is suitable for frozen convenience products, and dishes which require a powerful bottom heat.➢ This function is also suitable for therapid preheatingof the oven and for the sterilising and preserving of jars.➢ Settable oven temperature range: 50 °C - 250 °C.
	Top heat and bottom heat:➢ The oven is heated conventionally.➢ The oven must be preheated before you start cooking baking.➢ Suitable to cook / bake ononecooking / baking level.
	Bottom heat:➢ Switches on the bottom heat of the oven, e.g., for final backing from the bottom.➢ This function is also suitable for slow cooking and for warming up.
	Hot air fan:➢ The fan is surrounded by a heating element, so the hot air is evenly distributed.➢ You can cook ontwocooking / baking levels simultaneously.➢ Settable oven temperature range: 50 °C - 250 °C.

NOTICE! If you select an oven function incl. fan (e.g., top and bottom heat and fan) and set the temperature control knob to position « 0 » at the same time, only the fan operates and you can cool down food / dishes or the inside of the oven.

⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!
⚠️ CAUTION! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!
⚠️ CAUTION! Always use oven gloves.

4.1 Helpful hints

We recommend to use the supplied baking tray provided with your appliance.
It is also possible to bake in cake tins and trays bought somewhere else. For baking it is better to use black trays which conduct heat better and shorten the baking time.
◆ Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters). The use of such tins can result in under-cooking the base of cakes.
Before you take a cake out of the oven, check that it is ready using a wooden stick (when the cake is ready the stick should come out dry and clean after having been inserted in the cake).
When switching off the oven leave the cake inside for about 5 minutes.
◆ Cook meat with a weight of more than 1 kg in the oven. Cook smaller pieces of food on the hob.
Use oven-proof cookware only. Check that their handles also are oven-proof.
When you cook meat on a grillage, insert a drip tray with a small amount of water in the oven (minimum rack height).
◆ Turn over meat at least once.
◆ Never pour cold water on the meat.

Food	Weight (kg)	Level	Function	Temperature in °C	First Face (Minuten)	Second Face (Minuten)	Accessory
Biscuit	0,5	3		200	10-15	-	Baking tray
Sandwich	0,2	3		180	15-20	-	Grate
Swiss Roll	0,2	3		180	10-18	-	Baking tray
Small cake	0,3-0,4	3		185	20-25	-	Baking tray
Small cake	0,3-0,4	3		160	20-25	-	Baking tray
Sponge cake	0,5	3		175	30-35	-	Grate
Sponge cake	0,5	3		150	30-35	-	Grill-rost
Pizza	0,35	3		200	7-10	-	Baking tray
Pizza	0,35	3		200	10	-	Baking tray
Apple pie	1,2	3		185	50-60	-	Grate
Apple pie	1,2	2		185	70	-	Grate
Toast	9 Stk.	5		240	1-2	-	Grate
Beef	1	5		200	10-15	8-10	Baking tray
Pork	2	2		190	110-130	-	Baking tray
Chicken	1,2	3		200	50-60	-	Baking tray
Hamburger	1	5		240	10-20	5-10	Baking tray

4.2 Saving of energy

Do not open the oven door unnecessarily often.
❖ Switch off the oven in good time and make use of the residual heat.
❖ Only use the oven when cooking larger dishes.
✿ Meat of up to 1 kg can be cooked more economically in a pan on the hob.
If the cooking time takes longer than 40 minutes switch off the oven 10 minutes before.
❖ Make sure the oven door is closed properly.
- Heat can escape through spillages on the door seals. Clean up any spillages immediately.
Do not install the cooker near of refrigerators / freezers. Otherwise the energy consumption increases unnecessarily.

⚠ WARNING! Switch off the appliance and let it cool down before cleaning. Disconnect the appliance from the mains before maintenance (fuse box of your household power supply)!

⚠ WARNING! Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! To switch off the oven completely the rotary knobs of the oven function and of the temperature control must be set to position 0.

DETERGENTS:

➢ Do not use any abrasive detergents! Do not use any organic detergents! ^17
Do not use essential oils!
▶ Never use solvents.

5.1 Cleaning of the oven

➢ Clean the oven after use.
➢ Switch on the internal light while cleaning.
Clean the interior with warm water and a little bit of washing-liquid. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
▶ Dry after cleaning.
➢ Clean the outside of the oven with warm soapy water. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
If you use a special oven-detergent, check that the detergent is suitable for your appliance (instructions on the packaging of the detergent).
Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

Never use a steam cleaner.

5.1.1 How to clean the oven with steam

1. Place a bowl of 250 ml of water at the lowest rack height of the oven.
2. Close the oven door.
3. Select the oven function « top and bottom heat (with fan) » and set the oven temperature to 100 °C.
4. Heat the oven for approx. 30 minutes.
5. Open the oven door and wipe the interior with a cloth.
6. Then clean the interior using warm water and a little bit of washing-liquid.
7. Dry after cleaning.

5.2 Cleaning of the oven door

▶ Clean the door very carefully.
Do not use any abrasive detergents; otherwise you may damage or brake the glass.
➢ Use wash-up liquid and warm water.

5.3 Replacing of the illuminant

⚠ WARNING! Switch off the appliance and let it cool down completely. Disconnect the appliance from the mains before maintenance (fuse box of your household power supply)! RISK OF ELECTRIC SHOCK!

NOTICE! When you replace the illuminant, always use a clean cloth or gloves. Never touch the new illuminant with your bare hands.

NOTICE! Never use a screwdriver to remove the cover. Remove the cover by hand only! RISK OF DAMAGE!

1. Disconnect the appliance from the mains: switch off the corresponding fuse in the fuse box of your household power supply!
2. Place a dishcloth in the interior of the cold oven to protect it from possible damage.
3. Unscrew the lamp cover anticlockwise (s. fig. below). Clean the lamp cover and wipe it dry thoroughly.

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

1. Unscrew the illuminant from the socket (s. fig. below) and replace it with a high temperature illuminant (300 °C) of the same type: Voltage 230 V / Power 25 W. Do not use any other type of illuminant.

Diagram showing a device with an arrow pointing to a circular component, no text or symbols present

1. Screw the new illuminant in. Check its proper position in the socket.

2. Replace the lamp cover.

3. Remove the dishcloth and switch on the corresponding fuse in the fuse box of your household power supply again.

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the eco-design requirements for non-directional household lamps. This means that illuminants, which are used in household appliances, must not be used to illuminate domestic establishments.

5.4 Removing / installing of the oven door

HOW TO REMOVE / INSTALL THE OVEN DOOR

1. Open the door and push the safety catches of the two hinges upwards (s. fig. on the right).

Diagram of a mechanical device with a rotating arrow indicating motion (no text or symbols)

1. Close the door slightly: 15^ (s. fig. on the right).
2. Lift the door and pull it towards your direction carefully.

Diagram of a door with an 15-degree angle indicator and directional arrows indicating rotation (no text or symbols)

1. To reassemble proceed in reverse order.

2. Check that the groove of the hinge bracket is positioned properly in its guide.

3. After reassembling the door close the safety catch carefully.

4. If the safety catch is not closed properly, you will damage the hinges when closing the door.

5.5 Removing of the glass panel

1. Unscrew and unfasten the bracket latch that is in the corner at the top of the door.
2. Take out the glass from the second blocking mechanism and remove it.

Isometric line drawing of a rectangular electronic component with mounting holes and a central square (no text or symbols)

1. After cleaning, insert and block the glass panel.

2. Screw in the blocking mechanism..

5.6 Removing / installing of the telescopic slides

HOW TO REMOVE THE TELESCOPIC SLIDES FROM THE LEFT SIDE OF THE OVEN CAVITY

1. Press the slide hooks of the telescopic slide at the points marked « A » until it is released from the side rack (see fig. on the right).
2. Then turn the telescopic slide anti-clockwise slightly (s. fig. on the right, arrow).

Diagram of a mechanical structure with labeled point A and directional arrow (no text or symbols beyond label)

1. Lift the telescopic slide slightly so that you can remove it from the side rack without the slide hooks being jammed (s. fig. on the right, arrow).

2. Remove the telescopic slide.

Pure mechanical assembly diagram showing ladder-like structure with no text or symbols

To remove the telescopic slide on the right side of the oven cavity, please proceed inversely.

If you do not want to use the telescopic slides any longer or if you want to use them again at a later time, please store them in a dry and safe place.

HOW TO INSTALL THE TELESCOPIC SLIDES ON THE LEFT SIDE OF THE OVEN CAVITY)

1. If you want to install the telescopic slides, select the desired insertion level of the side racks first.

2. Place the rail hooks at the points marked « B » on the upper guide rail (s. fig. on the right).

3. Then turn the telescopic rail clockwise (s. fig. on the right, arrow).

4. Press the slide hooks of the telescopic slide at the points marked «C» until they snap into place on the lower guide rail of the side rack; (s. fig. on the right, arrow).

5. Ensure that the telescopic slide is properly and securely installed in the guide rail of the side rack.

Pure mechanical assembly diagram showing a ladder-like structure with no text or symbols

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

1. Before you close the appliance door, ensure that all telescopic slides are completely pushed in.
2. If the telescopic slides are not pushed in properly, the glass of the door may be damaged when the door is closed!
   To install the telescopic slide on the right side of the oven cavity, please proceed inversely.

5.7 Removing / installing of the side rack(s)

You can remove the side racks to facilitate the cleaning of the oven cavity (especially the side panels).
Remove all accessories such as the grilling grate, drip tray, etc. before you remove the side racks.

NOTICE! Only carry out the removal of the side racks with utmost care, otherwise you may damage the enamel.

⚠ WARNING! Any damage caused by the improper removal or installation of the side racks is not covered by the guarantee.

HOW TO REMOVE THE SIDE RACKS

1. Press the hook (A) of the side rack slightly downwards (s. fig. on the right, arrow).
2. Swivel the side rack inwards at an angle o approx. 45 degrees (s. fig on the right, arrow).

1. Unhook the side rack at the top and then pull it out carefully (s. fig. on the right, arrows).

Diagram of a ladder-like structure with directional arrows indicating flow or movement (no text or symbols)

HOW TO INSTALL THE SIDE RACKS

1. Please proceed in reverse order to install the side racks; s. above « HOW TO REMOVE THE SIDE RACKS ».
2. Ensure that the side racks are installed properly and securely.

5.8 Trouble shooting

EMERGENCY MEASURES:

1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power supply).
3. Contact your customer service.

➢ Check the schedule below before you contact your aftersales service.

MALFUNCTION

POSSIBLE CAUSES	MEASURES
APPLIANCE DOES NOT WORK AT ALL.
➢ The appliance is not supplied with energy.	➢ Check the relevant fuse in the fuse box of your household power supply.
MALFUNCTION
POSSIBLE CAUSES	MEASURES
THE APPLIANCE DOES NOT HEAT.
You have not set a temperature.You have not set the timer ^18 .The heating element is defective.	Set a temperature.Set the timer.Please contact the aftersales service.
THE INTERNAL LIGHT DOES NOT WORK.
The illuminant is loose or damaged.	Tighten or replace the illuminant.
NOISE CAUSED BY THE FAN INSIDE THE APPLIANCE.
The cooling-fan the appliance is equipped with ^19 protects the electronics from being overheated.It may continue to run even after you have switched the appliance off.	Normal operating condition. Do not disconnect the appliance from the mains while the fan is running.
ABNORMAL TEMPERATURE MEASUREMENT IN THE OVEN
Temperature sensor of the oven is defective.	The oven must not be used. The temperature sensor must be replaced.Please contact the aftersales service immediately.

If the appliance has a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the customer service.

6. Technical data

Model	Built-in oven
Control panel	Black Glass Panel
Energy efficiency category	A
Energy efficiency index	91,20
Energy consumption / conventional	0.80 kW/h
Energy consumption (fan / hot air)	0.77 kW/h
Net volume oven in l	70.00
Size of the appliance	Large: volume < 65 l
Oven functions	Lamp / Defrost / Double Grilling + Fan / Double Grilling / Bottem Heating + Fan / Conventional+Fan / Lower and Upper Heat / Bottom Heat / Convection
Grill	✓
Fan	✓
Hot air	✓
Full-glass inner door	✓
Oven door / glass sheets	Black glass / 2
Body cooling	✓
Handles / knobs	Aluminium
Drip pan / grilling grate	1 / 1
Noise emission	< 55 dB(A)
Max. power	2.80 kW
Voltage / frequency	220 - 240 V AC / 50 Hz
Safety plug	✓
Installation dimensions oven H*W*D in cm	59.90*59.50*56.80
Weight net / gross in kg	30.00 / 32.00

◆ Technical modifications reserved.

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances, PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Aftersales service information on the leaflet inside this instruction manual.
