Product Type	Built-in Microwave Oven
Brand	PKM
Model	MW800-20B EB
Color	Black (glass front)
Capacity	20 L
Microwave Power	800 W
Power Levels	6 (0%, 20%, 40%, 60%, 80%, 100%)
Voltage / Frequency	230-240 V AC / 50 Hz
Dimensions with Frame (HxWxD)	39.0 x 59.5 x 36.0 cm
Dimensions without Frame (HxWxD)	34.2 x 45.7 x 36.0 cm
Installation Recess (HxWxD)	36.5 x 56.0 x 35.0 cm
Net Weight	13.70 kg
Gross Weight	16.20 kg
Cord Length	100 cm
Turntable Diameter	245 mm
Display Type	LED
Door Opening	Push button
Automatic Cooking Programs	6 (Milk/Coffee, Potatoes, Reheat, Fish, Popcorn, Pizza)
Defrost Functions	By weight (100-1800 g) and by time (up to 95 min)
Quick Start	Yes, +30 sec increments
Delayed Start	Yes (preset timer)
Child Lock	Yes (automatic key lock)
Cleaning	Wipe with damp cloth; turntable washable
Safety Features	Door interlocks, safety instructions, automatic shut-off
Guarantee	24 months

Frequently Asked Questions - MW800-20B EB PKM

How do I set the clock on the PKM MW800-20B EB?

Press the CLOCK/PRESET button to select 12h or 24h display. Use the rotary knob to set hours, press CLOCK/PRESET again, set minutes, and press CLOCK/PRESET to confirm.

Can I use metal cookware in this microwave?

No, metal can cause sparking and fire. Only use microwave-safe containers made of glass, ceramic, or plastic. Avoid aluminum foil (except small pieces at least 2.5 cm from walls).

How do I defrost food by weight?

Press WEIGHT/TIME DEFROST once. Set the weight (100-1800 g) using the rotary knob. Press START/+30 SEC. The appliance will pause to remind you to turn food; press START again to continue.

What are the automatic cooking programs?

There are 6 programs: 1) Milk/Coffee (1-3 cups), 2) Potatoes (1-2 portions), 3) Reheat (200-800 g), 4) Fish (200-600 g), 5) Popcorn (100 g), 6) Pizza (150-450 g). Select with the rotary knob and confirm weight or portions.

How do I clean the microwave?

Unplug and let cool. Wipe interior with a damp cloth. For odors, microwave a bowl of water with lemon juice for 5 minutes. Clean turntable and ring in warm soapy water. Do not use abrasive cleaners.

What should I do if the microwave does not start?

Check that the power cord is plugged in properly, the household fuse is not blown, and the socket works. If the door is not closed completely, the appliance will not heat; ensure it is closed securely.

Is there a child lock feature?

Yes, the key lock activates automatically if the appliance is in standby with the door closed for one minute. To deactivate, open the door using the push button.

Can I use the microwave without the turntable?

No, the turntable and rotating ring must always be in place during operation. Never use the appliance if they are damaged.

How do I set a delayed start?

Set a cooking program first. Press CLOCK/PRESET, use rotary knob to set hours, press again to set minutes, then press CLOCK/PRESET to confirm. The program will start at the preset time.

What is the maximum cooking time?

The settable cooking time is up to 95 minutes. Quick Start allows up to 10 minutes in 30-second increments.

USER MANUAL MW800-20B EB PKM

Line drawing of a microwave oven with control panel and door, no text or symbols present

8

GERÄT MITTIG INSTALLIEREN

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....43

1.1 Signal words.... 44

1.2 Safety instructions.... 44

1. Installation....47

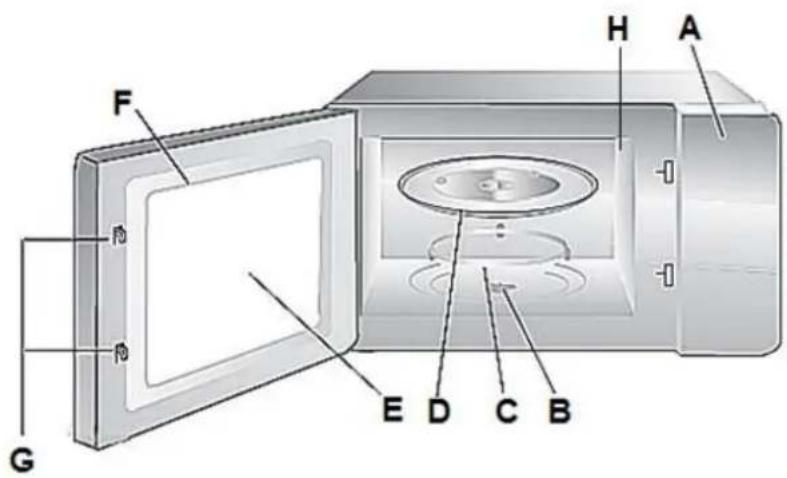

2. Description of the appliance (microwave / control panel)....55

3.1 Microwave....55

3.1.1 Installation of the turntable 55

3.2 Control panel....56

1. Operation....58

4.1 Before initial operation 58

4.2 General information.... 58

4.3 Setting of the clock 59

4.4 How to cook food 60

4.4.1 Settable power levels....61

4.6.1 Defrost by weight 62

4.6.2 Defrost by time 63

4.7 Multi-step operation....64

4.8 Auto-Menu (automatic cooking programmes)....65

4.8.1 Automatic cooking programmes 1 - 6 ...... 66

1. Microwave cooking....69

5.1 Basics of microwave cooking....69

5.2 Suitable materials for microwave cooking....69
5.3 Unsuitable materials for microwave cooking....71

1. Environmental protection....71

6.1 Environmental protection: disposal 71

1. Cleaning and maintenance....72
2. Troubleshooting....73
3. Technical data....74
4. Waste management....75
5. Guarantee conditions....76

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments.
i The appliance is intended for cooking only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY
1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do no break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:a door (bent ).b hinges and latches (must not be broken or loosened ).c door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.

2. Do not use the appliance if it does not work properly, is visibly damaged or has been dropped. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Contact the aftersales service or the shop you purchased the appliance at. ^7 RISK OF ELECTRIC SHOCK!

3. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.

4. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
5. Never try to repair the appliance yourself. Repairs carried out by unauthorised persons can cause serious damage. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^8 Original spare parts should be used only.
6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
7. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
8. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
9. Never remove the mica-plate which covers the wave guide inside the oven.
10. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
11. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. Operate the appliance with 230\~240 V AC / 50 Hz only.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimise any risk of electric shock.
3. Do not use an extension cord or a multiple socket.
4. Any repair or service work including the removal of any cover, which protects from exposure to microwave energy, must be performed by a qualified professional only.
5. Only operate the appliance when the door is closed.

6. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

7. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!

8. Do not use the appliance to dry clothes or wet newspapers etc.
9. Do not use the appliance when it is empty.
10. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.
b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.
c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.
d. Do not use the appliance to store anything inside.
e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. The appliance must not leave unattended during cooking.
2. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.
3. Never heat any food or liquids in sealed containers, because they can explode.
4. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
5. Do not use a steam cleaner to clean the appliance. RISK OF ELECTRIC SHOCK!
6. Disconnect the appliance from the mains before cleaning or maintenance.
7. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
8. Children must never play with the appliance. Touching the appliance during operation can cause serious burns.
9. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

2. Lead the power cord in such a way that you will not trip on it.

3. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.

NOTICE

1. Do not use the door to transport the appliance as you will damage the hinges.
2. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
3. Regularly cleaning and maintenance grant proper operation and optimal performance of your appliance.
4. Check your utensils if they are suitable for use in a microwave appliance.
5. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
6. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

1. Remove all packaging materials. If a safety film is on the appliance, pull it off carefully. Check that the appliance is not damaged. If you detect any damage, please contact the shop you purchased the appliance at.
2. Install the appliance in a dry and corrosion-safe place. Keep the appliance away from sources of heat and moisture such as gas burners, water containers etc.
3. The back of the appliance must be aligned towards a wall.
4. Never cover the ventilation openings and air inlet points.

5. Never remove the feet at the bottom of the appliance.

6. Install the appliance as far away from radios or TV-sets as possible as its operation can cause interference.

7. Operate the appliance with its door closed only.
8. Only use a proper grounded safety socket for connection.
9. Manufacturing residues or oil having remained in the oven cavity or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the room door or a window to ensure proper ventilation. We strongly recommend to place a cup of water on the turntable; then operate the appliance with high power a few times.

⚠ WARNING! Never install the appliance near or above a hob / stove or any heat-producing appliance. If installed near a source of heat, the appliance can be seriously damaged.

⚠ WARNING! Connect the appliance to the power supply after installation only.

BUILT-IN FURNITURE

1. The minimum installation height is 85 cm.
2. A safety socket must be near of the appliance.
3. The built-in furniture must not have any cracks, chipping or other damages. All connections of the cabinet must be stable.
4. Never cover the ventilation openings and air inlet points.

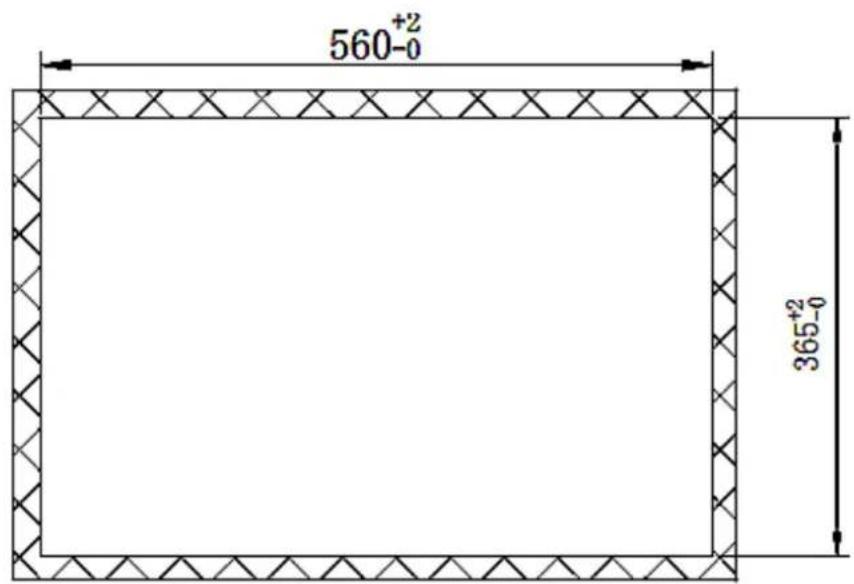

5. Provide a built-in furniture relevant to the dimensions on the following drawing; s. fig below.

i All dimensions are given in millimetres.

i Always observe the distances and minimum distances for proper ventilation shown in the following drawing.

A
VENTILATION OPENING

HOW TO INSTALL THE FEET ^9

It may be necessary to screw the four feet (C) into the relevant openings (D) on the bottom of the appliance (B); s. fig. below.

Remove all accessories from the interior of the appliance before you turn it over.

B	BOTTOM OF THE APPLIANCE
C	FOOT
D	OPENING

HOW TO INSTALL THE FRAME

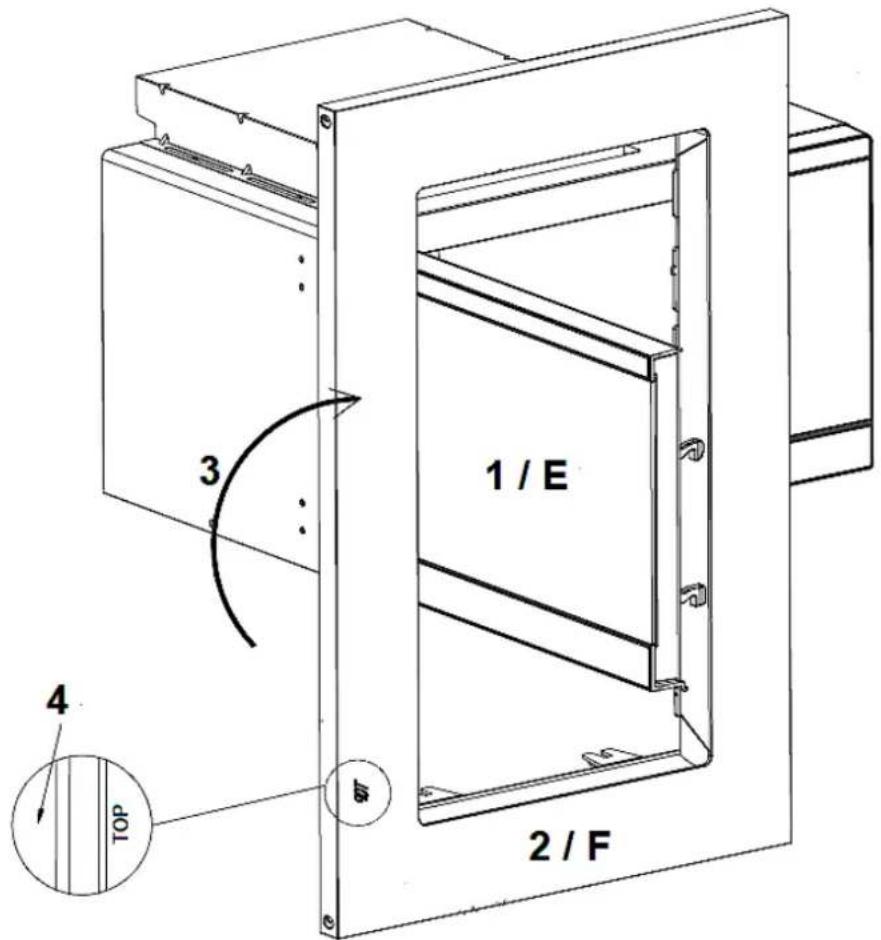

1. Open the door; s. fig. below, step 1 (1 / E).

2. Hold the frame of the appliance vertically and then guide the opening of the frame over the open door; s. fig. below, step 2 (2 / F).

PLEASE NOTE: the top of the frame is marked with the word « TOP » on the back; s. fig. below (4).

1. Turn the frame horizontally (the word « TOP » on the back must be at the top); s. fig. below, step 3 (3 and 4).

Step 1	1 / E	OPEN THE DOOR
Step 2	2 / F	HOLD THE FRAME VERTICALLY
Step 3	3	TURN THE FRAME HORIZONTALLY
4		« TOP » = TOP OF THE FRAME

1. Align the frame with the appliance properly; s. fig. below, step 5 (5 / F).

2. Fix the frame using the four screws (4*10 mm) supplied; s. fig. below, step 6 (6 / G).

PLEASE NOTE: the top of the frame is marked with the word « TOP » on the back; s. fig. below (4).

Step 5	5 / F	ALIGN THE FRAME
Step 6	6 / G	FIX THE FRAME / 4*10 mm SCREWS
4		«TOP» = TOP OF THE FRAME

HOW TO INSTALL THE APPLIANCE

1. Push the appliance into the built-in furniture; s. fig below (7).

i The power cord must not be trapped or kinked.

7

PUSH THE APPLIANCE INTO THE BUILT-IN FURNITURE

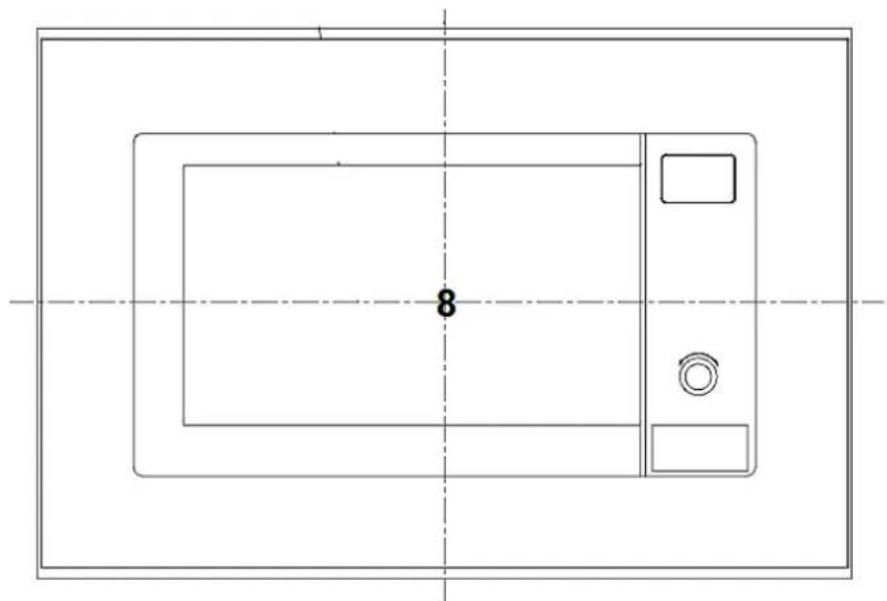

1. The appliance must be installed in the centre of the built-in furniture; s. fig below (8).

Line drawing of a microwave oven with control panel and door, no text or symbols present

8

INSTALL THE APPLIANCE IN THE CENTRE OF THE BUILT-IN FURNITURE

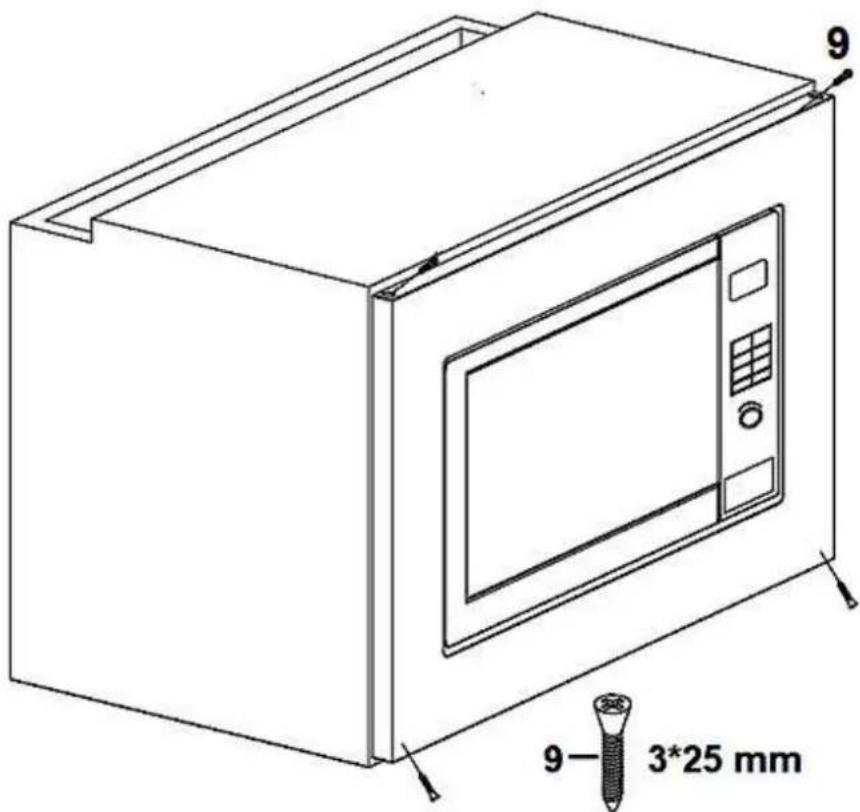

1. Fix the appliance using the four screws (3*25 mm) provided; s. fig. below (9).

NOTICE! Ensure that the appliance is installed in the built-in furniture properly.

NOTICE! Ensure that the door of the appliance can be opened and closed properly.

3. Description of the appliance (microwave / control panel)

3.1 Microwave

Fig. similar: fig. serves as an example only.

A	CONTROL PANEL	B	DRIVE SHAFT of the turntable
C	ROTATING RING of the turntable	D	TURNTABLE
E	WINDOW	F	DOOR
G	SAFETY INTERLOCK	H	WAVE GUIDE*

*	Never remove the mica-plate which covers the wave guide inside the oven!

3.1.1 Installation of the turntable

B	DRIVE SHAFT of the turntable	D	TURNTABLE
C	ROTATING RING of the turntable	I	HUB

i Never place the turntable upside down. The rotation of the turntable must never be restricted.
i Never use the appliance without the turntable and rotating ring.
i All food or containers with food must be placed on the turntable.
Do not operate the appliance when the turntable and/or rotating ring are damaged.

3.2 Control panel

Fig. similar: modifications are possible.

1	DISPLAY➢ The display indicates the cooking time, microwave power, time, etc.
2	BUTTON « POWER »➢ Use this button to set the microwave power (0 / 20 / 40 / 60 / 80 / 100 %).➢ See chapter 4.4 HOW TO COOK FOOD.
3	BUTTON « WEIGHT / TIME DEFROST »➢ Use this button to set a defrosting programme (defrost by weight or time).➢ See chapter 4.6 DEFROSTING PROGRAMMES et seq.
4	BUTTON « CLOCK / PRESET »➢ Use this button to set the clock.➢ Use this button to set a delayed start.➢ See chapter 4.3 SETTING OF THE CLOCK.➢ See chapter 4.9 FUNCTION: « DELAYED START ».
5	BUTTON « STOP / CANCEL »➢ Use this button to cancel a setting or reset the microwave.➢ Use this button to cancel a cooking / defrosting programme temporarily or completely.➢ See chapter 4.2 GENERAL INFORMATION.
6	ROTARY KNOB « TIME / MENU »➢ Use this button to set the time / cooking time.➢ Use this button to set an automatic cooking programme (6 automatic cooking programmes are selectable).➢ See chapter 4.8 AUTO-MENU (AUTOMATIC COOKING PROGRAMMES) ct.scq.
7	BUTTON « START / +30 SEC »➢ Use this button to start a cooking / defrosting programme or an automatic cooking programme.➢ Use this button to activate the function « Quick Start ».➢ See chapter 4.5 FUNCTION: « QUICK START ».
8	PUSH - BUTTON➢ Press this button to open the door of the appliance.

4.1 Before initial operation

i Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety instructions!

1. Remove all packaging materials.
2. Install the turntable; s. chapter 3.1.1 INSTALLATION OF THE TURNTABLE.

NOTICE! Never use the appliance without the turntable and rotating ring.

NOTICE! Do not operate the appliance when the turntable and / or rotating ring are damaged.

4.2 General information

i If you interrupt the setting of a programme for more than 30 seconds, the appliance returns to STAND-BY MODE.

AFTER THE CONNECTION OF THE APPLIANCE TO THE MAINS

When you connect the appliance to the mains for the first time, an acoustic signal sounds and the display indicates « 1:01 » and the following symbol: « ». The appliance is in STANDBY MODE.

➢ Press button « STOP / CANCEL » to cancel a setting or reset the appliance before setting a cooking programme.
During operation: Press this button once to stop the cooking process temporarily. To continue the cooking process, press the button « START / +30 SEC ».
During operation: Press this button twice to cancel the cooking process completely.

WHEN THE COOKING PROCESS IS FINISHED

1. When the cooking process is finished, the display indicates «End» and an acoustic signal sounds every 2 minutes.
2. Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.

4.3 Setting of the clock

When you connect the appliance to the mains for the first time, an acoustic signal sounds and the display indicates « 1:01 » and the following symbol: « ». The appliance is in STANDBY MODE.

You can select a 12-hour or 24-hour display. To set the current time, proceed as follows.

1. The appliance must be in STAND-BY MODE.Press the button « CLOCK / PRESET » to set a 12-hour or 24-hour display:➢ press once = 12-hour display➢ press twice = 24-hour display	STAND-BY MODEBUTTON« CLOCK / PRESET »
2. Set the hours of the current time using the rotary knob « TIME / MENU » (0 - 23 or 0 - 12 hours).	ROTARY KNOB« TIME / MENU »[IMAGE]
3. Press the button « CLOCK / PRESET »	BUTTON« CLOCK / PRESET »
4. Set the minutes of the current time using the rotary knob « TIME / MENU » (0 - 59 minutes).	ROTARY KNOB« TIME / MENU »[IMAGE]
5. Press the button « CLOCK / PRESET » again to confirm the setting.	BUTTON« CLOCK / PRESET »

If you press the button « CLOCK / PRESET » during a cooking process, the current time is indicated on the display.

NOTICE! The clock must be set in order that the appliance works properly.

4.4 How to cook food

1. Open the door and put the food into the appliance. Close the door.

2. Press the button « POWER ». The display indicates a microwave power of 100 %.

3. Press the button « POWER » repeatedly to set the desired microwave power (100 % / 80 % / 60 % / 40 % / 20 % / 0 %).

4. Set the desired cooking time using the rotary knob « TIME / MENU » (settable time: 0:05 seconds ^10 -95:00 minutes).

5. Press the button « START / +30 SEC » to start the cooking process.

➢ Press the button « STOP / CANCEL » to cancel the setting.

1. When the cooking time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates «End». Press the button «STOP / CANCEL» or open the door of the appliance to stop the acoustic signal.

i You can increase the cooking time at any time using the rotary knob « TIME / MENU »
i If you press the button « POWER » during a cooking process, the current microwave power is indicated on the display.

EXAMPLE: 80% MICROWAVE POWER, 20 MINUTES COOKING TIME

1. Open the door and put the food into the appliance. Close the door.

2. Press the button « POWER ». The display indicates a microwave power of 100 %.

3. Press the button « POWER » again to set the microwave power to 80 %.

Use this function to start a cooking process at full microwave power (100 %) easily and conveniently.

i Each pressing of the button « START / +30 SEC » increases the cooking time by 30 seconds.

i The maximum cooking time is 10 minutes.

i The microwave power (100 %) is preprogrammed and cannot be changed.

1. Open the door and put the food into the appliance. Close the door.

2. The appliance must be in STANDBY MODE. Press the button « START / +30 SEC » repeatedly to set the desired cooking time.	STANDBY MODE power = 100 % BUTTON « START / +30 SEC »
3. After you have set a cooking time, the cooking process starts immediately at 100 % microwave power.	power 100 %
4. When the set cooking time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.	DISPLAY « End »

4.6 Defrosting programmes

• Your appliance is equipped with 2 defrosting programmes (defrost by weight and defrost by time).
  i Consume defrosted food as soon as possible. Do not refreeze after defrosting!
  i Remove any packaging material of the frozen foods.
  Do not cover the foods during the defrosting process.
  When you defrost meat, poultry or fish, liquids can occur during the defrosting process. Remove these liquids whenever you turn the foods. Never use these liquids for other purpose and never let them come in contact with other food.

4.6.1 Defrost by weight

The defrosting time as well as the microwave power are calculated and set automatically based on the set weight of the frozen food.
- An individual setting of the microwave power and / or the defrosting time is not possible.
The settable weight range of frozen food is 100 g to 1800 g.

1. Open the door and put the food to be defrosted into the appliance. Close the door.
2. Press the button « WEIGHT / TIME DEFROST » once.	BUTTON« WEIGHT / TIME DEFROST »PRESS 1X
3. Set the weight of the frozen food (100 g - 1800 g) using the rotary knob « TIME / MENU ».	ROTARY KNOB« TIME / MENU »[IMAGE]
4. Press the button « START / +30 SEC » to start the defrosting programme.➢Press the button « STOP / CANCEL » to cancel the setting.	BUTTON« START / +30 SEC »or« STOP / CANCEL »
5. When a certain period of time has elapsed, the defrosting process pauses automatically to indicate that the food should be turned over.
6. Turn over the food and press the button « START / +30 SEC » to continue the defrosting process.	BUTTON« START / +30 SEC »
7. When the calculated defrosting time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.	DISPLAY« End »

4.6.2 Defrost by time

You can set the defrosting time individually. An individual setting of the microwave power is not possible.
The maximum defrosting time is 95 minutes.

1. Open the door and put the food to be defrosted into the appliance. Close the door.
2. Press the button « WEIGHT / TIME DEFROST » twice.	BUTTON « WEIGHT / TIME DEFROST » PRESS 2x
3. Set the desired defrosting time (max. 95 minutes) using the rotary knob « TIME / MENU ».	ROTARY KNOB« TIME / MENU »
4. Press the button « START / +30 SEC » to start the defrosting programme.➢Press the button « STOP / CANCEL » to cancel the setting.	BUTTON« START / +30 SEC »or« STOP / CANCEL »
5. When a certain period of time has elapsed, the defrosting process pauses automatically to indicate that the food should be turned over.
6. Turn over the food and press the button « START / +30 SEC » to continue the defrosting process.	BUTTON« START / +30 SEC »
7. When the set defrosting time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.	DISPLAY« End »

4.7 Multi-step operation

You can set max. 2 programme steps.

The defrosting programmes (weight / time), the function « QUICK START » and the Auto-Menu (automatic cooking programmes) cannot be set.

EXAMPLE:

STEP 1 = 80 % MICROWAVE POWER, 5 MINUTES COOKING TIME

STEP 2 = 60 % MICROWAVE POWER, 7 MINUTES COOKING TIME

1. Open the door and put the food into the appliance. Close the door.

2. Press the button « POWER ». The display indicates a microwave power of 100 %.	BUTTON « POWER »Power = 100 %
3. Press the button « POWER » again to set the microwave power to 80 %.	BUTTON « POWER »Power = 80 %
4. Set the cooking time to 5 minutes using the rotary knob « TIME / MENU »	ROTARY KNOB« TIME / MENU »
5. Press the button « POWER » again to set the microwave power to 60 %.	BUTTON « POWER »Power = 60 %
6. Set the cooking time to 7 minutes using the rotary knob « TIME / MENU »	ROTARY KNOB« TIME / MENU »
7. Press the button « START / +30 SEC » to start the cooking process.➢Press the button « STOP / CANCEL » to cancel the setting.	BUTTON« START / +30 SEC »or« STOP / CANCEL »
8. When the set cooking time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.	DISPLAY« End »

4.8 Auto-Menu (automatic cooking programmes)

If you select one of the automatic cooking programmes, you do not need to set the power level and cooking time. But you have to set the kind of food as well as its weight or the number of portions / cups. The appliance configures the other settings (microwave power and cooking time) automatically.
The appliance must be in STANDBY MODE. Select a desired automatic cooking programme (1 - 6) using the rotary knob; see chapter 4.8.1 AUTOMATIC COOKING PROGRAMMES 1 - 6.

EXAMPLE: YOU WISH TO COOK 350 g OF FISH BY USING THE AUTO-MENU.

1. Open the door and put the food into the appliance. Close the door.

2. The appliance must be in STANDBY MODE. Select the automatic cooking programme for the cooking of fish: 4.	ROTARY KNOB« TIME / MENU »
3. Press the button « START / +30 SEC » to confirm the setting.	BUTTON« START / +30 SEC »
4. Set the weight of the fish using the rotary knob « TIME / MENU »: 350 g	ROTARY KNOB« TIME / MENU »
5. Press the button « START / +30 SEC » to start the set cooking programme.	BUTTON« START / +30 SEC »
6. When the calculated cooking time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.	DISPLAY« End »

4.8.1 Automatic cooking programmes 1 - 6

For milk / coffee and potatoes, the display indicates the number of portions / cups instead of the weight.
The result of a cooking process using an automatic cooking programme depends on various factors: e.g. the quality, shape and size of food, your personal preferences as to how well done you want certain food, how you placed food inside the appliance, the cookware used, even voltage fluctuation in the power supply, etc. Adjust the cooking times if necessary.

MENU(AUTOMATIC COOKING PROGRAMME)	FOOD	WEIGHTPORTIONS / CUPS
1	MILK / COFFEE	1 - 3 cups(200 ml per cup)
2	POTATOES	1 - 2 portions230 g per portion
3	REHEAT	200 g - 800 g
4	FISH	200g - 600 g
5	POPCORN	100 g
6	PIZZA	150 g - 450 g

Use this function to set a delayed start of a cooking programme.

The defrosting programmes (weight / time) and the function « Quick Start » cannot be set.

⚠ WARNING! The appliance must not leave unattended during cooking!

1. Open the door and put the food into the appliance. Close the door.

2. Set an individual or an automatic cooking programme.

➢ See chapter 4.4 HOW TO COOK FOOD or chapter 4.8 AUTO-MENU (AUTOMATIC COOKING PROGRAMMES).

3. Press the button « CLOCK / PRESET » once to activate the setting of the hours.	TASTE« CLOCK / PRESET »PRESS 1x
4. Set the hours of the desired time at which the cooking process should start using the rotary knob « TIME / MENU » (0 - 23 or 0 - 12 hours).	ROTARY KNOB« TIME / MENU »
5. Press the button « CLOCK / PRESET » again to activate the setting of the minutes.	TASTE« CLOCK / PRESET »PRESS AGAIN
6. Set the minutes of the desired time at which the cooking process should start using the rotary knob « TIME / MENU » (0 - 59).	ROTARY KNOB« TIME / MENU »
7. Press the button « CLOCK / PRESET » again to confirm the setting.	TASTE« CLOCK / PRESET »PRESS AGAIN

1. The cooking process starts at the set time.

2. When the set cooking time has elapsed, an acoustic signal sounds every 2 minutes and the display indicates « End ». Press the button « STOP / CANCEL » or open the door of the appliance to stop the acoustic signal.

DISPLAY « End »

i If you press the button « CLOCK / PRESET » ONCE, the preset time is indicated. The display indicates the countdown time for 5 seconds. You can cancel the setting if you press the button « STOP / CANCEL » while the preset time is displayed.

EXAMPLE

i Please note that you can select a 12-hour or 24-hour display; s. chapter 4.3 SETTING OF THE CLOCK.

It is 8:00 a.m. You want to cook for 30 minutes at a microwave power of 60 %. The cooking process should start at 1:00 p.m. (24-hour display = 13:00).
To set the programme please follow the instructions given above.

1. Set the microwave power to 60 %.
2. Set the cooking time to 30 minutes.
3. Set the time at which the cooking process should start to 1:00 pm (24-hour display = 13:00).
4. The cooking process starts at 1:00 p.m. (13:00).

4.10 Query function

✿ DURING OPERATION: Press the button « POWER » once. The current microwave power is indicated on the display.
✿ DURING OPERATION: Press the button « CLOCK / PRESET » once. The current time is indicated on the display.
✿ DELAYED START: Press the button « CLOCK / PRESET » once. The preset time is indicated on the display. The display indicates the countdown time for 5 seconds.

4.11 Key lock

The appliance is equipped with an automatic KEY LOCK to protect it from operation by children or unintentional operation.

AUTOMATIC ACTIVATION OF THE KEY LOCK

1. If the appliance is in STANDBY MODE, the door of the appliance is closed and you do not make any settings within one minute, the key lock is activated automatically.

2. An acoustic signal sounds and the operational status indicator of the key lock goes on.

3. The key lock is activated: the operating buttons and the rotary knob are locked.

HOW TO DEACTIVATE THE KEY LOCK

1. To deactivate the key lock, open the door of the appliance using the push-button.
2. The operational status indicator of the key lock goes off.
3. The key lock is deactivated: the operating buttons and the rotary knob are released.

5. Microwave cooking

5.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed, add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.
6. If you use microwave-safe plastic wrap, it must not contact the food as the wrap may melt.
7. Some microwave-safe plastic cookware might not be suitable for cooking food with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

5.2 Suitable materials for microwave cooking

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic only.
2. Do not use metal-made cookware or other metal-made items or plates with metal-made ornaments. Microwave radiation cannot penetrate metal.
3. ⚠️ WARNING! Metal can generate sparks. RISK OF FIRE.

MATERIAL	REMARKS
Aluminium foil	Only suitable to protect small parts of the food. You can cover the thin parts of meat or poultry using small parts of aluminium foil as an overcooking-protection. When the parts of the aluminium foil are too close to the walls of the appliance, sparking can occur. The aluminium foil must be at least 2.5 cm away from the walls of the appliance.
Browning dishes	Observe the information given by the relevant manufacturer. The bottom of the browning dish must be at least 5 mm above the turntable. Improper use can break the turntable.
Tableware	Use microwave-safe tableware only. Observe the information given by the relevant manufacturer. Do not use cracked or chipped tableware.
Glass jars	Always remove the lid. Heat-up the food until it is just warm. Most glass jars are not heat-resistant and can break.
Glass tableware	Use heat-resistant glass tableware only. The glass tableware must not contain any metal components. Do not use cracked or chipped glass tableware.
Oven cooking bags	Observe the information given by the relevant manufacturer. Do not close using metal tics. make small openings to allow steam to escape.
Paper plates / cups	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it i operating.
Paper towel	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it i operating.
Parchment paper	Use as a cover to prevent splattering or as a cover for steaming.
Plastic	Only use microwave-safe plastic. Observe the information given by the relevant manufacturer. The plastic must be labelled "Microwave-safe". Some plastic containers can melt when the food they contain becomes hot. Boiling bags and tightly closed plastic bags must be equipped with small openings, pierced or vented as described on their packaging.
Plastic wrap	Only use microwave-safe plastic wrap. You can use plastic wrap to cover the food so moisture is retained. The plastic wrap must not touch the food!
Thermometer	Only use microwave-safe thermometers.
Wax paper	You can use wax paper as a cover to protect th appliance from splatters or to retain moisture.

5.3 Unsuitable materials for microwave cooking

MATERIAL	REMARKS
Aluminium trays	Aluminium trays can cause sparking. Transfer the food into a microwave-safe container.
Food carton with metal handle etc.	Food cartons with metal handle etc. can cause sparking. Transfer the food into a microwave-safe container.
Metal-made or metal-trimmed items	Metal shields the food from the microwave energy. Metal components can cause sparking!
Paper bags	Paper bags can catch fire in the appliance. RISK OF FIRE!
Plastic foam	Plastic foam can melt when exposed to high temperatures and/or contaminate the food.
Wood	Wood used in a microwave appliance can dry and/or can get cracks. Wood can catch fire in the appliance. RISK OF FIRE!

6. Environmental protection

6.1 Environmental protection: disposal

Appliances bearing this symbol « — » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

⚠ WARNING! Disconnect the appliance from the mains and let it cool down completely before you clean or maintain it. RISK OF ELECTRIC SHOCK!

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.
2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.
3. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.
4. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.
5. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.
6. It is sometimes necessary to remove the turntable and/or rotating ring for cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.
7. Remove odours from your appliance by combining a cup of water with the juice and the skin of one lemon in a deep microwave-suitable bowl. Microwave it for 5 minutes. Wipe thoroughly and dry with a soft cloth.
8. Clean the appliance regularly and remove all residuals of food. Not keeping the appliance in a clean condition could lead to deterioration of the surface. This will affect the life-time of your appliance and may result in a hazardous situation.

⚠ WARNING! If it is necessary to remove the internal light of the appliance, please contact the shop you purchased the appliance at.

8. Troubleshooting

NORMAL OPERATING CONDITIONS
Interference to radio or television reception	Radio and TV reception can be interfered while the appliance is operating, similar to interferences of other electric appliances such as mixers, vacuum cleaners, electric fans etc.
Dim oven light	The oven light may become dim while the appliance is operating in lower power cooking.
Steam accumulation on door/hot air escapes from the air vents	During cooking, steam escapes from the food. Most of the steam is discharged via the ventilation openings. Nevertheless, some steam can accumulate at the cooler parts of the appliance, e.g. the door.
The appliance was accidentally-started without load (food).	WARNING! Never operate the appliance when it is empty.

MALFUNCTION
POSSIBLE CAUSE(S)	POSSIBLE MEASURE(S)
THE APPLIANCE CANNOT BE STARTED.
1. The power cord is not plugged in properly.2. Blown fuse in household fuse box.3. Socket malfunction.	1. Unplug. Plug in again after 10 seconds.2. Check household fuse box.3. Check the socket using another electric appliance.
THE APPLIANCE DOES NOT HEAT.
1. The door of the appliance is not closed properly.	1. Close the door of the appliance properly.
THE TURNTABLE GENERATES UNUSUAL NOISE.
1. The rotating ring or the bottom of the appliance inside is contaminated.	1. Clean the relevant parts (look also chapter CLEANING AND MAINTENANCE).

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.

9. Technical data

Type Built-in microwave oven
Case front black glass
Volume cooking chamber 20 l
Voltage / frequency	230-240V AC / 50 Hz
Max. power / microwave 800 W
Power levels microwave 6
Automatic programmes 6
Defrosting programme	✓
Opening of the door push button
LED display	✓
Acoustic end signal	✓
Key lock	✓
Timer digital / max. 95 minutes
Turntable	✓ / 245 mm
Length of power cord in cm 100
Dimensions without frame H*W*D 34.2*45.7*36.0 cm
Dimensions with frame H*W*D 39.0*59.5*36.0 cm
Dimensions installation recess H*W*D	36.5*56.0*35.0 cm
Weight net / gross in kg 13.70 / 16.20

◆ Technical modifications reserved.

10. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.

3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.

4. Dispose of any paper and cardboard into the corresponding containers.

5. Dispose of any plastics into the corresponding containers.

6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.

7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Please contact the shop you purchased the appliance at.
