WMO 7P - Oven Wolkenstein - Free user manual and instructions

Product Type	Built-in Electric Oven
Model	WMO 7P
Brand	Wolkenstein
Installation Type	Built-in under counter or in column

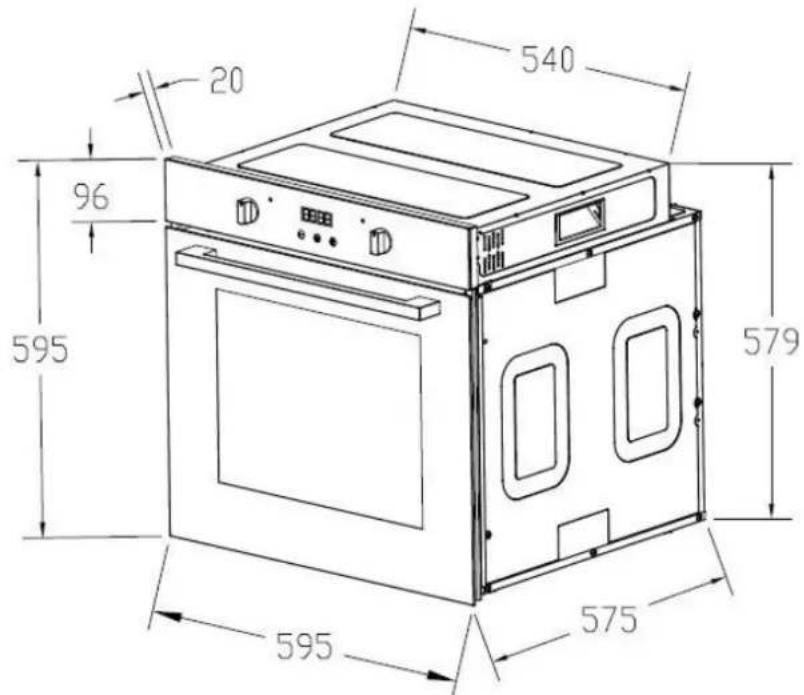

Dimensions (H x W x D)	595 mm x 595 mm x 550 mm
Weight	Approx. 30 kg
Power Supply	230 V ~ 50 Hz
Rated Power	2.4 kW
Energy Efficiency Class	A
Oven Capacity	70 L
Temperature Range	50 °C to 250 °C
Cooking Functions	Conventional, Fan Forced, Grill, Defrost, Bottom Heat
Control Type	Rotary knobs and digital display
Interior Lighting	Yes, halogen
Cleaning Type	Enamel interior, easy-clean
Door Type	Cool touch triple glazing
Safety Features	Child lock, auto shut-off, cooling fan
Spare Parts Availability	Heating elements, thermostat, door hinges, glass panel
Repairability Index	Good, common parts available
Included Accessories	1 grid, 1 baking tray, instruction manual

Frequently Asked Questions - WMO 7P Wolkenstein

How do I install the Wolkenstein WMO 7P oven?

Ensure the power supply matches 230 V ~ 50 Hz. The oven should be built into a cabinet with proper ventilation. Follow the detailed installation instructions in the manual for electrical connection and securing.

What are the main cooking functions of the WMO 7P?

The oven offers Conventional, Fan Forced, Grill, Defrost, and Bottom Heat functions. Use the rotary knob to select the desired mode.

How do I clean the oven?

The interior has an easy-clean enamel coating. Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. The door glass can be cleaned with a glass cleaner.

What is the maximum temperature for baking?

The temperature range is from 50 °C to 250 °C. For most baking, preheat to the recipe's required temperature.

How do I set the timer?

Use the timer knob or digital control to set cooking duration. A beep will sound when time is up. Some models have a delayed start option.

The oven is not heating properly. What should I check?

First, verify that the oven is plugged in and the circuit breaker is on. Check the temperature setting. If problem persists, the heating element or thermostat may be faulty. Consult a qualified technician.

Can I use aluminum foil inside the oven?

Avoid covering the oven bottom with foil, as it can block heat. Use foil only on baking trays and ensure it does not touch heating elements.

How do I activate the child lock?

Press and hold the Child Lock button (if available) for 3 seconds. The lock icon will appear on the display. Repeat to deactivate.

Where can I find spare parts for the WMO 7P?

Spare parts like heating elements, door hinges, and glass panels are available through authorized Wolkenstein service centers or online retailers. Check the manual for part numbers.

What does the error code E01 mean?

Error code E01 typically indicates a temperature sensor or control board fault. Try resetting the oven by unplugging for 1 minute. If the error persists, contact customer support.

USER MANUAL WMO 7P Wolkenstein

BUILT-IN OVEN (INCL. PYROLYSIS FUNCTION)

WMO 7P

Interior view of a double oven with digital display showing 48:29.10, no visible text or symbols on the main subject.

Line drawing of an open oven with internal shelves and doorways (no text or symbols)

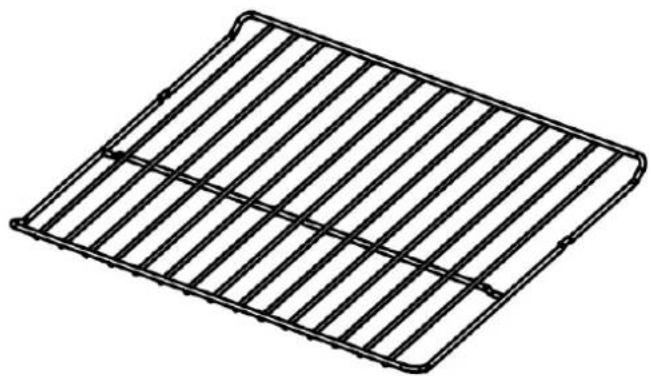

Pure wireframe diagram of a rectangular grid structure with vertical slats (no text or symbols)

WOLKENSTEIN

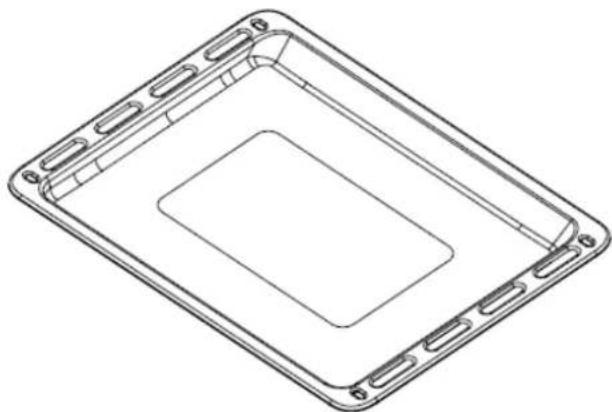

TROPFSCHALE (BACKOFENPFANNE)

Line drawing of a rectangular electronic device with internal components (no text or symbols)

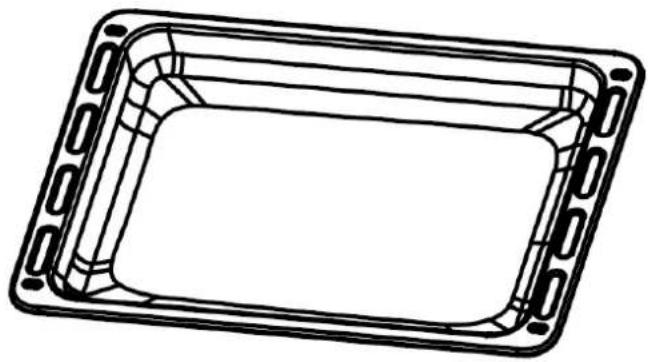

BACKBLECH (TIEFE BACKOFENPFANNE) ^3

Line drawing of a rectangular tray with internal compartments and mounting holes (no text or symbols)

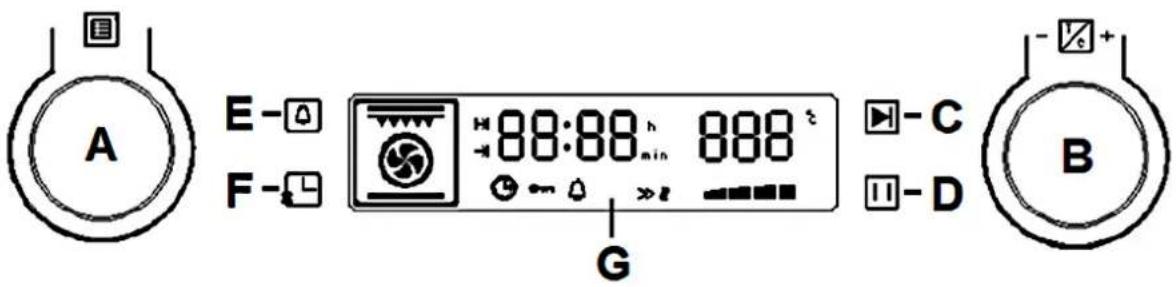

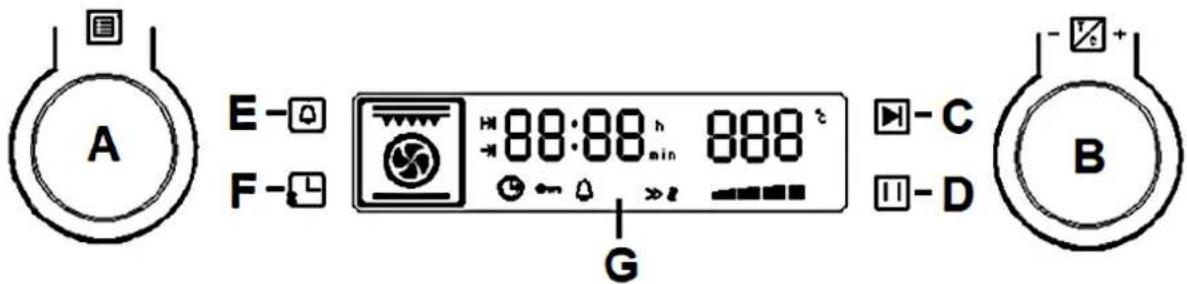

3.2 Bedienfeld

Technical line drawing of a rectangular oven or incubator with internal compartments and a spherical component (no text or symbols)

Technical line drawing of a mechanical assembly or bracket with no visible text or symbols

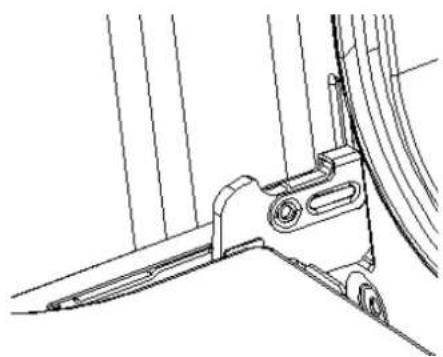

EINSETZEN DER BACKOFENTÜR

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Diagram of a device with two red arrows pointing upward, indicating motion or force direction (no text or symbols present)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....61

1.1 Signal words....62
1.2 Safety instructions....62

1. Installation....66

2.1 Unpacking and positioning....67

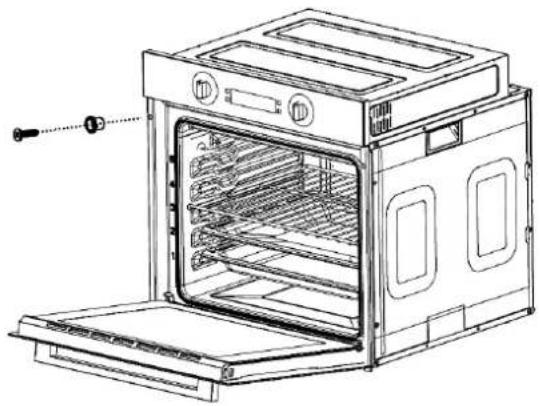

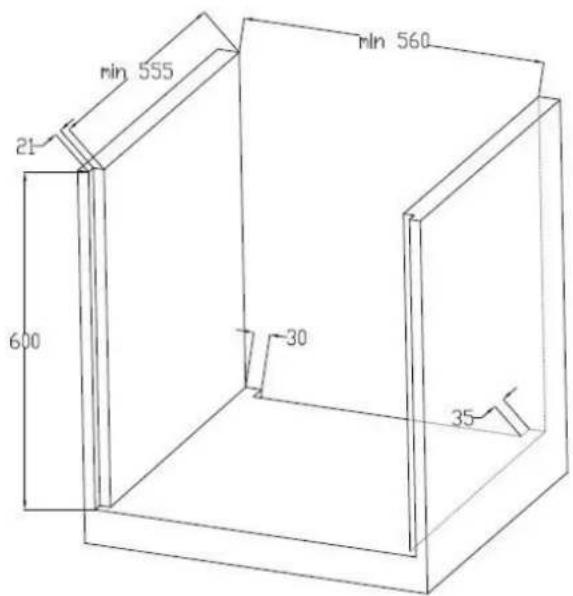

2.2 Installation of the oven....68
2.3 Electrical connection....70

1. Description of the appliance....71

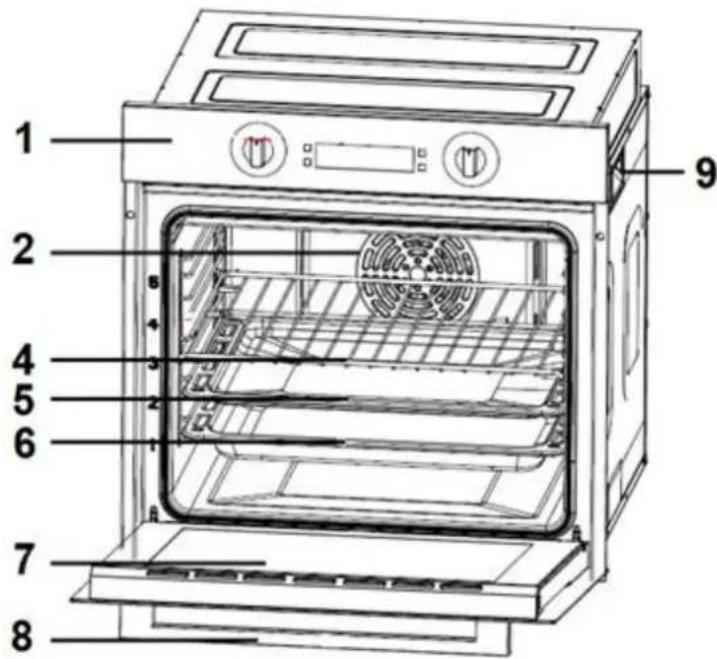

3.1 Oven 71
3.1.1 Accessories 72
3.2 Control panel....74

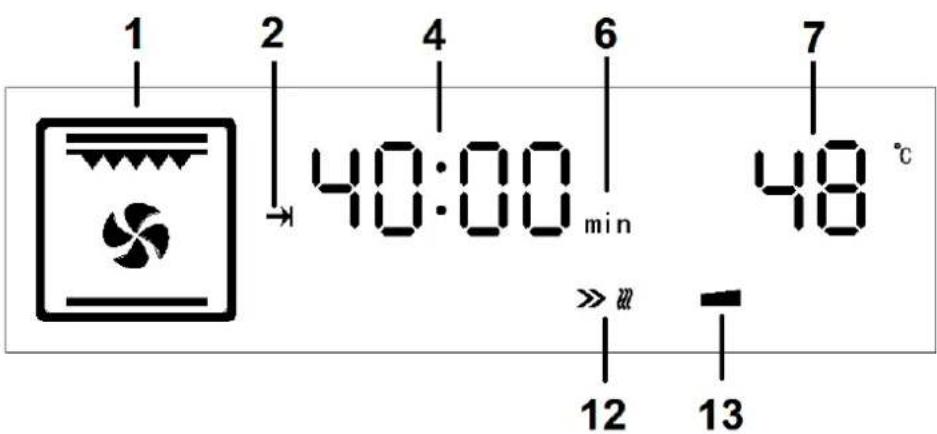

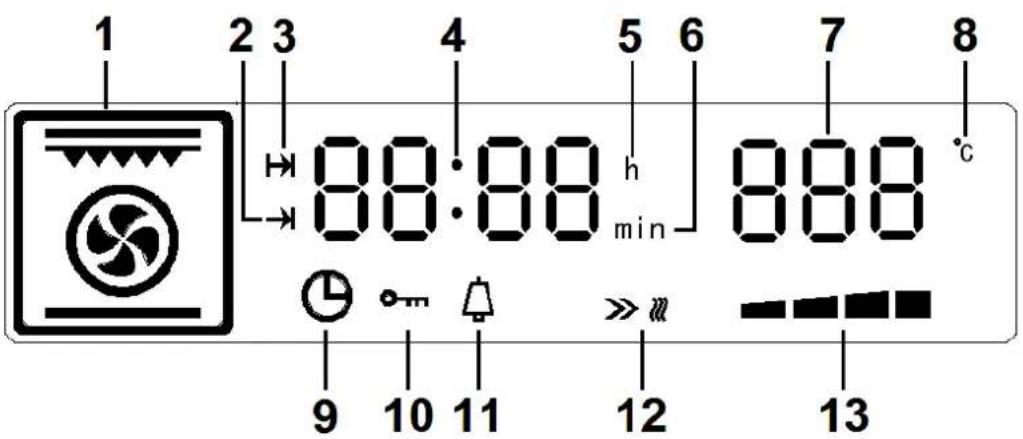

3.3 Display 75

1. Operation....77

4.1 Before the first use 77
4.1.1 Cleaning of the accessories 78

4.2 Use of the oven....78

4.2.1 General operation of the oven 79
4.2.2 Standby mode....80
4.2.3 Setting of the time / system time....80

4.3 Programming of the oven....81

4.3.1 Timer 81
4.3.2 Setting of the duration of the cooking / baking time....82
4.3.3 Automatic cooking / baking function 85
4.3.4 How to cancel the programming 88

4.4 Pyrolytic self-cleaning programme 89
4.5 Automatic door locking....94
4.6 Child safety lock....95
4.6 Time query function 96
4.7 Functions and automatic programmes of the oven....97

1. Environmental protection....99
2. Tips for baking, roasting and grilling in the oven 100

6.1 Tips for baking and roasting.... 100
6.2 Tips for grilling....101

1. Cleaning and maintenance .... 102

7.1 Cleaning of the oven 102
7.2 Cleaning of the oven door 103
7.3 Replacing of the illuminant 103

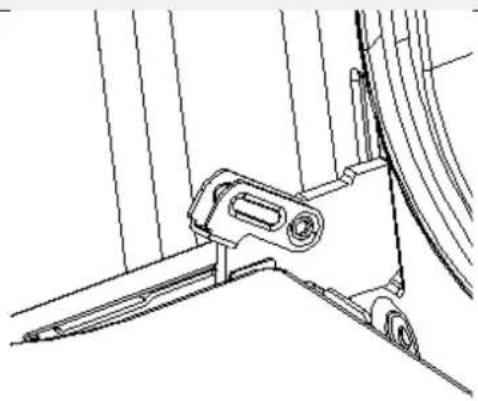

7.4 Removing of the oven door.... 104
7.5 Removing of the glass pane of the oven door 104
7.6 Removing of the side rack.... 105
7.7 Trouble shooting.... 105

7.7.1 Error codes 106

1. Technical data....107
2. Waste management....108
3. Guarantee conditions.... 109

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety information and safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE APPLIANCE.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and / or can result in damages to the appliance.
2. All electrical work that may be necessary must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations.
3. Switch off the power supply (fuse box of your household power supply) before you install the appliance and before you connect it to the mains. RISK OF ELECTRIC SHOCK!
4. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
5. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
7. Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the customer service. Original spare parts should be used only.

8. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Report the malfunction to your customer service so it can be repaired. RISK OF ELECTRIC SHOCK!

9. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

10. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
11. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
12. Never touch power plugs, power switches or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Operate the appliance with 220 \~ 240 V AC / 50 Hz only.
2. Disconnect the appliance from the mains before you clean or maintain it.
3. Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.
4. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.
5. If you are in doubt as to whether the appliance is connected to the mains properly, let the electrical connection be checked by a qualified electrician (not covered by the guarantee).
6. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
7. Keep the cord away from heated surfaces.
8. Do not carry out any modifications to your appliance.
9. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.
10. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.

11. In order to reduce any risk of fire in the appliance:
    a. Check the appliance frequently.
    b. Switch off or unplug the appliance if you notice any smoke. Keep the appliance closed to stifle any flames.
    c. Do not use the appliance to store anything inside.
    d. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

12. The appliance must not left unattended during cooking.

13. Never heat any food or liquids in sealed containers, because they can explode.

14. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.
15. The veneering of cabinets has to be fixed with a heat-resistant glue, that is able to withstand a temperature of at least 100^ C.
16. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85°C above the ambient temperature of the room the appliance is installed in during operation.
17. If the oven will be installed above a drawer of the built-in furniture, a fixed intermediate shelf must be mounted between the oven and the drawer.
18. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
19. Cooker-hoods should be installed according to their manufacturers' instructions.
20. Do not heat your rooms or dry your washing by use of the appliance.
21. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!
22. Do not store any objects in the oven. RISK OF FIRE!
23. Household equipment and connection leads must not touch the hot oven or the hob as the insulation material is usually not heat-resistant.
24. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRIC SHOCK!
25. The accessible parts of the oven become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
26. Children must not play with the appliance.
27. Always supervise children if they are near the appliance.
28. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.
29. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. RISK OF INJURY! CHOKING HAZARD!
30. Only use time guards designed by the manufacturer of the appliance or indicated by the manufacturer of the appliance in the instructions

for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

CAUTION!

1. The appliance becomes hot while operating. Do not touch the hot components inside the oven.
2. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the door of the oven. Otherwise you may scratch the surface and damage the glass.
3. Do not put any cookware or backing trays directly on the base inside the oven. Do not cover the base inside the oven with aluminium foil.
4. Keep the door of the oven always closed if you use one of the oven-functions.
5. Do not put any cookware directly on the base inside the oven. Use the trays.
6. The interior parts of the oven become extremely hot. Do not touch any parts inside the oven if you handle your cookware. RISK OF BURNS!
7. Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!
8. Always use oven-gloves.
9. Cooking utensils may become hot because of the heat transferred by the heated food. Potholders or oven gloves may be needed to handle such utensils.
10. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Never use the door for moving the appliance as you will damage the hinges.
3. The appliance must be transported and installed by at least two persons.

4. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

5. Do not operate the appliance unless all components are installed properly.

6. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
7. Do not put any heavy items onto the open door of the oven. Do not lean against the open door of the oven as you will damage the hinges.
8. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
9. Regularly cleaning and maintenance grants proper operation and optimal performance of your appliance.
10. Check your utensils if they are suitable for the use in an oven.
11. Use suitable ovenware only.
12. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
13. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

⚠️ DANGER! All electrical work that may be necessary must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations. RISK OF ELECTRIC SHOCK!

WARNING! The veneering of cabinets has to be fixed with a heat-resistant glue, that is able to withstand a temperature of at least 100^ C.

⚠ WARNING! Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85 °C above the ambient temperature of the room the appliance is installed in during operation.

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

⚠️ CAUTION! When installing the appliance ensure optimal heat radiation to maintain the operating safety.

⚠️ CAUTION! To avoid any damage, the sandwich layer and adhesive must resist heat.

The customer is responsible for the installation. If the manufacturer's help is needed to repair any damage due to improper installation, this repair work is not covered by the guarantee. Improper installation may cause serious personal injuries and/or property damage. The manufacturer cannot be held liable for such injuries or damages.

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.

3. Check that the appliance and the power cord are not visible damaged.

4. Install the appliance in a dry and well-ventilated place.

5. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.

6. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

7. Remove the complete packaging material (inside and outside the appliance) before initial operation.

8. Connect the appliance to the mains properly. Only use a proper grounded safety socket for connection (s. chapter 2.3 ELECTRICAL CONNECTION).

9. Manufacturing residues or oil having remained in the appliance or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the room door or a window to ensure proper ventilation.

10. The nameplate is situated inside the appliance or at the back.

2.2 Installation of the oven

⚠️ DANGER! Switch off the power supply (fuse box of your household power supply) before you install the appliance and before you connect it to the mains. RISK OF ELECTRIC SHOCK!

i All dimensions in the following figures are given in millimetres.
Use the embedded handles or wire handles ^9 on both sides of the oven to move the appliance (s. fig. in chapter 3.1 OVEN).
The built-in furniture must stand in a stable position and need to be securely fastened.
A gap of 5 mm must remain between the appliance and the surrounding sides of the built-in furniture.
i The power cord must not be trapped or kinked.
If the oven will be installed above a drawer of the built-in furniture, a fixed intermediate shelf must be mounted between the oven and the drawer.

INSTALLATION

1. Switch off the power supply (fuse box of your household power supply).

FIG. 1: DIMENSIONS / OVEN

1. Provide an installation opening meeting the dimensions on the following drawing (s. fig. 2; below).

FIG. 2: DIMENSIONS / BUILT-IN FURNITURE

1. Place the oven near the installation opening.

2. Ensure that the power supply is switched off (fuse box of your household power supply).

3. Connect the oven to the mains. Strictly observe the instructions in chapter 2.3 ELECTRICAL CONNECTION.

4. Insert the oven into the installation opening carefully. Ensure that the power cable will not be trapped or kinked.

5. Fix the oven with the 2 screws and 2 washers supplied. (s. fig. below).

Line drawing of an open oven with internal shelves and doorways (no text or symbols)

2.3 Electrical connection

⚠️ DANGER! Switch off the power supply (fuse box of your household power supply) before you connect the appliance to the mains. RISK OF ELECTRIC SHOCK!

⚠️ DANGER! The technical data of your energy supplier must meet the data on the rating plate of the appliance.

⚠ WARNING! Do not use an extension cord, socket strips or a multiple socket.

⚠ WARNING! Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.

The appliance is equipped with a power supply cable and a power plug (safety plug).

❖ Only use the power supply cable provided with the appliance.

- Your household power supply must meet the power consumption of the appliance.

When connecting do not use adapters, reducers and branching devices as they cause overheating. RISK OF FIRE!

Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

WOLKENSTEIN

When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

The power cord must not touch hot areas and its temperature must not exceed 75°C.

When the socket is not accessible for the user after the installation of the appliance, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335).

When installing the appliance, contact protection must be ensured.

If you are in doubt as to whether the appliance is connected to the mains properly, let the electrical connection be checked by a qualified electrician (not covered by the guarantee).

⚠ WARNING! Any damages which are caused by an appliance that is not connected to the mains properly are not subject to the guarantee!

3. Description of the appliance

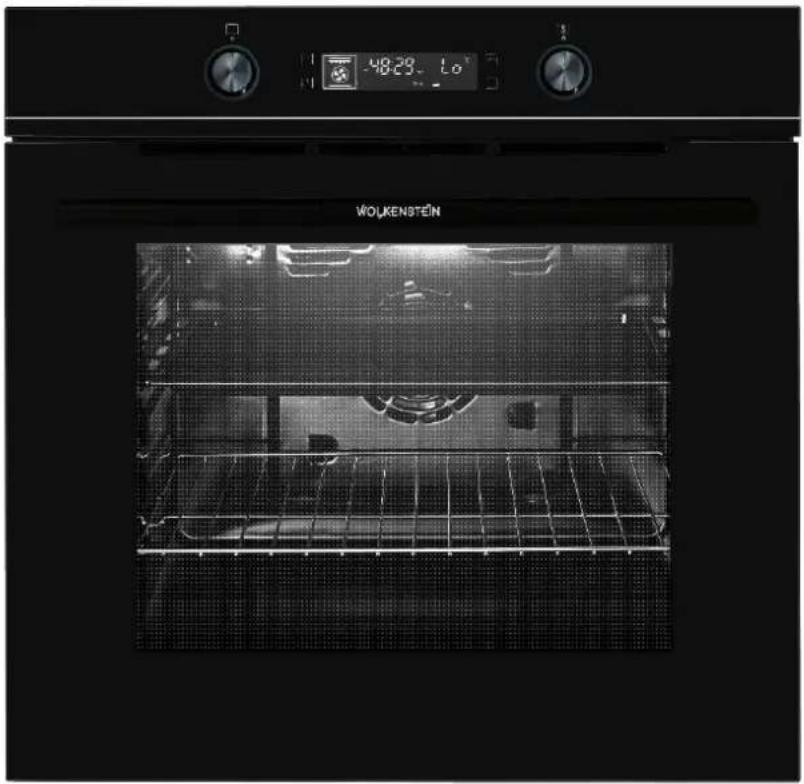

3.1 Oven

Fig. similar: modifications are possible.

1 CONTROL PANEL (s. chapter 3.2 CONTROL PANEL)

WOLKENSTEIN

2	FAN MOTOR (behind a steel plate)
4	GRILLING GRATE
4	DRIP TRAY (oven pan)
6	BAKING TRAY (deep oven pan) ^10
7	DOOR of the oven
8	DOOR HANDLE
9	LATERAL HANDLE for the moving of the appliance (on both sides)

3.1.1 Accessories

✿ Depending on model, a grilling grate, a drip tray (oven pan) and a baking tray (deep oven pan) are included in the scope of delivery.
i Clean the supplied accessories with warm soapy water and a soft cloth before you use the appliance for the first time.
When the trays (e.g. grilling grate / drip tray / baking tray) become hot, they may deform. As soon as the accessories have cooled, they return to their original shape. The functionality is not affected thereby.

NOTICE! Always ensure that the trays (e.g. grilling grate / drip tray / baking tray) are fully inserted into the oven, so they do not collide with the oven door when closing it

NOTICE! If you grill on the grilling grate directly, always use the drip tray or the baking tray to catch the dripping grease of the food to be grilled.

GRILLING GRATE

The grilling grate is suitable for the grilling, roasting and baking of food; it is also suitable for the cooking of food in casseroles and for the baking of cakes in cake moulds.

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

DRIP TRAY (OVEN PAN)

The drip tray (oven pan) is suitable for the baking of cakes and biscuits and for the preparing of frozen meals and large roasts.

If you grill on the grilling grate directly, the drip tray (oven pan) must also be used to catch the dripping grease of the food to be grilled.

Isometric line drawing of a rectangular tray or enclosure with internal compartments and mounting holes (no text or symbols)

BAKING TRAY (DEEP OVEN PAN) ^11

The baking tray (deep oven pan) is suitable for the baking of cakes and biscuits and for the preparing of large roasts, etc.

If you grill on the grilling grate directly, the baking tray as well as the drip tray is suitable to catch the dripping grease of the food to be grilled.

Line drawing of a rectangular tray with rounded corners and a central hole (no text or symbols)

3.2 Control panel

Fig. similar: modifications are possible.

A		ROTARY KNOB « OVEN FUNCTIONS »➢ Rotary knob for the selection of the OVEN FUNCTIONS.➢ This rotary knob selects the desired cooking function.➢ Thirteen different oven functions are selectable (incl. 4 automatic programmes); s. chapter 4.7 FUNCTIONS AND AUTOMATIC PROGRAMMES OF THE OVEN.
B		ROTARY KNOB « TEMPERATURE / TIME »➢ Rotary knob for the setting of the OVEN TEMPERATURE (increase / decrease).➢ Rotary knob for the setting of the TIME (increase / decrease)
C		BUTTON « START »➢ Button for the STARTING of the cooking process.➢ Button for the activation of the CHILD SAFETY LOCK; press buttons C and D simultaneously / s. chapter 4.5 CHILD SAFETY LOCK.
D		BUTTON « PAUSE / CANCEL »➢ Button for the SHORT INTERRUPTION of the cooking process.➢ Button for the CANCELLATION of the programming.➢ Button for the activation of the CHILD SAFETY LOCK; press buttons C and D simultaneously / s. chapter 4.5 CHILD SAFETY LOCK.
E		BUTTON « TIMER / PARAMETER »:➢ Button for the setting of the TIMER.➢ Button to SWITCH between the parameter settings TEMPERATURE and COOKING / BAKING TIME.
F		BUTTON « TIME »➢ Button for the setting of the TIME / SYSTEM TIME.➢ Button for the setting of the COOKING / BAKING TIME.
G		DISPLAY (description: s. chapter 3.3)

Depending on model, the appliance is equipped with retractable rotary knobs.

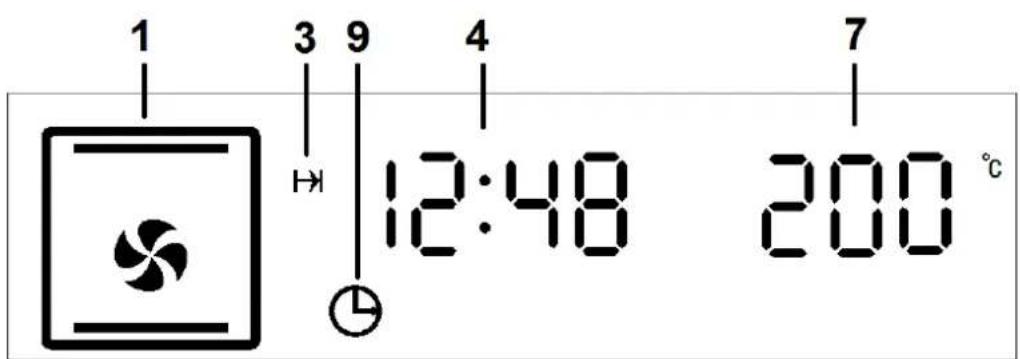

3.3 Display

In STANDBY MODE, the display indicates the system time or the set time and the indicator « TIME / SYSTEM TIME ⏻ » is on.

Fig. similar: modifications are possible.

WOLKENSTEIN

1	INDICATOR of the set OVEN FUNCTIONS (hot air, grill, automatic cooking programmes, etc.).
2		INDICATOR:➢ « DURATION OF THE COOKING / BAKING TIME » is selected.
3		INDICATOR:➢ « END OF THE COOKING / BAKING TIME » is selected.
4		INDICATOR OF THE TIME:➢ Hours, minutes and seconds (seconds: represented by the decimal point symbol).
5		INDICATOR OF THE TIME UNIT: « HOURS ».
6		INDICATOR OF THE TIME UNIT: « MINUTES ».
7		INDICATOR OF THE SET TEMPERATURE in ^0C ORINDICATOR OF THE SELECTED AUTOMATIC PROGRAMME (P - 1, P - 2, P - 3 or P - 4).
8		ICON of the TEMPERATURE UNIT: « ^0C »
9		INDICATOR:➢ « TIME / SYSTEM TIME » is selected.
10		INDICATOR:➢ « CHILD SAFETY LOCK » is activated.
11		INDICATOR:➢ « TIMER » (hob guard) is selected.
12		INDICATOR: « START ICON OF THE OVEN FUNCTION »

13

DYNAMIC INDICATOR BAR:

indicates the « WORKING STATUS » of the oven.

4. Operation

i Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety instructions!
i Remove the complete protective film!

4.1 Before the first use

i Manufacturing residues or oil having which have remained in the cooking compartment or on the heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses.
✿ Heat the appliance (empty and closed) before you use it for the first time for cooking to remove the residues and the resulting odours

HEATING OF THE APPLIANCE

1. Remove all packaging material.
2. Clean the oven inside from all protective agents.
3. Take out the supplied accessories and clean them with warm water and washing-up liquid.
4. Switch on the room ventilation or open a window.
5. Let the oven operate for 60 minutes (top and bottom heat / 250^ / s. chapter 4.3 PROGRAMMING OF THE OVEN). A little bit of smoke and odour may be generated for approx. 15 minutes. This is normal. They are generated by the substance, that protects your appliance against damage caused by the shipment from the manufacturer's works.

NOTICE! Clean the oven with warm water and washing-up liquid only.

NOTICE! Ensure that the complete packaging material (inside and outside of the appliance) has been removed before initial operation.

4.1.1 Cleaning of the accessories

- Clean the accessories which are included in delivery using warm soapy water and a soft cloth before you use the appliance for the first time.

4.2 Use of the oven

⚠ WARNING! The accessible parts of the appliance become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!
⚠️ CAUTION! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!
⚠️ CAUTION! Cooking utensils may become hot because of the heat transferred by the heated food. Potholders or oven gloves may be needed to handle such utensils.
⚠️ CAUTION! Always use oven gloves.

NOTICE! Use suitable ovenware only.

☐ Proper positioning of the trays is mandatory for saf operation of the appliance. Otherwise hot food or cookware can slide off the trays when removing them.

Diagram of a simple oven with a lid and vent, showing internal components (no text or labels)

AFTER THE CONNECTION OF THE APPLIANCE TO THE MAINS

When you connect the appliance to the mains for the first time, all indicators are on for approx. one second. The display indicates « 12:00 » and the hour indicator « 12 » flashes. You can set the current time now; s. chapter 4.2.3 SETTING OF THE TIME / SYSTEM TIME. If the time (hours) is not set, the appliance changes to the minute setting after approx. 10 seconds without using any operating buttons. If still no time setting is carried out, the appliance returns to STANDBY MODE

automatically after another 10 seconds without using any operating buttons; s. chapter 4.2.2 STANDBY MODE.

Before you can use the oven generally, you must set the time / system time.

4.2.1 General operation of the oven

The operation of the oven is controlled by the operating buttons and the rotary knobs for the selection of the OVEN FUNCTIONS and for the TIME and TEMPERATURE SETTING (A / B / s. chapter 3.2 CONTROL PANEL).
- Thirteen different oven functions (incl. four automatic programmes: P - 1 / P - 2 / P - 3 / P - 4) are selectable; s. chapter 4.7 FUNCTIONS AND AUTOMATIC PROGRAMMES OF THE OVEN.
The temperatures of the oven functions can be set within a range of 50 ^ - 250 ^ individually. The temperatures of the automatic programmes are preprogrammed and cannot be changed; see also chapter 4.7 FUNCTIONS AND AUTOMATIC PROGRAMMES OF THE OVEN.
When the temperature inside the oven has almost reach the set temperature, an acoustic signal sounds for 2 seconds.
i If the temperature inside the oven falls below 30^ C, the indicator of the temperature displays « Lo ».
After the oven has been in operation for about 15 minutes, the cooling fan starts to work. After the end of operation, the cooling fan still continues to run for a while (approx. 35 minutes), even if the appliance itself is switched off. When the temperature inside the oven falls below 100 ^ , the cooling fan is switched off automatically.
i The appliance is equipped with a 24-hour display.

NOTES REGARDING THE SELF-CLEANING PROGRAMME

The appliance is equipped with a pyrolytic self-cleaning programme.
The default temperature of the self-cleaning programme is factory-set and cannot be changed.

If you wish to use this programme, strictly observe the relevant instructions given in the chapters 4.5 PYROLYTIC SELF-CLEANING PROGRAMME and 4.8 OVEN FUNCTIONS AND SELF-CLEANING PROGRAMME.

⚠ WARNING! The appliance must not leave unattended during the pyrolytic self-cleaning process.

NOTICE! Use this programme for the cleaning of the oven only.

4.2.2 Standby mode

In STANDBY MODE, the display indicates the system time or the set time and the indicator « TIME / SYSTEM TIME ⏻ » is on (s. fig. below).

i After approx. 5 minutes without using any operating buttons, the oven is switched off automatically and the display goes off.
If the oven is switched off, press any operating button or turn the rotary knob for the selection of the OVEN FUNCTIONS (A) to return the appliance to STANDBY MODE.

4.2.3 Setting of the time / system time

Before you can use the oven generally, you must set the time / system time.
i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock, etc.

1. The oven must be in STANDBY MODE. If the oven is switched off, press any operating button or turn the rotary knob for the selection of the OVEN FUNCTIONS to return the appliance to STANDBY MODE. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME ☑ is on.

2. Press the button «TIME» once to activate the setting mode of the time / system time.

3. The hour indicator « h » on the display goes on and the hour value of the time indicator « 88: » flashes once per second.

4. Turn the rotary knob « TEMPERATURE / TIME - + » to set the hour value (0 - 23) of the current time. Please note that the appliance is equipped with a 24-hour display.

5. Press the button « TIME » again to change to the minute setting.
6. The minute indicator « min » on the display goes on and the minute value of the time indicator « :88 flashes.
7. Turn the rotary knob « TEMPERATURE / TIME - + » to set the minute value (0 - 59) of the current time.
8. Press the button «TIME» once again to confirm the setting; the indicators «h» and «» go off, respectively.
9. The time / system time is set and the decimal point symbol flashes once per second.
   If the time setting is not confirmed within 10 seconds, the appliance completes the time and returns to STANDBY MODE automatically. Ensure that the set time / system time corresponds to the current time.
   If the time / system time is not set within 20 seconds after the connection of the appliance to the mains, the time / system time will be set to the preset time (12:00) and the appliance returns to STANDBY MODE automatically. Please note: in this case, set the current time as soon as possible.
   When you press the button « PAUSE / CANCEL 11 » once while you set the time / system time, the current setting is cancelled and the appliance returns to STANDBY MODE directly.

4.3 Programming of the oven

4.3.1 Timer

The TIMER serves as a timepiece and counts down the set time (countdown time).
The maximum settable countdown time is 10 hours.

HOW TO USE THE TIMER (HOB GUARD)

1. The oven must be in STANDBY MODE. If the oven is switched off, press any operating button or turn the rotary knob for the selection of the OVEN FUNCTIONS to return the appliance to STANDBY MODE.
2. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME ⏻ » is on.

WOLKENSTEIN

1. Press the button « TIMER / PARAMETER □ » to activate the setting of the TIMER.
2. The hour value of the time indicator « 88: » flashes, the minute value « :88 » is on permanently and the indicator of the TIMER « 🍼 goes on.
3. Turn the rotary knob « TEMPERATURE / TIME - √c + » to set the hour value (0 - 23) of the TIMER. Please note that the appliance is equipped with a 24-hour display.
4. If the desired hour value is displayed, press the button « TIMER /PARAMETER △ » again to change to the minute setting.
5. The minute value of the time indicator « :88 » flashes and the hour value « 88: » is on permanently.
6. Turn the rotary knob « TEMPERATURE / TIME - + » to set the minute value (0 - 59) of the TIMER.
7. If the desired minute value is displayed, press the button « START ▶» to confirm the set countdown time
8. The countdown starts; the decimal point symbol flashes and the indicator of the TIMER « 📁 is on.
9. When the set countdown time has elapsed, an acoustic signal sounds once per second and the indicator of the TIMER « 🍴 » flashes.
10. After approx. 1 minute the acoustic signal stops automatically. You can switch off the acoustic and visual signal (« ») as well by pressing any button on the display.
    The indicator of the TIMER « 🍴 » is on permanently so long as the countdown is working. After the countdown time has elapsed, the indicator flashes.

⚠ WARNING When using the TIMER in countdown mode, the oven will not be switched off automatically after the selected period of time has elapsed.

4.3.2 Setting of the duration of the cooking / baking time

This function enables to set a COUNTDOWN TIME by which the oven will be switched off automatically after the time has elapsed (DURATION OF THE COOKING / BAKING TIME).
The maximum settable countdown time is 10 Stunden

HOW TO SET THE DURATION OF THE COOKING / BAKING TIME

1. The oven must be in STANDBY MODE. If the oven is switched off, press any operating button or turn the rotary knob for the selection of the OVEN FUNCTIONS to return the appliance to STANDBY MODE.

2. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME Ⓤ is on.

3. Place the food to be cooked or baked in the oven and close the door properly.

4. Turn the rotary knob for the selection of the OVEN FUNCTIONS « 📄 » until the desired oven function is displayed; s. chapter 4.7 FUNCTIONS AND AUTOMATIC PROGRAMMES OF THE OVEN.

Depending on the selected oven function the TIME INDICATOR « 88:88 » displays the preset time and the TEMPERATURE INDICATOR « » displays the preset temperature of the selected function.

1. To activate the temperature setting, press the button « TIMER / PARAMETER △ » until the temperature indicator « 888 » and the icon « °C » are flashing.

2. To set the temperature, turn the rotary knob « TEMPERATURE / TIME - √c + » until the desired temperature is displayed on the temperature indicator « 888 ».

3. To activate the setting of the countdown time (duration of the cooking / baking time), press the button « TIMER / PARAMETER △ » until the time indicator « 88:88 » and the indicator « DURATION OF THE COOKING / BAKING TIME → » are flashing.

4. To set the countdown time (duration of the cooking / baking time), turn the rotary knob « TEMPERATURE / TIME - ☐+ » until the desired countdown time is displayed on the time indicator « 88:88 ».

5. Press the button « START ▶» within 10 seconds to start the cooking process (working mode). The countdown starts.

6. The oven is in working mode; the following icons are displayed (for example see also fig. below):

a) the selected oven function is displayed (1 / s. fig. below).

b) the indicator « DURATION OF THE COOKING / BAKING TIME → » is on (2).

c) the time indicator « 88:88 » displays the countdown time (duration of the cooking / baking time) and the time unit is also displayed; (4 and 6 / here as an example: 40 minutes).

WOLKENSTEIN

d) the temperature indicator « 888 » displays the preset or the self-chosen temperature (7).

c) the start icon of the oven function « >> » is displayed (12).

f) the dynamic indicator bar « —■■■» displays the working status of the oven (13).

When the temperature inside the oven has almost reach the set temperature, an acoustic signal sounds for 2 seconds.

1. When the set countdown time has elapsed, an acoustic signal sounds 10 times; the oven is switched off automatically and returns to STANDBY MODE.

2. After the end of operation, the cooling fan still continues to run for a while (approx. 35 minutes), even if the appliance itself is switched off.

When the temperature inside the oven falls below 100 ^ , the cooling fan is switched off automatically.

If the temperature inside the oven falls below 30 ^ , the temperature indicator displays « Lo ».

If you do not set a temperature or a cooking / baking time, or if you do not press the button « START » within 10 seconds after you have carried out the settings, the appliance returns to standby mode automatically.

i Press the button « PAUSE / CANCEL □»once to pause the cooking process. The indicators of the temperature and time are flashing. Press the button « START ▶» to continue the cooking process.

4.3.3 Automatic cooking / baking function

This function enables to select the duration of the cooking / baking time and the time by which the oven will be switched off automatically at the same time.
i The maximum settable duration of the cooking / baking time is 10 hours.
The maximum settable time for the end of the cooking / baking time must be within 23 hours and 59 minutes; starting from the time indicated on the display.

HOW TO SET THE AUTOMATIC COOKING / BAKING TIME

1. The oven must be in STANDBY MODE. If the oven is switched off, press any operating button or turn the rotary knob for the selection of the OVEN FUNCTIONS to return the appliance to STANDBY MODE.
2. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME Ⓤ is on.
3. Place the food to be cooked or baked in the oven and close the door properly.
4. Turn the rotary knob for the selection of the OVEN FUNCTIONS « ☐» until the desired oven function is displayed; s. chapter 4.7 FUNCTIONS AND AUTOMATIC PROGRAMMES OF THE OVEN.
   Depending on the selected oven function the TIME INDICATOR « 88:88 » displays the preset time and the TEMPERATURE INDICATOR « » displays the preset temperature of the selected function.
   i If you select the oven function 9 « ECO / 📄 », the time indicator displays « ECO ».
5. To activate the temperature setting, press the button « TIMER / PARAMETER △ » until the temperature indicator « 888 » and the icon « °C » are flashing.
6. To set the temperature, turn the rotary knob « TEMPERATURE / TIME - ^+ » until the desired temperature is displayed on the temperature indicator « 888 ».

7. To activate the setting of the countdown time (duration of the cooking / baking time), press the button « TIMER / PARAMETER △ » until the time indicator « 88:88 » and the indicator « DURATION OF THE COOKING / BAKING TIME → » are flashing.

8. To set the countdown time (duration of the cooking / baking time), turn the rotary knob « TEMPERATURE / TIME - ☐+ » until the desired countdown time is displayed on the time indicator « 88:88

9. Press the button « TIME » once to activate the setting « END OF THE COOKING / BAKING TIME »

10. The indicator « END OF THE COOKING / BAKING TIME » and the hour value of the time indicator « flash.

11. Turn the rotary knob « TEMPERATURE / TIME - ☐+ » to set the hour value (0 - 23) of the desired time by which the cooking / baking process should be finished. Please note that the appliance is equipped with a 24-hour display.

12. Press the button « TIME » again to change to the minute setting.

13. The minute value of the time indicator «:88» flashes.

14. Turn the rotary knob « TEMPERATURE / TIME - √c+ » to set the minute value (0 - 59) of the desired time by which the cooking / baking process should be finished.

i Press the button repeatedly to change between hour and minute setting.

1. When the desired time is displayed, press the button « start ▶» within 10 seconds to save the settings.

2. The following icons are displayed (for example see also fig. below):

a) the selected oven function is displayed (1 / s. fig. below).

b) the indicator « END OF THE COOKING / BAKING TIME ↗» is on (3).

c) the indicator « TIME / SYSTEM TIME Ⓜ » is on (9).

d) the time indicator « 88:88 » displays the current time / system time; (4 / here as an example: 12:48 o'clock).

c) the temperature indicator « 888 » displays the preset or the self-chosen temperature (7); if you have set an automatic program, the temperature indicator displays the selected programme (P - 1, P - 2, etc.).

SETTING: MANUAL OVEN FUNCTION

1. The cooking process starts at the calculated time.

When the temperature inside the oven has almost reach the set temperature, an acoustic signal sounds for 2 seconds.

1. When the set countdown time has elapsed, an acoustic signal sounds 10 times; the oven is switched off automatically and returns to STANDBY MODE.

2. After the end of operation, the cooling fan still continues to run for a while (approx. 35 minutes), even if the appliance itself is switched off.

When the temperature inside the oven falls below 100 ^ , the cooling fan is switched off automatically.

If the temperature inside the oven falls below 30 ^ , the temperature indicator displays « Lo ».

If you do not set a temperature or a cooking / baking time, or if you do not press the button « START ▶» within 10 seconds after you have carried out the settings, the appliance returns to standby mode automatically.

Press the button « PAUSE / CANCEL □»once to pause the cooking process. The indicators of the temperature and time are flashing. Press the button « START ▶»to continue the cooking process.

EXAMPLE:

i Please note that the appliance is equipped with a 24-hour display. E.g.: if you want to set the time “1.00 p.m.”, you must set the display to 13.00 o'clock.

It is 8:00 a.m. You want to cook or bake for 2 hours. The cooking / baking time should be finished at 1:00 p.m.
To set the programme please follow the instructions given above in: "HOW TO SET THE AUTOMATIC COOKING / BAKING FUNCTION".
1. Set the duration of the cooking / baking time to 2 hours.
2. Set the time by which the cooking / baking process should be finished to 13:00.
3. The calculated cooking process starts at 11:00 a.m.
4. At 13:00 o'clock (1:00 p.m.) the oven will be switched off automatically.

4.3.4 How to cancel the programming

HOW TO CANCEL THE TIMER (HOB GUARD)

If you press the button « PAUSE / CANCEL 11 » once while you set the timer, the current setting is cancelled and the appliance returns to STANDBY MODE.

OR

When the timer is in operation, press and hold the button « PAUSE / CANCEL Ⅱ 》 for a few seconds. The timer function is cancelled and the appliance returns to STANDBY MODE.

HOW TO CANCEL THE DURATION OF THE COOKING / BAKING TIME:

If you press the button « PAUSE / CANCEL □□ » after you have carried out the settings and before you press the button « START ▶I », the settings are cancelled and the appliance returns to STANDBY MODE.

OR

When the oven is in working mode: press the button « PAUSE / CANCEL 11 » twice (press once = pause / press twice = cancel) to cancel the cooking process and the settings. The appliance returns to STANDBY MODE.

HOW TO CANCEL THE AUTOMATIC COOKING / BAKING FUNCTION

If you press the button « PAUSE / CANCEL □□ » after you have carried out the settings and before you press the button « START ▶I », the settings are cancelled and the appliance returns to STANDBY MODE.

OR

When the oven is in working mode: press the button « PAUSE / CANCEL 11 » twice (press once = pause / press twice = cancel) to cancel the cooking process and the settings. The appliance returns to STANDBY MODE.

4.4 Pyrolytic self-cleaning programme

⚠️ WARNING! The appliance must not leave unattended during the pyrolytic self-cleaning process.
⚠️ WARNING! The internal temperature of the oven can reach more than 400 °C. RISK OF BURNS!
⚠️ WARNING! The accessible parts of the oven become hot during the self-cleaning process, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
⚠ WARNING! Remove any pets from the room the oven is installed in. During the pyrolytic self-cleaning process, pets can be very sensitive to local temperature fluctuations and released vapours.

NOTICE! The pyrolytic self-cleaning programme must be used for the cleaning of the oven only. No other use is permitted: it will affect your guarantee rights.

The appliance is equipped with a pyrolytic self-cleaning programme which enables an easier cleaning of the interior of the oven.
The word pyrolysis comes from the Greek (pyro = fire / heat, lysis = dissolution / cleavage) and describes a thermo-chemical cleavage of organic compounds by high temperatures.
The pyrolytic self-cleaning programme works with intense heat. When the pyrolytic self-cleaning programme is started, the oven heats up to more than 400

degrees Celsius ( ^0 C). Dirt particles are burned and remain in the oven as ash. After cooling down, the ash can be removed easily using a microfibre cloth.

The efficiency of the pyrolytic self-cleaning programme always depends on the degree of soiling of the oven.

WARNING!

PYROLYTIC SELF-CLEANING PROGRAMME: IMPORTANT SAFETY INSTRUCTIONS AND SAFETY INFORMATION!

The manufacturer and distributor are not responsible for any damage and / or injury in the event of failure to comply with these instructions.

→ Always remove the removable accessories from the appliance before you start the pyrolytic self-cleaning programme: e.g. grilling grate, drip tray, baking tray, side rack(s), etc ^12 ; otherwise the high temperature can damage the accessories irreversibly.
→ Remove any cookware from the oven. RISK OF DAMAGE!
→ The internal temperature of the oven can reach more than 400^ C.
→ During the pyrolytic self-cleaning process, smoke and irritant odours may occur. Bevor you start the pyrolytic self-cleaning programme, remove coarse impurities (e.g. food residues, oil and grease deposits, liquid residues, etc.) inside the oven to avoid strong odours and smoke during the pyrolytic self-cleaning process. RISK OF FIRE!
→ The room the oven is installed in must be well ventilated during and after the pyrolytic self-cleaning process.
→ Clean the inside of the oven door and the edge surfaces near the door seal. Do not scrub the door seal. Do not remove the door seal. The door seal must not be damaged, otherwise steam and intense heat will escape from the oven. RISK OF FIRE! RISK OF INJURY! RISK OF BURNS! RISK OF SCALDING!
→ If the door seal is damaged, you must not use the oven. In such a case, contact the after sales service.
→ If a hob is installed above the oven or if other appliances are installed in the same built-in furniture as the oven, you must not use the hob and / or the other appliances during the pyrolytic self-cleaning process of the oven. RISK OF DAMAGE!
→ The accessible parts of the oven become hot during the pyrolytic self-cleaning process, so keep children away from the operating appliance.

Touching the appliance while it is operating can cause serious burns. RISK OF BURNS!

→ Do not hang flammable objects (e.g. tea towels, etc.) on the door handle of the oven door. RISK OF FIRE!
→ The door locking of the oven is activated automatically and remains active during the entire pyrolytic self-cleaning process. When the pyrolytic self-cleaning process is finished and the temperature inside the oven is less than 280^ C, the door locking of the appliance is deactivated.
→ Always ensure that foreign objects cannot get into the closing opening of the oven door, otherwise the automatic door locking may be blocked. RISK OF DAMAGE!
→ The vapours that are released during the pyrolytic self-cleaning process (e.g. by the burning of leftovers) are not dangerous to persons (incl. children and persons with health problems).
→ Pets can be very sensitive to smoke and vapours which are released during the pyrolytic self-cleaning process. Always keep pets away from the operating appliance. Small animals may also be sensitive to local temperature fluctuations during the pyrolytic self-cleaning process. It is recommended to remove any pets from the room during the entire pyrolytic self-cleaning process.
→ Due to the high temperatures during the pyrolytic self-cleaning process, the interior of the oven and the oven equipment (suitable for cleaning with the pyrolytic self-cleaning programme) may change their colour and / or lose their shine. This process is normal and is not a guarantee case.
→ Never use water or detergents to remove the remaining residues after the pyrolytic self-cleaning programme has finished. Simply remove the residues using a microfibre cloth. Do not scrub the door seal.

NOTICE! If the appliance is disconnected from the mains during the self-cleaning process, the door looking remains activated. You have to connect the appliance to the mains again so the automatic door locking can be deactivated. However, the automatic door locking will only be deactivated if the temperature inside the appliance is less than 280^ C.

NOTICE! When the seal of the oven door is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only. Original spare parts should be used only.

PYROLYTIC SELF-CLEANING PROGRAMME: -CLEANING OF THE OVEN WITH HEAT-

The default temperature of the self-cleaning programme is factory-set and cannot be changed.

The default duration of the self-cleaning programme is factory-set (1.5 hours) but can be changed individually. The settable duration is at least from 1 hour to max. 2 hours.

1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME Ⓤ » is on.

2. Turn the rotary knob for the selection of the OVEN FUNCTIONS «□» until the icon of the pyrolytic self-cleaning programme «□» (see also chapter 4.8) is displayed.

3. The temperature indicator « 888 » displays the set self-cleaning programme « » and the time indicator « » displays the default duration of the self-cleaning programme.

4. If desired, turn the rotary knob « OVEN TEMPERATURE / TIME » to change the default duration of this programme. The settable duration is at least from 1 hour to max. 2 hours.

The default temperature of the self-cleaning programme cannot be changed.

1. Press the button « START ▶» within 10 seconds to start the self-cleaning programme. The countdown starts and the oven is in working mode.

2. The door locking of the appliance is activated automatically and the indicator of the door looking « ☐» goes on; see also chapter 4.6 AUTOMATIC DOOR LOCKING.

3. The self-cleaning process is in operation; the following icons are displayed:

a) the self-cleaning programme « □ » is displayed.

c) the time indicator « 88:88 » displays the countdown time (duration of the self-cleaning programme).

d) the temperature indicator « 888 » displays the self-cleaning programme

e) the indicator of the door locking « m-o » goes on.

1. When the set time has elapsed, an acoustic signal sounds continuously; the oven is switched off automatically and returns to STANDBY MODE. Press any operating button to stop the acoustic signal.
2. As long as the temperature inside the oven exceeds 300^ C, the door locking of the appliance remains activated. The indicator of the door locking « » also is on in standby mode; s. fig. below.

1. As soon as the temperature in the oven is less than 280^ , the door locking of the appliance will be deactivated. The indicator of the door looking « _m » goes off; s. fig. below.

1. After the use of the self-cleaning programme: ensure that the oven has cooled down completely before you open the door. RISK OF BURNS! RISK OF INJURY!
2. Open the oven door and wipe the interior using a microfibre cloth only.

⚠ WARNING! Never use a steam cleaner! RISK OF ELECTRIC SHOCK!

⚠ WARNING! After the use of the self-cleaning programme: ensure that the oven has cooled down completely before you open the door. RISK OF BURNS! RISK OF INJURY!

NOTICE! Never use water or detergents to remove the remaining residues after the self-cleaning programme has finished. Simply remove the residues using a microfibre cloth.

NOTICE! This programme must be used for the cleaning of the oven only!

4.5 Automatic door locking

The oven is equipped with an automatic DOOR LOCKING.

THE DOOR LOCKING IS ACTIVATED AUTOMATICALLY UNDER THE FOLLOWING CONDITIONS:

➢ during the self-cleaning process (pyrolytic self-cleaning programme).
as soon as the temperature inside the oven exceeds 300^ C.
when the oven is in standby mode and the temperature sensor has an open circuit or a short circuit.

THE DOOR LOCKING IS DEACTIVATED AUTOMATICALLY UNDER THE FOLLOWING CONDITIONS:

when the self-cleaning process is paused or finished and the temperature inside the appliance is less than 280^ C.
as soon as the temperature inside the oven is less than 280^ C.

NOTICE! If the appliance is disconnected from the mains during the self-cleaning process, the door looking remains activated. You have to connect the appliance to the mains again so the automatic door locking can be deactivated. However, the automatic door locking will only be deactivated if the temperature inside the appliance is less than 280^ C.

HOW TO FORCE THE DEACTIVATION OF THE DOOR LOCKING MANUALLY

i The door locking is activated or deactivated as soon as the corresponding requirements are met.

The door locking is not intended to be manually deactivated by default. If it necessary to deactivate the door locking manually, you have to force this deactivation. Proceed as follows.

1. The oven must be in STANDBY MODE. In STANDBY MODE, the display indicates the time / system time and the indicator « TIME / SYSTEM TIME Ⓜ » is on.
2. Press and hold the buttons « TIME » and « PAUSE / CANCEL » simultaneously to force the deactivation of the door locking manually.
3. An acoustic signal sounds and the indicator of the door locking « m-O » goes off.
4. The door locking is deactivated. The door of the oven can be opened carefully.

⚠ WARNING! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING! RISK OF INJURY!
⚠ WARNING! The interior parts of the oven can still be extremely hot. Do not touch any parts inside the oven until the oven has cooled down completely. RISK OF BURNS! RISK OF INJURY!

PLEASE NOTE: if you have forced the deactivation of the door locking manually, you must always reset the oven; otherwise the appliance cannot be used properly. Proceed as follows.

1. Disconnect the appliance from the mains.
2. Connect the appliance to the mains again.
3. The self-test of the door locking starts automatically; see also chapter 4.3 HOW TO USE THE OVEN / SELF-TEST OF THE AUTOMATIC DOOR LOCKING.
4. If the self-test of the door locking is completed successfully and no error code is displayed, you can use the oven again as usual.
5. You may need to set the current time again; s. chapter. 4.3.3 SETTING OF THE TIME / SYSTEM TIME.

NOTICE! Use the possibility of manual deactivation of the door locking in an emergency only. The door locking is not intended to be manually deactivated by default.

NOTICE! If you have forced the deactivation of the door locking manually, you must always reset the oven.

4.6 Child safety lock

The oven is equipped with a CHILD SAFETY LOCK.

You can lock the control panel of the oven to protect it from operation by children or unintentional operation.
The CHILD SAFETY LOCK can be activated both in STANDBY MODE and in WORKING MODE (oven in operation).

HOW TO ACTIVATE THE CHILD SAFETY LOCK

1. Press and hold the buttons « PAUSE / CANCEL □ » and « START ▶ » for approx. 3 seconds simultaneously.

2. A long acoustic signal sounds and the indicator of the CHILD SAFETY LOCK

1. The CHILD SAFETY LOCK is activated.

If you want to carry out any oven settings while the CHILD SAFETY LOCK is activated, you must deactivate the child safety lock first (s. below).

HOW TO DEACTIVATE THE CHILD SAFETY LOCK

1. Press and hold the buttons « PAUSE / CANCEL □ » and « START ▶ » for approx. 3 seconds simultaneously.
2. A long acoustic signal sounds and the indicator of the CHILD SAFETY LOCK « » goes off.
3. The CHILD SAFETY LOCK is deactivated.

NOTICE! When the child safety lock is activated, all buttons and rotary knobs are disabled; except the buttons which are necessary to deactivate the child safety lock: ▶ (press simultaneously).

4.6 Time query function

1. The oven is in operation (working mode).
2. The time indicator displays the cooking / baking time.
3. To indicate the current time / system time on the display, press the button « TIME ▶once.
4. The time indicator displays the current time / system time.
5. After 10 seconds the cooking / baking time is displayed automatically again. You can also press the button « TIME » once again to return to the indication of the cooking / baking time.

HOW TO QUERY THE REMAINING COUNTDOWN TIME OF THE TIMER, THE AUTOMATIC COOKING / BAKING FUNCTION, ETC.

1. The time indicator displays the time / system time.
2. To indicate the remaining countdown time on the display, press the button « TIMER / PARAMETER □» once.
3. The time indicator displays the remaining countdown time.
4. After 10 seconds the time / system time is displayed automatically again.

WOLKENSTEIN

i If the remaining countdown time is less than one minute, « 0:00 » is displayed.

HOW TO QUERY THE STARTING TIME OF THE COOKING PROCESS WHEN THE AUTOMATIC COOKING / BAKING FUNCTION IS SET

1. The automatic cooking / baking function is set.
2. The time indicator displays the current time / system time.
3. To indicate the starting time of the cooking process on the display, press the button « TIME »
4. The time indicator displays the starting time of the cooking process.
5. After 10 seconds the current time / system time is displayed automatically again. You can also press the button « TIME » once again to return to the indication of the time / system time.

4.7 Functions and automatic programmes of the oven

FUNCTION	ICON	DESCRIPTION
1		TOP HEAT AND BOTTOM HEAT➢ The oven is heated conventionally.➢ The oven should be preheated before you start cooking / baking.➢ Suitable to cook / bake on one cooking / baking level.
2		DEFROST➢ The fan works without a heat setting.➢ You can defrost frozen food.➢ Defrosting time depends on size and weight of the food. The defrosting time can also be found in the instructions on the label of the food packaging.
3		BOTTOM HEAT INCL. FANSwitches on the bottom heat of the oven, e.g. for final backing from the bottom (e.g. pizza, etc.).Due to the fan, the heat circulates; this circulation ensures an even cooking and baking result.This function is also suitable for the sterilising and preserving of jars.
FUNCTION	ICON	DESCRIPTION
4		GRILL (INNER GRILL ELEMENT)This function switches on theinner partof the grill elementonly.The heat is emitted directly on the food under the grill element.The inner part of the grill element is suitable for the grilling of small portions.; c.g. of bacon, of toast, of small fish and meat portions, etc.
5		GRILL INCL. FANThe grill and the fan operate simultaneously.Accelerates grilling and improves the taste of the food.Suitable for the fast browning of food, e.g. steaks, burgers.Maintains the juiciness of the food, c.g. of steaks, burgers, etc.
6		GRILL (COMPLETE GRILL ELEMENT)The inner and outer part of the grill element operate simultaneously.The heat is emitted directly onto the food under the grill element.Grilling with the complete grill element allows higher temperatures in the top area and intensifies browning; it also allows the preparing of larger portions.; e.g. of sausages, steaks, fish, etc.
7		TOP HEAT AND BOTTOM HEAT INCL. FANThe oven is heated conventionally while using the fan.Due to the fan, the heat circulates; this circulation ensures an even cooking and baking result.
8Eco		ENERGY SAVING GRILL MODEThe inner part of the grill element and the bottom heat operate simultaneously.The oven works for 20 seconds and then pauses for 30 seconds alternately.The oven temperature rises slowly and the heat can penetrate into the food completely. This reduces excess heat and makes grilling more energy efficient.This mode is mainly suitable for the preparing of large portions.

5. Environmental protection

ENERGY SAVING:

Do not open the oven door unnecessarily often.
❖ Switch off the oven in good time and make use of the residual heat.
❖ Only use the oven when cooking larger dishes.
◆ Meat of up to 1 kg can be cooked more economically in a pan on the hob.
❖ Make use of the residual heat of the oven.
If the cooking time takes longer than 40 minutes, switch off the oven 10 minutes before.
For baking it is better to use black trays which conduct heat better and shorten the baking time.
❖ Make sure the oven door is closed properly.
- Heat can escape through spillages on the door seals. Clean up any spillages immediately.
Do not install the cooker near of refrigerators / freezers. Otherwise the energy consumption increases unnecessarily.

6. Tips for baking, roasting and grilling in the oven

WARNING! Be very careful when frying, because oil and fat heat up very fast especially when operating a high power level. Extremely hot oil and fat inflame spontaneously and represent a serious fire risk.

⚠ WARNING! NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

⚠️ CAUTION! The interior parts of the appliance become extremely hot. Do not touch any parts inside the appliance if you handle your cookware. RISK OF BURNS!

⚠️ CAUTION! Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven. RISK OF BURNS! RISK OF SCALDING!

⚠️ CAUTION! Cooking utensils may become hot because of the heat transferred by the heated food. Potholders or oven gloves may be needed to handle such utensils.

6.1 Tips for baking and roasting

We recommend to use the supplied baking tray provided with your appliance.

It is also possible to bake in cake tins and trays bought somewhere else. For baking it is better to use black trays which conduct heat better and shorten the baking time.
◆ Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters). The use of such tins can result in under-cooking the base of cakes.
Before you take a cake out of the oven, check that it is ready using a wooden stick (when the cake is ready the stick should come out dry and clean after having been inserted in the cake).
When switching off the oven leave the cake inside for about 5 minutes.
✿ Cook meat with a weight of more than 1 kg in the oven. Cook smaller pieces of food on the hob.
Use oven-proof cookware only. Check that their handles also are oven-proof.
When you cook meat on a grilling grate, insert a drip tray with a small amount of water in the oven (minimum rack height).
❖ Turn over meat at least once. Pour hot gravy or hot salted water over the meat.
❖ Never pour cold water over the meat.

6.2 Tips for grilling

1. Turn the rotary knob for the selection of the oven functions until the desired grill function is displayed.
2. Preheat the oven for approx. 4 minutes.
3. When you grill your food on a grilling grate, also insert a drip tray to catch the dripping grease and to keep the appliance clean.
4. Always keep the door of the oven closed.
5. Turn your food over after half of the grilling-time.
6. Spread your food with a little bit of oil before grilling.

NOTICE! Do not use aluminium foil for grilling. Do not wrap your food in aluminium foil and do not cover the grillage with aluminium foil. The aluminium foil will reflect the heat of the grill so the appliance may be damaged.

NOTICE! Do not place the drip tray (oven pan) or the baking tray (deep oven pan) in the upper levels (4 / 5^13) of the oven. The intense heat in the upper levels of the oven can warp the material of the accessories so that the interior of the oven can be damaged when removing the drip tray / baking tray. RISK OF DAMAGE!

⚠ WARNING! Switch off the appliance and let it cool down completely before cleaning. Disconnect the appliance from the mains before maintenance (fuse box of your household power supply)!

⚠ WARNING! Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRIC SHOCK!

DETERGENTS

Do not use any abrasive detergents!
➢ Do not use any organic detergents! ^14
Do not use essential oils!
▶ Never use solvents.

7.1 Cleaning of the oven

1. Clean the oven after each use.
2. Clean the interior with warm water and a little bit of washing-liquid. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
3. Dry after cleaning.
4. Clean the outside of the oven with warm soapy water. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
   To clean the interior of the oven, you can also use the « HYDRO CLEAN » cleaning programme; s. chapter 4.4 CLEANING PROGRAMME: « HYDRO CLEAN ».

⚠ WARNING! Never use a steam cleaner! RISK OF ELECTRIC SHOCK!

NOTICE! If you use a special oven-detergent, check that the detergent is suitable for your appliance (instructions on the packaging of the detergent).

NOTICE! Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

7.2 Cleaning of the oven door

▶ Clean the door very carefully.
➢ Do not use any abrasive detergents; otherwise you may damage or break the glass.
▶ Use wash-up liquid and warm water.

7.3 Replacing of the illuminant

⚠ WARNING! Switch off the appliance and let it cool down completely. Disconnect the appliance from the mains before maintenance (fuse box of your household power supply)! RISK OF ELECTRIC SHOCK!

NOTICE! When you replace the illuminant, always use a clean cloth or gloves. Never touch the new illuminant with your bare hands.

NOTICE! Never use a screwdriver to remove the cover. Remove the cover by hand only! RISK OF DAMAGE!

1. Disconnect the appliance from the mains: switch off the corresponding fuse in the fuse box of your household power supply!
2. Place a dishcloth in the interior of the cold oven to protect it from possible damage.
3. Unscrew the lamp cover anticlockwise. Clean the lamp cover and wipe it dry thoroughly.
4. Unscrew the illuminant from the socket, replace the illuminant. Choose a high temperature illuminant (300 ^ C) with the following parameters:

▶ Voltage 230 V
Power 25 W
Thread G9

1. Do not use any other type of illuminant.
2. Screw the new illuminant in. Check its proper position in the socket.
3. Replace the lamp cover.
4. Remove the dishcloth and switch on the corresponding fuse in the fuse box of your household power supply again.
   According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the eco-design requirements for non-directional household lamps. This means that illuminants, which are used in household appliances, must not be used to illuminate domestic establishments.

7.4 Removing of the oven door

HOW TO REMOVE THE OVEN DOOR

1. Open the door and push the safety catches of the two hinges upwards (s. fig. on the right).
2. Close the door slightly.
3. Lift the door and pull it towards your direction carefully.

Technical line drawing of a mechanical assembly with no visible text or symbols

HOW TO INSTALL THE OVEN DOOR

1. To reassemble proceed in reverse order (s. above).
2. Check that the groove of the hinge bracket is positioned properly in its guide.
3. After reassembling the door close the safety catches carefully (s. fig on the right).

Technical line drawing of a mechanical assembly with no visible text or symbols

1. If the safety catch is not closed properly you will damage the hinges when closing the door.

7.5 Removing of the glass pane of the oven door

HOW TO REMOVE THE GLASS PANE

1. Remove the oven door (s. chapter 7.4) and place it on a piece of cloth to protect the glass from scratches, etc.

2. Push with one hand on the outer glass pane and pull with the other hand on the inner glass pane; be careful in doing so! Hold the glass pane tight and pull it out carefully (s. fig. on the right).

Diagram showing two red upward arrows pointing upward on a layered rectangular structure (no text or symbols)

HOW TO INSTALL THE GLASS PANE

1. Insert the inner glass pane into the corresponding groove.
2. Align both sides of the glass pane with its slots properly and push the glass pane in place carefully.

7.6 Removing of the side rack

1. Press the side rack at the bottom end downwards slightly until it has been detached from the mounting.
2. Pull the detached side rack forward slightly.
3. To remove the side rack, hold it to the oven horizontally.
4. To reinsert the side rack, please proceed in reverse order.

7.7 Trouble shooting

⚠️ DANGER! Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the customer service.

PERIODICAL CONTROLS

1. Carry out periodic inspections of the control elements and cooking units of the cooker.
2. All malfunctions should be repaired immediately.

EMERGENCY MEASURES:

1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power supply).
3. Contact your customer service.

WOLKENSTEIN

➢ Check the schedule below before you contact your aftersales service.

MALFUNCTION
POSSIBLE CAUSES	MEASURES
THE APPLIANCE DOES NOT WORK AT ALL.
The appliance is not supplied with energy.	Check that the appliance is connected to the mains. Check the household fuse box. Is there a power failure at your place of residence?
THE APPLIANCE DOES NOT HEAT.
You have not set a temperature.You have not set the timer ^15 .The heating element is defective.	Set a temperature.Set the timer.Please contact the customer service.
THE INTERNAL LIGHT DOES NOT WORK.
The illuminant is loose or damaged.	Tighten or replace the illuminant.
NOISE CAUSED BY THE FAN INSIDE THE APPLIANCE.
The cooling-fan the appliance is equipped with ^16 protects the electronics from being overheated. It may continue to run even after you have switched the appliance off.	Normal operating condition. Do not disconnect the appliance from the mains while the fan is running.

If the appliance has a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the customer service.

7.7.1 Error codes

ERROR CODE	ERROR	DESCRIPTION / MEASURES
E - 1	SENSOR ERROR	➢ Short circuit of the sensor.➢ Sensor interrupted / not connectedi An acoustic signal sounds 10 times (once per second).i Press the button « PAUSE / CANCEL ||» to return the appliance to STANDBY MODE.
E - 2	ERROR OF THE HEATING ELEMENT	➢ After 5 minutes of heating, the temperature of the oven is < 35 °C.i An acoustic signal sounds 10 times (once per second).i Press the button « PAUSE / CANCEL ||» to return the appliance to STANDBY MODE

If any error codes are indicated on the display, DISCONNECT the appliance from the mains and contact the customer service.

8. Technical data

TECHNICAL DATA*
Model	Built-in oven
Control panel	Glass / black
Energy efficiency category**	A
Energy efficiency index	92.80
Energy consumption / conventional	0.76 kW/h
Energy consumption (fan / hot air)	0.82 kW/h
Net volume oven in l	70.00
Size of the appliance	Large: volume > 70 l
Oven functions	Grill (top heating element: complete)+ bottom heat+ fan / defrost /bottom heat / grill (top inner heatingelement) / grill (top heating element:complete) + fan / grill (top innerheating element) + bottom heat /grill (top heating element: complete) / Eco / Pyrolytic self-cleaning programme
Grill	✓
Fan	✓
Full-glass inner door	✓
Telescopic rails	✓
Timer	✓
Oven door / glass sheets	Black glass / 3
Body cooling	✓
Handles / switches	Aluminium
Retractable rotary knobs	✓
Number of side racks / telescopic rails	1 / 1
Drip pan / grilling grate / baking tray	1 / 1 / 1
Noise emission	< 52 dB(A)
Max. power	2.80 kW
Voltage / frequency	220 - 240 V AC / 50 Hz
Safety plug	✓
Cable length in cm	150.00
Installation dimensions oven H*W*D in cm	59.90*59.50*57,50
Weight net / gross in kg	33.00 / 36.50

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 65/2014
**	A+++ (highest efficiency) to D (lowest efficiency)

9. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces,

etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
2. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
3. Dispose of any paper and cardboard into the corresponding containers.
4. Dispose of any plastics into the corresponding containers.
5. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
6. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

10. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These

WOLKENSTEIN

are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the WOLKENSTEIN-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a WOLKENSTEIN-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

WOLKENSTEIN

SERVICE INFORMATION

WOLKENSTEIN

Aftersales service information on the leaflet inside this instruction manual.
