F3X - Oven PKM - Free user manual and instructions

Brand	PKM
Model	F3X
Product Type	Built-In Electric Oven
Energy Efficiency Class	A
Energy Consumption (Conventional)	0.76 kWh
Usable Volume	60 L
Number of Cavities	1
Functions	Bottom Heat, Top Heat, Top and Bottom Heat, Grill, Internal Light
Control Panel	Stainless Steel with Rotary Knobs
Door Type	Black Glass, 2 Layers, All-Glass Inner Door
Handle and Knobs	Aluminium
Enclosure Cooling	Yes
Maximum Power	2.35 kW
Voltage / Frequency	220–240 V / 50 Hz
Cable Length	150 cm
Installation Dimensions (HxWxD)	595 x 595 x 559 mm
Packaging Dimensions (HxWxD)	660 x 660 x 665 mm
Net Weight	28.5 kg
Gross Weight	32.5 kg
Noise Emission	< 51 dB(A)
Oven Light Bulb	25 W, 300°C heat-resistant
Accessories Included	1 Drip Tray, 1 Grille
Cleaning	Use warm water and mild detergent; no abrasive cleaners or steam cleaners
Safety Features	Child safety (ages 8+ under supervision), grounding required, auto shut-off when knob at 0
Spare Parts / Repairability	Replaceable bulb, removable door, detachable side guides; use only original spare parts

Frequently Asked Questions - F3X PKM

How do I install the PKM F3X oven?

Installation must be performed by a qualified professional. Ensure the opening meets dimensions of 595x595 mm. Connect to a 220-240V/50Hz grounded outlet. Provide at least 45 mm free space at the back for ventilation. Use the supplied screws to fix the oven to the cabinet.

What oven functions are available?

The F3X offers Bottom Heat, Top Heat, Top and Bottom Heat (conventional), Grill combined with top heat, and an Internal Light for illumination without heating.

How do I clean the oven?

Switch off and let cool. Clean the interior with warm water and mild detergent using a sponge. Do not use abrasive cleaners or steam cleaners. Clean the door with warm soapy water; avoid harsh detergents to prevent glass damage. Dry thoroughly after cleaning.

How do I replace the oven light bulb?

Disconnect the oven from the mains. Remove the bulb and replace with a heat-resistant oven bulb (25W, 300°C, 220-240V). Tighten securely.

Can I remove the oven door for cleaning?

Yes. Open the door fully, open the hinge covers to max position, raise the door to a 5° angle, then pull it forward. To reinstall, insert brackets at a 15° angle, then close the hinge covers. Always use two people for safety.

What are the energy saving tips?

Avoid opening the door frequently. Switch off the oven 10 minutes before end for dishes cooking longer than 40 minutes to use residual heat. Use the oven only for larger dishes; meat under 1 kg can be cooked on the hob. Clean door seals to prevent heat loss.

What safety precautions should I observe?

Keep children away during operation – surfaces get hot. Always use oven gloves. Do not touch internal heating elements. Keep the door closed when using oven functions. Do not store flammable items in the oven. Disconnect power before cleaning or maintenance.

My oven does not work – what should I check?

Check the circuit breaker/fuse in your home. Ensure the oven is properly plugged in. If the internal light does not work, check the bulb is tight or replace it. If the problem persists, contact an authorized service center.

What is the warranty period?

The PKM F3X comes with a 24-month manufacturer warranty from the date of purchase, covering material and fabrication defects. It does not cover fragile parts like bulbs or damage from improper use. Proof of purchase is required.

Can I use aluminium foil inside the oven?

No. Do not cover the oven base with aluminium foil, and do not place cookware directly on the base – always use the provided trays. Foil can cause overheating and damage the appliance.

USER MANUAL F3X PKM

Exterior view of a modern oven with dual rotary gauges (no text or symbols visible)

F4X

Front view of a stainless steel oven with dual rotary dials (no visible text or symbols)

Deutsch

English

Seite 2

Page 19

Illustration of a simple oven with a dome-shaped chamber and grid-patterned interior (no text or symbols)

3.2 Ofenfunktionen

Diagram of a car seatbelt mechanism with an arrow indicating clockwise motion (no text or symbols)

Illustration of a person holding a 15-degree angle on a mechanical component, with directional arrows indicating motion (no text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 20
2. Installation 23

2.1 Unpacking and positioning.... 23
2.2 Installation of the oven.... 24

1. Operation....25

3.1 Control panel....25
3.2 Functions of the oven.... 26
3.3 Helpful hints.... 27
3.4 Energy saving....27

1. Cleaning and maintenance.... 28

4.1 Replacing of the illuminant....28
4.2 Removing of the guides.... 28
4.3 Removing of the oven door....29
4.4 Trouble shooting....29

1. Technical data....30
2. Waste management.... 32
3. Guarantee conditions....33

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.

Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your energy supplier.
2. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
4. Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
5. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. Disconnect the appliance from the mains before you clean or maintain it.
2. The appliance must always be grounded and protected corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. In case of an event caused by a technical malfunction, disconnect the appliance from the mains. Report the malfunction to your service centre so it can be repaired.
5. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.
6. Do not carry out any modifications to your appliance.
7. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.
8. The veneering of cabinets has to be fixed with a heat-resistant glue, that is able

to withstand a temperature of 120^irc C.

1. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85 C above the ambient temperature of the room the appliance is installed in during operation.
2. Remove the back of the kitchen unit to ensure adequate ventilation around the appliance. The appliance must have at least 45 mm of free space at its back.
3. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
4. Cooker-hoods should be installed according to their manufacturers' instructions.
5. Do not heat your rooms or dry your washing by use of the appliance.
6. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!
7. Do not store any objects in the oven. RISK OF FIRE!
8. Household equipment and connection leads must not touch the hot oven or the hob as the insulation material is usually not heat-resistant.
9. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. Risk of electrical shock!
10. The accessible parts of the oven become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
11. Children must not play with the appliance.
12. Always supervise children if they are near the appliance.

CAUTION!

1. The appliance becomes hot while operating. Do not touch the hot components inside the oven.
2. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the door of the oven. Otherwise you may scratch the surface and damage the glass.
3. Do not put any cookware or baking trays directly on the base inside the oven. Do not cover the base inside the oven with aluminium foil.
4. Keep the door of the oven always closed if you use one of the oven-functions.
5. Do not put any cookware directly on the base inside the oven. Use the trays.
6. Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven.
7. Always use oven-gloves.
8. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Never use the door for moving the appliance as you will damage the hinges.
3. The appliance must be transported and installed by at least two persons.
4. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
5. Do not operate the appliance unless all components are installed properly.
6. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
7. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
8. Do not put any heavy items onto the open door of the oven. Do not lean against the open door of the oven as you will damage the hinges.

2. Installation

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check that the appliance and the power cord are not visible damaged.
4. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.
5. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
6. Remove the complete packaging material (inside and outside the appliance) before initial operation.
7. The nameplate is situated inside the appliance or at the back.

DANGER!

The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier.

All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations

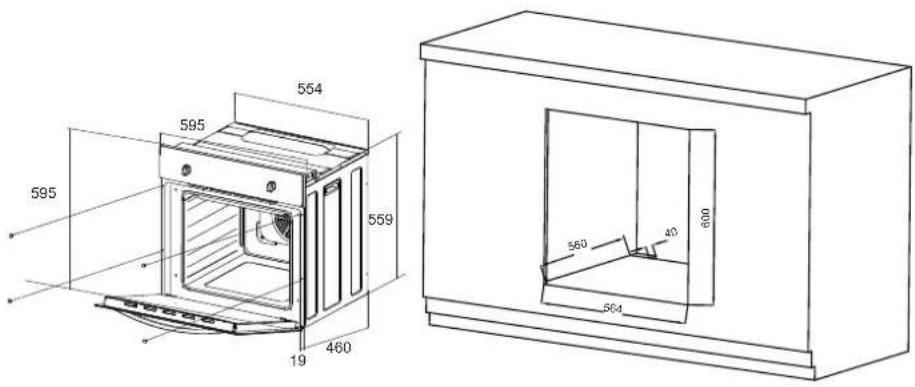

1. Provide an opening meeting the dimensions on figure 1. Fit the appliance into the opening.
2. Open the door and remove the rubber caps of the two screws on the sides of the oven-frame.
3. Fix the oven on the kitchen cabinet with the two screws which fit the holes provided in the oven-frame.
4. Fix the rubber caps after fitting the oven into the cabinet.

3. Operation

3.1 Control panel

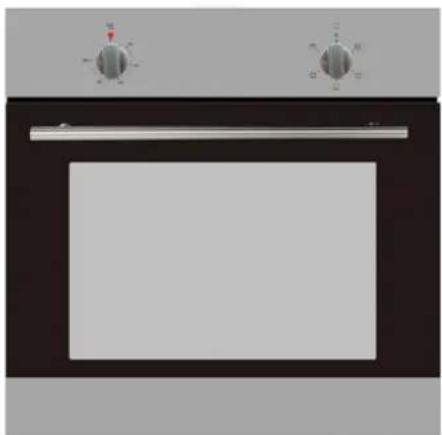

F3X

F4X

1. Turn the knob to the desired symbol to select the function.
2. Turn the knob to the desired value to select the temperature.
3. The appliance starts operating as soon as you have set the function and the temperature.
4. Always turn the temperature-knob to 0 when you do not operate the appliance.

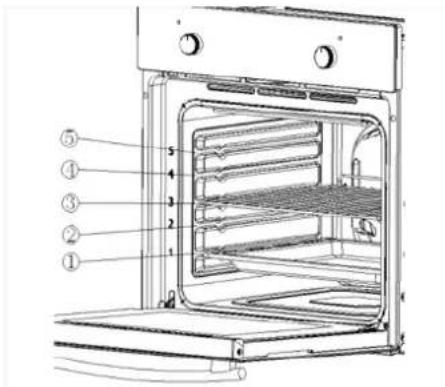

Proper positioning of the trays is mandatory for safe operation of the appliance. Otherwise hot food or cookware can slide off the trays when removing them.

Line drawing of a vintage oven with a rack and vent (no text or symbols)

3.2 Functions of the oven

SYMBOLS	DESCRIPTION OF THE FUNCTIONS
	INTERNAL LIGHT:turn the rotary knob to this symbol to switch on the internal light.the oven does not heat.
	BOTTOM HEAT:switches on the bottom heater of the oven; e.g. for final backing from the bottom.
	TOP HEAT AND BOTTOM HEAT:the oven is heated conventionally.the oven must be preheated before you start cooking, baking.
	GRILL AND TOP HEAT:The grill and the top heat operate simultaneously."Combined grilling" allows higher temperatures in the top area and intensifies browning.
	TOP HEAT:switches on the top heater of the oven; e.g. for final backing from the top.
	TOP HEAT:switches on the top heater of the oven; e.g. for final backing from the top.

CAUTION! Strictly observe the following safety instructions.

1. Keep the door of the oven always closed if you use one of the oven-functions.
2. Do not put any cookware directly on the base inside the oven. Use the trays.
3. The interior parts of the oven become extremely hot. Do not touch any parts inside the oven if you handle your cookware.
4. Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven.
5. Always use oven-gloves.

3.3 Helpful hints

• We recommend to use the supplied baking tray provided with your appliance.
  It is also possible to bake in cake tins and trays bought somewhere else. For baking it is better to use black trays which conduct heat better and shorten the baking time.
  ◆ Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters). The use of such tins can result in under-cooking the base of cakes.
  Before you take a cake out of the oven, check that it is ready using a wooden stick (when the cake is ready the stick should come out dry and clean after having been inserted in the cake).
  When switching off the oven leave the cake inside for about 5 minutes.
• Cook meat with a weight of more than 1 kg in the oven. Cook smaller pieces of food on the hob.
  Use oven-proof cookware only. Check that their handles also are oven-proof.
  When you cook meat on a grillage, insert a drip tray with a small amount of water in the oven (minimum rack height).
  ◆ Turn over meat at least once.
  ◆ Never pour cold water on the meat.

3.4 Energy saving

Do not open the oven door unnecessarily often.
❖ Switch off the oven in good time and make use of the residual heat.
- Only use the oven when cooking larger dishes.
✿ Meat of up to 1kg can be cooked more economically in a pan on the hob.
If the cooking time takes longer than 40 minutes switch off the oven 10 minutes before.
◆ Make sure the oven door is closed properly.
- Heat can escape through spillages on the door seals. Clean up any spillages immediately.
Do not install the cooker near of refrigerators/freezers. Otherwise the energy consumption increases unnecessarily.

WARNING!

Switch off the appliance and let it cool down before cleaning. Disconnect the appliance from the mains before maintenance.

Oven

Clean the oven after use.
Switch on the internal light while cleaning.
Clean the interior with warm water and a little bit of washing-liquid. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
Dry after cleaning.
Clean the outside of the oven with warm soapy water. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
If you use a special oven-detergent, check that the detergent is suitable for your appliance (instructions on the packaging of the detergent).
Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

Never use a steam cleaner.

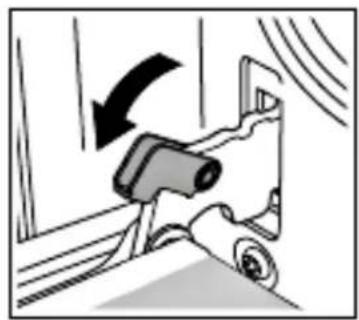

Oven-door

Clean the door very carefully. Do not use any abrasive detergents; otherwise you may damage or brake the glass. Use wash-up liquid and warm water.

4.1 Replacing of the illuminant

1. Switch off the appliance and disconnect it from the mains.

2. Remove the illuminant and replace it by a new one of the same kind and power:

Heat-proof illuminant for ovens (300C), 220-240V/25W/50 Hz.

4.2 Removing of the guides

1. Unscrew the screws of the guides.
2. Rotate the guide vertically to make it leave the side panel.
3. Take the guide out of the side panel hole, using an approx. 45° angle between the guide and side panel.

4.3 Removing of the oven door

1. Open the door. Open the hinge cover of the door to max. position.
2. Raise the door to the opened hinge cover with an angle of 5 to the front frame. Then pull it out in forward direction.

Diagram of a mechanical device with a rotating component and directional arrow (no text or symbols)

Illustration of a hand holding a rectangular object with an arrow indicating rotation, no text or symbols present

Reinstalling of the oven door

1. Insert the door into the oven with its two brackets. Hold the door with an angle of 15^irc to the front frame. The hollow of the brackets has to be placed into the bracket support when inserting the door into the oven.

2. Open the oven door. Close the hinges cover to original position.

4.4 Trouble shooting

Emergency measures:

1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power supply).
3. Contact your aftersales service.

Check the schedule below before you contact your aftersales service.

MALFUNCTION

POSSIBLE CAUSES

MEASURES

Appliance does not work at all.

The appliance is not supplied with energy.

➢ Check the relevant fuse in the fuse box of your household power supply.

Internal light does not work.

The illuminant is loose or damaged.

▶ Tighten or replace the illuminant.

5. Technical data

Supplier's name	PKM
Model	F3X
Energy efficiency index(IEE cavity)	-
Number of cavities	1
Heat source per cavity	Electricity
Type	Built-In Oven
Control panel	Stainless steel cover
Energy efficiency class	A
Energy consumption (conventional)	0.76 KW/h
Energy consumption (with fan)	/ KW/h
Usable volume	60.00 l
Size of the appliance	Medium size: volume < 65 l
Functions	bottom heat heattop / top and bottom heat
Grill/fan/hot air fan	-	-
All-glass inner door	√
Door/glass layers	Black glass	2
Enclosure cooling	√
Handle and knobs	Aluminium
Noise emission	< 51 db/A
Maximum power	2,35 KW
Voltage/frequency	220-240V	50 Hz
Drip tray/grillage	1	1
Cable length	150 cm
Installation dimensions in cm	59.50	59.50
Dimensions packaging in cm	66,00	66,50
Weight net/gross	28,50	32,50

5. Technical data

Supplier's name	PKM
Model	F4X
Energy efficiency index(IEE cavity)	-
Number of cavities	1
Heat source per cavity	Electricity
Type	Built-In Oven
Control panel	Stainless steel cover
Energy efficiency class	A
Energy consumption (conventional)	0.76 KW/h
Energy consumption (with fan)	/ KW/h
Usable volume	60.00 l
Size of the appliance	Medium size: volume < 65 l
Functions	grill / bottom heat / top andbottom heat /top heat (incl. grill)
Grill/fan/hot air fan	✓	-
All-glass inner door		✓
Door/glass layers	Black glass	2
Enclosure cooling		✓
Handle and knobs	Aluminium
Noise emission	< 51 db/A
Maximum power	2,25 KW
Voltage/frequency	220-240V	50 Hz
Drip tray/grillage	1	1
Cable length	150 cm
Installation dimensions in cm	59.50	59.50
Dimensions packaging in cm	66,00	66,50
Weight net/gross	28,50	32,50

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

for large electric appliances, PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 27/05/2020
