Product Type	5.25-inch Coaxial Speaker
Speaker Configuration	2-Way (Woofer and Tweeter)
Woofer Size	5.25 inches (133 mm)
Tweeter Type	Piezoelectric or Soft Dome (typical)
Impedance	4 Ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	150 Watts
Frequency Response	60 Hz - 20 kHz
Sensitivity	90 dB (1W/1m)
Mounting Depth	Approximately 1.75 inches (44 mm)
Mounting Hole Diameter	4.6 inches (117 mm)
Overall Diameter	6.3 inches (160 mm)
Weight per Speaker	1.2 lbs (0.54 kg)
Cone Material	Polypropylene with Rubber Surround
Built-in Crossover	Yes (integrated high-pass filter for tweeter)
Grille Included	Yes
Installation	Surface or Flush Mount in Car Doors/Dash
Operating Temperature	-20°C to 60°C
Maintenance	Clean with dry cloth; avoid moisture
Spare Parts Availability	Contact Hifonics authorized dealers

Frequently Asked Questions - Brutus BRX5.2C Hifonics

What is the power handling of the Hifonics Brutus BRX5.2C speakers?

The Brutus BRX5.2C speakers are rated for 50 watts RMS and 150 watts peak power handling per speaker.

What is the impedance of these speakers?

These speakers have an impedance of 4 ohms, which is standard for most car audio systems.

Are the Brutus BRX5.2C speakers compatible with my car?

These are 5.25-inch coaxial speakers fitting most cars with standard speaker openings. Check your vehicle's speaker size and mounting depth (approx. 1.75 inches) for compatibility.

Do these speakers come with mounting hardware?

Yes, they typically include mounting screws, brackets, and a grille. Confirm with the package contents.

Can I install these speakers in the rear deck?

Yes, they can be installed in any location with a suitable 5.25-inch opening, such as doors, rear deck, or dash.

What type of tweeter is used in the Brutus BRX5.2C?

The tweeter is a 1-inch soft dome or piezoelectric type integrated into the coaxial design for clear high frequencies.

How do I wire these speakers to my amplifier?

Connect the positive and negative terminals of the speaker to the corresponding amplifier outputs. Ensure the amplifier's impedance matches 4 ohms per channel for optimal performance.

Are the speakers weather-resistant?

They are designed for indoor use in vehicles and not fully waterproof. Avoid direct exposure to moisture.

What is the frequency response of the Brutus BRX5.2C?

The frequency response ranges from 60 Hz to 20 kHz, covering bass, midrange, and treble.

Does Hifonics offer a warranty on these speakers?

Yes, Hifonics typically provides a 1-year limited warranty against defects. Check your local dealer for details.

USER MANUAL Brutus BRX5.2C Hifonics

BRX42

BRX52

BRX62

BRX5.2C

BRX6.2C

EINBAUHINWEISE

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
2. Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
3. The tweeter should always be installed as close as possible to the midbass speaker.
4. Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
5. Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
6. Please handle the components with care, otherwise they will get damaged.
7. Please pay attention to the correct polarity (+ or -) for all terminals and connections.
8. Never connect the speakers to the electrical ground or with the body of the vehicle.

INTERCONNECTION BRX5.2C, BRX6.2C

IMPORTANT:

Please pay attention to the correct polarity (+ or -)

for all terminals and connections.

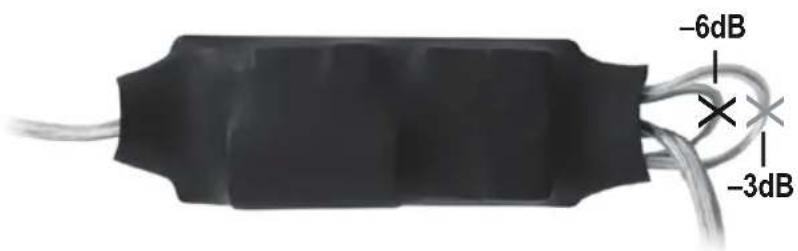

TWEETER ATTENUATION BRX5.2C, BRX6.2C

Optional:

Cut the transparent cable loop on the tweeter crossover for a tweeter attenuation of -3dB. If you want a tweeter attenuation of -6dB, you also have to cut through the red cable loop.

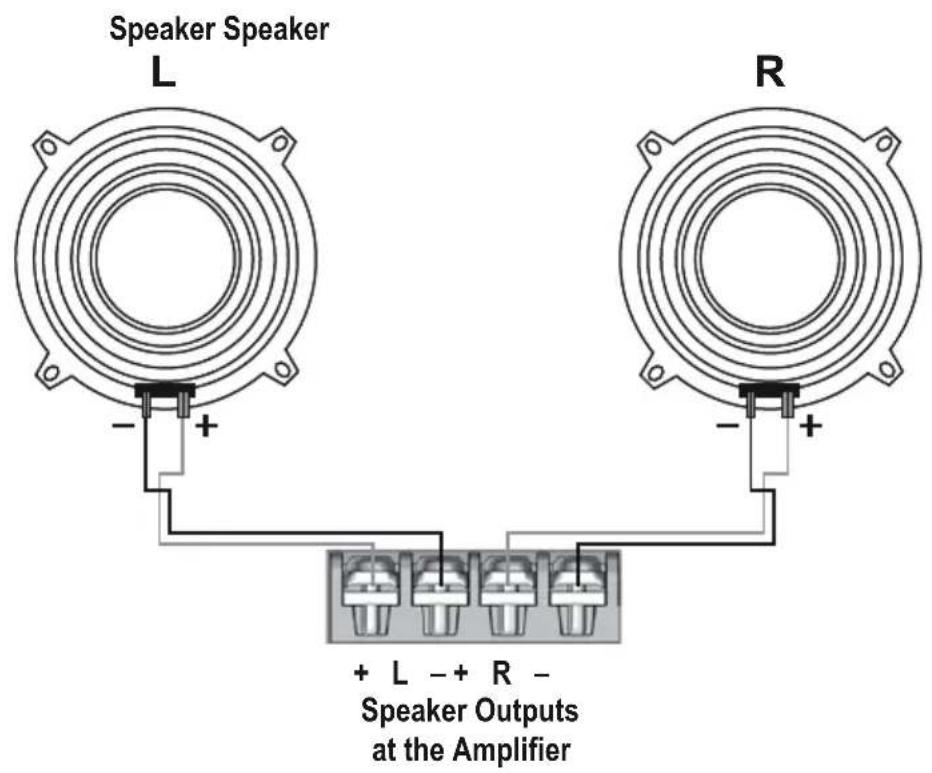

INTERCONNECTION BRX42, BRX52, BRX62

IMPORTANT:

Please pay attention to the correct polarity (+ or -) for all terminals and connections.

HIFONICS

Brutus

SERIES

Audio Design GmbH

Am Breilingsweg 3 · D-76709 Kronau/Germany

Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510

www.audiodesign.de · www.hifonics.de

© Audio Design GmbH, All Rights Reserved
