Product Type	Car Audio Component Speaker System
Speaker Size	6.5 inches (165 mm)
Impedance	4 ohms
Power Handling (RMS)	80 Watts
Power Handling (Peak)	240 Watts
Sensitivity	91 dB (1W/1m)
Frequency Response	45 Hz – 20 kHz
Mounting Depth	2.5 inches (63 mm)
Cutout Diameter	5.7 inches (145 mm)
Tweeter Type	1-inch Silk Dome
Crossover Included	Yes, 2-way passive crossover
Woofer Material	Polypropylene Cone
Tweeter Material	Silk Dome with Neodymium Magnet
Surround Material	Rubber
Grille Included	Yes
Mounting Hardware Included	Yes, screws and clips
Dimensions (each speaker)	7.0 x 7.0 x 2.8 inches (178 x 178 x 71 mm)
Weight (per pair)	5.5 lbs (2.5 kg)
Recommended Amplifier Power	50 – 150 Watts RMS per channel
Warranty	1 year limited

Frequently Asked Questions - Brutus BRX6.2C Hifonics

What is the impedance of the Brutus BRX6.2C speakers?

The impedance is 4 ohms, which is standard for most car audio systems. They can be wired in parallel or series to match your amplifier's requirements.

What is the RMS power handling of these speakers?

The RMS power handling is 80 watts per speaker. For best performance, use an amplifier that delivers between 50 and 150 watts RMS per channel.

Do the speakers come with a crossover?

Yes, the set includes two passive crossovers that separate the frequencies between the woofer and tweeter. They are pre-wired and easy to install.

What is the mounting depth required for installation?

The mounting depth is 2.5 inches (63 mm). Ensure your door or panel has enough clearance for proper installation.

Can I use these speakers without an external amplifier?

While they can be driven by a head unit, they perform best with an external amplifier to reach their full potential and avoid distortion.

Are the tweeters detachable?

The tweeters are separate components that can be mounted in the factory location or custom-mounted for better soundstage.

What is the recommended wire gauge for installation?

Use 16-gauge to 18-gauge speaker wire for optimal signal transfer. Ensure connections are secure and polarity is correct.

Do the speakers come with mounting hardware and grilles?

Yes, the package includes mounting screws, clips, and protective grilles for both woofers and tweeters.

What type of music do these speakers excel at?

These speakers offer a balanced sound with clear highs and punchy midbass, making them suitable for rock, pop, and electronic music.

Is there a warranty on the Brutus BRX6.2C speakers?

Hifonics provides a 1-year limited warranty against manufacturing defects. Keep your receipt for warranty service.

USER MANUAL Brutus BRX6.2C Hifonics

Pure technical line drawing of concentric circular components without any text, numbers, or symbols

BRX42

BRX52

BRX62

BRX5.2C

BRX6.2C

EINBAUHINWEISE

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
2. Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
3. The tweeter should always be installed as close as possible to the midbass speaker.
4. Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
5. Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
6. Please handle the components with care, otherwise they will get damaged.
7. Please pay attention to the correct polarity (+ or -) for all terminals and connections.
8. Never connect the speakers to the electrical ground or with the body of the vehicle.

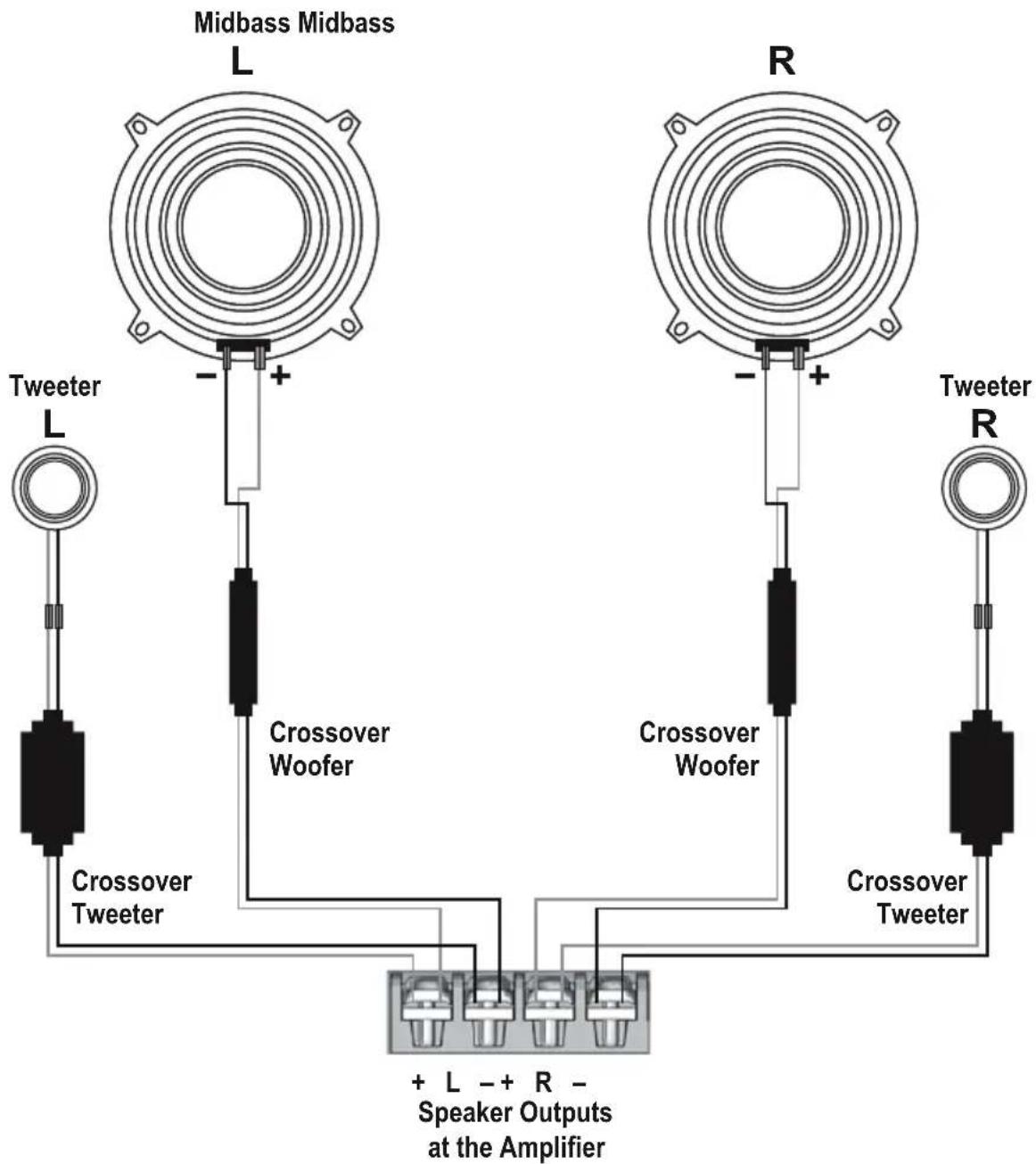

INTERCONNECTION BRX5.2C, BRX6.2C

IMPORTANT:

Please pay attention to the correct polarity (+ or -)

for all terminals and connections.

TWEETER ATTENUATION BRX5.2C, BRX6.2C

Optional:

Cut the transparent cable loop on the tweeter crossover for a tweeter attenuation of -3dB. If you want a tweeter attenuation of -6dB, you also have to cut through the red cable loop.

INTERCONNECTION BRX42, BRX52, BRX62

IMPORTANT:

Please pay attention to the correct polarity (+ or -) for all terminals and connections.
