Multi 550 - Grinder Izzy - Free user manual and instructions

Brand	Izzy
Model	Multi 550
Product Type	Food processor / mincer
Power Consumption	550 W
Voltage	AC 220-240 V
Frequency	50/60 Hz
Number of Speeds	2 (variable by pressure)
Bowl Capacity	0.4 L (max liquids)
Blade System	Double "Quad-blade" (upper and lower blades)
Main Functions	Mincing, blending, pulsing, baby food, ice crushing, chopping
Safety Features	Lid lock, safety interlocks
Dishwasher Safe Parts	Bowl, blades, lid (upper basket)
Material	Plastic body, stainless steel blades
Dimensions (approx)	Height 20 cm, diameter 15 cm (estimated)
Weight (approx)	1.5 kg (estimated)
Warranty	2 years
Accessories Included	Upper blade, lower blade, lid, bowl, motor unit, fixed shaft
Color	White
Compliance	CE, RoHS
Maintenance	Wipe motor unit with damp cloth; other parts dishwasher safe
Replacement Parts Available	Yes, through authorized service centers

Frequently Asked Questions - Multi 550 Izzy

How do I clean the Izzy Multi 550?

Always unplug first. Clean the motor unit with a damp sponge only; never immerse in water. The bowl, lower blade, upper blade, and lid can be cleaned in the dishwasher (upper basket).

Can I crush ice with this appliance?

Yes, you can crush ice. Use both blades and operate the appliance by pulsing until desired consistency.

What is the maximum continuous processing time?

The maximum continuous use is 10 seconds. For longer processing, use pulses with intermediate 10-second pauses.

Can I put hot ingredients in the bowl?

No, do not put hot ingredients into the bowl. Allow food to cool down for a few minutes before processing.

How do I assemble the blades?

Put the upper blade onto the lower blade and turn anticlockwise to lock. Then fit the blade assembly onto the fixed shaft in the bowl. Ensure lid is locked before use.

What is the maximum liquid capacity?

For liquids, never exceed 0.4 liters to avoid leakage. The lid does not form an air-tight seal.

Is the bowl dishwasher safe?

Yes, the bowl, blades, and lid are dishwasher safe (recommended to place in the upper basket).

How do I replace the blades?

Blades can be replaced by purchasing new ones from authorized service centers. Follow assembly instructions in reverse to remove old blades.

What should I do if the appliance stops working?

First check if it is plugged in. If it still does not work, contact the nearest authorized BENRUBI Service Center for examination or repair.

Can I use it for baby food?

Yes, it is suitable for baby food. For creamy food, use the lower blade only. For chunky foods, use both blades with pulsing. Ensure food is not hot and quantity ≤ 400ml.

USER MANUAL Multi 550 Izzy

White multiflorer blender with 'multi550' label and 'izzy' branding (no additional text or symbols visible)

Mechanical component diagram showing a rotating lever mechanism with directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cylindrical container, showing internal components and a downward arrow (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Χρήση

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any use which does not conform to the instructions will absolve IZZY from any liability.

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

• Read all instructions carefully.
• To safeguard against electric shock, do not place cord, plug or appliance in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• This appliance is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision and have been given instructions concerning use of the appliance by a person responsible for their safety.

- Unplug from outlet when not in use and before cleaning.

- Do not operate any appliance with a damaged cord or plug, in case of appliance malfunctions or if the appliance has been damaged in any manner. Return the appliance to the nearest authorized BENRUBI service facility for examination, repair or replacement.

- The use of accessory attachments not recommended by manufacturer may cause malfunctions.

- Do not use outdoors.

- Do not let the cord hang over the edges of tables or counters, or touch hot surfaces.

- Do not place the appliance on or near hot gas or electric burners, or in a heated oven.

• This product has been designed for domestic use only. For any sort of commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and guarantee is no more valid.
• Do not use your food processor if any part is broken.
• Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved BENRUBI service centre.
• Do not put the appliance, the power cord or the plug into water or any other liquid.
• Make sure that the cover is securely locked in place before operating the appliance.
• Never place ingredients in the container by hand and while the appliance is in use. Always use the food pusher.
• The blade and discs are sharp. Handle carefully. After use store out of reach of children.
• Make sure that the cover is securely locked in place before operating the appliance.
• If the power cord or the plug are damaged, do not use your appliance. To avoid any risk, these must be replaced by an approved BENRUBI service centre.
• For your own safety, please use only the original accessories and spare parts which are suitable for your appliance. Warning: the blades of the knife are extremely sharp. Handle them with caution.
  • After much use, the blades will become blunt and should be changed. New blades are equal to a new appliance.
• Never remove the lid until the knife has stopped completely.
• This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.
• Do not use this appliance to mix glutinous food or substances.
• Do not use this appliance for other uses than the use intended.
• For your safety, this appliance conforms to the appliance standards, regulations and directives of Low Voltage, Electromagnetic Compatibility, Environment, etc.

SAVE THESE INSTRUCTIONS

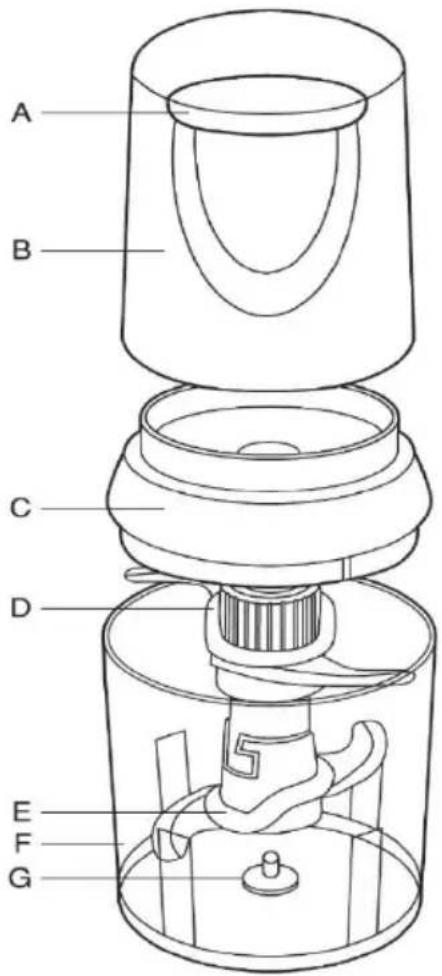

Parts of the Appliance

A. Start Button / speed selector
B. Motor Unit
C. Lid
D. Upper Blade
E. Lower Blade
F. Bowl
G. Fixed Shaft

* Parts C,D,E,F are available for purchase at all authorized service centers

Mechanical assembly diagram showing a rotating component with directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly inside a cylindrical container, showing internal components and a downward arrow (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Using the Appliance

Before first use, clean the various parts of the appliance.

Notes:

• The start button (A) allows you to use 2 speeds:
  * speed 1 (min): gentle pressure
  * speed 2 (max): firmer pressure.

- For liquids, never exceed 0,4 lt.

Mincing and Blending

• Put the upper blade (D) onto the lower blade (E) and bring it to its locked position by turning anticlockwise (Fig.1).

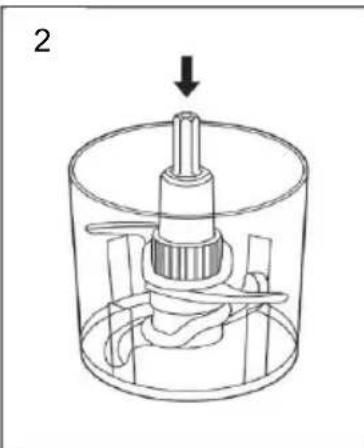

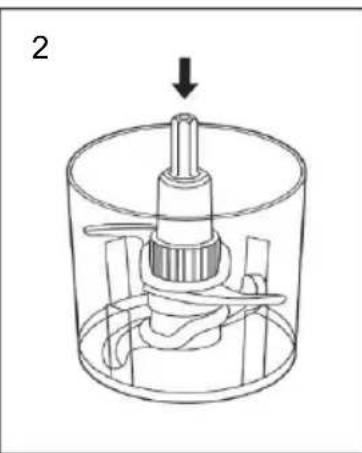

• Fit the upper (D) and lower blades (E) onto the fixed shaft (G) in the bowl (F) (Fig.2). Pour in the ingredients and lock the lid (C) (Fig.3).

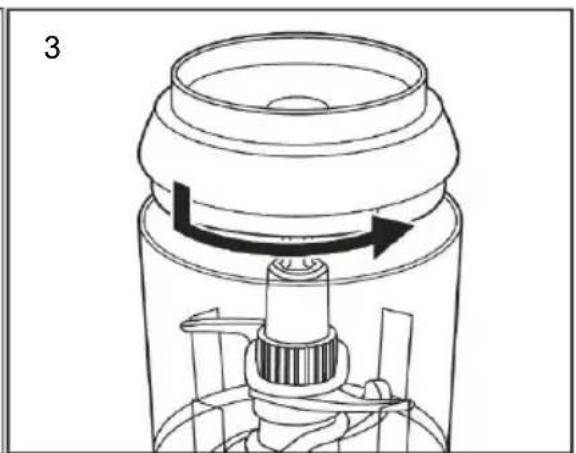

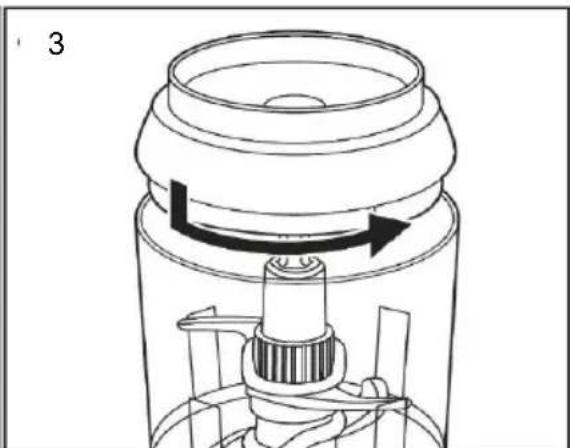

• Place the motor unit (B) onto the assembly by turning it slightly.
• Plug in the appliance and press the start button (A), at the same time holding the appliance by the motor unit.
• At the end of preparation, release the button (A), unplug the appliance and wait until the blades come to a complete stop.
• Remove the motor unit, the lid and the blades to pour out the preparation. You can separate the upper blade from the lower blade by turning the former clockwise and pulling it up.

Baby Food

To mix or blend cooked food:

- Chop the food into small pieces, add some broth (meat or vegetables) and mix the ingredients while pulsing. To blend the mixed food, press the start button continuously until you reach the desired result.

For fruit purées:

- Chop the fruits into small pieces, add some milk, water or juice and mix the ingredients by pulsing. To blend the fruits, press the start button continuously until you reach the desired result. Caution: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

Note: The lid of the bowl does not form an air-tight seal. Therefore, when mixing liquids there is a possibility of limited leakage from the bowl. To overcome this, avoid overfilling, remove the top blade and do not exceed 0,4 lt

CAUTION: Maximum time of processing should not exceed 10 second continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses.

Ingredients	Max. Quantity	Max. Time	Recommended Speed
Parsley	30gr	10 sec	1 ή 2
Onions	200gr	In puses	1
Garlic	150gr	5 sec	1
Rusks	20gr	15 sec	1 or 2
Almonds	100gr	15 sec	2
Hazelnuts	100gr	15 sec	2
Walnuts	100gr	15 sec	2
Gruyere	100gr	15 sec	2
Hard-boiled egg	200gr	10 sec	2
Boiled ham	200gr	15 sec	2
Boiled beef	200gr	15 sec	2
Cooked soup	0,4lt	30 sec	2
Prunes	130gr	9 sec	2
Dried apricots	130gr	9 sec	2

CAUTION: DO NOT OPERATE THE UNIT WHEN EMPTY.

CAUTION: DO NOT PUT HOT INGREDIENTS INTO THE BOWL. BEFORE FOOD PREPARATION, ALLOW FOOD TO COOL DOWN FOR A FEW MINUTES.

This appliance has unique specifications such as the double “Quad-blade” (exclusivity of IZZY) and powerful motor of 500W. Please find hereafter a few tips for the most common uses.

1. CHEESE: Perfectly grades every kind of cheese (even soft cheese). Use both blades and use the appliance by pulsing.
2. TOMATO, NUTS, ONIONS etc.: For fine chopping, use both blades and use the appliance by pulsing.
3. CASTOR SUGAR: Use the single blade (low blade). For better result, make sure that sugar's quantity covers totally the blade.

4. ICE: For ice crushing, use both blades and use the appliance by pulsing.

5. BABY FOOD: To mix or blend cooked food: - With liquid foods (e.g. baby food crème) use the low blade to mix the ingredients. Make sure that food is not hot and quantity does not exceed the 400ml. - For chopping cooked food (vegetables, meat etc.) and fruits, use both blades and use the appliance by pulsing. To blend the food or make fruit purées, press the start button continuously (for a few seconds) until you reach the desired result. Caution: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

IN GENERAL: For better result: when using both blades (with solid food), please make sure that the quantity of ingredients fully covers the low blade and reaches up just below of the upper blade.

Care and Cleaning

• Always unplug the appliance first.
- Only use a damp sponge to clean the motor unit (B). Never place it in water, or under running water.
- The bowl (F), the lower blade (E), the upper blade (D and the lid (C) can all be cleaned in the dishwasher (upper basket).

Troubleshooting

- Please verify whether the appliance is plugged in. • If you have followed all the instructions in the booklet and the appliance still does not work return the appliance to the nearest authorized Benrubi Service Center for examination or repair.

Technical Characteristics

Model: Multi 550

Rated Voltage: AC 220V-240V

Rated Power: 550W

Rated Frequency: 50/60HZ

Important information for correct disposal of the product in accordance with EC Directiv 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household device separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household devices separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by present purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRUBI Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure to implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124

Maroussi - Athens

Tel. / Customer Support: 210 6156400

e-mail: [e-mail]
