Type	Canister vacuum cleaner
Brand	Hanseatic
Model	V18C01A-80
Power consumption	800 W
Supply voltage	220–240 V~, 50/60 Hz
Sound power level	75 dB(A)
Weight	Approx. 7 kg
Protection class	II
Cord length	Approx. 7 m
Suction force control	Variable via foot switch
Cord retraction	Foot-operated
Telescopic tube	Adjustable length
Floor nozzle	With carpet/hard floor switch
Included accessories	Upholstery nozzle, crevice nozzle, furniture brush
Filters	Motor protection, hygiene (washable), foam, coarse dust
Dustbin capacity	Not specified (typical ca. 2–3 L)
Use	Dry vacuum only; not for liquids
Overheat protection	Yes (auto shut-off)
Filter maintenance	Washable (coarse dust, foam, hygiene)
Spare parts	Inlet+sponge filter set (37091433), hygiene filter (58452657)
Order number	66310616

Frequently Asked Questions - V18C01A-80 Hanseatic

How do I change the hygiene filter?

Unplug the vacuum cleaner. Open the filter cover by pressing the unlocking button. Lift out the old hygiene filter. Rinse the new or cleaned filter with water and let it dry completely. Reinsert and close the cover.

Can I vacuum liquids with this vacuum cleaner?

No, the appliance is designed for dry vacuuming only. Vacuuming liquids can cause short circuits and damage the motor.

What should I do if the suction power is weak?

First, check if the dustbin is full or filters are clogged. Clean or replace filters. Also ensure the telescopic tube and hose are not blocked. Adjust the air by-pass vent if open.

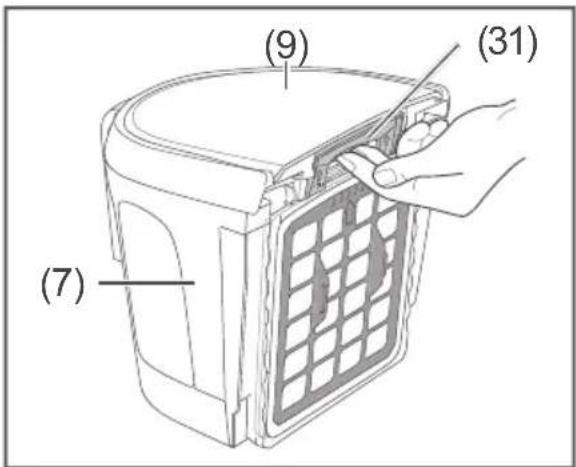

How do I clean the coarse dust filter?

Unplug the vacuum. Remove the dustbin and take out the coarse dust filter. Wash it under running water. Let it dry completely before reinserting.

What accessories are included?

The package includes a floor nozzle (with carpet/hard floor switch), upholstery nozzle, crevice nozzle, furniture brush, telescopic tube, and suction hose.

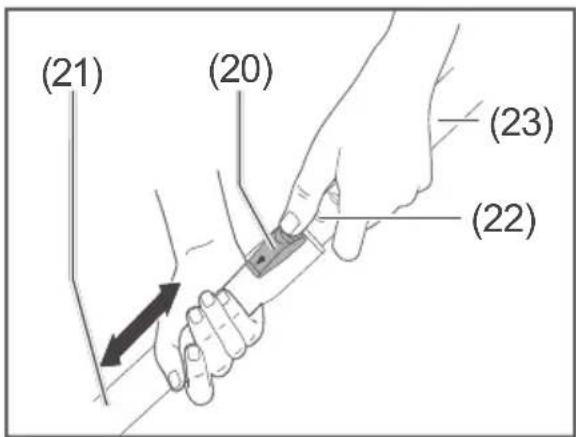

How do I adjust the telescopic tube length?

Hold the upper part of the tube with one hand, press the locking mechanism downwards, and slide the lower part to the desired length until it clicks into place.

Is the vacuum cleaner suitable for pet hair?

Yes, the floor nozzle and upholstery nozzle can pick up pet hair from carpets and furniture. Regular cleaning of the filters ensures optimal performance.

What does the overheat protection do?

If the appliance overheats due to blocked filters or hose, it automatically switches off. Unplug, let it cool for at least 30 minutes, and remove the blockage before restarting.

How do I store the vacuum cleaner?

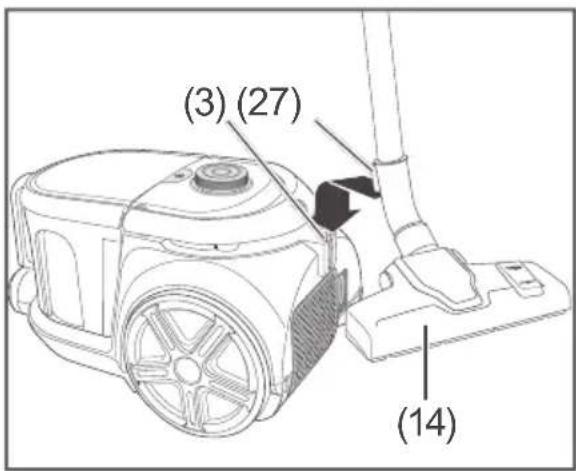

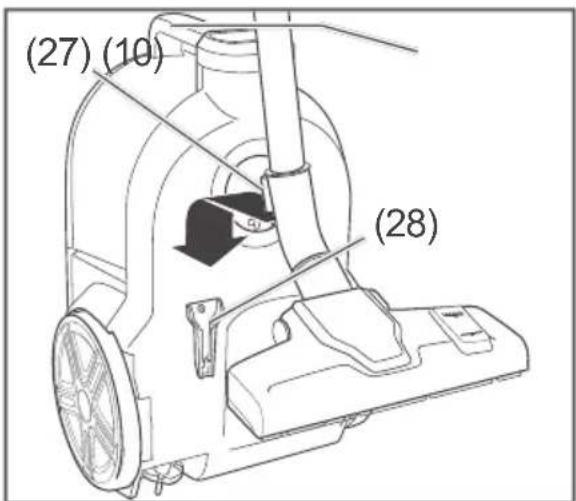

Briefly set aside by inserting the floor nozzle bracket into the storage holder. For space-saving storage, use the dustbin handle to stand it upright and clip the nozzle into the bottom holder.

Where can I order spare filters?

Spare filters can be ordered by contacting customer service. The article numbers are: inlet+sponge filter set (37091433) and hygiene filter (58452657).

USER MANUAL V18C01A-80 Hanseatic

Line drawing of a vacuum cleaner with attached tubing (no text or symbols)

Gebrauchsanleitung

Technical line drawing of a mechanical device with no visible text or symbols

Line drawings of various vacuum cleaner components including hose, valve, and clip (no text or labels)

Lieferumfang

Line drawing of a coiled hose with connector (12), no text or symbols present

Simple line drawing of a cylindrical object with internal features, labeled (13) at the bottom (no text or symbols on the object itself)

Technical line drawing of a mechanical device with internal components and a grid-patterned panel (no text or symbols)

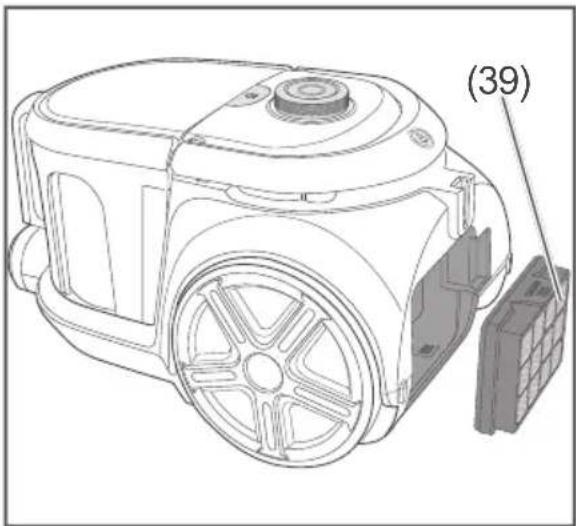

Technical line drawing of a mechanical device with labeled parts (39), no readable text or symbols beyond the label

$$ \mathrm{Cd} = \mathrm{Cadmium} $$

$$ \mathrm{Pb} = \text {Blei} $$

Verpackung

Line drawing of a vacuum cleaner with attached tubing (no text or symbols)

User manual

Manual/version:

1901-03188 01

20231012 EN-UK

Order no.: 66310616

Reproduction, even

of excerpts, is not

permitted!

Vacuum cleaner

Table of contents

Explanation of terms and symbols. . . . . . . . . EN-3

Safety .... EN-4 Intended use .... EN-4 Safety notices .... EN-4

Delivery ..... EN-10 Package contents ..... EN-10 Checking the delivery .. EN-10

Appliance parts .....EN-11 Nozzles ..... EN-12

Start-up..... EN-14 Unpacking the appliance..... EN-14 Setting up the appliance..... EN-14

Operation ..... EN-16 Vacuuming floors..... EN-16 Setting the suction force. .EN-18 Finishing vacuuming ... EN-19 Transporting the appliance..... EN-20

Shutdown and storage... EN-21 Briefly setting aside .... EN-21 Space-saving storage .. EN-21

Care and maintenance... EN-22 Emptying the dustbin... EN-22 Cleaning/changing the coarse dust filter ... EN-23 Cleaning the foam filter.. EN-24 Cleaning/changing the hygiene filter ..... EN-25 Cleaning the appliance.. EN-26 Cleaning the floor nozzle ..... EN-26

Troubleshooting table.... EN-27 Service .... EN-29 General customer service .... EN-29 Spare parts .... EN-29

Waste prevention, free return and disposal ..... EN-30 Waste prevention ..... EN-30 Free return of old electrical appliances ... EN-30 Disposal..... EN-31 Packaging ..... EN-32

Technical data ..... EN-34

Explanation of terms and symbols

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions reliably and safely.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference.

Pass all safety notices and instructions on to the subsequent user of the appliance.

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety

Intended use

The appliance is intended for vacuuming up loose and dry dirt, such as dust, lint, crumbs on floors and cushions around the home and car.

The appliance can be operated without switching at 220–240 V\~/50–60 Hz.

The appliance may be used only if the motor protection filter is in place.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury.

The manufacturer accepts no liability for damage caused by improper use.

The appliance is not suitable for vacuuming up

– hazardous dust
– water and other fluids
- glowing ash, burning cigarettes or matches
- clay, plaster, cement, masonry dust or drilling dust
– sharp objects, such as glass fragments

The appliance is not designed for commercial use or shared use (e.g. use by several parties in an apartment block).

Safetynotices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties.

Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

Risks to children

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi Im.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of suffocation!

Even with the fi Iters, the ap- pliance exhaust air may still contain small quantities of dirt particles. If breathed in by small children, these can lead to allergic reactions.

■ Avoid vacuuming close to children, wherever possible.

Risks for certain groups of people

CAUTION

Risk of injury!

Danger to children and people with impaired physical, sensory or mental abilities!

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if
- it shows visible signs of damage, e.g. the mains cord is defective, - it makes unfamiliar noises, - it emits smoke.
In such cases, you should pull the mains plug out of the socket or switch off/unscrew the fuse and have the appliance repaired (see chapter ‘Service’).

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Check the appliance regularly for damage.
■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cord, always hold the mains plug itself.
■ Connect the appliance only to an easily accessible socket so that you can quickly disconnect it from the mains in the event of a fault.
■ Never leave the appliance unattended while the mains plug is connected to the socket.

■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ In the event of a fault, as well as before cleaning or maintenance, disconnect the mains plug from the socket and/or switch off or unscrew the fuse.
■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ Never clean the appliance with a high-pressure cleaner or steam cleaner.
■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our Service department.

■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair a defective or suspected defective appliance yourself.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fi re.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage or explosions.

■ Do not use sharp objects to unpack the appliance.

- When cleaning, please note: – Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents

be used. All-purpose cleaners with a neutral pH are recommended.

• The surfaces can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
• Use only soft cloths.
• Ensure that water does not enter the electrical components.

Risks when handling the vacuum cleaner

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

• Hold onto the mains cord when winding it up. By forcefully retracting the mains cord this can cause a “whipping effect” (on account of the mains cord swinging uncontrollably).
  ■ Lay the mains cord in such a way that no one trips over it.

CAUTION

Fire hazard!

Vacuuming glowing ash, burning cigarettes, etc. will set the fi Iter on fi re.

■ Do not vacuum glowing ash, burning cigarettes or matches.

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or motor protection filter is missing or damaged.

Otherwise, vacuumed dust can penetrate the appli-ance and escape into the ambient air.

NOTICE

Risk of damage to property! Improper handling of the appliance can lead to property damage.

■ Do not use sharp objects to unpack the appliance.
■ Never sit or stand on the appliance.

■ Use the appliance only if the motor protection fi lter is in place. The motor protection fi lter must not be damaged.
■ Only the original supplied accessories and the speci-fi ed dust bag, motor pro-tection fi Iter and hygiene fi Iter may be used.
■ Never vacuum clay, plaster, cement, masonry dust or drilling dust. Vacuuming these materials blocks the fi Iter.
■ Never vacuum water and other liquids.
■ Never vacuum sharp objects, such as glass splinters.
■ On freshly shampooed carpets, always wait until the detergent is completely dry before vacuuming.
■ When using the vacuum cleaner, always pull out the mains cord completely to the yellow marker.

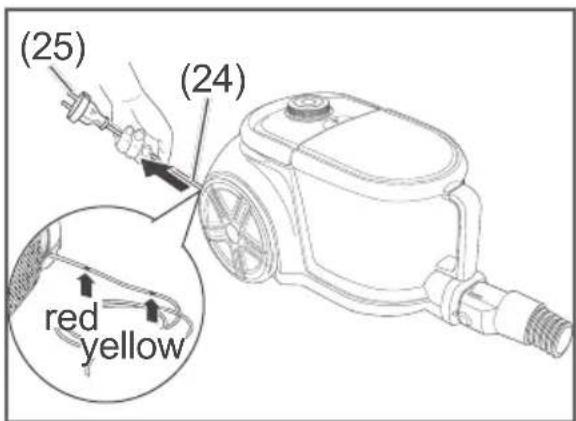

■ Never pull the mains cord out beyond the red marker. Pulling the cord out further can damage the cable reel.
■ Never place the vacuum cleaner directly next to a heater or oven.

■ Never dry the hygiene fi Iter on a heater or with a hair-dryer or tumble dryer. The hygiene fi Iter will become porous and can be damaged.
■ Never wash the filter in a washing machine or dishwasher.
■ The fi Iter must be air-dried only.
■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance and accessories. They could damage the surface of the appliance.

Delivery

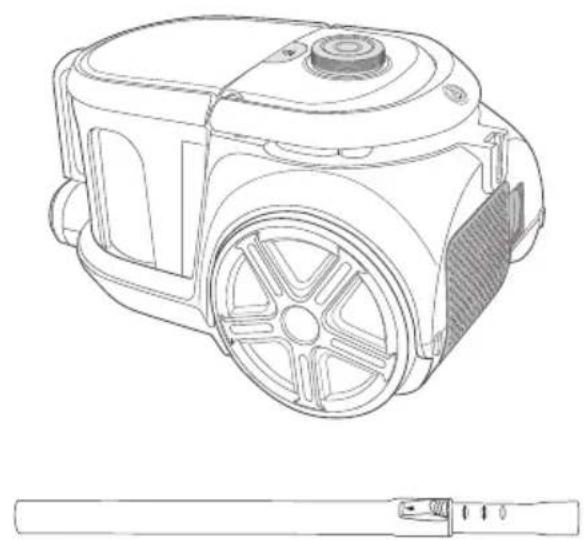

Technical line drawing of a mechanical device with no visible text or symbols

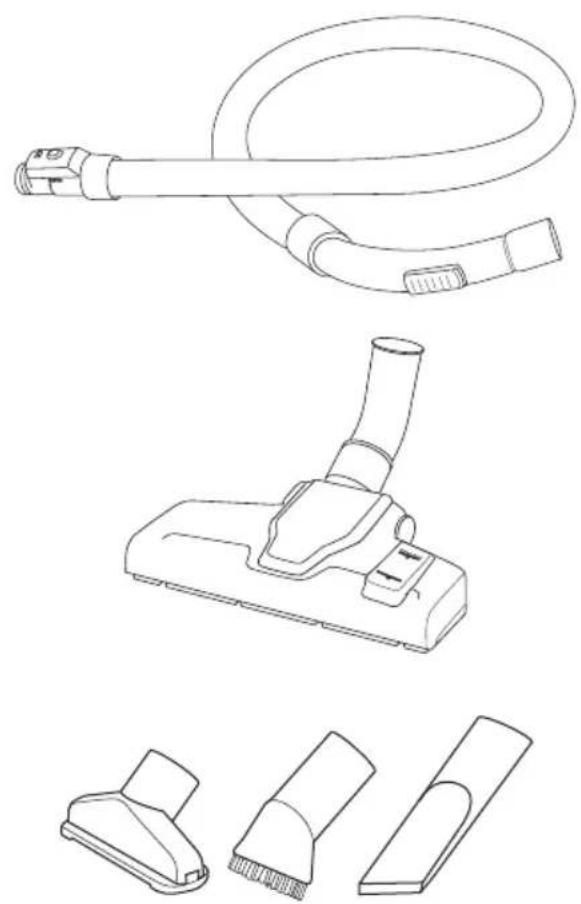

Line drawings of various vacuum cleaner components including hose, valve, and clip (no text or labels)

Package contents

• Vacuum cleaner
• Suction hose with telescopic tube handle
• Telescopic tube
• Floor nozzle
• Upholstery nozzle
• Crevice nozzle
• Furniture brush
• User manual

Checking the delivery

1. Unpack the appliance as described on Page EN-14.
2. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service department (see Page EN-29).

WARNING

Risk of electric shock! Touching live parts may result in severe injury or death.

■ Do not operate the appliance if it has visible damage.

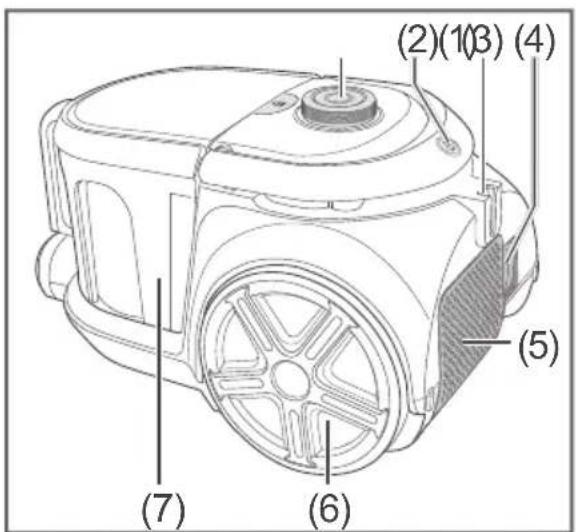

Appliance parts

Line drawing of a coiled hose with connector (12), no text or symbols present

Simple line drawing of a cylindrical object with internal features and a label (13) on the right end (no text or symbols on the object itself)

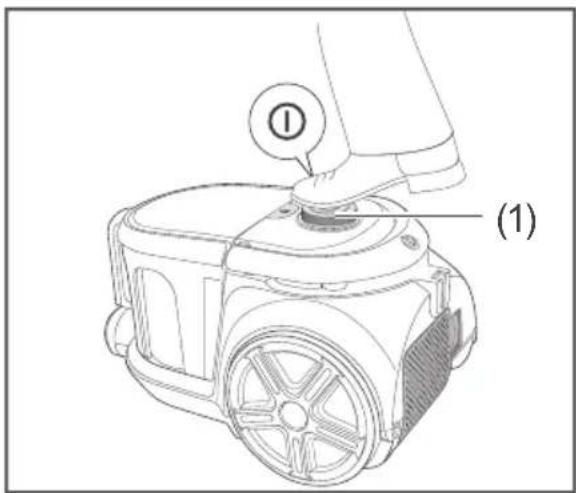

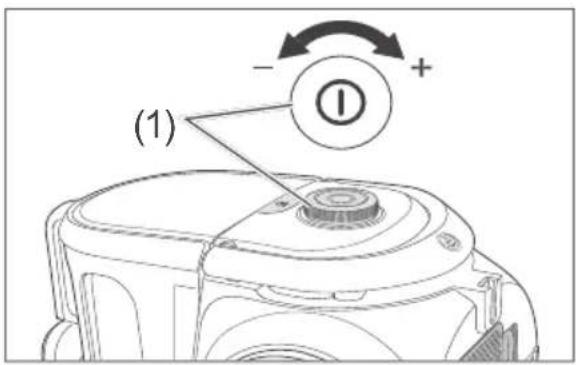

(1) On/Off foot switch and suction force control unit

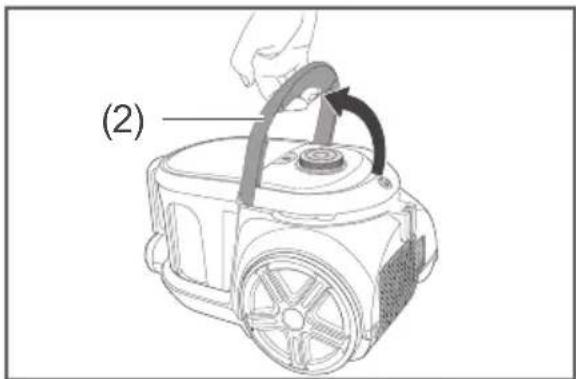

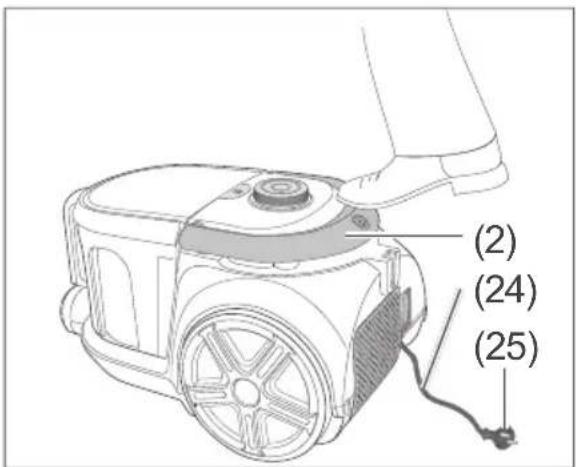

(2) Carrying handle and foot switch for cord retraction
(3) Storage holder
(4) Storage for the mains plug and mains cord

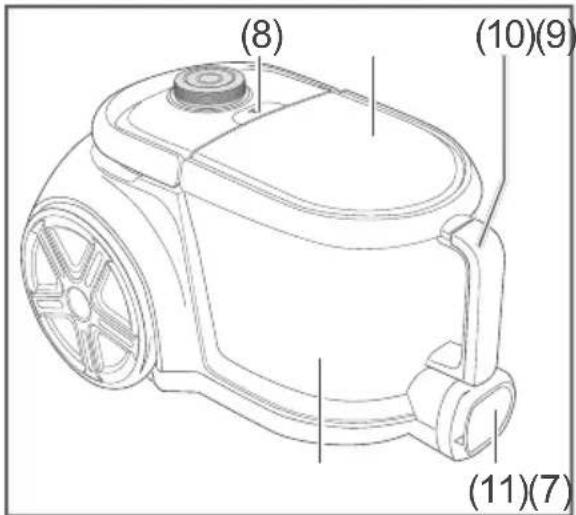

(5) Air vent and filter cover
(6) Wheel

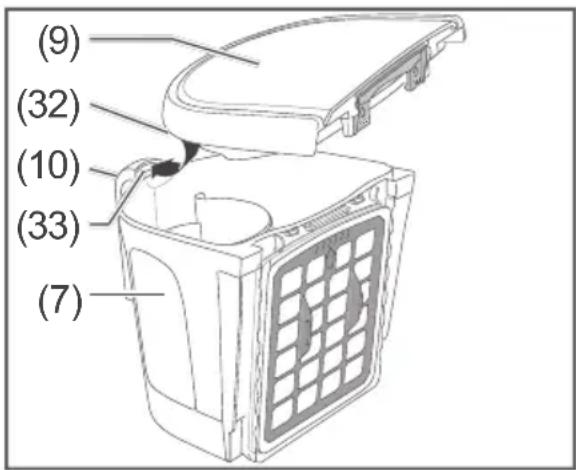

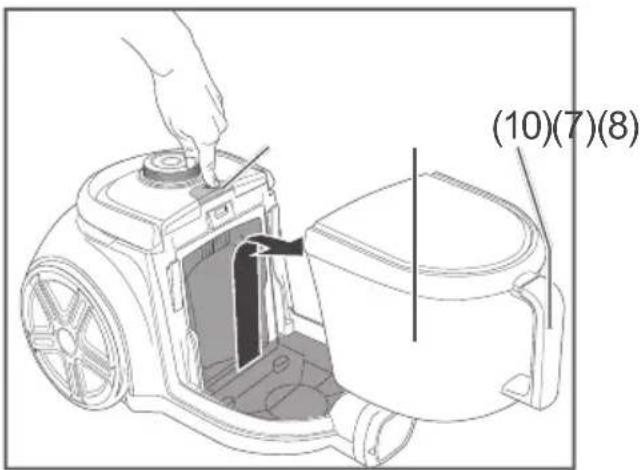

(7) Dustbin
(8) Release button for the dustbin
(9) Dustbin lid
(10) Dustbin carrying handle

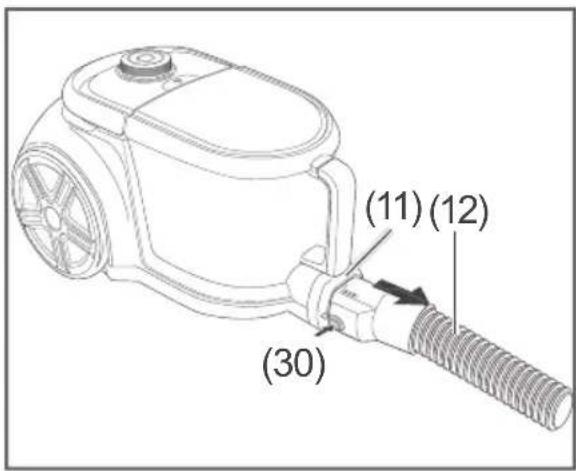

(11) Opening for suction hose connection

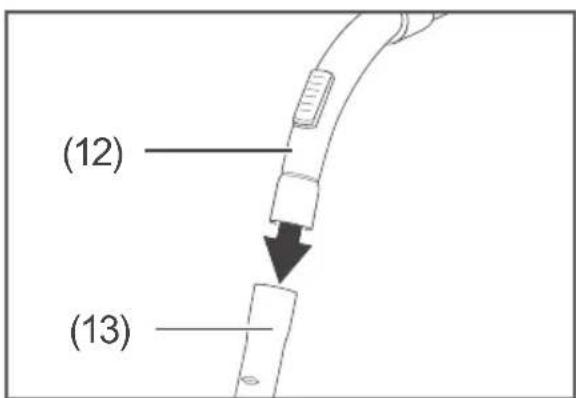

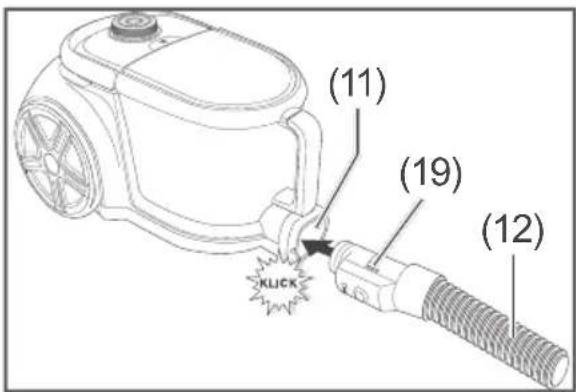

(12) Suction hose with telescopic tube handle
(13) Telescopic tube

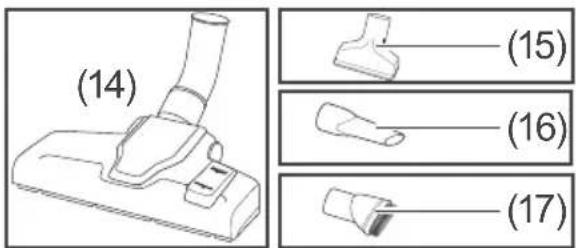

(14) Floor nozzle
(15) Upholstery nozzle
(16) Crevice nozzle
(17) Furniture brush

Nozzles

The vacuum cleaner comes with various nozzles designed for a range of uses. Where required, before or during vacuuming, each nozzle can be attached to the telescopic tube handle on the suction hose (12) or the telescopic tube (13).

Floor nozzle

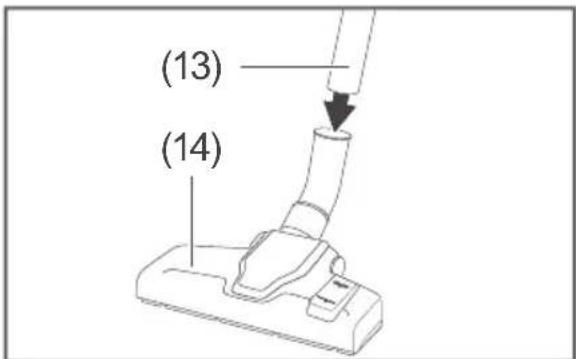

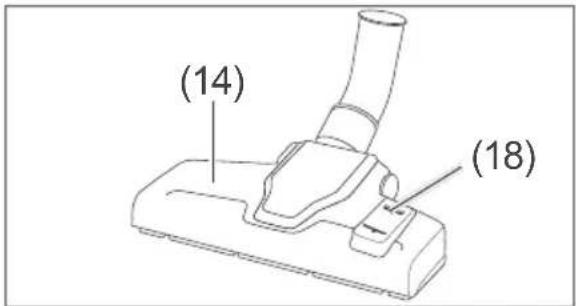

You will work with the floor nozzle (14) most of the time as it is designed for large, flat surfaces.

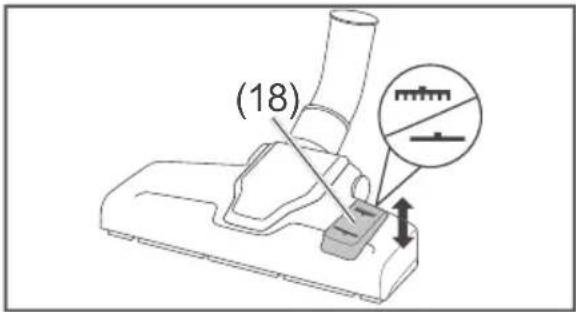

Best vacuuming results are achieved when you adapt the appliance to the floor surface using the foot selector switch (18).

- For short-pile or smooth floors such as needle felt, PVC, parquet or tiles:

Set the foot selector switch to the mposition.

- For long-pile rugs/carpets:

Set the foot selector switch to the position.

The foot selector switch can also be readjusted during operation.

Depending on the floor covering and degree of dirtiness, you can adjust the suction force using the suction force control unit (1) (see section "Setting the suction force" on Page EN-18).

Upholstery nozzle

(15)

The upholstery nozzle (15) is particularly suitable for cleaning furniture upholstery and mattresses.

Crevice nozzle

(16)

The crevice nozzle (16) is suitable for vacuuming material folds, joints, corners and niches that cannot be reached with the floor nozzle.

Furniture brush

(17)

With the furniture brush (17) you can dust books or fragile items such as picture frames.

Start-up

Unpackingthe appliance

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Do not use sharp objects to unpack the appliance.

1. Unpack the appliance.
2. Carefully remove all parts of the packaging, plastic profiles, tape and foam padding.

Setting up the appliance

1. Connect the suction hose (12) and the telescopic tube (13).

1. Put the suction hose (12) with the connector (19) in the opening (11) for the suction hose connection.

1. Select the desired nozzle (e.g. the floor nozzle) (14) and connect it to the telescopic tube (13).

You can also insert all nozzles directly into the telescopic tube handle located on the suction hose.

1. The length of the telescopic tube (13) can be adjusted to suit the height of the user. To do this, hold the upper part (23) of the telescopic tube with one hand and press the locking mechanism (20) downwards. At the same time, use your other hand to push the lower part (21) of the telescopic tube away from or towards you. Make sure that the lower part (21) of the telescopic tube audibly clicks into one of the notches (22) in the upper part of the telescopic tube.

All filters are prefitted in the factory, and your vacuum cleaner is now ready to use.

Operation

You can use the appliance if

– you have read the chapter 'Safety' (see Page EN-4).
– the appliance has been set up as described in the chapter "Start-up" (see Page EN-14).

Vacuuming floors

WARNING

Risk of electric shock!

The appliance operates with 220–240 V\~/50–60 Hz mains voltage. Improper use of the appliance may lead to serious injury or death.

- Do not vacuum glowing ash, burning cigarettes or matches, sharp objects, glass fragments, water or other liquids. Glowing ash, burning cigarettes, etc. set the fi Iter on fi re; moisture can cause short circuits; sharp objects damage the fi Iter and can cause short circuits.

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or coarse dust fi lter is missing or damaged. Otherwise, vacuumed dust can penetrate the appliance and escape into the ambient air.

NOTICE

Risk of damage to property! Vacuuming unsuitable materials blocks the filter and can damage the appliance.

■ Never vacuum clay, plaster, cement, masonry dust or drilling dust.

NOTICE

Risk of damage to property! Failure to unplug the mains cord in an appropriate way may lead to damage.

■ When using the vacuum cleaner, always pull out the mains cord completely to the yellow marker.
■ Never pull the mains cord out beyond the red marker. Pulling the cord out further can damage the cable reel.

1. Pull the mains cord (24) out by the mains plug (25) until the yellow marking is visible on the mains cord.

If the red marking is visible, the mains cord has been pulled out too far. Allow the mains cord to retract slightly (see section "Finishing vacuuming" on Page EN-19).

1. Connect the mains plug to a properly installed socket.

1. To switch the appliance on, use your foot to operate the On/Off foot switch (1).
2. To vacuum, push and pull the nozzle across the surface you are vacuuming. Rotate the telescopic tube handle (12) slightly to reach corners more effectively. This positions the nozzle diagonally.

In rare cases this can make a whistling noise initially. This is not a malfunction and stops after a while.

Setting the suction force

Suction force control unit

The On/Off foot switch (1) dually serves as a suction force control unit.

- Rotate the On/Off foot switch (1)

- clockwise to increase suction.

- anti-clockwise to decrease suction.

Air by-pass vent

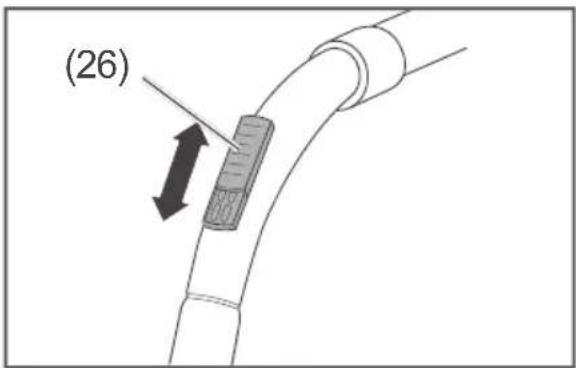

You can adjust the suction force as needed by using the air bypass vent (26). The covering of the air by-pass vent can be adjusted as desired.

Should you accidentally allow the vacuum cleaner to come into contact with an object, opening the air by-pass vent immediately reduces the suction force. This remedial action may prevent such items from being drawn into the dustbin.

Finishingvacuuming

CAUTION

Risk of injury! Forcefully retracting the mains cord can cause a "whipping effect" (on account of the mains cord swinging uncontrollably). This could result in injury.

■ Hold onto the mains cord when winding it up.

1. To switch the appliance off, use your foot to operate the On/Off foot switch (1).
2. Pull the mains plug (25) out of the socket.

1. To retract the mains cord (24), press your foot down on the foot switch (2) for cord retraction. To avoid a 'whipping effect', hold the mains plug (25) on the mains cord in your hand.

Transporting the appliance

The cord retraction foot switch (2) dually serves as a handle.

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

- Fold up the handle (2) and then use it to lift the appliance for transport.

Shutdown and storage

Briefly setting aside

- Insert the mounting bracket (27) found on the floor nozzle (14) into the storage holder (3).

Space-saving storage

1. Use the handle (10) for the dustbin to lift the appliance and position it upright.
2. Insert the mounting bracket (27) found on the nozzle into the storage holder (28) on the bottom of the appliance.

Care and maintenance

Emptying the dustbin

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not empty the dustbin in enclosed spaces. Empty the dustbin on a balcony, or outdoors directly into the waste bin.

1. Pull the mains plug (25) out of the socket.

1. Pull the suction hose (12) out of the opening (11) of the suction hose connection.

First press the locking mechanism (30) and then remove the suction hose.

1. Press the unlocking button (8) for the dustbin (7) and remove the dustbin using the handle (10).

1. Release the locking mechanism (31) under the dustbin lid (9) and remove the dustbin.

2. Turn the dustbin upside down over a rubbish bin to empty it into the bin.

1. Place the dustbin lid (9) back onto the dustbin. Make sure that the mounting bracket (32) on the dustbin lid clicks into the opening (33) on the dustbin (7) handle (10).

Cleaning/changing the coarse dust filter

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Always pull the mains plug out of the socket prior to changing or cleaning the coarse dust fi iter.

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Always use the correct filter for the appliance, otherwise the appliance may not function optimally.
■ Never vacuum without fi Iters or with damaged fi Iters. The vacuumed dust would penetrate the appliance and damage the motor.
■ Do not wash the filter in a washing machine or a dishwasher.

The coarse dust filter should be replaced regularly.

1. Pull the mains plug (25) out of the socket.

2. Remove the dustbin (7) as described in section "Emptying the dustbin" on Page EN-22.

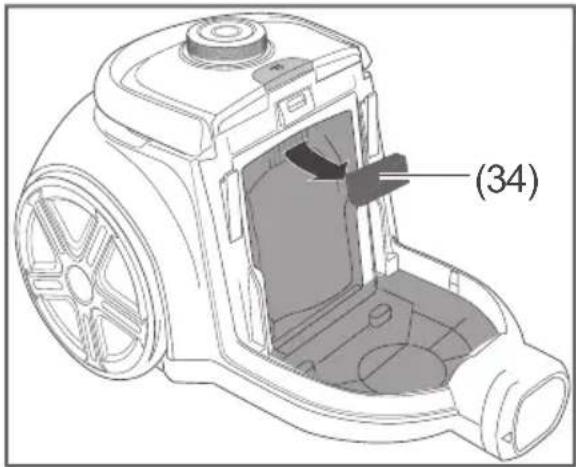

1. Remove the coarse dust filter (34) as illustrated.
2. Wash the coarse dust filter under running water. Should the coarse dust filter be damaged or no longer sufficiently cleanable, it must be replaced with a new one.
3. Allow the coarse dust filter to dry completely.
4. Insert the coarse dust filter back into the vacuum cleaner.
5. Insert the dustbin as described in section "Emptying the dust-bin" on Page EN-22.

Cleaning the foam filter

1. Pull the mains plug (25) out of the socket.
2. Remove the dustbin (7) as described in section "Emptying the dustbin" on Page EN-22.

Technical line drawing of a device housing with internal components, showing part (35)(36) labeled (no text or symbols beyond label)

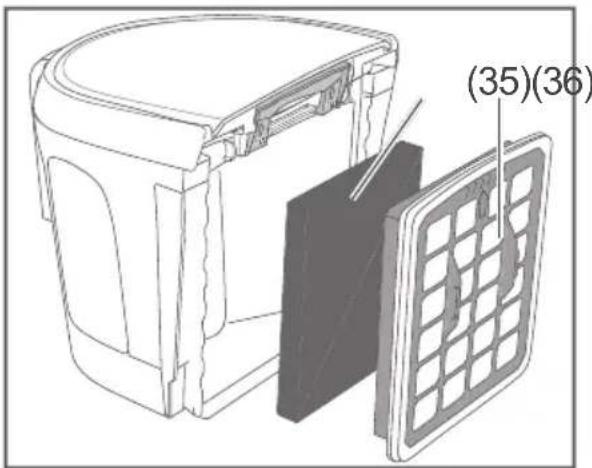

1. Remove the inlet filter (35) and the foam filter (36).
2. Wash the foam filter under running water.

If the foam filter is damaged or can no longer be sufficiently cleaned, it must be replaced with a new one.

1. Allow the foam filter to dry completely.
2. Reinsert the foam filter into the inlet filter.
3. Reinsert the inlet filter with the foam filter.
4. Insert the dustbin as described in section "Emptying the dust-bin" on Page EN-22.

Cleaning/changing the hygiene filter

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Before changing or cleaning the hygiene filter, always pull the mains plug out of the socket.

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Only use the appliance with the fi Iters installed.
■ Never dry hygiene filters on a heater or with a hairdryer or tumble dryer, etc. It will become porous and can be damaged.
■ Never wash the hygiene filter in a washing machine.
■ Only let the hygiene filter air-dry.

The hygiene filter should be cleaned regularly.

If odours cannot be removed by cleaning or the filter is too heavily soiled, it must be replaced.

1. Pull the mains plug (25) out of the socket.

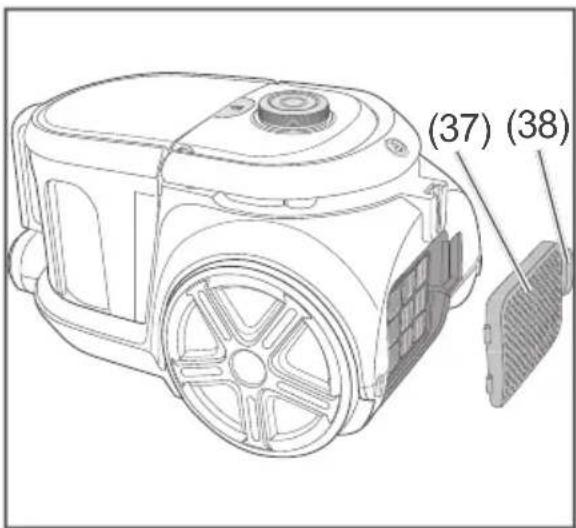

1. Remove the filter cover (37). To do this, press the unlocking button (38).

Technical line drawing of a robotic vacuum cleaner with labeled part (39), no text or symbols present

1. Lift out the hygiene filter (39).
2. Rinse the hygiene filter only with clean water, tap it out and/or clean it with compressed air. Never use detergent or washing-up liquid to clean the hygiene filter.
3. Let the hygiene filter dry out completely.
4. Reinsert the hygiene filter and the filter cover.

The article numbers for re-ordering motor protection and hygiene filters are listed in chapter "Service" on Page EN-29.

Cleaning the appliance

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Before cleaning the appliance, pull the mains plug out of the socket.
■ Ensure that no water seeps into the appliance.
■ Never immerse the appliance in water.

■ Only insert the mains plug into the socket if all appliance components are completely dry.

NOTICE

Risk of damage to property! Improper cleaning of the appliance can impair the surface.

■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance.

• Wipe
  – the housing,
  – the inside of the air vent (5) and
  – the accessories
  with a damp cloth as required. Never allow liquid to penetrate the vacuum.

- Occasionally, clean the air vent with a soft brush.

Cleaning the floor nozzle

- Occasionally vacuum the underside of the floor nozzle (14) with the crevice nozzle (16).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the table to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair! Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips
Appliance is not working.	On/Off foot switch not activated.	Switch the appliance on.
	Mains plug is loose.	Check that the mains plug is firmly inserted into the socket.
	The socket is defective.	Try the appliance with a different socket.
		Check fuses and/or circuit breakers.
	Mains cord is defective.	Check mains cord for damage.Contact our Service Centre, where necessary (see “Service” on Page EN-29).
Appliance switches itself off.	Brush/nozzle blocked.	Actuate On/Off foot switch, pull out mains plug, clean brush/nozzle.
	Coarse dust filter blocked. Overheat protection has been activated.	Actuate On/Off foot switch, pull out mains plug, leave appliance to cool for at least 1/2 hour and clean the coarse dust filter.
	Telescopic tube / suction hose is blocked.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for blockage, and clean if necessary.
Suction force is weak.	Brush / nozzle is not positioned correctly.	Position the brush / nozzle correctly.
	Object is plugging the nozzle.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for blockage. Re-move object.
	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean.
	Air by-pass vent is open.	Close the air by-pass vent.
Dust is being released from the appliance.	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean.

In rare cases this can make a whistling noise initially. This is not a malfunction and stops after a while.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this user manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance/accessories Order number
hanseatic Vacuum cleaner V18C01A-80 66310616
1× inlet+sponge filter set 37091433
1× hygiene filter 58452657

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact the company Hermes Fulfilment GmbH:

Phone: [phone]

Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure ‘Waste Prevention Programme of the German Government with the Involvement of the Federal States’.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources. Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

$$ \mathrm{Cd} = \text { C a d m i u m } $$

$$ \mathrm{Hg} = \text { Mercury } $$

$$ \mathrm{Pb} = \text { Lead } $$

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Technical data

Data sheet for vacuum cleaner according to Regulation (EU) No. 665/2013 and 666/2013.

Manufacturer hanseatic
Name of appliance Vacuum cleaner
Model V18C01A-80
Sound power level in dB(A) 75
Output in W 800
Supply voltage in V~ / 50/60 Hz 220–240
Protection class II
Weight (assembled) in kg. ca. 7
Order number 66310616

Notice: The vacuum cleaner was tested as a universal vacuum cleaner.
