Product Type	Fridge Freezer
Brand	Schneider
Model	SDD230.4 EB
Climate Class	ST (Subtropical)
Energy Efficiency Class	A++
Annual Energy Consumption	182 kWh/year
Voltage / Frequency	220-240V AC / 50 Hz
Total Net Volume	207 liters (Fridge: 171 L, Freezer: 36 L)
Freezing Capacity	2 kg per 24 hours
Storage Time during Malfunction	18 hours
Star Rating	4****
Refrigerant	R600a (flammable)
Noise Level	42 dB(A)
Dimensions (H x W x D)	1450 x 540 x 540 mm
Net Weight	40 kg
Gross Weight	43 kg
Defrost System	Fridge: automatic; Freezer: manual
Adjustable Thermostat	Yes (0 to 7 positions)
Reversible Door Hinge	Yes
Interior Light	LED, max 1.5 W, replaceable
Main Compartments	Glass shelves, crisper, door trays, bottle pocket
Cleaning Recommendations	Mild detergent, vacuum condenser biannually
Safety Features	Child lock (door removal for disposal), grounding required
Included Accessories	Mounting kit (hinges, screws, cover caps)

Frequently Asked Questions - SDD230.4 EB SCHNEIDER

How do I set the temperature on the Schneider SDD230.4 EB fridge?

Turn the thermostat knob to a position between 1 and 7. Position 1 is the warmest, position 7 the coldest. For normal use, set to about 3-4. Allow 5 hours after first startup before loading food. The thermostat controls the compressor only; unplug to disconnect.

How do I defrost the freezer compartment?

Remove all frozen food and place in a cooler. Unplug the appliance and leave the freezer door open. Place a container to catch water. Do not use sharp objects or steam cleaners. Once ice melts, wipe dry and close door. Defrost when ice thickness exceeds 3 mm.

Why is my refrigerator making unusual noises?

Common noises include: clicking from the compressor turning on/off, humming from the compressor running, gurgling from refrigerant flow, and knocking due to expansion/contraction. Ensure the appliance is level and not touching walls or cabinets. If noise persists, check for loose items inside.

Can I change the door opening direction?

Yes, the hinge is reversible. Unplug the appliance, remove top hinge, middle hinge, and bottom hinge. Move door and hinge parts to the opposite side. Adjust to ensure proper seal. This should be done by a qualified professional to avoid damage.

How should I clean the refrigerator?

Unplug the appliance. Use a soft cloth with mild, non-abrasive detergent. Rinse with clear water and dry. Clean condenser coils twice a year with a vacuum. For interior, avoid solvents or harsh cleaners. Do not use steam cleaners.

What is the proper way to store food in this fridge?

Store fresh meat packaged for max 2 days, dairy and eggs in the main compartment, vegetables in the crisper. Freezer: store frozen food at -18°C. Do not refreeze thawed food. Let hot food cool before storing. Wrap food to avoid odour transfer.

How do I replace the interior light bulb?

Unplug the appliance. Remove glass shelves, then the plastic cover. Unscrew the old bulb and replace with a new LED bulb rated max 1.5W, 220-240V. Refit cover and shelves. Note: This bulb is not for household illumination.

What should I do if the fridge is not cooling enough?

Check if the door is properly closed and seals are intact. Ensure the temperature setting is not too warm (try position 4-5). Allow 24 hours after changes. Avoid overfilling and frequent door openings. If problem persists, defrost freezer if ice >3 mm or contact service.

Can I use an extension cord or power strip?

No. The appliance must be connected directly to a properly grounded dedicated socket (220-240V/50Hz). Do not use extension cords or multiplug adapters to avoid fire and electric shock hazards.

How can I reduce energy consumption?

Open the door as little as possible and close it quickly. Keep the appliance away from heat sources and direct sunlight. Set thermostat to a higher position if possible. Defrost when ice thickness exceeds 3 mm. Clean condenser twice a year. Allow hot food to cool before storing.

USER MANUAL SDD230.4 EB SCHNEIDER

Interior view of a modern refrigerator with open doors showing shelves of food including vegetables, dairy products, and beverages (no visible text or labels)

Deutsch

English

Seite

2

Page

32

Set of white electrical connectors and a coiled cable on a plain surface, no text or symbols visible

Exterior view of a modern refrigerator with open door and side shelves (no visible text or symbols)

Mit Abdeckkappen

Close-up of a white cabinet or door with two circular buttons, no visible text or symbols

Ohne Abdeckkappen

Technical diagram of a mechanical assembly with labeled components A, B, and D (no text or symbols beyond labels)

Close-up of a metallic door hinge with a small electronic device attached (no visible text or symbols)

Close-up of a black metal bracket with two circular cutouts and a connecting rod (no text or symbols visible)

Close-up of a hand using a screwdriver to lift a transparent plastic component on a white surface (no text or symbols visible)

Close-up of a metallic mechanical bracket with two screws, mounted on a white panel (no visible text or symbols)

Close-up of a white car door panel with visible door joints and a small white object on the side (no text or symbols)

Close-up of a white cabinet or refrigerator with visible door and buttons, placed on carpet (no text or symbols)

Close-up of a white electronic device control knob with a dial (no text or symbols visible)

Einstellung

Minimal

Normal

Normal

Normal

Maximal

Stufe
Stufe 1

Top-down view of a medical or laboratory device with a pipette inserted into a transparent chamber, showing internal components (no visible text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 33
2. Climatic classes....37
3. Installation 37
   3.1 Site 37
   3.2 Installation 38
   3.3 Change of the hinge position 41
4. Operation.... 44

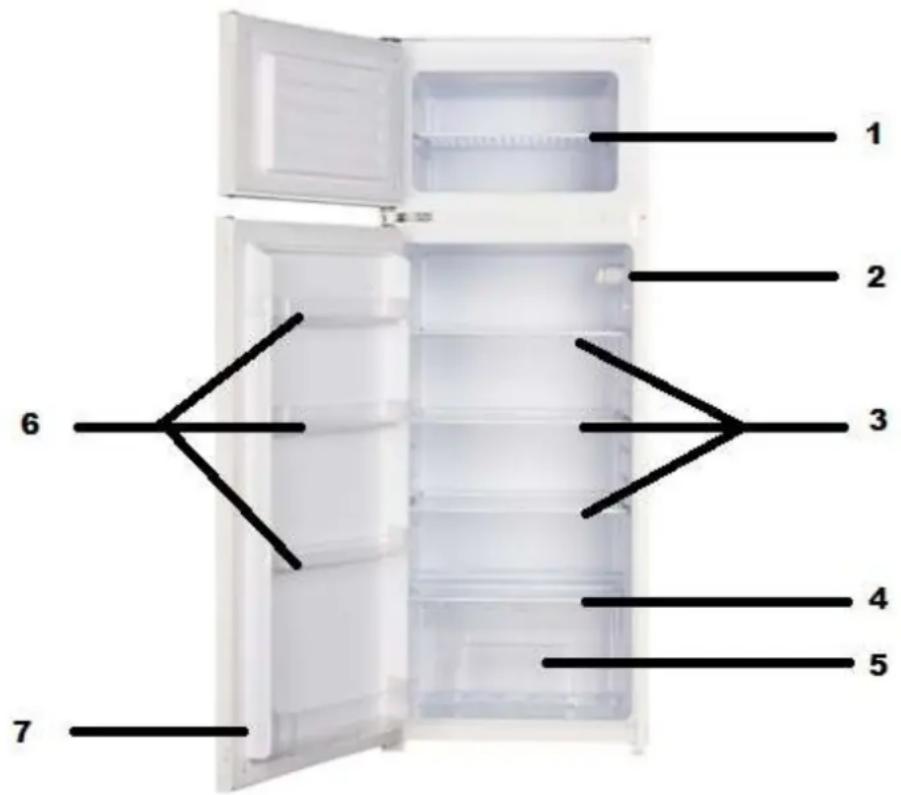

   4.1 Main components of the appliance.... 44
   4.2 Before initial operation 44

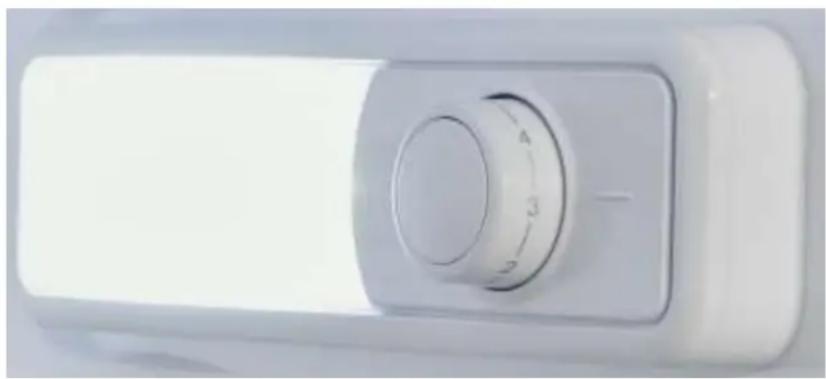

   4.3 Temperature setting.... 45
   4.4 Operation parameters.... 46
   4.5 Proper storage 46
   4.6 Helpful hints/energy saving.... 47
   4.7 Meaning of the *-labelling of freezers.... 47
   4.8 Storage of food.... 49
5. Cleaning and maintenance.... 52
   5.1 Defrosting.... 53

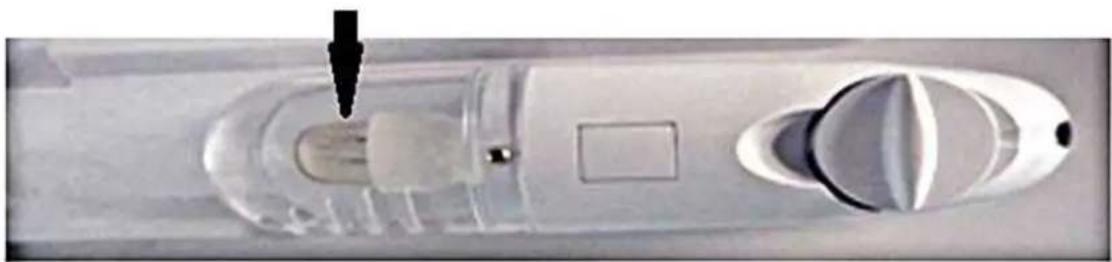

   5.2 Replacing of the illuminant 53
6. Trouble shooting....54
7. Decommissioning....56
8. Technical data....57
9. Waste management....58
10. Guarantee conditions....59

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the

installation of the appliance must be performed by a qualified professional.

The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.

The appliance is intended for cooling food in a private household only.

i The appliance is intended for indoor-use only.

The appliance is not intended to be operated during camping and in public transport.

i Operate the appliance in accordance with its intended use only.

Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children between 3 and 8 years are allowed to load and unload refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.

2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free at the installation site:

a) Open all windows.

b) Do not unplug the appliance and do not use the control panel or thermostat.

c) Do not touch the appliance until all the gas has gone.

d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. Do not install the appliance near of volatile or combustible materials(e.g. gas, fuel, alcohol, paints) or in rooms which may have poor air circulation (e.g. garage).

3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

6. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

7. Do not use a socket board or a multi socket when connecting the appliance to the mains.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.

13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

14. Disconnect the appliance from the mains before you clean or maintain it.

15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

16. Do not put any heat-radiating appliances onto your appliance.

17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

21. Children must never play with the appliance.

22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
2. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
3. Do not store any gassy beverages or water bottles in the freezing compartment of the appliance as their containers can explode.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^0 .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.

11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

12. In order to ensure proper operation, the appliance must not be operated for a prolonged period of time if the ambient temperature does not meet the values indicated by the climatic class.

13. Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3. Installation

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection (adhesive tape) of the accessories. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.

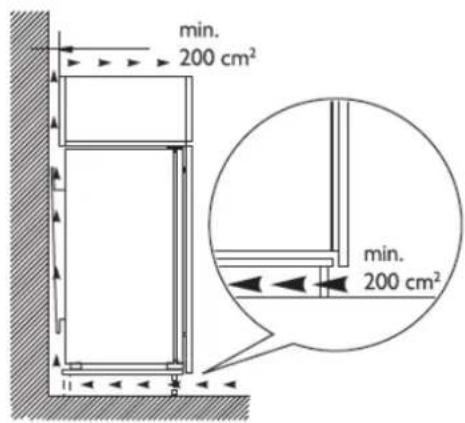

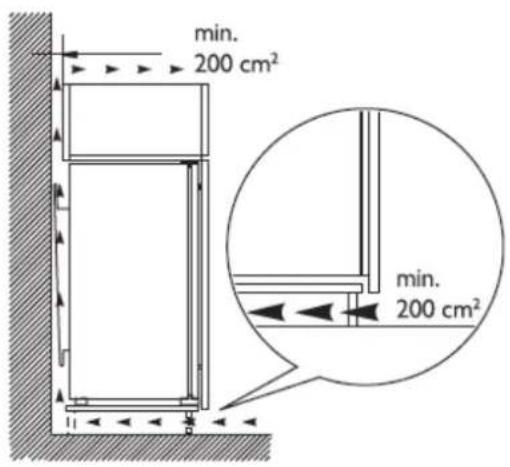

3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is situated inside the appliance or at the back.

3.2 Installation

The dimensions of the appliance are registered in chap. TECHNICAL DATA. Please note the information given in Additional side-attachment at the end of this section. Carry out the installation with at least 2 persons..

Installation materials

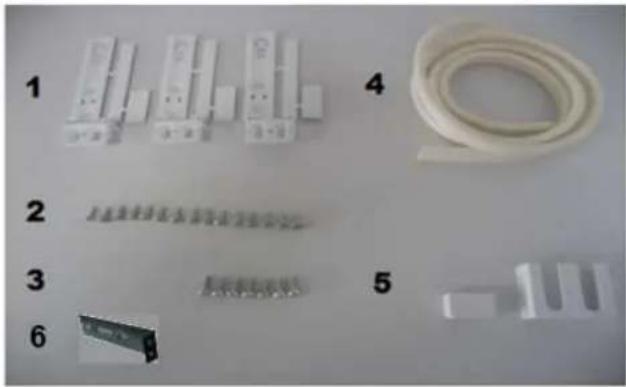

Set of white plastic components and a rolled-up sheet on a plain surface, no text or symbols visible

1. Sliding hinges
2. Fixing screws appliance
3. Fixing screws hinges
4. Scaling tape
5. Cover caps
6. Security angle

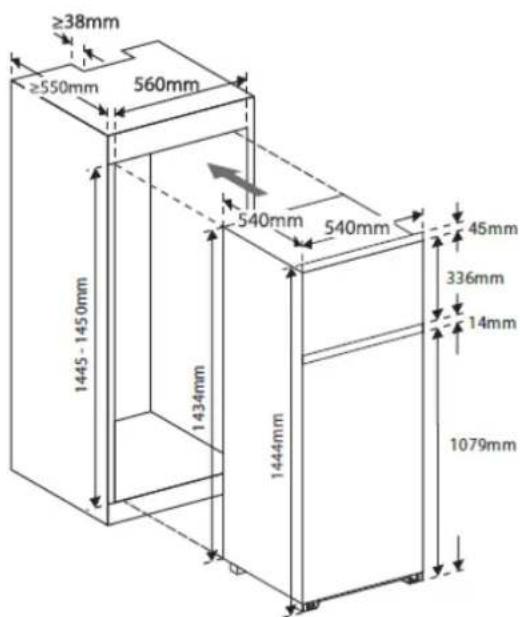

Installation drawing

1. Place the appliance in the built-in unit.
2. The distance of the wall at the handle-side of the appliance and the wall of the built-in unit must be 5 mm.
3. There are three drillings (two holes each) on the outer edge of the door of the appliance where the sliding hinge brackets have to be fixed. Remove the hole cover caps first.

Interior view of a refrigerator with open door and side compartments (no visible text or symbols)

With cover caps

Close-up of a white door with two black circular buttons, no visible text or symbols

Without cover caps

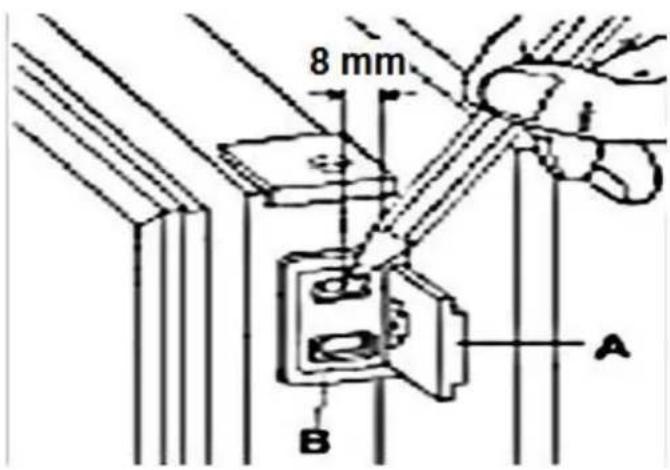

1. Mark the position of the holes so that you can fix the hinge brackets in their proper position. Ensure that the appliance is positioned properly.

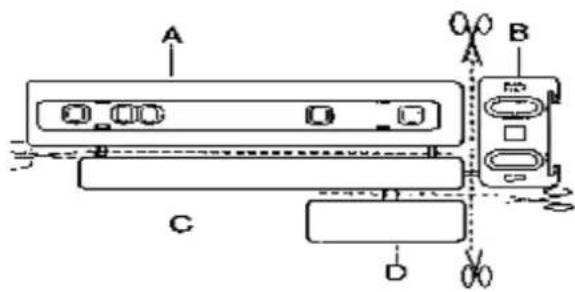

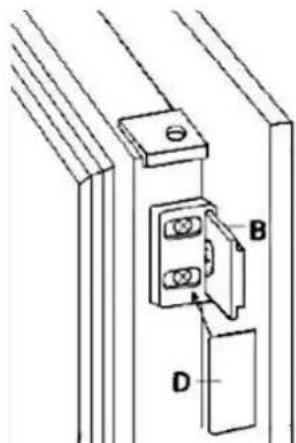

2. Separate parts A, B, C and D (look at figure below).

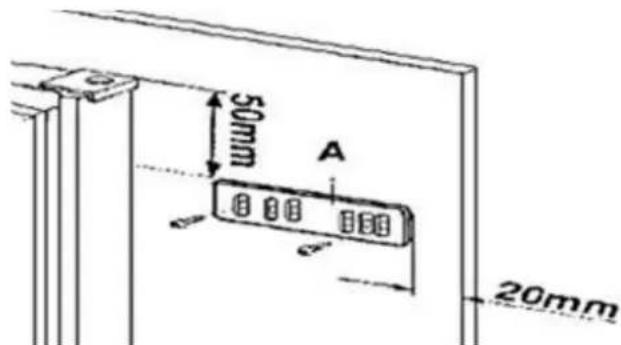

1. Fix hinge bracket A on the door of the built-in unit. Notice the height of the holes on the door.

1. Fix cover C so that it snaps.

1. Open the doors of the appliance and the built-in unit (90°). Insert the small square B in the guide A. Press the doors together and mark the holes (look at figure below). Remove the squares and drill the holes with a diameter of 2 mm in a distance of 8 mm from the outer edge of the built-in unit. Insert square B in the guide A again and fix it with the screws.

1. Fix cover D on B so that it snaps

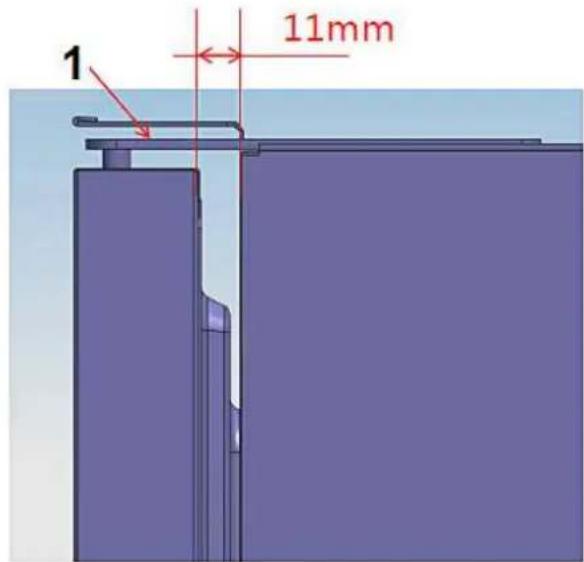

1. Now fix the appliance on the built-in unit. The distance appliance (handle side) to Built-in unit must be 5 mm. The door must close properly. Fix the covers of

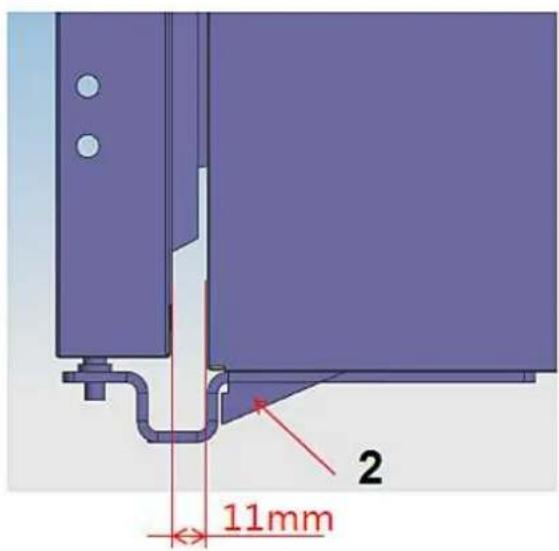

the feet and the sealing ledge.

Disregarding these instructions will lead to:

▶ sluggishness of the door.
➢ noise while opening or closing the door.
potentially serious damage on your appliance and/or built-in unit.

In this particular case PKM is not liable for any damage.

Additional side-attachment

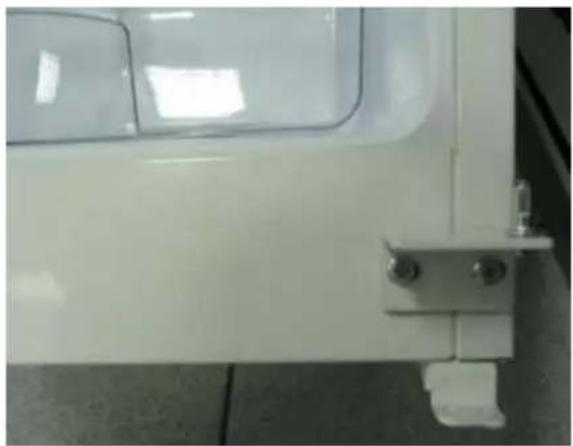

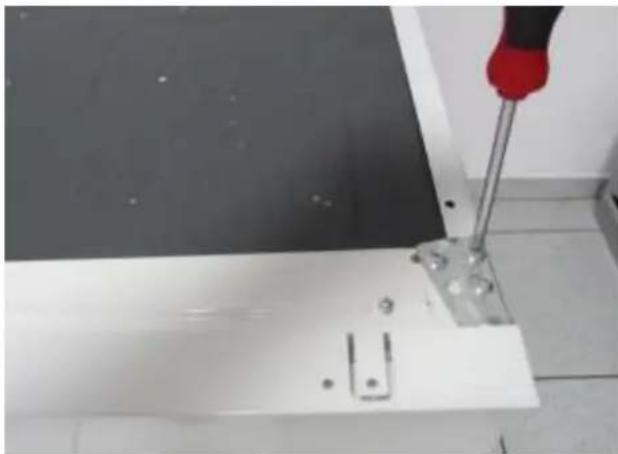

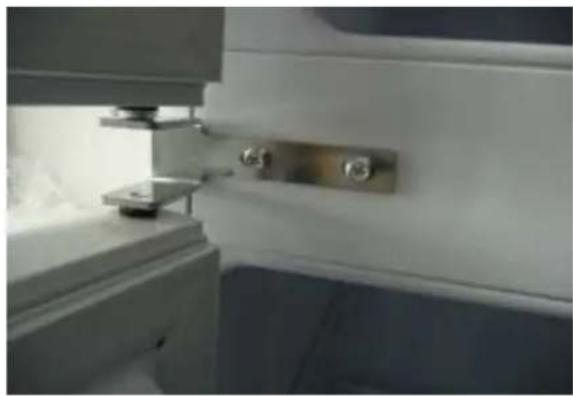

Two security angles are included in delivery to stabilize the appliance when being built-in. Fix the angles between the two doors on the appliance and on the side of the built-in furniture. Fix the angle of the hinge-side in combination with the hinge. Adjust the proper position of the angles by sliding them in the screw-openings to the right/left until they meet the sides of the built-in furniture.

Close-up of a metallic mechanical bracket with attached components, no visible text or symbols

Close-up of a metal bracket with two circular cutouts, mounted on a white surface (no text or symbols visible)

3.3 Change of the hinge position

Important information: The change of the hinge position should be carried out by a qualified professional only ^4 ! The following instructions are not intended for persons who are inexperienced in such a work.

⚠ WARNING! Unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise the appliance can be severely damaged.

⚠️ CAUTION! Do not tilt the appliance more than 45°.

NOTICE! Adjust the door properly. The seal must close properly.

Preliminary remark

Required width between door and body:

When changing the hinge position, control the width to “11mm” between the door and body by adjusting the position of top hinge and bottom hinge via the depth and angle.

1: Top hinge

2: Bottom hinge

1. Remove the top hinge screws.

Close-up of a hand using a screwdriver to lift a metallic component on a white surface (no text or symbols visible)

1. Move the top door carefully a bit away from the appliance. Now the door disengages from the hinge. Take the door out of the middle hinge. Keep the door at safe place.

2. Remove the middle hinge. Take out the bottom door and keep it at a safe place.

Close-up of a metallic mechanical fixture with mounting brackets and a central bracket (no visible text or symbols)

1. Unscrew the bottom hinge.

Close-up of a white car door panel with metal hinges and a small attached bracket (no visible text or symbols)

1. Remove the hole cover caps on the opposite side. Fix the bottom hinge ibidem but do not tighten the screws. Leave some free space so you can move the hinge to the front and back.

Close-up of a white cabinet or door panel with visible mounting holes and a small base, placed on a concrete floor (no text or symbols)

1. Place the door on the bottom hinge. Adjust the door in such a way that it closes properly. Now tighten the screws of the bottom hinge.

2. Fix the middle hinge on the opposite side. Put the top door on the hinge.

3. Fix the top hinge on the opposite side. Ensure that the top hinge axis is placed into the hinge hole of the door. Finally insert the cover caps into the corresponding holes.

4.1 Main components of the appliance

1 Shelf freezing compartment
2 Thermostat / internal light
3 Glass shelves
4 Glass cover of crisper

5 Crisper

6 Door trays

7 Bottle pocket

4.2 Before initial operation

1. After installation, wait 4-6 hours before you connect the appliance to the mains to allow the oil to flow back into the container.
2. Set the thermostat to position 3
3. Now let the empty appliance operate for 5 hours.
4. Use the freezer compartment 24 hours after initial operation of the appliance.
5. Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chapter CLEANING AND MAINTENANCE).
6. If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 4.

7. The appliance must be connected to the mains properly.

8. If the appliance was disconnected from the energy supply, wait 5 minutes before restart.

9. Do not overfill the appliance

4.3 Temperature setting

⚠ WARNING THE THERMOSTAT CONTROLS THE COMPRESSOR ONLY. You must unplug the appliance to disconnect it from the mains.

Close-up of a white remote control switch with a dial and numeric display (no text or symbols visible)

Level Minimum Normal Normal Normal Maximum

Setting

Position 1

Room temperature about +16 ^0 C → 1

Room temperature about +25 ^0 C → 2

cooler if required → 3-4

Position 7

1. The control range of the Thermostat is from setting 0 to setting 7. Move the controller within this range only. Do not exceed settings 0 and/or 7 while setting a temperature; otherwise the thermostat can be severely damaged.
2. Colder settings can result in higher energy consumption.
3. In case of high outdoor temperatures (e.g. hot summer days): turn the knob from position 2/3/4 to position 5 or higher to set a lower temperature. If the temperature is set to position 6/7 the compressor may run continuously to reach the cooling level.
4. If you choose a low temperature and some rime is generated at the back of the appliance, we recommend to select a higher temperature.

➢ You can additionally use a fridge-thermometer ^5 to check the cooling temperature.

4.4 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep constant temperature inside the appliance.

2. Defrost the freezer compartment regularly.

4.5 Proper storage

For proper air circulation, leave the glass shelf above the crisper in its position. The other shelves are height-adjustable. Pull the shelf forwards until you can swivel it up-/downwards; then remove the shelf. Proceed in reverse order when installing the shelf.

Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

◆ Food safe cling film/airtight bags and aluminium foil.
◆ Food safe covering hoods.
◆ Food safe containers made of plastic/glass/ceramics.

The cooling compartment is intended for the storage of fresh food and beverages.

• Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper.
  ◆ Store fresh meat packaged in protective foil for max. 2 days.
  Let warm food such as cooked meals cool down before you store them in the appliance.
  ◆ Store food in such a way that the cooled air can circulate properly.
  Do not place heavy bottles in the bottle pocket as it can come off the door.

The freezing compartment is intended for the long-term storage of frozen products and for freezing fresh food. Observe the information of the manufacturer given on the packaging of frozen food. Do not refreeze defrosted or thawed food.

WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.

4.6 Helpful hints/energy saving

❖ Try opening the door as little as possible, especially when the weather is warm and humid.
◆ If you open the door, close it as soon as possible.
❖ Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
- Set the temperature control from a high to a low position as soon as it is possible. This depends on the amount of contents and the room temperature.
◆ Encrusted ice causes a higher energy consumption. Defrost encrusted ice if its diameter is more than 3 mm (1/8").
- Occasionally clean the rear of your appliance with a brush or a vacuum cleaner to avoid an increased energy consumption.
◆ Disconnect the appliance from the mains if you do not operate it.
◆ Always keep the door seals clean and in a proper condition.

4.7 Meaning of the \*-labelling of freezers

i 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.
2-stars (**) and 3-stars (***) freezers are suitable for storing frozen food (pre-frozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
Freezer	(***)*	-18 ^0 C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsSuitable for freezing fresh food.
Freezer	***	-18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
Freezer	**	-12°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
Freezer	*	-6°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 1 monthiNot suitable for freezing fresh food.
0*-compartment	-	-6°C - 0°C	➢Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).iNot suitable for freezing food or for storing frozen food.

⚠️WARNUNG Do not eat food which is still frozen. The coldness can cause injuries in the mouth.

⚠️WARNUNG Do not touch extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

4.8 Storage of food

Your appliance has the accessories as the “Description of the appliance” showed in general, with this part instruction you can have the right way to storage your food. Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminium sheet or in cellophane sheet or in airtight plastic boxes.

Storing food in the refrigerator compartment

The fridge freezer compartment helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

Store foods that are very fresh and of good quality.

Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. Vegetables and fruit need not be wrapped if they are stored in the vegetable container of the fridge compartment.

Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.

Cool hot foods down before placing them in the fridge compartment.

Dairy foods and eggs

Most pre-packed dairy foods have a recommended „use by /best before/best by/date stamped on them. Store them in the fridge compartment and use within the recommended time.

Butter can become tainted by strong smelling foods so it is best stored in a sealed container.

Eggs should be stored in the fridge compartment.

Red meat

Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.

Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.

Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

Keep shellfish chilled at all times. Use within 1 - 2 days.

Precooked foods and leftovers

These should be stored in suitable covered containers so that the food will not dry out.

Keep for only 1-2 days.

Reheat leftovers only once and until steaming hot.

Vegetable container

The vegetable container is the optimum storage location for fresh fruit and vegetables.

Take care not to store the following at temperatures of less than 7°C for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curettes, passion fruit, cucumber, peppers, tomatoes.

Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

Do not refrigerate avocados (until they are ripe), bananas and mangoes.

Freezing and storing food in the freezer compartment

To store deep-frozen food.

To make ice cubes.

To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

Packaging must not be damaged.

Use by the „use by /best before/best by/“ date.

If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yogurt, sourd milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminum foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

When you freeze fresh foods with a „use by /best before/best by/“ date, you must freeze them before this date expires.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

5. Cleaning and maintenance

1. ⚠️WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

➢ Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^6 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

⚠ WARNING! Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. Risk of electric shock!

NOTICE! Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance.

Cooling compartment

1. The cooling compartment is equipped with an automatic defrost-system.
2. The water is drained at the back inside the appliance.
3. The water is collected in a container underneath the compressor. The water evaporates in this container
4. The drain must not be blocked.
5. Clean the drain carefully with a pipe cleaner.

Freezing compartment

1. Remove the contents from the freezing-compartment and put them into a cooling box.
2. Place a container in front of the appliance to catch the water.
3. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
4. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
5. Remove the big pieces of ice first.
6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

5.2 Replacing of the illuminant

Top-down view of a transparent cylindrical device with internal components and a black arrow pointing to a small component (no visible text or symbols)

1. ⚠️WARNING! Switch off and unplug the appliance. Risk of electrical shock!

2. Remove the glass shelves by pulling them carefully off their guidance.

3. Remove the plastic cover of the bulb and screw out the bulb.
4. Install a new bulb (max. 1,5 W LED/220V-240V).
5. Fix the cover.
6. Replace the glass shelves

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non-directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

6. Trouble shooting

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.

The appliance needs some time to reach the preset temperature.

➢ Doors opened too often or too long.

Do not open the door too often/too long.

Unsatisfactory cooling capacity.

The door was frequently opened.
➢ Select a different setting if necessary.
The door is not properly closed.
▶ Check the door/door seals.
▶ Encrusted ice inside the appliance.
▶ Defrost the appliance.
The current temperature setting is too warm
➢ Warm or hot beverages inside the appliance.
The appliance is overfilled.
▶ The door seals are damaged.

Strong formation of encrusted ice.

The door is not properly closed.
▶ Close the door.
The door seal is damaged or soiled.
➢ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

Clean the seals.

Unusual noise.

The appliance is not installed on a level, dry and solid floor.
The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

▶ Realign the appliance.

▶ Readjust the appliance.

Some items have dropped behind the appliance.

▶ Realign the bottles

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.

Remove these items.

i

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below certain level the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

➢ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

▶ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter 12.

8. Technical data

Model	Fridge Freezer
Climatic class	ST
Energy efficiency class*	A++
Annual energy consumption**	182.00 kW/h
Voltage/frequency	220-240W AC/50 Hz
Volume net Fridge/Freezer (litres)	171/36
Stars	4****
Freezing capacity/24 h	2.00 kg
Max. Storage time/malfunction	18.00 h
Noise emission	42 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Defrosting cooling/freezing	automatically/manually
Dimensions H*W*D in cm	145.0*54.00*54.00
Weight net / gross in kg	40.00/43.00

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).
** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a.
2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the SCHNEIDER-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common use;
7. damages which have been caused outside the appliance by a SCHNEIDER-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

August 2014

SCHNEIDER

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 03/10/2020
