Type	Fridge-Freezer with NoFrost
Brand	Schneider
Model	SCB 315 VNF2
Dimensions (H x W x D)	192.5 x 59.6 x 70.5 cm
Net weight	83.0 kg
Power supply	220-240 V ~ 50 Hz
Energy efficiency class	A++
Annual energy consumption	243 kWh
Total net volume	320 L
Refrigerator net volume	228 L
Freezer net volume	92 L
Freezing capacity	5.0 kg/24h
Max storage time in malfunction	19.0 h
Noise emission	42 dB(A)
Refrigerant	R600a (flammable)
Climatic class	N/ST/T
Number of compressors	1
Defrosting system	NoFrost (automatic in both compartments)
Temperature control	Adjustable thermostat and electronic display
Functions	Super Freeze, Holiday mode, Door alarm, Internal box with 3 temperature levels
Lighting	LED light (replaceable by professional)
Installation requirements	30 cm clearance above and sides, 5 cm at rear; adjustable feet; spacers included
Safety features	Child safety (door lock after decommissioning), flammable refrigerant warning, automatic door alarm
Warranty	24 months manufacturer guarantee (conditions apply)

Frequently Asked Questions - SCB 315 VNF2 SCHNEIDER

What is the total capacity of the SCB 315 VNF2 refrigerator-freezer?

The total net volume is 320 liters, with 228 liters for the refrigerator and 92 liters for the freezer.

How do I adjust the temperature in the refrigerator?

Press the FRIDGE button to cycle through settings from +2°C to +8°C. The display shows the selected value.

What is the Super Freeze function and how do I use it?

Super Freeze rapidly lowers the freezer temperature to preserve food nutrients. Activate by pressing and holding the FREEZER button for 3 seconds. It automatically switches off after 26 hours, setting the freezer to -24°C.

How does the Holiday mode work?

Holiday mode sets the refrigerator to 15°C to save energy while you are away. Activate by pressing and holding the FRIDGE button for 3 seconds. Do not store food in the refrigerator during this time.

Why is there a door alarm and how can I silence it?

The door alarm sounds when the fridge door is open for more than 2 minutes. It beeps once every minute and stops automatically after 10 minutes. Close the door to silence it immediately.

How do I clean and maintain the appliance?

Disconnect from power before cleaning. Use a damp cloth with mild detergent for external and internal surfaces. Avoid abrasive cleaners. Clean the condenser twice a year with a vacuum cleaner.

Does the freezer require manual defrosting?

No, the freezer has NoFrost technology and defrosts automatically. However, if encrusted ice forms, you can manually defrost by switching off the appliance and letting the ice melt.

What should I do if the refrigerator is not cooling properly?

Check if the door closes properly, the appliance is not overfilled, the temperature setting is correct, and the ventilation is adequate. Also ensure no warm food was recently placed inside.

Can I change the door hinging?

No, the hinge position is not changeable for this model.

What is the warranty period and what does it cover?

The appliance comes with a 24-month manufacturer guarantee from the date of purchase, covering material and manufacturing defects. It does not cover fragile parts, damage from incorrect use, or repairs by non-professionals.

USER MANUAL SCB 315 VNF2 SCHNEIDER

Black double refrigerator with two side doors and a logo on top (no visible text or symbols beyond branding)

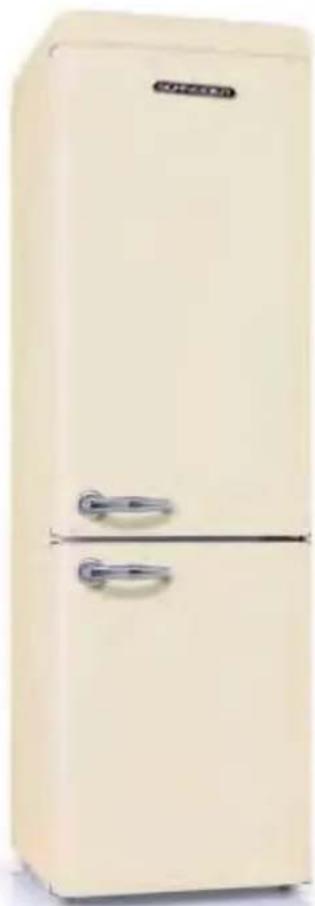

Exterior view of a beige refrigerator with two doors and a door handle (no visible text or symbols)

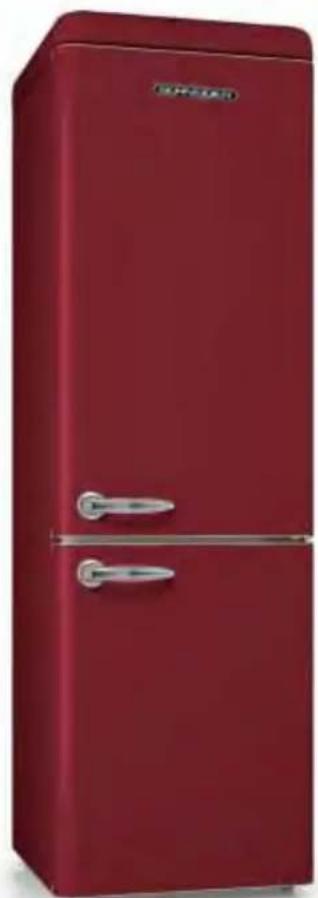

Red double refrigerator with silver door and two side handles (no visible text or symbols)

3D mechanical component with angular dimensioning arrows (45°), no visible text or symbols

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

NOTICE!

Please check the position of the doors before the first use and/or after transport of the appliance. If the doors do not close properly, proceed as follows:

1. Loose the retaining screws of the hinges.
2. Adjust the doors properly.
3. Tighten the screws.

Index

1. Safety instructions.... 25
2. Climatic classes.... 29
3. Installation 29

3.1 Site 29
3.2 Ventilation....30

1. Operation....31

4.1 Before initial operation 32
4.2 Temperature setting....32
4.2.1 Refrigerator.... 33
4.2.2 Freezer....33
4.2.3 Super Freeze.... 33
4.2.4 Holiday....33
4.2.5 Door alarm 34
4.2.6 Internal box 34
4.3 Operation parameters.... 34
4.4 Proper storage 35
4.5 Helpful hints/energy saving....35

1. Cleaning and maintenance.... 36

5.1 Defrosting....37
5.2 Replacing of the illuminant.... 38

1. Trouble shooting.... 38

2. Decommissioning....40

3. Technical data.... 41
4. Waste management.... 42
5. Guarantee conditions....43

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! Indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! Indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! Indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
The appliance is intended for cooling food in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free at the installation site:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).
3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.
5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
6. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
7. Do not use a socket board or a multi socket when connecting the appliance to the mains.
8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
9. Do not touch the power plug with wet hands.
10. Unplug the power cord by gripping the power plug, not the cord.
11. The power plug must always be accessible after installation.
12. Check that the power cord is not placed under the appliance or damaged when moving the appliance.
13. The technical data of your energy supplier must meet the data on the model plate of the appliance.
14. Your domestic circuit must be equipped with an automatic circuit breaker.
15. Do not modify the appliance.
16. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
17. Disconnect the appliance from the mains before you clean or maintain it.
18. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
19. Do not put any heat-radiating appliances onto your appliance.
20. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
21. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling

or spilled water.

1. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

2. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

3. Children must never play with the appliance.

4. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

5. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
2. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
3. Do not store any gassy beverages or water bottles in the freezing compartment of the appliance as their containers can explode.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^ .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3. Installation

3.1 Site

1. Completely remove the transport-protection (adhesive tape) of the accessories. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.

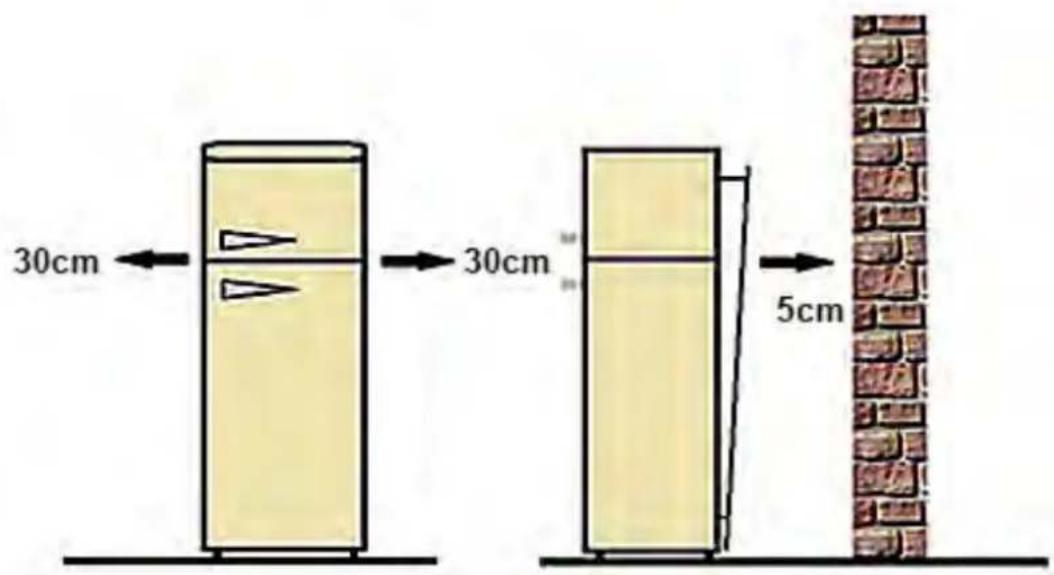

2. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
3. Install the appliance in a dry and well-ventilated place.
4. Protect the appliance from direct sunlight.
5. The doors must open completely and without hindrance.
6. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
7. Connect the appliance to the mains properly.
8. The nameplate is situated inside the appliance or at the back.

3.2 Ventilation

Adjustable feet

Clockwise down

Anti-clockwise → up

Spacers

Depending on model, the appliance is supplied with two plastic spacers. After installation of these spacers, the appliance cannot be pushed against the wall to maintain proper ventilation. Insert the spacers into the relevant openings on the back of the appliance, then turn by 45^0 to the right or left.

3D mechanical component with angular dimensioning arrow (45°), no visible text or symbols

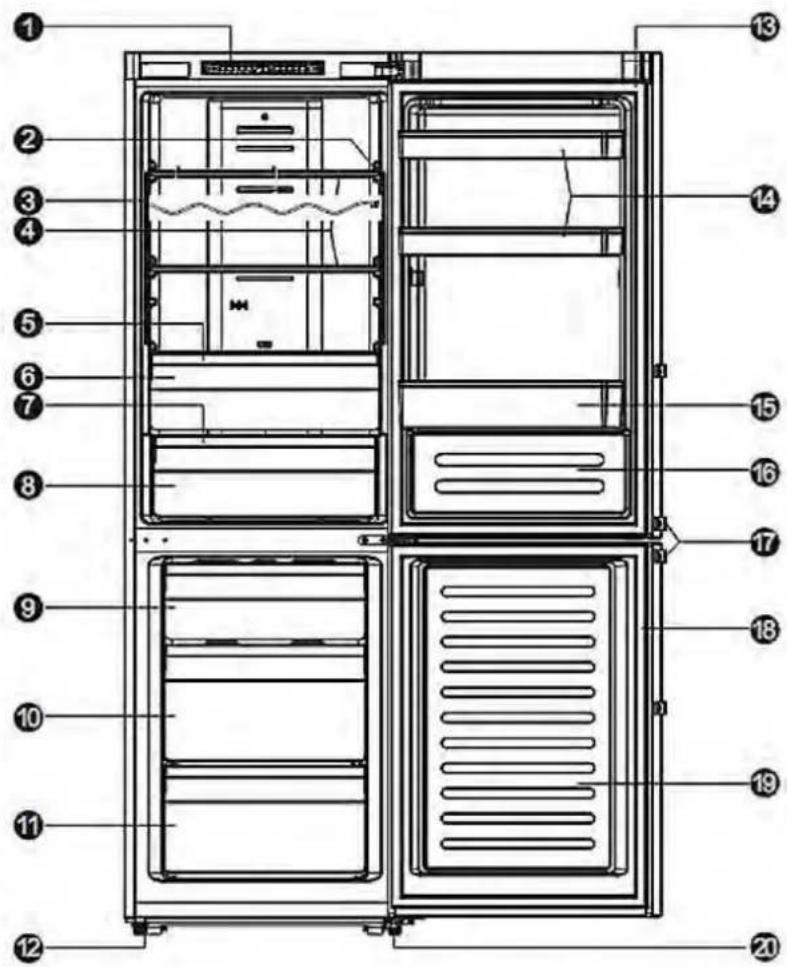

1	Display-control	2	LED-light
3	Wine rack	4	Glass shelf
5	Cover/internal box	6	Internal box
7	Cover/crisper	8	Crisper
9	Freezer drawer	10	Freezer drawer
11	Freezer drawer	12	Left front foot
13	Gasket/refrigerator	14	Door trays
15	Bottle pocket	16	Door/refrigerator
17	Handle	18	Gasket/freezer
19	Door/freezer	20	Right front foot

4.1 Before initial operation

1. Clean the appliance thoroughly. Be very careful especially inside the appliance.

2. After having installed the appliance wait 4-6 hours before you connect it to the mains.

3. • Positions -16 & 8 and -18 & 6 correspond to a lower cooling power.

- Positions -20 & 4 correspond to a normal cooling power.

- Position -24 & 2 and -22 & 3 generates the appliance maximum cooling power. In normal usage conditions you are advised to select a positions -20 & 4 for proper conservation of foodstuff in the appliance.

1. Afterwards operate the appliance after 24 hours for the first time.

2. The temperature of the freezer should reach -18 ^ C or colder. You can check the exact temperature of the cooling and freezer compartments using a suitable thermometer ^7 .

WARNING THE THERMOSTAT CONTROLS THE COMPRESSOR ONLY. You must unplug the appliance to disconnect it from the mains.

4.2 Temperature setting

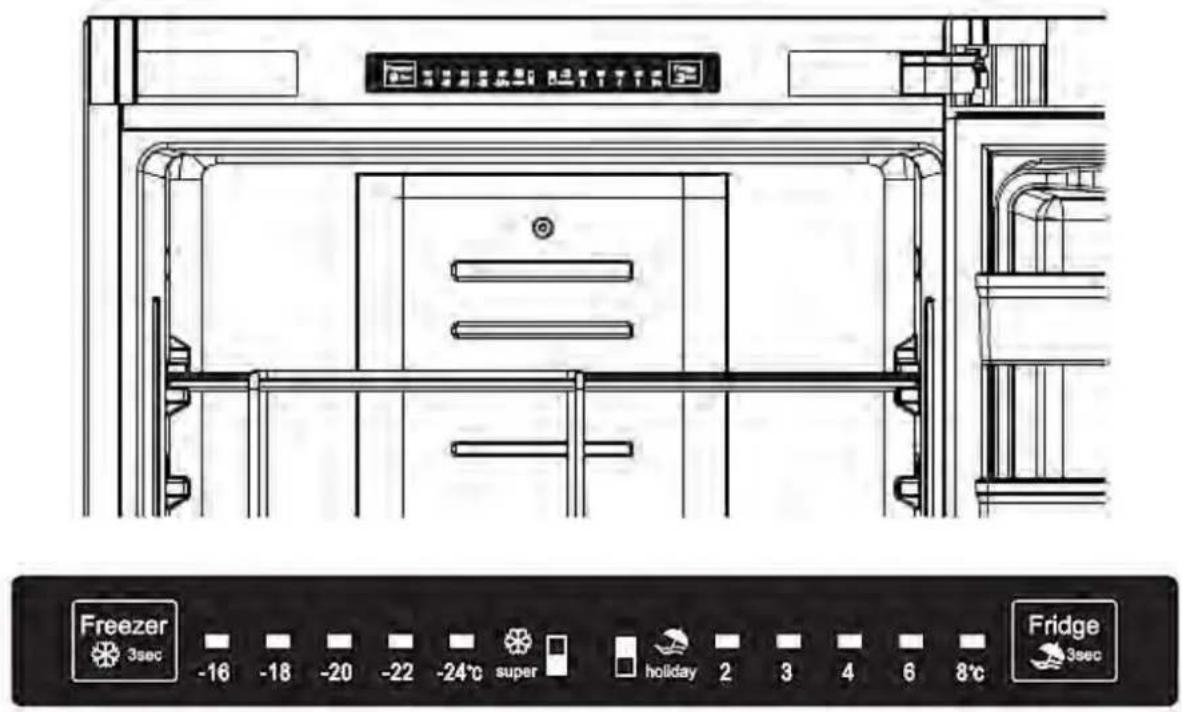

When the appliance is powered on for the first time, the backlighting of the icons on the display starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

4.2.1 Refrigerator

Press FRIDGE to set the desired temperature from +2 to +8 °C. The display indicates the relevant values as shown below.

4.2.2 Freezer

Press FREEZER to set the desired temperature from -14 to -24 ^ . The display indicates the relevant values as shown below.

4.2.3 Super Freeze

Activation: Press and hold for 3 seconds.

SUPER FREEZE will decrease the temperature quickly. Your food, the vitamins and nutrients will be kept fresh for a longer period of time

In case of the maximum amount of food to be frozen (see chapter TECHNICAL DATA), please wait approx. 24 h.
✿ SUPER FREEZE automatically switches off after 26 hours and the freezer temperature setting displays -24°C.

When you want to switch off SUPER FREEZE, press and hold for 3 seconds. The freezer temperature setting will revert back to the previous setting.

4.2.4 Holiday

Activation: Press and hold for 3 seconds.

You can use this function, when you are not at home for a longer period of time (e.g. holidays). The temperature of the refrigerator is automatically switched to 15 °C to minimize the energy consumption. Do not store any food in the fridge during this time

When you want to switch off HOLIDAY, press and hold for 3 seconds. The freezer temperature setting will revert back to the previous setting.

4.2.5 Door alarm

When the door of fridge is open for more than 2 minutes, the door alarm will sound. In case of door alarm, an acoustic signal will sound 1 time every 1 min and will stop alarming automatically after 10 minutes.

To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can also be cleared by closing the fridge door.

4.2.6 Internal box

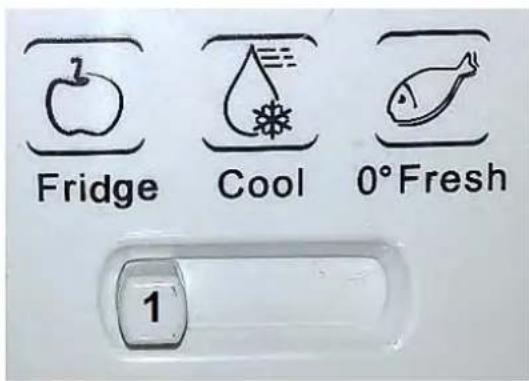

1 Control button (inner wall of the fridge).

The temperature inside the INTERNAL BOX meets the temperature of the refrigerator.

The temperature inside the INTERNAL BOX lies 1^ C below the temperature of the refrigerator.

The temperature inside the INTERNAL BOX lies 2^ C below the temperature of the refrigerator.

4.3 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

4.4 Proper storage

Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

◆ Food safe cling film/airtight bags and aluminium foil.
◆ Food safe covering hoods.
Food safe containers made of plastic/glass/ceramics.

The cooling compartment is intended for the storage of fresh food and beverages.

Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper.
◆ Store fresh meat packaged in protective foil for max. 2 days.
Let warm food such as cooked meals cool down before you store them in the appliance.
- Store food in such a way that the cooled air can circulate properly.
Do not place heavy bottles in the bottle pocket as it can come off the door.

The freezing compartment is intended for the long-term storage of frozen products and for freezing fresh food. Observe the information of the manufacturer given on the packaging of frozen food. Do not refreeze defrosted or thawed food.

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.

4.5 Helpful hints/energy saving

Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.

Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18°C or lower).
Put the frozen food you want to defrost into the cooling-compartment of you appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical over
√ in a microwave

❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.

- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

5. Cleaning and maintenance

1. ⚠️WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^10 Do

not use essential oils!

These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

Cooling compartment:

The cooling-compartment is defrosted automatically.

Freezer:

The freezer is defrosted automatically.

Freezer (optional procedure if encrusted ice should have occurred):

1. ⚠️WARNING! Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
2. ⚠️ WARNING! Never use any mechanical items, knives or other sharp-edged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!
3. Remove the contents from the freezing-compartment and put them into a cooling box.
4. Place a container in front of the appliance to catch the water.
5. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
6. Remove the big pieces of ice first.
7. Afterwards remove the small pieces of ice.
8. Wipe and dry the appliance and door seals with dry and soft cloths.
9. After cleaning leave the door open for some time to ventilate the appliance.

5.2 Replacing of the illuminant

The appliance is equipped with an LED-illuminant. To replace the illuminant, please contact the aftersales service or a qualified professional. Illuminants and the replacing of illuminants are not included in guarantee.

6. Trouble shooting

WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only.

MALFUNCTION POSSIBLE CAUSE MEASURE

The appliance does not work at all.
The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.The voltage is too low.	Check the corresponding socket by connecting it with another appliance.Check the fuse box.Compare the data on the model plate with the data of your energy supplier.
The compressor does not work at all.
Incorrect energy supply.	Check the energy supply.
The compressor operates for too long.
The appliance has been switched off for a while.Doors opened too often or too long.	The appliance needs some time to reach the preset temperature.Do not open the door too often/too long.
Unsatisfactory cooling capacity.
The door was frequently opened.The door is not properly closed.Encrusted ice inside the appliance.The current temperature setting is too warmWarm or hot beverages inside the appliance.The appliance is overfilled.The door seals are damaged.	Select a different setting if necessary.Check the door/door seals.Defrost the appliance.
Strong formation of encrusted ice.
The door is not properly closed.	Close the door.

The door seal is damaged or soiled. Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled. Clean the seals.

Unusual noise.

The appliance is not installed on level, dry and solid floor. Realign the appliance. Readjust the appliance.

The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

Some items have dropped behind the appliance.

Water drips on the floor.

The water pan (located at the rea bottom of the cabinet) may not be properly levelled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked.

The light is not working.

The LED light may be damaged.
The control system has disabled the lights due to the door being kept open too long.
➢ Refer to replace LED lights in cleaning and care chapter.
➢ Close and reopen the door to reactivate the lights.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below a certain level the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

May be generated inside or outside the appliance by high humidity or very warm

ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

Is caused by the compressor while running.

Knocking/snapping

May be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

➢ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. Let the appliance operate.
   a. Remove all perishable food from the cooling compartment.
   b. Clean the cooling compartment.
   c. Freeze all food which is suitable to be frozen.

If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.

2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.

3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model	Freezer fridge
NoFrost fridge/freezer	yes/yes
Climatic class	N/ST/T
Energy efficiency class*	A++
Annual energy consumption in kW/h**	243.00
Voltage/frequency	220-240V AC/50Hz
Volume net/refrigerator/freezer in l	320/228/92
Stars	4***
Freezing capacity/24 hours	5.00 kg
Max. storage time/malfunction	19.00 h
Noise emission	42 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Control light operation/warning light	yes/yes
Control light Super Freeze	no
Changeable hinge position	no
Adjustable feet	2
Defrosting cooling compartment/freezer	NoFrost/NoFrost
Dimensions appliance H*W*D in cm	192.50*59.60*70.50
Weight net/gross in kg	83.00/90.00

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).
** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the Schneider-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a Schneider-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

SERVICE INFORMATION

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 04/14/2016
