Product Type	Wireless RainSensor with Freeze Sensor
Model Number	RFS1000
Brand	Irritrol
Power Supply (Receiver)	22–28 VAC/VDC, 100 mA from controller with Class 2 transformer
Battery Type (Transmitter)	2 × 3V CR2032 (or equivalent)
Average Battery Life	5 years
Maximum Range	300 ft (91.4 m) line-of-sight
Radio Frequency	418 MHz (RFS1000); 433.92 MHz for international versions
Sensor Type	Hygroscopic disc stack with adjustable rainfall sensitivity
Rainfall Adjustment Settings	1/8", 1/4", 1/2", 3/4", 1" (3, 6, 13, 19, 26 mm)
Freeze Detection	Yes (model RFS1000)
Dry-Out Rate Adjustment	Vent ring on transmitter
Receiver Controls	Sensor Status Indicator, Signal Indicator, Smart Bypass Button, Power Indicator
Relay Contacts	Normally Open (NO) and Normally Closed (NC), 3A at 24 VAC
Receiver Mounting	Stainless steel screws or double-sided foam tape
Sensor/Transmitter Mounting	Quick-Clip™ rain gutter bracket or roof eaves/fascia bracket with stainless steel screws
Operating Temperature Range	-20°F to 120°F (-29°C to 49°C)
Wiring Connection	Multi-wire cable (20 in / 50 cm) for controller connection
Smart Bypass Feature	Temporarily override rain/freeze sensor for one cycle
Installation Validation	Signal strength indicator for troubleshooting
Compliance	FCC Part 15, CISPR 22 Class B; IC: 3575A-XXXXX
Warranty / Warnings	Cancer and reproductive harm warning per CA Prop 65; Patents at www.ttcopats.com

Frequently Asked Questions - RFS1000 Irritrol

How do I install the RFS1000 Wireless RainSensor?

First mount the Receiver near the controller using screws or foam tape. Connect the control wires (White, Brown, Yellow) as per your controller type (sensor inputs, common wire, or pump start). Connect the two Red wires to 24 VAC power. Then mount the Sensor/Transmitter outdoors, extend antenna straight down, and test by pressing the spindle. Refer to the manual for detailed wiring diagrams.

What batteries does the RFS1000 use and how do I replace them?

The transmitter uses two 3V CR2032 (or equivalent) batteries. To replace, remove the bottom cover by pressing the thumb-release lever, slide out the circuit board, replace batteries with positive side up, and reassemble. Average battery life is 5 years.

How do I adjust the rainfall amount that activates the sensor?

Rotate the Rainfall Adjustment Cap on the transmitter to align the pins with the desired slot: 1/8", 1/4", 1/2", 3/4", or 1" (3, 6, 13, 19, 26 mm). Do not use excessive force.

What is the Smart Bypass feature and how do I use it?

Smart Bypass temporarily deactivates the rain/freeze sensor for one cycle. Press the Smart Bypass button on the Receiver once; the Sensor Status light will blink until the sensor resets. Press again to resume active state. Press and hold for 5-7 seconds to power down the Receiver.

How do I set up freeze detection on the RFS1000?

Install the Sensor/Transmitter in the coolest location, out of direct sunlight and away from heat sources (e.g., dryer vents). The freeze sensor will automatically prevent watering when temperatures approach freezing. Keep antennas straight; range up to 100 ft recommended for best reliability.

What does the blinking Power indicator mean?

The Power indicator blinks to indicate low transmitter battery or poor communication. Replace batteries first; if issue persists, relocate the Sensor/Transmitter to improve signal strength.

How do I test the signal strength during installation?

Press the Smart Bypass button once (then again to exit) to clear previous signal. Then press and hold the transmitter spindle; the Receiver's Signal Indicator shows steady (good), blinking (fair), or no light (poor). Move the transmitter until a steady signal is achieved.

What is the maximum distance between the Receiver and Sensor/Transmitter?

The rated line-of-sight range is up to 300 ft (91.4 m). However, obstacles like walls reduce effective range. For freeze applications, a maximum of 100 ft is recommended. Always mount both units as close as possible.

How do I change the transmission code if there is interference?

Open the transmitter, locate the code wire loops (black and white), cut one or both loops with pliers, then reassemble. Put the Receiver into Learn Mode by pressing and holding the Smart Bypass button until Status and Signal indicators blink (7-10 seconds), then activate the transmitter to pair.

Can I use the RFS1000 with a controller that has no sensor inputs?

Yes. Disconnect the valve common wire from the controller's common terminal, join it with the White wire using a wire nut, and connect the Brown wire to the common terminal. The Yellow wire is not used in this configuration. Ensure 24 VAC power is available for the Receiver.

USER MANUAL RFS1000 Irritrol

Quick Start Installation Instructions 3

Detailed Installation Instructions 4

• Mounting the Receiver 4
• Wiring the Receiver 4
  • Control Wire Connection 4
  • Power Wire Connection 6
• Initial Receiver Testing 6

Installing the Sensor / Transmitter 7

• Testing the Signal Strength 7
• Installation 7
• Freeze Sensor Installation 7

Wireless RainSensor Operation 8

• Normal Operation 8
- Smart Bypass 8
• Power Down 8
- Receiver Learn Mode 8
• Attention Required 8

Sensor Adjustment 9

Battery Replacement 9

Changing Sensor/Transmitter Code 9

Troubleshooting 10

Specifications 11

Electromagnetic Compatibility 12

Technical Support Numbers 12

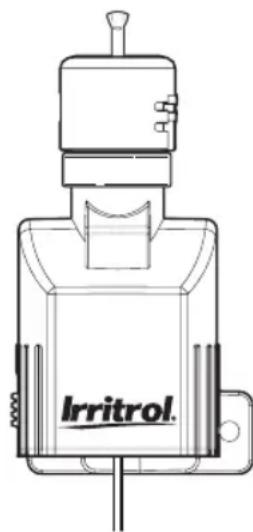

Line drawing of a Irritrol® mechanical device with no visible text or symbols on the body itself

Sensor/Transmitter

Receiver

Introduction

Congratulations on your purchase of the Irritrol Systems Wireless RainSensor. The Wireless RainSensor components are designed for easy installation, so your sensor controlled irrigation system will be up and running in minutes.

Before attempting the installation, please read through these instructions in their entirety, and refer the installation instructions for your irrigation system controller/timer in regards to connecting a rain sensor or rain switch. The Wireless RainSensor is designed to work with either Normally Open or Normally Closed sensor circuits.

Important: Please note the following information regarding installation and use of the Wireless RainSensor components:

• The RainSensor Receiver Module is designed to operate with 24 VAC power only. Connecting the receiver wiring to 120/240 VAC power may result in severe equipment damage.
• Installation methods must comply with all applicable national and local building codes. If you are unsure about proper wiring practices, have a qualified contractor perform the installation for you.
• The Receiver cover should always be used when the Receiver is installed outdoors.
• The Sensor/Transmitter should never be submerged in water or installed inside a rain gutter.

Component Overview

Receiver (Figure 1)

1 - Weather-resistant Cover:

Slides upward to remove. Protects the receiver module when located outdoors. Keep the cover installed at all times other than when manually operating the receiver.

2 - Sensor Status Indicator:

Steady light - Sensor is active (either rain or freeze).

Blinking light - Indicates receiver has been bypassed for one rain cycle. Smart Bypass™ button pressed once. Press again to exit bypass mode.

3 - Smart Bypass™ Button:

Press to temporarily override the sensor when active.

Press and hold for 5–7 seconds to turn off the receiver.

4 - Power Indicator:

Steady light - 24 VAC power is connected.

Blinking light - Sensor/Transmitter battery power low, or other communication problem.

No light - Unit is off or is disconnected from 24 VAC.

5 - Signal Indicator: Indicates quality of last received signal.

Steady light - good signal.

Blinking light - fair signal.

No light - poor signal (relocate Sensor Transmitter).

6 - Multi-wire Cable - 20" (50 cm) color-coded wires provided for controller connections.

Sensor/Transmitter (Figure 2)

1- Spindle - Press down and hold to manually test transmitter operation.

2- Rainfall Adjustment Cap - Adjusts the Sensor/Transmitter to signal the receiver when the accumulated rainfall reaches 1/8" (3 mm), 1/4" (6 mm), 1/2" (13 mm), 3/4" (19 mm) or 1" (26 mm).

3 - Vent Ring: Adjust "dry-out" rate.

4- Universal Mounting Bracket with Quick-Clip™ - Simplifies installation on rain gutter, or roof eaves, fences, etc. Sensor/Transmitter adjusts easily to the vertical position.

5 - Conduit Adapter: Alternate mounting option for conduit mount.

6- Antenna Wire - Straighten downward for maximum range.

Quick Start Installation Instructions

The following instructions are provided for the experienced installer.

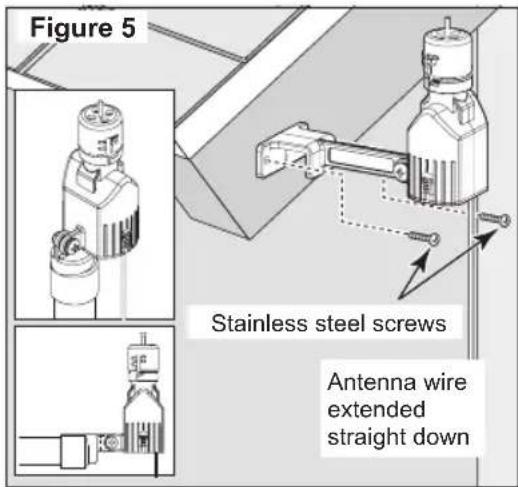

Refer to Figures 3–5 below.

When installing Sensor/Transmitter model RFS1000 for freeze detection, refer to additional freeze sensor installation information on page 8.

1. Disconnect power to the irrigation system controller.

2. Always mount the Receiver FIRST, adjacent to the controller with either the provided stainless steel screws or double-sided foam tape.

3. Attach Receiver control wires to the sensor inputs OR to break the valve common:

4. Disconnect common valve wire and common pump/master valve wire (if present).

5. Attach White wire to common wire(s) with a wire nut.

6. Attach Brown wire (only) to common terminal on controller.

7. Connect the Red wires to the controller's 24 VAC power source terminals.

8. Straighten the Receiver antenna wire upward and the Sensor/Transmitter antenna wire downward.

9. While holding the Sensor/Transmitter at close range to the Receiver, press and hold the spindle to test the wiring. The Power, Signal and Sensor Status indicators should be ON.

10. Adjust the Rainfall Adjustment Cap to the desired rainfall activation amount.

11. Adjust the Vent Ring to the desired dry-out rate.

12. Mount the Sensor/Transmitter in an unobstructed location away from sprinklers.

Important: Reconfirm proper operation of the Sensor/Transmitter at the final mounting location.

Detailed Installation Instructions

There are two main components of the Wireless RainSensor: the Receiver and the Sensor/Transmitter. The Receiver is installed adjacent to or within the cabinet of the irrigation system controller. The Sensor/Transmitter is installed outdoors where it is exposed to unobstructed rainfall.

Mounting the Receiver

1. Always mount the Receiver FIRST, adjacent to the controller with either the provided stainless steel screws or double-sided foam tape. The connection wire cable is 20" (50 cm) long, so before attaching the Receiver, make sure the wires will easily reach the controller's connection terminals.

Wiring the Receiver

There are two parts involved in wiring the Receiver:

Part 1: Attach the Receiver control wires (similar to hard-wired sensors).

Part 2: Attach the low-voltage power wires to supply 24 VAC to the Receiver.

Part 1 - Control Wire Connection

The Receiver control wires are used to interrupt the common wire of the valves or they can be connected directly to the sensor input terminals of the controller (if provided).

1. Disconnect power to the controller.
2. Follow applicable wiring procedure A or B or C.

The following diagrams are representations only and do not depict actual controller layouts. Refer to the installation instructions provided with your controller for specific wire connection information.

A. Controllers with sensor inputs (with or without pump/master valve):

Refer to Figure 6. Find the controller sensor terminals (generally marked "Sensor", "SEN" or "S") and directly connect the White and Brown* wires to these terminals in any order. There may be a jumper wire or tab connecting the terminals that must be removed and/or a sensor bypass/control switch that must be activated.

Figure 6

e yellow wire in place of brown if a Normally Open sensor is required.

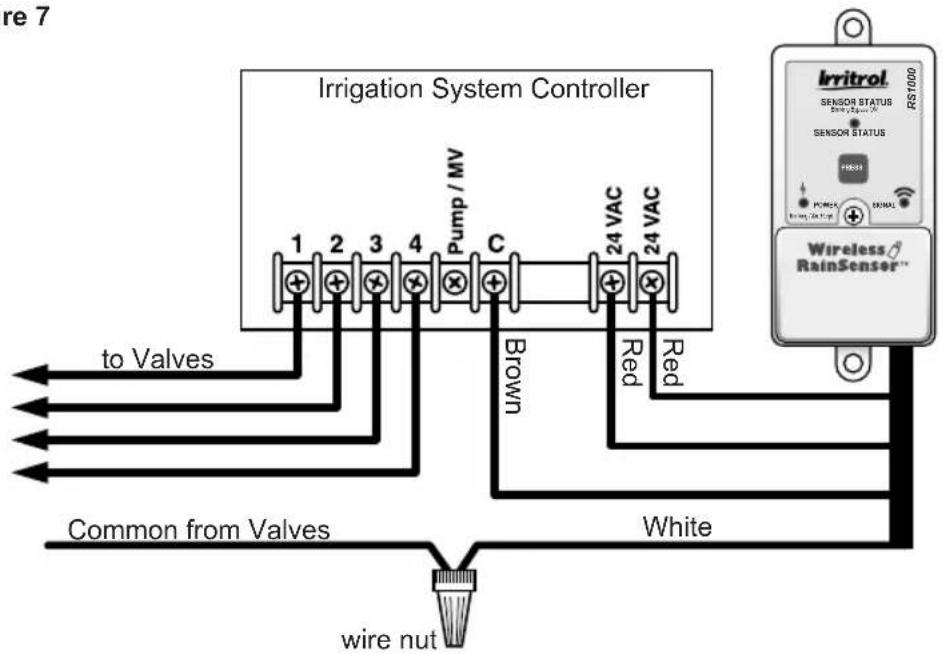

B. Controllers with no sensor inputs and no pump start or master valve:

Refer to Figure 7. Disconnect the valve common wire from the controller's common terminal (generally marked "C", "Com", or "VC"). Join this wire to the White wire using a wire nut. Attach the Brown wire to the valve common terminal.

The yellow wire is not used in this application.

Figure 7

C. Controllers with pump start or master valve and no sensor inputs:

Refer to Figure 8. Disconnect all common control wires from the common terminal(s) of the controller (generally marked "C", "Com", or "VC"). Join these wires to the White wire using a wire nut. (Be sure to include the common wire from the Pump Start Relay in this connection). Attach the Brown wire to the common terminal.

The yellow wire is not used in this application.

Figure 8

Part 2 - Power Wire Connection

The Receiver requires a nominal voltage of 24 VAC to operate. It should only be connected to an irrigation controller that uses a 24 VAC UL listed Class 2 transformer to supply power.

Caution: Do not connect the Receiver directly to 120/240 VAC power as this may result in irreversible damage. If you are in doubt, contact a qualified installer or electrician.

1. Disconnect power to the controller.
2. Follow applicable wiring procedure A or B.

A. Controllers with 24 VAC terminals:

Refer to Figure 8 (page 5). Terminals for 24 VAC power are present on the majority of controllers. Typical markings are "24 VAC", "24 and 24", "0 and 24" and "Hot Post and 24." Verify correct voltage, then simply attach the two Red power wires to these terminals leaving existing connections in place.

B. Controllers with no 24 VAC terminals:

Refer to Figure 9. On controllers that do not have 24 VAC terminals, connect the two Red power wires to the transformer's secondary 24 VAC power wires where they attach to the controller's circuit board.

This procedure will require a solder or wire-splice connection.

If you are unsure how to do this correctly, contact a qualified contractor or electrician for assistance.

Initial Receiver Testing

Reconnect power to the controller and verify the Receiver's Power Indicator is illuminated. Prior to mounting the Sensor/Transmitter, hold it at close range to the Receiver, then lightly press and hold the spindle. The Sensor Status indicator should illuminate and remain on until the spindle is released. The Signal Indicator should also illuminate during the test to verify good signal strength. If either indicator does not illuminate, recheck your wiring.

Verify that both antennas are fully extended and straight.

Installing the Sensor / Transmitter

If installing Wireless RainSensor model RFS1000 for freeze detection, please refer to additional instructions provided on page 8.

Testing Signal Strength at the Installation Site

The Receiver's Signal Indicator provides an indication of the strength of the last valid received signal. Prior to testing the Sensor/Transmitter in its final location, clear the Signal Indicator first so the test will represent the signal as received during the final check. To clear the Signal Indicator from previous tests, simply press the Smart Bypass button once, then once again to exit the bypass mode.

Prior to final placement, test the Sensor/Transmitter signal by lightly pressing and holding the spindle as described in "Initial Receiver Testing" on page 6.

If the location of the Sensor/Transmitter is not providing a valid signal to the Receiver, verify Sensor/Transmitter operation at close range and choose another mounting location. For additional information, refer to "Solving Reception Problems" on page 10.

Tip! If the Receiver is not visible to the installer, turn on a watering zone which is visible from the installation location and the activation of the

Sensor/Transmitter will shut off the "test" zone. Please note that the manual activation cycle of some controllers bypasses the sensor inputs.

You will need to run an automatic/timed watering program for these types of controllers.

Installation

The Sensor/Transmitter should be mounted vertically with the antenna wire extending straight down. Avoid installations where the antenna wire would contact any metal object.

Mount the Sensor/Transmitter as close to the Receiver as possible to avoid interference of the wireless signal. The unit should be exposed to unobstructed rainfall, but not in contact with sprinkler spray or runoff from the roof.

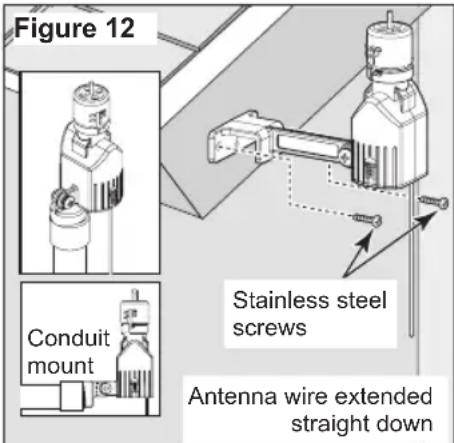

Mounting to the outside edge of a rain gutter is simple with the Quick-Clip ^™ bracket.

See Figure 11.

The Sensor/Transmitter can also be mounted on any suitable solid structure using the supplied stainless steel screws. See Figure 12.

Wireless RainSensor with Freeze Sensor (model RFS1000)

Please follow the installation instructions for the basic Wireless RainSensor with the following considerations:

Install the Sensor/Transmitter as close to the controller and Receiver as possible. Although the Wireless RainSensor with Freeze option has a maximum range of 300', it is highly recommended that the units be installed no

greater than 100' apart. Install the unit in the coolest location of the controlled area, out of direct sunlight and avoiding direct southern exposure. A northeast to northwest shaded exposure works well.

Important: Avoid installation of the unit near a large heat storing object or heat producing device such as a dryer vent or chimney.

The installation and operation of a freeze sensor should be used in conjunction with frequent visual checks of your sprinkler system. While freeze sensors are designed to prevent inadvertent watering during near or below freezing conditions, there are instances in which manual intervention is required. Air temperatures may be above freezing while ground and vegetation temperatures remain below freezing. Operation of your sprinkler system during these conditions may cause icing. Very rapid air temperature changes may also result in inadvertent watering, should the timing of sprinkling coincide with rapid temperature changes.

The Sensor/Transmitter should be inspected for damage and manually tested regularly to ensure proper operation.

CAUTION: Visual checks and prudent manual watering suspension must be used in conjunction with any freeze sensor.

A freeze sensor should only be relied upon as an aid along with good watering practices including frequent visual checks. This device is not intended for farm/crop protection.

Wireless RainSensor Operation

Normal Operation

When the sensor activates due to sufficient rainfall or freezing temperatures (model RFS1000 only), the Sensor Status indicator will remain illuminated on the Receiver. After the rain sensor dries out, the controller will resume its normal watering schedule and the Sensor Status Indicator will turn off. The amount of rain required to activate the sensor can be set using the cap adjustment on the Sensor/Transmitter. Dry-out rates for the rain sensor vary dependent on ambient conditions such as temperature, sun exposure, humidity and wind – the same conditions your soil experiences.

Smart Bypass

Your Wireless RainSensor can be temporarily deactivated by using the built-in Smart Bypass button. Simply press this button once and the Sensor Status light will blink until the next time the Wireless RainSensor resets (dries out) - all automatically.

Pressing the Smart Bypass button again resumes the active state. Pressing the Smart Bypass button while the sensor is not active (dry or above freezing) will cause the sensor to ignore the next rain/freeze signal.

Power Down

In order to turn the Receiver OFF entirely, press and hold the Smart Bypass button until the Sensor Status indicator begins blinking rapidly (5–7 seconds). Release the Smart Bypass button and confirm the Power indicator goes out and flashes periodically. Simply press the Smart Bypass button once to turn the unit back on.

Receiver Learn Mode

If it becomes necessary to set the Receiver's address code to that of a new Sensor/Transmitter, press and hold the Smart Bypass button until the Status and Signal indicators blink in unison (7–10 seconds). Activate the corresponding Sensor/Transmitter at close range (by pressing down on the spindle) to change the existing Receiver code to that of the new Sensor/Transmitter. The indicators will stop blinking upon learning the new code. Pressing the Smart Bypass button again will exit the learn mode if no valid code is received.

Attention Required

When the Power indicator blinks, it indicates that one of the following conditions exists:

• The Sensor/Transmitter's battery is getting low and should be replaced when convenient. The Wireless RainSensor will function properly for some time after this indicator is present.
• If the batteries are good, a problem with communication is indicated. Relocating the Sensor/Transmitter may be necessary to provide a better signal.

Sensor Adjustment

Rainfall Adjustment

The Sensor/Transmitter can be adjusted to respond when it has detected nominal rainfall in the following amounts: 1/8" (3 mm), 1/4" (6 mm), 1/2" (13 mm), 3/4" (19 mm) or 1" (26 mm). Carefully rotate the Rainfall Adjustment Cap so the pins are positioned in the desired slots. Be sure to align the slots and pins properly, as this adjustment does not require excessive force. See Figure 10.

Vent Ring Adjustment

Closing the vent holes will slow the sensor dry-out rate. Uncovering the holes will accelerate the dry-out rate. For most installations, a fully-closed vent is appropriate.

Sensor/Transmitter Battery Replacement

1. Remove the bottom cover of the Sensor/Transmitter by pressing down on the thumb-release lever on the side of the unit. Carefully slide the circuit board out. See Figure 13.
2. Remove the battery cover and replace using two 3V CR2032 (or equivalent) batteries. Install with positive (+) side of the batteries facing up.
3. Reassemble the unit in reverse order.

Changing the Sensor/Transmitter Code

The transmission code for the unit is identified by stickers on the Sensor/Transmitter and Receiver. Although, in most cases, even if two identical units are installed, unwanted activations would only occur if the two sensors are set for different rainfall amounts. However, the code may be manually changed as follows:

1. Remove the bottom cover of the Sensor/Transmitter by pressing down on the thumb-release lever on the side of the unit. Carefully slide the circuit board out. See Figure 13.
2. Identify the code wire loops (small black wire and white wire loops) and cut one or both loops using end-cutting pliers.
3. Reassemble the Sensor/Transmitter and follow the procedures provided in "Receiver Learn Mode" above.

Troubleshooting

Signal Indicator (Installation Validation™)

The Signal Indicator provides instant signal strength feedback for the installer. The indicator always shows the strength of the last signal received. In order to clear this signal, simply press the Smart Bypass button once; pressing the button again will exit the bypass mode.

Improving Reception

The Wireless RainSensor operates under Part 15 of the FCC rules. This means that it has to comply with certain standards and is only allowed to transmit up to a certain power level. In rating transmitters of any form, typically a Line-of-Sight (LOS) value is used in order to show the relative effectiveness of a transmitter and allow a transmitter and receiver to be compared to one another using a fair (apples to apples) method. The Wireless RainSensor operates up to 300' (91.4 m) LOS - meaning in an open field, with no obstructions, the Sensor/Transmitter and Receiver pair will successfully communicate up to 300' (91.4 m) apart.

However, in almost all installations, there are obstacles between the Sensor/Transmitter and Receiver such as walls, floors, etc. The obstacles will all affect the transmitted signal and typically reduce the radiated power that will be read by the receiver. Different objects such as walls and floors affect the transmitted signal differently depending on the material composition, geometry, and thickness. Typically, most residential and light commercial construction materials do not reduce the effective transmitted signal enough to pose problems under normal installation conditions.

However there are some installations with very thick, dense walls, or that involve large amounts of radio frequency interference (electrical switching rooms etc.) where the effective range of the Wireless RainSensor may be greatly reduced.

Some helpful tips on mounting the Sensor/Transmitter and Receiver for the best Radio Frequency (RF) performance:

• Always try to keep the antennas straight and fully extended (straight up on the Receiver and straight down on the Sensor/Transmitter).
• Try to maintain a parallel orientation of one antenna to the other. Avoid installing either unit where the antennas are in close proximity to large metal objects.
• Attempt to mount the units as close together as possible to reduce the potential for interference or signal reduction. If the signal strength is not good in one location, try another location - even as little as a few feet of movement can change from a weak spot to a strong spot. Interior locations where cell phones or cordless phones have trouble with reception may indicate areas with poor RF signal transmission.
• If possible avoid an installation where the Sensor/Transmitter is located exactly above the Receiver. Move the Sensor/Transmitter slightly offset to one side. When the RF signal is passing through walls, keep in mind that it has less thickness to penetrate when it passes straight through the wall. In other words, passing diagonally through a wall increases its effective thickness. Because every installation is different, the ONLY guaranteed method to verify an installation is to physically TRY IT.

Specifications

Model Numbers:

RS1000 - Wireless RainSensor

RFS1000 - Wireless RainSensor + Freeze

Receiver Mounting Options:

Stainless steel screws and/or double-sided foam tape.

Sensor/Transmitter Mounting Options:

Quick-Clip ^™ rain gutter bracket and roof eaves/fascia mounting bracket with stainless steel screws.

Sensor/Transmitter Range:

Up to 300' (91.4 m) LOS (line-of-site).

Sensor Type:

Industry-standard hygroscopic disc stack with adjustable rainfall sensitivity.

Transmitter Battery Type:

(2) 3V cells - CR2032 (or equivalent).

Average Battery Life:

Five years

Operating Temperature Range:

-20°F to 120°F (-29°C to 49°C)

Receiver Power Input:

22–28 VAC/V dc, 100mA (from existing controller/timer with Class 2, UL-approved transformer).

Relay Contacts Output:

Normally Open (NO) and Normally Closed (NC) 3A at 24 VAC.

Receiver Controls:

Sensor Status Indicator, Signal Indicator, Smart Bypass Switch, Power Indicator with low battery/poor communication warning.

Radio Frequency Numbers:

RS1000 and RFS1000: 418 Mhz

RS1000-I and RFS1000-I: 433.92Mhz

RS1000 and RFS1000 Minimum Transmit Power: 0.0157 mW

Electromagnetic Compatibility

Domestic: This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference that may be received, including interference that may cause undesirable operation. This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to other devices or systems. It has been type tested and found to comply with the limits for a FCC Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. To determine if your controller is functioning properly, verify that the controller is installed per the manufacturer's specifications and no inadvertent operational changes were made. If the problem persists, electromagnetic interference could be the problem. This can be determined by turning the equipment off and on and seeing if problems persist. The user is encouraged to try to correct the interference by one or more of the following measures:

Reposition or reorient the RainSensor with respect to the controller. Afterwards, reset by turning the device and host controller "ON/OFF" and allow the system to restart.

Plug the irrigation controller into a different outlet so that the irrigation controller and sensor are on different branch circuits.

If necessary, the user should consult the dealer or an experienced technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful:

"How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. Stock No. 004-000-00345-4.

International: This is a CISPR 22 Class B product.

FCC ID: OF7WRS1

IC: 3575A-XXXXX

WARNING: Cancer and Reproductive harm – www.P65Warnings.ca.gov.

For more information, please visit www.toro.com/CAProp65.

Patent: www.ttcopats.com

Irritrol

5825 Jasmine Street

Riverside, CA 92504
