| Product Type | Interactive Flat Panel Display |
| Screen Size | 65 inches (diagonal) |
| Resolution | 3840 x 2160 (4K UHD) |
| Touch Technology | Infrared (IR) touch, 20-point touch |
| Dimensions (W x H x D) | Approx. 1488 x 897 x 88 mm |
| Weight | Approx. 35 kg (77 lbs) |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | Typical 150W, Standby <0.5W |
| Operating System | Android 8.0 or later |
| Built-in Speakers | 2 x 15W |
| Connectivity | HDMI x3, USB x3, VGA, LAN, Audio In/Out, RS232 |
| Main Functions | Interactive whiteboard, annotation, screen sharing, multi-touch gestures |
| Care and Cleaning | Use a soft dry cloth; avoid abrasive cleaners; do not spray liquid directly |
| Safety Features | Overheat protection, anti-glare screen, VESA mount compatibility |
| Spare Parts / Repairability | Spare parts available through authorized service centers; optional extended warranty |
| Mounting | VESA 600 x 400 mm |
| Accessories Included | Power cable, HDMI cable, USB cable, remote control, touch pen, documentation |
Frequently Asked Questions - TT-6516UB Newline
How do I turn on the Newline TT-6516UB?
Press the power button located on the bottom-right corner of the display or use the remote control. The power LED will turn blue when the unit is on.
Can I connect my laptop to the TT-6516UB?

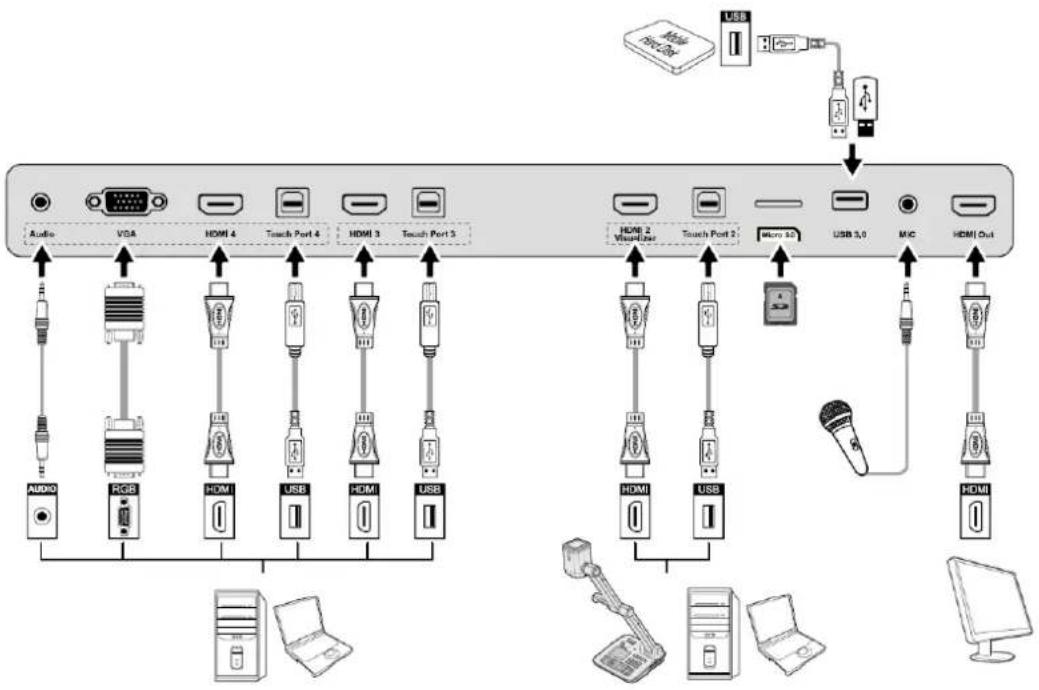

Yes, use an HDMI cable to connect your laptop to one of the HDMI inputs. The display supports plug-and-play for most devices.

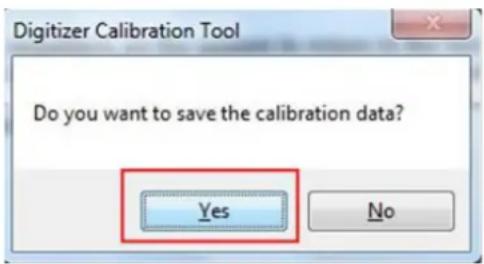

How do I calibrate the touch screen?
Go to Settings > Device > Touch Calibration. Follow the on-screen instructions to touch the crosshair points. Calibration ensures accurate touch response.
What should I do if the screen is not responding to touch?
First, ensure no foreign objects are on the screen. Restart the display. If the issue persists, run the touch calibration or check for driver updates in the Android settings.
How do I clean the screen safely?
Turn off the display and unplug it. Use a soft, lint-free microfiber cloth slightly dampened with water or a screen-safe cleaner. Gently wipe the screen in a circular motion. Do not spray liquid directly on the screen.
Can I use the display for video conferencing?
Yes, the TT-6516UB supports video conferencing via external camera and microphone. Connect a USB camera to the USB port and use compatible apps like Zoom or Microsoft Teams.
How do I update the firmware?

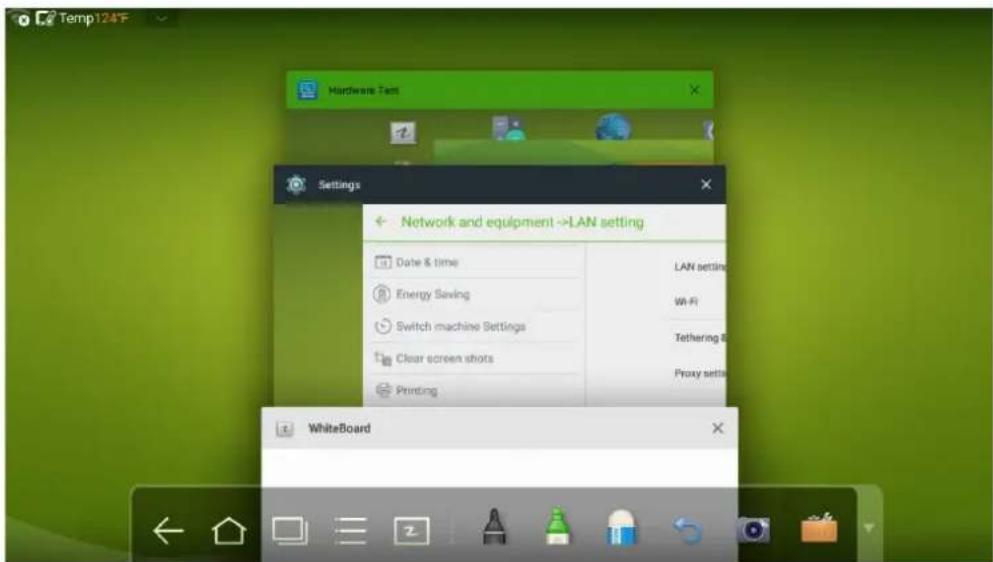

Check for updates in Settings > About Device > System Update. If an update is available, download and install it. Ensure the display is connected to the internet via Wi-Fi or LAN.

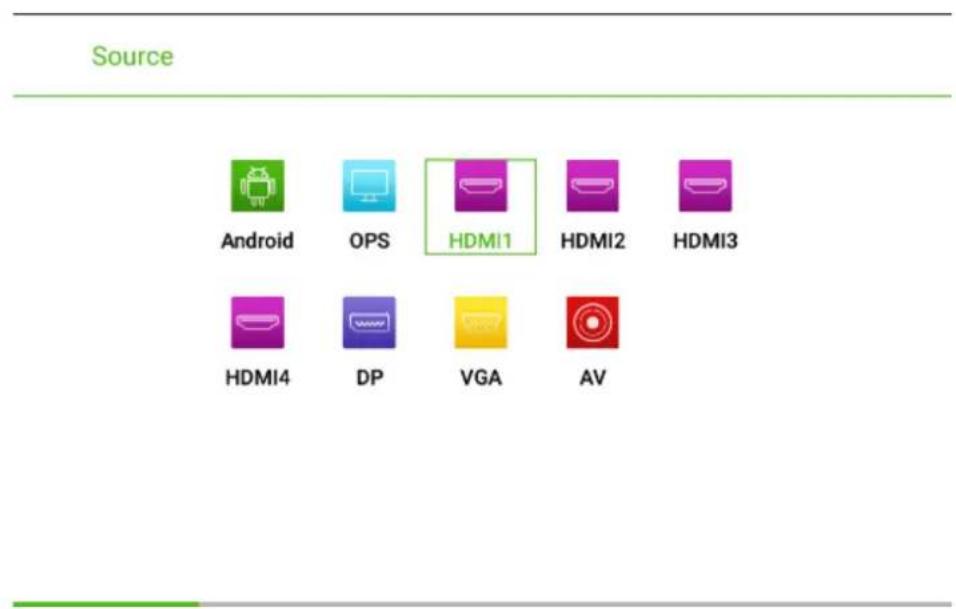

What does the 'Source' button do?

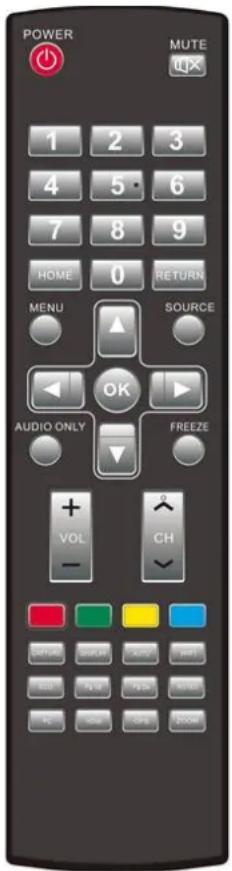

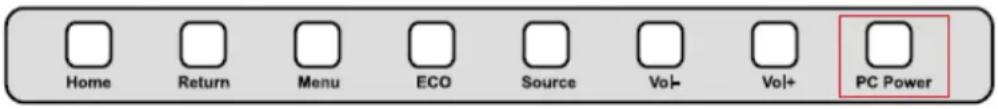

The Source button cycles through available input sources (HDMI1, HDMI2, VGA, etc.). Press it on the remote or the display to select the active input.
Is there a wall mount included?

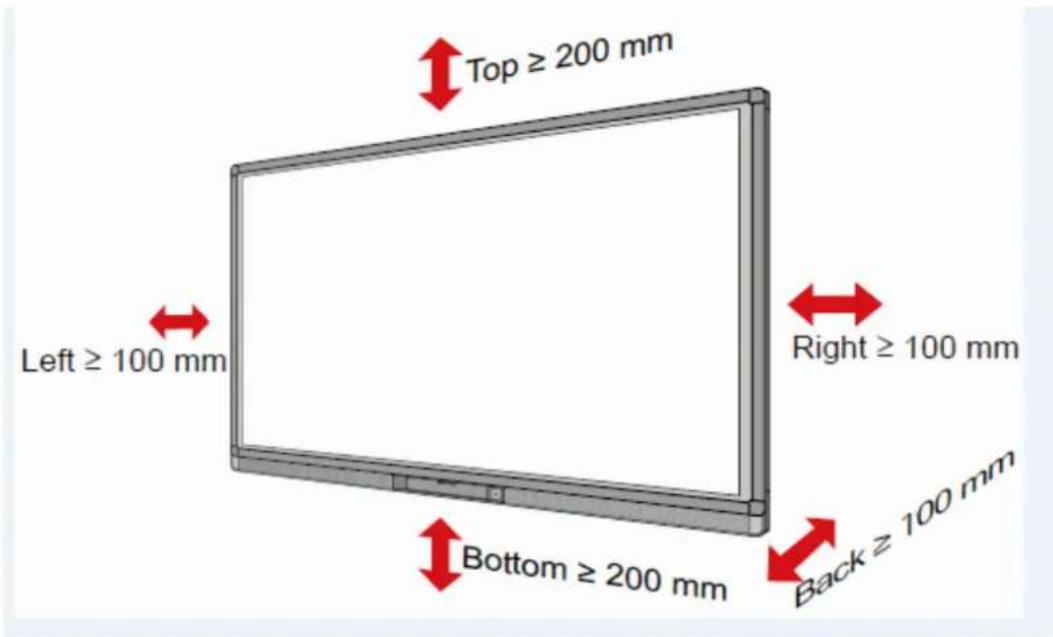

No, a wall mount is not included. However, the display is VESA-compatible (600x400mm) and can be mounted using a standard mount kit.
How do I reset the display to factory settings?
Go to Settings > System > Reset Options > Factory Data Reset. This will erase all user data and restore the display to original settings. Confirm the action.
