Product Type	Pet Water Fountain
Brand	Tesla
Model	TSL-PC-WF / TSL-PC-WFUV (UV version)
Dimensions	230 x 176 x 160 mm
Capacity	2.5 L
Power Input	DC 5V 1A
Rated Power	Max 4.5 W
Working Temperature	0 - 50 °C
Filter Material	Cotton fiber, Activated carbon, Resin particles
Connectivity	Wi-Fi 2.4 GHz IEEE 802.11b/g/n
App Compatibility	Tesla Smart for iOS and Android
UV Disinfection (UV model only)	Built-in UV lamp for water disinfection
Water Pump Type	Silent pump with noise reduction design
Safety Features	Low voltage (5V), anti-bite power cable, auto shut-off when tank removed
Maintenance	Replace filter monthly; clean tank, cover, and filter slot weekly
Material	Plastic and ceramic components
Included Accessories	Adapter, filter core, user manual
Smart Features	Remote control via app, scheduling, water feeding switch
Water Level Indicator	MIN and MAX lines on transparent water tank

Frequently Asked Questions - TSL-PC-WF TESLA

How often should I change the water and clean the fountain?

It is recommended to replace or add water every 2-3 days and clean the fountain (including water tank, top cover, filter slot, and filter) at least once a week to prevent fouling and maintain water quality.

What type of water is best for the pet fountain?

We recommend using pure water or mineral water. Do not use hot or boiling water, as it may cause deformation.

How often should I replace the filter core?

The filter core should be replaced once a month to ensure optimal filtration performance.

Does the fountain consume a lot of power and is it noisy?

No, the fountain has a low power consumption (max 4.5W) and uses a silent pump with noise reduction design. There is a natural water sound that attracts pets to drink more.

Is it safe if my pet chews the power cable?

The power supply uses 5V low voltage and 0.6A low current, which is safe for pets. However, if the cable is damaged, please replace it promptly to avoid any risk.

What pets is this fountain suitable for?

The fountain is suitable for adult cats and small to medium-sized dogs.

What should I do if the fountain does not work after powering on?

Check if the power cord is damaged, if the bottom power connector is loose, and if the water pump outlet and hose connection are properly secured.

How do I reset the device to factory settings?

Press and hold the button on the front of the fountain for about 6-7 seconds until the network indicator flashes, indicating a factory reset and network configuration mode.

What is the UV disinfection feature and how does it work?

The UV version (TSL-PC-WFUV) includes a built-in UV lamp that disinfects the water by killing bacteria and microorganisms. It can be activated via the app or button.

How do I dispose of the product at the end of its life?

This product should be disposed of separately from regular household waste. Follow local regulations for electrical and electronic equipment (WEEE) by taking it to a designated collection point.

USER MANUAL TSL-PC-WF TESLA

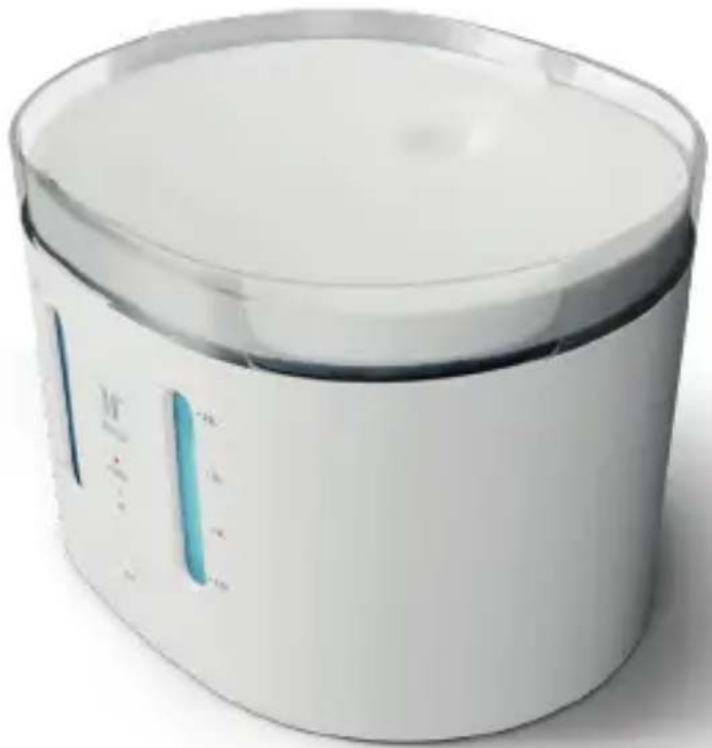

TSL-PC-WF/TSL-PC-WFUV

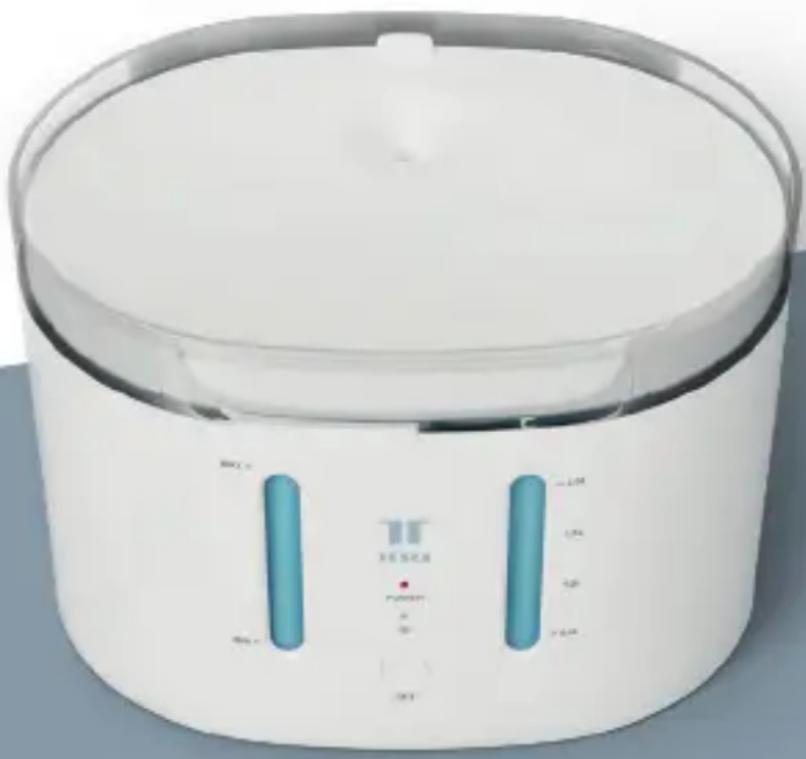

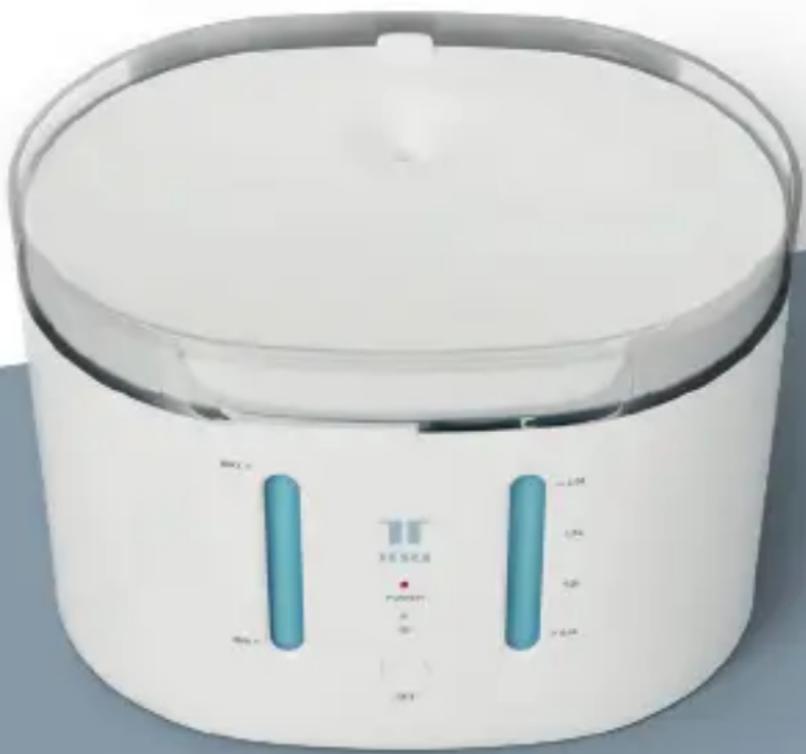

White ceramic kitchen appliance with dual blue vertical gauges (no visible text or symbols)

TESLA SMART PET WATER FOUNTAIN / UV

QUICK GUIDE

QUICK GUIDE

Please read this manual carefully before operation to ensure safe usage of the pet fountain.

CONTENT

Product Introduction 3

Operation guide 4

APP interface introduction 4

Diagram Of Adding Water After Pet Fountain Lacks Water 8

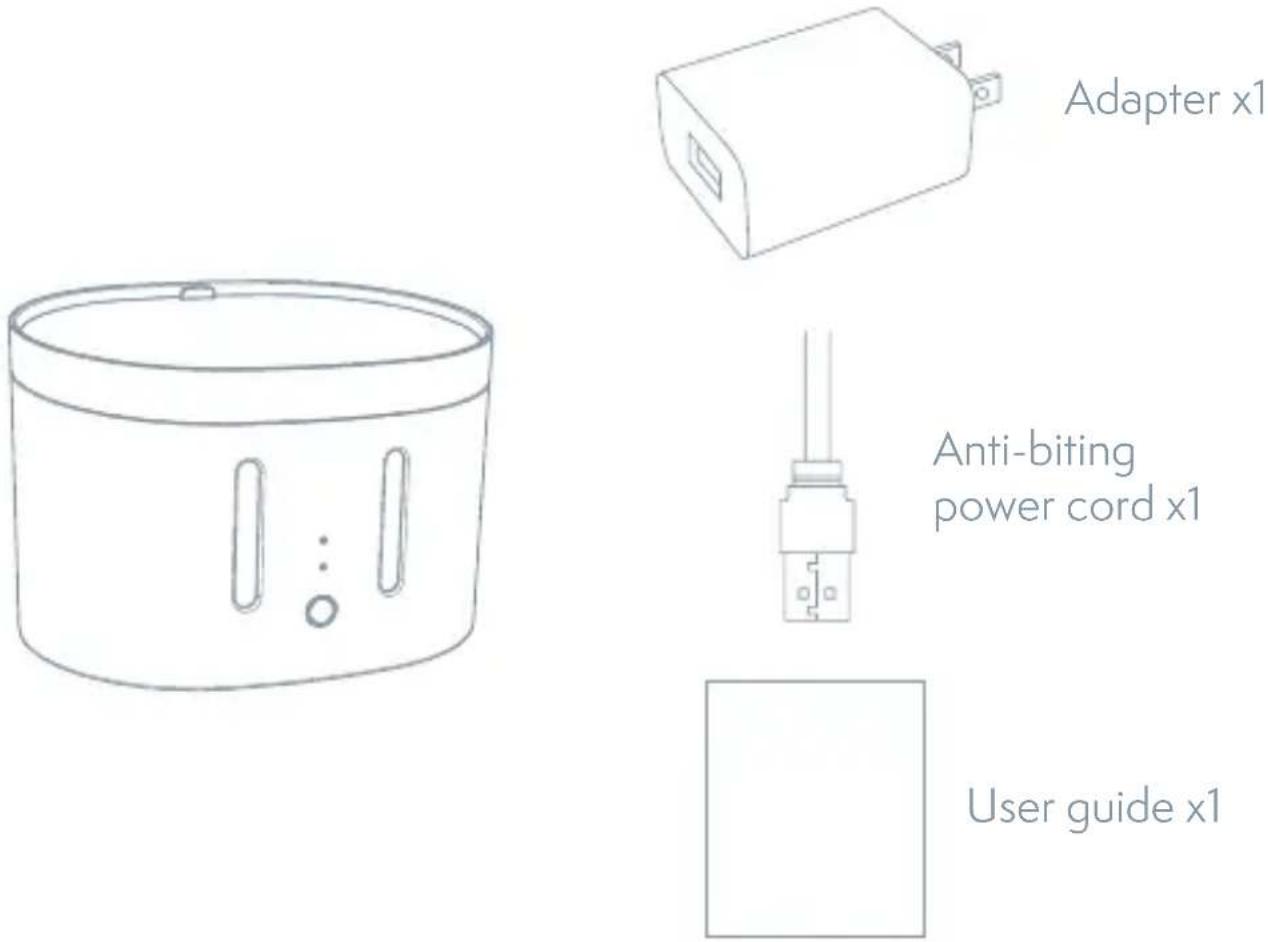

LIST OF ACCESSORIES

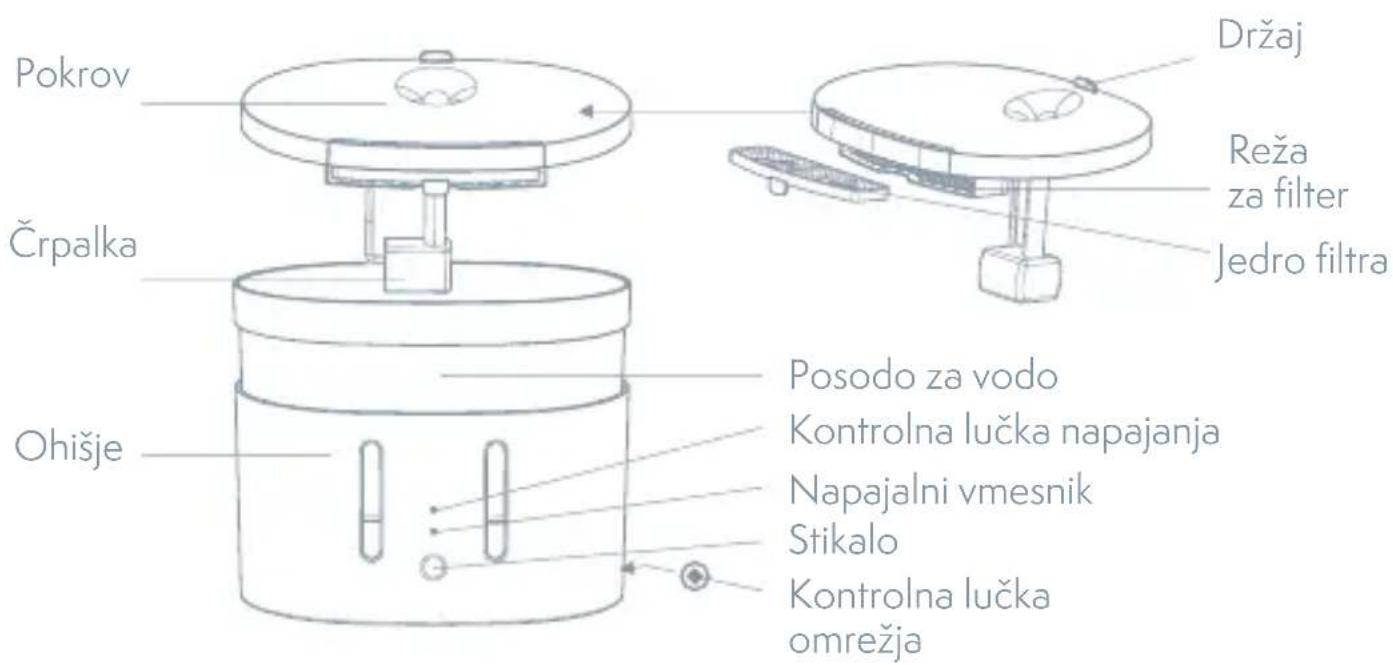

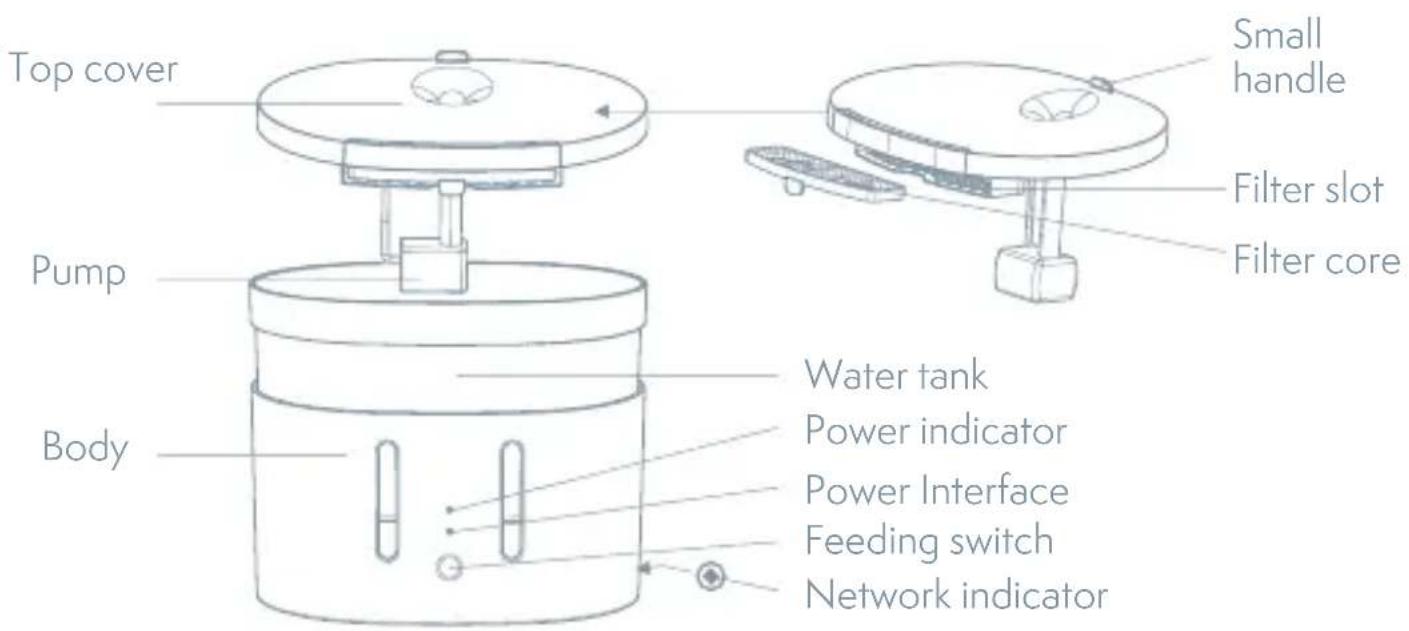

PRODUCT INTRODUCTION

TECHNICAL SPECIFICATION

Power input: DC 5V 1A
Rated power: Max 4.5 W
Capacity: 2,5L
Dimensions: 230 x 176 x 160 mm
Working temperature: 0 - 50 °C
Filter material: Cotton fiber , Activated carbon, Resin particles
App: Tesla Smart for Android a iOS
Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Model: TSL-PC-WF, TSL-PC-WFUV

OPERATION GUIDE

1. FIRST USAGE

1. Please take out pet fountain and accessories.
2. Please clean inner wall and top cover of water storage bucket and filter core.
3. please insert filter core into the filter core slot at the bottom of the top cover after immersing the filter element in clean water for 2 minutes.
4. Please add water to the transparent water bucket above the MIN line and below the MAX line.
5. Please take the adapter and plug it into the USB interface of the button of pet fountain.
6. Please press the button on the front body of pet fountain to turn on and off the water feeding function, and please press the button for long time(around 6 to 7 seconds) to restore factory default settings, it will comes to network configuration status(network indicator flashes).

2. CONNECT AND DOWNLOAD

Tesla Smart is available for both iOS and Android OS.

Search the name, Tesla Smart', in App Store or Google Play, or scan the QR-Code to download the App.

3. REGISTRATION PROCESS

Step 2: Input a legal and valid Mobile number or Email address and click „Continue“. Input Verification Code, then log in the app.

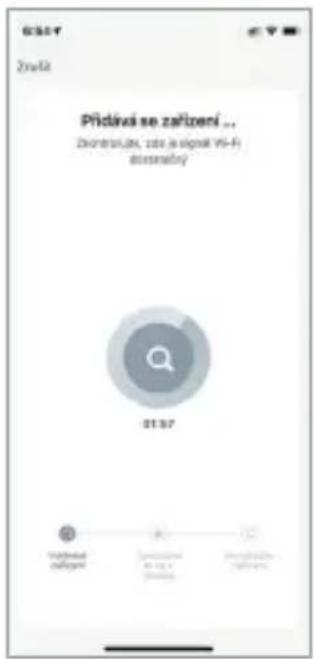

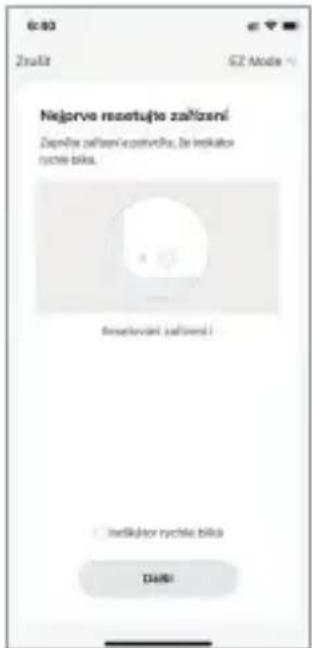

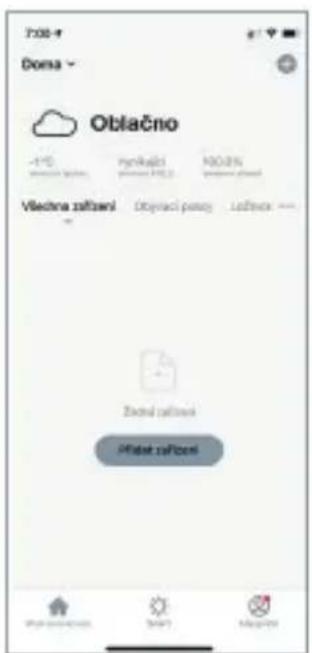

4. SET UP SMART PET FOUNTAIN

Open the app, click on symbol „+“ and with the help of the guide, set the device.

5. (UV DISINFECTION VERSION) INTERFACE INTRODUCTION

1 Setting : other functions
2 Switch
3 Switch
4 Timing
5 Disinfect

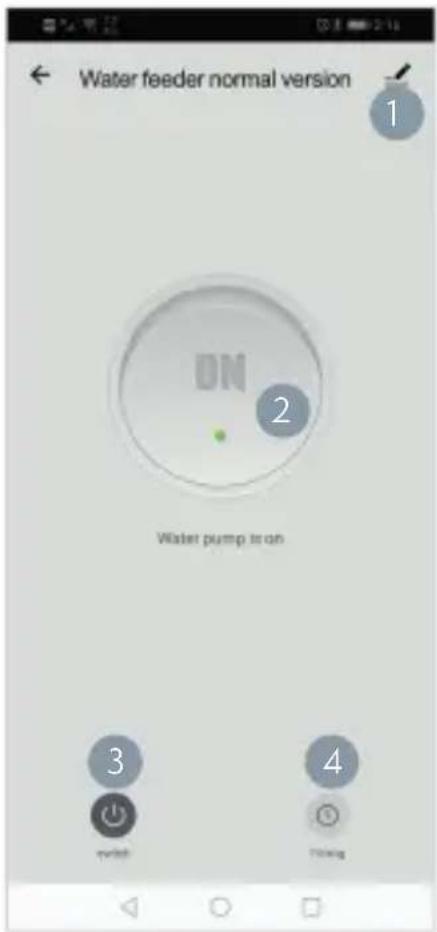

6. (NORMAL VERSION) INTERFACE INTRODUCTION

1 Setting : other functions
2 Switch
3 Switch
4 Timing

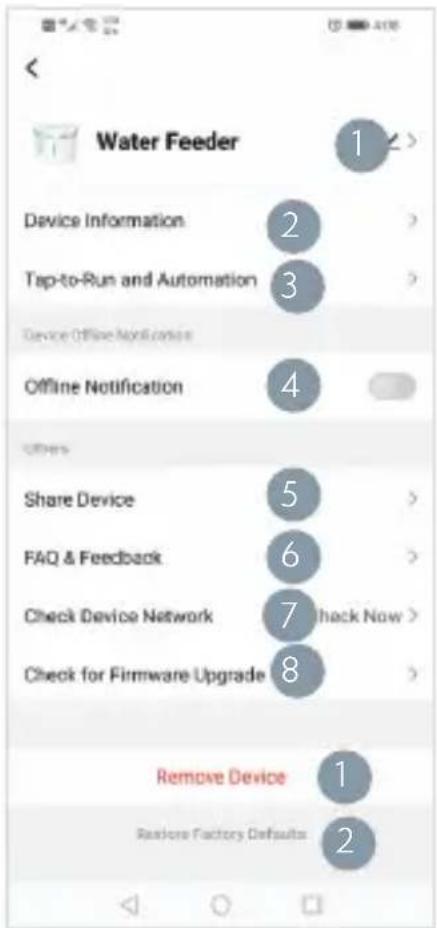

7. (NORMAL VERSION) SETTING

1 Device Name
2 Device Information
3 Tap-to -Run and Automation
4 Offline Notification
5 Share Device
6 FAQ & Feedback
7 Add to Home Screen
8 Check Device Network

(1) Remove

(2) Reset

ADDING WATER INSTRUCTION

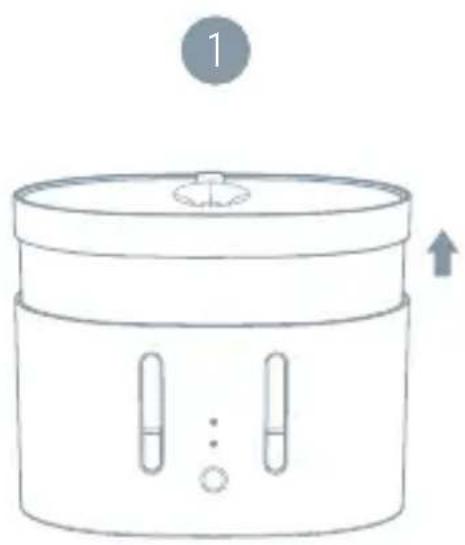

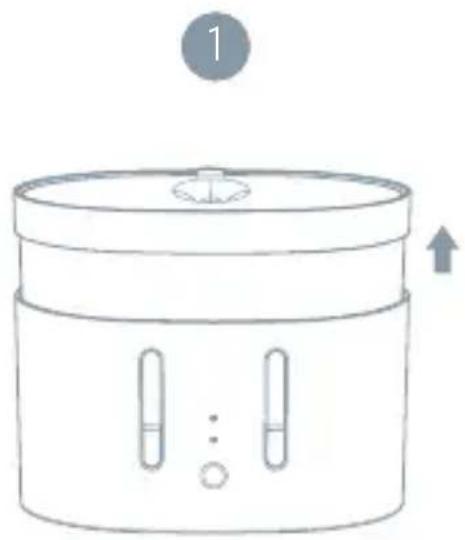

1. No need to power off, just take out the water tank and cover

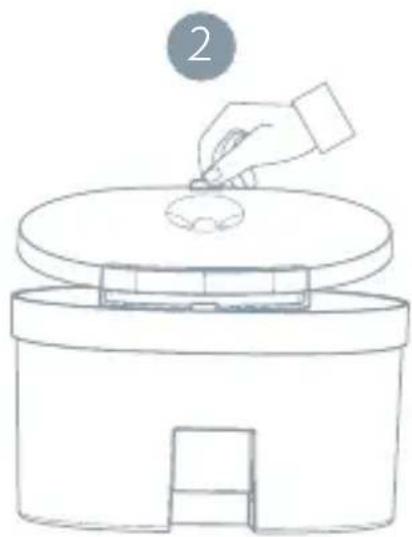

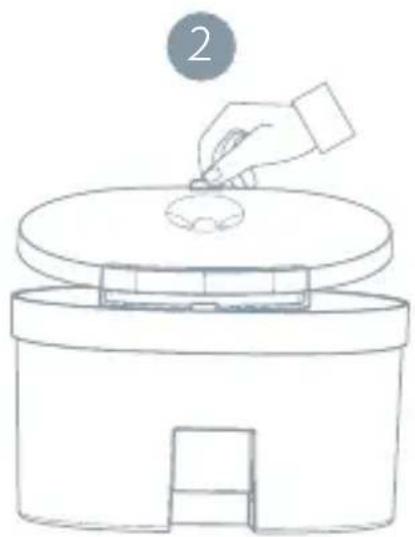

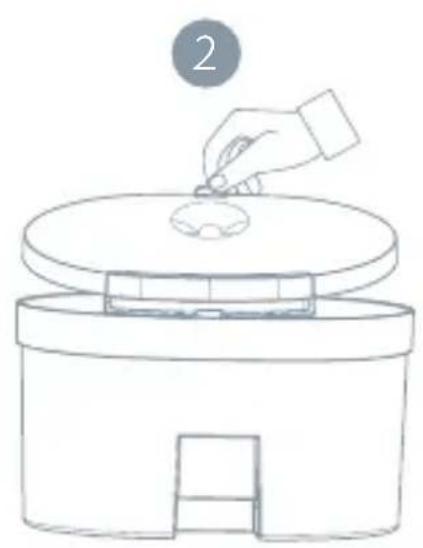

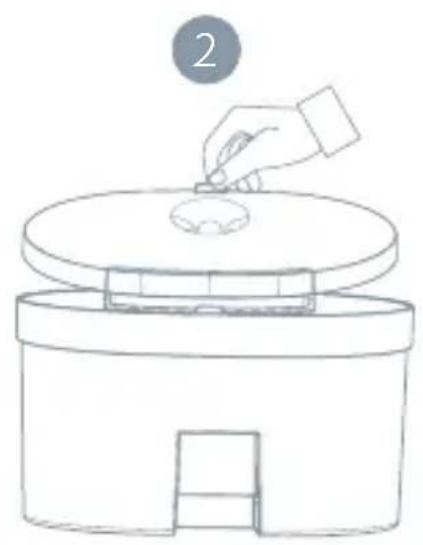

2. Just take out the water tank and cover

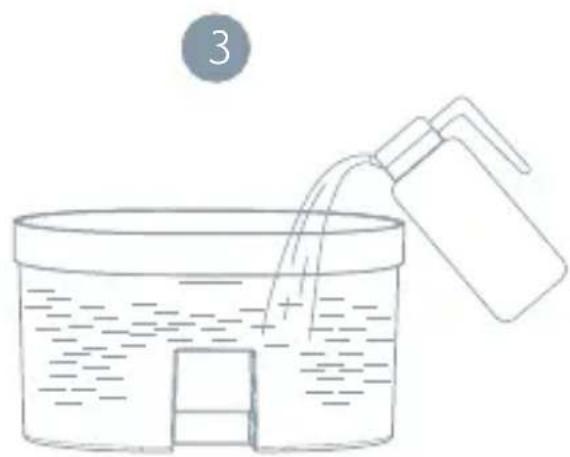

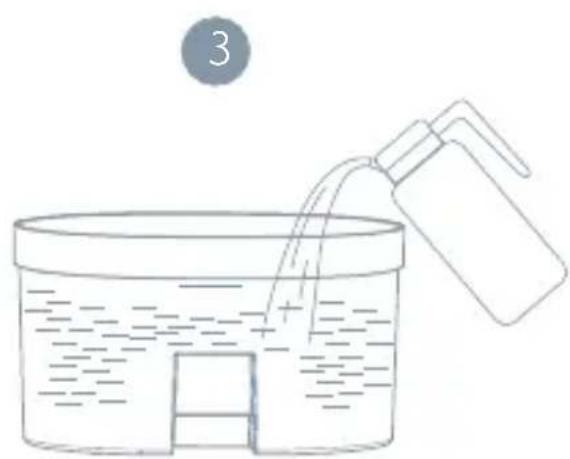

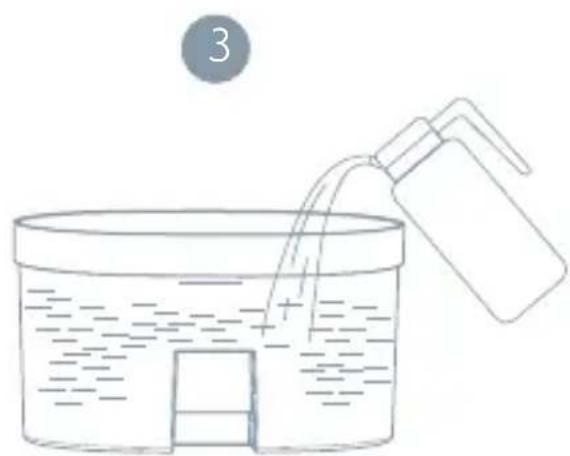

3. Add water till up to MAX level on the water tank

Warning: Hot Water Forbidden

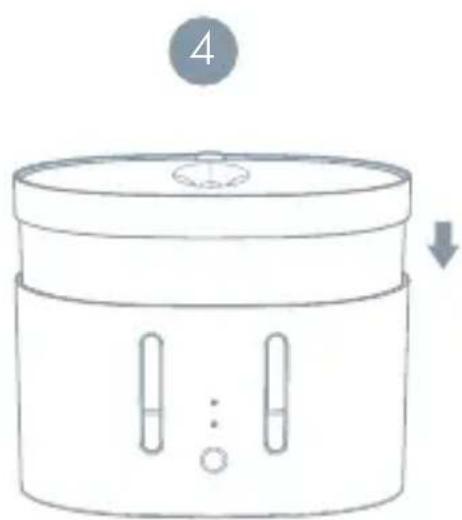

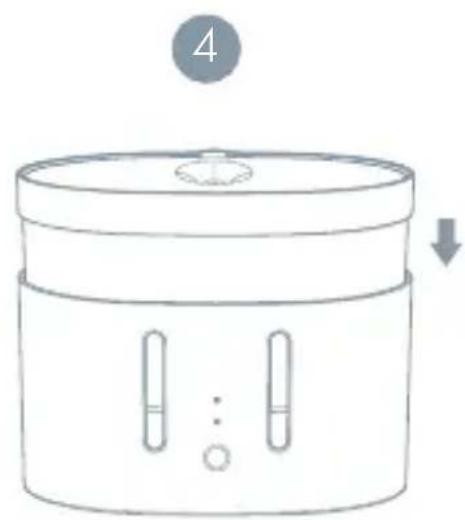

1. Put the top cover and put the water tank back

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand inserting a coin into a circular container (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a side outlet (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a top lid, marked with number 4 and an arrow (no text or symbols on the container itself)

CLEAN INSTRUCTION

Recommended to clean at least once per week and change water to prevent poor water quality or poor outlet water caused by filtration blockage.

1. Remove the water tank cover and clean
2. Remove the filter and groove carefully
3. Clean the filter groove and remove dirties
4. Clean the pump
5. Clean inside of the water tank and dry outside
6. When the filter slot is replaced by the top cover, check whether the bayonet is closed.

Illustration of a hand using a tool to brush a circular object over a beaker, no text or symbols present

Illustration of two hands holding a circular device with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of hands holding a circular device with a grid pattern, no text or symbols present

ATTENTION

1. Be sure to clean the pet fountain after disconnecting the power supply.
2. Do not immerse the pet fountain body and power adapter in water.
3. For the first time, please clean the inside of the transparent water tank, top cover and the filter slot.
4. The filter may be attached with a small amount of powder. This is a normal phenomenon. Rinse.
5. The filter is recommended to be replaced once a month.

WARNING

1. Pet fountain and all accessories are not edible.
2. Please use pet fountain in a dry indoor environment.
3. Do not place pet fountain in a high place.
4. Keep the pet fountain horizontal when using it. Do not tilt or tip it.
5. Do not add hot water or boiling water in the water tank to avoid hot deformation.
6. Please make sure that the power cable is blocked and stored to avoid leakage damage caused by pet bites. The power supply is in safe working voltage, does not endanger the safety of pets and owners.
7. Do not disassemble or repair the pet fountain, otherwise it will affect the after-sales service.
8. Please do not use any accessories that are not provided by the original manufacturer. We are only responsible for the performance and safety of the officially designated accessories.

FREQUENTLY ASKED QUESTIONS

Q. How often does pet fountain change the water and how often we need to clean it?

A. According to the water quality and pet drinking habits. It is recommended to replace or add water every 2-3 days; it is recommend

Q. How often does pet fountain change the water and how often we need to clean it?

A. According to the water quality and pet drinking habits. It is recommended to replace or add water every 2-3 days; it is recommended to clean at least once a week (including water tank, top cover, filter slot, filter), and completely change the water to prevent fouling from clogging the filter slot, resulting in abnormal water quality. Do not use hot water or boiling water when cleaning.

Q. What kinds of water should be used in the pet fountain?

A. It is recommended to use pure water or mineral water.

Q. How often does filter core need to be replaced?

A. The filter core is recommended to be replaced once a month to maintain a good filter effect.

Q. Does the pet fountain consume lots of power? Is there any noise?

A. It has low working power (MAX4.5W) and consumes about 1 kWh in 10 days. The product adopts silent pump and noise reduction design, working without noise. (There is natural water sounds to attract pets to drink plenty of water.)

Q. Is there any safety hazard when the power cable of the pet fountain is bitten by a pet?

A. The power supply adopts 5V low voltage and 0.6A low current to ensure the safety of pets. Friendly reminder: use broken power core will have a hazards of pets eating, please replace it in time.

Q. What are the most suitable cats and dogs for pet fountain?

A. Suitable for adult cats and small medium dogs.

Q. What is the reason that the pet fountain does not work after it is powered on?

1. Check if the power cord is damaged;
2. Check if the bottom power connector is loose;
3. Check if the water pump outlet and hose connection are loose.

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Witty Trade s.r.o. declares that the radio equipment type TSL-PC-WF, TSL-PC-WFUV is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: teslasmart.com/declaration

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n Frequency band: 2.400 - 2.4835 GHz Max. radio-frequency power (EIRP): < 20 dBm

Manufacturer

Tesla Global Limited 108 Lok Shan Road, Tokwawan, Kowloon Hong Kong, 85200 www.teslasmart.com

TSL-PC-WF/TSL-PC-WFUV

White ceramic kitchen appliance with dual blue vertical buttons and a lid, no visible text or symbols on the device body.

TESLA SMART PET WATER FOUNTAIN / UV

BENUTZERHANDBUCH

BENUTZERHANDBUCH

Simple line drawing of a cylindrical container with internal cutouts and three small circular elements, no text or symbols present.

Line drawing of a rectangular electronic component with a slot and two pins (no text or symbols)

Adapter 1x

Empty white square with a thin gray border (no text or symbols)

Benutzerhandbuch 1x

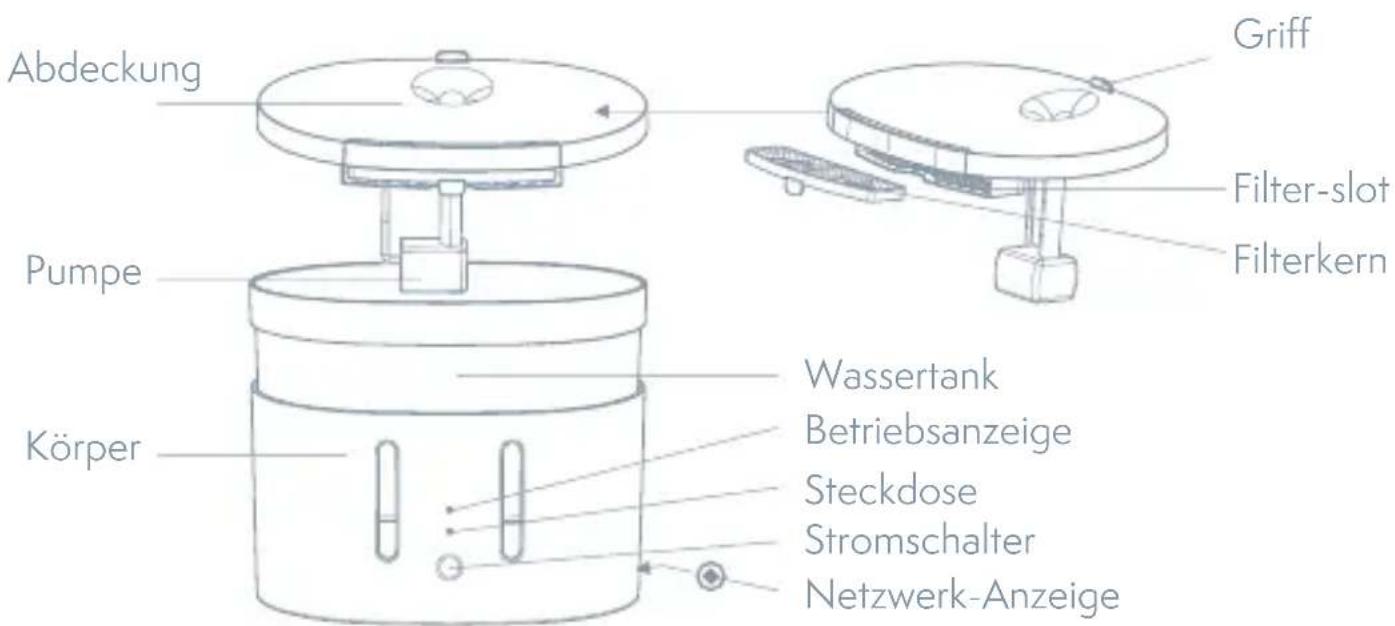

PRODUKTEINFÜHRUNG

3. REGISTRATIONSPROZESS

Simple line drawing of a cylindrical container with internal compartments and a circular indicator labeled '1' (no text or symbols on the container itself)

Line drawing of a hand placing a coin into a circular container with a door, no text or symbols present

Simple line drawing of a container with liquid and a funnel pouring into it, labeled with number 3 (no text or symbols on the diagram itself)

Simple line drawing of a cylindrical container with internal compartments and a circular indicator (no text or symbols)

Illustration of a hand using a tool to brush a circular object over a beaker, no text or symbols present

Illustration of hands holding a circular device with an upward arrow, no text or symbols present

Illustration of a hand using a fork to mix fish in water, no text or symbols present

Line drawing of a hand holding a circular object with a rack, no text or symbols present

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of hands holding a circular device with a grid pattern, no text or symbols present

HINWEIS

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

TSL-PC-WF/TSL-PC-WFUV

White ceramic kitchen appliance with dual blue vertical gauges (no visible text or symbols)

TESLA SMART PET WATER FOUNTAIN / UV

UŽIVATELSKÁ PŘÍRUČKA

UŽIVATELSKÁ PŘÍRUČKA

Line drawing of a cylindrical container with internal slots and a lid (no text or symbols)

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adaptér 1x

Blank white square with a thin gray border (no text or symbols)

3. PROCES REGISTRACE

POKYNY TÝKAJÍCÍ SE DOPLŇOVÁNÍ VODY

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand inserting a coin into a container with a lid, no text or symbols present

Simple line drawing of a container with liquid and a bottle pouring liquid from a side outlet (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a labeled circle (no text or symbols)

POKYNY K ČIŠTĚNÍ

Illustration of a hand using a tool to brush a circular object over a beaker, no text or symbols present

Illustration of two hands holding a circular device with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Line drawing of a hand holding a circular object with a rack, no text or symbols present

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of two hands holding a circular object with internal components, no text or symbols present

UPOZORNĚNÍ

White ceramic kitchen appliance with dual blue vertical gauges (no visible text or symbols)

TESLA SMART PET WATER FOUNTAIN / UV

UŽÍVATELŠKÁ PRÍRUČKA

UŽÍVATELŠKÁ PRÍRUČKA

Simple line drawing of a cylindrical container with two side slots and a lid (no text or symbols)

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adaptér 1x

Blank white square with a thin gray border (no text or symbols)

3. PROCES REGISTRÁCIE

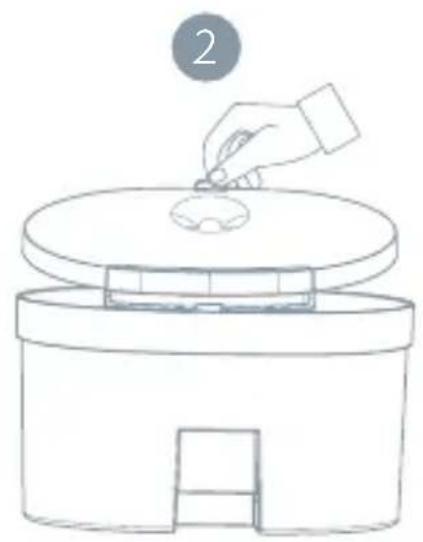

POKYNY PRE DOPLŇANIE VODY

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand inserting a coin into a circular container (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a side outlet (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a labeled circle (no text or symbols)

POKYNY NA ČISTENIE

Illustration of a hand using a tool to stir contents in a bowl (no text or symbols)

Illustration of two hands holding a circular device with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of hands holding a circular device with a grid pattern, no text or symbols present

UPOZORNENIE

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

TSL-PC-WF/TSL-PC-WFUV

White ceramic kitchen appliance with dual blue vertical bars and a transparent lid (no visible text or symbols)

TESLA SMART PET WATER FOUNTAIN / UV INSTRUKCJA UŻYTKOWNIKA

INSTRUKCJA UŻYTKOWNIKA

Simple line drawing of a cylindrical container with internal slots and a lid (no text or symbols)

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adapter 1x

Blank white square with a thin gray border (no text or symbols)

3. PROCES REJESTRACJI

INSTRUKCJE DOTYCZĄCE UZUPEŁNIANIA WODY

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand placing a coin into a circular container with a door (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a bottle into it (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a lid, no text or symbols present.

INSTRUKCJE CZYSZCZENIA

Line drawing of a hand using a tool to brush a circular object into a bowl (no text or symbols)

Illustration of two hands holding a circular object with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Illustration of a hand using a tool to lift a circular object, with no visible text or symbols

Simple line drawing of a hand using a tool to stir contents in a container (no text or symbols)

Illustration of hands holding a small electronic device with a circular button labeled '6' (no text or symbols on the device itself)

OSTRZEŻENIE

EU DECLARATION OF CONFORMITY

White ceramic kitchen appliance with dual blue vertical gauges and a lid, no visible text or symbols on the device itself.

TESLA SMART PET WATER FOUNTAIN / UV

HASZNÁLATI ÚTMUTATÓ

HASZNÁLATI ÚTMUTATÓ

Simple line drawing of a cylindrical container with internal cutouts and three small circular elements at the bottom (no text or symbols)

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adapter 1x

Blank white square with a thin gray border (no text or symbols)

3. REGISZTRÁCIÓS FOLYAMAT

A VÍZ BETÖLTÉSÉRE VONATKOZÓ UTASÍTÁSOK

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand placing a coin into a circular container with a door (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a bottle into it (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a lid, no text or symbols present.

Illustration of a hand using a tool to brush a circular object into a bowl (no text or symbols)

Illustration of two hands holding a circular object with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a container (no text or symbols)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

Simple line drawing of a hand using a tool to mix liquid into a container (no text or symbols)

Illustration of hands holding a small object with a downward arrow, no text or symbols present

FIGYELMEZTETÉSEK

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

TSL-PC-WF/TSL-PC-WFUV

White ceramic kitchen appliance with dual blue vertical buttons and a lid, no visible text or symbols on the device body.

TESLA SMART PET WATER FOUNTAIN / UV

NAVODILA

NAVODILA

Simple line drawing of a cylindrical container with two vertical slots and three dots, no text or symbols present.

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adapter 1x

Blank white square with a thin gray border (no text or symbols)

Navodila 1x

PREDSTAVITEV IZDELKA

3. POSTOPEK PRIJAVE

NAVODILA ZA POLNJENJE VODE

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand placing a coin into a circular container with a door (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a bottle into it (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a lid, no text or symbols present.

NAVODILA ZA ČIŠČENJE

Line drawing of a hand using a tool to brush a rectangular object over a bowl, with no text or symbols present.

Illustration of hands holding a circular object with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Illustration of a hand using a tool to lift a circular object, with no visible text or symbols

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of two hands holding a circular object with internal patterns, no text or symbols present

OPOZORILO

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

TSL-PC-WF/TSL-PC-WFUV

White ceramic rice cooker with dual blue vertical gauges (no visible text or symbols)

TESLA SMART PET WATER FOUNTAIN / UV

KORISNIČKE UPUTE

KORISNIČKE UPUTE

Simple line drawing of a cylindrical container with internal cutouts and three small circular elements at the bottom (no text or symbols)

Line drawing of a rectangular electronic component with a slot and two ports (no text or symbols)

Adapter x1

Kabel za napajanje zaštićen od grizenja x1

Blank white square with a thin gray border (no text or symbols)

3. PROCES REGISTRACIJE

1 korak: Otvorite aplikaciju Tesla Smart, kliknite na „Registrirati“, pročitajte „Pravila o zaštiti osobnih podataka“ i kliknite na „Slažem se“.

1 Postavke: dodatne funkcije
2 Sklopka
3 Sklopka
4 Mjerač vremena
5 Dezinfekcija

6. (UOBIČAJENA VERZIJA) OPIS SUČELJA

1 Postavke: dodatne funkcije
2 Sklopka
3 Sklopka
4 Mjerač vremena

7. (UOBIČAJENA VERZIJA) POSTAVKE

1 Naziv uređaja
2 Informacije o uređaju
3 Tap-to-run i automatizacija
4 Offline upozorenje
5 Dijelite uređaj
6 Često postavljana pitanja i povratne informacije
7 Dodajte na početni zaslon
8 Provjerite mrežu uređaja
(1) Ukloni
(2) Resetiraj

UPUTE ZA PUNJENJE VODE

1. Nije potrebno isključiti uređaj, samo uklonite spremnik za vodu i poklopac.
2. Uklonite spremnik za vodu i poklopac.
3. Dolijevajte vodu dok razina vode ne dosegne MAX liniju.
   Upozorenje: Zabranjeno je nalijevati vruću vodu.
4. Vratite gornji poklopac i spremnik za vodu.

Simple line drawing of a cylindrical container with internal compartments and a top lid, no text or symbols present.

Line drawing of a hand placing a coin into a circular container with a door (no text or symbols)

Simple line drawing of a container with liquid and a bottle pouring liquid from a bottle into it (no text or symbols)

Simple line drawing of a cylindrical container with internal compartments and a lid, no text or symbols present.

UPUTE ZA UPOTREBU

Illustration of a hand using a tool to brush a liquid onto a circular object in a beaker (no text or symbols)

Illustration of hands holding a circular device with an upward arrow, no text or symbols present

Illustration of a hand using a comb to clean water in a bowl (no text or symbols)

Hand holding a circular object with a handle, next to a rack with diagonal lines (no text or symbols)

Simple line drawing of a hand stirring a container with a whisk, no text or symbols present

Illustration of hands holding a circular object with a grid pattern, no text or symbols present

UPOZORENJE

1. Prije čišćenja iskopčajte uređaj iz utičnice.
2. Ne uranjajte tijelo fontane ili adapter za napajanje u vodu.
3. Prije prve uporabe očistite unutrašnjost prozirnoga spremnika za vodu, gornji poklopac i utor za filtar.
4. Filter može biti prekriven tankim slojem praha. To je potpuno normalno. Operite ga.
5. Preporučujemo zamjenu filtra jednom mjesečno.

UPOZORENJE

1. Fontana i dodaci za nju nisu jestivi.
2. Koristite fontanu u suhom zatvorenom okruženju.
3. Ne postavljajte fontanu na povišenu površinu.
4. Držite fontanu uspravno kada se koristi. Fontanu nemojte naginjati.
5. Ne nalijevajte vruću ili kipuću vodu u spremnik za vodu, jer se u protivnom spremnik može deformirati zbog visoke temperature.
6. Pazite da je kabel za napajanje postavljen tako da ga kućni ljubimci ne mogu gristi Radni napon napajanja nije opasan i ne ugrožava sigurnost kućnih ljubimaca ili njihovih vlasnika.
7. Ne pokušavajte rastaviti ili popraviti fontanu, jer to može poništiti jamstvo i oštetiti proizvod.
8. Koristite samo originalnu dodatnu opremu koju je isporučio proizvođač. Odgovorni smo samo za izvedbu i sigurnost službenog originalnog pribora.

FAQ

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

White cylindrical appliance with a lid and blue vertical stripe, no visible text or symbols on the body.

Manufacturer

Tesla Global Limited

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com

TT TESLA

TESLA SMART PET WATER FOUNTAIN / UV

Manufacturer

Tesla Global Limited

108 Lok Shan Road, Tokwawan,

Kowloon

Hong Kong, 85200

www.teslasmart.com
