USER MANUAL KD-X50BTE JVC

INSTRUCTIONS MANUEL D’INSTRUCTIONS GET0787-003A [E/EN]

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. .

Warning: Stop the car before operating the unit.

Caution: Battery Products

Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

Adjust the volume so that you can hear sounds outside the car. Driving with the volume too high may cause an accident. Avoid using the USB device or iPod/iPhone if it might hinder driving safety.

Caution on volume setting: Digital devices (USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by the sudden increase of the output level.

Temperature inside the car: If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to read this manual:

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

How to reset your unit

Your preset adjustments will also be erased.

This manual mainly explains operations using the buttons on the control panel. < > indicates the displays on the control panel. [XX] indicates the initial setting of a menu item.

Maintenance Cleaning the unit Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the unit.

|ޓENGLISH KD-X50BT_E_EN

Contents Preparation 3

Bluetooth audio player 17

Illumination color adjustments 18

Remote controller 5

Brightness adjustments 19

Sound adjustments 19

Additional information 23

Preparation Canceling the display demonstration The display demonstration is always turned on unless you cancel it.

3 Select <CLOCK SET>. (Initial setting)

3 Select <DEMO OFF>.

4 Press MENU to exit.

5 Adjust the minute.

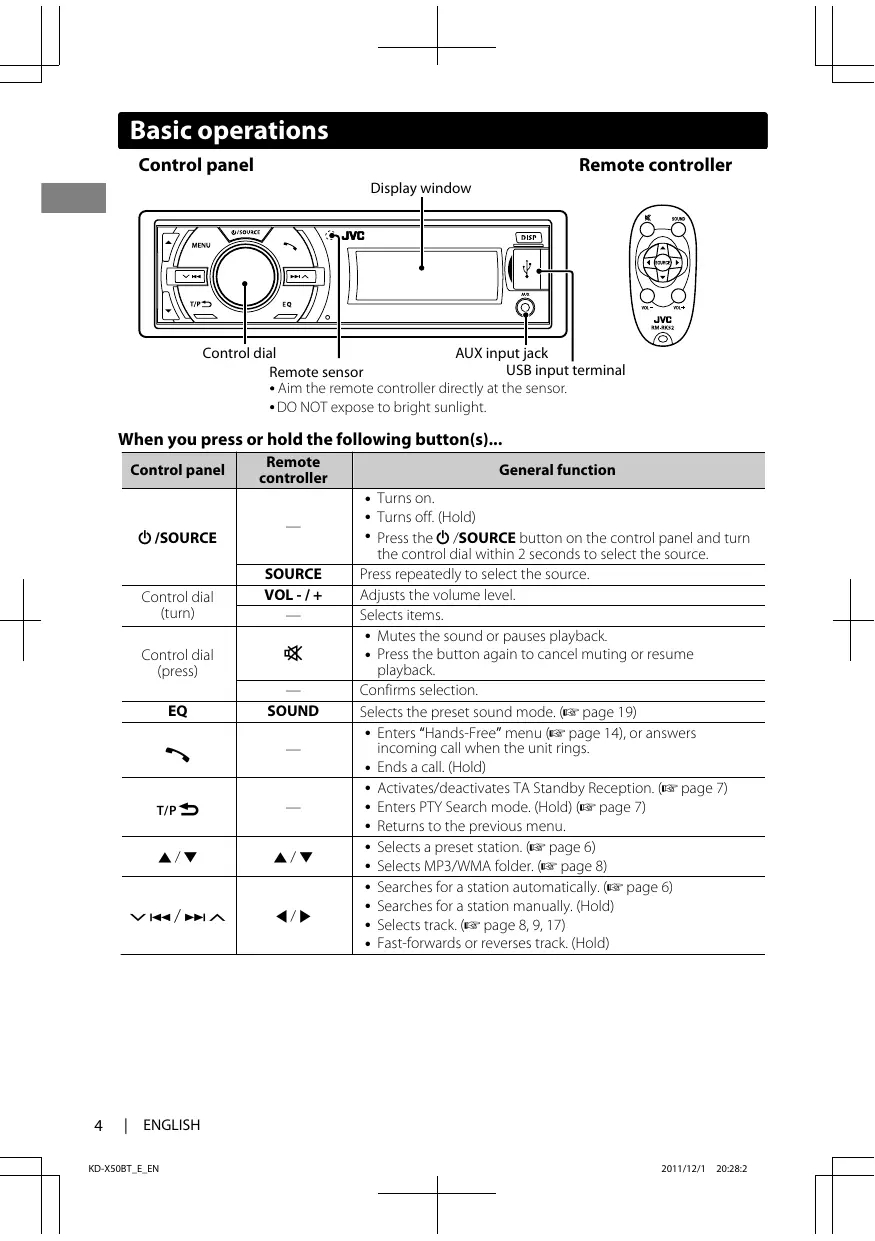

Basic operations Basic operations Control panel

Remote controller Display window

AUX input jack Control dial USB input terminal Remote sensor Aim the remote controller directly at the sensor. DO NOT expose to bright sunlight.

When you press or hold the following button(s)... Control panel

/SOURCE Control dial (turn) Control dial (press)

EQ Remote controller — SOURCE VOL - / + —

General function Turns on. Turns off. (Hold) Press the /SOURCE button on the control panel and turn the control dial within 2 seconds to select the source. Press repeatedly to select the source. Adjusts the volume level. Selects items. Mutes the sound or pauses playback. Press the button again to cancel muting or resume playback. Confirms selection. Selects the preset sound mode. (' page 19) Enters “Hands-Free” menu (' page 14), or answers incoming call when the unit rings. Ends a call. (Hold) Activates/deactivates TA Standby Reception. (' page 7) Enters PTY Search mode. (Hold) (' page 7) Returns to the previous menu. Selects a preset station. (' page 6) Selects MP3/WMA folder. (' page 8) Searches for a station automatically. (' page 6) Searches for a station manually. (Hold) Selects track. (' page 8, 9, 17) Fast-forwards or reverses track. (Hold)

Basic operations Display information Changes the display information. (Press) Scrolls the current display information. (Hold) Source Radio USB/Bluetooth Audio iPod/iPhone (HEAD MODE/ IPOD MODE) iPod/iPhone (APP MODE) External Components (AUX)

Display Non-Radio Data System station: Frequency ) Clock FM Radio Data System station: Station name (PS) - Frequency Programme type (PTY) - Clock - (back to the beginning) Album title/Artist - Track title - Track no./Playing time Track no./Clock - (back to the beginning) APP MODE) APP/Clock AUX IN) Clock

Remote controller Warning:

Preparing When you use the remote controller for the first time, pull out the insulation sheet.

Replacing the lithium coin battery

If the effectiveness of the remote controller decreases, replace the battery.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Do not install any battery other than CR2025 or its equivalent. Do not leave the remote controller in places (such as dashboards) exposed to direct sunlight for a long time. Store the battery in places out of reach of children. Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire. Do not place the battery with other metallic materials. Do not poke the battery with tweezers or similar tools. Insulate the battery by wrapping it with tape when disposing or storing it.

This unit is equipped with the steering wheel remote control function. For details, refer also to the instructions supplied with the remote adapter.

ENGLISH |ޓ5 KD-X50BT_E_EN

Radio Radio Searching for a station

A B Select <FM> or <AM>. Auto search. (Press) Manual search. (Hold) “M” flashes, then press the button repeatedly.

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Storing stations in memory Manual presetting You can preset up to 18 stations for FM and 6 stations for AM.

Setting the Radio Timer You can tune in to a preset station at a specific time regardless of the current source.

While listening to a station...

DAILY Activates daily.

“PRESET MODE” flashes.

2 Select preset number.

The preset number flashes and “MEMORY” appears.

3 Select the preset station. -<FM>/<AM> -<01> ... <18> for FM/

<01> ... <06> for AM Auto presetting (FM only) SSM (Strong-station Sequential Memory) You can preset up to 18 stations for FM.

4 Set the activation time.

-<TUNER> -<SSM> -<SSM 01 – 06> “SSM” flashes. When all the stations are stored, “SSM” stops flashing. To preset <SSM 07 – 12>/<SSM 13 – 18>, repeat steps 1 and 2.

5 Press MENU to exit.

lights up after the Radio Timer has been set. Only one timer can be set. Setting a new timer will override the previous setting. The Radio Timer will not activate if the unit is turned off or if <AM> is set to <OFF> after selecting an AM station for the timer.

Selecting a preset station

You can also select a preset station using / .

|ޓENGLISH KD-X50BT_E_EN

Radio The following features are available only for FM Radio Data System stations.

Searching for your favorite Programmes—Programme Type (PTY) Search 1

2 Select a PTY code.

PTY Search starts. If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in. PTY codes NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONEIN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M

(music), OLDIES, FOLK M (music), DOCUMENT NEWS Standby Reception 1

-<TUNER> -<NEWS-STBY> -<NEWS ON> The unit will temporarily switch to News Programme if available. If the volume is adjusted during reception of Traffic Announcement or News, the adjusted volume is automatically memorized. It will be applied the next time the unit switches to Traffic Announcement or News.

Tracking the same programme —Network-Tracking Reception When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals.

Activating TA/News Standby Reception Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) or NEWS programme from any source other than AM.

The unit will temporarily switch to Traffic Announcement (TA) if available.

Not yet activated. Tune in to another station providing the Radio Data System signals.

To deactivate, press again.

Switches to another station. The programme may differ from the one currently received (the AF indicator lights up).

AF-REG ON Switches to another station broadcasting the same programme (the AF indicator lights up).

* AF-REG: Alternative Frequencies-Regional

Automatic station selection— Programme Search When the signal of a preset station you have selected is weak, this unit searches for another station possibly broadcasting the same programme as the original preset station is broadcasting. <P-SEARCH> (' page 21) ENGLISH |ޓ7

USB USB Playing a USB device USB input terminal USB 2.0 cable (not supplied) or USB cable from the rear of the unit The source changes to “USB” and playback starts.

This unit can play MP3/WMA/WAV files stored in USB mass storage device (such as a USB memory and Digital Audio Player). Make sure all important data has been backed up. We shall bear no responsibility for any loss of data in USB mass storage class device while using this system.

Selecting a folder/track Selects folder.

Selecting the playback modes You can select one of the following playback modes at a time.

Selects track. (Press) Fast-forwards or reverses the track. (Hold)

Selecting a track/folder from the list 1 2 Select a folder.

If the USB device contains many folders or tracks, you can fast search for desired folder or track by turning the control dial quickly, or use Quick Search. (' page 10)

REPEAT RPT OFF Cancels repeat playback.

TRACK RPT Repeats current track.

FOLDER RPT Repeats current folder.

RANDOM RND OFF Cancels random playback.

FOLDER RND Randomly plays all tracks of current folder, then tracks of next folders.

ALL RND Randomly plays all tracks.

|ޓENGLISH KD-X50BT_E_EN

iPod/iPhone Playing an iPod/iPhone

3 Select the desired track.

USB input terminal USB 2.0 cable (accessory of the iPod/iPhone) or

Repeat this step until the desired track is selected. If the selected menu contains many tracks, you can fast search for the desired track by turning the control dial quickly, or use Quick Search (' page 10).

USB cable from the rear of the unit The source changes to “IPOD-FRONT/IPOD-REAR” and playback starts.

Selecting the control mode (Hold) #<HEAD MODE>/<IPOD MODE>/<APP MODE> HEAD Controls iPod playback through this MODE unit. IPOD Controls iPod playback from the MODE iPod/iPhone. APP The sound of any functions (music, MODE games, applications, etc.) running on the connected iPod/iPhone is emitted through the speakers connected to this unit. You can also change the setting using <IPOD SWITCH> in the menu. (' page 22)

Selecting a track Applicable under <HEAD MODE/IPOD MODE> only. For <APP MODE>, applicable only for some audio applications. Selects track/chapter. (Press) Fast-forwards or reverses the track. (Hold)

Selecting a track from the list Applicable under <HEAD MODE> only.

Selecting the playback modes Applicable under <HEAD MODE> only. You can select one of the following playback modes at a time.

REPEAT RPT OFF ONE RPT ALL RPT Cancels repeat playback. Functions the same as “Repeat One” of the iPod. Functions the same as “Repeat All” of the iPod.

RANDOM RND OFF Cancels random playback. Functions the same as “Shuffle SONG RND Songs” of the iPod. Functions the same as “Shuffle ALBUM RND Albums” of the iPod.

“ALBUM RND” is not applicable for some iPod/ iPhone.

iPod/iPhone application You can operate JVC original application with this unit in <APP MODE>. For more details, visit JVC website: <http://www3.jvckenwood.com/ english/car/index.html> (English website only).

2 Select the desired list.

PLAYLISTS)ARTISTS)ALBUMS)SONGS) PODCASTS)GENRES)COMPOSERS) AUDIOBOOKS) (back to the beginning) ENGLISH |ޓ9 KD-X50BT_E_EN

Quick Search Quick Search If you have many folders/tracks/contacts, you can search through them quickly according to the first character (A to Z, 0 to 9 and OTHERS).

Select the desired list.

2 Select the desired character (A to Z, 0 to 9 and OTHERS).

3 Select your desired folder/track/contact.

For USB and iPod/iPhone, repeat step 3 until the desired track is selected. Searching may not work on some of the layers of the selected menu (for iPod/iPhone). “OTHERS” appears if the first character is not A to Z or 0 to 9, such as #, -, !, etc.

External components You can connect an external component to the AUX (auxiliary) input jack on the control panel. For details, refer also to the instructions supplied with the external components. .

Playing an external component from AUX 3.5 mm stereo mini plug (not supplied)

1 Connect to AUX on the control panel. 2 Select <AUX IN>.

3 Turn on the connected component and start playing the source.

By connecting the supplied KS-UBT1 USB Bluetooth Adapter and microphone to this unit, you can operate a Bluetooth device using this unit. Refer to the “Installation/Connection Manual” for details on connecting the microphone. Once the USB Bluetooth Adapter is attached, this unit is always available for pairing. Refer also to the instructions supplied with the Bluetooth device. Refer to the separate appendix to check the countries where Microphone KS-UBT1 you may use the Bluetooth function. If you turn off the unit or unplug the USB Bluetooth Adapter during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your mobile phone. This unit supports the following Bluetooth profiles Hands-Free Profile (HFP 1.5) Object Push Profile (OPP 1.1) Phonebook Access Profile (PBAP 1.0) Advanced Audio Distribution Profile (A2DP 1.2) Audio/Video Remote Control Profile (AVRCP 1.3)

Warning: Stop the car in a safe place before operating complicated steps such as dialing numbers, using phonebook, etc.

Pairing a Bluetooth device When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device. Up to five Bluetooth devices can be registered in this unit. A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. This unit supports Secure Simple Pairing (SSP).

1 Connect the USB Bluetooth adapter (KS-UBT1) to one of the USB input terminals.

USB cable from the rear of the unit 2 Search and select “JVC Unit” on the Bluetooth device. “BT PAIRING” flashes on the display. For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

ENGLISH |ޓ11 KD-X50BT_E_EN

Bluetooth姞 connection 3 Perform (A) or (B) depending on what scrolls on the display. For some Bluetooth devices, pairing sequence may vary from the steps described below (A) If “[Device Name]”#“XXXXXX”# (B) If “[Device Name]”#“VOL – YES”# “BACK – NO” scrolls on the display, “VOL – YES”#“BACK – NO” scrolls on the display, Select “YES” to start the pairing. “XXXXXX” is a 6-digit passkey randomly generated during each pairing.

Ensure that the passkey which appears on the unit and Bluetooth device is the same. Select “YES” to confirm the passkey.

(1) If “PAIRING”#“PIN 0000” scrolls on the display, enter the PIN code “0000” into the Bluetooth device.

You can change to a desired PIN code before pairing. (' page 22)

(2) If only “PAIRING” appears, operate the Bluetooth device to confirm pairing.

Operate the Bluetooth device to confirm the passkey.

After pairing is successful, “PAIRING COMPLETED” appears on the display. The unit will establish a connection with the newly paired Bluetooth device, “” lights up on the display and you can now control the Bluetooth device through the unit.

“” will light up when a phone is connected. “” will light up when an audio device is connected. Once the connection is established, the device is registered to the unit and there is no need to perform the pairing again unless you delete the registered device. Some Bluetooth devices may not be able to connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.

Connecting/Disconnecting a registered device manually To connect 1

2 Select <DISCONNECT>. -<BLUETOOTH> -<PHONE>/<AUDIO> -<DISCONNECT>

3 Select the desired device.

3 Select the desired device.

“CONNECTING”#“[Device Name]” scrolls on the display when the unit is connecting to the device. “CONNECTED”#“[Device Name]” scrolls on the display when the device is connected.

“DISCONNECT”#“[Device Name]” scrolls on the display when the device is disconnected.

4 Press MENU to exit.

4 Press MENU to exit.

12 |ޓENGLISH KD-X50BT_E_EN

Connecting to JVC original application JVC original application is designed to view JVC car receiver status and perform simple control operations on Android smart phones. For JVC original application operations, visit JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only).

Deleting a registered device 1

2 Select <DELETE YES>. -<BLUETOOTH> -<DELETE PAIR> - [Device name] -<DELETE YES> “DELETED” appears when the device is deleted.

3 Press MENU to exit. 2 Select <CONNECT>. -<BLUETOOTH> -<APPLICATION> -<CONNECT>

3 Select the desired smart phone.

“CONNECTED”#“[Device Name]” scrolls on the display when the device is connected.

4 Press MENU to exit.

Bluetooth mobile phone Receiving a call To end a call

To receive a call When there is an incoming call, the source automatically changes to “BT FRONT”/“BT REAR”. “RECEIVING” appears on the display, followed by the phone number or name. The display flashes in blue. (' page 16)

You can also press and hold ////SOURCE on the remote control to end a call.

To deactivate/activate hands-free mode

During a phone conversation... You can also press ////SOURCE on the remote control to answer a call. When <AUTO ANSWER> is set to <ON>, the unit answers incoming calls automatically. (' page 16)

Operations may vary according to the connected Bluetooth device.

ENGLISH |ޓ13 KD-X50BT_E_EN

Bluetooth mobile phone Adjustments during a call Phone volume(00 — 50) [VOLUME 15]: Volume adjustments made during a call will not affect the other sources. Microphone level (01— 03)[02]: As the number increases, the microphone becomes more sensitive.

Text message notification When a text message is received, the unit rings and “RCV MESSAGE”#“[Device name]” appears. <MSG NOTICE> must be set to <ON>. (' page 16) You cannot read, edit, or send a message through the unit.

Noise Reduction and Echo Cancellation mode: Turns on/off.

Switching between two connected mobile phones When two mobile phones are connected to the unit, you can access to both “Hands-Free” menus.

Press to enter 1st phone’s “Hands-Free” menu. Press twice to enter 2nd phone’s “Hands-Free” menu. Press to return to 1st phone’s “Hands-Free” menu.

Making a call from the hands-free menu 1 Enter the “Hands-Free” menu.

2 Select a calling method. Refer to the table below for options.

3 Select and call the contact (name/phone number).

DIALED Select the name/phone number

RECEIVED MISSED CALL PHONEBOOK DIAL NUMBER If the phonebook contains many numbers, you can fast search for the desired number by turning the control dial quickly, or use Quick Search (' page 10). “NO HISTORY” appears if there is no recorded call history. “NO DATA” appears if no entries are found in the Bluetooth device’s phonebook. “SEND P.BOOK MANUALLY” appears if <P.BOOK SEL> is set to <P.BOOK IN UNIT> or the phone does not support PBAP. (' page 16) Enter the phone number to dial. Call Select number/character Move the entry position

Bluetooth mobile phone

Using voice recognition You can use the voice recognition features of the connected phone through this unit. “NOT SUPPORT” appears if the connected phone does not support this feature.

Deleting a contact (name/ phone number) Only when <P.BOOK SEL> is set to <P.BOOK IN UNIT>. (' page 16)

1 Enter the “Hands-Free” menu.

1 Enter voice recognition mode. If only one phone is connected,

2 Select a call method. -<DIALED>/ <RECEIVED>/ <MISSED CALL>/ <PHONEBOOK>

If two phones are connected, Select the desired phone Enter “phone list”

2 When “WAIT VOICE”#“[Device Name]” scrolls on the display, speak the name of the contact you want to call or the voice command to control the phone functions. Supported voice recognition features vary for each phone. Please refer to the instruction manual of the connected phone for details.

3 Select the contact (name/phone number) to be deleted. Name Phone Number or

4 Enter “Delete Entries” menu. (Hold)

5 Select <DELETE> or <DELETE ALL>.

DELETE Selected name/phone number from step 3 is deleted.

DELETE ALL All name/phone numbers from selected menu in step 2 are deleted.

ENGLISH |ޓ15 KD-X50BT_E_EN

3 Repeat this step to perform the necessary settings.

2 Select <SETTINGS>.

To return to the previous menu, press . To exit from the menu, press MENU.

The following settings are applicable to the paired device. If another device is paired, perform the settings again. Menu item

Selectable setting (Initial: [XX])

[PB IN PHONE]: The unit browses the phonebook of the connected phone. PB IN UNIT: The unit browses the phonebook registered in the unit. (You can copy the phonebook memory using <P.BOOK WAIT> (' page 22).)

AUTO ANSWER ON: The unit answers incoming calls automatically. [OFF]: The unit does not answer incoming calls automatically.

[IN UNIT]: The unit rings to alert you when a call/text message comes in. – CALL: Select your preferred ring tone (TONE 1 — 5) for incoming calls. – MESSAGE: Select your preferred ring tone (TONE 1 — 5) for incoming text messages. Default ring tone is different according to the paired device. IN PHONE: The unit uses the connected phones’ ring tone to alert you when a call/text message comes in. (The connected phone will ring if it does not support this feature.)

RING COLOR COLOR 01 — 29[06]: Select your preferred color for incoming call/text message alerts. OFF: Cancels.

[ON]: Turns on the Noise Reduction and Echo Cancellation of the connected microphone for clearer sound. OFF: Cancels.

(01— 03)[02]: The sensitivity of the microphone increases as the MIC level is increased.

[ON]: The unit rings and “RCV MESSAGE”#“[Device Name]” appears to alert you of an incoming text message. OFF: The unit does not alert you of an incoming text message.

* Selectable only when the connected phone supports PBAP.

16 |ޓENGLISH KD-X50BT_E_EN

Bluetooth audio player

Bluetooth audio player

Playing a Bluetooth audio player

A Select <BT REAR> or <BT FRONT> depending on the location of the USB Bluetooth adapter KS-UBT1.

Operate the Bluetooth audio player to start playback.

Operations and display indications may differ according to their availability on the connected device.

Basic operations Starts or resumes playback.

Selecting the playback modes For Bluetooth devices that support AVRCP 1.3.

2 Selects group/folder.

Reverse skips or forward skips. (Press) Fast-forwards or reverses the track. (Hold)

REPEAT RPT OFF Cancels repeat playback.

TRACK RPT Repeats current track.

ALL RPT Repeats all tracks.

GROUP RPT Repeats all tracks of the current group.

RANDOM RND OFF Cancels random playback.

ALL RND Randomly plays all tracks.

GROUP RND Randomly plays all tracks of the current group.

ENGLISH |ޓ17 KD-X50BT_E_EN

Illumination color adjustments All zone

All zone: Includes both Button zone and Display zone.

Selecting the preset color

Storing your own adjustments

You can select a preset color for <BUTTON ZONE>, <DISP ZONE>, and <ALL ZONE> separately.

You can store your own day and night colors for <BUTTON ZONE> and <DISP ZONE> separately.

BUTTON ZONE DAY COLOR DISP ZONE Initial color: BUTTON ZONE [06], DISP ZONE [01], ALL ZONE [06]. If <ALL ZONE> is selected, the button and display illumination will change to the current/ selected <BUTTON ZONE> color.

4 Press MENU to exit.

BUTTON ZONE NIGHT COLOR DISP ZONE ON MENU COLOR OFF Select a primary color <RED/GREEN/ BLUE>, and then adjust the level <00-31>. Repeat this procedure until you have adjusted all the three primary colors. Your adjustment is automatically stored to “USER”. If “00” is selected for all the primary colors for <DISP ZONE>, nothing appears on the display.

Changes the display and buttons illumination during menu, list search, and playback mode operations.

NIGHT COLOR/DAY COLOR is changed by turning on/off your car’s headlight.

4 Press MENU to exit. 18 |ޓENGLISH KD-X50BT_E_EN

Brightness adjustments

Brightness adjustments

You can select your preferred brightness for <BUTTON ZONE>, <DISP ZONE> separately.

BUTTON ZONE BUTTON 00 to 31

DISP ZONE DISP 00 to 31

4 Press MENU to exit.

Sound adjustments This unit memorizes sound settings adjusted for each individual source.

Selecting the preset sound You can select a preset sound mode, for each individual source, suitable for the music genre.

2 - - - - - - - - or - - - - - - - Press repeatedly.

DYNAMIC-VOCAL BOOST-BASS BOOSTUSER-FLAT-NATURAL-(back to the beginning)

Storing your own adjustments While listening, you can adjust and store the tone level for each individual source.

Adjust the sound elements of the selected tone. BASS Frequency

[Q1.0]/Q1.25/Q1.5/Q2.0 0.5/[1.0]/1.5/2.5 kHz

Q Q0.75/Q1.0/[Q1.25]

4 Repeat steps 2 and 3 to adjust other tones.

The adjustments are stored and <USER> is activated.

The adjustments are stored and <USER> is activated.

5 Press MENU to exit. * Available only when <L/O MODE> is set to <SUB.W>. (' page 21) ** Available only when <HPF> is set to <OFF>. (' page 21) ENGLISH |ޓ19

Menu operations Menu operations 1

3 Repeat step 2 if necessary.

If no operation is done for about 60 seconds, the operation will be canceled.

Selectable setting (Initial: [XX]) For settings, ' page 3.

[AUTO]: The built-in clock is synchronized with the clock data received from the FM Radio Data System station. OFF: Cancels. For settings, ' page 18. Selects the display and button illumination adjusted in the <BRIGHTNESS>/ <COLOR SETUP> setting. [AUTO]: Changes between the Day and Night adjustments when you turn off/on the car headlights. *2 ON: Selects the Night adjustments. OFF: Selects the Day adjustments. DAY[31]/NIGHT[11]: Brightness settings for the display and button illumination for day and night. BUTTON ZONE/DISP ZONE: Sets the brightness levels 00 — 31. [ONCE]: Scrolls the display information once. AUTO: Repeats scrolling (at 5-second intervals). OFF: Cancels. [ON]: Shows the TAG information while playing MP3/WMA tracks. OFF: Cancels. For settings, ' page 19. R06 — F06[00]: Adjusts the front and rear speaker output balance. L06 — R06[00]: Adjusts the left and right speaker output balance. ON: Boosts low and high frequencies to produce a well-balanced sound at a low volume level. [OFF]: Cancels. -05 — +05[00]: Presets the volume adjustment level of each source, compared to the FM volume level. Before adjustment, select the source you want to adjust. (“VOL ADJ FIX” appears if “FM” is selected.)

Takes effect only when clock data is received. The illumination control lead connection is required. (See “Installation/Connection Manual”.) This setting may not work correctly on some vehicles (particularly on those having a control dial for dimming). In this case, change the setting to other than <DIMMER AUTO>. Some characters or symbols will not be shown correctly (or will be blanked) on the display. If you are using a two-speaker system, set the fader level to “00”. This adjustment will not affect the subwoofer output.

20 |ޓENGLISH KD-X50BT_E_EN

AUDIO L/O MODE (Line output mode) SUB. W *6 (Subwoofer) SUB.W LPF *7 (Subwoofer lowpass filter) SUB.W LEVEL *7 (Subwoofer level) HPF *7 (High-pass filter)

TUNER BEEP (Keytouch tone) AMP GAIN *8 (Amplifier gain) SSM AF-REG *9 NEWS-STBY *9 (News standby) P-SEARCH *9 (Programme search) MONO (Monaural mode) IF BAND (Intermediate frequency band) RADIO TIMER *6 *7 *8 *9

Selectable setting (Initial: [XX]) Select if the REAR/SW terminals are used for connecting the speakers or subwoofer (through an external amplifier). SUB.W: Subwoofer [REAR]: Speakers OFF: Cancels. [ON]: Turns on the subwoofer output. LOW 55Hz/MID 85Hz/[HIGH 120Hz]: Audio signals with frequencies lower than 55 Hz/85 Hz/120 Hz are sent to the subwoofer. 00 — 08[08]: Adjusts the subwoofer output level. ON: Activates the High Pass Filter. Low frequency signals are cut off from the front/rear speakers. [OFF]: Deactivates. (All signals are sent to the front/rear speakers.) [ON]/OFF: Activates or deactivates the keypress tone. LOW POWER: VOLUME 00 — VOLUME 30 (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) [HIGH POWER]: VOLUME 00 — VOLUME 50 For settings, ' page 6. (Displayed only when the source is “FM”.) For settings, ' page 7. ON/[OFF]: Activates or deactivates NEWS Standby Reception. (Displayed only when the source is “FM”.) (' page 7) SEARCH ON/[SEARCH OFF]: Activates Programme Search (if <AF-REG> is set to <AF ON> or <AF-REG ON>) or deactivates. Displayed only when the source is “FM”. [OFF]: Enables stereo FM reception. ON: Improves the FM reception but stereo effect will be lost. [AUTO]: Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) WIDE: Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain. For settings, ' page 6.

Displayed only when <L/O MODE> is set to <SUB.W>. Displayed only when <SUB.W> is set to <ON>. The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the volume level set to higher than “VOLUME 30”. Only for FM Radio Data System stations.

ENGLISH |ޓ21 KD-X50BT_E_EN

DELETE PAIR P. BOOK WAIT SET PINCODE AUTO CNNCT INITIALIZE SRC SELECT INFORMATION AM *15 AUX IN *15 BT AUDIO *16

SOFT VER Selectable setting (Initial: [XX]) DRIVECHANGE: Selects to change the drive when a device with multiple drives is connected to the USB input terminal (front/rear). [HEAD MODE]/IPOD MODE/APP MODE: For settings, ' page 9. NORMAL/FASTER/SLOWER: Selects the playback speed of the Audiobooks sound file in your iPod/iPhone. Initial selection depends on your iPod/iPhone setting. CONNECT/DISCONNECT: Connects or disconnects the Bluetooth phone/ audio device. (' page 12) CONNECT/DISCONNECT: Connects or disconnects the application in the smart phone. (' page 13) For settings, ' page 13. Copies up to 400 numbers from the phonebook memory of a connected phone to the unit via OPP. Changes the PIN code (1 to 6-digits). (Default PIN code: 0000) Turn the control dial to select a number, press / to move to the entry position. After entering the PIN code, press the control dial to confirm. [ON]: Establishes connection automatically with the Bluetooth device when the unit is turned on. OFF: Cancels. YES: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). [NO]: Cancels. PH CNNT DEV/AU CNNT DEV/APP CNT DEV *14: Displays connected phone/audio/application device name. MY BT NAME: Displays the unit name (JVC Unit). MY ADDRESS: Shows address of USB Bluetooth Adapter. [ON]/OFF: Enables or disables “AM” in source selection. [AUX ON]/AUX OFF: Enables or disables “AUX IN” in source selection. [BT AU ON]/BT AU OFF: Enables or disables “BT AUDIO” in source selection. Displays the firmware version of the unit.

*10 Displayed only when the source is “USB FRONT/USB REAR”. *11 Displayed only when the source is “IPOD-FRONT/IPOD-REAR”. *12 If the USB Bluetooth Adapter is not connected to the unit, “PLEASE CNNT BT ADAPTER” scrolls on the display. *13 <CONNECT> will not be displayed if two Bluetooth phones are connected at the same time. *14 Displayed only when a Bluetooth phone/audio player/application is connected. *15 Displayed only when the unit is in any source other than the corresponding source “AM/AUX IN”. *16 Displayed only when the USB Bluetooth Adapter (KS-UBT1) is attached and current source is not “BT FRONT/ BT REAR”.

22 |ޓENGLISH KD-X50BT_E_EN

Additional information

Additional information

About audio files Playable files

File extensions: MP3(.mp3), WMA(.wma), WAV(.wav) Bit rate: MP3 (MPEG-1): 32 kbps - 320 kbps MP3 (MPEG-2): 8 kbps - 160 kbps WMA: 5 kbps - 320 kbps WAV: Linear PCM at 705 kbps and 1 411 kbps Sampling frequency: MP3 (MPEG-1): 32 kHz, 44.1 kHz, 48 kHz MP3 (MPEG-2): 16 kHz, 22.05 kHz, 24 kHz WMA: 8 kHz - 48 kHz WAV: 44.1 kHz Channel: WMA/WAV: 1 ch/2 ch Variable bit rate (VBR) files. (The elapsed time for VBR files will not be displayed correctly.)

MP3 files: - encoded in MP3i and MP3 PRO format - encoded in an inappropriate format - encoded with Layer 1/2 WMA files: - encoded in lossless, professional, and voice format - not based upon Windows Media® Audio - copy-protected with DRM Files which include data such as AIFF, ATRAC3, etc.

This unit supports files/folder names recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet, and the proper extension code <.mp3>, <.wma> or <.wav>.

This unit can show WMA Tag and ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3). The search function works but search speed is not constant.

When connecting a USB cable, use the USB 2.0 cable. You cannot connect a computer or portable HDD to the USB input terminal of the unit. Connect only one USB device to the unit at a time. Do not use a USB hub. USB devices equipped with special functions such as data security functions cannot be used with the unit. Do not use a USB device with 2 or more partitions. This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. This unit may not recognize a memory card inserted into the USB card reader. This unit may not play back files in a USB device properly when using a USB extension cord. Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose. Operation and power supply may not work as intended for some USB devices. The maximum number of characters for: – Folder names: 25 characters – File names: 25 characters – MP3 Tag: 128 characters – WMA Tag: 128 characters – WAV Tag: 128 characters This unit can recognize a total of 20000 files, 2000 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies. However, the display can only show until 999 folders/files.

Do not pull out and attach the USB device repeatedly while “READING” is shown on the display. Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device. Do not leave a USB device in the car, expose to direct sunlight, or high temperature. Failure to do so may result in deformation or cause damages to the device.

ENGLISH |ޓ23 KD-X50BT_E_EN

Additional information

iPod/iPhone that can be connected to this unit: - iPod touch (4th generation) - iPod touch (3rd generation) - iPod touch (2nd generation) - iPod touch (1st generation) - iPod classic - iPod with video (5th generation)* - iPod nano (6th generation) - iPod nano (5th generation) - iPod nano (4th generation) - iPod nano (3rd generation) - iPod nano (2nd generation) - iPod nano (1st generation)* - iPhone 4S - iPhone 4 - iPhone 3GS - iPhone 3G - iPhone *<IPOD MODE>/<APP MODE> are not applicable. It is not possible to browse video files on the “Videos” menu in <HEAD MODE>. The song order displayed on the selection menu of this unit may differ from that of the iPod. When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only).

Trademark and license notice

Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit. This unit may not work with some Bluetooth devices. Signal conditions vary, depending on the surroundings. When the unit is turned off, the device is disconnected. For more information about Bluetooth, visit the following JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only)

24 |ޓENGLISH KD-X50BT_E_EN

Troubleshooting Symptom 4 General No sound, sound interrupted or static noise.

“MISWIRING CHK WIRING THEN RESET UNIT”/“WARNING CHK WIRING THEN RESET UNIT” appears on the display and no operations can be done. The unit does not work at all. Source cannot be selected. The correct characters are not displayed (e.g. album name). 4 FM/AM SSM automatic presetting does not work. 4 USB/iPod/iPhone “READING” keeps flashing on the display. Tracks/folders are not played back in the order you have intended. “NO FILE” appears on the display. “NOT SUPPORT” appears on the display and track skips. “CANNOT PLAY” flashes on the display. The unit cannot detect the connected device.

Troubleshooting Remedy/Cause Check the cords, aerial and cable connections. Check the condition of the connected device and recorded tracks. Ensure to use the recommended stereo mini plug when connecting to an external component. (' page 10) Ensure the terminals of the speaker leads are properly insulated with tape before resetting the unit. (' page 2) If the message does not disappear, consult your JVC car audio dealer or kits supplying company.

Reset the unit. (' page 2) Check the <SRC SELECT> setting. (' page 22) This unit can only display letters (upper case), numbers, and a limited number of symbols. Store stations manually.

A longer readout time is required. Do not use too many hierarchical levels and folders. Reattach the USB device. The playback order is determined by the file name.

Check whether the selected folder, the connected USB device, or the iPod/iPhone contains a playable file. Check whether the track is a playable file format.

The iPod/iPhone does not turn on or does not work.

Check whether the connected device is compatible with this unit. (USB: ' page 27) (iPod/iPhone: ' page 24) Ensure that the device contains files in the supported formats. (' page 23) Reattach the device. Check the connection between this unit and iPod/iPhone. Detach and reset the iPod/iPhone using hard reset. For details on resetting the iPod/iPhone, refer to the instruction manual supplied with the iPod/iPhone. Check whether <IPOD SWITCH> setting is appropriate. (' page 9)

ENGLISH |ޓ25 KD-X50BT_E_EN

Troubleshooting Symptom 4 Bluetooth “BT FRONT”/“BT REAR” cannot be selected. No Bluetooth device is detected. Pairing cannot be made.

“PAIRING FULL” scrolls on the display when trying to perform pairing. Echo or noise occurs.

Phone sound quality is poor.

The unit does not respond when you try to copy the phonebook to the unit. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

The connected Bluetooth audio player cannot be controlled.

“VOICE” calling method is not successful.

“NOT SUPPORT” appears when trying to perform voice dial. “ERROR CNNCT” appears on the display. “ERROR” appears on the display. “PLEASE WAIT” appears on the display. “HW ERROR” appears on the display. “BT DEVICE NOT FOUND” appears on the display.

Remedy/Cause Check <BT AUDIO> in the <SRC SELECT> setting. (' page 22) Search from the Bluetooth device again. Reset the unit. (' page 2) Make sure you have entered the same PIN code to both the unit and Bluetooth device. Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. You have already registered the maximum of five Bluetooth devices in the unit. To pair another device, delete an existing paired device from the unit first. (' page 13) Adjust the microphone unit’s position. Adjust <NR/EC MODE> and <MIC LEVEL> to a better combination. (' page 16) Reduce the distance between the unit and the Bluetooth device. Move the car to a place where you can get a better signal reception. You may have tried to copy the same entries (as stored) to the unit. Press DISP or to exit.

Reduce the distance between the unit and the Bluetooth audio player. Turn off, then turn on the unit and try to connect again. Other Bluetooth devices might be trying to connect to the unit. Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) Disconnect and connect the Bluetooth player again. Use “VOICE” calling method in a more quiet environment. Reduce the distance from the microphone when you speak the name. Change “NR/EC MODE” to “OFF” (' page 16), then try again. The connected phone does not support this feature.

The device is registered but the connection has failed. Connect the device manually. (' page 12) Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit). (' page 2) Reset the unit and try the operation again. If “HW ERROR” appears again, consult your nearest JVC car audio dealer. The unit failed to search for the registered Bluetooth devices during Auto Connect. Turn on Bluetooth from your device and connect manually.

26 |ޓENGLISH KD-X50BT_E_EN

AUDIO AMPLIFIER SECTION Maximum Power Output Continuous Power Output (RMS) Load Impedance Frequency Response Signal-to-Noise Ratio Line-Out, Subwoofer-Out Level/Impedance Output Impedance

50 W per channel 20 W per channel into 4Ω, 40 Hz to 20 000 Hz at less than 1% total harmonic distortion. 4Ω (4Ω to 8Ω allowance) 40 Hz to 20 000 Hz 80 dB 2.5 V/20 kΩ load (full scale) ≤ 600Ω

TUNER SECTION FM AM Frequency Range Usable Sensitivity 50 dB Quieting Sensitivity Alternate Channel Selectivity (400 kHz) Frequency Response Stereo Separation Frequency Range Sensitivity/Selectivity

87.5 MHz to 108.0 MHz 9.3 dBf (0.8 μV/75Ω) 16.3 dBf (1.8 μV/75Ω) 65 dB 40 Hz to 15 000 Hz 40 dB MW: 531 kHz to 1 611 kHz LW: 153 kHz to 279 kHz

MW: 20 μV/40 dB, LW: 50 μV USB SECTION USB Standard Data Transfer Rate (Full Speed) Compatible Device Compatible File System Playable Audio Format Maximum Supply Current

USB 1.1, USB 2.0 Max. 12 Mbps Mass storage class FAT 32/16/12

MP3/WMA/WAV DC 5 V " 1 A BLUETOOTH SECTION Version Power Class Service Area Profile

Bluetooth 2.1 certified (+EDR) Class 2 Radio 10 m HFP 1.5, OPP 1.1, A2DP 1.2, AVRCP 1.3, PBAP 1.0

GENERAL Power Requirement (Operating Voltage) Grounding System Allowable Operating Temperature Dimensions Installation Size (W × H × D) Panel Size Mass

DC 14.4 V (11 V to 16 V allowance) Negative ground 0°C to +40°C approx. 182 mm × 52 mm × 158 mm approx. 188 mm × 59 mm × 15 mm 0.9 kJ (excluding accessories)

Subject to changes without notice.

ENGLISH |ޓ27 KD-X50BT_E_EN

Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à la page intitulée Comment réinitialiser votre appareil

EN, FR © 2011 JVC KENWOOD Corporation
