Product Type	Alcohol Tester
Model	INN-009
Brand	Innoliving
Power Supply	2 x AAA batteries (1.5V)
Sensor Type	Semiconductor gas sensor
Display	LCD with numeric and icon indicators
Warm-Up Time	10 seconds
Measurement Range	0.00 to 0.50% BAC (approximately)
Alcohol Classification	Safety (<0.02% BAC), Caution (0.02-0.05% BAC), Danger (>0.05% BAC)
Audio Warning	For BAC ≥0.05% (0.5 g/l)
Visual Warning	Caution icon for BAC >0.02%
Automatic Shutdown	After 8 seconds of result display
Battery Low Indicator	"LO" symbol on LCD
Recommended Waiting Time After Drinking	45 minutes
Minimum Interval Between Tests	60 seconds
Dimensions (approx.)	100 x 50 x 20 mm
Weight (approx., without batteries)	50 g
Certifications	CE, WEEE
Country of Origin	China
Storage Conditions	Dry place, away from heat, out of children's reach
Cleaning Instructions	Do not use chemicals; wipe with dry cloth
Safety Notes	Avoid shock, drop, moisture, smoking environment

Frequently Asked Questions - INN-009 Innoliving

How accurate is the Innoliving INN-009 alcohol tester?

The INN-009 is for personal reference only. It uses a semiconductor sensor and can be affected by environmental factors and time since drinking. Accuracy is not guaranteed for legal purposes.

How do I use the INN-009 alcohol tester?

Press the ON/OFF button, wait for the 10-second warm-up (countdown on LCD), then blow into the gas entry from within 3 cm. The result appears for 8 seconds, then the device shuts off automatically.

What does the 'LO' symbol mean?

The 'LO' symbol indicates low battery. Replace the batteries with 2 new AAA batteries, observing correct polarity.

How long should I wait after drinking before testing?

It is recommended to wait at least 45 minutes after your last drink for a more accurate reading, as the body needs about 45 minutes to absorb alcohol.

Can I use the device in a smoking environment?

No, smoking environments can alter the measurement. Avoid using in windy or crowded areas with high smoke concentration.

How do I clean the alcohol tester?

Do not use any cleaning agents. Wipe the exterior with a dry cloth. Keep the breath pipe away from liquids.

What do the warnings 'Caution' and 'Danger' mean?

'Caution' appears for BAC >0.02% and <0.05% BAC; 'Danger' appears for BAC ≥0.05% BAC with an audio warning.

How do I replace the batteries?

Slide open the battery compartment, remove old batteries, insert 2 new AAA batteries following the polarity markings, and close the cover.

Is the INN-009 legal for driving decisions?

No, this device is for personal reference only. It does not replace official breathalyzers and should not be used to determine if it is safe to drive.

How should I store the alcohol tester when not in use?

Store in a dry place away from heated surfaces, direct sunlight, and out of reach of children. Remove batteries if not used for a long period.

USER MANUAL INN-009 Innoliving

innoliving easy tech, easy life

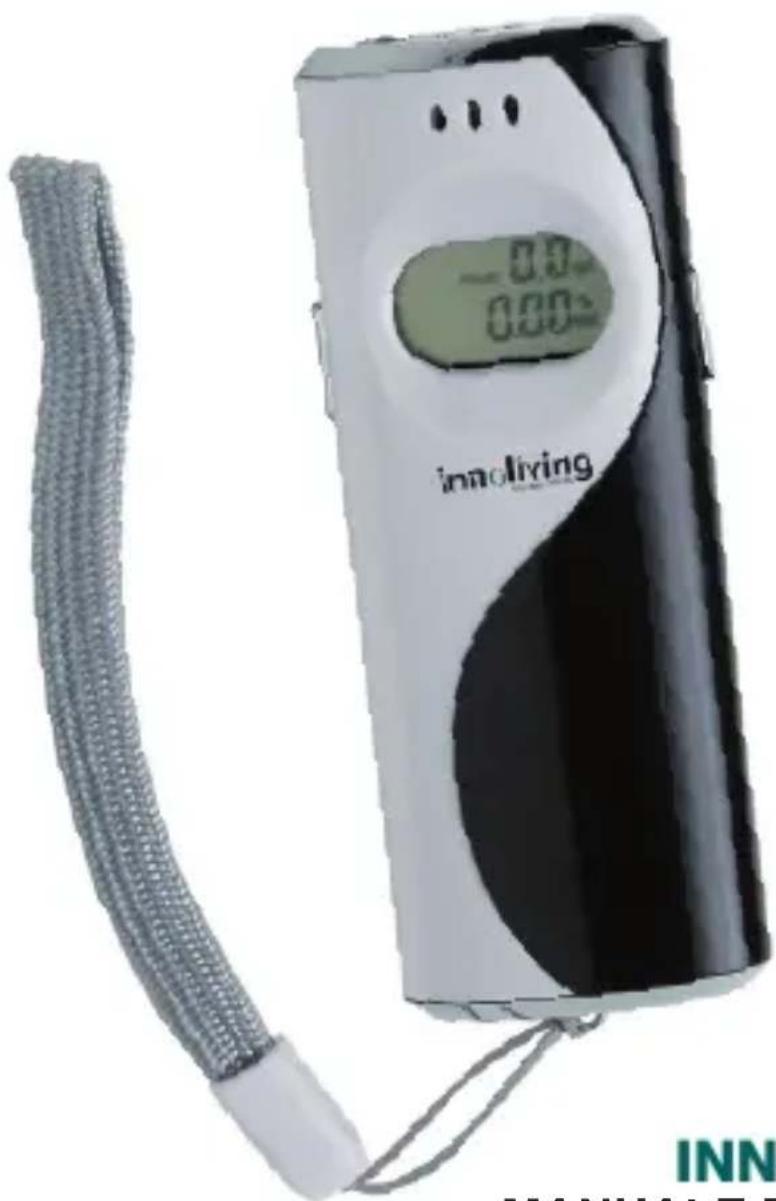

ALCOHOL TESTER

INN-009

MANUALE D'USO

USER MANUAL

ALCOHOL TESTER

|

MANUALE D'ISTRUZIONE

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Congratulations on purchasing Innoliving Alcohol Tester model INN-009 an accurate and reliable product. For the limits of alcoholic rate of various countries, please refer to the internal laws.

WARNINGS

The tester provides you with information to determine your blood alcohol level at the same time you use the test. Blood alcohol concentration changes as time passes and measurement may be affected by environmental conditions.

This product is designed to be used as reference only in order to promote a responsible and safe driving. It doesn't replace or exclude possible tests conducted by competent authorities, which can have different readings. The tester readings have no legal value and do not relieve any individual responsibility. You should not rely upon it as the sole basis to determine intoxication or whether it is safe to drive a vehicle, operate equipment, or engage in dangerous activities. Innoliving Srl is not liable for the improper use of this product for any reason.

IMPORTANT SAFETY INSTRUCTIONS

• Before using the product, please read carefully this instruction manual.
• Use the device only for its intended purpose.
• In case of doubts, do not use the product but address to specialised centres.
• Store the product away from heated surfaces, from direc sunlight, dampness and sharp objects.
• Do not use any excitant substances near the tester, such as paint, insecticides, alcohols.
• Do not use chemicals to clean the tester directly.
• In case the product is not used for a long period, it is advisable to remove batteries.
• Never try to repair the product by yourself but always address to specialised centres.

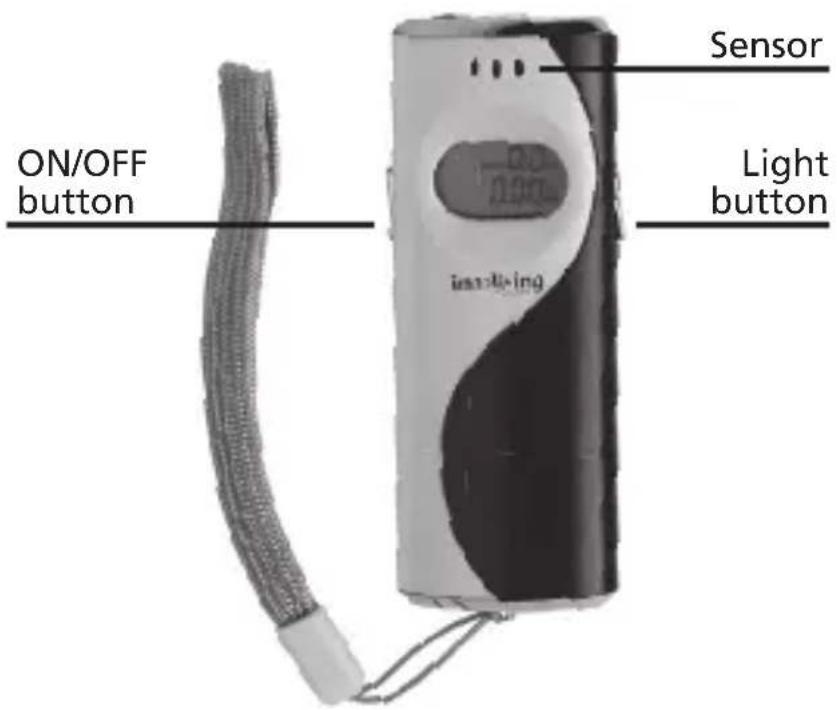

FEATURES

INDICATION

0.00 g/l= breathed alcohol content

Warm up= warming, please wait

Blow= ready to test, please blow

Classification of alcohol concentration:

Safety: < 0,02% BAC

Caution: > 0,02% BAC; < 0,05% BAC

Danger: > 0,05% BAC

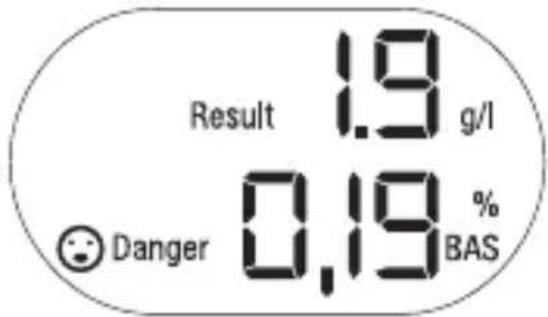

If you are in excessive drink, the tester would give audio warming for values equal/greater than 0,5g/l and LCD shows up "Danger" and an icon, please see below:

Danger

The tester would give visual warning for values greater than 0,2g showing up "Caution" and an icon.

BEFORE STARTING USING THE PRODUCT

Slide down to open the battery compartment. Insert batteries and close it carefully; please note the correct polarity direction in the battery compartment, otherwise, you may damage the unit.

To ensure an accurate and not altered testing result it is advisable not to smoke, eat menthol candies, chocolate and take medicines. Moreover, please avoid using the product if there is too much wind or in crowded environments, where generally there is a high smoke concentration.

Keep the unit way from all liquids and store in a safe place. Do not wipe it with any clearing agent.

WHEN TO USE THE PRODUCT

In order to get the more reliable record as possible, it it advisable to wait about 45 minutes, from the last alcohol consumption, before measuring. As matter of fact, blood needs about 45 minutes to absorb alcohol. On the contrary, if the measuring is carried out before these 45 minutes, values can be altered in the following ways: if the measuring is carried within the first 7 minutes from the last alcohol consumption, records are very high; because mouth and oesophagus mucosa absorb alcohol partially and they need about 7 minutes to eliminate it.

On the contrary, if the measuring is carried out between 30-45 minutes after the last alcohol consumption, values can be lower since blood may need some minutes before absorbing alcohol totally.

HOW TO USE THE PRODUCT

Press the ON/OFF button, the display would switch on with a buzzer brief ringing. The writing „WARM UP“ flashes on the display and the 10 seconds initial warm-up begins, there is a countdown on the LCD from 10-0; then the writing „WARM UP“ disappears and the „BLOW“ guide you to have a testing immediately. When the „BLOW“ appears, blow into the „Gas Entry“. Please have a deep breath and breathe out directly to gas entry within 3 cm from the sensor. The measured value will be displayed for 8 seconds and at the same time you hear a buzzer ringing; then the tester will switches itself automatically off. For a new testing, please press the switch button again and repeat the above steps. For a more accurate reading, it is advisable to wait 60 sec. Between different measurements.

BATTERY REPLACEMENT

Remove the battery cover. Carefully remove the old batteries. Insert 2 new battery observing the polarity markings in the compartment. Please use new batteries of the same type and brand. Close the battery compartment.

Note: If the display shows the "LO" symbol, the battery must be replaced.

It is recommendable to remove the batteries from the product in case of long no-use.

IMPORTANT NOTES

• Avoid any strong shock and drop to keep the tester in careful package or deposit
• Store it in a dry place and away from heated surfaces.
• Do not wipe it with any cleaning agents; in case of some gas spreading, the normal testing would be disturbed.
• Store the product out of children reach.
• Never immerse the product into water or into any other liquids. Do not get the breath pipe wet.
• In case the measuring is carrying out in smoking environment, records can be altered.
• The product has been set according to the actual limit, fixed by the European community 0,5gr/l.
• Alter long time storage, if the initial alcohol level of the LCD is on high level, please switch the product on and off different times to stabilize the level at 0.00.

RATING LABEL

This item is made in conformity with all the applicable European directives.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

The batteries used in this device must be disposed of in the special bins at the end of their life.

Please inform yourself about the local rules on separate collection

of batteries.

The correct disposal of batteries helps preventing potentially negative consequences on the environment

innoliving easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel 199.188.335

www.innoliving.it

MADE IN CHINA

CE

Rev.02_04.2015
