| Product Type | Leaf Blower |
| Brand | Troy-Bilt |
| Model | TB430 |
| Engine Displacement | 30 cc |
| Power Source | Gas (2-cycle) |
| Fuel Mix Ratio | 40:1 (gas to oil) |
| Fuel Tank Capacity | 0.5 L |
| Air Volume | 450 CFM |
| Air Speed | 150 MPH |
| Weight | 10.5 lb (4.8 kg) |
| Noise Level | 75 dB(A) |
| Starting System | Primer bulb and choke |
| Handle Type | Full-wrap w/ cruise control |
| Tube Design | Straight tube with ergonomic grip |
| Spark Plug | Champion RCJ6Y or equivalent |
| Air Filter | Foam pre-cleaner and paper filter |
Frequently Asked Questions - TB430 TROY-BILT
What is the correct fuel mix for the TB430?
Use a 40:1 ratio of unleaded gasoline (87 octane or higher) to 2-cycle engine oil designed for air-cooled engines. Do not use automotive oil.

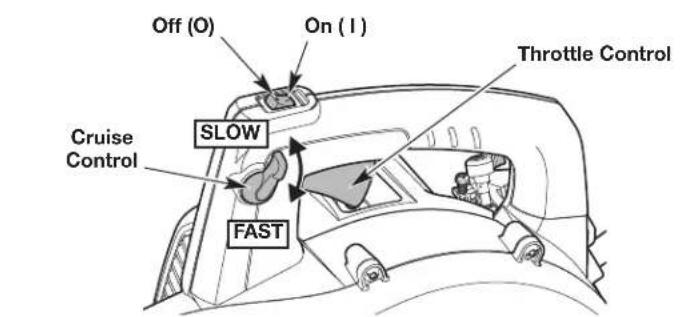

How do I start the leaf blower?

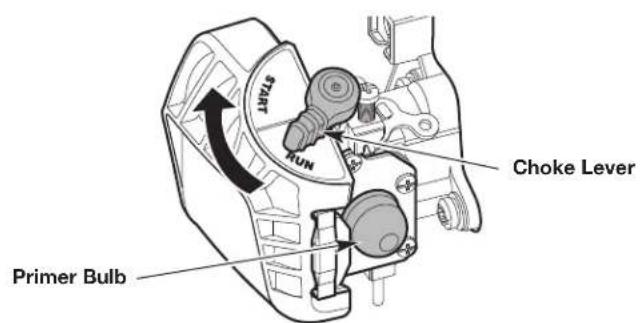

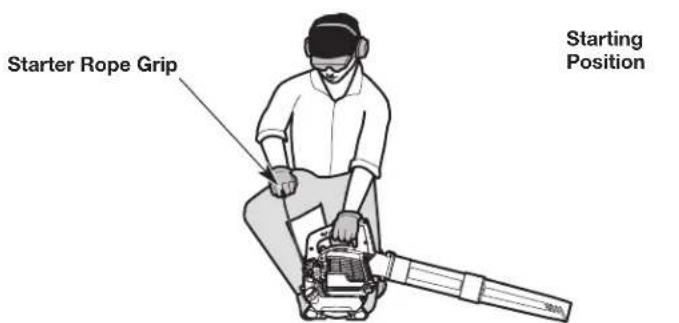

1. Fill the fuel tank with fresh fuel mix. 2. Push the primer bulb 5-7 times until fuel is visible. 3. Set the choke lever to the closed position. 4. Pull the starter rope firmly. 5. Once engine fires, open the choke and restart if needed.
Why does my TB430 stall or run poorly?
Common causes: stale fuel, clogged air filter, dirty spark plug, or improper fuel mix. Clean or replace the air filter, replace spark plug annually, and use fresh fuel.

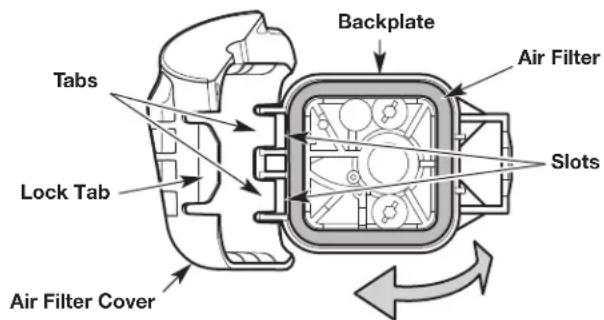

How do I clean the air filter?
Remove the air filter cover. Take out the foam pre-cleaner and wash it with warm soapy water, rinse, and let dry. Replace the paper filter if dirty. Reinstall and tighten cover.

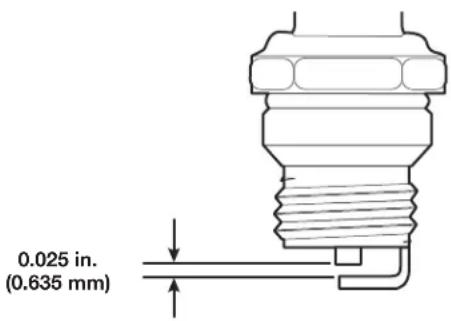

What is the recommended spark plug gap?
The spark plug gap should be set to 0.025 inches (0.635 mm). Use a feeler gauge to adjust.
How should I store the leaf blower for winter?
Drain the fuel tank and run the engine until it stops. Remove the spark plug and add a teaspoon of 2-cycle oil into the cylinder, pull the starter slowly to coat, then replace the plug. Store in a dry place.
Can I use ethanol-blended fuel?
Yes, but avoid fuel with more than 10% ethanol (E10). Higher ethanol can damage the engine. Use fuel stabilizer if storing for more than 30 days.

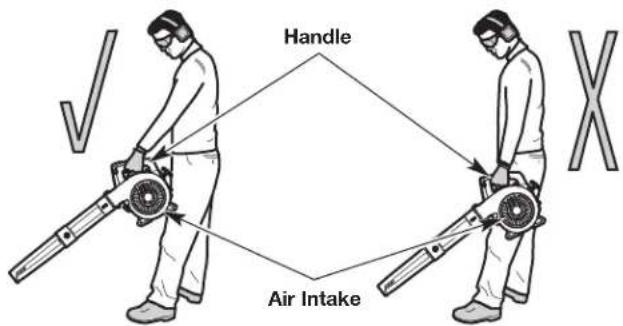

What safety precautions should I take?
Always wear safety goggles and hearing protection. Operate only outdoors. Keep hands and feet away from moving parts. Never point the blower at people or pets.
How often should I replace the spark plug?
Replace the spark plug annually or after every 100 hours of operation for optimal performance.
Where can I find replacement parts?
Replacement parts are available at Troy-Bilt dealers, online retailers, or through authorized service centers. Use genuine Troy-Bilt parts for best results.
