Product Type	Microwave Oven
Brand	Hansa
Model	AMG20E70GVH
Capacity	20 L
Turntable Diameter	245 mm
External Dimensions (H x W x D)	262 x 452 x 335 mm
Net Weight	11.3 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1200 W
Microwave Output Power	700 W
Grill Power	900 W
Operating Frequency	2450 MHz
Control Type	Electronic with LED display and rotary dial
Cooking Functions	Microwave, Grill, Combination, Defrost, Auto Cook, Quick Start
Defrost Function	Yes, by weight (100 g - 1800 g)
Child Lock	Yes
Turntable	Included (245 mm)
Rotating Trolley	Included
Grilling Rack	Included
Safety Features	Door interlock, child lock, overheat protection

Frequently Asked Questions - AMG20E70GVH Hansa

How to set the clock?

To set the clock, press the CLOCK pad, then turn the dial to set the hour (24-hour format), press CLOCK again, turn dial to set minutes, and press CLOCK to confirm.

How to use the Quick Start feature?

Press the START/QUICK START button repeatedly to set cooking time in 30-second increments (up to 10 minutes). The oven starts immediately at full power.

How to defrost food by weight?

Press the WEIGHT DEFROST pad, then touch the WEIGHT button to select food category, turn the dial to set weight (100-1800 g), and press START. Turn food over midway for even defrosting.

How to activate Child Lock?

In standby mode, press and hold the STOP/CANCEL button for 3 seconds. A beep sounds and the child lock indicator lights. To deactivate, press and hold the same button for 3 seconds again.

What materials are safe for microwave use?

Safe materials include heat-resistant glass, microwave-safe plastics, ceramic, paper plates, and parchment paper. Avoid metal, aluminum foil, and containers with metal trim. Always test cookware by heating a cup of water beside it for 1 minute.

Why does the turntable make noise?

Noise is normal if the rotating ring or oven bottom is dirty. Clean the turntable and rotating ring with soapy water. If noise persists, ensure the turntable is properly positioned.

How to clean the microwave interior?

Place half a lemon in 300 ml of water, microwave at 100% power for 10 minutes, then wipe the interior with a damp cloth. Do not use abrasive cleaners. Clean door seals and glass with mild soap.

What if the oven does not start?

Check if the power cord is plugged in securely and the outlet works. If the fuse is blown or circuit breaker tripped, replace fuse or reset breaker. If problem persists, contact Hansa service.

Can I use metal in the microwave?

No, metal containers, aluminum foil, and metal-trimmed dishes can cause arcing and fire. Use only microwave-safe materials.

How to use Auto Cook?

Turn the dial counterclockwise to select a food category (e.g., Fish, Chicken). Press the WEIGHT button to set the weight and press START. The oven automatically sets cooking time and power.

USER MANUAL AMG20E70GVH Hansa

SR UPUTSTVO ZA UPOTREBU

STIMATI DOMNI ŞI DOAMNE!

Line drawing of a plug with two leads and a socket (no text or symbols)

Warning symbol of steam inside a triangle (no text or numbers)

Line drawing of a plug with two leads and a socket (no text or symbols)

Warning symbol with steam inside a triangle (no text or numbers)

Line drawing of an electrical outlet plug with two leads (no text or symbols)

Warning symbol of a triangle with steam rising (no text or numbers)

Line drawing of a hexagonal electrical outlet plug with two leads (no text or symbols)

Warning symbol of steam inside a triangle (no text or numbers)

Your Hansa appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read these Operating Instructions carefully

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions that must not be performed by the user.

CONTENTS

SPECIFICATION	82
PRECAUTIONS	83
SAFETY INSTRUCTIONS FOR USE	84
DISPOSING/SCRAPPING OF USED EQUIPMENT	88
INSTALLING THE PROTECTIVE CIRCUIT	89
COOKWARE	90
SETTING UP YOUR MICROWAVE OVEN	92

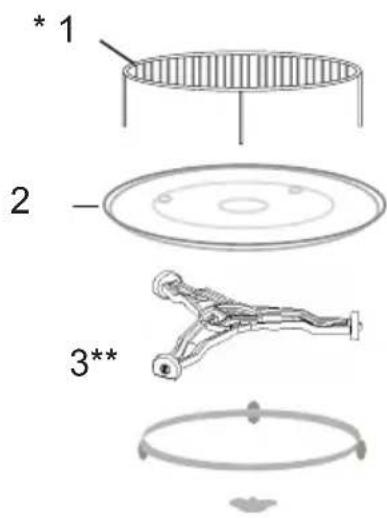

TURNTABLE INSTALLATION	92
INSTALLING THE APPLIANCE	93
OPERATION	94
TROUBLESHOOTING	100
CLEANING	100
WARRANTY AND AFTER-SALE SERVICES	101

SPECIFICATION

Model AMG17E70GV AMG20E70GSVH AMG20E70GVH
Power supply 230V~ 50Hz 230V~ 50Hz 230V~ 50Hz
Operating frequency [MHz] 2450 2450 2450
Noise level [dB(A) re 1pW] 54 54 54
Power Consumption [W] 1200 1200 1200
Nominal output power of microwaves [W] 700 700 700
Nominal output power of grill 900 - -
Oven capacity [l]	17 20 20
Turntable diameter [mm]	245 245 245
External Dimensions (H x W x D) [mm]	262 x 452 x 330	262 x 452 x 335	262 x 452 x 335
The oven is a built-in appliance	-	-	-
Net weight [kg]	~11,3	~11,3	~11,3

The appliance is designed for household use only.

The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

The pictures in this operating instructions are for illustration only. Full list of the appliance accessories may be found in an appropriate section of this operating instructions.

TO AVOID POSSIBLE OVER-EXPOSURE TO MICRO- WAVE ENERGY

Z

Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.

Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to:

1 door (dents, cracks)
2 hinges and locks (broken, cracked or loose)
3 door seals and sealing surfaces

Any adjustments, maintenance or repairs should only be entrusted to the manufacturer's properly qualified service personnel. In particular, the work associated with removing the cover that protects the user against microwave radiation.

Keep the appliance and its power cord away from children under 8 years old.

Microwave oven should not be placed in a cabinet*

WARNING: The appliance and its accessible parts become hot during use. Avoid contact with hot parts. Children under the age of 8, should be kept away from the appliance, unless supervised by an adult person; Do not clean the appliance with steam

Surfaces of the cabinet may become hot when the oven is operating;

To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:
Read the Operating Instructions before using the appli- ance.
Close supervision is needed to reduce the risk of fire inside the oven chamber.
Use this appliance only for its intended purpose as described in the manual. Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.
WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
WARNING: Liquids and other foodstuffs may not be heated in sealed containers as the containers could explode;
WARNING: This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
Use only cookware that is suitable for use in microwave ovens;
When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

If you see smoke or fire, turn off the appliance or unplug it from power and keep the door closed until the flames are smothered;

Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;

Cleaning instructions for door seals and adjacent parts may be found in an appropriate section of this operating instructions.

The oven must be cleaned regularly. Remove any deposits of food and leftovers

Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations

Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.

Before using the oven, test heat the grill heater (smoke can be given off through ventilation grid):

- switch on the ventilation in the room or open a window, - set the oven to heat the grill heater only for about 3 minutes without heating food.

Oven must be placed on flat a surface.

Turntable and rotating trolley unit should be in the oven during cooking. Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.

Improper use of the browning plate may cause cracking of the turntable due to the high temperature.

Only use bags for cooking in microwave ovens, which are correct size.

Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open.

Do not tamper with these circuit breakers.

Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.

Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.

Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury.

Do not use narrow-necked containers such as bottles for syrups.

Do not fry in deep fat in the microwave.

Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.

Do not use microwave oven for commercial purposes.

This appliance is intended for use at home or in facilities, such as*: kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities*; In order to avoid delayed boiling of hot liquids and beverages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.

Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.

When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated;

This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.

Do not overcook dishes

Do not use the oven for storage. Do not store flammable objects inside the microwave oven, such as bread, cookies, paper products, etc. If lightning hits the power line, the oven may switch on automatically.

Remove the wire clamps and metal fixtures from containers / paper or plastic bags before placing them in the oven.

Microwave oven must be grounded. Only connect to a wall socket with the proper protective conductor. See "Installing the protective circuit."

Some products, such as whole eggs (boiled or fresh), water, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.

Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.

Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.

Do not cover or block the air vents on the oven.

Do not store or use the oven outdoors.

Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool. Do not immerse the power cord or plug in water.

Keep cord away from heated surfaces.

Do not allow the connection cord hanging over the edge of a table or counter. The appliance must be used with mounted decorative frame* The inner cavity surface is hot after use of the microwave oven. Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven

DISPOSING/SCRAPPING OF USED EQUIPMENT

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.

DISPOSAL OF THE APPLIANCE

At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operating Instructions or packaging.

The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment.

Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

DANGER

Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance.

WARNING

Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded.

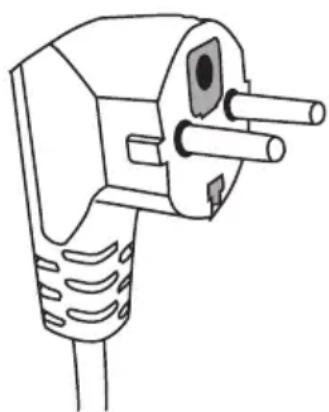

Line drawing of a plug with two leads and a socket (no text or symbols)

This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet.

If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified

electrician or service technician. If you must use an extension cord, use only a three-wire extension with an earthing connector. The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit.

A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

If you use the extension cord:

• Extension cord must be capable of withstanding nominal current required by the appliance.
• Extension cord must be 3-wire with earthing,
• Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

WARNING

Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking.

Materials that can be used and materials to be avoided in the microwave oven.

The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure.

Checking the cookware:

1 Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware.
2 Operate the oven with the maximum power for 1 minute.
3 Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.
4 Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven

Type of cookware Comments
Aluminium tray	May cause an electric arc. Transfer food to microwave-safe cookware.
Cardboard box with metal handle	May cause an electric arc. Transfer food to microwave-safe cookware.
Metal or cookware with metal frame	Metal shields the food from microwave energy.Metal frame can cause an electric arc.
Metal closure - tightened May cause an	electric arc and fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures.
Wood	Wood dries out when it is heated in the microwave oven and can crack or break.

Materials that can be used in a microwave oven

Type of cookware Comments
Aluminium foil Only as shielding.	Small and smooth pieces can be used for the coating of thin pieces of meat or poultry, to prevent excessive cooking. Arc discharge may occur if the foil is too close to the oven walls. Film must be at least at a distance of 2.5 cm from the oven walls.
Browning plate Observe the manufacturer's instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable.
Dinner dishes Suitable for microwave ovens only. Observe the manufacturer's instructions.Do not use cracked or chipped cookware.
Glass jars Always remove the lid.	Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode.
Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware.

COOKWARE

Bags for microwave cooking Observe the manufacturer's instructions. Do not seal with metal clamps.

Paper plates and cups Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking.

Paper towels Use to cover food to be heated to absorb fat.Use only for short cooking under constant surveillance.

Parchment paper Use as a cover to prevent splashing or as a container for evaporation.

Plastics Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package.

Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food.

Thermometers Suitable for microwave ovens only. (Temperature probes for meat and sugar).

Wax paper Used as a covering to prevent splashing and to keep moisture.

Cookware material Microwave		Barbecue grill	Combi Mode
Heat-resistant glass YES YES YES
Regular glass NO NO NO
Heat-resistant ceramics	YES	NO	NO
Microwave-safe plastic utensils	YES	NO	NO
Kitchen paper	YES	NO	NO
Metal container	NO	YES	NO
Metal rack (provided for the oven)*	NO	YES	NO
Aluminium foil and foil containers	NO	YES	NO

* Available on selected models

Microwave oven accessories

Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories:

Turntable 1

Rotating trolley 1

Operating Instructions 1

Grilling rack 1*

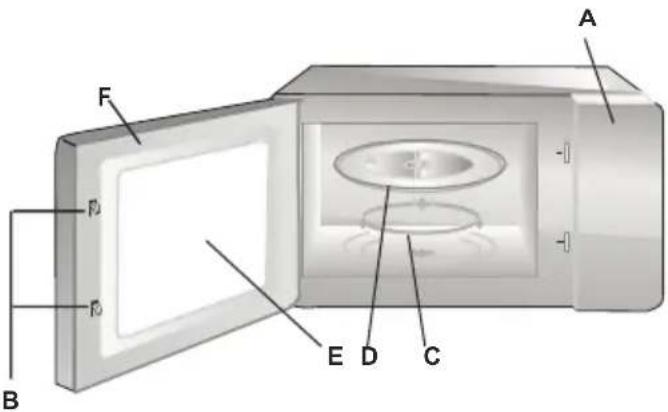

A) Control Panel
B) System security lock - disconnects power to the oven when the door is opened during operation.
C) Rotating trolley
D) Turntable
E) Door inner protecting shield
F) Door

TURNTABLE INSTALLATION

1 Never compress or place the turntable upside down.
2 When cooking, always use turntable and rotating trolley.
3 For cooking or heating always put the food on the turntable.
4 If the turntable breaks, please contact the nearest authorized service centre.

Individual fittings:

1. Grilling rack
2. Turntable
3. Rotating trolley

* Available on selected models Note: The grilling rack supplied with the appliance should only be used when the appliance is set to "GRILL". Place the rack on the turntable.
** Trolley is available in two versions, depending on the model. These are not interchangeable.

INSTALLING THE APPLIANCE

• Remove all packaging materials and components.
• Check the oven for damage such as dents or door misalignment or breakage.
• Remove any protective film from the surface of the cabinet.
• Do not install the oven if it is damaged.

Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron.

Installing

1. The appliance is designed for household use only.
2. The appliance can be used only after fitting in kitchen furniture.
3. For fitting instructions, please refer to "Installation guide"*.
4. Microwave oven should be installed in a cabinet with a width of 60 cm and a height of 85 cm from the kitchen floor*.

Do not remove the legs located in the bottom of the appliance*.

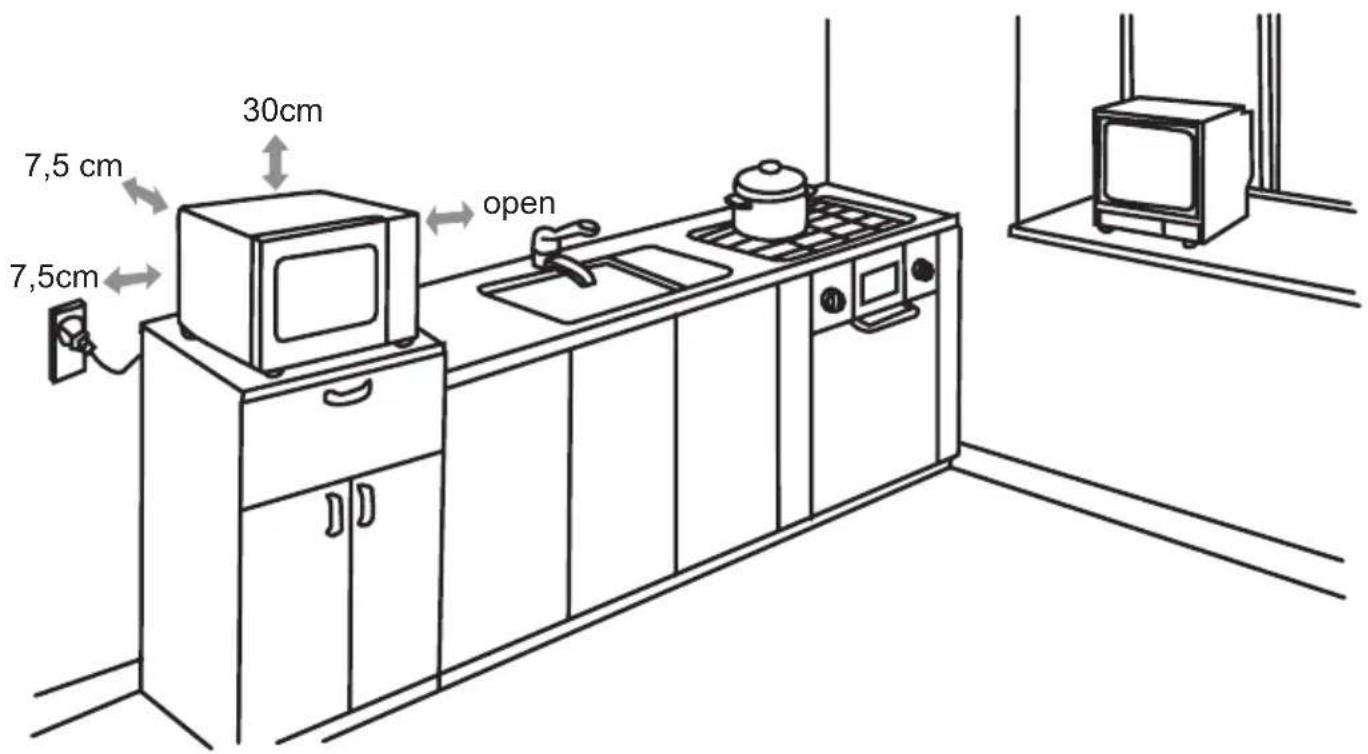

Blocking the inlet and outlet openings may damage the microwave oven. Place the oven as far away from radio and television as possible. Operating microwave oven may cause interference to radio and television reception.

1. Insert the oven power plug into a standard household wall socket. Make sure beforehand whether voltage and frequency are the same as on the oven's rating plate.

WARNING: Do not install the oven on the gas hob or other heat producing appliance. In the event of such installation, the oven may be damaged and void the warranty.

Accessible surfaces may become hot during operation.

Warning symbol of steam inside a triangle (no text or numbers)

* Applicable to built-in appliances

This microwave oven has a modern electronic programmer to adjust the parameters of cooking or reheating.

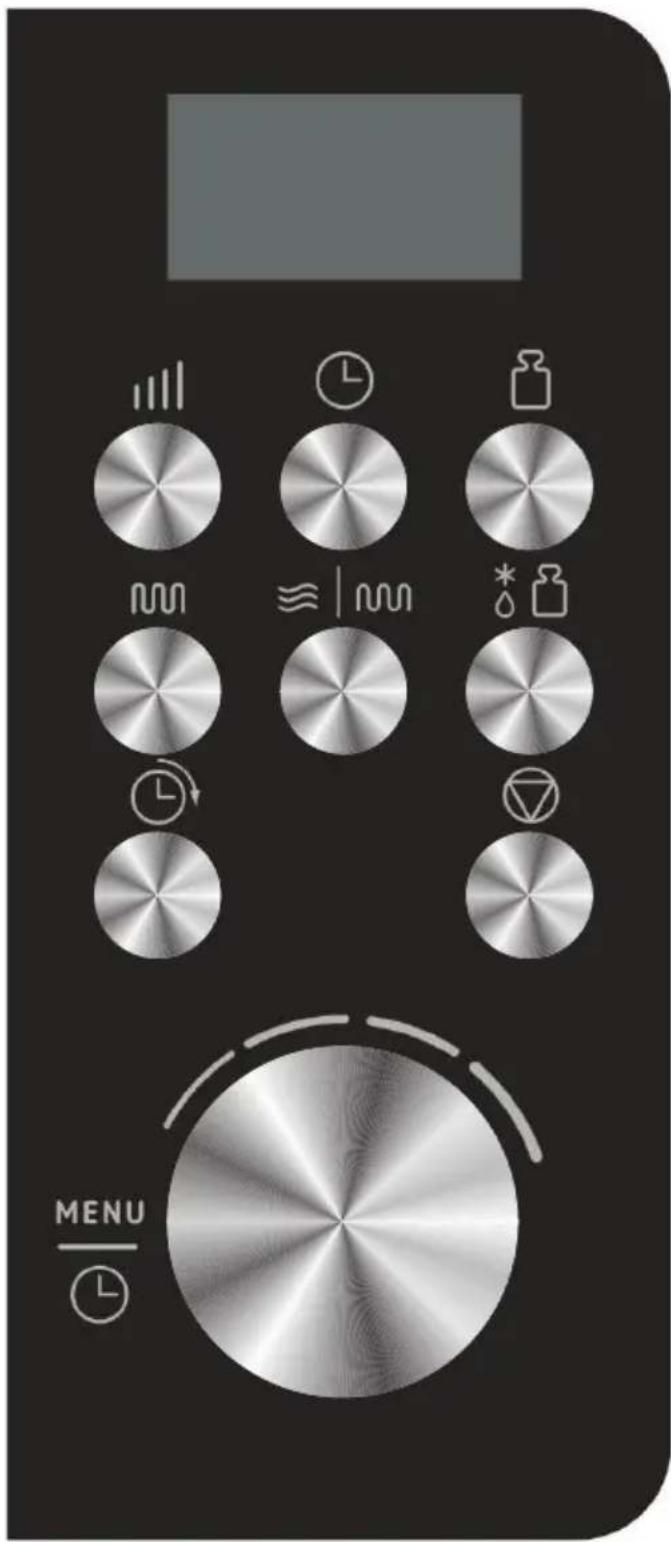

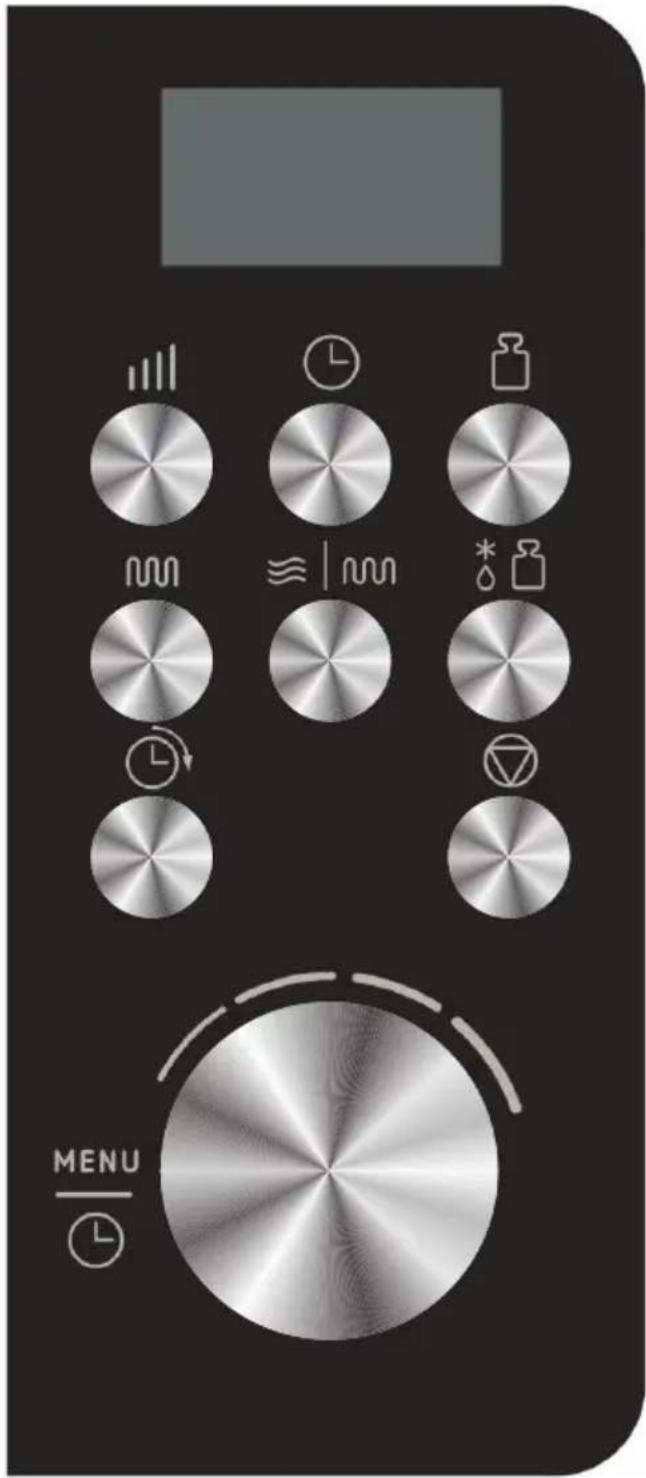

Control Panel

Cooking time, power, indicators and present time are displayed.

Use to set power level. To check power level during time cooking, touch POWER LEVEL pad.

Use to set the time of day or recall the time of day.

Touch this button to select specify food weight or number of servings.

Use to set grill cooking program.

Use to set combination cooking program

Use to defrost frozen meat, poultry and seafood by weight.

Use to set the oven to start-up at a later time.

Touch to cancel the selected power level, cook or defrost times that previously programmed. But the time of day clock cannot be cancelled.

Turn the dial to input cooking time, select the kind of food you want to cook.

Touch to start the cooking or defrosting programs. Simply touch it a number of times to begin express cooking without previously setting power level and cooking time.

OPERATION

Each time a button is touched, a beep will sound to acknowledge the touch

SETTING THE CLOCK

Suppose you want to enter the correct time of day 8:30.

Steps:

1 Touch pad.
2. Turn to indicate the hour digit 8.
3. Touch pad.
4. Turn to enter minute 30.
5. Touch pad again to confirm.

NOTE: This is a 24-hour clock. When the oven was plugged in, "1:00" should have appeared on the display. To reset the time of day, repeat the steps given above.

You can check the clock time while cooking is in progress by touching the pad

MICROWAVE COOKING

The longest cooking time is 95 minutes. Suppose you want to cook for 5 minutes at 60%.

1. Touch bad repeatedly to select microwave power.
2. Turn to 5:00.
3. Touch to confirm.

Select power level by pressing the button:

Press POWER LEVEL	Cooking Power
Once 100%
Twice 80%
3 times 60%
4 times 40%
5 times 20%
6 times 00%

NOTE: You can check the power level during cooking by touching

After total time has elapsed, signals sound every two minutes with END being displayed, press any button or open the oven door to clear END before starting another cooking function.

三

PRESET

Suppose you want to set the oven to start-up at 2:30.

1. Set the cooking programs.
2. Touch pad.
3. Turn to indicate the hour digit 2.
4. Touch, to confirm.
5. Turn dial to indicate the minute digits until the screen shows 2: 30
6. Touch pad.

NOTE: Quick Start can not be set with the preset function. Be sure the time of day clock is set at the correct time before programming preset.

During cooking, press damcheck the presetting time for 3 seconds, during this time touch , can cancel the function.

QUICK START

This feature allows you to start the oven quickly.

Press the , button a number of times to set the cooking time (The longest cooking time you can enter is 10 minutes), the oven starts work at full power level immediately.

PRESS START/QUICK START BUTTON	TIME
Once 0:30
Twice 1:00
Thrice 1:30
...	...

For example, to set the oven to cook for 2 minutes using this feature:

Press button 4 times, the oven starts working immediately at full microwave power.

GRILL COOKING

The longest cooking time is 95 minutes. Suppose you want to grill for 40 minutes.

1. In standby mode, touch pad.
2. Turn, to enter the cooking time.
3. Touch pad.

COMBINATION COOKING

COMBINATION 1

30% time for microwave cooking, 70% time for grill cooking. Use for fish or au gratin.

COMBINATION 2

55% time for microwave cooking, 45% time for grill cooking. Use for pudding omelets, baked potatoes, and poultry.

Suppose you want to set the oven to COMBINATION 2 for 25 minutes.

1. Touch pad twice.
2. Turn, to enter cooking time.
3. Touch pad.

NOTE: The longest cooking time is 95 minutes.

WEIGHT DEFROST

The defrosting time and power level are automatically set once the food category and the weight are programmed. The allowable weight for each category is between 100g and 1800g.

Suppose you want to defrost 600g shrimp.

Steps:

1. Touch * pad.
2. Touch to choose food weight.
3. Touch pad.

NOTE: You may need to turn food over at the middle of cooking time to obtain uniform cooking.

CHILD LOCK

To set the Child Lock

In standby mode, press and hold button for 3 seconds, a beep will sound and the child lock indicator light will come on.

To cancel the Child Lock

Press and hold button for 3 seconds, a beep will sound and the child lock indicator light will turn off.

NOTE: You can not operate the oven while the child lock is set.

AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you

wish to cook as well as the weight of this food. In order to do this, turn

anti-clockwise to select a category of food/cooking mode. Then touch 📋, to

indicate weight of food to be cooked. The oven begins cooking once the

button is engaged

You may need to turn food over at the middle of cooking time to obtain uniform cooking.

For example: to cook 400g of fish.

1. Turn anti-clockwise until the screen shows 6.
2. Touch , to indicate a weight of 400g.
3. Press button.

Auto Cook Menu

Code Food/Cooking Mode
01 Milk/Coffee (200ml each)	The result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.For Spaghetti add boiled water before cooking.For chicken, Beef/Mutton, Skewered Meat, oven will stop during cooking to let you to turn food over and then close the door, press the START/QUICK START to resume cooking.
02 Rice (g)
03 Spaghetti (g)
04 Potato (230g each)
05 Auto Reheat (g)
06 Fish (g)
07 Chicken (g)
08 Beef/Mutton (g)
09 Skewered Meat (g)

TROUBLESHOOTING

Microwave oven interferes with the TV reception	Television and radio reception may be disrupted when the microwave oven is operating. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal.
Dimmed oven lighting.	When cooking with low microwave power, oven light may be dimmer. This is normal.
Condensation forms on the door, hot air comes out through vents.	When cooking, steam can be released from food. Most of the steam escapes through the vents. However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal.

Fault Possible cause How to	correct
Oven does not start.	Power cord unplugged or not plugged properly into the socket	Pull the plug and put it back in after 10 seconds.
	Blown fuse or tripped circuit breaker.	Replace the fuse or turn on the circuit breaker (any repairs by Hansa service only)
	Problem with the power outlet	Check the outlet by plugging in other appliance.
The oven does not heat. The door is not closed properly. Close the door fully.
Turntable makes noise when oven operates	Rotating ring or bottom of the oven dirty.	See "Microwave oven maintenance"

CLEANING

Before cleaning, make sure the oven is disconnected from the power source.

(a) After use, clean the inside of the microwave oven with a damp cloth.
b) Clean the accessories in the normal way in soapy water.
c) Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth.

When cleaning glass door, do not use any abrasive cleaners or sharp metal washers, as this may cause scratches on the surface and damage the glass.

In order to clean the inner cavity: put half a lemon in a bowl, add 300 ml of water and turn on the microwave oven at 100% power for 10 minutes.

After cleaning, disconnect the microwave oven from the power and wipe the inside with a soft, dry cloth.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
- Eco-design Directive 2009/125/EC,

and has been marked with the symbol and issued with a declaration of compliance made available to market regulators.

Warranty

Warranty service as stated on the warranty card

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the C6 symbol and been issued with a declaration of compliance made available to market regulators.

POŠTOVANI!

Line drawing of a plug with two leads and a socket (no text or symbols)

Uređaj uzemljiti. U slučaju kratkog spoja uzemljenje smanjuje opasnost od strujnog udara, jer odvodi električnu energiju. Uređaj je opremljen kabelom sa uzemljenjem i odgovarajućim utikačem. Utikač uključiti u pravilno montiranu i uzemljenu utičnicu.

U slučaju kad ne razumemo instrukciju za uzemljenje ili ako nismo sigurni da li je uređaj pravilno uzemljen, obratiti se kvalifikovanom

električaru ili servisnom tehničaru.

Ako je neophodna upotreba produžnog kabela, koristiti isključivo takav koji posjeduje utičnicu sa uzemljenjem.

Warning symbol of steam inside a triangle (no text or numbers)

Ova mikrotalasna peć poseduje savremeno elektronsko upravljanje za regulaciju parametara kuhanja ili podgrejavanja.

Komandna ploča
