RCY-19 - Hair Dryer Coline - Free user manual and instructions

Product Type	Hair Dryer
Model	RCY-19
Brand	Coline
Power Consumption	1800 W
Voltage	220-240 V~, 50/60 Hz
Heat Settings	3 (low, medium, high)
Speed Settings	2 (low, high)
Cool Shot Button	Yes
Ion Technology	No
Attachments Included	Concentrator nozzle, diffuser
Cord Length	1.8 m
Weight	0.45 kg
Dimensions (L x W x H)	25 x 8 x 18 cm
Filter Type	Removable rear filter
Overheat Protection	Yes
Hang Loop	Yes
Cleaning Instructions	Unplug, clean filter with brush, wipe body with damp cloth
Repairability	Spare parts available through Coline service
Warranty	2 years

Frequently Asked Questions - RCY-19 Coline

How do I clean the filter of my Coline RCY-19 hair dryer?

Unplug the dryer, remove the rear filter cover, and clean the filter with a soft brush or rinse under running water. Ensure it is completely dry before reattaching.

Can I use the Coline RCY-19 with a voltage converter?

The RCY-19 operates on 220-240V. If your local voltage differs, you will need a suitable voltage converter. Check the rating label before use.

What attachments are included with the RCY-19?

The dryer comes with a concentrator nozzle for focused drying and a diffuser for curly hair.

How do I use the cool shot button?

Press and hold the cool shot button to release a burst of cool air to set your hairstyle in place. Release it to return to the selected heat setting.

What should I do if the hair dryer stops working during use?

The unit may have activated overheat protection. Turn it off, unplug it, and let it cool down for 15-20 minutes. Check the filter for blockages before restarting.

How do I replace the filter on my Coline RCY-19?

The filter is reusable. If damaged, contact Coline customer service for a replacement part. Do not operate the dryer without a filter.

Can I use the hair dryer in the bathroom?

To reduce risk of electric shock, do not use the dryer near water or in wet areas. Keep it away from bathtubs, showers, and sinks.

What is the cord length of the RCY-19?

The power cord is approximately 1.8 meters long, providing good reach for most bathroom setups.

How do I store the hair dryer properly?

Allow the dryer to cool completely, wrap the cord loosely around the base, and store it in a dry place. Use the hang loop if available.

Is the Coline RCY-19 suitable for thick or long hair?

Yes, the 1800W motor and multiple heat/speed settings make it effective for thick and long hair. Use the highest settings for faster drying.

USER MANUAL RCY-19 Coline

Black and white illustration of a hair dryer with a black-and-white background (no text or symbols)

Art. No.: Model. No:

34-3699 RCY-19

English 3

Svenska 6

Norsk 9

Suomi 12

Hairdryer

Article number: 34-3699 Model: RCY-19

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse).

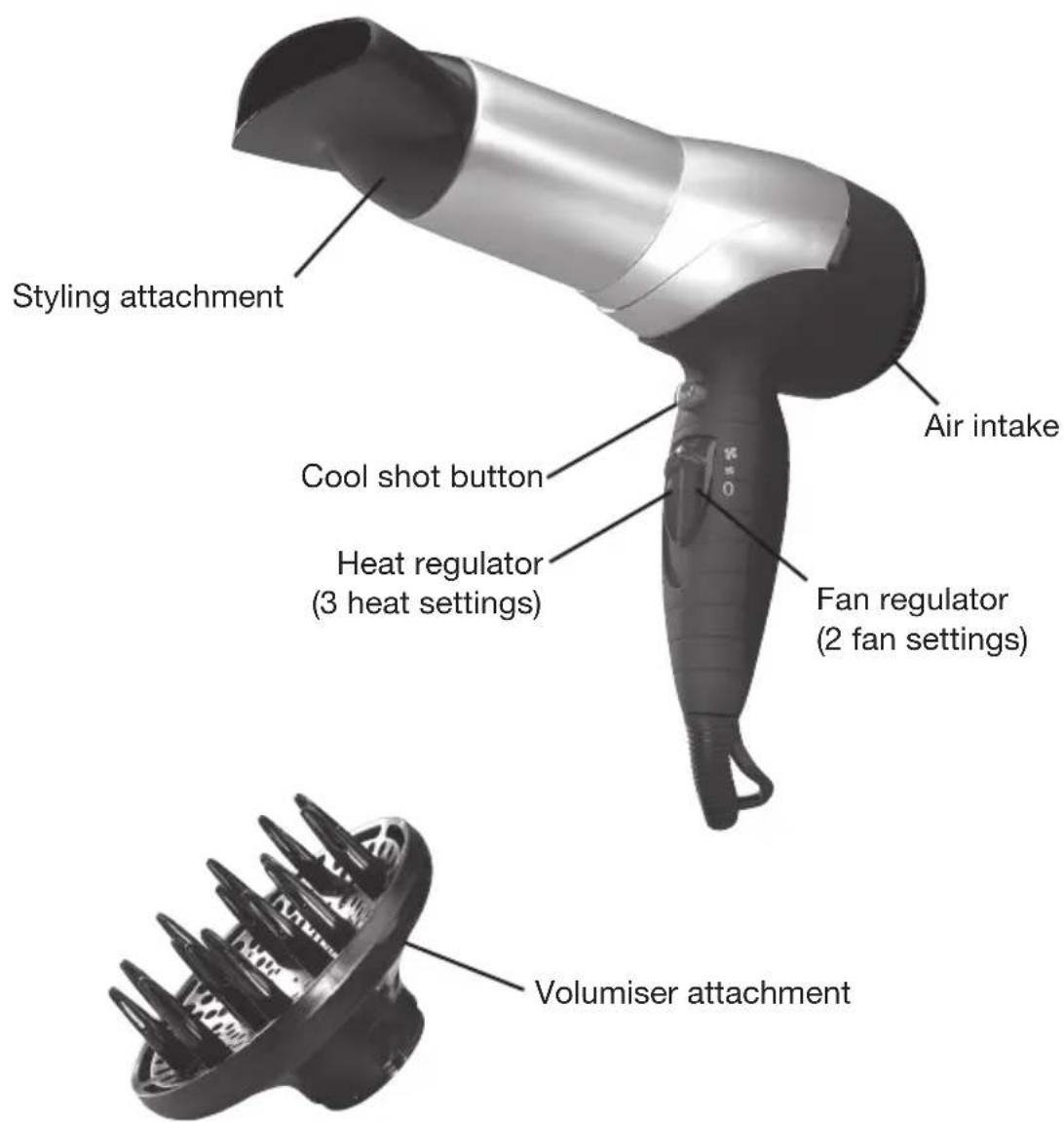

Presentation

Safety

• Before you connect the hairdryer to the mains outlet, make sure that the voltage on the socket coincides with the hairdryer voltage.
• Keep the hairdryer away from water. Never use the hairdryer in the bathtub or near the shower or washbasin.
  • Always switch off the hairdryer if you put it down.
• Keep the hairdryer away from children.
• Never block the air intake.
• Always pull the cord out of the wall socket for cleaning.
• Do not expose the hairdryer to moisture, blows, or shocks.
• Do not use the hairdryer if the cord or plug are damaged. Also, do not use the hairdryer if you have dropped it on the floor or in water.
• Do not open the casing. Some of the components inside the product's casing have live voltage. Touching them can cause electric shock.
• Do not pull the dryer by the cord. Do not use the cord as a handle and avoid getting it pinched in a door. Do not pull it over sharp edges or corners.
• Always pull the plug from the wall socket before you clean the hairdryer or when you do not intend to use it for some time.
• Never modify or dismantle the hairdryer.
• The hairdryer should only be repaired by qualified service personnel.

Use

• Dry your hair with a towel before using the hairdryer.
• The styling attachment concentrates the air blast on specific places making styling simple for you.
• The volumiser attachment is recommended for drying and for giving body to your hair.
• The cold shot button is used to fix the hairdo after styling. Let the cold air blow for 15 seconds to make your hairdo hold longer.

Care and cleaning

Always remove the plug before cleaning. Wipe the hairdryer regularly with a soft, slightly moist cloth.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Technical data

Capacity 1800 W

Power supply 230 V 50 Hz

Weight 570 g

Cord length 170 cm

Number of fan settings 2

Number of heat settings 3

Accessories 2 pcs (Styling and volumiser attachments)
