44-2006-1 - Kettle Clas Ohlson - Free user manual and instructions

Product Type	Electric Kettle
Brand	Clas Ohlson
Model	44-2006-1
Power Supply	220–240 V AC, 50/60 Hz
Power Rating	1850–2200 W
Capacity	1.7 L
Housing Material	Plastic
Heating Element	Concealed (in base)
Auto Shut-off	Yes
Boil-dry Protection	Yes
Indicator Light	Yes (power on)
Filter	Removable spout filter
Cordless Base	Yes (360° rotation)
Water Level Window	Yes
Lid Type	Flip-top (pull up)
Descaling	Use vinegar or descaling agent; see manual
Cleaning	Wipe exterior with damp cloth; do not immerse
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Intended Use	Indoor domestic use only

Frequently Asked Questions - 44-2006-1 Clas Ohlson

How do I descale the kettle?

Mix 100 ml of white vinegar (12%) with 300 ml of cold water or use a commercial descaling agent. Pour into the kettle, boil twice, then discard. Rinse by boiling fresh water three times. Descale every 2–3 months of daily use.

Can I use the kettle for anything other than water?

No, the kettle is designed for heating water only. Do not heat milk, oil, or other liquids to avoid damage or injury.

What should I do if the kettle doesn't switch off after boiling?

Ensure the filter is correctly fitted and the lid is closed properly. If the problem persists, unplug and contact customer service. Do not use if faulty.

Is the kettle safe for children to use?

Children aged 8 years and above can use it under supervision. Keep the kettle and cord out of reach of children under 8. Never leave children unattended near a hot kettle.

How do I clean the filter?

Pull the spout filter out of its retaining grooves, clean it under running water with a soft brush, then slide it back into place. Clean regularly to maintain performance.

Can I immerse the kettle or base in water?

No, never immerse the kettle, base, cord, or plug in water or any liquid. This can cause electric shock. Clean the exterior with a damp cloth only.

What is the boil-dry protection?

If the kettle is switched on empty, it will automatically shut off to prevent damage. Let it cool before refilling and using again.

Why does the kettle take longer to boil?

Limescale buildup inside the kettle can extend boiling time. Descale the kettle as instructed in the manual to restore performance.

Can I use the kettle on a metal surface?

Place the kettle on a firm, flat, heat-resistant surface. Avoid metal surfaces that may become hot or scratch the base.

How do I dispose of the kettle responsibly?

Do not dispose of with household waste. Take it to a local recycling facility or contact the place of purchase for environmentally safe disposal, in accordance with EU WEEE directive.

USER MANUAL 44-2006-1 Clas Ohlson

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The kettle can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the kettle and its cord out of reach of children aged less than 8 years.
• The kettle may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Check that your power supply is 220–240 V, 50/60 Hz and that the kettle is connected to an earthed socket.
• Always unplug the kettle from the power point when it is not in use.
• Always unplug the lead from the power point and let the kettle cool down properly before cleaning it.

• Do not pull or carry the kettle by the mains lead. Do not use the lead as a handle or let it get crushed in door jambs. Do not pull the lead around sharp corners or edges.

• Make sure that the mains lead does not come in contact with hot surfaces such as cooker hobs.

• To reduce the risk of electric shock, never immerse the kettle, base, mains lead or plug in water or other liquid.
• Any children present when the kettle is in use must be closely supervised.
• Certain parts of the kettle become hot during use, only grip the kettle by its handle.
• Never use the kettle if it is damaged or not working properly.
• The mains lead should be checked regularly. Never use the kettle if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or a qualified tradesman.
• The kettle is designed for indoor use only.
• The kettle must only be used as described in this instruction manual.
• Only operate the kettle using the supplied base.
• Do not overfill the kettle by exceeding the MAX level on the water level window. If the kettle is overfilled, boiling water may splash out.
• Note: Ensure that the kettle is placed on a firm, flat surface before it is switched on.
• Note: Ensure that the mains lead, plug, the electrical connections on the base and the kettle are clean, dry and intact before switching the kettle on.

• Note: Make sure that the filter is correctly fitted and that the lid is closed properly before switching the kettle on. If the filter is not fitted correctly or the lid is not closed properly, the kettle will not switch off and there is a risk of boiling hot water splashing out.

• Note: Never fill the kettle when it is on the base. Remove the kettle from the base and fill it with water carefully. Ensure that the base and the body of the kettle are completely dry before placing the kettle on the base and switching it on.

• Never fill the kettle with water when it is switched on.
• Never use the kettle near naked flames or hot surfaces.
• Clean the exterior of the kettle by wiping it with a damp cloth. Never use solvents or corrosive cleaning products. Use a mild cleaning agent.
• Never use the kettle to heat any other liquid than water.
• Never touch the kettle whilst it is switched on. Hot steam can cause burns.
• Never leave the kettle switched on unattended and always unplug the kettle after use.
• Never use the kettle if it has been dropped or is damaged in any way.
• The kettle is only intended for normal domestic use.
• Warning: Water must not come into contact with the base.
• Warning: Risk of personal injury if the instructions in this manual are not followed.
• Neither the kettle nor the base must be immersed in water.
• Bear in mind that the base and certain parts of the kettle will remain hot even after the kettle has been switched off.

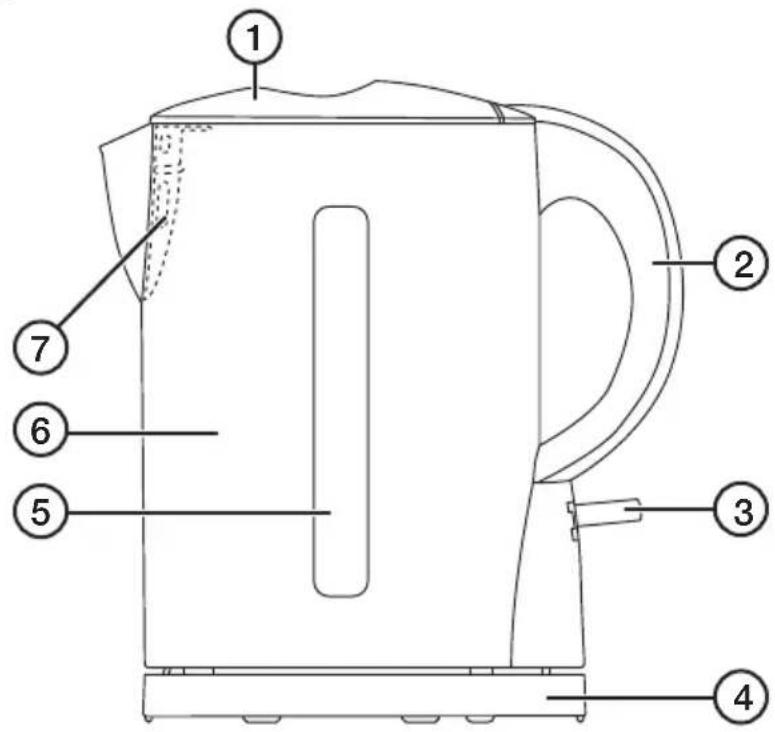

Product description

1. Lid
2. Handle
3. Power switch
4. Base
5. Water level indicator
6. Housing
7. Filter

Before initial use

Before using the kettle you should boil two kettles of water in it in order to rinse it of any residue. Never boil the kettle when it contains water mixed with washing-up liquid or other detergents.

Operating instructions

• Make sure that the spout filter is fitted securely.
• Open the kettle by lifting the lid straight up and then fill the kettle with cold water. Do not fill the jug above the max level mark.
• Close the lid.
• Connect the mains lead to a earthed wall socket.
• Place the kettle on the base and set the power switch to I. The power indicator light will come on to indicate that the kettle is switched on.
• The kettle turns off automatically and the indicator lamp goes out once the water has boiled. The switch returns to the 0 position.

Note: Never turn the kettle on when it is empty.

Boil-dry protection

If you should turn on the kettle while it is empty the boil-dry protection will activate and automatically turn off the kettle. Let the kettle cool before attempting to use it again.

Care and maintenance

Always unplug the lead from the power point and let the kettle cool down properly before cleaning it. If necessary, the exterior of the kettle can be wiped with a lightly moistened cloth.

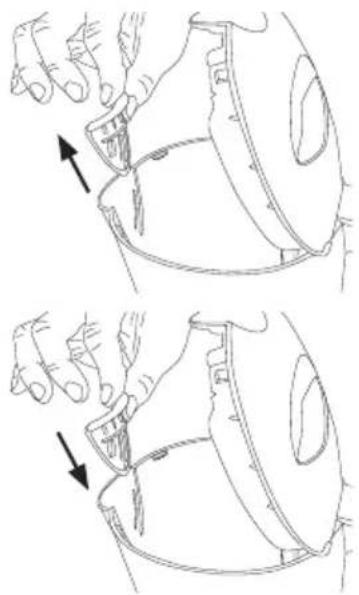

Cleaning the filter

Clean the spout filter regularly.

Procedure:

1. Pull out filter from its retaining grooves.

2. Clean the filter.

3. Slide the filter back into its retaining grooves.

Two-step line drawing showing hand positioning on a device, with arrows indicating movement direction (no text or symbols)

Descaling

Due to the natural occurrence of calcium in water, limescale deposits may form in the kettle after some use. Limescale deposits might lengthen the time needed for water to boil.

For descaling, use a mixture of water and white vinegar (acetic acid) or a special descaling agent that can be purchased at most supermarkets.

1. Mix 100 ml of white vinegar (12 %, not regular vinegar) with 300 ml cold water or follow the directions included with the descaling agent.
2. Pour the mixture into the kettle and turn it on. Boil up the mixture 2 times, and then pour it out.
3. In order to remove the last remnants of limescale and descaling agent, the kettle should be filled to the max mark with fresh cold water. Turn the kettle on and let it come to the boil.
4. Pour out the water and repeat this process 3 times. The kettle is now ready to use again.

The kettle should be descaled after 2–3 months daily use or whenever it has visible limescale deposits.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Specifications

Supply voltage 220–240 V AC, 50/60 Hz

Capacity 1.7 |

Power 1850-2200 W

Vattenkokare

Art.nr 18-4710-1, -2, -3 Modell WK8283B

44-2006-1, -2, -3 WK8283B

Line drawing showing two hand positions on a device, one with an arrow indicating movement or force (no text or symbols present)

Avkalkning

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Specifikationer

Two-step line drawing of a hand holding a small object, showing motion direction (no text or symbols)

Avkalking

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Spesifikasjoner

Strømforsyning 220–240 V AC, 50/60 Hz

Kapasitet 1,7 l

Effekt 1850–2200 W

Vedenkeitin

Tuotenro 18-4710-1, -2, -3 Malli WK8283B

44-2006-1, -2, -3 WK8283B

Technical line drawing showing two views of a mechanical component with arrows indicating movement (no text or symbols)

Kalkinpoisto

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Tekniset tiedot

Two-step illustration of a hand holding a small object, showing the process with arrows indicating movement (no text or symbols)

Entkalkung

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Technische Daten
