LW-6108 - Meat Grinder Coline - Free user manual and instructions

Brand	Coline
Model	LW-6108
Product Type	Meat Grinder
Power Supply	230 V ~ 50 Hz
Power Consumption	600 W
Motor	Electric, with overheating protection
Hole Plates Included	3 (thin, medium, thick)
Blade Type	4-bladed knife
Feeding Roller	Plastic, included
Hopper	Included
Reverse Function	Yes
Overheating Protection	Automatic shut-off
Housing Material	Stainless steel and plastic
Food Contact Parts Material	Stainless steel, plastic
Dishwasher Safe	No (except motor base)
Cleaning	Hand wash with warm water and detergent; grease moving parts with cooking oil
Safety Features	Lock switch, do not immerse motor, use only supplied accessories
Intended Use	Mincing meat (not nuts or hard foods)
Recommended Meat Preparation	Remove bone, cartilage, sinew; cut into 2.5 cm strips
Included Accessories	Hopper, feeding device, mincing device, 3 hole plates, 4-bladed knife, feeding roller, lock nut

Frequently Asked Questions - LW-6108 Coline

How do I clean the meat grinder?

Disconnect the grinder and remove all parts except the motor base. Wash parts in warm water with detergent by hand (do not use dishwasher). Dry the motor base with a damp cloth. Occasionally grease the feeding roller, hole plates, and 4-bladed knife with cooking oil.

What should I do if the grinder overheats?

The grinder has an automatic overheating protection that shuts it off. Unplug it, turn off with the ON/OFF button, let it cool for 60 minutes, then plug back in and turn on. If it happens often, contact customer service.

Can I grind nuts or hard foods?

No, this grinder is designed only for meat. Do not mince nuts or other solid food-stuffs.

How do I assemble the meat grinder?

Insert the feeding roller into the mincing device, then attach the 4-bladed knife (edges outward) and a hole plate (slot aligned). Tighten the lock nut. Attach the device to the motor by aligning metal point and turning counter-clockwise until it clicks. Then attach the feeding device and hopper.

What voltage does the grinder require?

It requires 230 V ~ 50 Hz power supply. Ensure your wall socket matches before use.

Can I use accessories from other brands?

No, only use the accessories supplied with the grinder. Using fittings from another manufacturer may damage the device.

Is the motor base waterproof?

No, do not immerse the motor base in water or run it under running water. Clean it only with a damp cloth.

How should I prepare meat before grinding?

Remove bone, cartilage, and sinew. Cut the meat into strips about 2.5 cm wide. Ensure meat is properly thawed if frozen.

What is the reverse switch for?

The reverse switch helps to clear any blockages. Use it when meat gets stuck.

Can children use this grinder?

No, do not let children use the meat grinder. Always supervise when in use and keep fingers away from the feeding pipe.

USER MANUAL LW-6108 Coline

Art. No: Model. No:

34-7209 LW-6108

English 3

Svenska 9

Norsk 15

Suomi 21

Mincing Machine

Art.no. 34-7209, model LW-6108

Please read the entire instruction manual before using and save it for future use.

We apologise for any text or photo errors and any changes of technical data.

If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

List of contents

Safety 4

Product description 5

Installation 6

Use 7

Cleaning 8

Waste disposal 8

Specifications 8

Safety

• Make sure that the wall socket voltage corresponds with that of the voltage sign.
• The cord should be checked on a regular basis. Never use the device if its cord or plug is damaged. The cord should only be repaired by an authorised service facility or by an expert.
• The mincing machine should never be connected to a timer.
• Before using the device for the first time, wash the parts of the mincing machine that will be in contact with food-stuffs.
• Remove bone, cartilage, and sinew from the meat, before you do the mincing.
• DO NOT mince nuts or other solid food-stuffs.
• DO NOT place fingers or other objects into the feeding pipe. Instead, use the enclosed hopper.
  • Always make sure that the mincing machine is supervised when it is being used.
• DO NOT let children use the mincing machine.
• DO NOT use fittings from another manufacturer.
• Always unplug the cord from the electrical outlet, before installing or dismantling other fittings.
• When the mincing machine is not being used, always unplug the cord from the electrical outlet.
• Wait until the machine has stopped completely, before you change any fittings.
• Do not immerse the motor base into water or keep it under running water when you clean it. Instead you should use a damp cloth to dry the motor.

Product description

a) Hopper
b) Feeding device
c) Mincing-machine device
d) Lock switch
e) Motor
f) On/off button
g) Reverse switch
h) Indication lamp
i) Lock key
j) Hole plate, thin
k) Hole plate, medium-sized
I) Feeding roller
m) A 4 bladed knife
n) Hole plate, thick
o) Lock nut

Installation

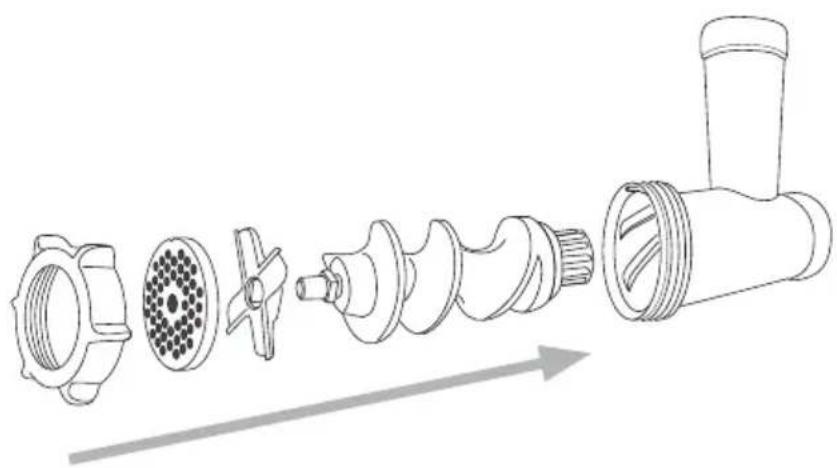

1. Insert the feeding roller, with its plastic end inwards, into the mincing-machine device.
2. Then attach the 4-bladed knife with its edges facing outwards and place the chosen hole plate on the top. The slot on the outside edge of the hole plate should be fitted to the mincing-machine device.
3. Attach the lock nut properly.

1. Attach the mincing-machine device to the motor by adjusting the metal point onto the slot on the inner side of the mincing-machine device, and then lock it by turning counter-clockwise until the lock clicks.

2. Attach the feeding device onto the mincing-machine device, which is now ready for use.

Use

Please note! The device is equipped with a system for overheating, which means that it will shut off automatically when it is overheated. If the device is shut off:

1. Remove the plug-and-socket connection from the electrical outlet.
2. Turn the device off with the ON/OFF button.
3. Let the device cool down for 60 minutes.
4. Then plug it back into the electrical outlet.
5. Turn the device on by using the ON/OFF button.

When, and if, the system for overheating is activated too often, please contact the authorised service facility.

Mincing meat

1. Make sure that the meat is properly thawed out before mincing it.
2. Remove bone, cartilage, and sinew.
3. Then cut the meat into strips of the width of 2.5 centimetres.

4. Put the mincing machine on.

5. Put the meat onto the food holding plate and carefully insert the meat into the machine by using the hopper.

WARNING! Do not put fingers or other objects into the machine.

Cleaning

Please note! Disconnect the mincing machine and remove the plug-and-socket connection from the electrical outlet when cleaning it. Do not immerse the motor into water or keep it under running water when cleaning it.

1. Remove the hopper as well as the feeding device.
2. Press the lock switch and pull the mincing-machine device loose from the motor base.
3. Turn the lock switch counter-clockwise until it unfastens, then carefully remove the 4-bladed knife, the hole plate as well as the feeding roller.
4. Wash all the parts - except the motor base - in warm water and detergent. Please note! Do not use a dishwasher to clean the machine!
5. When it is necessary, dry the motor base and the cord with a lightly dampened cloth.
6. The feeding roller, the hole plates and the 4-bladed knife should, now and again, be greased with some cooking oil after cleaning.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Specifications

Power supply 230 V \~ 50 Hz

Power 600 W

Köttkvarn

Art.nr 34-7209, modell LW-6108

Användning

Bruk

Kontakt forhandler dersom overopphetingssikringen aktiveres for ofte.

Å male kjøtt

Käyttö
