HM200 - Hand blender Coline - Free user manual and instructions

Product Type	Hand Blender / Immersion Blender
Brand	Coline
Model	HM200
Power Supply	220-240V, 50/60Hz
Power Consumption	Approx. 200-300W
Dimensions	Approx. 40 cm x 6 cm (shaft length)
Weight	Approx. 0.7 kg
Cord Length	Approx. 1.2 m
Speed Settings	Variable speed or 2 speeds
Blade Material	Stainless steel
Shaft Material	Stainless steel
Housing Material	Plastic
Functions	Blending, pureeing, mixing, milkshakes, soups
Cleaning	Detachable shaft; rinse under running water; wipe motor body with damp cloth
Safety Features	Overheat protection; non-slip handle; safety lock (if applicable)
Spare Parts	Blending shaft, blade, optional whisk attachment
Reparability	No user-serviceable parts; contact qualified service for repairs
Warranty	Standard 1-2 years (varies by region)
Package Contents	Motor unit, blending shaft, instruction manual
Usage Tips	Do not immerse motor unit in water; let cool before cleaning

Frequently Asked Questions - HM200 Coline

How do I clean the hand blender properly?

Detach the blending shaft and rinse it under running water immediately after use. Wipe the motor body with a damp cloth and dry thoroughly. Never immerse the motor unit in water.

Can I blend hot liquids with the Coline HM200?

Yes, but allow hot liquids to cool slightly before blending to avoid splashing. Do not immerse the blender in boiling liquid; let it cool to about 80°C.

What is the maximum capacity for blending?

Use a container that is tall and narrow to minimize splashing. Do not fill beyond two-thirds full to prevent overflow during blending.

Is the blending blade removable?

The blade is not user-removable for safety reasons. Clean the entire shaft as a unit. Do not attempt to disassemble the blade.

Can I crush ice with this hand blender?

The Coline HM200 is not designed for crushing ice. Use it for soft foods and liquids. Ice can damage the blades and motor.

What does the speed button do?

If equipped with a variable speed control, press and hold the button for higher speed. Release for lower speed. Some models have two fixed speeds – low for gentle mixing, high for blending.

How do I prevent splashing?

Start the blender while immersed in the liquid, then move it up and down gently. Use a tall container and tilt slightly to create a vortex.

Are replacement parts available?

Yes, you can purchase a blending shaft or whisk attachment (if included) from authorized retailers. Contact Coline customer service for spare parts.

What safety precautions should I take?

Always unplug the appliance before cleaning or attaching parts. Do not let the motor unit get wet. Keep out of reach of children and do not touch moving blades.

How should I store the hand blender?

Store in a dry place with the motor unit upright. Keep the blending shaft detached and dry. Avoid placing heavy objects on top.

USER MANUAL HM200 Coline

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

Art. No Model. No

18-4326 HM200-UK

34-5085 HM200

English 3

Svenska 6

Norsk 9

Suomi 12

Hand Mixer

Art.no. 18-4326 Model HM200-UK 34-5085 HM200

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The hand mixer must not be used continuously for longer than 10 minutes. Let the mixer cool down before reusing it.
• The power lead should be regularly checked. Never use the device if the power lead or plug is damaged.
• The power lead must be changed if damaged in order to avoid the risk of chock or fire, but this should only be done by the manufacturer, qualified service station or professional.

Specific Safety Instructions for Hand Mixers

• Make sure that the voltage used is suitable for the appliance. Refer to the manufacturer's specification label.
• Always disconnect the appliance from the power supply if it is left unattended and before assembling, disassembling or cleaning.
• To avoid electric shock, protect the appliance and its power lead from moisture or wetness.
• Never let children use the appliance without adult supervision.
• Never use accessories other than the ones included.
• Never use the appliance for anything other than its intended use.

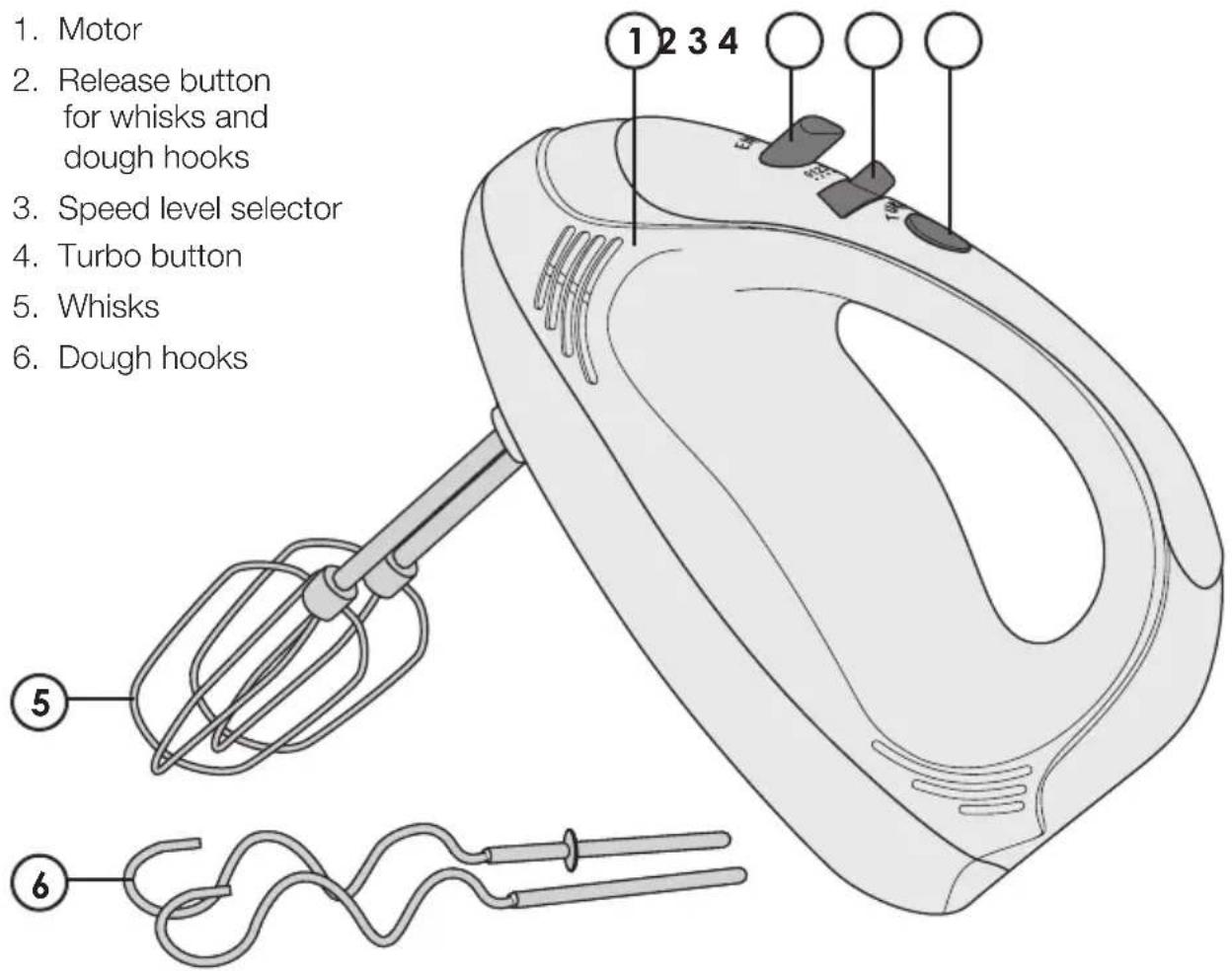

Product Description

1. Motor
2. Release button for whisks and dough hooks
3. Speed level selector
4. Turbo button
5. Whisks
6. Dough hooks

Operating Instructions

NOTE: Clean whisks and dough hooks before the first use. Dishwasher safe.

• Make sure the plug is disconnected from the wall socket and the speed level selector is at "0".
• Insert the whisks/dough hooks to the holes on the bottom. When you hear a click sound they are properly inserted.
• Connect the transformer to a 230 V wall socket.
• Set the whisks in the type of food which is being whisked before you start the electric hand mixer.
• Choose desired speed with the speed selector.
• You can activate the turbo button at any speed to increase the speed somewhat.
• Keep in mind when working with heavier doughs such as rye that the hand mixers maximum capacity is 750 g.

Release whisks/dough hooks

1. Let the device stop completely.
2. Unplug from the wall socket.
3. Push the release button.

Care and Maintenance

• Always unplug the device from the wall socket before cleaning.
- Wash the whisks and dough hooks after use. Dishwasher safe.
- Do not expose the motor part to water. Clean it with a damp cloth instead.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about the disposal of this product contact your municipality.

Specifications

Power Supply 230 V AC, 50 Hz

Power 220 W

Mains lead 150 cm

Elvisp

Art.nr 18-4326 Modell HM200-UK 34-5085 HM200

For consumer contact, please visit

www.clasohlson.co.uk and click on

customer service.

INTERNET www.clasohlson.co.uk
