HCH-L1400BK - Heating Heinner - Free user manual and instructions

Product Type	Fan Heater
Brand	Heinner
Model	HCH-L1400BK
Power Output	1400 W
Voltage	220-240 V
Frequency	50/60 Hz
Heating Element	Ceramic
Dimensions (W x D x H)	20 x 15 x 25 cm
Weight	1.5 kg
Color	Black
Thermostat	Adjustable thermostat
Heat Settings	2 (Low/High)
Fan Only Mode	Yes
Oscillation	Yes
Safety Features	Overheat protection, tip-over switch
Noise Level	Approx. 45 dB
Room Size Suitability	Up to 20 m²
Power Cord Length	1.5 m
Cleaning and Maintenance	Wipe with damp cloth; do not immerse
Spare Parts Availability	Contact Heinner support
Repairability Index	5.5/10 (estimated)

Frequently Asked Questions - HCH-L1400BK Heinner

How to clean the Heinner HCH-L1400BK heater?

Unplug the heater and let it cool. Use a soft damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse in water. Clean the air inlet and outlet with a vacuum brush.

What safety features does the HCH-L1400BK have?

The heater includes overheat protection and a tip-over switch that automatically shuts off the device if it falls over.

Can I leave the heater on overnight?

It is not recommended to leave the heater unattended for long periods. If you use it overnight, ensure it is placed on a stable surface away from flammable materials and the thermostat is set to a safe temperature.

What is the maximum room size for this heater?

The 1400W power output is suitable for rooms up to approximately 20 m² (200 sq ft) with good insulation.

Does the heater have a fan-only mode?

Yes, the HCH-L1400BK has a fan-only mode that can be used for air circulation in summer without heating.

How to reset the heater if it shuts off unexpectedly?

First, unplug the heater and let it cool for 15-20 minutes. Check for obstructions in the air intake. Then plug it back in and turn it on. If it still does not work, contact support.

Is the HCH-L1400BK energy efficient?

This model uses a ceramic heating element which heats up quickly and is generally efficient for its size. However, it is not a heat pump and may have higher running costs compared to central heating.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. If necessary, use a heavy-duty cord rated for at least 15 A and fully unwound. Always plug directly into a wall outlet when possible.

How does the thermostat work?

The thermostat allows you to set a desired temperature. Once the room reaches that temperature, the heater will cycle off and on to maintain it. Turn the knob to your preferred setting.

Where can I find the user manual?

The user manual can be downloaded for free from notice-facile.com in multiple languages including English, Romanian, Hungarian, and more. It contains 29 pages with detailed instructions.

USER MANUAL HCH-L1400BK Heinner

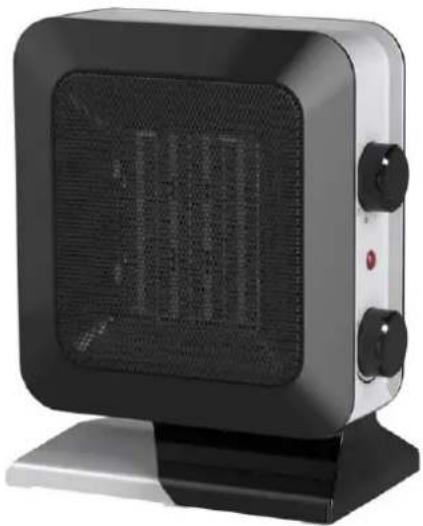

Exterior view of a modern electric heating unit with dual switches and a digital display (no visible text or symbols)

Exterior view of a modern electric heating device with dual buttons and a digital display (no visible text or symbols)

This product is only suitable for well insulated spaces or occasional use

• Ceramic fan heater
  • Power: 700W/1400W
• 2 heating settings

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and kee it for later information

This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

➢ Ceramic fan heater
➢ Instruction Manual
Warranty card

III. SAFETY MEASURES

Thank you for buying this ceramic fan heater. Please read these instructions carefully and keep them in a safe place for future reference.

When switched on for the first time a slight odor might be emitted for a few minutes. This is harmless and occurs with most heaters when any slight traces of dust or lubricants that may have collected in the factory are heated away.

PRECAUTIONS:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• WARNING: In order to avoid overheating, do not cover the heater.
• The heater must not be located immediately below a socket-outlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

IV. USING THE APPLIANCE

SYMBOL FUNCTION

OFF

Fan only, no heat

Low heat output

Full heat output

THERMOSTAT

Turn clockwise to increase the heat output.

OPERATION

- Plug the heater into a suitable power outlet [observing all the instruction regarding positioning and switch on.

To use the fan only function:

• Turn the control dial to “♣”. The fan will blow out air at room temperature.
• If the fan does not operate, the ambient room temperature is cooler than the built-in thermostat “OFF” level. Turn the thermostat dial gradually clockwise and the fan will start blowing.
  • As soon as the fan starts, the light in the front of the machine will illuminate.

To use the machine for heating:

• Turn the control dial to “I” for low heat and “II” for full heat.
• Set the level of heat by turning the thermostat dial gradually clockwise for the lowest heat and fully clockwise for maximum.
• The thermostat will turn the machine off when the selected room heating is achieved, and when the temperature drops it will turn on again automatically.
• For maximum heat output use “II” with the thermostat turned fully clockwise.

OVERHEATING

• The thermostat will turn the machine off it overheats.
• Overheating can be caused by obstruction to the air intakes on the back of the machine or the grill on the front. If this occurs please disconnect the machine and allow it to cool for 30 minutes. Remove any obstruction and turn the machine back on.

SAFETY TIP-OVER SWITCH:

- The appliance is fitted with a tip-over switch. When you use the appliance in an upright position on a flat and stable surface, the tip-over switch will be on. In the event the heater is knocked over, the heater will stop functioning automatically.

V. CLEANING AND MAINTENANCE

• There are no parts inside the machine that require your attention or servicing. Do not try to open the outer case. By doing so you could damage the motor and heating element and invalidate the warranty. If you have a problem with the heater, or if the power cord gets damaged in any way, you MUST take the unit to a suitably qualified engineer or electrical repair centre.
• Before cleaning the machine, please make sure it is disconnected from the power supply and has cooled down completely.
• Never cleaning the machine, please make sure it is disconnected from the power supply and has cooled down completely.
• Never clean the machine with water and do not let it get wet under any circumstance.
• The outside case and be cleaned using a slightly damp lint-free cloth [a small amount of detergent can be used if required].
• To remove any dust particles etc. form inside the front grill, or the rear air intakes, you can use a regular vacuum cleaner.
  • Always make sure the machine is completely dry before using.
• If you are not going to use the heater for a while it is best to make sure it is clean and dry and then store it inside a plastic bag in a cool dry place.
• With sensible care and attention this heater will give you many years of good service and economical heating.

VI. TECHNICAL FICHE

Table	Model identifier for electric local space heaters
Model number:	HCH-L1400BK
Item		Symbol	Value	Unit
Heat output
Nominal heat out-put		Pnom	1.400	kW
Minimum heat out put (indicative)		Pmin	0.0053	kW
Maximum continuous heat output		Pmax,c	1.400	kW
Auxiliary electricity consumption
At nominal heatoutput		elmax	N/A	kW
At minimum heatoutput		elmin	N/A	kW
In standby mode		elsb	N/A	kW
Type of heat input, for electric storage local space heaters only (single select)
manual heat charge control, with integrated thermostat				☐ Yes ☑ No
manual heat charge control with room and/or outdoor temperature feedback				☐ Yes ☑ No
electronic heat charge control with room and/or outdoor temperature feedback				☐ Yes ☑ No
fan assisted heat output				☐ Yes ☑ No
Type of heat output/room temperature control (single select)
single stage heat output and no room temperature control				☐ Yes ☑ No
Two or more manual stages, no room temperature control				☐ Yes ☑ No
with mechanic thermostat room temperature control				☒ Yes ☑ No
with electronic room temperature control				☐ Yes ☑ No
electronic room temperature control plus day timer				☐ Yes ☑ No
electronic room temperature control plus week timer				☐ Yes ☑ No
Other control options (multiple selections possible)
room temperature control, with presence detection				☐ Yes ☑ No
room temperature control, with open window detection				☐ Yes ☑ No
with distance control option				☐ Yes ☑ No
with adaptive start control				☐ Yes ☑ No
with working time limitation				☐ Yes ☑ No
with black bulb sensor				☐ Yes ☑ No
Contact details	Network One Distribution Marcel Iancu Street, no 3-5, Bucharest, Romania Tel: [phone], www.heinner.com , www.nod.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com. http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
