Product Type	Electric Scooter
Model	XDCS710
Brand	XD Enjoy
Dimensions (Unfolded)	Approx. 1150 x 500 x 1200 mm
Dimensions (Folded)	Approx. 1150 x 500 x 500 mm
Weight	13.5 kg
Max Speed	25 km/h
Range	25 km
Battery	Lithium-ion 36V 7.8Ah
Motor Power	350W (nominal)
Charging Time	4-6 hours
Tire Size	10 inches (pneumatic)
Max Load	120 kg
Brake System	Rear disc brake + electronic brake
Suspension	Front and rear spring suspension
Lighting	Front LED headlight, rear brake light, side reflectors
Folding Mechanism	Yes, one-click folding
Display	LED dashboard showing speed, battery, mode
Riding Modes	Eco, Drive, Sport
Certifications	CE, ROHS, UL2272
Water Resistance	IPX4 (splash resistant)
Warranty	2 years (battery 1 year)
Maintenance	Check tire pressure monthly; lubricate brakes and folding mechanism; clean with damp cloth
Spare Parts Availability	Through authorized service centers or website
Safety Notes	Always wear helmet; avoid water; do not ride at night without lights; max incline 15°

Frequently Asked Questions - XDCS710 XD Enjoy

How do I fold the XDCS710 scooter?

Locate the folding lever on the stem. Push it forward while pulling the stem downwards until it clicks into the folded position. To unfold, lift the stem until it locks upright.

What is the maximum rider weight?

The maximum load is 120 kg. Exceeding this may damage the scooter and cause safety hazards.

How long does the battery last?

The battery provides a range of up to 25 km on a full charge, depending on rider weight, terrain, and riding mode.

Can I ride the scooter in the rain?

The scooter has an IPX4 rating, meaning it can withstand light splashes. However, avoid riding in heavy rain or through puddles to prevent water damage.

How do I charge the battery?

Connect the charger to the charging port on the scooter and plug into a wall outlet. The charger LED turns red while charging and green when fully charged. Charging takes 4-6 hours.

What should I do if the scooter does not start?

Check the battery level and ensure the scooter is turned on. If the battery is fully charged, inspect the power button and connections. If problem persists, contact customer support.

How do I maintain the tires?

Check tire pressure regularly (recommended 40-50 PSI). Inflate if low. Inspect for wear or punctures. Replace tires if damaged.

Can I use the scooter with a smartphone app?

No, the XDCS710 does not have app connectivity. All controls are on the handlebar display.

What spare parts are available?

Common spare parts include tires, brake pads, batteries, chargers, and handle grips. They can be ordered through www.xd-enjoy.com or authorized dealers.

Is the scooter legal for road use?

The scooter complies with CE and UL2272 standards. However, road legality varies by country. Check local regulations regarding speed limits, age requirements, and helmet laws.

USER MANUAL XDCS710 XD Enjoy

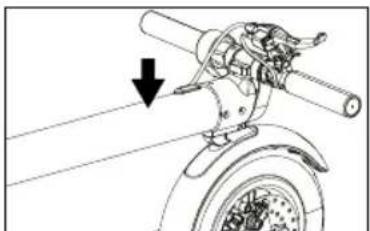

1. Abbassare l'asta.

MONOPATTINO

ELETTRICO

art. XDCS710

RUOTE DIAMETRO 10"

6. MANUTENZIONE

Manufacturer address :

2/F, Building B, Hongkong-Shenzhen Innovation Park, Huaning

Road, Dalang street, Longhua District, Shenzhen, China

WARNING:

To reduce the risk of injury.user must read instruction manual.

BATCH NUMBER:

xDROID

Importatore:

DML S.p.A.

Via Emilia Levante, 30/a

48018 Faenza (RA) Italy

www.xd-enjoy.com

Art. XDCS710
