HS 7031 - Curling iron GRUNDIG - Free user manual and instructions

Product Type	Hair Styler (Straightener & Curling Iron)
Brand	Grundig
Model	HS 7031
Power Supply	100-240 V~, 50-60 Hz
Power Consumption	50-52 W
Electrical Insulation Class	II
Styling Plates Material	Ceramic-coated
Temperature Range	160 °C to 220 °C
Temperature Control	Touch control with LED display
Turbo Function	Yes, sets to 220 °C
Auto Shut-Off	After 1 hour of inactivity
Temperature Lock	Locks automatically after 5 seconds; unlock by pressing +/- for 2 seconds
Plate Lock	Yes, for storage
Cleaning	Wipe with a soft damp cloth after cooling
Safety Features	Automatic shut-off, heat-resistant stand, do not use near water
Intended Use	Domestic only
Compliance	WEEE, RoHS

Frequently Asked Questions - HS 7031 GRUNDIG

What is the Grundig HS 7031 hair styler used for?

The HS 7031 is a versatile hair styler that can straighten hair, style ends (turn in or out), and create soft cascading waves and curls.

How do I set the temperature on the HS 7031?

Use the touch control (B) to adjust the temperature. The selected temperature will flash on the LED display until the plates reach the desired heat, then it stays steady.

What temperature should I use for my hair type?

For fine, brittle, color-treated, or blonde hair: 160-180 °C. For normal hair: 180-200 °C. For strong, resistant, thick hair: 200-220 °C.

How does the Turbo function work?

Pressing the Turbo button (C) instantly sets the temperature to the highest level (220 °C), ideal for quickly styling thick or resistant hair.

Does the HS 7031 have an automatic shut-off feature?

Yes, the device will automatically shut off one hour after you stop using it for safety.

How do I lock or unlock the temperature setting?

The temperature locks automatically 5 seconds after setting. To unlock, press and hold the +/- button for 2 seconds.

How should I clean the HS 7031?

First, unplug the device and let it cool completely. Then wipe the housing and styling plates with a soft damp cloth. Do not immerse in water.

Can I use the HS 7031 in the bathroom?

No, never use the device near water (bathtubs, showers, basins). If used in a bathroom, unplug after use as proximity to water remains hazardous.

How do I store the hair styler properly?

Ensure it is unplugged, completely cool, and dry. Lock the styling plates using the plate locking button (F). Store in a cool, dry place out of reach of children. Do not wrap the cord around the device.

What safety precautions should I follow while using the HS 7031?

Never leave the device unattended when on. Keep away from flammable materials. Do not touch hot plates with bare hands. Always place on a heat-resistant surface after use. Keep out of reach of children.

USER MANUAL HS 7031 GRUNDIG

Hair Styler Straight & Curls

User Manual

Silhouette of a human head in profile with curved lines, no text or symbols present

HS 7031

HS 7032

HS 7033

EN - TR

ENGLISH 06-15

TÜRKÇE 16-30

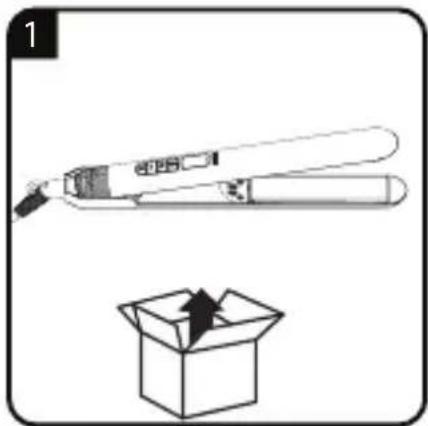

Illustration of a hand holding a pen and a box with an arrow, next to a blank box (no text or symbols)

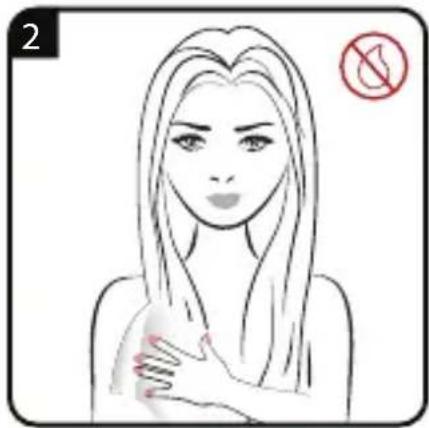

Illustration of a woman with long hair holding her chest, marked with a red prohibition symbol (no text or labels)


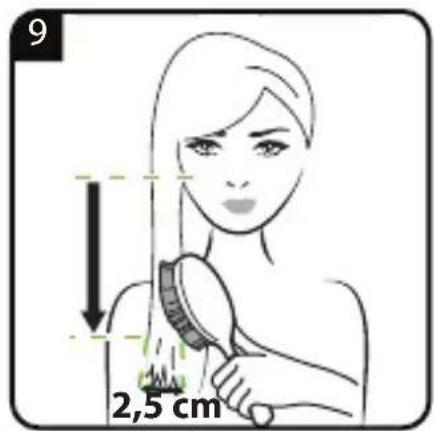

Illustration of a person brushing her hair with a comb (no text or symbols)

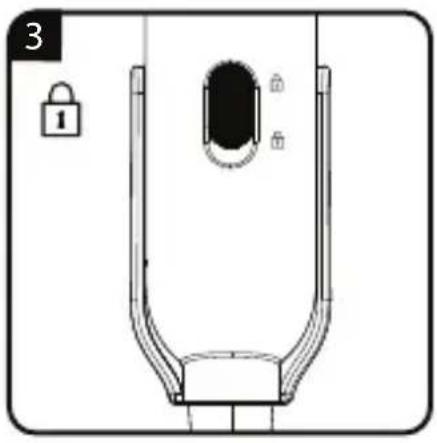

Technical line drawing of a U-shaped mechanical component with a lock and internal components (no text or symbols)

EN OPERATION CLEANING AND CARE
TR KULLANIM TEMİZLEME VE BAKIM

Please read these instructions carefully before using the device! Please follow all the safety instructions!

Damage may be caused by using the device incorrectly.

Please keep these instructions for future reference. In the event that the device is passed on to a third party, these instructions must also be passed on to the new owner or user.

• This device is intended for domestic use only.
• Never use the device in a bath or shower, over a sink or in basin filled with water. Never use with wet hands.

- Do not immerse the device in water or allow contact with water, even when cleaning the device.

- If you use this device in the bathroom, it must be unplugged after use, as water near the device can still be hazardous even when the device has been turned off.

• Always unplug the device before cleaning it or carrying out any maintenance.

- For additional protection, install an RCD (Residual Current Device) with residual current rating no higher than 30 mA in the circuit. Ask your electrician about this.

• The device must never be covered by anything, e.g. towels.
• During operation, never place the device on any soft upholstery, cushions or blankets, paper or cardboard, plastics or combustible or unprotected polished surfaces.
• The device can become very hot. Never leave hair between hot styling plates for more than a few seconds.
• Never let the hot styling plates touch your face, neck or scalp. Do not touch with bare hands.

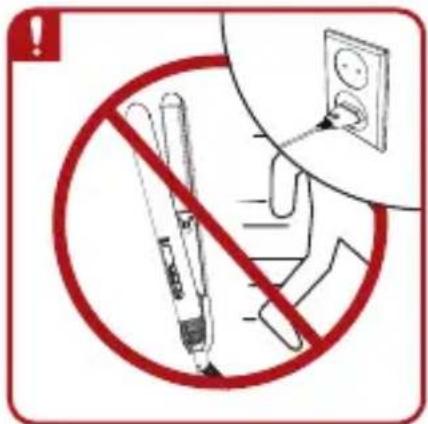

• Unplug the device immediately after use. Do not unplug by pulling on the power cord. Place the device on a heat-resistant surface and allow it to cool down.

SAFETY

• Do not use the device if there is visible damage to it.
• Our GRUNDIG household appliances all comply with current valid safety standards. If there is any damage to the device or to its power cord, it must be repaired by a Service Centre or replaced, to avoid any potential risk of danger. Any repair performed incorrectly by an unqualified person could present safety risks and endanger the user.
• The cable must be positioned so that there is no risk of accidentally pulling on it or tripping over it.
  • Always keep the device out of reach of children.

- In the event that this device is to be used by children aged 8 and over or by persons with reduced physical, sensory or mental capabilities or with lack of experience or knowledge, the user must be supervised or instructed regarding the safe use of the device and must have an understanding of the consequent potential risks of danger. Children must not play with this device. In the event that children carry out cleaning of the device or perform user maintenance, they must be fully supervised.

- When the device is on, it must never be left un-attended.

- Never open the device, under any circumstances. No liability shall be accepted for damage caused by incorrect use.

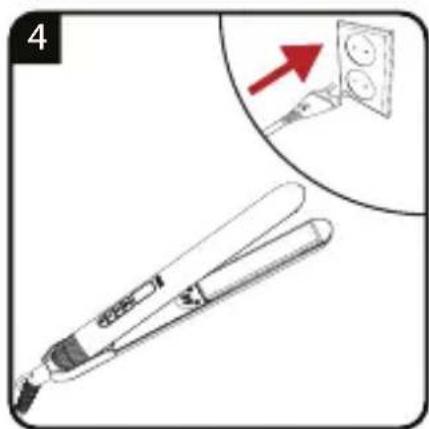

- Please check that the voltage on the rating plate (on the device handle) corresponds to the local power supply voltage. The only way to disconnect the device from the power supply is to unplug it.

• Never wrap the power cord around the device.
• Never use the device on or near combustible or flammable areas or furniture. Do not allow the device to be touched or covered by flammable materials, such as curtains, fabric, walls etc. Ensure that the device is always kept at a safe distance away from flammable materials and furniture.

- WARNING Do not use this appliance near bath-tubs, showers, basins or other vessels containing water.

- Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down.

• Always place the appliance with the stand, if any, on a heat-resistant, stable flat surface.

Dear Customer,

Congratulations on purchasing your new Hair Styler Straight & Curls HS7031, HS7032, HS7033.

Please read the following instructions carefully to ensure that you will be able to go on using your high-quality GRUNDIG product for many years.

A Responsible Approach!

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

GRUNDIG is committed to contractually agreed social working conditions with fair wages for both its own employees and its suppliers, to efficient use of raw materials, continuously reducing waste by several tonnes of plastic every year and to ensuring that all our accessories remain available for at least 5 years.

For a future worth living.

Grundig.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

Controls and parts

See picture on page 3.

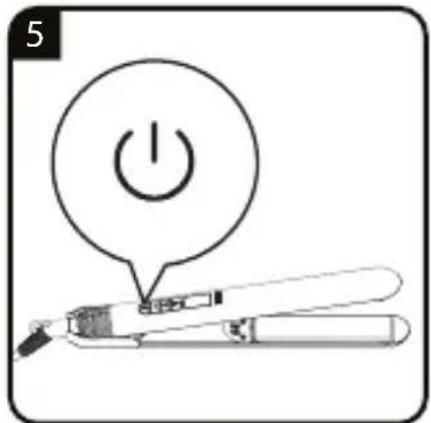

A On/Off button
B Temperature touch control
C Turbo Function Button
D LED Display
E Ceramic-coated styling plates
F Plate locking button
G Power cord with hanging lug

Turbo Function C

When the Turbo function button is pressed, the temperature level will be set to 220 C, which is the highest temperature level.

Hair structure

The device allows for individual temperature settings. The following individual settings are recommended to work best with the specific hair structures listed:

• For fine, brittle, colour-treated, blonde hair: 160 °C to 180 °C
• For normal hair: 180 °C to 200 °C
• For strong, resistant, thick hair: 200 °C to 220°C

Auto Shut Off

- The device will switch off automatically one hour after you finish using it.

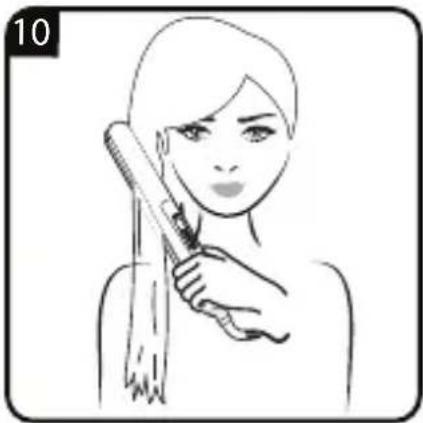

Styling Possibilities

With your Hair Styler HS7031, HS7032, HS7033, you can:

• Straighten hair
• Style the ends (turning in or out)
• Form soft cascading waves and curls

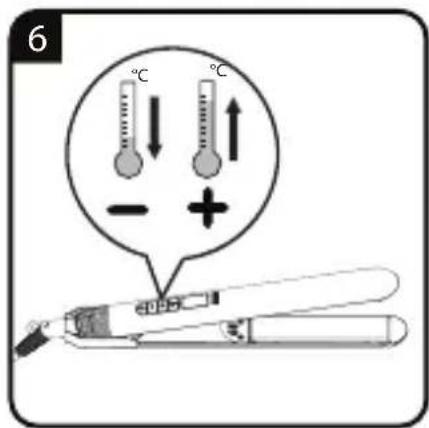

Temperature setting

1 If you touch the temperature selection B and move it from a lower to a higher setting, the corresponding temperature will flash on the LCD display. Once the styling plates reach the required temperature, the temperature display stops flashing and is on continuously.
2 If you touch the temperature selection B and move it from a higher to a lower setting, the corresponding temperature will flash on the LCD display. The temperature display will light continuously once the plates have reached the required temperature.

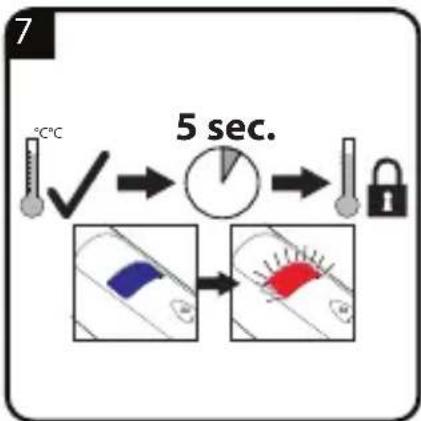

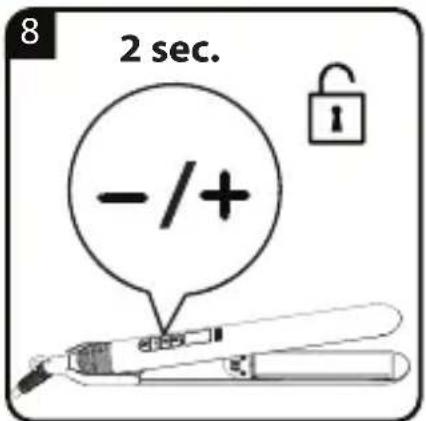

Lock Setting

The temperature setting is locked automatically 5 seconds after the required temperature has been set. This means that the temperature setting cannot be changed once the device is in use. If you want to change the temperature setting, simply press and hold the +/- button for 2 seconds to unlock temperature setting.

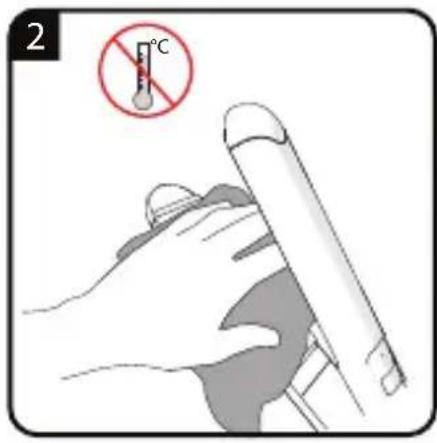

Cleaning and Care

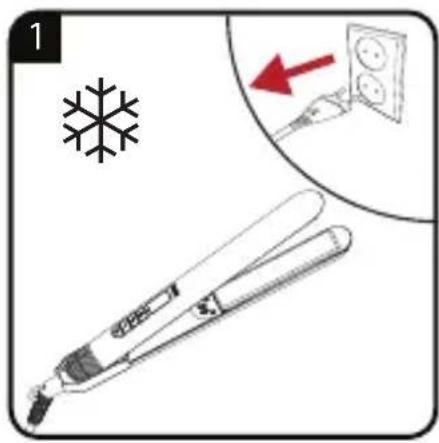

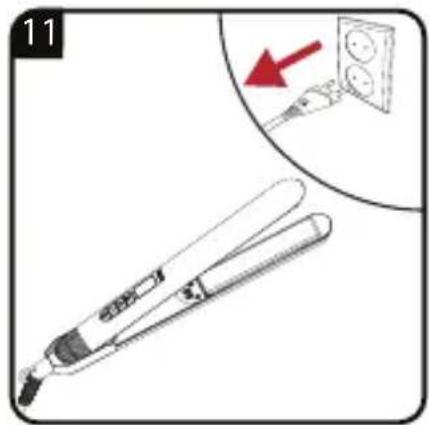

1 Switch off the device and unplug G from the power supply.
2 Before cleaning, allow the device to cool down completely. The device can become very hot; it may take up to 45 minutes to cool down.
3 Clean the housing and the styling plates only using a soft damp cloth.

Storage

• If the device is not used for a long time, it must be stored carefully.
• Ensure that the device is unplugged from the power supply, has cooled down completely and is dry.

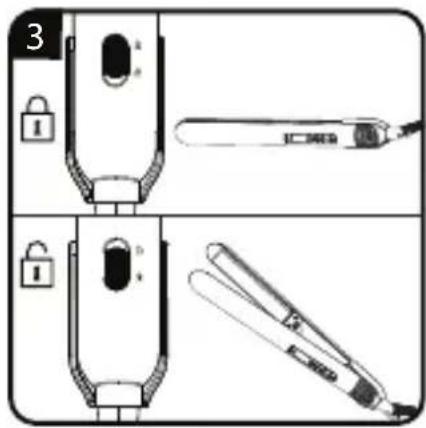

• Lock the device's styling plates in position, using the plate locking button F.
• Do not wrap the power cord around the device.
• Store in a cool dry place.
• Ensure that the device is always kept out of reach of children.

Tips for energy saving

Turn off and unplug the appliance after each use.

Compliance with the WEEE Directive and Disposing of the Waste

Product: This product complies with the requirements of the EU-WEEE-Directive (2012/19/EU). This product carries a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a vehicle crossed out by a diagonal line, indicating no crossing or restriction (no text present)

This symbol indicates that the product must not be disposed of with ordinary household waste at the end of its operating lifetime. Waste electrical and electronic equipment must be taken to the appropriate official recycling collection points. For details of these collection points, please contact your local council or the retailer from whom you purchased your device. The contribution to environmental protection made by every household is important. Disposing of waste equipment appropriately will help to prevent harmful effects on the environment and on human health.

Compliance with RoHS requirements:

The product that you have purchased complies with the EU RoHS Directive (2011/65/EU). It contains no hazardous or prohibited materials as specified in the terms of the directive.

Packaging Information

The product packaging has been manufactured from recyclable materials in accordance with our national legislation. Please do not dispose of these packaging materials with ordinary household waste or other refuse. Please take them to a collection point for packaging materials, provided by your local authority.

Technical Specifications

Power supply:

100–240 V\~, 50–60 Hz

Output: 50-52 W

Electrical insulation class: ||

Technical and design modifications reserved.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
