HD-123588 - Tumble dryer Emerio - Free user manual and instructions

Product type	Tumble dryer
Brand	Emerio
Model	HD-123588
Dimensions (H x W x D)	70 x 60 x 50 cm
Weight	30 kg
Power supply	220-240 V, 50 Hz
Energy class	C
Capacity	6 kg
Drying programs	Cotton, Synthetics, Delicates, Mixed, Quick 30 min, Wool
Drum material	Stainless steel
Display	LED
Delay start	Up to 24 hours
Anti-crease function	Yes
Child lock	Yes
Fluff filter cleaning	After each use
Condenser cleaning	Every month
Noise level	65 dB
Power consumption per cycle	4.5 kWh
Condensation type	Condenser (self-contained)
Reversible door	Yes
Warranty	2 years
Spare parts availability	From manufacturer or authorized dealers

Frequently Asked Questions - HD-123588 Emerio

How do I clean the fluff filter?

Open the door, pull out the fluff filter located at the bottom of the opening, remove lint by hand or with a soft brush, then rinse under running water and dry thoroughly before reinserting. Clean after each use.

What should I do if the dryer doesn't start?

Check that the door is fully closed, the power plug is securely connected, the circuit breaker is not tripped, and that the delay start timer is not active. Also ensure the water tank is not full (if applicable).

How often should I clean the condenser?

Clean the condenser at least once a month. Remove the condenser unit (usually behind a lower panel), rinse with water, and allow to dry completely before reinstalling. Regular cleaning maintains drying efficiency.

Can I dry all types of fabrics?

No. Follow garment care labels. Suitable for cotton, synthetics, delicates, and wool (with specific program). Do not dry items with rubber, foam, or similar materials, or garments that have been cleaned with flammable solvents.

Why is my laundry still damp after a cycle?

Possible causes: overloaded drum, clogged fluff filter, dirty condenser, incorrect program selection for fabric type, or insufficient drying time. Ensure proper load size and clean filters regularly.

How do I use the delay start function?

Select your drying program, then press the delay start button repeatedly to set the desired delay (e.g., 3h, 6h, 12h). Press start; the dryer will count down and begin automatically. Maximum delay is 24 hours.

What does the 'Child Lock' function do?

Activating child lock disables the control panel buttons to prevent accidental changes during operation. Press and hold the child lock button (usually a symbol) for 3 seconds to activate/deactivate. The lock remains active even if the dryer is turned off.

How do I empty the water tank?

Pull out the water tank (usually located at the top or front), pour the water into a sink, then reinsert it securely. The dryer will give a tank full indicator when necessary.

Is it normal that the dryer makes noise?

Some noise is normal (drum rotation, fan). Unusual sounds (banging, scraping) may indicate foreign objects in the drum or drum bearing issues. Check for coins, buttons, and ensure the dryer is leveled.

Where can I find spare parts?

Contact Emerio customer service or visit the official website. Common spare parts include fluff filters, condenser units, belts, and heating elements. Use only original parts for safety and performance.

USER MANUAL HD-123588 Emerio

Black hair dryer with a cord and headband, shown against a plain white background (no text or symbols visible)

Hair dryer (EN)

Haartrockner (DE)

Hajszárító (HU)

Uscător păr (RO)

Content – Inhalt – Tartalom – Cuprins

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water. Such situations constitute a DANGER TO LIFE! through electric shock.

2. When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even

when the hairdryer is switched off. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.

12. Do not use the appliance for other than intended use.

13. Do not wind the cord around the appliance and do not bend it.

14. Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.

15. Never leave the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
16. Do not spray aerosol products into the air inlet of the hair dryer when the hair dryer is running.
17. Use only original accessories.
18. Do not use the device outdoors.

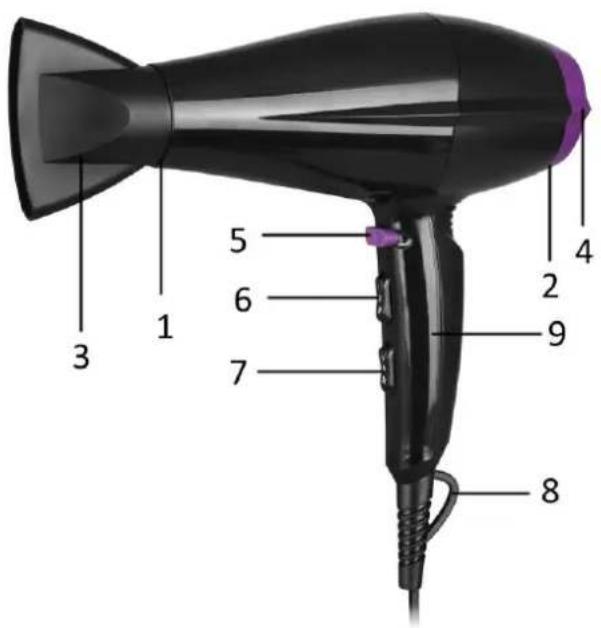

PARTS DESCRIPTION

1. Air outlet

2. Air inlet

3. Nozzle

4. Filter

5. Cool shot button

6. Heat switch

7. Airflow switch

8. Hanging loop

9. Handle

Heat setting:

Airflow setting:

"0" position = OFF

BEFORE USE

1. Fully unwind the mains cable.
2. Attach the nozzle onto the air outlet. Using the hairdressing nozzle, individual sections of the hair can be dried by bundling the air flow. Make sure that both the nozzle and filter are correctly assembled.

To detach/attach the nozzle

Snap the nozzle off from the air outlet. When you place it back, make sure it is firmly connected.

To detach/attach the filter

Hold and turn the filter anti-clockwise to release it from the appliance. When assembling the filter back, align the bulge and space at two sides and turn the filter clockwise until the filter is firmly assembled.

HOW TO USE THE HAIRDRYER

1. Make sure the airflow switch is set at the "0" position before you plug the appliance.
2. After connecting the power, select the desired heat and airflow to start drying or styling. Whichever the setting you choose, as long as you keep pressing the cool shot button, the appliance will send out cool air.
3. Move the hair dryer around your hair and keep your hair in a small distance with the nozzle. Avoid focusing too much heat on one area. Keep your hair away from the air inlet to prevent hair being drawn in.
4. After use, turn the airflow switch to the "0" position to turn off the appliance, and then remove the plug from the power outlet.

Note! Should the hair dryer stop for any reason, turn it off at once and cut off the power, then let it cool down.

CLEANING AND MAINTANENCE

• Ensure that the hair dryer is disconnected from the mains supply before cleaning.
• Never immerse the hair dryer in water or any other liquids. Never rinse the appliance either. Always ensure that the plug is kept dry.
• Clean the appliance with a soft and dry cloth without additives.
• The nozzle and filter can be taken off for separate cleaning. If they are washed, make sure they become completely dry before assembling.

Note! Frequently clean out any hair or fluff that becomes stuck in the filter. Failure to keep filter clean may result in overheating.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 1800-2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höffer Weg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

INTRUCTIUNI DE SIGURANTĂ
