Warmy Twist - Heating FAKIR - Free user manual and instructions

Product Type	Portable Fan Heater
Brand	Fakir
Model	Warmy Twist
Power Source	AC 220-240V, 50/60Hz
Power Consumption	2000W
Heating Type	Ceramic PTC
Fan Speeds	2 (Low/High)
Thermostat	Adjustable thermostat with auto shut-off
Oscillation	Yes, 60°
Overheat Protection	Automatic shut-off
Tip-Over Switch	Yes, automatic power cut
Dimensions (W x H x D)	22 x 28 x 18 cm
Weight	1.8 kg
Cord Length	1.5 m
Noise Level	< 45 dB
Room Coverage	Up to 25 m²
Cleaning	Wipe with a soft, dry cloth; do not immerse
Accessories Included	User manual, warranty card
Safety Certifications	CE, RoHS
Spare Parts Availability	Contact Fakir customer service
Repairability Index	Not specified

Frequently Asked Questions - Warmy Twist FAKIR

How do I adjust the thermostat on the Warmy Twist?

Turn the thermostat knob clockwise to increase the desired temperature. The heater will automatically shut off once the room reaches the set temperature and restart when it drops below.

Can I use the heater in a bathroom?

No, the Warmy Twist is not designed for use in bathrooms or high-humidity areas. It must be placed on a stable, dry surface away from water.

What does the oscillation function do?

The oscillation feature rotates the heater left and right (up to 60°) to distribute warm air more evenly across the room.

Why does my heater turn off suddenly?

The heater may shut off due to overheat protection or tip-over safety switch. Ensure the air intake and outlet are not blocked. If it tips over, stand it upright and wait a few minutes before restarting.

How do I clean the Warmy Twist?

Unplug the heater and let it cool. Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Vacuum the air intake grille gently with a brush attachment.

Can I use an extension cord?

It is not recommended. If necessary, use a heavy-duty extension cord (minimum 14 AWG) rated for at least 2000W and keep it fully uncoiled to prevent overheating.

What is the recommended room size for this heater?

The Warmy Twist is suitable for small to medium rooms up to approximately 25 m² (270 sq ft) with adequate insulation.

How do I change the fan speed?

Press the fan speed button or slide the switch to choose between Low (quiet operation) and High (faster heating). Refer to your manual for exact control location.

Is the heater energy efficient?

Ceramic PTC heaters are generally efficient for spot heating. The Warmy Twist uses a thermostat to maintain temperature, reducing unnecessary energy consumption.

Where can I find spare parts or service?

Contact Fakir customer support via their website or authorized service centers. Have your model number (Warmy Twist) ready.

USER MANUAL Warmy Twist FAKIR

Exterior view of a Fakir Warmy Twist electric heater (no signage or text on body)

WARMY TWIST

Front view of a portable electric heating unit (no visible text or symbols on the device body)

Öffnen der Box

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Information about the operating instructions ....12

Safety matters....12

Liability 12

Notices in the operating instructions 12

EC Conformity declaration....13

Intended Use....13

Unauthorized Use....13

SecurityWarnings 13

Technical Specifications ....14

Description of Components 16

Unpacking....17

Box Contents:....17

Operating instructions....17

Falling Protection 18

Overheat Protection....18

Cleaning and Maintenance....18

Recycling 18

Dispatch....18

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Warmy Twist, produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

Information about the operating instructions

You may have used similar products before, but please take time to read the user guide. This guide has been prepared for you to get the most out of the products you have purchased.

Safety matters

Please keep this user's manual at a safe place for future reference. If you pass the appliance on, pass on the manual too. Remove all packaging materials, however keep them until you are sure that the appliance is operational. In an event where an issue or a failure occurs regarding he appliance, consult Fakir Authorized Service.

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir will accept no liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly. Warnings on the operating instructions

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

CAUTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

CE Conformity declaration

The appliance fulfils the basic requirements of the following laws, EU Directives / regulations, as well as further relevant standards: Product Safety Law -ProdSG-,

2014/30/EU, 2014/35/EU, 2001/95/EG, 2011/65/EU, 2015/863/EU, 2009/125/EG,

EU 2015/1188. The appliance bears the CE-mark on the rating plate.

The current CE-declaration of conformity can be found on the internet at www.fakir.de

Fakir reserves the right to change design and equipment.

Intended Use

The appliance is designed for home use and it is not suitable for commercial or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

This product is suitable only to be used in well-insulated areas or rare usage.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

This appliance shall not be used by individuals (including children) who have limited physical, cognitive or mental capacity or insufficient experience and/or information unless they are instructed in the ways to use the appliance by their legal guardian and being supervised. The children should be supervised to avoid them from playing with the appliance.

This appliance can be operated by children of 8 years and above, people with limited physical, auditory and cognitive skills or people with lack of experience and knowledge as long as they are under supervision or they are provided instructions regarding the operation of the appliance.

Keep small items of packaging and plastic bags away from children. There is a risk of choke!

In case they are not older than 8 years old or unsupervised, children should not clean or maintain the appliance.

Keep the appliance and its cable from the reach of children aged <8.

The children should be supervised to avoid them from playing with the appliance. The electrical appliances are not toys for children! Therefore keep the appliance away from the children. The children may not be aware of the dangers related to the utilization of the appliance. Do not let the power cord dangle from the appliance.

Security Warnings

When utilizing an electrical appliance, the precautions below shall always be taken in order to prevent fire, shock or personal injuries

• This appliance shall only be used within its own utilization field as specified in the user's manual.
• Using electrical appliances may be dangerous, so please read the user's manual before using the appliance.
• Before plugging the appliance, into the power outlet ensure that the voltage matches the rated value specified in the type label.

WARNING!

Do not cover your heater to prevent excessive heating.

EN

• Always keep the appliance off when not in use and unplug it from the power outlet.
- Do not place your appliance right below an electrical outlet.
- Do not operate the appliance in such a way that the power cord is left under the carpet and make sure that it is not stepped on.
- Do not operate the appliance if the power cord or appliance is damaged.

WARNING!

Before the first use, check the appliance for damages and malfunctions. If there is any malfunction or damage to the appliance, do not use the appliance and get in contact with Fakir Authorized Service.

• Do not use extension cables as it may occur overheating and fire.
• Use the appliance only with its authentic accessories.
• Use your appliance with a well-ventilated area.
• Do not inset any objects into the ventilation openings of the appliance.
• Use your appliance on flat and dry surfaces.
• The appliance should not be installed or used in garages or wooden huts, etc. to avoid risk of fire.
• Do not operate your appliance on flammable materials or surfaces.
• Combustible (gases, solvents, pressurized spray cans) or easily flammable materials (wood, paper, etc.) should not be stored in the heated room. Keep such materials away from the heater.
• Do not use your appliance in areas where there is gasoline, paint or other flammable liquids.
• Do not use to close to other objects.
• A minimum distance of 30cm should be maintained between the heather and other materials to prevent ignition.
• Do not use your appliance nearby the bathroom, shower or swimming pool.
• Never place your appliance in places where it may fall into a bathtub or other water containers.
• This appliance is hot during use. In order to prevent burns and personal injury do not expose your skin to hot surfaces. Carry the appliance from the holder
  • Male sure that no other appliance is used in the same electric circuit.
  • Children should not tamper with the appliance.
• Cleaning and appliance maintenance of the appliance should not be performed by unattended children.
• Some pats of your appliance may become very hot and cause burns. Do not operate the appliance without supervision.

Technical Specifications

• Power: 2000 W
- Voltage: 230V
• Frequency : 50Hz
• Cable length: 1.50 cm
• Useful life: 10 years

Item Symbol	Value Unit	Item Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom 2,0	KW			manual heat charge control, with integrated thermostat	Not applicable
Minimum heat output (indicative)	Pmin 1,0	KW			manual heat charge control with room and/or outdoor temperature feedback	Not applicable
Maximum continuous heat output	Pmax,c 2,0 KW				electronic heat charge control with room and/or outdoor temperature feedback	Not applicable
Auxiliary electricity consumption					fan assisted heat output	Not applicable
At nominal heat output	elmax	0.020 (fan motor)	KW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.020 (fan motor)	KW		single stage heat output and no room temperature control	[no]
In standby mode	eISB 0 KW				Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor [no]

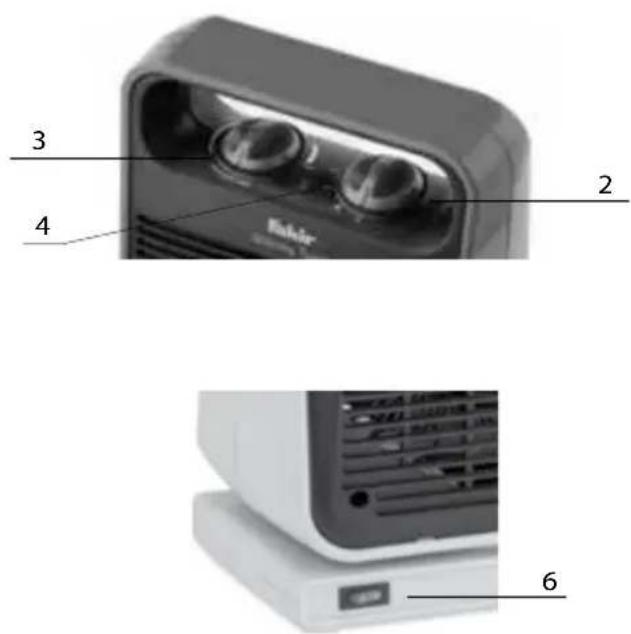

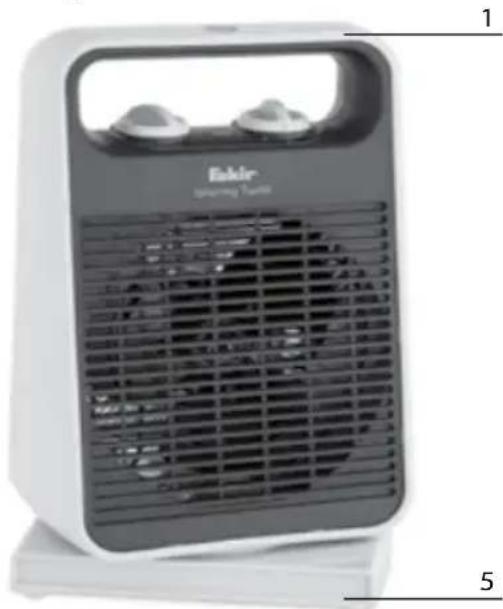

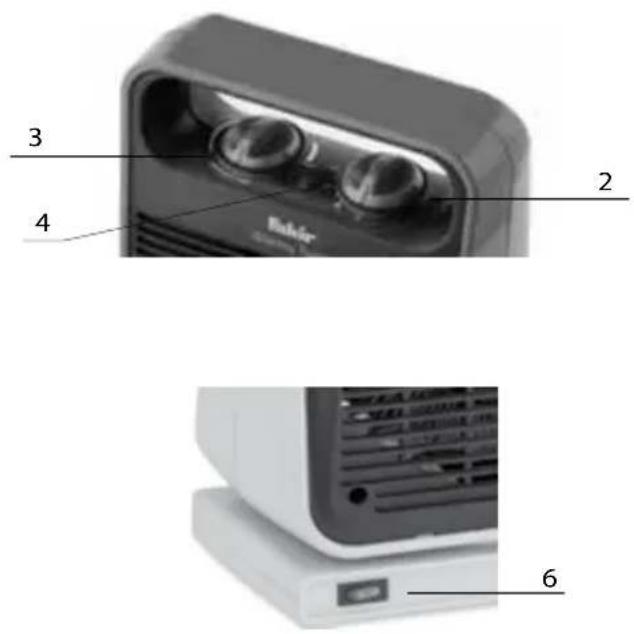

Description of Components

1. Crane
2. Power Control Knob (Low - High)
3. Thermostat Control Button
4. Indicator light
5. Swing base
6. Swing On / Off Button

Exterior view of a portable electric heating fan with visible grille and heat sink (no text or symbols)

Unpacking

Unpack the appliance and before starting to use it check for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

-Repair works shall only be undertaken by Fakir service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Box Contents:

Fan Heater

User Manual

Service list

Operating instructions

1) Before using your appliance, make sure it is on a flat and fixed surface.
2) Make sure your appliance is turned off and plug it in a grounded AC socket.
3) To operate the appliance, set the power control knob to the mode you want ☐ choose. Operate your appliance by adjusting the thermostat knob according to your preference between Low Mode and High Mode. The red indicator light is on when the appliance is running.

The appliance is in the cold wind mode when the power control knob indicates the symbol.

The appliance is in the warm wind mode when the power control knob indicates the "I" symbol.

The appliance is in the intense warm wind mode when the power control knob indicates the "II" symbol.

4) You can use the power control knob to adjust the operating power of your appliance. The low mode power is 1000 watts at "I" and the high mode power is 2000 watts at "II".

5) Turn the thermostat control button clockwise or counter-clockwise adjust the temperature you want. Your appliance will automatically keep the room temperature at the desired level.

6) To operate your appliance more effectively, press the swing on/off button on the back of your appliance, thus, your appliance will start to swing and will heat a wider area.

7) Your appliance has an overheat protection system that automatically closes the appliance when the heater parts are overheated.

8) In order to turn off your appliance completely, move all the control knobs to "0" (zero) position and unplug the appliance.

NOTE!

Do not try to rotate your appliance more than the maximum level it can rotate.

Falling Protection

Your appliance is protected by a safety system that automatically turns off the appliance when it falls or when it is in danger of falling. This feature helps prevent accidents and the heater keeps operating when turned upright.

Overheat Protection

Your appliance is protected by overheat protection that automatically turns off the appliance in case of overheating. In this case, unplug the appliance, wait for approx. 30 minutes and eliminate the possibility of overheating, by; Check whether the appliance, cable, and the plug are damaged. If there is no damage, plug the appliance in again and operate as described above. If your heater still does not work, contact the Fakir Authorized Service for assistance.

Cleaning and Maintenance

1. Unplug your appliance and wait for the heater to cool before cleaning.
2. Wipe the outer surface of your appliance with a soft damp cloth (non-wet cloth) and dry the outer surface before operating the heater.

WARNING!

Do not submerge the heater.

Do not use cleaning chemicals such as detergents and abrasive materials.

Do not let the inside of the appliance get wet, otherwise danger may occur.

1. Put the heater back in its original package or put it in a clean box in order to store the heater.

Recycling

Dispose of the appliance according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Dispose the appliance to the waste baskets designated for electrical waste. The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

This appliance is compatible with 2012/19/EU AEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Warranty

We provide a warranty for the appliance subject to the following conditions:

1. The purchaser's main place of residence is in the EU and the appliance was bought from a dealer located in Germany.

2. We undertake to repair the appliance free of charge, including free shipping if it becomes defective due to a material or assembly error within 24 months (within 12 months if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period. A pre-condition of our warranty is that the appliance always treated properly. The warranty terms start on the date of purchase.

3. Parts that are subject to normal wear (e.g. drive belts, batteries, brushes, filters) do not fall under the terms of the warranty.

4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also no to third party spare parts or accessories may be used.

5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances. When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.

6. If a repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the device and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.

7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.

8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Notes

Notes

Fakir customerservice: Technik Service Profi GmbH

Ahltener Str. 4-8

D-31275 Lehrte

Tel.: +49 51 32 / 88 73 858

Fax: +49 51 32 / 58 87 23

[e-mail]
