Product Type	Fan Heater / Convector
Brand	Fakir
Model	Trend HL 140
Heating Power	2000 W
Heating Levels	2 (1000 W / 2000 W)
Fan Only Function	Yes
Thermostat	Adjustable thermostat
Overheat Protection	Yes
Tip-over Switch	Yes
Dimensions (H x W x D)	250 x 200 x 150 mm
Weight	1.5 kg
Power Supply	230 V / 50 Hz
Power Cord Length	1.5 m
Noise Level	< 45 dB
Safety Certifications	CE, GS
Cleaning Instructions	Wipe with a dry cloth; do not immerse in water
Repairability Index	7/10
Spare Parts Availability	Fan motor, heating element, thermostat
Included Accessories	User manual

Frequently Asked Questions - trend HL 140 FAKIR

How do I select the heating power?

Use the power switch to select between 1000 W (low) and 2000 W (high) or the fan-only mode. Refer to the control panel section of the manual.

Can I use the heater in a bathroom?

This heater is not designed for use in bathrooms. It should be placed in a dry indoor area, away from water sources.

What does the overheat protection do?

If the internal temperature exceeds a safe level, the heater will automatically shut off to prevent damage or fire. After cooling down, it can be reset by unplugging and replugging.

How do I clean the heater?

Unplug the heater and allow it to cool. Use a soft, dry cloth to wipe the exterior. Do not use water or cleaning agents. For dust inside the grille, use a vacuum cleaner with a brush attachment.

Why does the heater turn off unexpectedly?

Possible causes include overheating (check for blocked air intake), a triggered tip-over switch (if the unit is tilted), or a faulty thermostat. Ensure the heater is on a stable, flat surface.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. Always turn it off when leaving the room or going to sleep.

How do I store the heater?

Allow the heater to cool completely. Wrap the power cord around the cord storage (if available) and store in a dry, dust-free place.

What is the power consumption?

At maximum setting (2000 W), the heater consumes 2 kWh per hour of operation. Use the lower setting to save energy.

Is the heater suitable for large rooms?

The heater is designed for medium-sized rooms up to about 20 m². For larger spaces, consider a more powerful model or use multiple heaters.

Where can I find spare parts?

Contact Fakir customer service or authorized dealers. Common spare parts include the heating element, fan motor, and thermostat. Check the spare parts list in the manual.

USER MANUAL trend HL 140 FAKIR

Exterior view of a Fakin NAPPROCHESTER air purifier with hexagonal grille and control knob (no text or symbols on body)

Bedienungsanleitung

Heizlüfter

Instructions for use

Fan heater

This product is only suitable for well insulated spaces or occasional use

en - EN

Inhaltsverzeichnis

Allgemeines

Simple line drawing of an open box with a black arrow pointing upward (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Exterior view of a Fakir brand air purifier device (no signage or text visible on body)

Instructions for use

Fan heater

This product is only suitable for well insulated spaces or occasional use

en - EN

Table of content

General

Information about the operating instructions 3

Liability 3

Notices in the operating instructions 3

Safety

CE Declaration of Conformity 4

Intended use 4

Unauthorized use 4

WARNING! Children! 5

ATTENTION! Electric current! 8

In case of danger 9

Dispatch 9

In case of defects 9

Overview

Technical data 10

Scope of delivery 10

Main features .... 10

Assembly

Unpacking 11

Installing the appliance 11

Minimum clearance distances.... 12

Operating

Thermostat 13

Switching on / off 13

After use

Cleaning and maintenance 14

Security systems

Overheating protection and tip over switch 15

Troubleshooting 16

Disposal 18

Warranty 19

Energy data 20

Notes 21

Information about the operating instructions

Thank you, for choosing a Fakir fan heater trend | HL 140. The fan heater was developed and manufactured to guarantee a trouble free operation for many years.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

WARNING!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

The appliance fulfils the basic requirements of the following laws, EU Directives / regulations, as well as further relevant standards: Product Safety Law -ProdSG-, 2014/30/EU, 2014/35/EU, 2001/95/EG, 2011/65/EU, 2015/863/EU, 2009/125/EG, EU 2015/1188.

The appliance bears the CE-mark on the rating plate. The current CE-declaration of conformity can be found on the internet at www.fakir.de

Fakir reserves the right to change design and equipment.

Intended use

This appliance may only be used for private residences and adjoining rooms.

It is not suitable for commercial use.

The appliance is only suitable as additional heating during the transitional period and has not been designed for permanent heating.

The appliance may only be used in the upright position.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

WARNING! Children!

• This appliance may be used only by children from the age of 8 years and over, persons with limited physical, sensory or mental capacities or by persons lacking in experience and / or knowledge, if they will be supervised, or they have been properly instructed with regard to safe use of the appliance and they are aware of the possible resulting risks.
  • Children should not play with the device.
• Cleaning and maintenance may not be carried out by children without supervision.
• Keep plastic packaging foils away from children - danger of suffocation!

WARNING! Children!

• Children under the age of 3 years must be kept away from the appliance, unless they are constantly supervised.
- This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance.
- Children should be supervised to ensure that they do not play with the appliance.
- Keep packaging films away from children - danger of suffocation!
- Children from 3 years onwards and younger than 8 years may switch on and off the appliance only, if they are supervised or have been instructed in the safe use of the appliance and the resulting dangers, provided that the appliance is placed in its normal position of use or is installed.

• Children from 3 years onwards and younger than 8 years may not insert the plug into the socket, adjust the appliance, clean the appliance and / or perform user maintenance.
• The appliance must not be left unattended during operation.

WARNING!

Damage to appliance from rain and dirt: never use or store the appliance outdoors. The device must not be used in bathroom, shower, swimming pool or other humid rooms .DO NOT USE THIS HEATER IN THE IMMEDIATE SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING POOL.

WARNING!

Caution - Some parts of the product may become very hot and could cause burns. Special care is required when children and vulnerable persons are present.

WARNING!

The appliance must not be built into and used in vehicles as it requires special components (e.g. protected heating elements, stronger motors, reinforced anchorage of the components for shock protection, etc.) which must not be used in vehicles. Using the appliance in vehicles of any kind (e.g. site trailers, elevators, camping trailers, motor vehicles, and cabins) and similar closed quarters is prohibited.

Attention!

To prevent any risks caused by accidentally resetting the temperature limiter, refrain from using the appliance as an external switching device, such as a time switch, and do not supply the appliance with power or connect it to a current circuit that is regularly switched on and off by your power company.

Warning! Danger of overheating and fire

• WARNING of fire hazard! The appliance must not be installed or operated in garages or rooms prone to fire such as stables, wooden sheds, etc. This also applies to rooms where highly flammable vapors or dust can easily form.
• WARNING of fire hazard! The room intended to heating must not be used for storing highly flammable materials (e.g. gas, solvents, aerosol cans, etc) or highly combustible materials (e.g. wood, paper, etc). Keep such materials away from the appliance.
• Danger of fire and explosion! Never use the appliance in the vicinity of explosive or flammable materials.
• Install the appliance such that the distance to other adjacent objects is at least 50 cm and combustible objects cannot catch on fire. Installing the appliance behind doors is prohibited.
• The appliance must not be covered by towels, curtains or other objects.
• Danger from overheating! Always keep the openings of the appliance free and do not cover them with a towel or other objects.
• Make sure that the minimum distances are observed. The air flow must not be obstructed by any objects.
• Surface appliances acting as heat deflectors can reach temperatures in excess of 60°C.
• Remember that the appliance will remain hot for some time after it has been switched off.

WARNING! Do not cover!

In order to avoid overheating, do not cover the heater.

ATTENTION! Electric current!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The socket must be protected with a 16 A automatic circuit breaker.
• Use only extension cords designed for the power input of the appliance.
• When operating the appliance, unwind the power cord completely.
• The power cord must not lie on top of the appliance during operation.
• The appliance must not be placed or installed directly underneath a wall socket.
• The appliance is not suitable to be connected to any fixed lines.
• Never immerse the appliance in water or other liquids and protect it from rain and moisture.

WARNING! Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a drop).
• Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately.

Dispatch

Send the appliance in the original package or a similar, wellpadded package to prevent damage to the appliance.

In case of defects

! WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. > see Chapter “Troubleshooting”.

Notice!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir / nilco service center or a trained technician in your country.

Service-Hotline (Germany)

07042 912 0

Before calling, have the article no. and appliance / model name at hand. This information can be found on the rating plate of the appliance.

! WARNING!

Repairs and maintenance may be carried out only by trained specialists (e.g. an authorized Fakir service center). Only Fakir original replacement parts may be used for repairs and maintenance. For further information, see: Troubleshooting.Unauthorized repairs and maintenance pose a danger for the user.

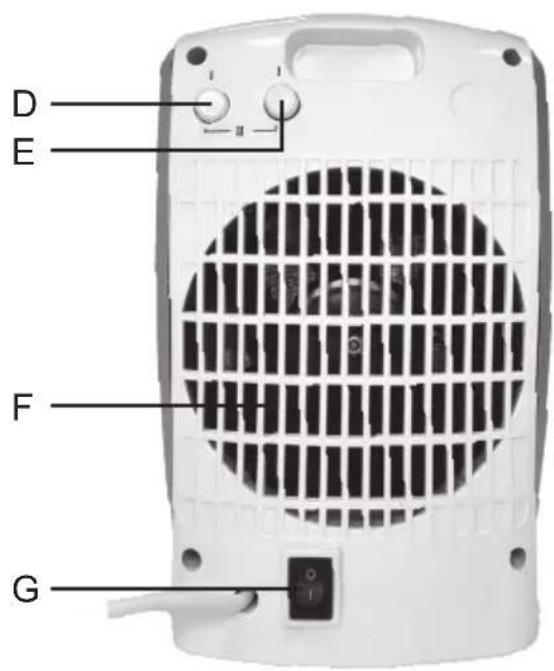

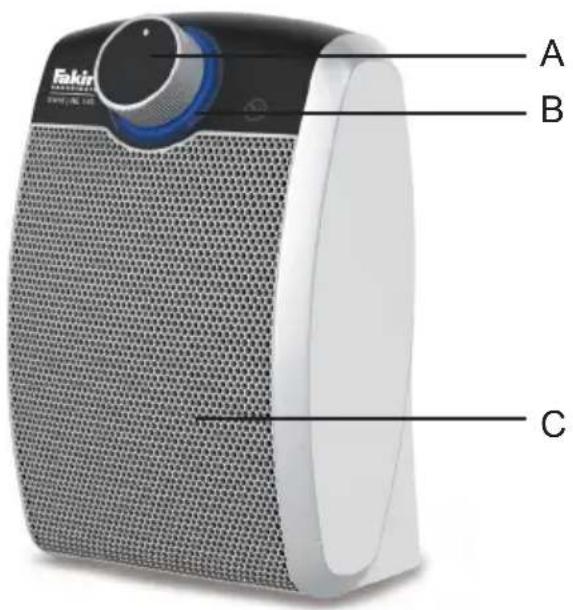

A Thermostat knop

B Knob backlight

C Front grill

E Heating switch II

D Heating switch I

F Air inlet grill

G Main switch

Technical Data

Model trend | HL 140

Referenc no. 62 58 006

Mains voltage 220 - 240 V \~ 50/60 Hz

Heating stages 900 / 1800 W

Protection class II

Dimensions H × W × D 0,25 × 0,16 × 0,14 m

Power cord approx. 1,5 m

Weight approx.

1,3 kg

Scope of delivery

1 pc. Master device

1 pc. Instructions for use

Main features

The fan heater has the following features:

- Mechanical ambient thermostat

- Summer ventilation

- two heat settings

Assembly

Unpacking

Unpack the appliance and check the contents for completeness (see „Scope of delivery“). If you detect damage from transport, contact your retail dealer immediately.

Simple line drawing of an open box with a black upward arrow on the top face (no text or symbols)

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

Installing the appliance

ATTENTION!

Make sure that the unit is places on an even, stable and dry surface.

• Make sure that the unit is places on an even, stable and dry surface.
• Use only extension cords designed for the power input of the appliance.
• Power cord completely unwind and connect the power cord into an outlet.

Minimum clearance distances

ATTENTION!

Make sure that the device is not operated near furniture, curtains or other flammable objects. Keep a minimum distance to other objects, walls and ceilings. These distances are required for a free flow of air. Install the appliance such that the distance to other adjacent objects is at least 50 cm and combustible objects

Operating

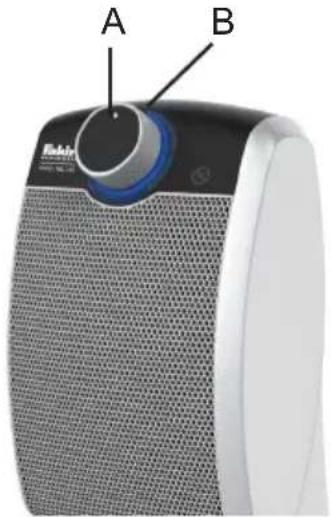

Thermostat

The temperature setting is continuously variable with the thermosta [A] control.

max. Temperature = rotate right (clockwise) min. Temperature = rotate left (counter clockwise)

Switching on / off

1. Plug into the mains socket.
2. Turn on the main switch [E] in position „I“.
3. Select the desired temperature using the thermostat knob [A] If the ambient temperature is lower than the desired temperature, the knob backlight [B] turn ON and the appliance start heating the room according to the heating level selected.
4. Press the Heating buttons to select one of the following operating modes: Press Button [C] or [D] for Heating I or press both buttons [C] and [D] for Heating II.
5. To turn the appliance in standby mode, rotate the thermostat knob to the minimum.
6. To completely turn OFF the appliance turn the main switch [E] in position „0“ placed on the back-of the appliance.

Modes Description	II
Fan The appliance	opera	tes as an fan.
Heating I heating	power	900W
Heating II heating	power	900W
Heating II heating	power	1800W

●= Pressed ○= Released

Cleaning and maintenance

! WARNING!

WARNING! Before conducting any maintenance or cleaning, switch off and unplug the appliance. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

! ATTENTION!

Clean the appliance only with a dry or slightly moist cloth. Do not use any cleaning agents, abrasives or alcohol. These damage the housing.

! ATTENTION!

Regularly inspect the unit for dust inside the unit, clean it with a vacuum cleaner or compressed air.

Before storing the appliance in a dustproof environment, allow the appliance to cool off and wind up the power cord.

Fan heaters that have not been in use for an extended period of time, must be checked by a trained technician before being put back in operation or prior to every heating period. The same applies if the appliance shows dirt on the inside.

Overheating protection and tip over switch

The heater has a safety system that in the cases described below will automatically shutdown.

It is equipped with a tip over switch which switches off the heating fan with a too big inclination, in every direction. Should this be the case, put the device again on a horizontal surface.

The heating fan begins immediately with the preset heating settings to heat.

Also it is equipped with several overheat safety cut-outs which turns off the appliance in the event of a technical fault or if the heater is not being used properly.

If the cut-out has been activated, turn the main switch to the "0" position, unplug the power cord from the wall outlet, and remedy the fault or ensure that the heater is being properly used. The overheat safety cut-out is reactivated after a short cooling

down period, and the heater can once again be operated. (see „Switching on / off“)

ATTENTION!

Always ensure that there is adequate minimum distances. The outflowing air must not be obstructed by any object.

! WARNING!

If you notice a defect several times, unplug the power cord from the wall outlet and proceed in accordance with section „Troubleshooting“ in the following chapter.

Dear Customer:

Our products are subjected to stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting the authorized Fakir service center, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

NOTICE!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service-Hotline (Germany)

07042 912 0

Before calling, make sure to have the following information:

Appliance / model designation including 7-digit article number e. g. Art. no. 62 58 006 and date of manufacture e.g 2019-05 (This information can be found on the rating plate of the appliance.)

or the 7-digit replacement part number.

ATTENTION!

Repairs and maintenance may be carried out only by trained specialists (e.g. an authorized Fakir service center). Only Fakir original replacement parts may be used for repairs and maintenance. Unauthorized repairs and maintenance pose a danger for the user.

Fault Possible cause	Solution
Device does not heat.	Plug is not plugged. Connector plug.
	Device is not turned on. Switch on the unit with heating stages.
	The socket does not have electricity.	Try a different outlet.
	Thermostat is set too low. Higher temperature.
	No heat setting selected. Turn heat setting.
Fan is not running. Thermostat is set too low. Thermostat to max. setting is reached.
Appliance heats up slightly.	Heating only at level I. Heater switch to the second degree.
Overheating. Device is defective. Switch off the mains plug. Report and remove errors in service hotline.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

When the appliance has reached the end of its service life, in particular when malfunctions start occurring render the appliance unserviceable by pulling the mains plug out of the socket and cutting off the mains lead.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse. Take the appliance to a central recycling facility.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

You can dispose used dust bags and filters in the household waste system.

This appliance complies with the Directive 2012/19/EG-WEEE-Directive.

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.
3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase.
6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Model: trend | HL 140

Item Symbol		Value	Unit Item	Unit
Heat output kW Type of input, for electric storage local space heaters only (select one)
Nominal heat output P	nom	1,7 kW	manual	heat charge control, with integrated thermostat	Yes
Minimum heat output (indicative)	Pmin	0,9 kW	manual	heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax, c	1,7 kW	electronic	heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	Yes
At nominal heat output	elmax		kW Type of heat output/room temperature control (select one)
At minimum heat output	elmin		kW single stage heat output and no room temperature control		No
In standby mode el	SB		kW Two or more manual stages. No room temperature control		No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				with distance control option No
				with adaptive start control No
				with working time limitation No
				with black bulb sensor No
