HG03911A - Christmas tree decorations MELINERA - Free user manual and instructions

Brand	Melinera
Model	HG03911A
Product Type	Christmas Tree Decoration Set with LED Fairy Lights
Light Chain Length	Approx. 11.5 m
Power Cable Length	Approx. 1.5 m
Number of LEDs	100 warm white LEDs (non-replaceable)
Total Power Consumption	4.5 W
Operating Voltage (Light Chain)	30 V DC
Mains Adapter Input	220-240 V~, 50 Hz
Mains Adapter Output	30 V DC, 120 mA, 3.6 W
Protection System	IP44 (Splashproof)
Protection Class	II (Double insulated)
Certifications	TÜV SÜD/GS (Light Chain), DEKRA/GS (Mains Adapter)
Timer Function	6 hours on, 18 hours off (repeating cycle)
Included Decorations	1 glittering tree topper, 24 glossy balls (8 each 3/5/6 cm), 24 matt balls, 24 glittering balls, 12 glossy stars (6×5 cm), 12 glittering stars, 14 glittering snowflakes (10 cm), 98 cords
Indoor/Outdoor Use	Yes (with IP44 socket protection)
Cleaning Instructions	Unplug, wipe with dry lint-free cloth only; do not use water or solvents
Bulb Replaceability	Not replaceable; entire product must be replaced if LEDs fail
Safety for Children	Not a toy; children under 8 must be supervised; packaging is suffocation hazard

Frequently Asked Questions - HG03911A MELINERA

How do I set the timer function?

Press the timer button (3) after connecting the product to power. The button will light up. The LED lights will stay on for 6 hours and then turn off for 18 hours, repeating the cycle daily. Press the timer button again to deactivate the timer.

Can I use this decoration set outdoors?

Yes, the product is IP44 splashproof and suitable for outdoor use, provided the mains socket is also protected against moisture. However, always ensure the mains adapter is not exposed to heavy rain or flooding.

What should I do if a bulb fails?

The LEDs are non-replaceable. If any LED fails, the entire light chain must be replaced. Do not attempt to open or repair the product.

Can I clean the product with water?

No. Always unplug the mains adapter before cleaning. Use only a dry, lint-free cloth. Never immerse in water or use liquids, as this poses a risk of electric shock.

What is the total length of the light chain?

The light chain is approximately 11.5 m long, with an additional 1.5 m power cable from the mains adapter.

Are the decorations included or must they be purchased separately?

The set includes a variety of ornaments: 1 tree topper, 72 balls in various sizes and finishes, 12 stars, 14 snowflakes, and 98 cords. All decorations are included in the package.

Is this product safe for children?

The product is not a toy. Children aged 8 years and above can use it under supervision. Younger children must be kept away, and packaging material poses a suffocation hazard.

Can I connect multiple light chains together?

No. The product must not be electrically connected to another light chain. Doing so may cause overheating or fire risk. Use only the supplied mains adapter.

What does the timer button light indicate?

When the timer is activated, the timer button (3) lights up continuously. If the button is not lit, the timer function is off and the lights operate continuously as long as power is supplied.

How should I dispose of the product at the end of its life?

Do not dispose of it in household waste. Take it to a local recycling facility for electrical and electronic equipment. The packaging is recyclable; separate materials according to local regulations.

USER MANUAL HG03911A MELINERA

CHRISTMAS TREE DECORATION SET

GB

CHRISTMASTREE DECORATION SET

Operation and Safety Notes

SE

JULGRANSPYNT,SET

GB Operation and safety notes Page 5

List of pictograms used....Page 6

Introduction......Page 6

Proper use......Page 6

Delivery scope......Page 6

Description of Parts Page 6

Technical data....Page 6

Safety Information......Page 7

Use Page 8

Timer function......Page 8

Cleaning and care....Page 8

Disposal Page 8

List of pictograms used
	Read the instructions!		Observe the warning and safety instructions!
	This product is suitable for indoor and outdoor use.		Danger to life and risk of accidents for infants and children!
	Volt (Alternating voltage) Warning! Dar f electric shock!
	Hertz (Frequency)		This icon indicates that the product is mains operated.
	Watt (effective power)		This icon indicates that the length of light chain is approx. 11.5 m and the power cable is approx. 1.5 m
	Protection class II

Christmas Tree Decoration Set

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is suitable for indoors and outdoor use. This product is intended for use in private, domestic environment only

and not for commercial purposes.

- Delivery scope

1 LED Fairy Lights

1 mains adapter

1 glittering tree topper
8 x 3 cm glossy balls
8 x 3 cm matt balls
8 x 3 cm glittering balls
8 x 5 cm glossy balls
8 x 5 cm matt balls
8 x 5 cm glittering balls
8 x 6 cm glossy balls
8 x 6 cm matt balls
8 x 6 cm glittering balls
6 x 5 cm glossy stars
6 x 5 cm glittering stars
14 x 10 cm glittering snowflake
98 x cord
1 instructions for use

● Description of Parts

1 LED Fairy Lights
2 Mains adapter
3 Timer button

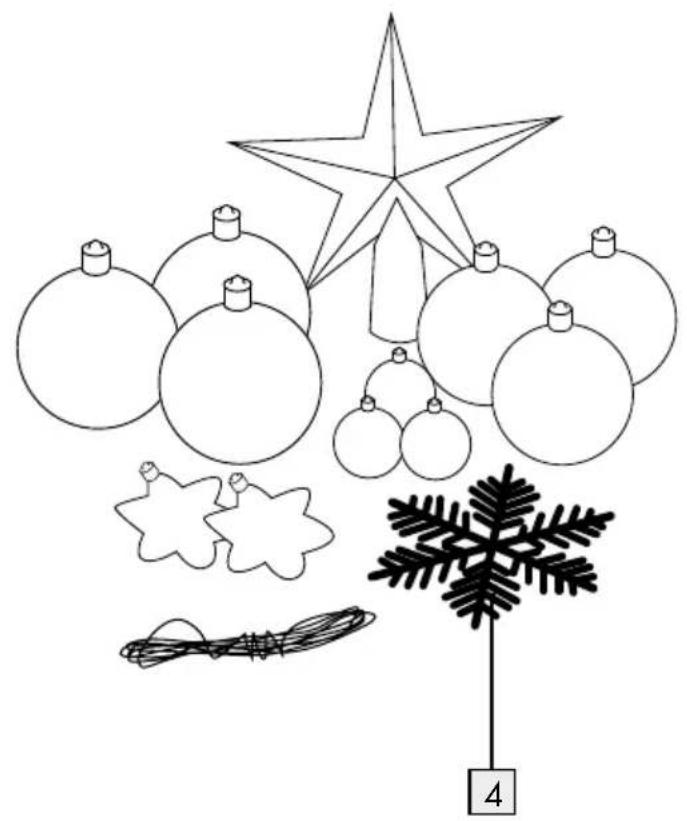

4 Decorations

- Technical data

Light chain + mains adapter:

Total power

consumption: 4.5 W

LED Fairy Lights 1:

Operating voltage: 30V === (direct current)

LEDs: 100 LEDs x max. 0.06 W,

3 V===(direct current)

(bulbs are non-replaceable)

Protection system: IP44 (Splashproof)

LED Fairy Lights (Model No. HG03911A /

HG03911B/HG03911C)

TÜV SÜD/GS certified.

LED-Colour: Warm white

Mains adapter 2:

Nominal voltage

primary: 220-240 V\~ (alternating

current), 50 Hz

Nominal voltage

secondary:30V

= = (direct current),

120 mA, 3.6 W

Protection system: IP44 (Splashproof)

Protection class: ☐ / II

Mains adapter (Model No. EDD-300036-IP44)

DEKRA/GS certified.

Safety Information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

DANG RORNING!

DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

■ Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.

■ After use, keep the product in the packaging to prevent unwanted damage.
- Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
- Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V\~).
Before connecting the product to the mains you should always check the product for any damage.
- Please ensure that all the bulb fitting sockets have a bulb in them.
■ Never use the product if you discover that it is damaged in any way.
This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
Only use the product with the supplied mains adapter 2 for the type (Model No. EDD-300036-IP44); all warranty claims will otherwise expire.

■ Never open any of the electrical parts or insert any kind of object into them.
■ Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not install with sharp fasteners or nails.
■ Always unplug the mains adapter 2 from the socket before installation, dismantling or cleaning.
■ Never touch the product plug or the product itself with wet hands.
- The product must not be electrically connected to another light chain.
If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is protected against splashes of water (IP44) as long as the socket meets the minimum protection standard.
The product is only suited for use with the included mains adapter (EDD-300036-IP44).
Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.
The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.

Use

Note: Remove all packaging materials from the product.

☐ Insert the LED fairy light 1 into the socket of the mains adapter 2. Turn clockwise tighten the union nut.
☐ Plug the mains adapter 2 into the socket.
☐ The product is now switched on and you can hang the decoration 4 and the LED fairy light 1 on the tree.

☐ To switch the product off, disconnect the mains adapter 2 from the socket.

Note: Do not hang any decoration 4 on cord, wire, or lightchain.

- Timer function

To switch on the timer function, press the timer button 3 after the product is connected to the socket of power supply. The timer button 3 will light up when the timer function is activated.
☐ The product glows permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press the timer button 3 again and the light of the button 3 will be turned off.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First remove the mains adapter 2 from the socket.

CAUTION! DANGER OF ELECTRIC

SHOCK! For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

- Do not use any solvents, petrol or similar items. This would damage the product.

☐ Only a dry, lint-free cloth should be used for cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7:

plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

CE IP44

Model no.: HG03911A/HG03911B/HG03911C

Version: 06/2018
